DD06CVSA 5V/2A Charge/Discharge/Boost/Protection 3.7V 4.2V Battery DC-DC Diy Module

DD06CVSA 5V/2A Charge/Discharge/Boost/Protection 3.7V 4.2V Battery DC-DC Diy Module

DD06CVSA

996 in stock

$1.99
$3.00 $1.99
Sale Sold out

Product Name:   4 in 1 2.1A 4.2V Charge Discharger DC-DC Boost Converter 3.7V to 5V UPS Power Supply Module



Packing list:    1 PCS DD06CVSA 5V/2.1A Mobile Power Diy Module



Description:

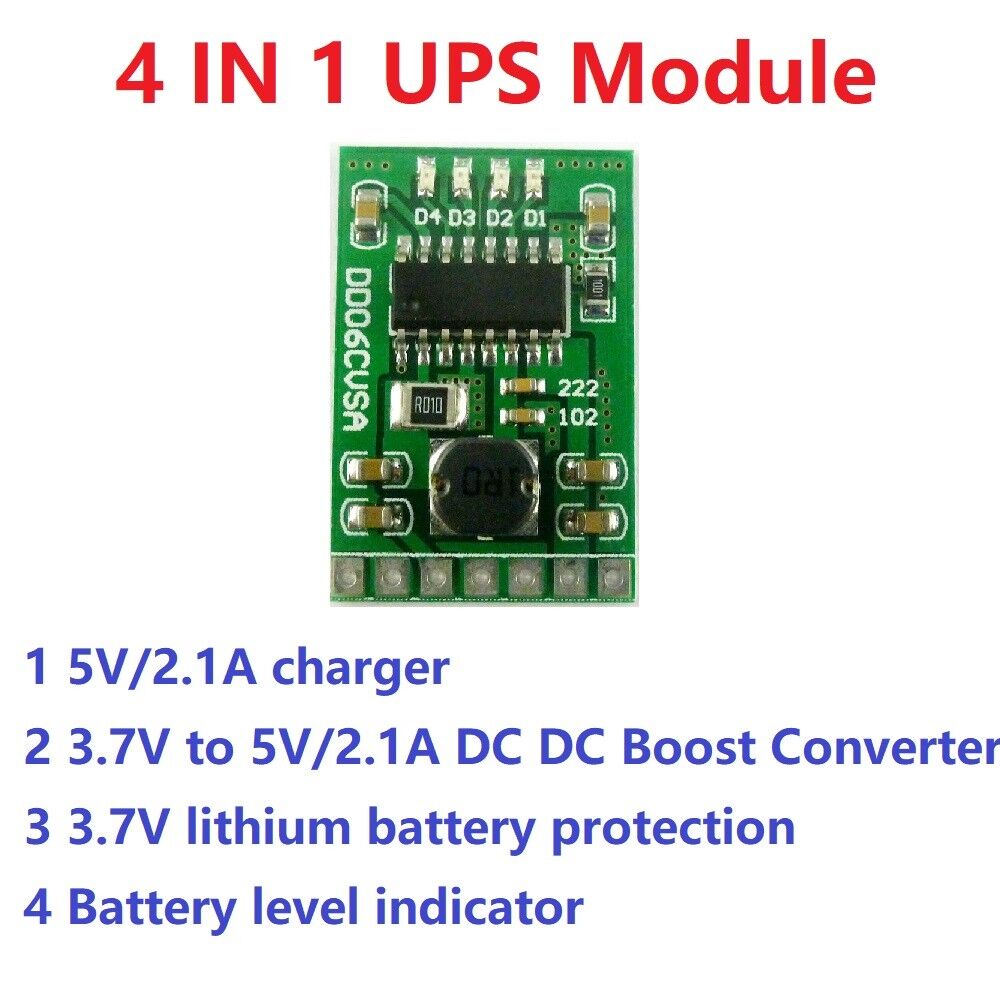

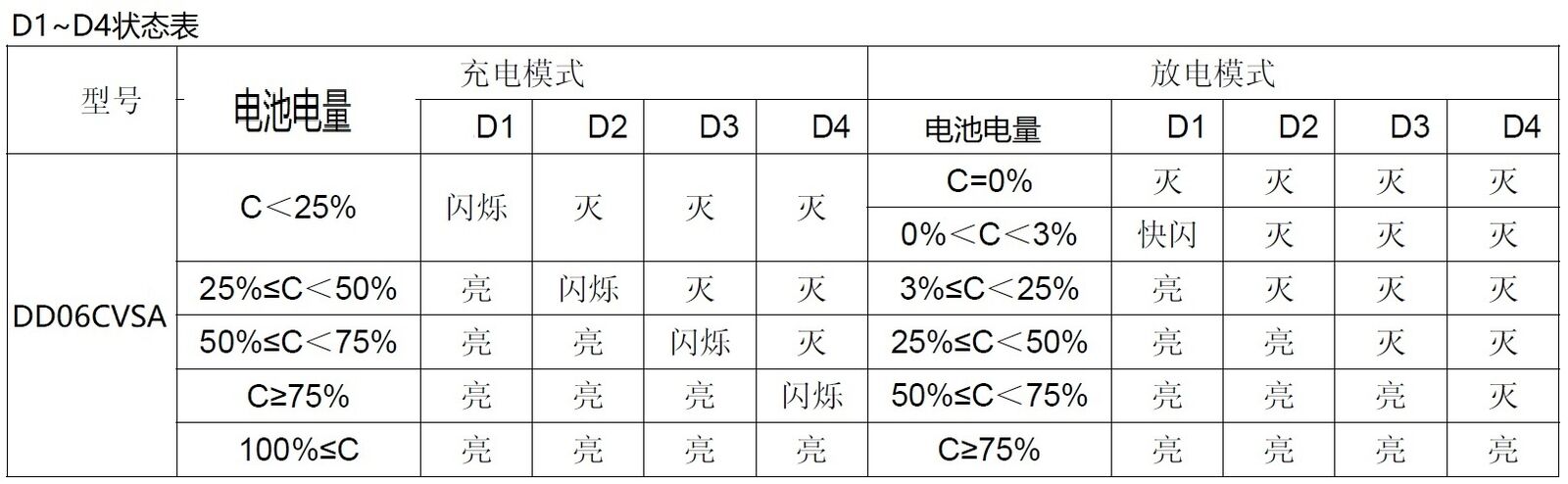

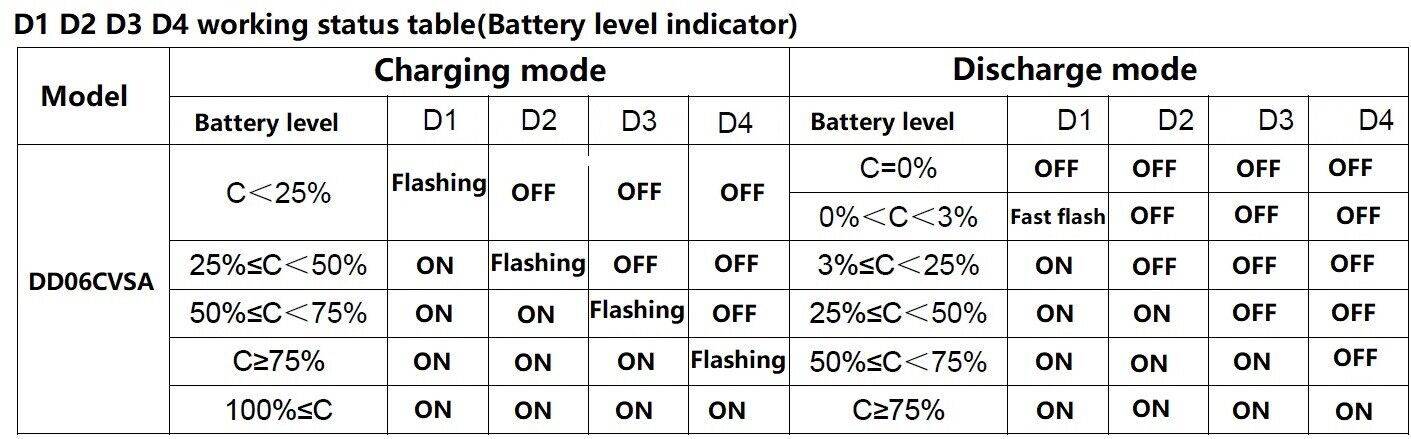

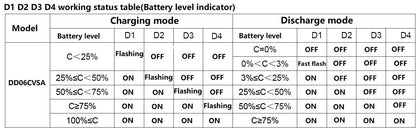

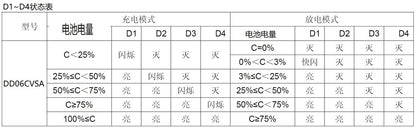

4 in 1 charge/Discharger(boost)/battery protection/Battery level indicator modules

DD06CVSA is a multifunctional 3.7V/4.2V Mobile Power Diy module,3 in 1 Function: charge,discharge and battery protection.
It is very suitable for DIY mobile power.

Charge voltage : DC 4.5V-5.2V(If the power supply is 5.2V-5.5V, please parallel diodes (eg SS34 SMB))

Charging current : 0-2.1A

Charge quiescent current : 100uA

Full charge voltage : 4.2V+-1%.

Discharge current : 0-3.5A;

Discharge quiescent current : 50uA

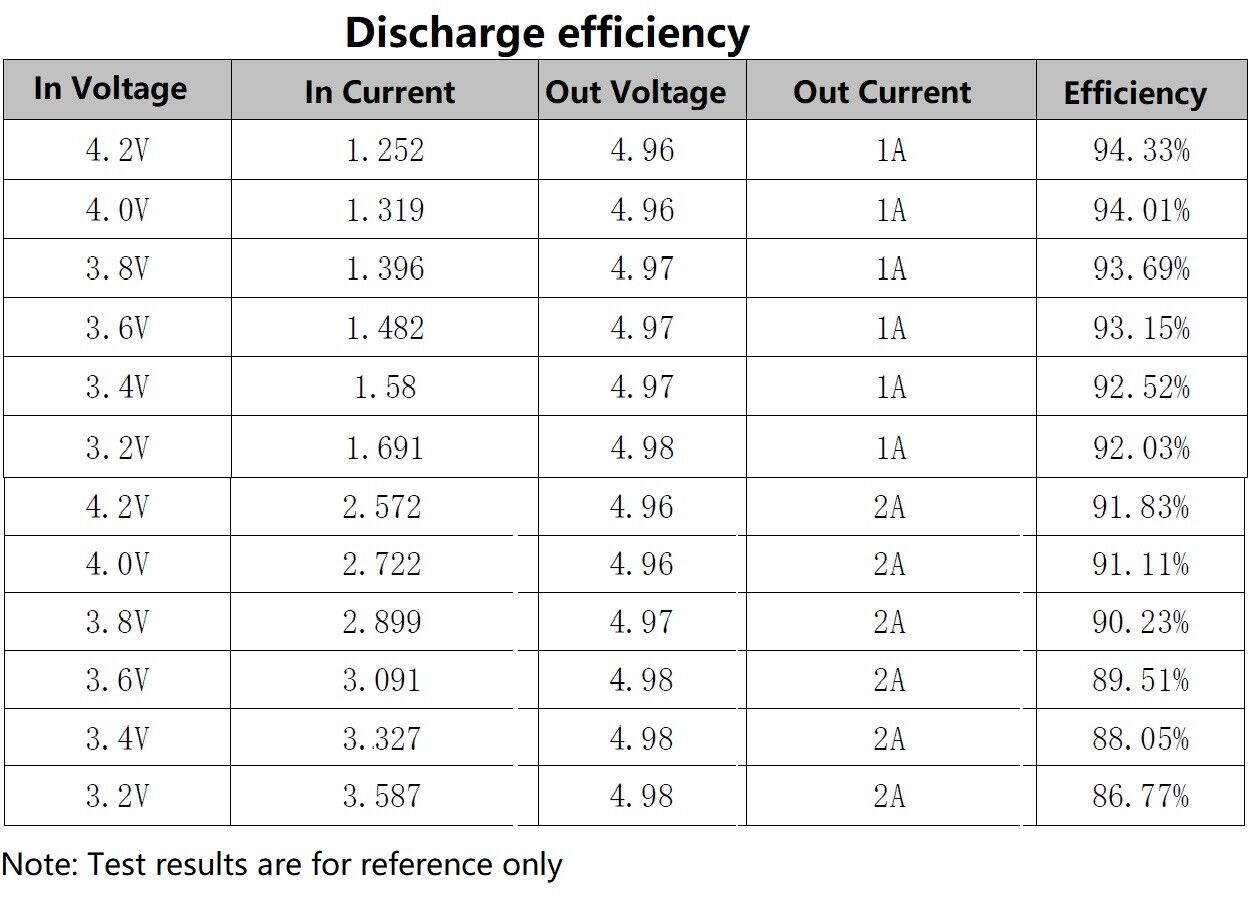

Discharge conversion efficiency : maximum 96%

Output voltage : 5V

Output current : 0-2.1A;

Operating ambient temperature : -20° to +85°

Size : 26.7 x 18.1 x 5.7mm

Weight : 1.9g





Comes with battery protection, do not need battery protection board

(if your battery comes with a protective board, it does not matter)

Overcurrent protection(OCP)

Overvoltage protection(OVP)

Short circuit protection(SCP)

Over temperature protection(OTP)

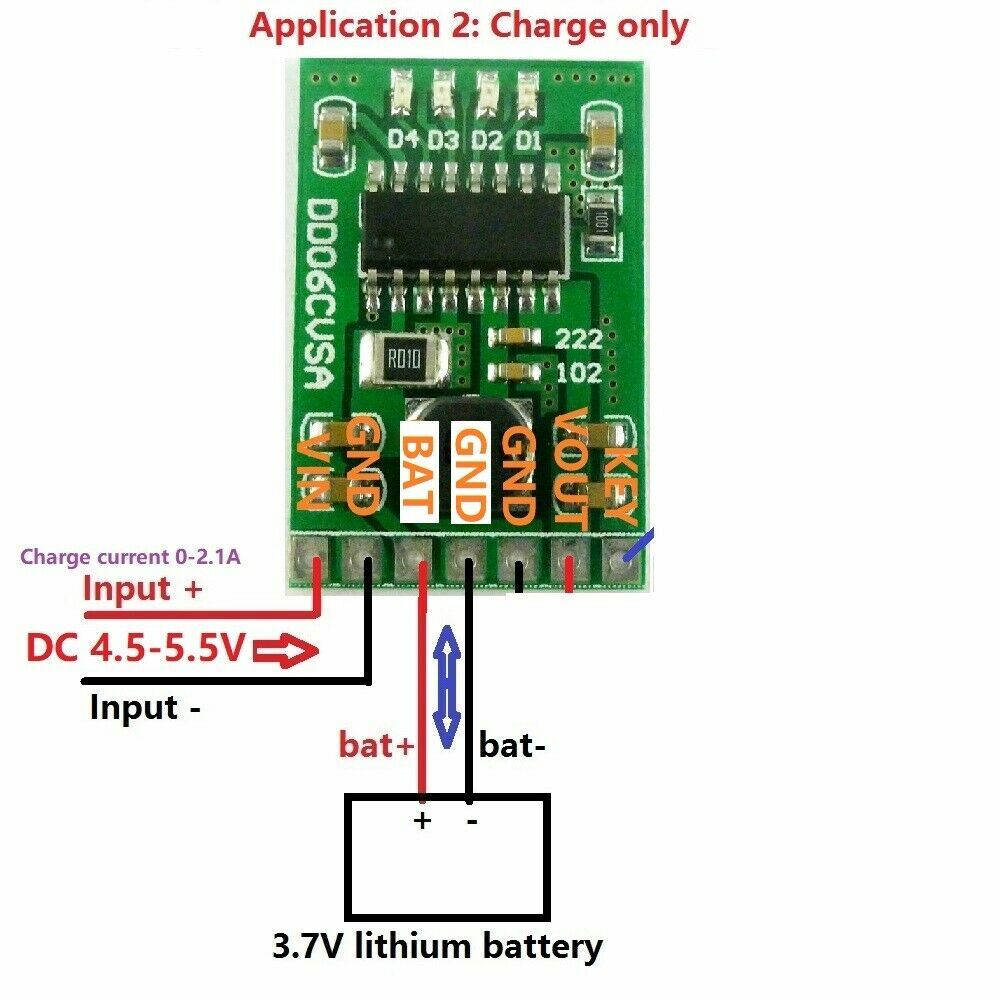

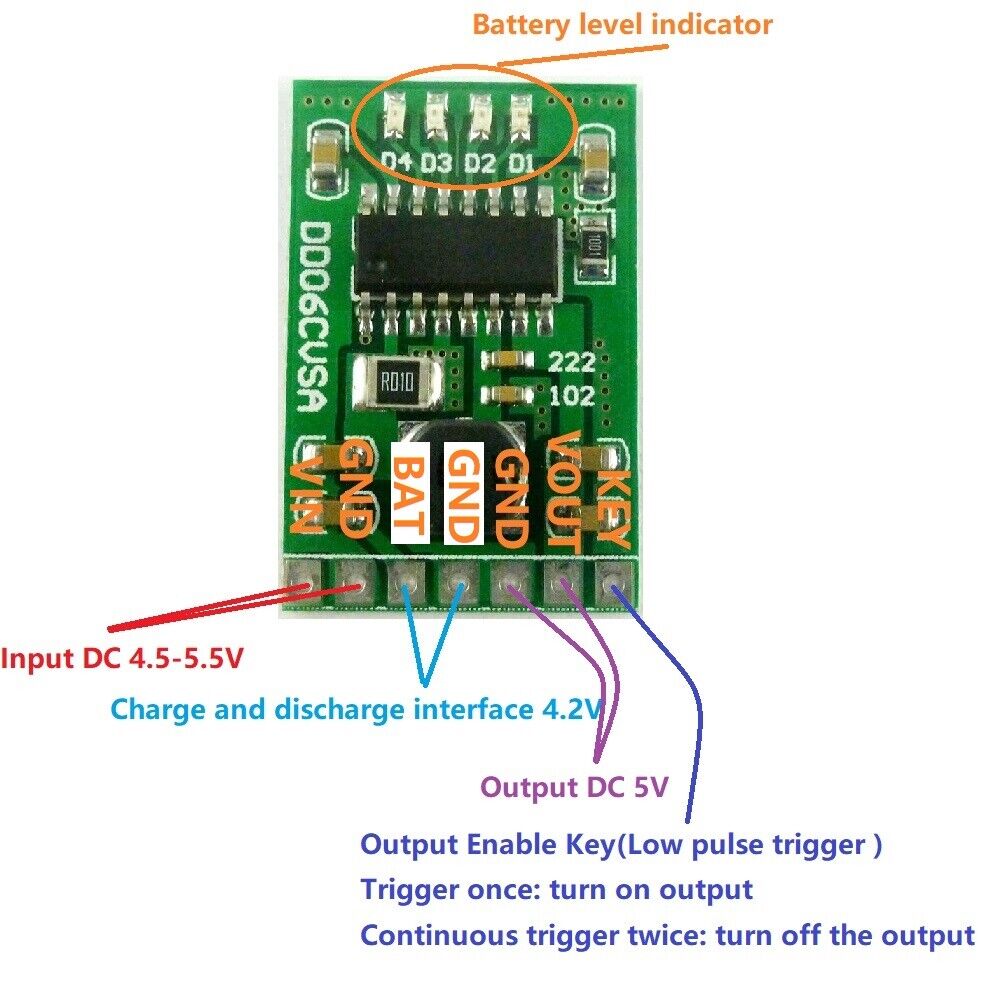

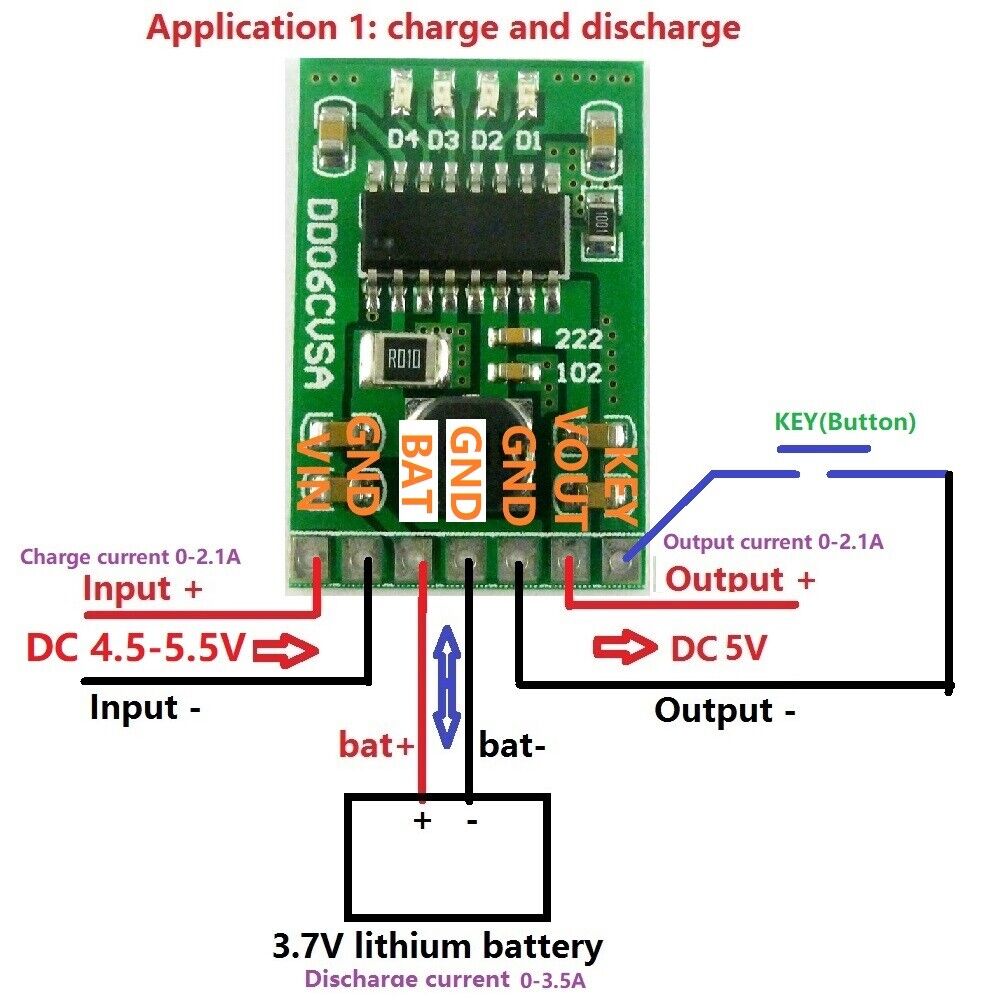

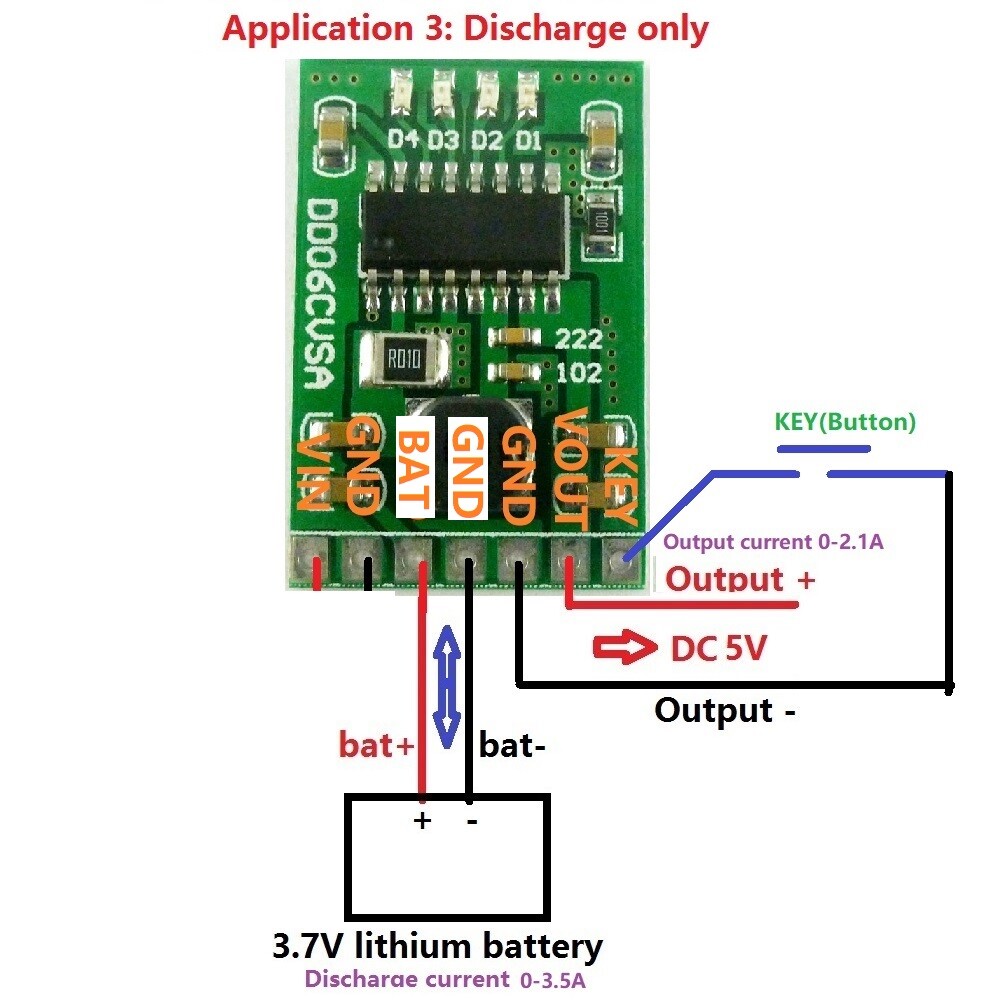

Pin description:

1 VIN : Charging port +

2 GND : Charging port -

3 BAT : Battery port +

4 GND : Battery port -

5 GND : Output port -

6 VOUT: Output port +

7 KEY : Output trigger port(Low pulse trigger)



1  In discharge mode(In the charging mode,the KEY function is invalid),
    the KEY Trigger once,turn on the output;Continuous trigger twice: turn off the output.

2  When the load access, it will automatically turn on the output.
    But if the load is less than 50MA, the output will be turned off after 30 seconds

3  While charging, while discharge, it is allowed




NOTE:

If the output load current is less than 50MA, turn off the output after 30 seconds.

If the output load current is greater than 50MA,continuous turn on the output




Applications:

Battery powered equipment

Lithium Battery 18650 14500

Mobile phone diy

Solar charging

MP3/MP4 player

Audio equipment

Video equipment

Portable Devices

Bluetooth Wifi Applications

MCU development board
