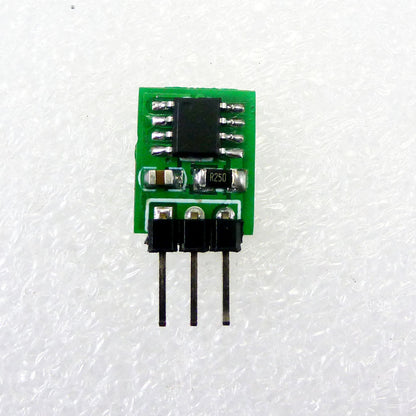

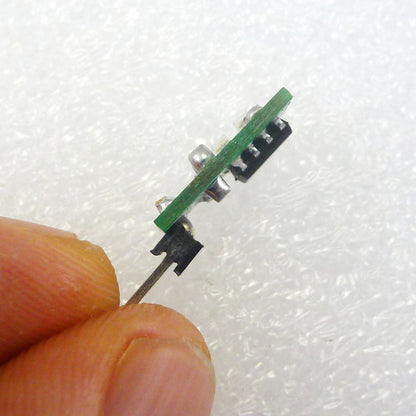

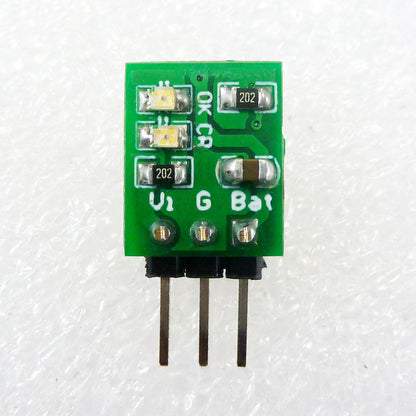

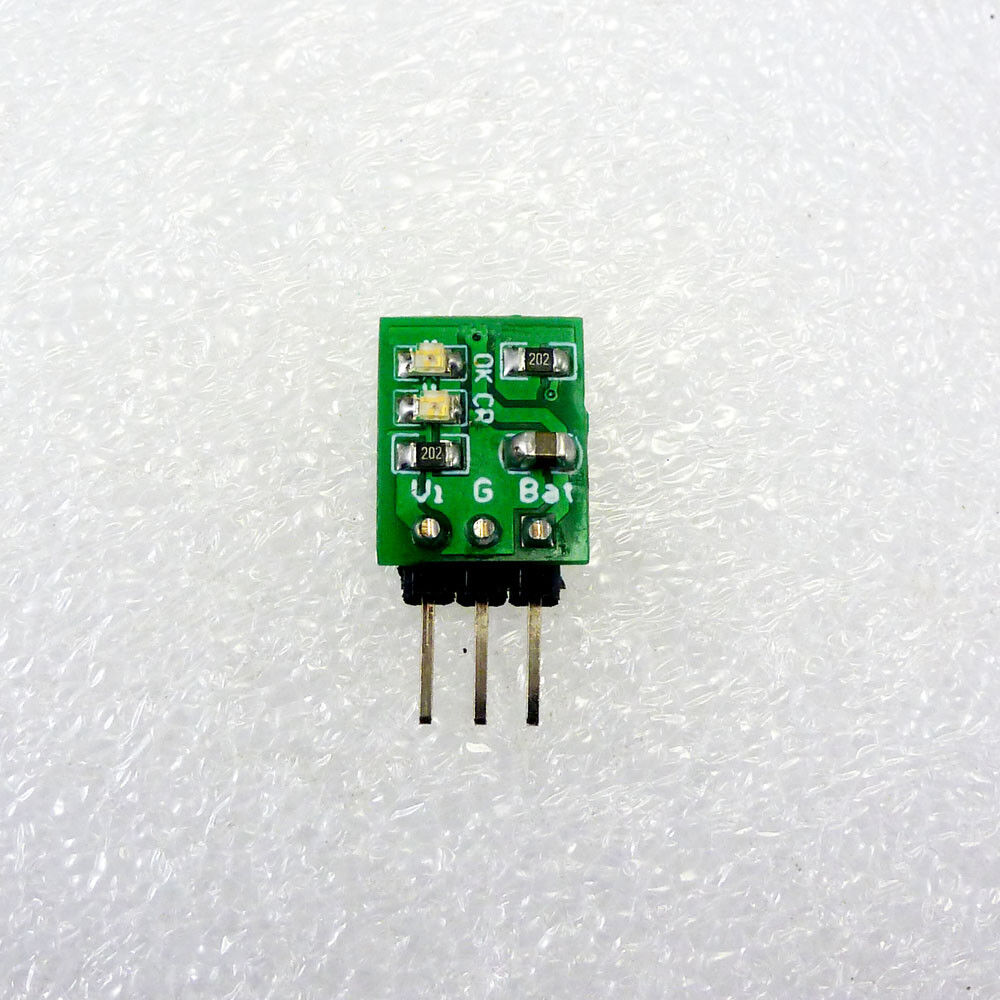

DD08CRMA 1A Ultra-small Rechargeable Battery Charger Module
DD08CRMA 1A Ultra-small Rechargeable Battery Charger Module
SKU:DD08CRMA
1000 in stock
Regular price
$0.99
Regular price
$4.24
Sale price
$0.99
Unit price
per
Couldn't load pickup availability
Product Name: DD08CRMA 1A Ultra-small Rechargeable Battery Charger Module ME4056 instead TP4056
Packing list:
1 PCS DD08CRMA Mini Battery Charger Module
Description:
Mini Lithium Battery Charger Module - Linear charging.

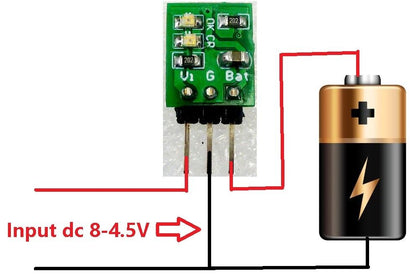

Input voltage : DC 4.5V-8V(Recommend DC 5V)
Maximum charging current : 1000MA
Full charge voltage : 4.2V+-2%.

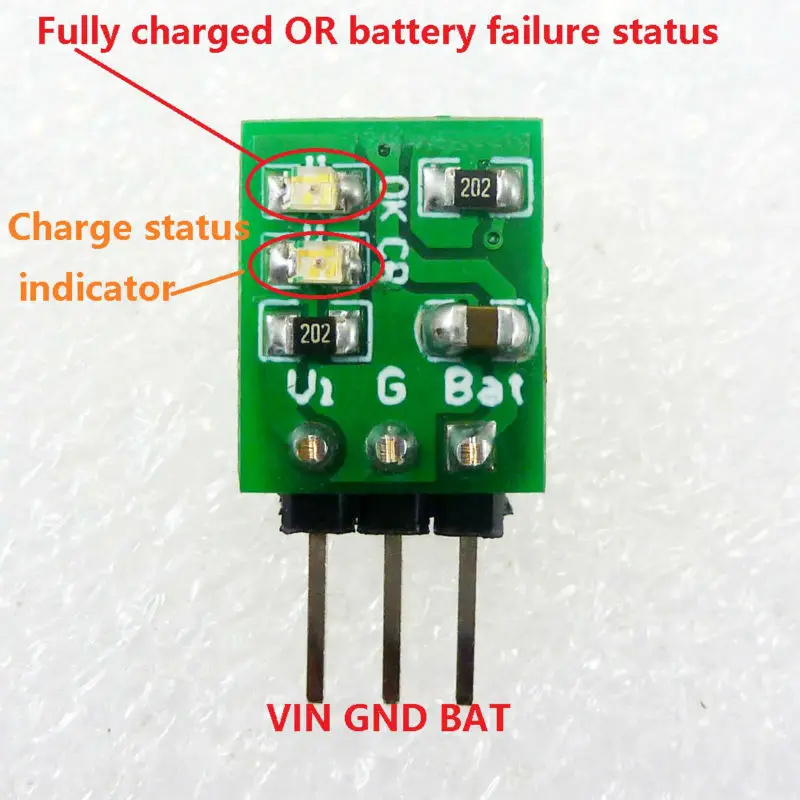

Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Except pin size : 12.3mm*10mm*4mm(
very small!!!)
Weight : 0.7g(
Very light!!!)
2.54MM pin can be inserted directly into the breadboard
Can be used DC 5-6V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge
Comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.
Applications:
Battery powered equipment
Lithium Battery 18650
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Bluetooth Applications
