DD08CRMB Trickle/Constant Current/Constant Voltage Multifunctional Lithium Battery Charge Manager 1A 4.2V Li-ion/Li-Po Charger DD08CRMB
DD08CRMB Trickle/Constant Current/Constant Voltage Multifunctional Lithium Battery Charge Manager 1A 4.2V Li-ion/Li-Po Charger DD08CRMB
SKU:DD08CRMB_MINI
1000 in stock
Regular price
$1.99
Regular price
$1.99
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Product List:
1PCS Mini 3.7V 4.2V 1A Li-ion/Li-PO Lithium Battery Charger Module Automatic Recharge 1/C Stop BMS Charge
1PCS Mini 3.7V 4.2V 1A Li-ion/Li-PO Lithium Battery Charger Module Automatic Recharge 1/C Stop BMS Charge

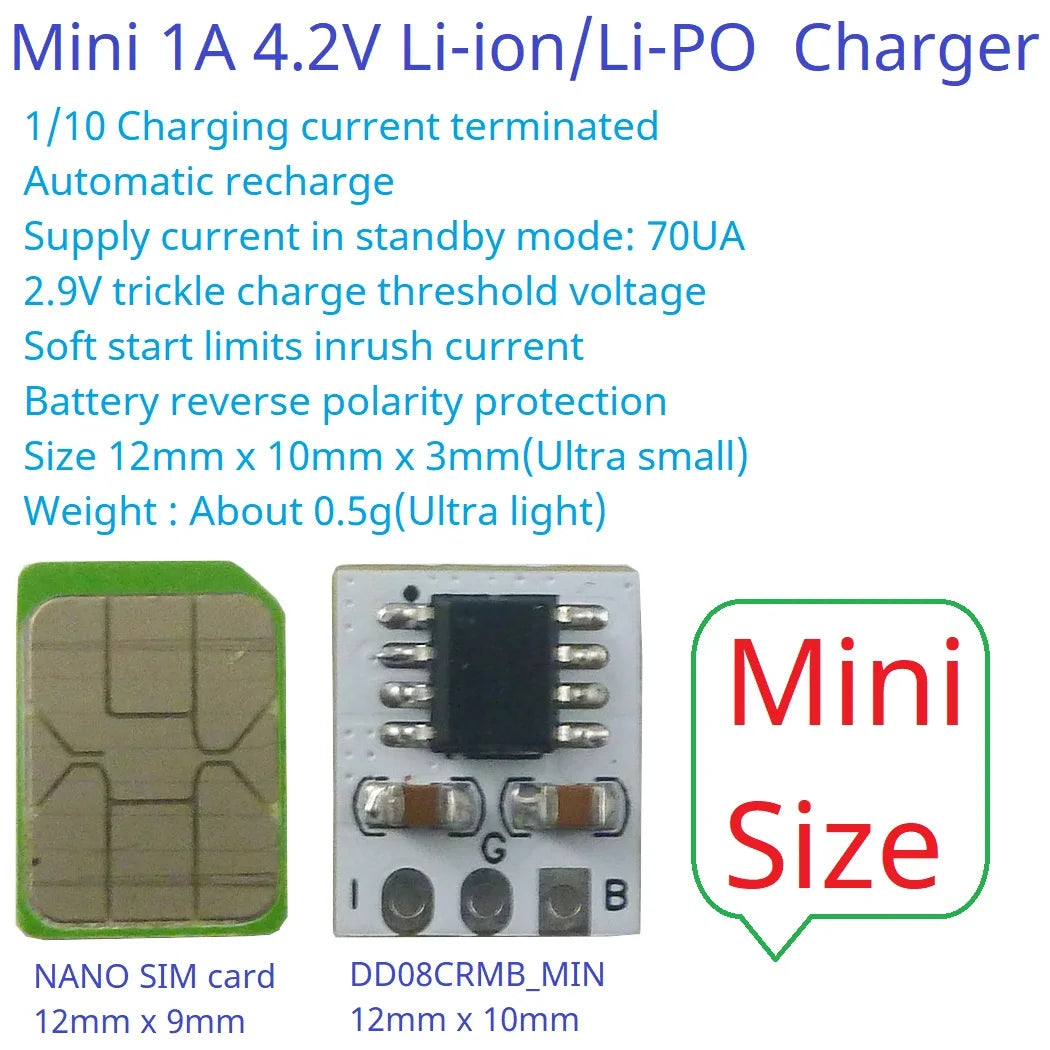

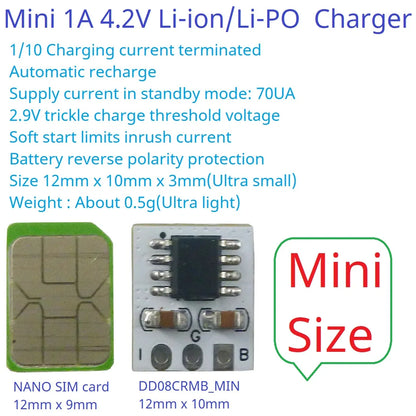

Feature:
1/10 Charging current terminated
Automatic recharge
Supply current in standby mode: 70UA
2.9V trickle charge threshold voltage
Soft start limits inrush current
Battery reverse polarity protection
Description:

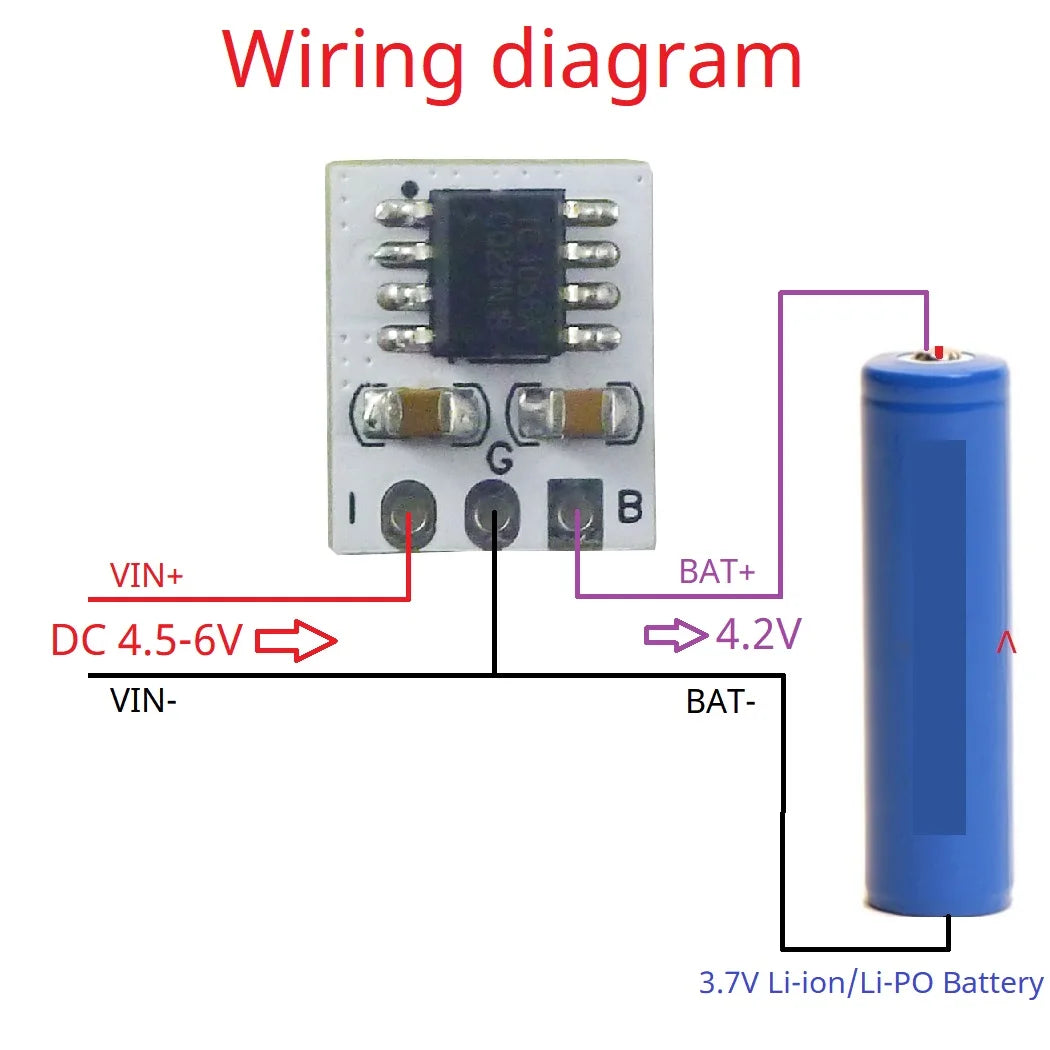

Input voltage : DC 4.5V-7V(Recommend DC 5V)
Maximum charging current : 1000MA(Can be changed by replacing the R1 resistor)
Full charge voltage : 4.2V+-1%.
Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +150°

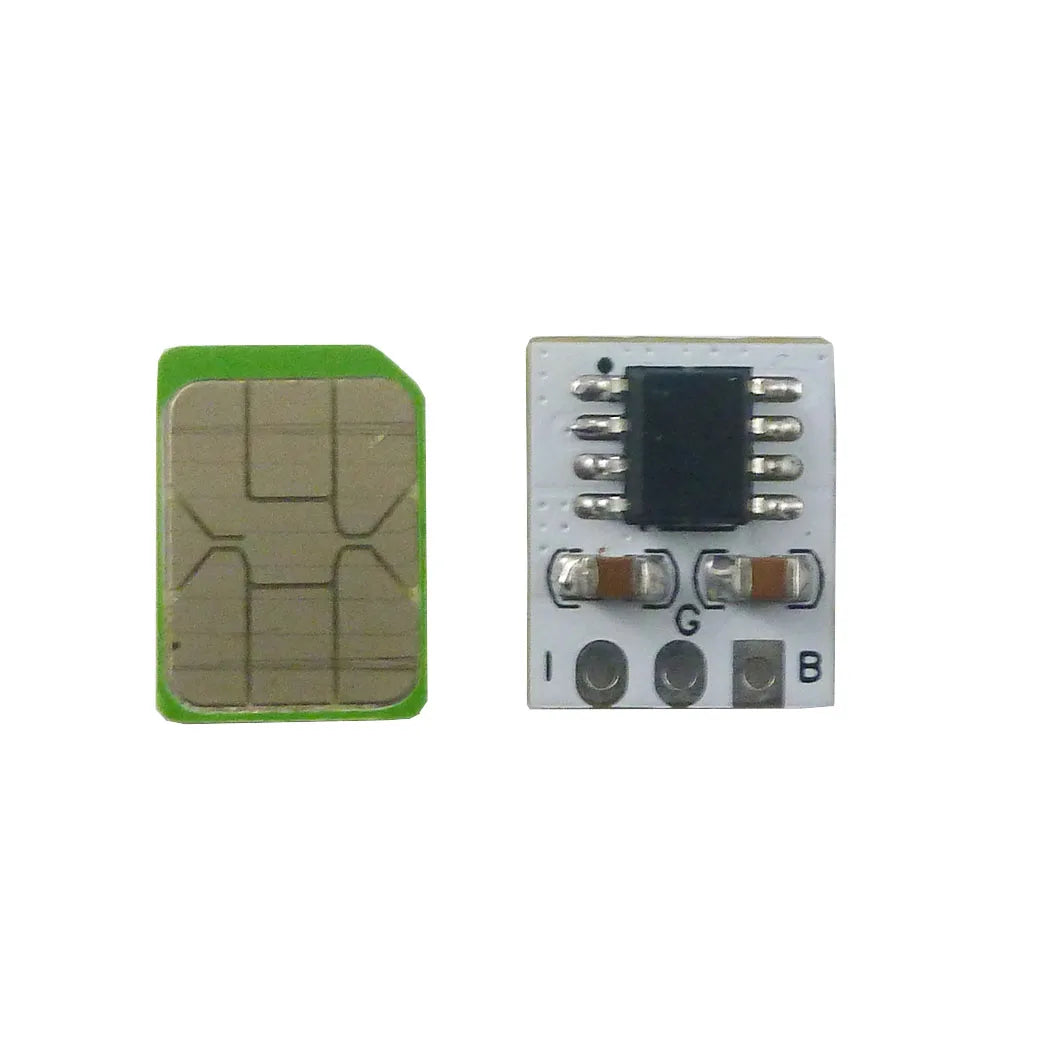

Size 12mm x 10mm x 3mm(Ultra small)
Weight : About 0.5g(Ultra light)
1/10 Charging current terminated
Automatic recharge
Supply current in standby mode: 70UA
2.9V trickle charge threshold voltage
Soft start limits inrush current
Battery reverse polarity protection
Description:
Input voltage : DC 4.5V-7V(Recommend DC 5V)
Maximum charging current : 1000MA(Can be changed by replacing the R1 resistor)
Full charge voltage : 4.2V+-1%.
Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +150°
Size 12mm x 10mm x 3mm(Ultra small)
Weight : About 0.5g(Ultra light)
2.54MM pin can be inserted directly into the breadboard
Can be used DC 5-6V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge
Comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.
Applications:
Battery powered equipment
Li-ion/Li-PO Lithium Battery 18650
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Bluetooth Applications

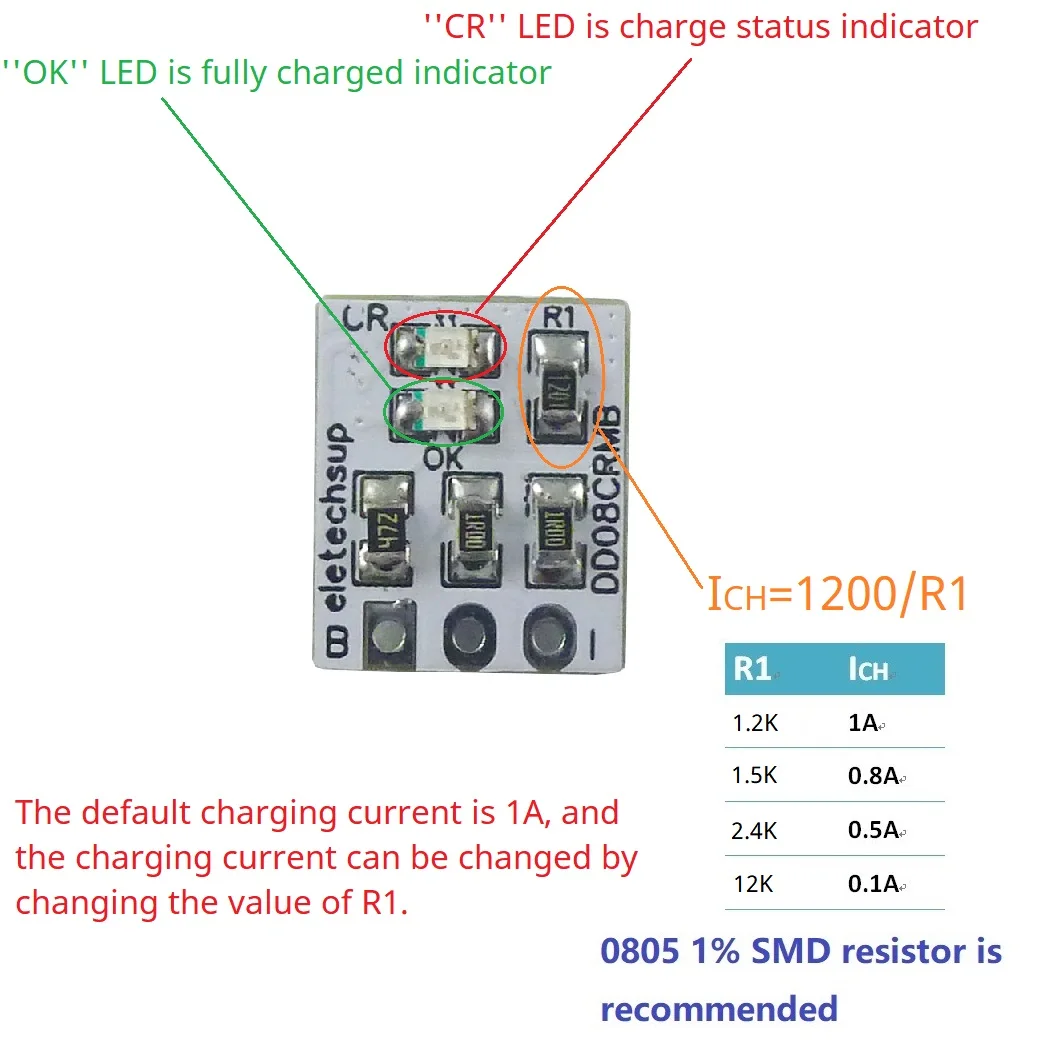

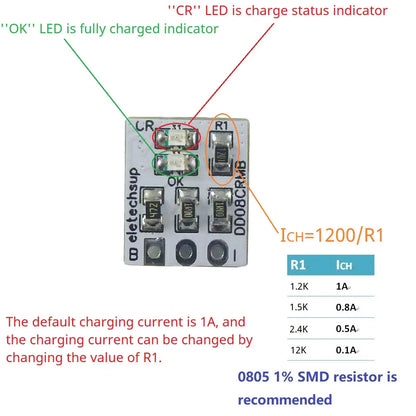

The charging current can be changed by changing the value of resistor R1
0805 1% SMD resistor is recommended
