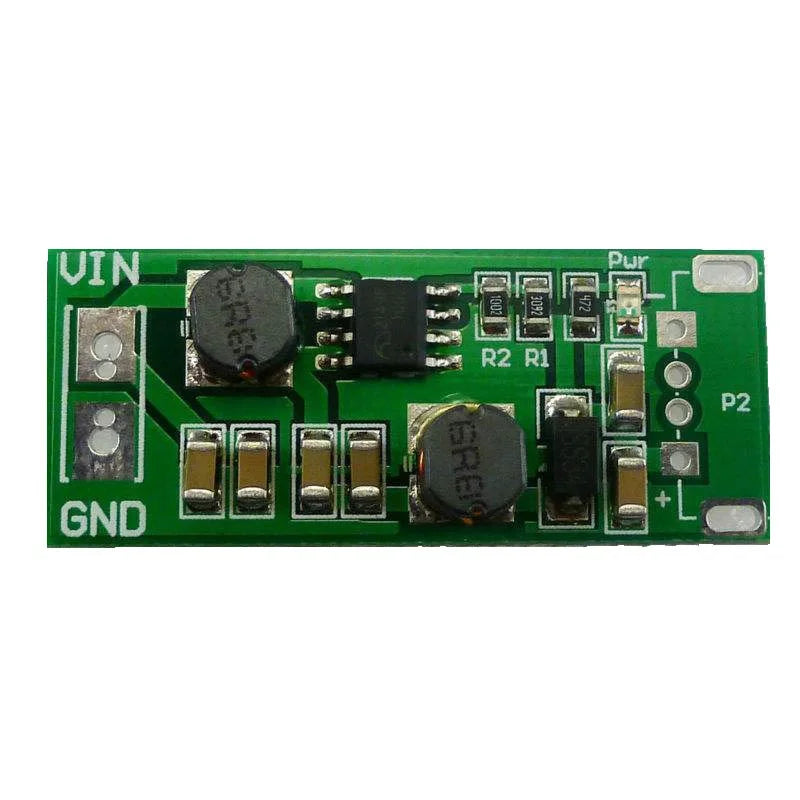

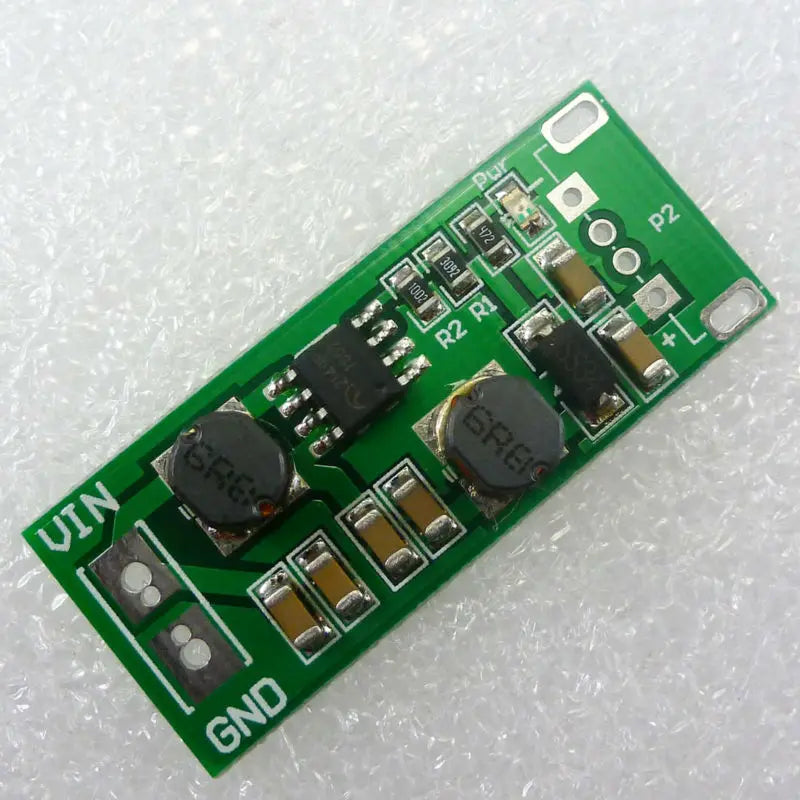

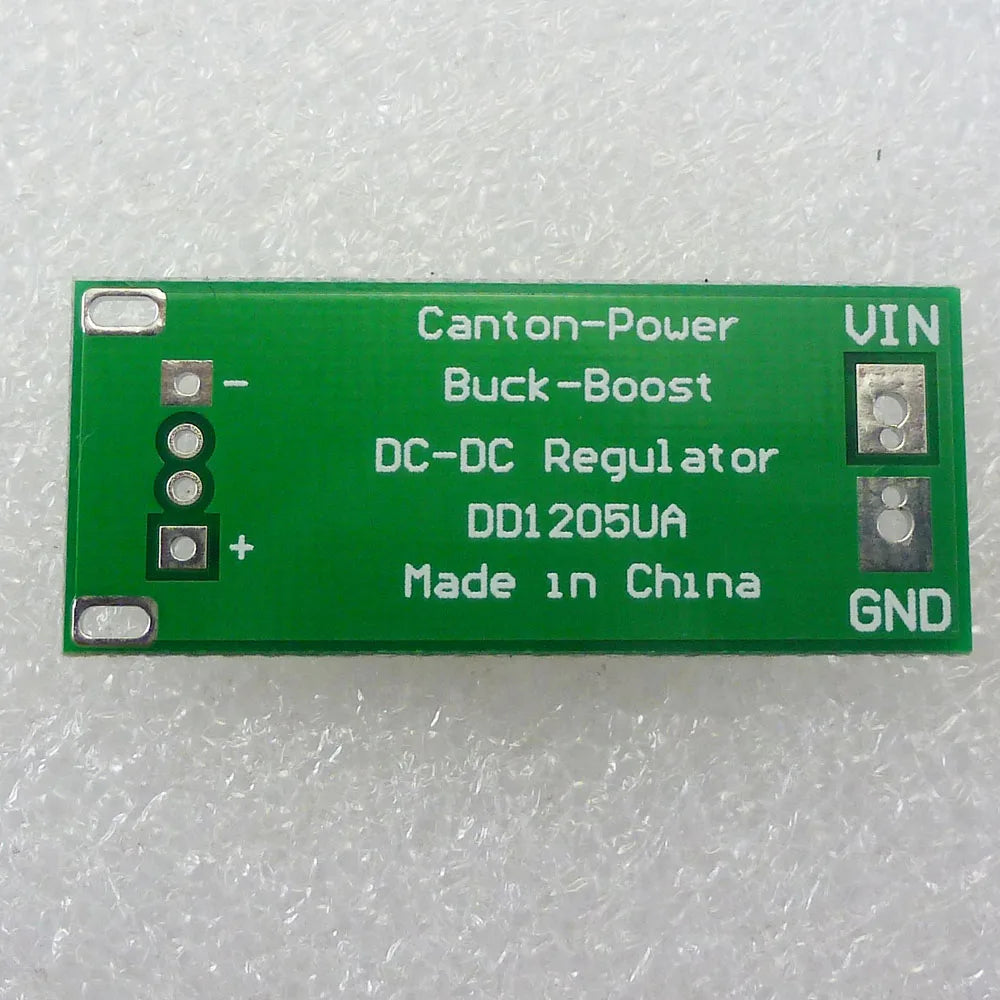

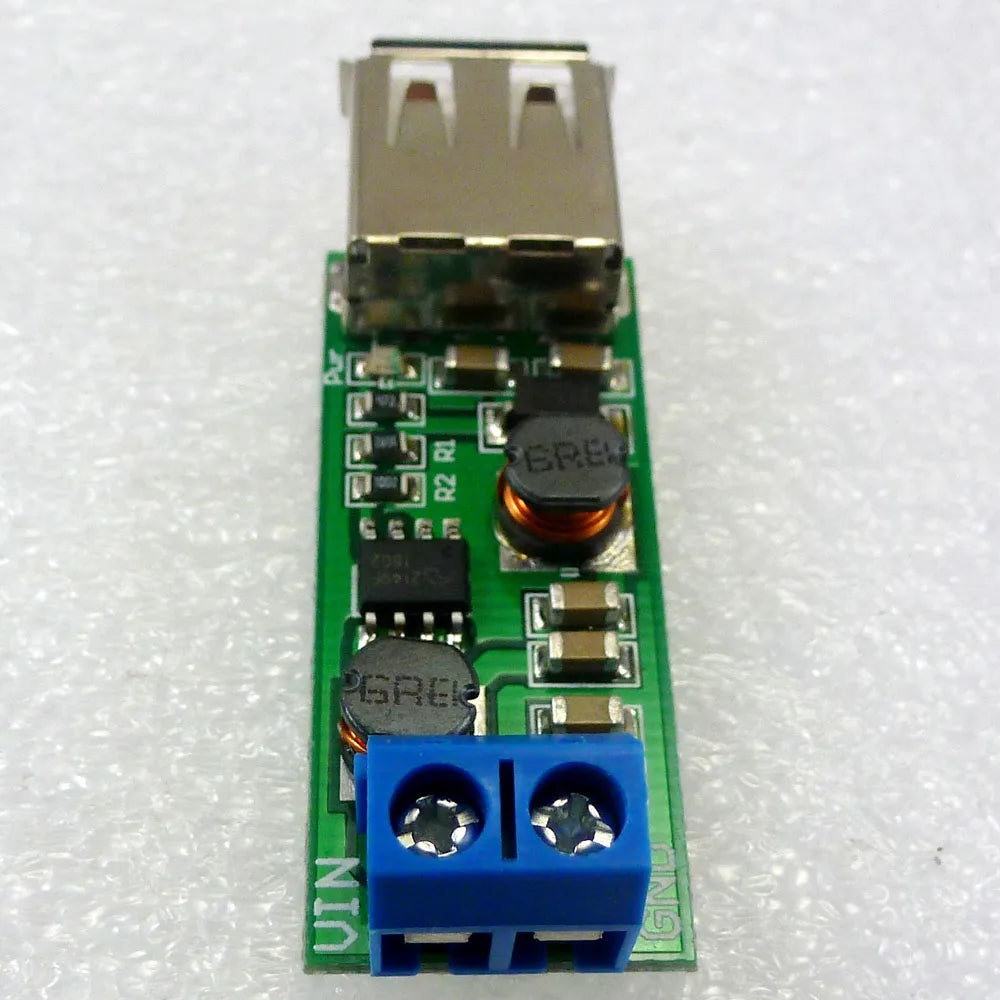

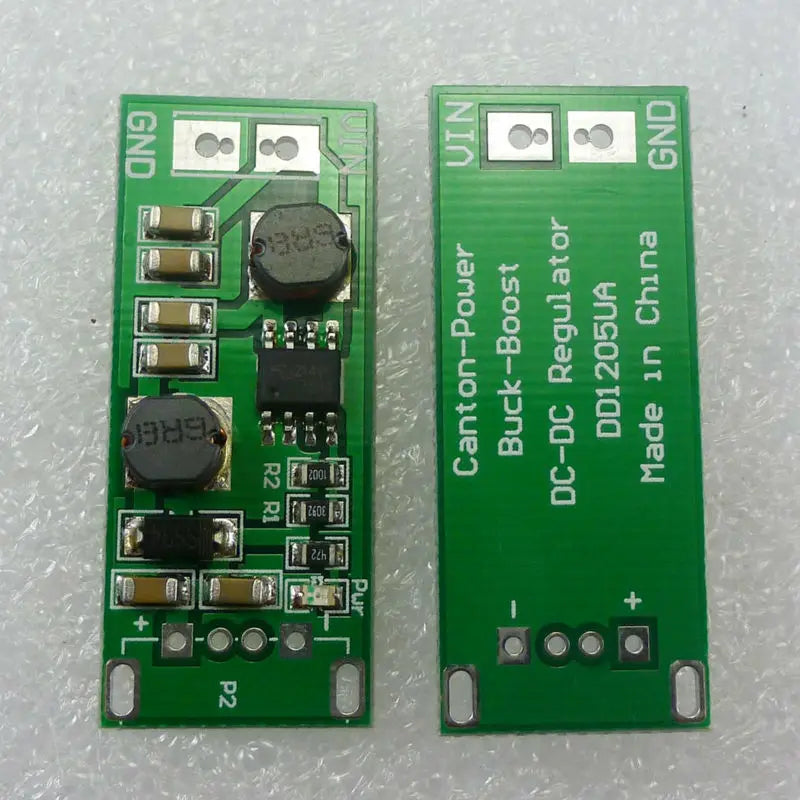

DD1205UA 1.5V 3V 3.3V 3.7V 6V to 5V DC DC buck-boost converter step up down Voltage regulator Module

DD1205UA 1.5V 3V 3.3V 3.7V 6V to 5V DC DC buck-boost converter step up down Voltage regulator Module

DD1205UA

1000 in stock

$3.99
$3.99 $3.99
Sale Sold out









Product Name:DC1-6.5V To 5V Auto step-Up Step-Down DC-DC Converter For LED Motor 18650 Solar Panel Charger GPS Wireless Transceiver

Packing l Auto buck-boost Voltage regulator (input DC 1-6V , output DC 5V+-6%) ;

Description:

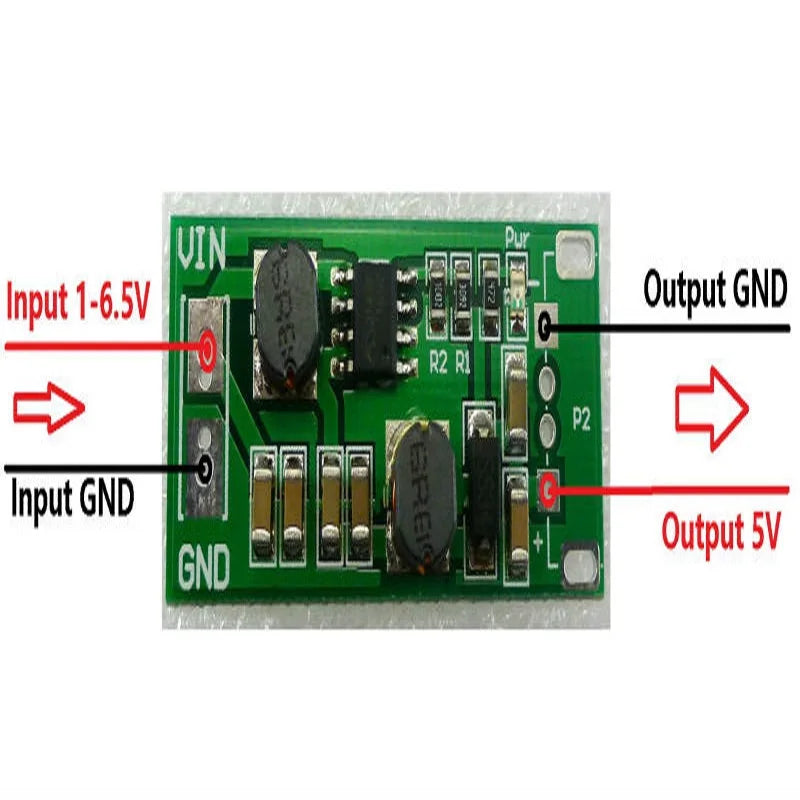

Input voltage DC 1 ~ 6V, output DC 5V(+-6%)


The maximum input voltage can not exceed 6.5V


Short-term maximum output current : 12000mA


Long time maximum output current: 1000mA


Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .


Operating temperature range : -25~+85 Degrees Celsius


Storage temperature range : -45~+125 Degrees Celsius


Size : 47mm x 16mm x 13.7mm


Weight : 6.4g











Applications:







Battery powered equipment


Wireless Module,NRF24L01 CC1101 CC2500 etc.


MCU Development Board,AVR PIC FPGA/CPLD STM32


Arduiuo uno mega2560 due Breadboard Raspberry Pi


LED Lighting


Wireless communication equipment


Audio equipment


Digital cameras,GPS,wireless transceiver


Portable devices


18650 solar panel charger







Attention :




This is a DC-DC voltage converter module,Must be noted when using:


1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:



Q : Why output voltage is less than the nominal voltage


A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
