Packing list:

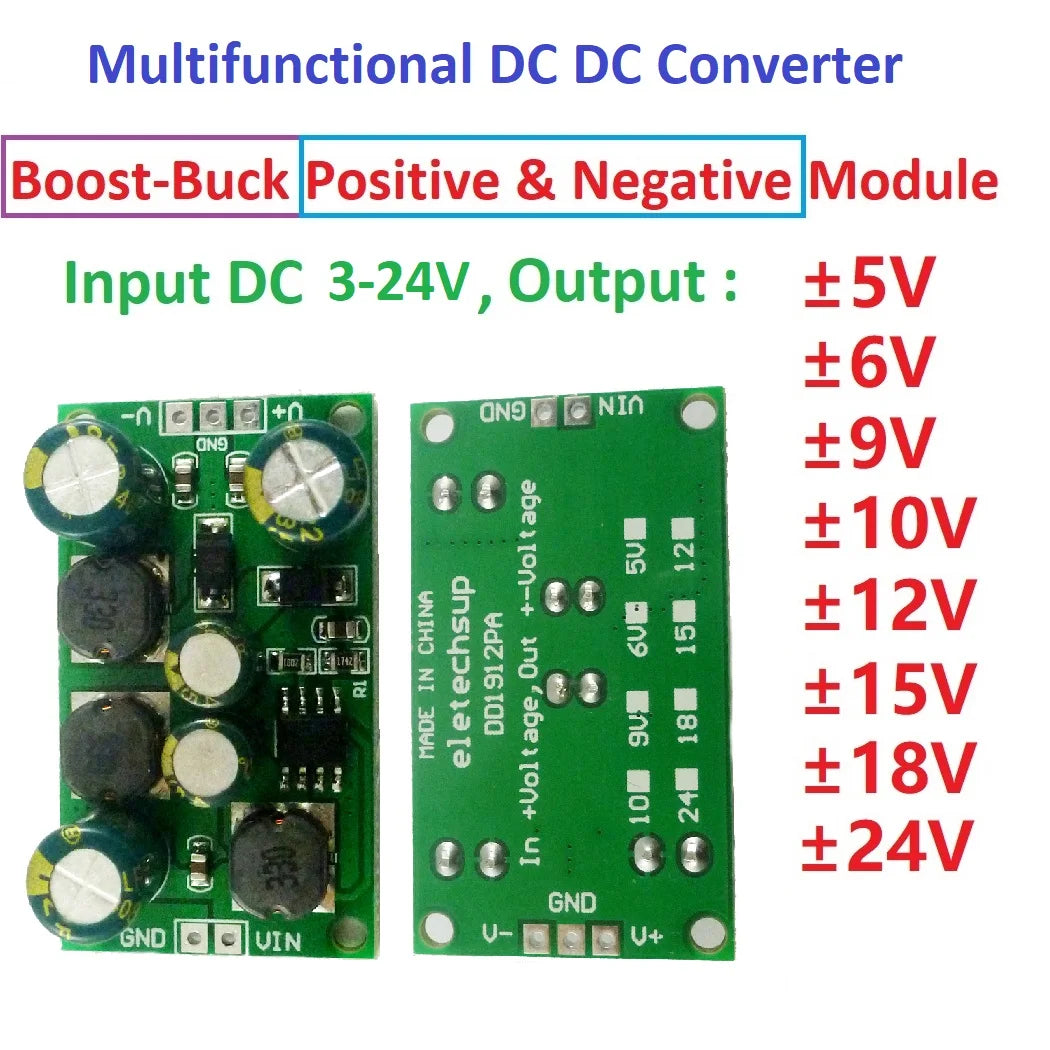

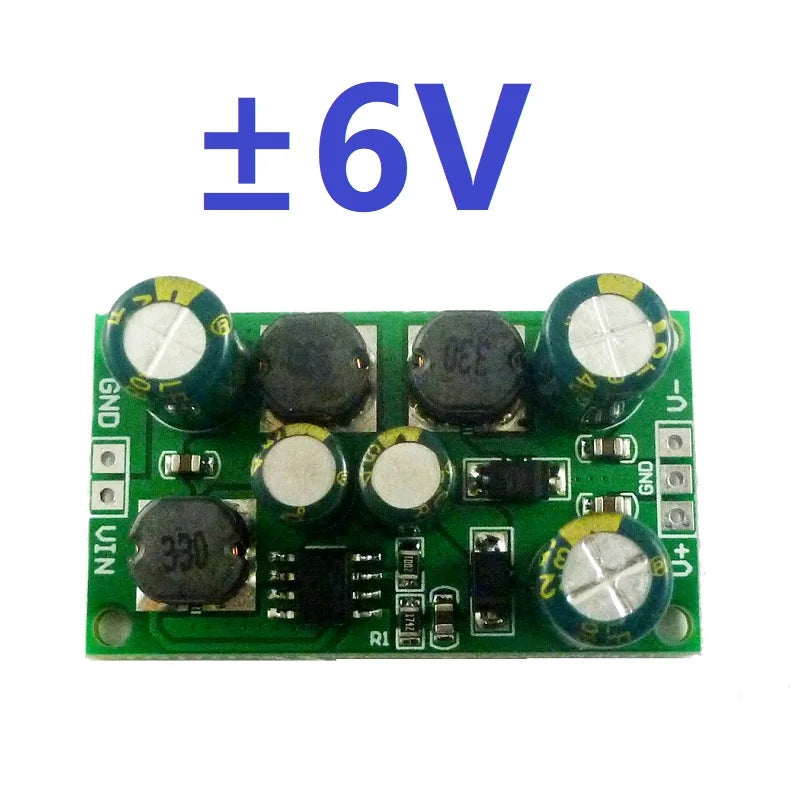

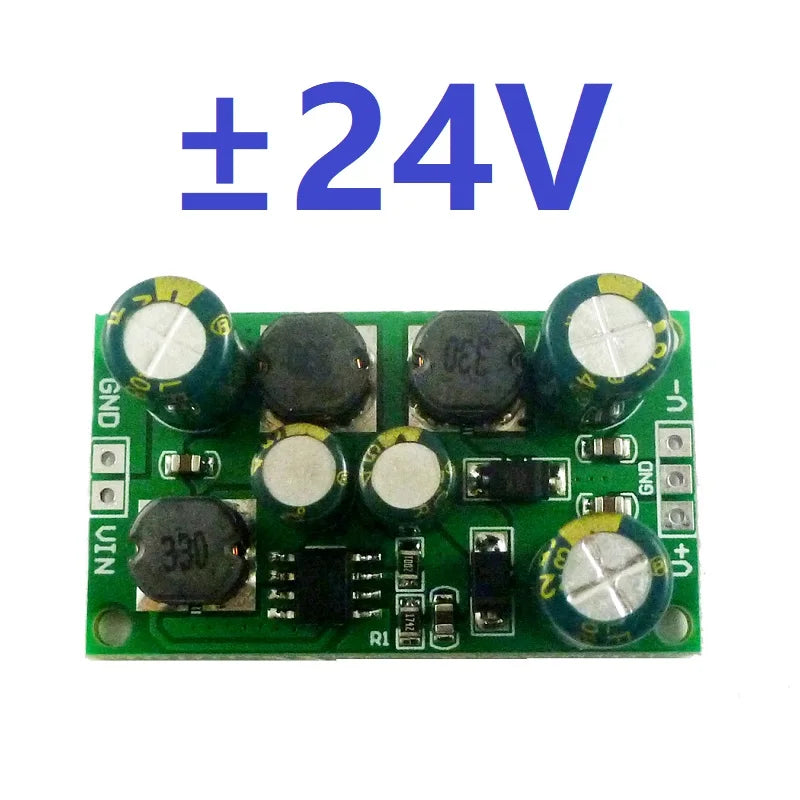

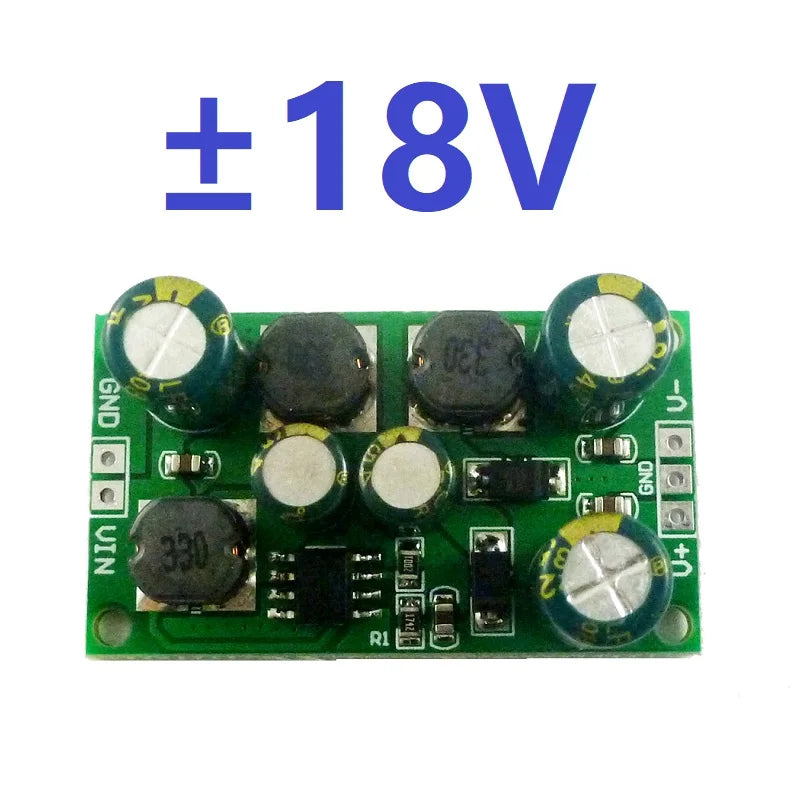

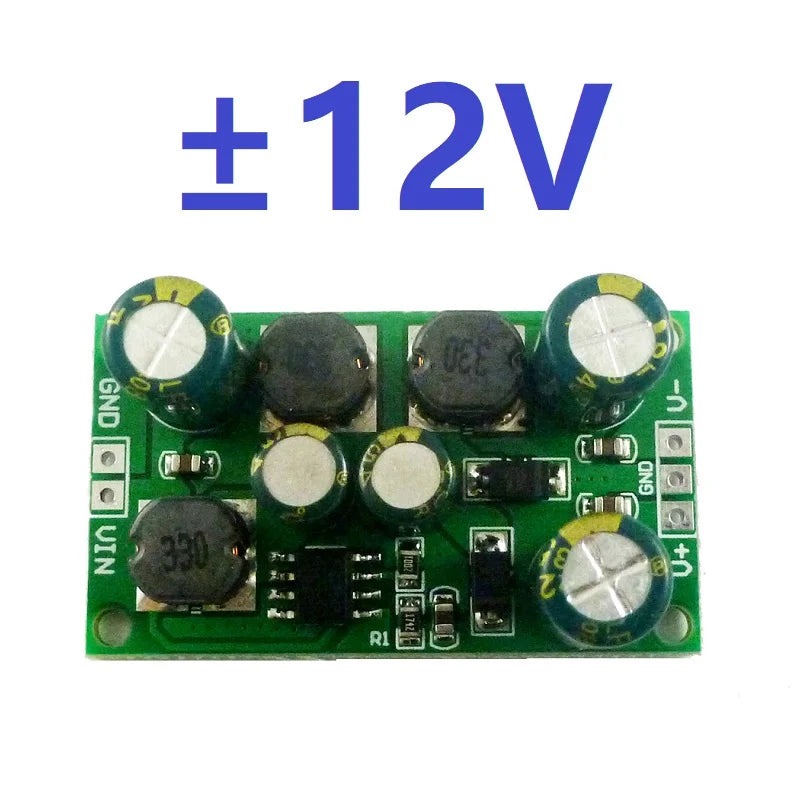

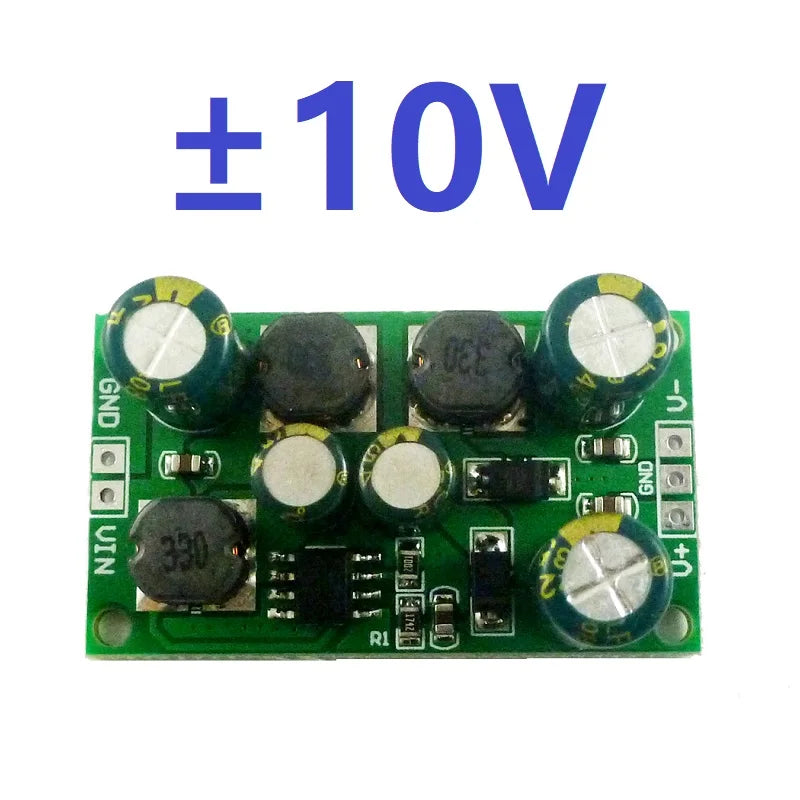

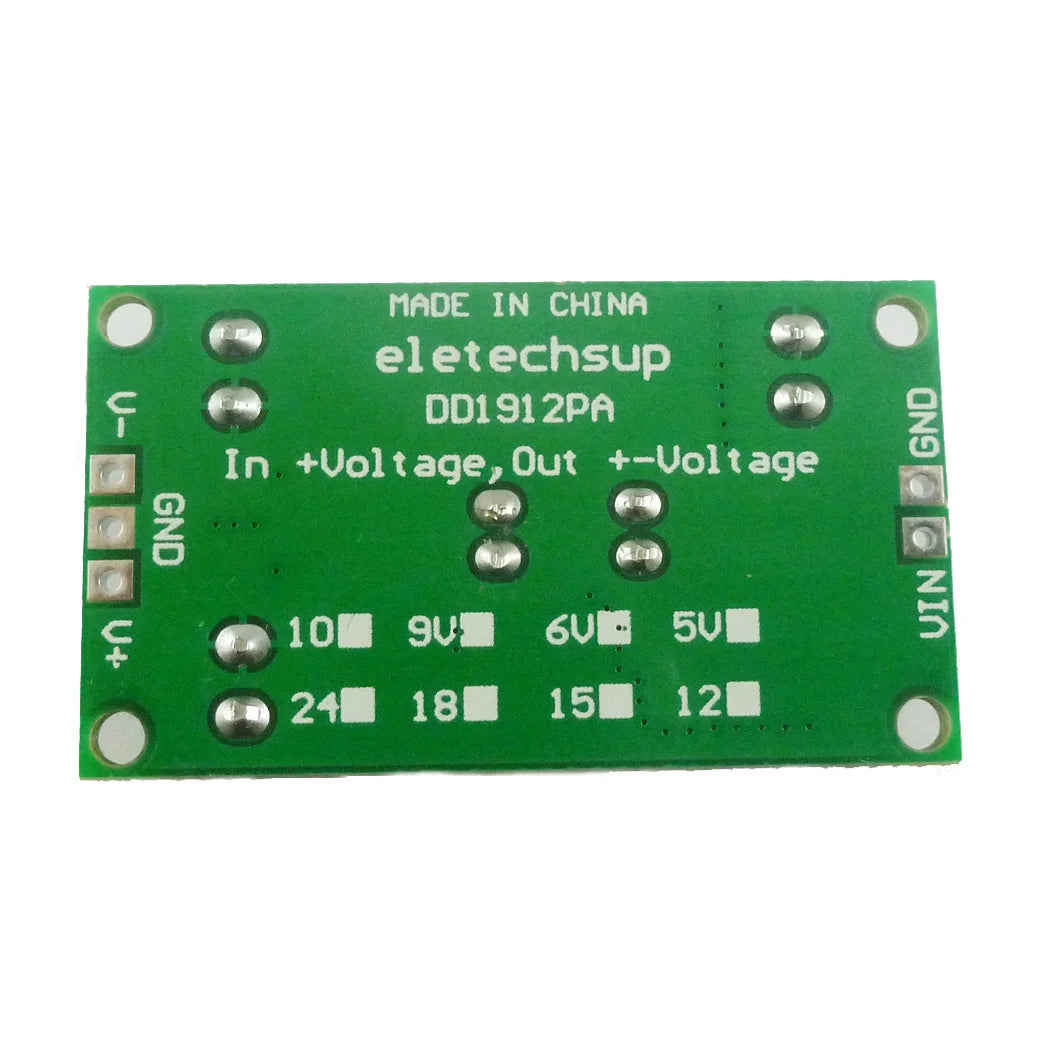

1 PCS 8W DC DC Step-up/Step-down Converter Positive and negative voltage Dual voltage Module
Description:

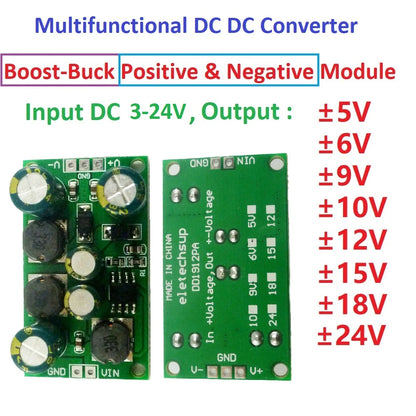

Input voltage 3~24V,output

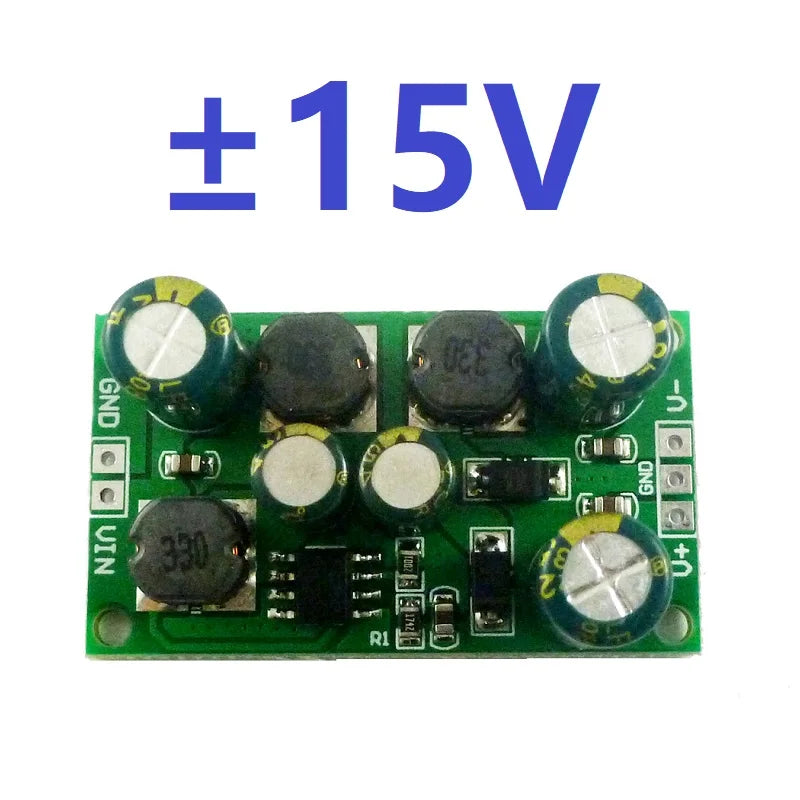

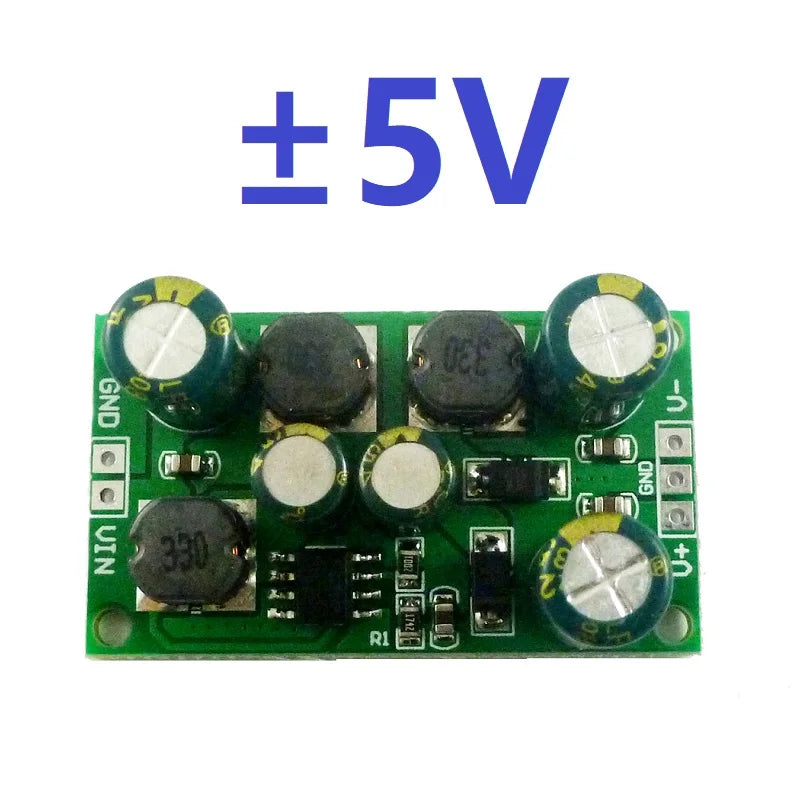

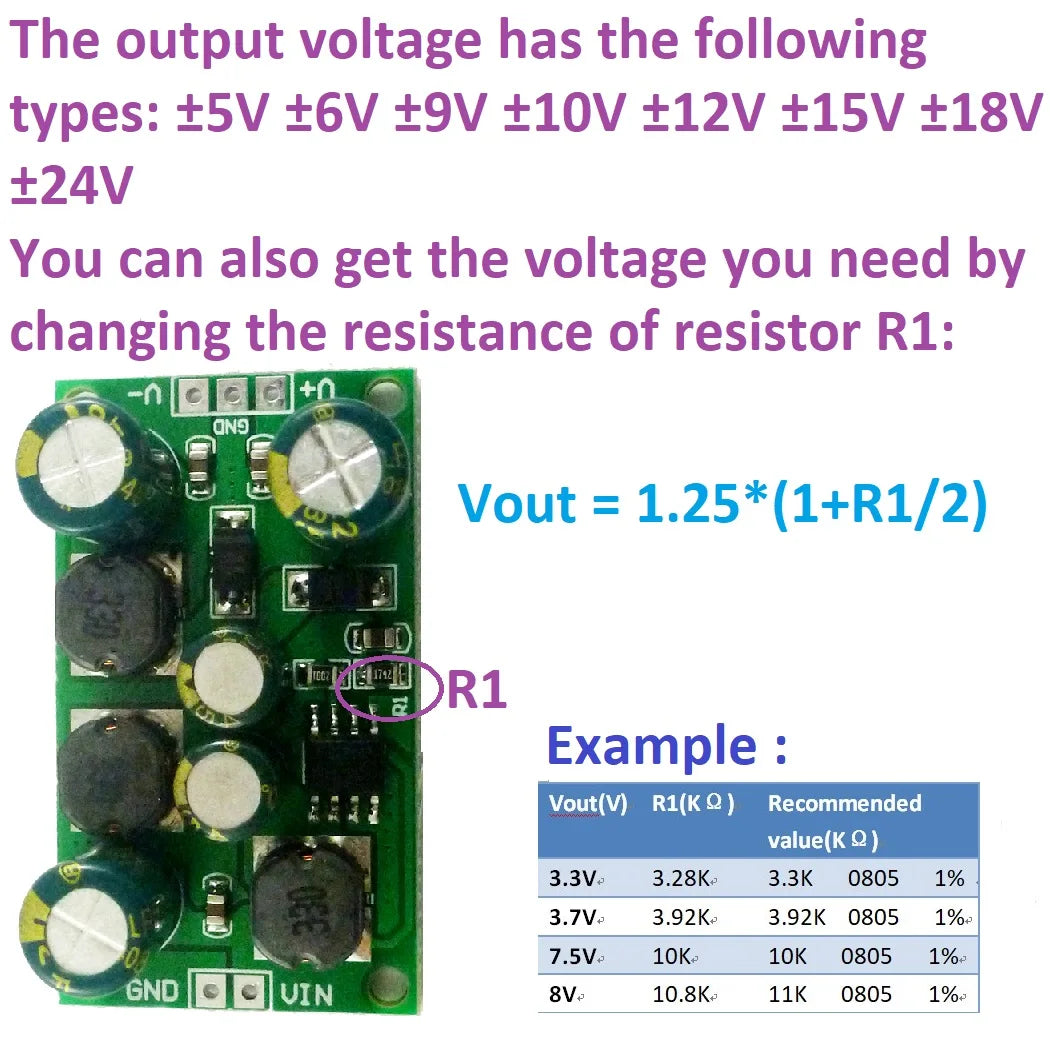

optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V
Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)
Conversion efficiency :71-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%,Negative voltage ±5
8W DC-DC Boost-Buck Converter working frequency 400KHZ.
Operating ambient temperature : -40~+85 Degrees Celsius

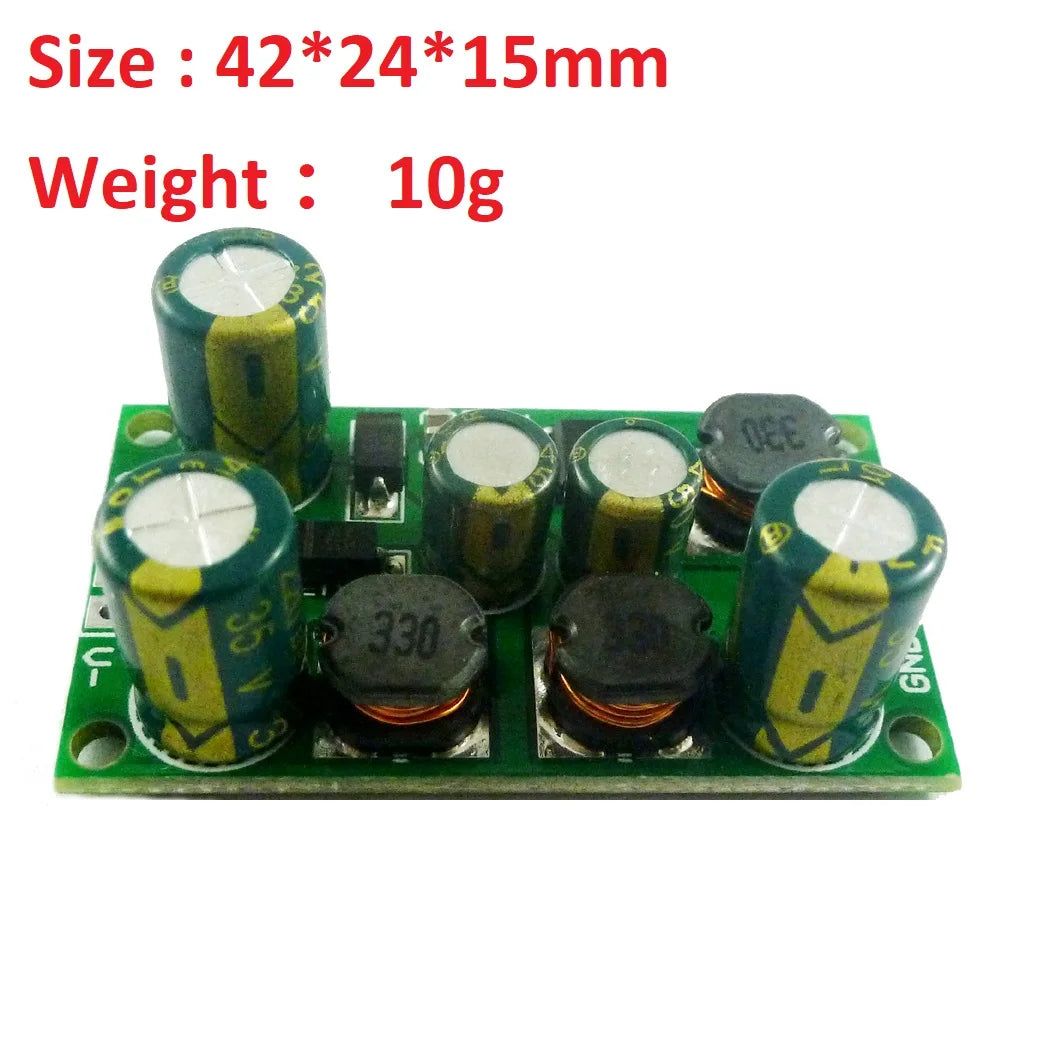

Size : 42 x 24 x 15mm
Weight : 10g
High efficiency up to 90%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function
Note:
1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA
2

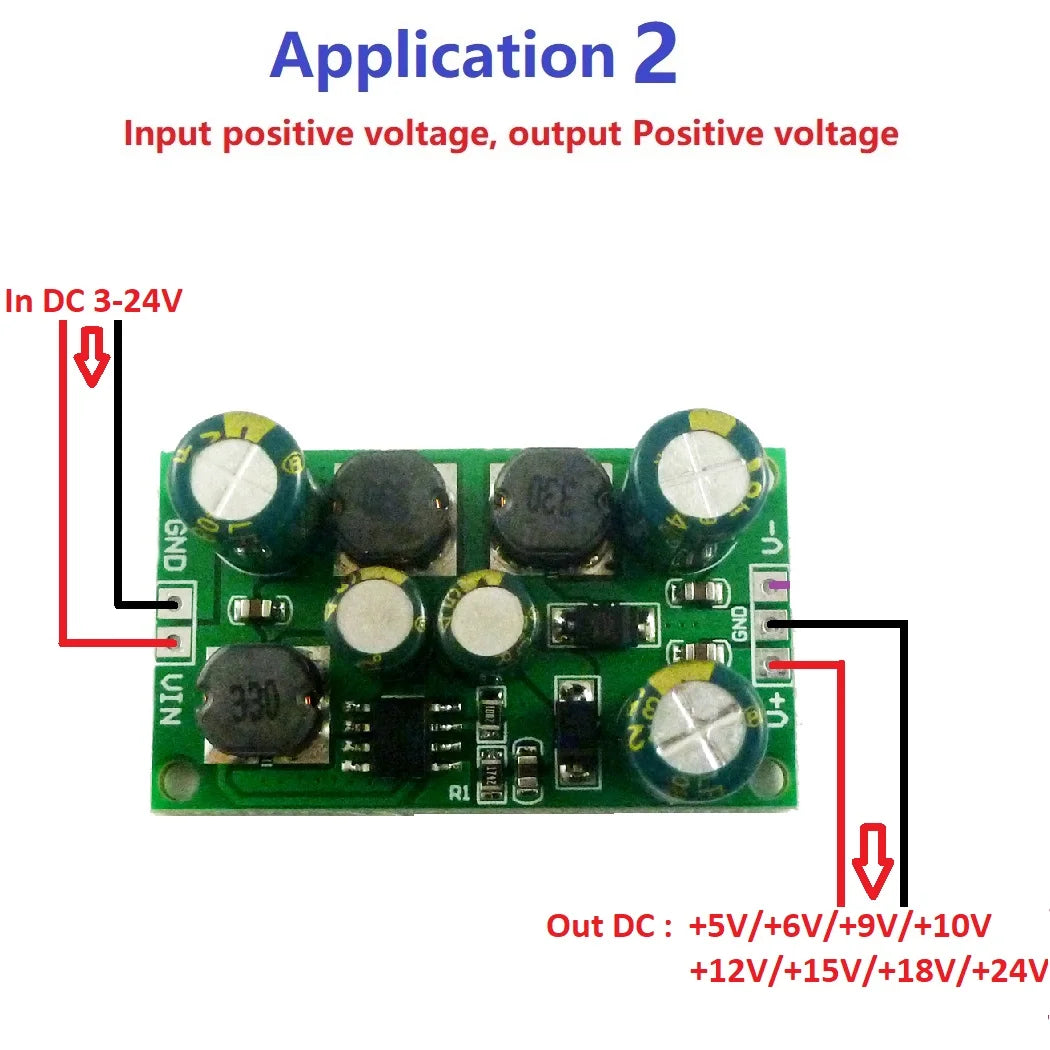

V- cannot be used alone, or no voltage output.But you can just use V+
ADC/DAC/Operational Amplifier Reference voltage
RS232 RS485 RS422 Bus
Audio equipment
Low power audio power supply
Car audio amplifier dual power board
LCD power supply
Instrumentation equipment
Instrumentation multimeter
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q1 : Why output voltage is less than the nominal voltage
A1: Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
Q2 : Why is the negative voltage not output or the output too low?

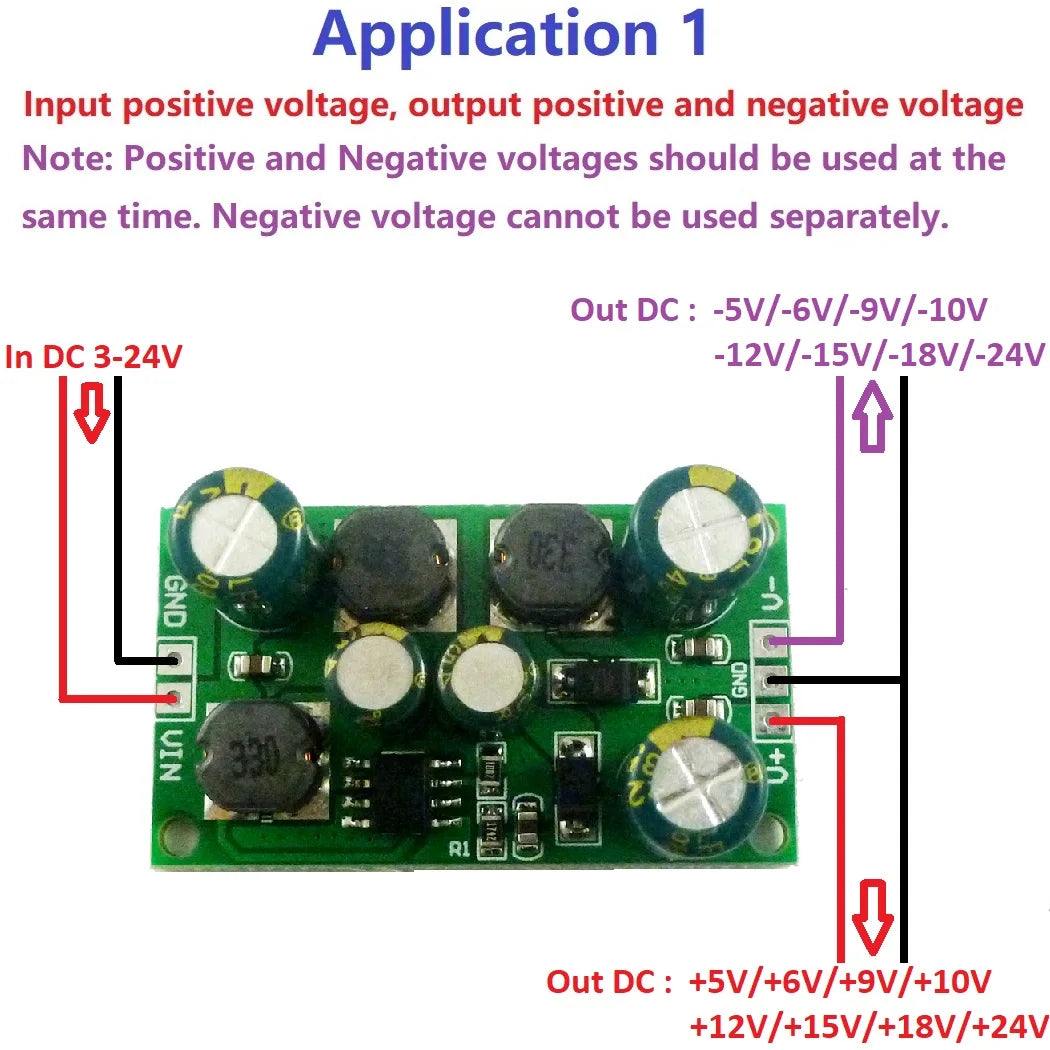

A2 : The negative voltage cannot be used alone. When using a negative voltage, the same load must be connected at the positive voltage terminal.
