DD2412SA DC-DC Boost-Buck Step UP Converter Module for 2-24V to 5V 6V 9V 12V 15V Voltage Regulator Power Supply
DD2412SA DC-DC Boost-Buck Step UP Converter Module for 2-24V to 5V 6V 9V 12V 15V Voltage Regulator Power Supply
SKU:DD2412SA_5V
1000 in stock
Regular price
$1.99
Regular price
$1.99
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Product Name :
1PCS 2-24V to 5V 6V 9V 12V 15V DC-DC Boost-Buck Converter Power Supply
Packing list:
1 PCS
2-24V to 5V or 6V or 9V or 12V or 15V DC-DC Boost-Buck Converter Power Supply
(Specific according to the version and quantity you choose)

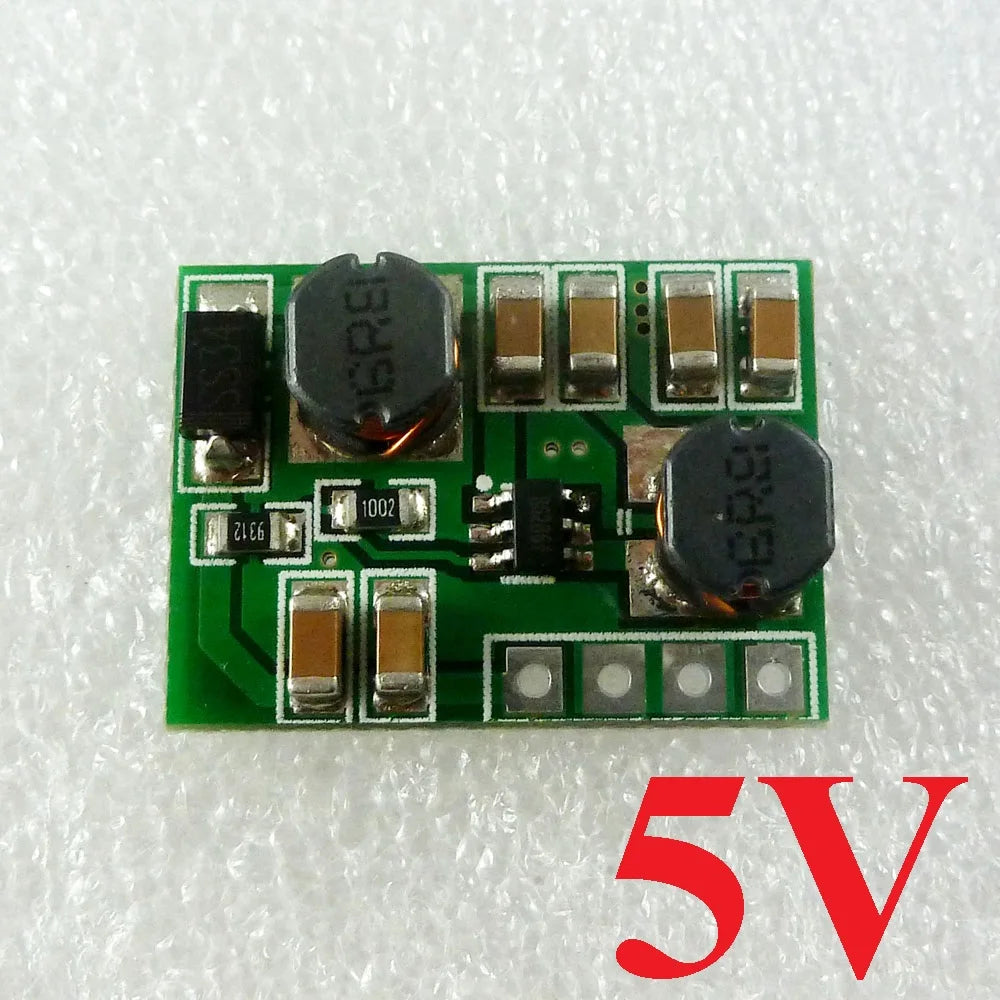

5V
Description:

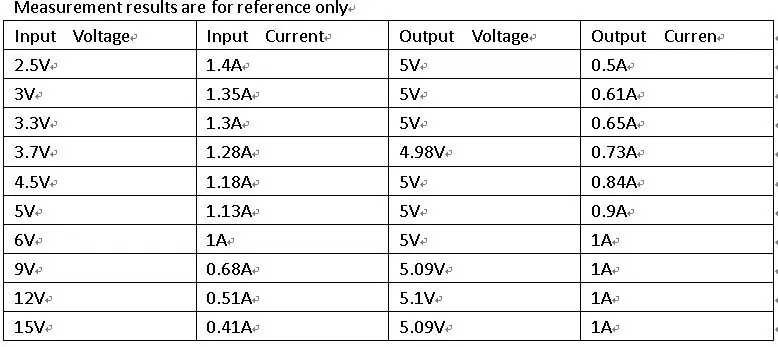

Input voltage DC 2-24V, output DC 5V±5% (No-load voltage is 5-5.4V)
2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 70%-90% .
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.

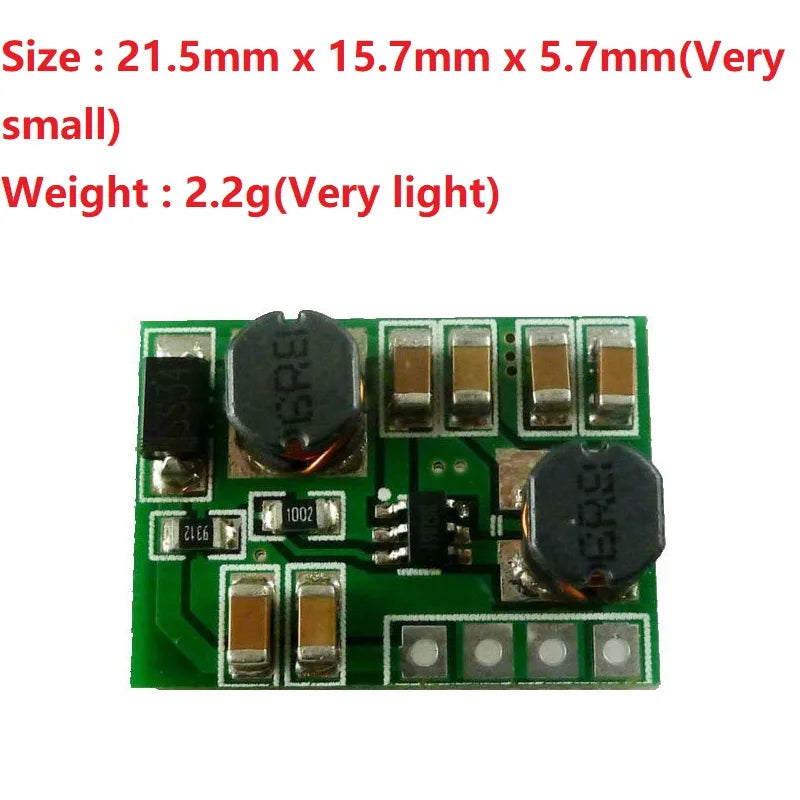

Size : 21.5mm x 15.7mm x 5.7mm(Very small)
Weight : 2.2g(Very light)
Applications:
Battery powered equipment
Breadboard Power Supply
ARM STM32 AVR PIC FPGA CPLD Board
Small power motors
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Audio equipment

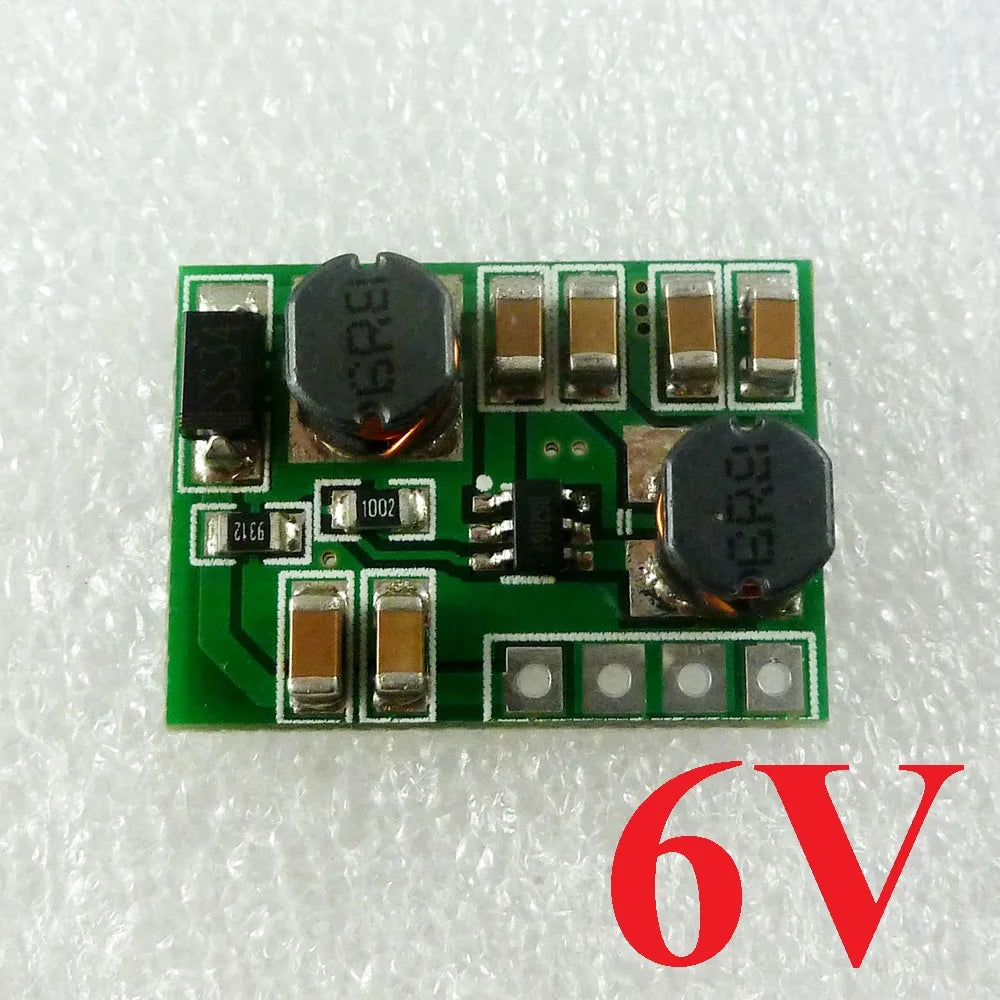

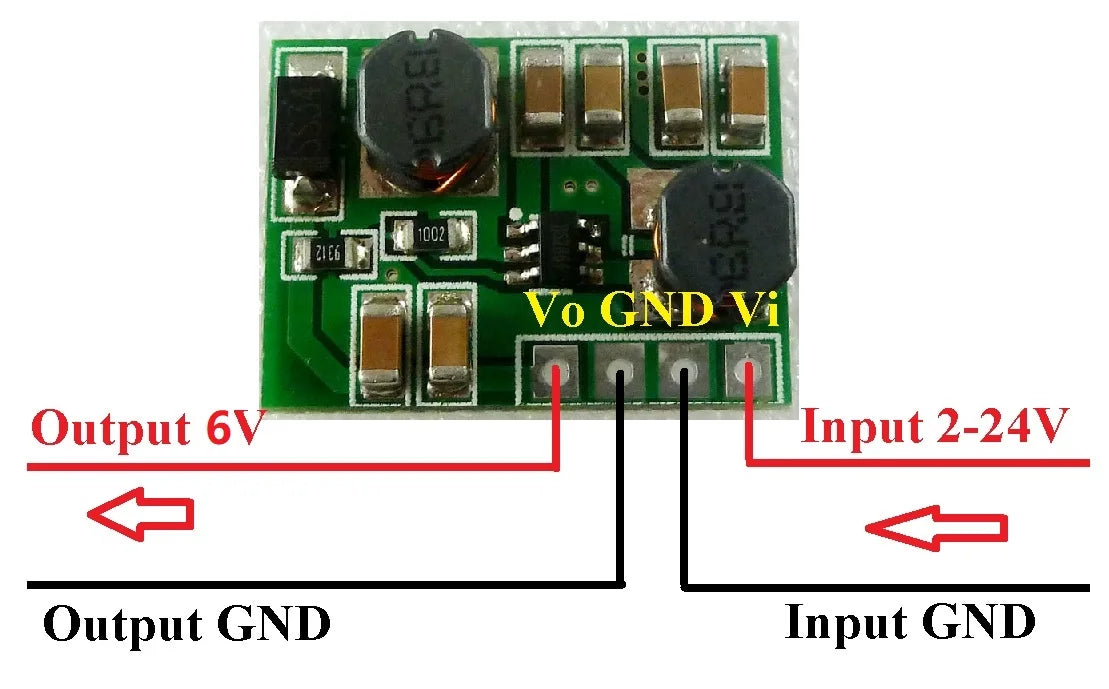

6V
Description:
Input voltage DC 2-24V, output DC 6V±4% (No-load voltage is 6-6.4V)
2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency
70%-90% .
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 21.5mm x 15.7mm x 5.7mm(Very small)
Weight : 2.2g(Very light)
Applications:
Battery powered equipment
Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Audio equipment

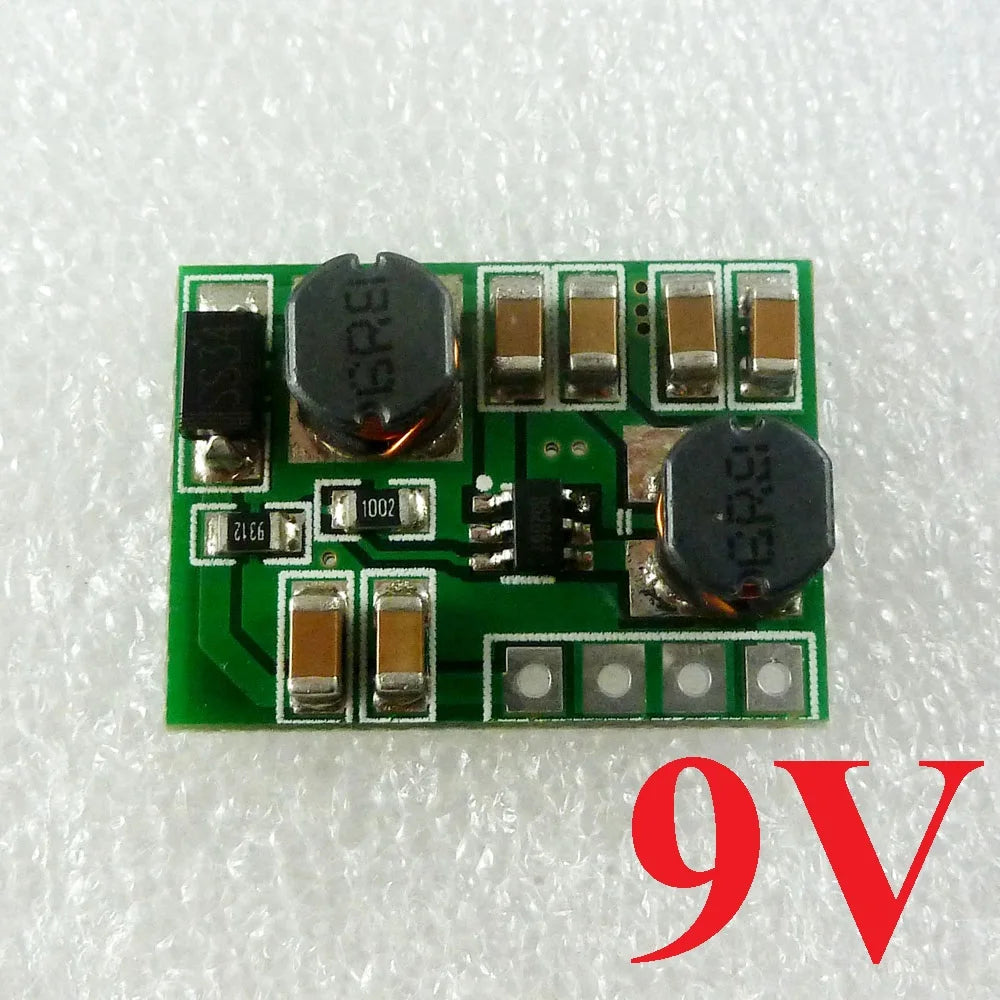

9V
Description:
Input voltage DC 2-24V, output DC 9V±4% (No-load voltage is 9-9.4V)
2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 68%-90% .
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 21.5mm x 15.7mm x 5.7mm(Very small)
Weight : 2.2g(Very light)
Applications:
Battery powered equipment
Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
Toy car
Wifi Router
Phone PDA
LED Lighting
Wireless communication equipment
Instruments multimeter

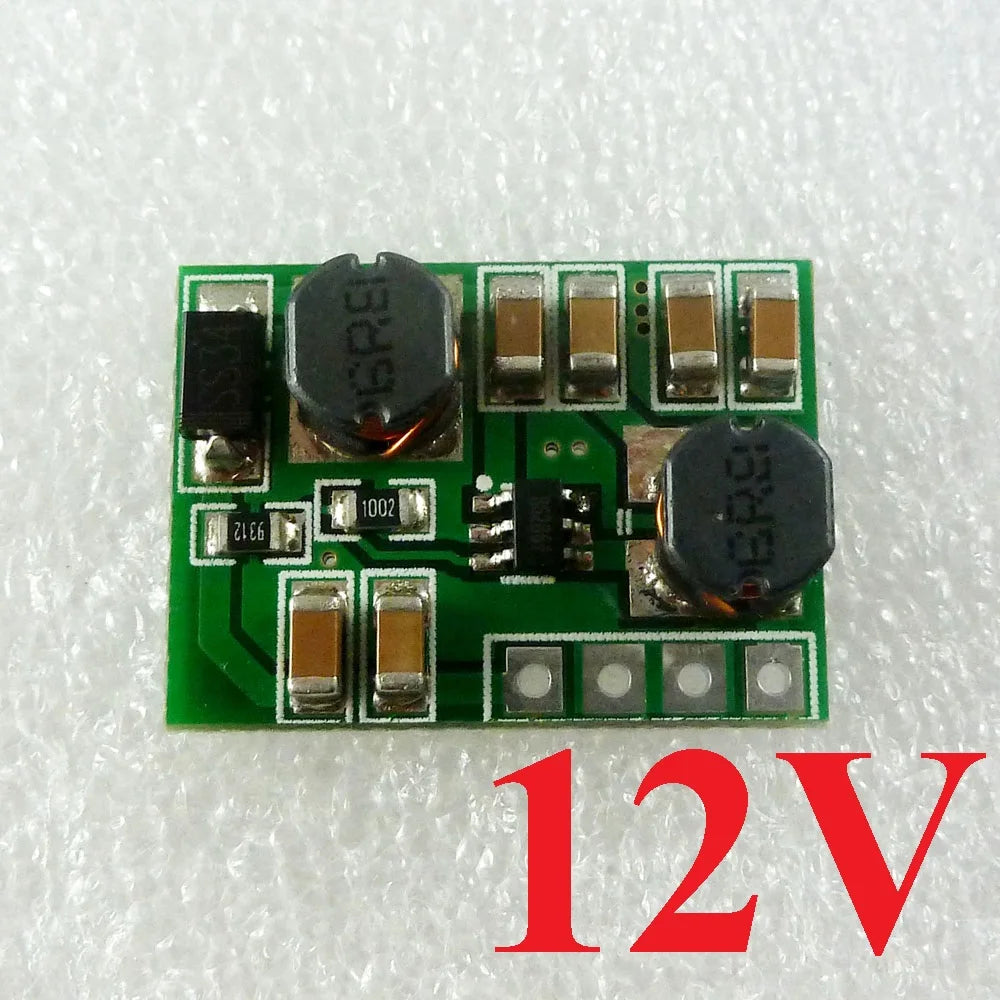

12V
Description:
Input voltage DC 2-24V, output DC 12V±4% (No-load voltage is 12-12.4V)
2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 67%-89% .
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 21.5mm x 15.7mm x 5.7mm(Very small)
Weight : 2.2g(Very light)
Applications:
Battery powered equipment
Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
PLC RS485 Modbus Module
Toy car
Wifi Router
IP camera
LED Lighting
Wireless communication equipment
Instruments multimeter

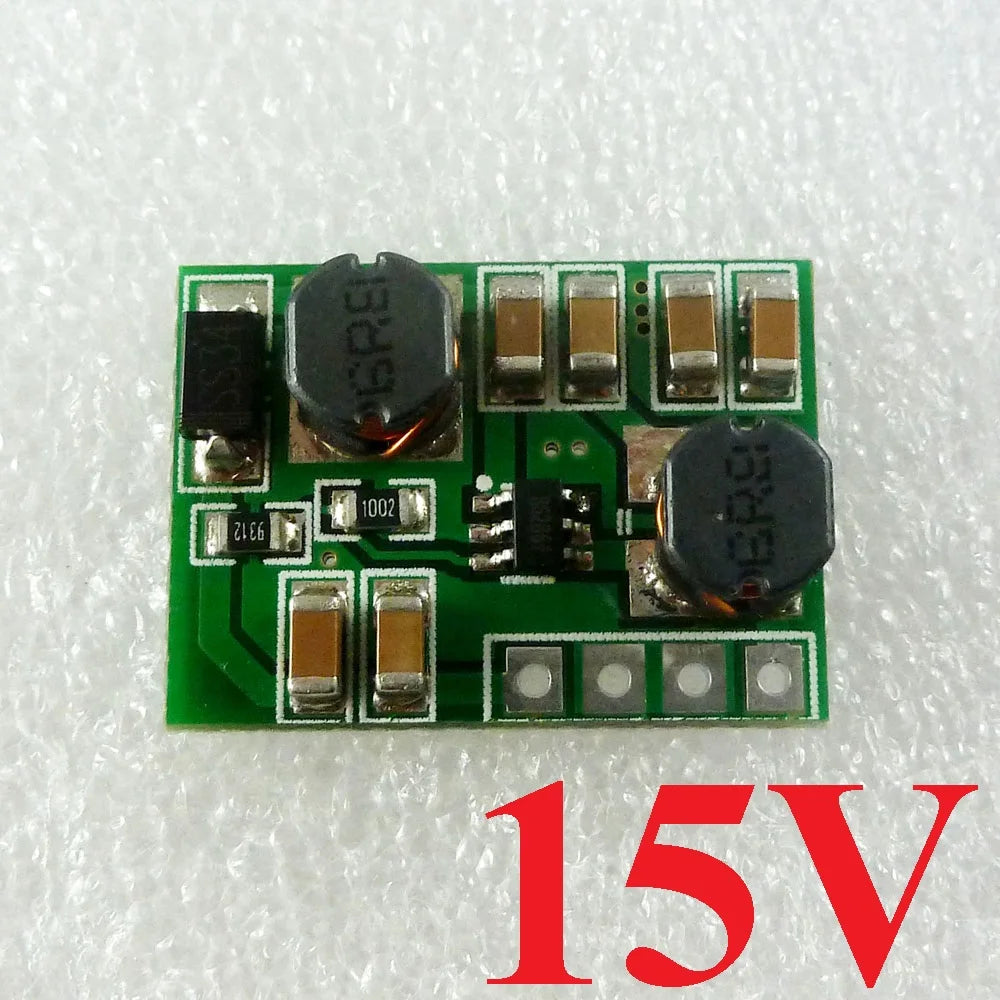

15V
Description:
Input voltage DC 2-24V, output DC 15V±4% (No-load voltage is 15-15.4V)
2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 68%-88% .
Operating temperature range : -35~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 21.5mm x 15.7mm x 5.7mm(Very small)
Weight : 2.2g(Very light)
Applications:
Battery powered equipment
Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
Toy car
LED Lighting
Wireless communication equipment
wifi router
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
