DD2412SA 2-24V to 12V 600MA 2 in 1 Boost-Buck Step UP-Down DC DC Converter Module for Router Relay PLC RS485 Modbus

DD2412SA 2-24V to 12V 600MA 2 in 1 Boost-Buck Step UP-Down DC DC Converter Module for Router Relay PLC RS485 Modbus

$1.99 USD
$1.99 USD $1.99 USD
Sale Sold out
Below item is powered by Canton-Power Ltd .

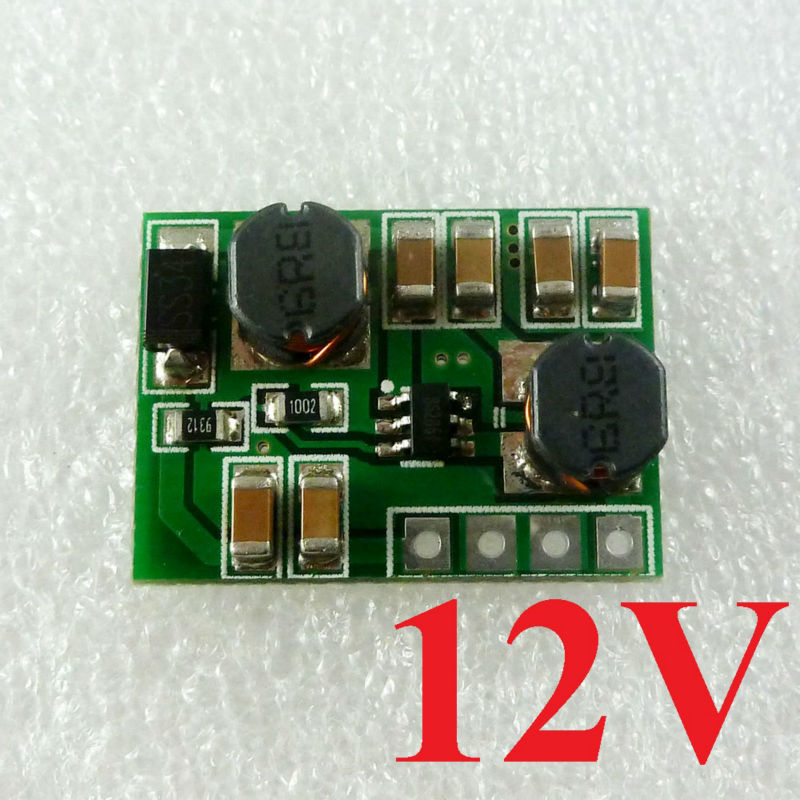

Product Name:   DD2412SA_12V  2-24V to 12V 600MA 2 in 1 Boost-Buck Step UP-Down DC DC Converter Module for Router Relay PLC RS485 Modbus
Packing list:

1 PCS DD2412SA_12V 2-24V TO 12V DC DC Boost-Buck Converter Module


Description:

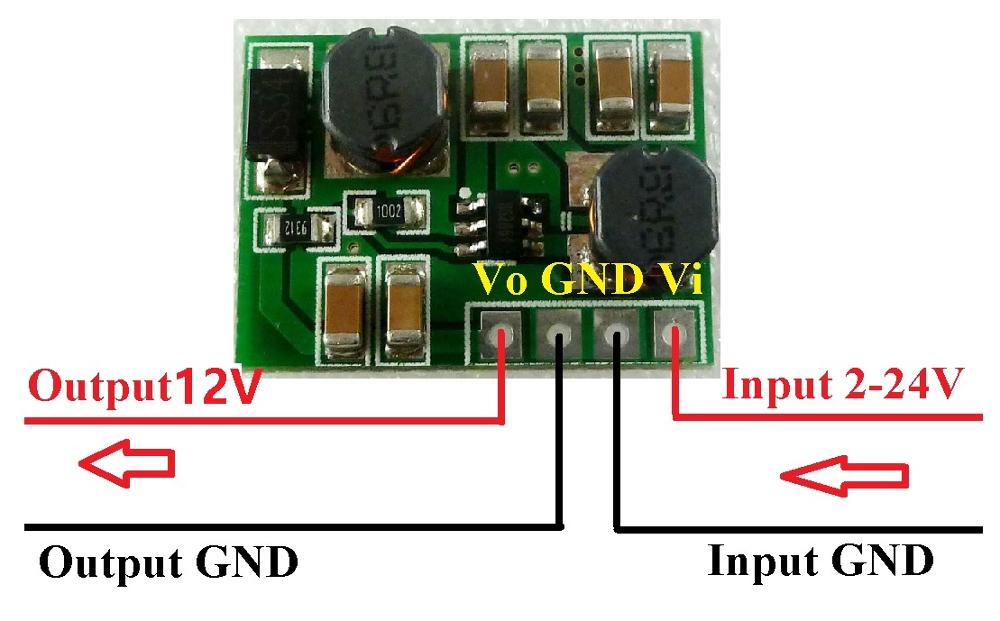

Input voltage DC 2-24V, output DC 12V±4% (No-load voltage is 12-12.4V)

2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 67%-89% .

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,MCU Development Board Breadboard friendly.

Size : 21.4mm x 15.6mm x 5.8mm(Very small)

Weight : 2.2g(Very light)



Applications

Battery powered equipment
Breadboard Power Supply
electrical tools
Small power motors
Camera, Video camera
PLC RS485 Modbus  Module
Toy car
Wifi Router
IP camera
LED Lighting
Wireless communication equipment
Instruments multimeter


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:

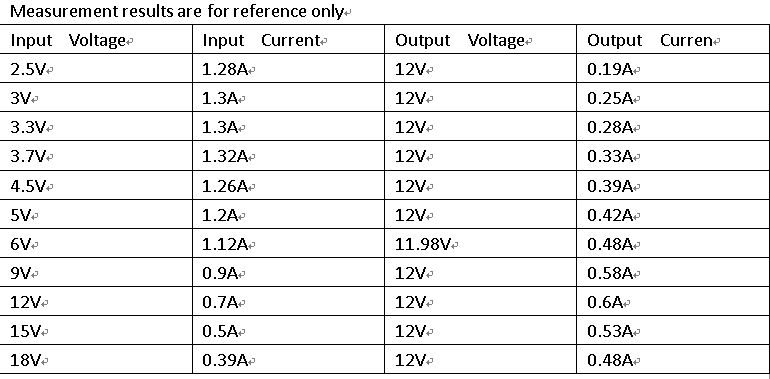

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
