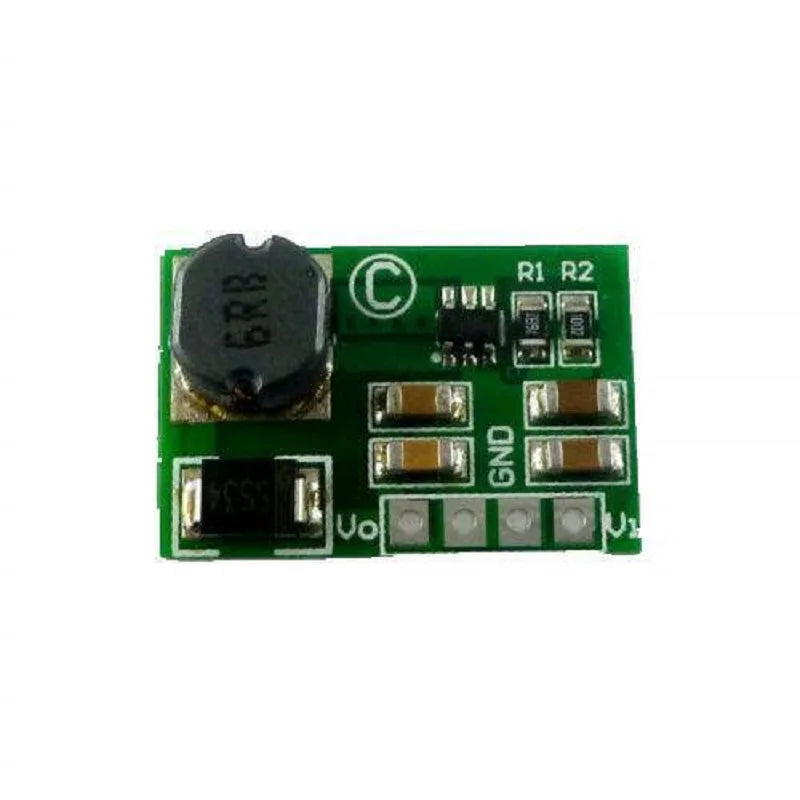

DD2424SA 10-20W DC-DC Boost Step up Converter Regulator Power Module 5v 6v 9v 12v 15 24V DC board MCU Development boa

DD2424SA 10-20W DC-DC Boost Step up Converter Regulator Power Module 5v 6v 9v 12v 15 24V DC board MCU Development boa

DD2424SA_5V

1000 in stock

$1.99
$2.47 $1.99
Sale Sold out
Product Name: 10-20W DC-DC Boost Step up Converter Regulator Power Module 5v 6v 9v 12v 15 24V

Packing list:

1 PCS DD2424SA DC DC Step-up Converter Module

5V

Description:


Input voltage DC 2 ~ 5V,output DC 5V±5% (No-load voltage is 5-5.4V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 96% Efficiency (usually is 70%-94%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

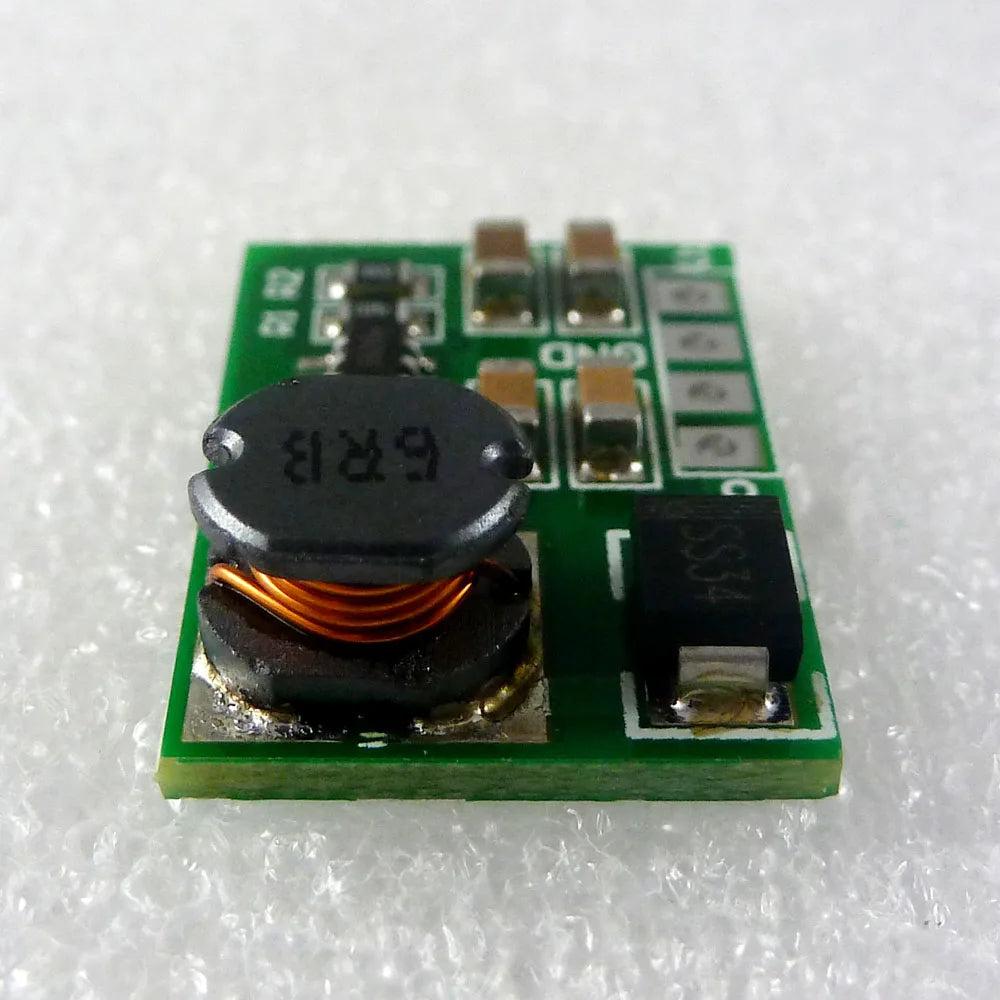

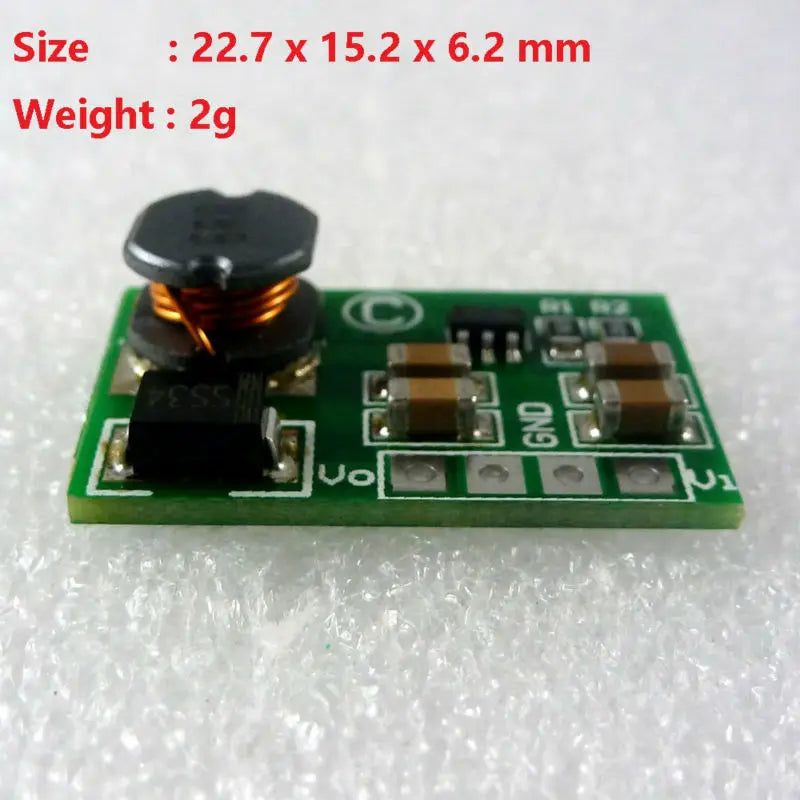

Size : 22mm x 15.2mm x 6.2mm



6V

Description:


Input voltage DC 2 ~ 6V,output DC 6V±5% (No-load voltage is 6-6.4V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 96% Efficiency (usually is 70%-93%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g



9V

Description:

Input voltage DC 2 ~ 9V,output DC 9V±5% (No-load voltage is 9-9.4V)


Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 95% Efficiency (usually is 70%-93%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g


12V

Description:


Input voltage DC 2 ~ 12V,output DC 12V±4% (No-load voltage is 12-12.5V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 95% Efficiency (usually is 70%-93%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g

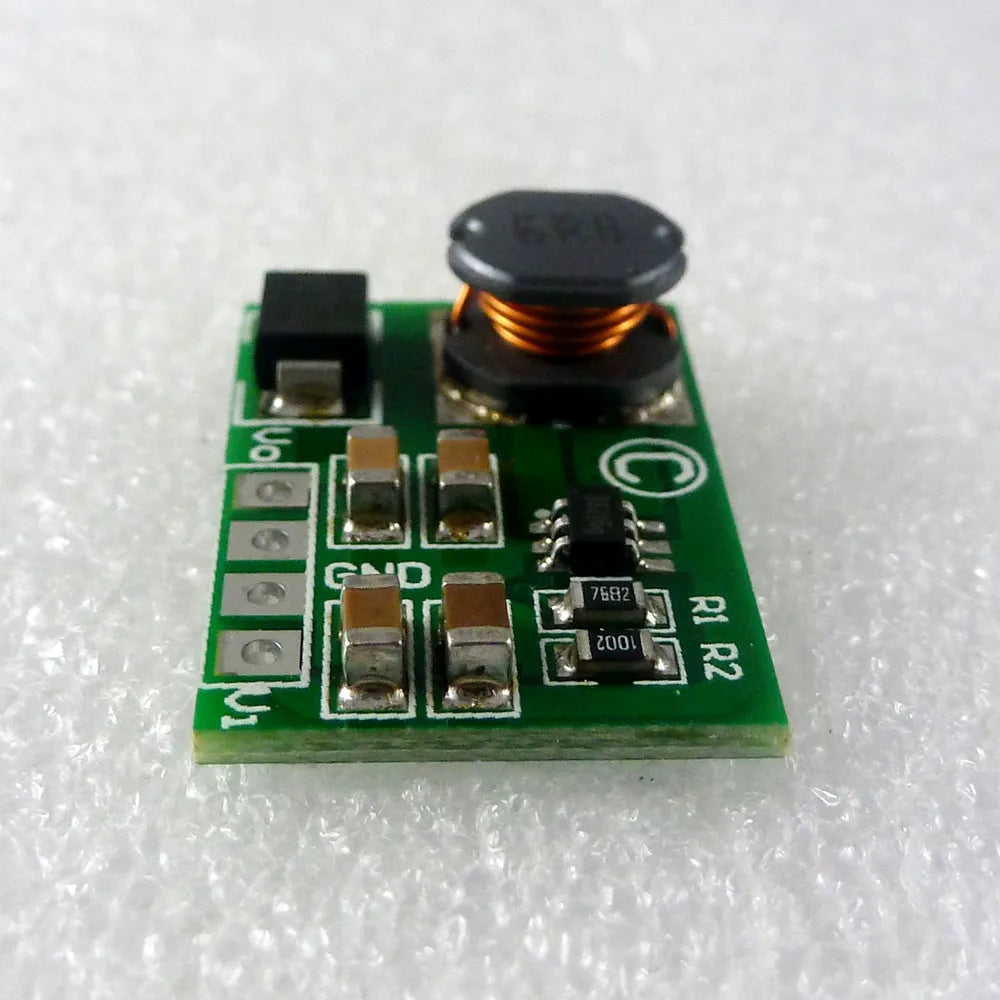

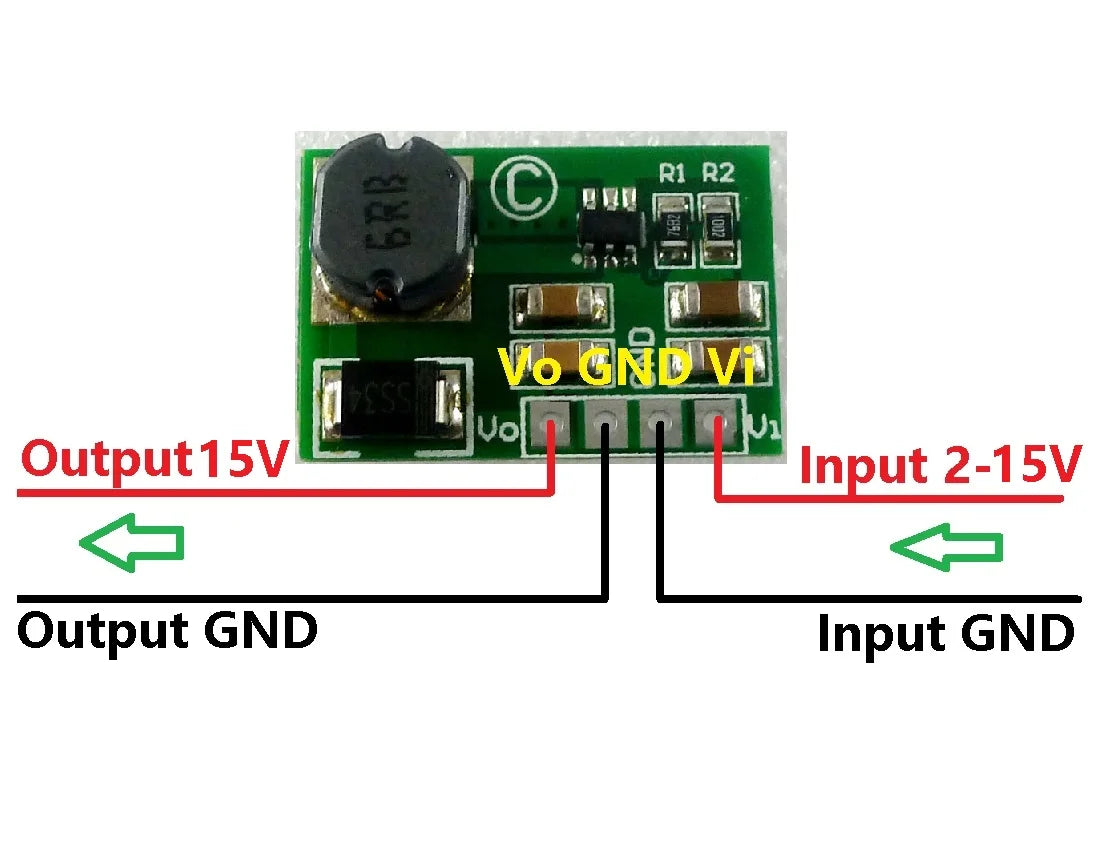

15V

Description:

Input voltage DC 2 ~ 15V,output DC 15V±4% (No-load voltage is 15-15.5V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 94% Efficiency (usually is 70%-93%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g

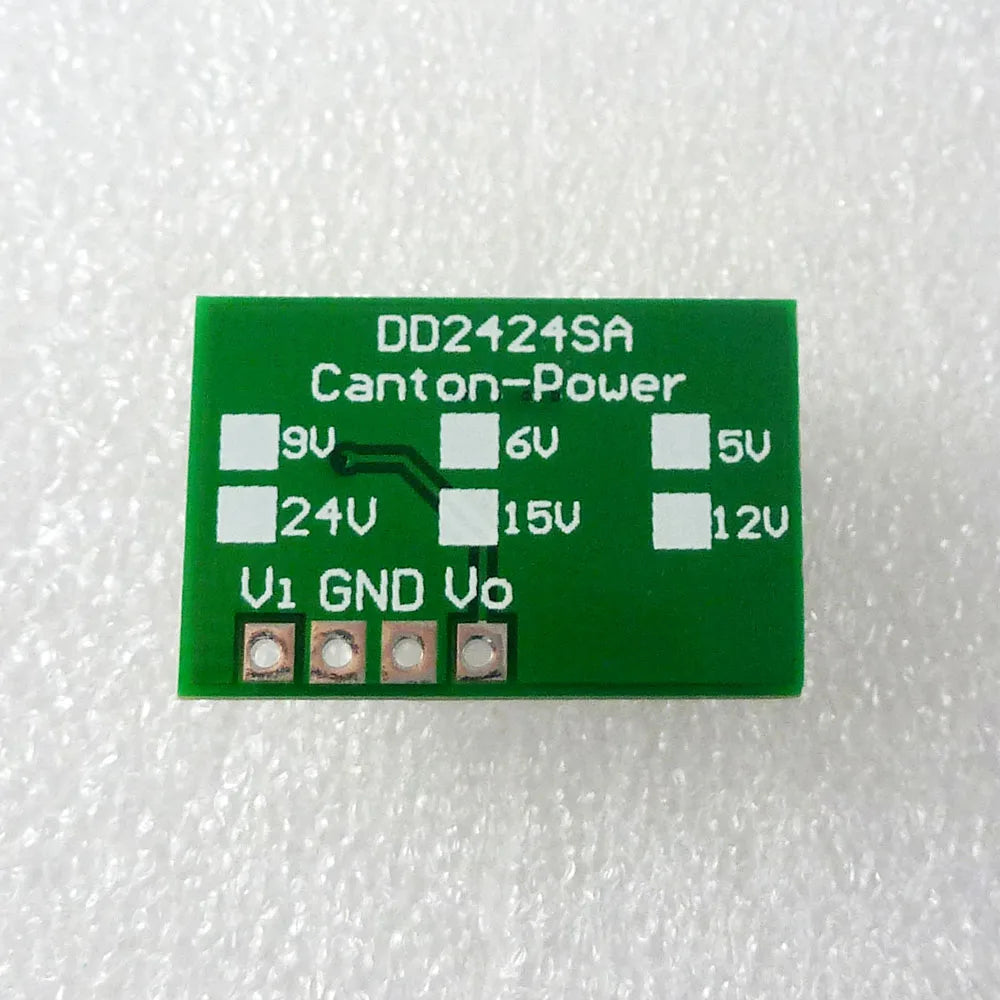

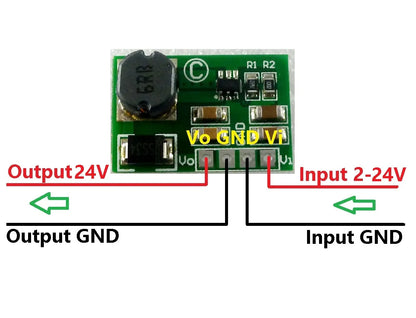

24V

Description:

Input voltage DC 2 ~ 24V,output DC 24V±4% (No-load voltage is 24-24.5V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 94% Efficiency (usually is 70%-93%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g



Applications

Battery powered equipment

Breadboard Power Supply

Small power motors

Camera, Video camera

Toy car boat

Model aircraft

power bank

LED Lighting

Wireless communication equipment

Multimeter Instrumentation


Protection:
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)



Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range


2 Output power can not be greater than the maximum load for a long time


3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:


Q : Why output voltage is less than the nominal voltage

A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
