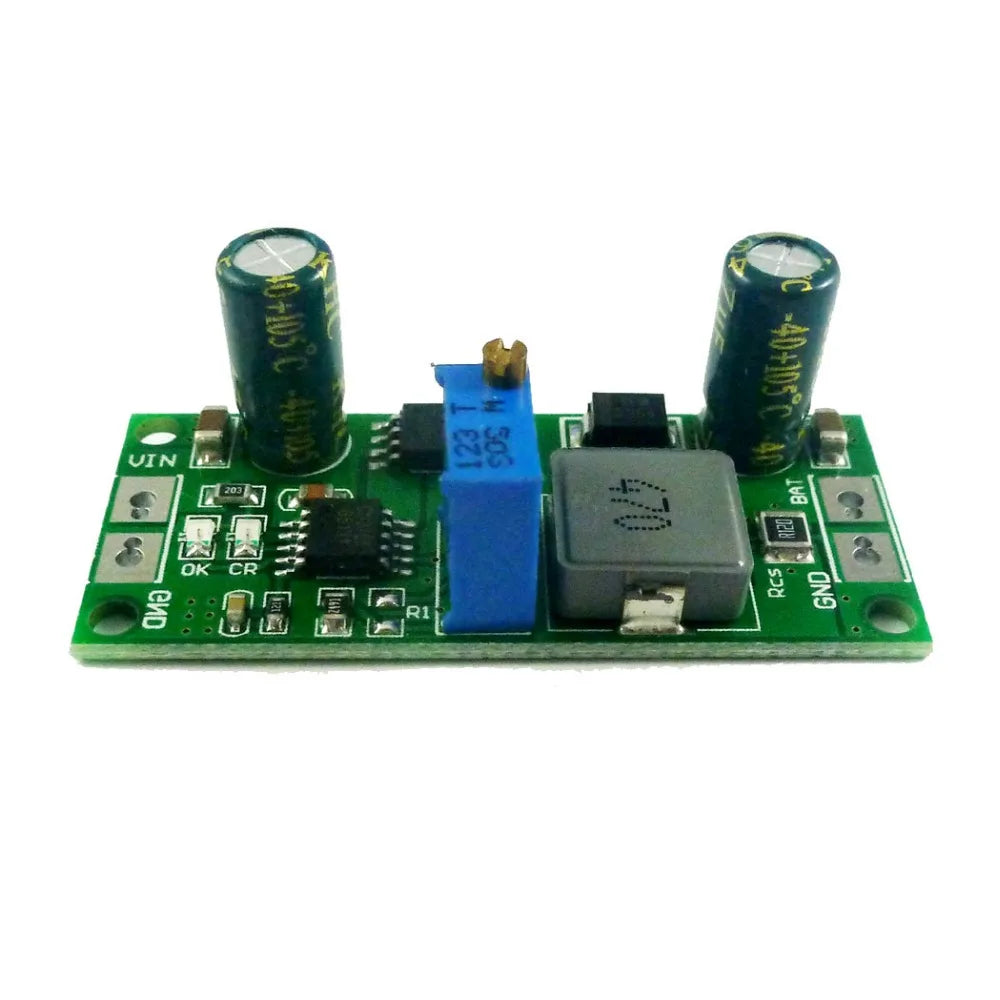

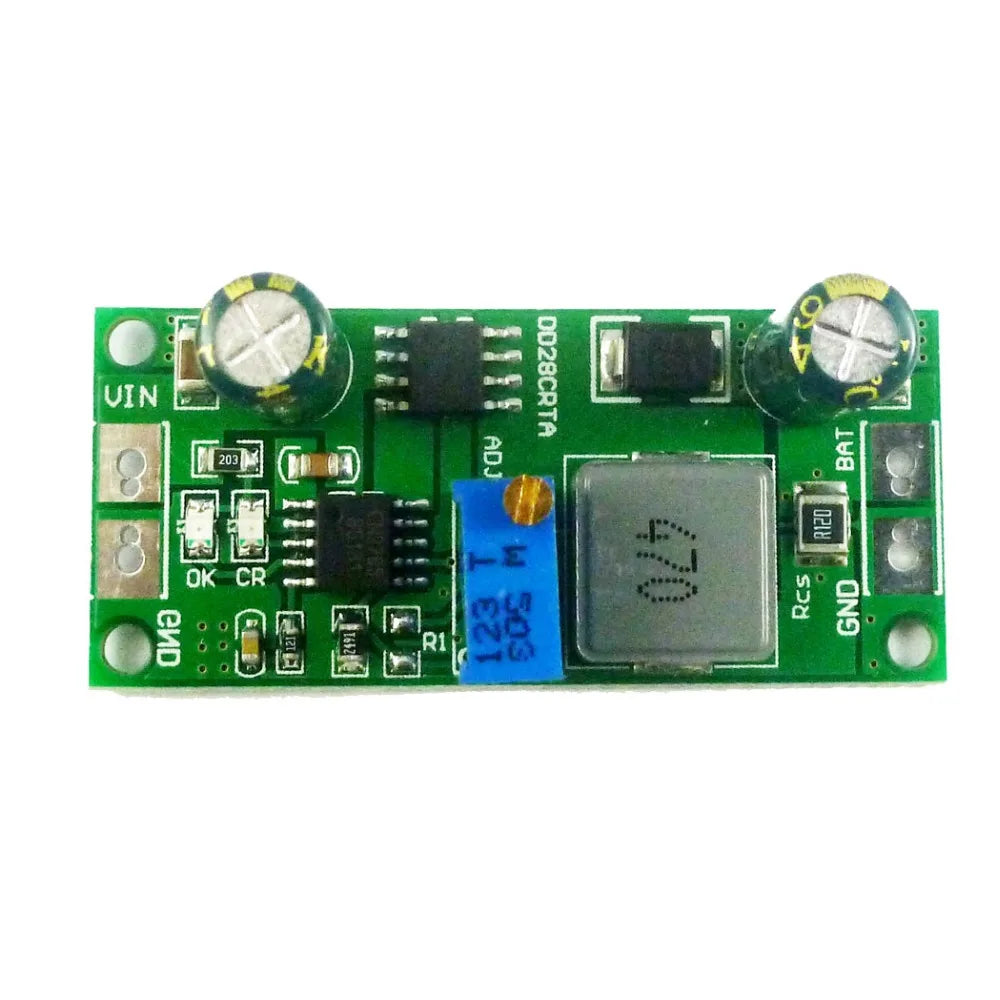

DD28CRTA 1A 3.7-18.5V Multi-Chemistry Battery Charger for Lithium ion LiFePO4 Lithium Titanate Batteries Charging Board

DD28CRTA 1A 3.7-18.5V Multi-Chemistry Battery Charger for Lithium ion LiFePO4 Lithium Titanate Batteries Charging Board

DD28CRTA

9591 in stock

$2.99
$3.95 $2.99
Sale Sold out
Product Name:  1A 3.7-18.5V Multi-Chemistry Battery Charger for Lithium ion LiFePO4 Lithium Titanate Batteries Charging Board
Packing list:
1 PCS 2 in 1  DD28CRTA 1A 3.7-18.5V Lithium Battery Charger & DC DC Buck Converter


Description:

2 in 1 1A 3.7-18.5V Battery Charger & DC-DC Buck Converter

Complete Charge Controller for Singleor Multi-cell Lithium ion, LiFePO4 or
Lithium Titanate Batteries

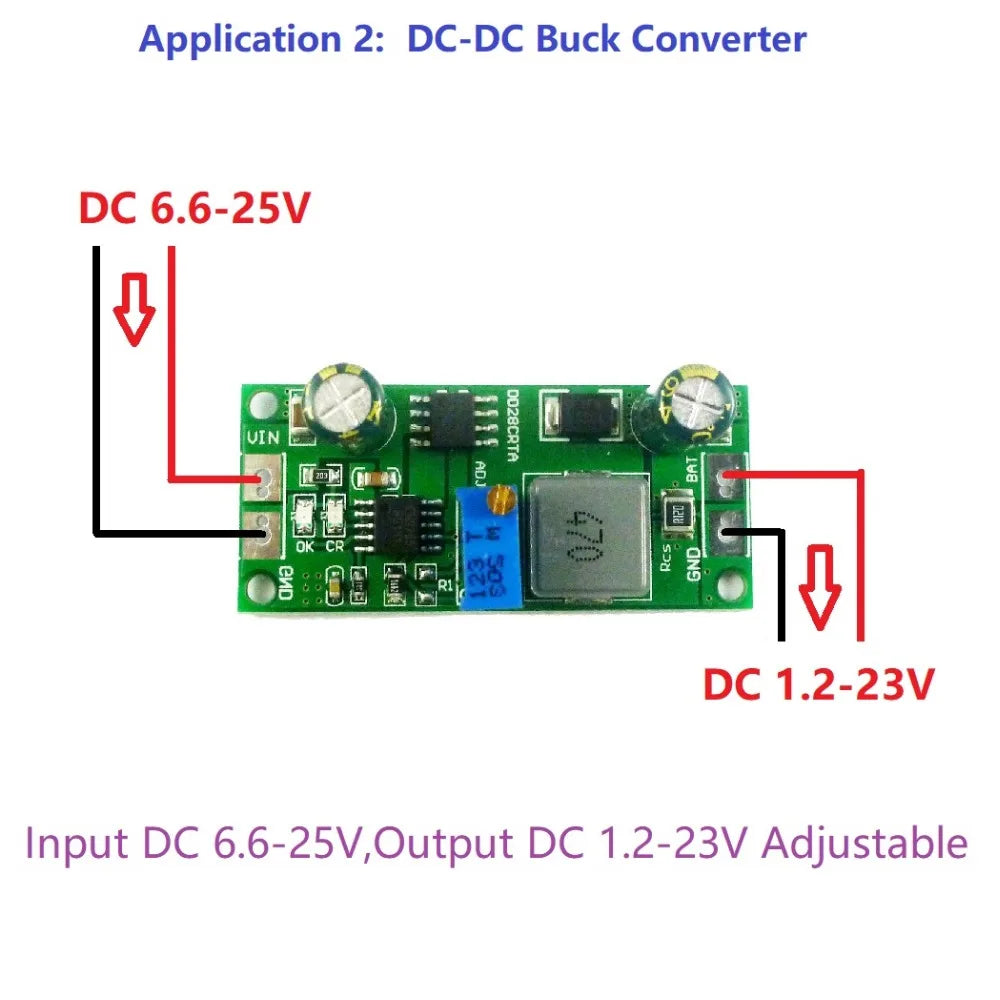

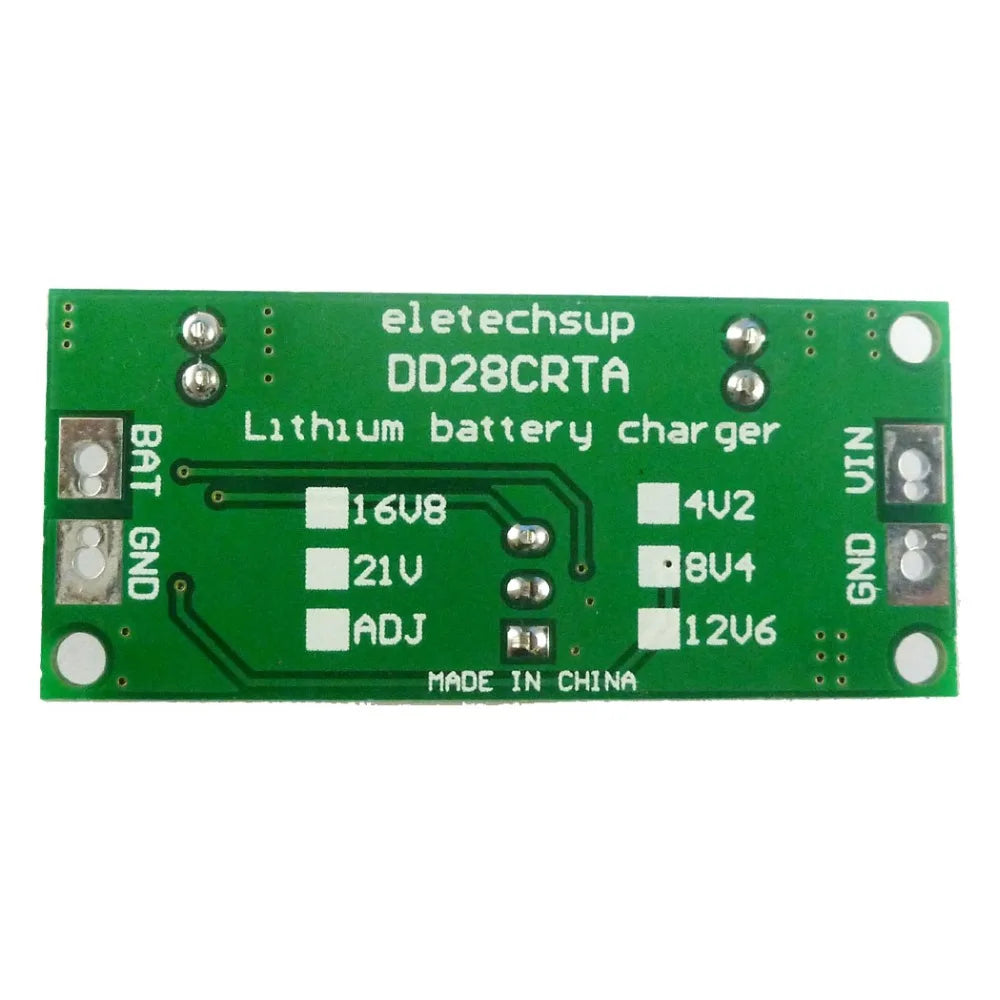

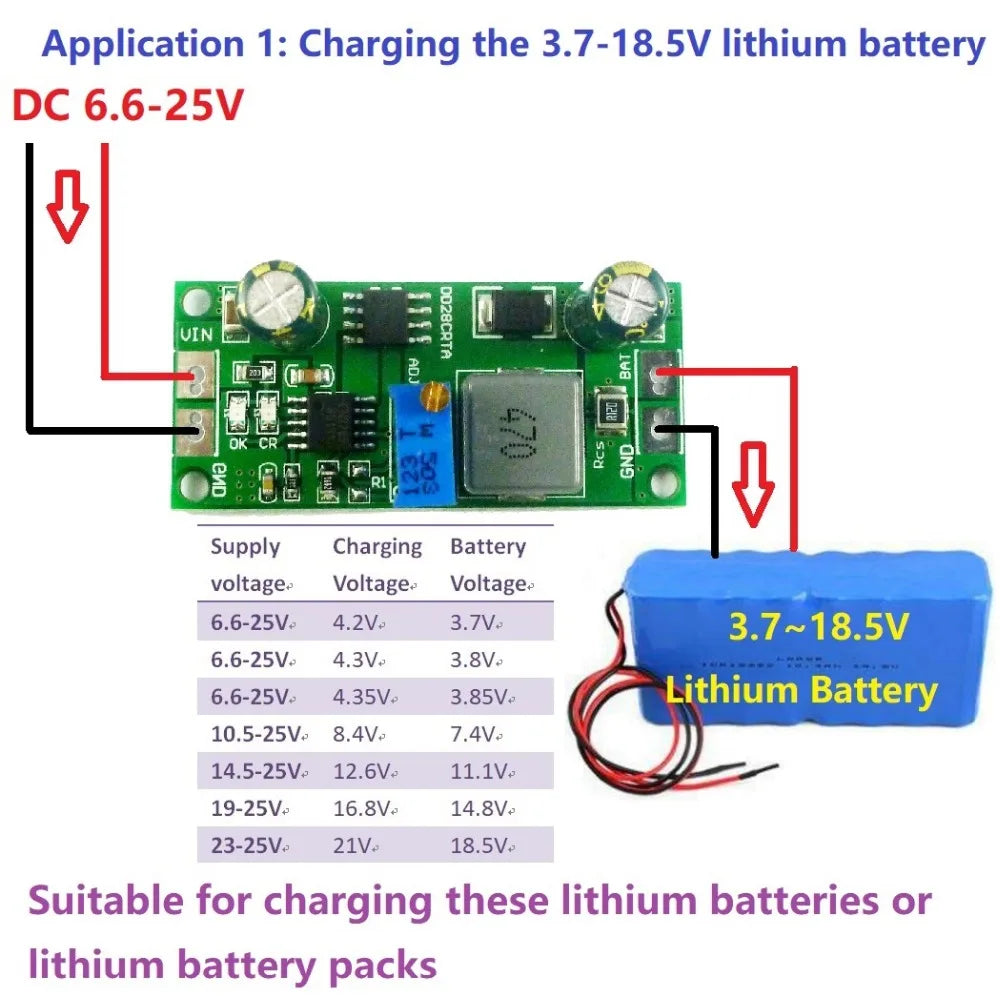

Input DC 6.5-25V,Output DC 1.2-23V (Adjustable 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V 21V)

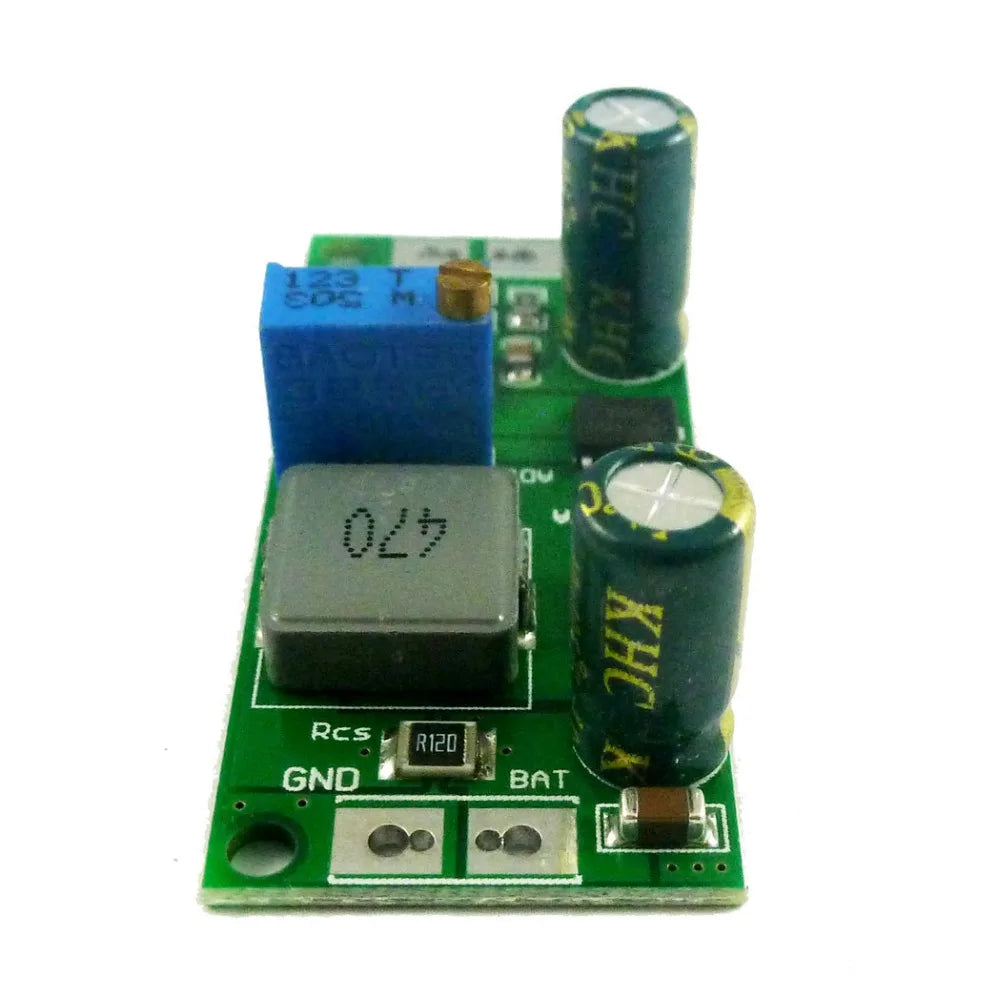

The maximum charge current / output current is 1A, but you can change the current by changing the value of the Rcs resistor.

Can be used as Voltage Source when Battery is Absent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

Led indicator :  "CR" LED is charge status indicator
"OK" LED is fully charged OR Constant voltage mode;
After the "OK" light is on, please continue charging for 10-20 minutes.

Battery Overvoltage Protection

Operating Ambient Temperature－40℃ to ＋85℃

Size : 45 x 20 x 15mm
Weight :  7g

 If you need a chip brochure please contact me


Applications:

Car battery charger
Solar battery charger
Mobile Loadspeaker
Electric Bicycle Charger
UPS
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Standalone Chargers for Lithium ion,
LiFePO4 or Lithium Titanate Batteries
