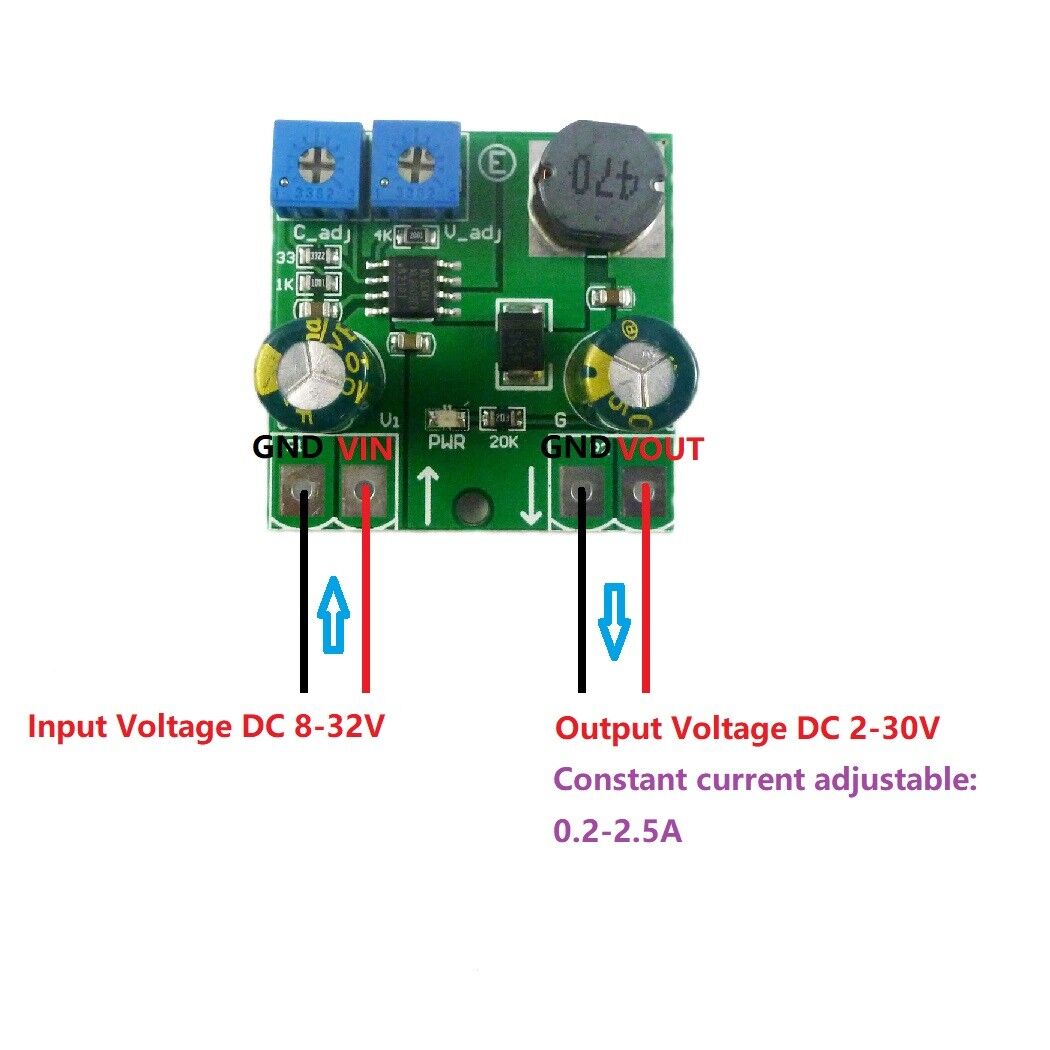

Input voltage DC 8~32V,Output Voltage DC 2~30V adjustable;
Constant current adjustable: 0.2-2.5A
Maximum output current 2.5A(Maximum output power 15W)

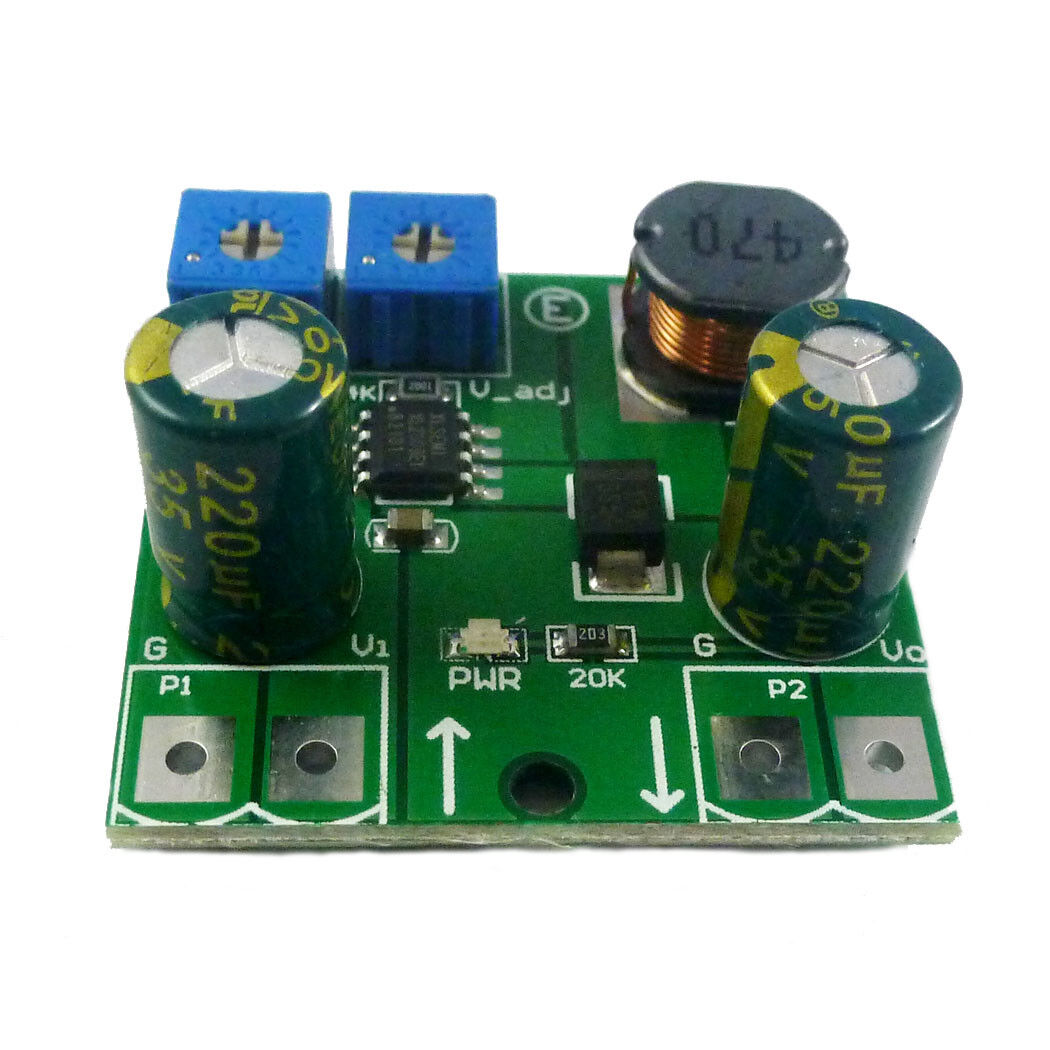

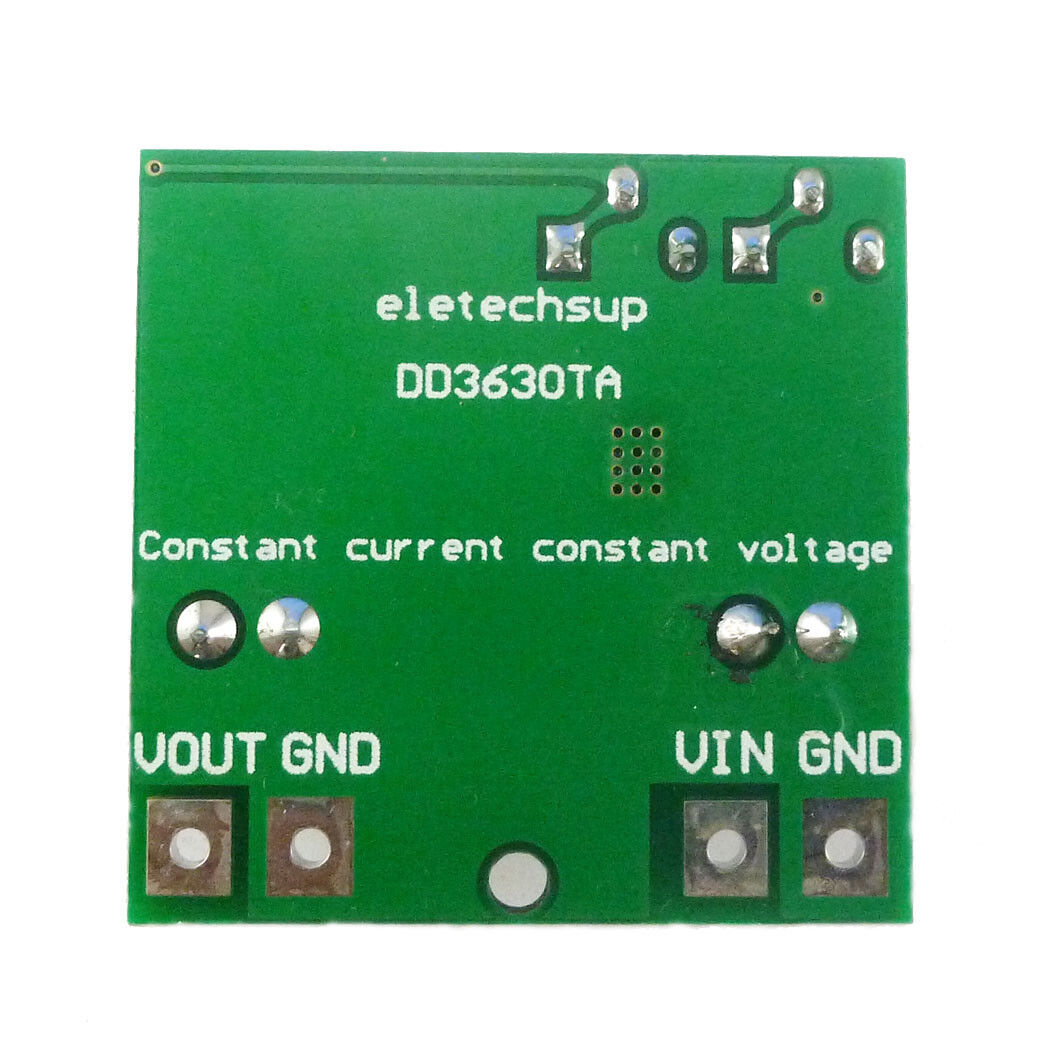

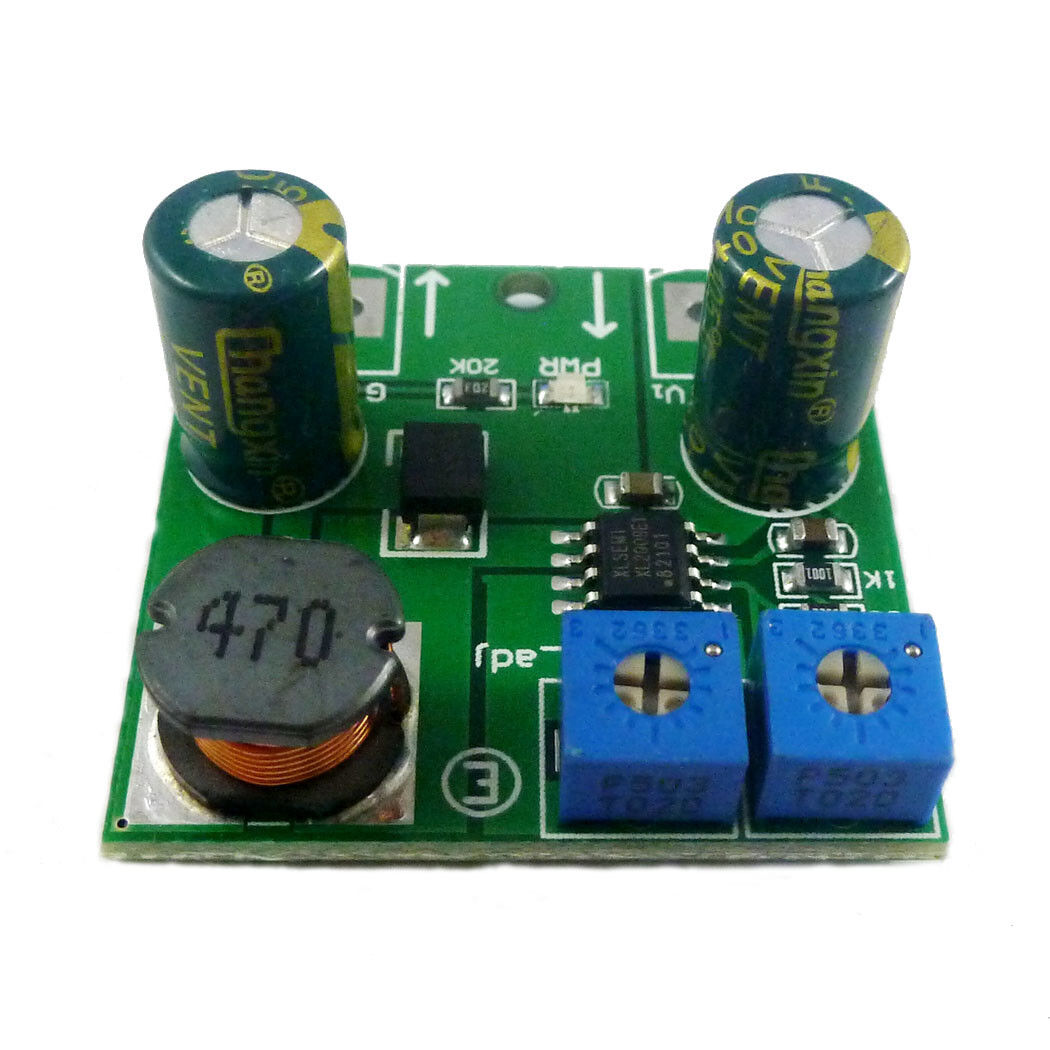

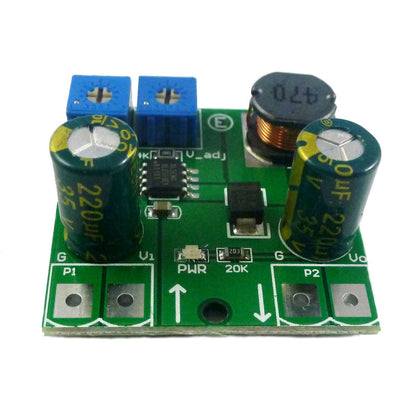

DC-DC Step-Down Converter module,Constant current and constant voltage output.
Quiescent current: about 2.1mA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), and short circuit protection.
Operating Temperature :–40°C to +85°C

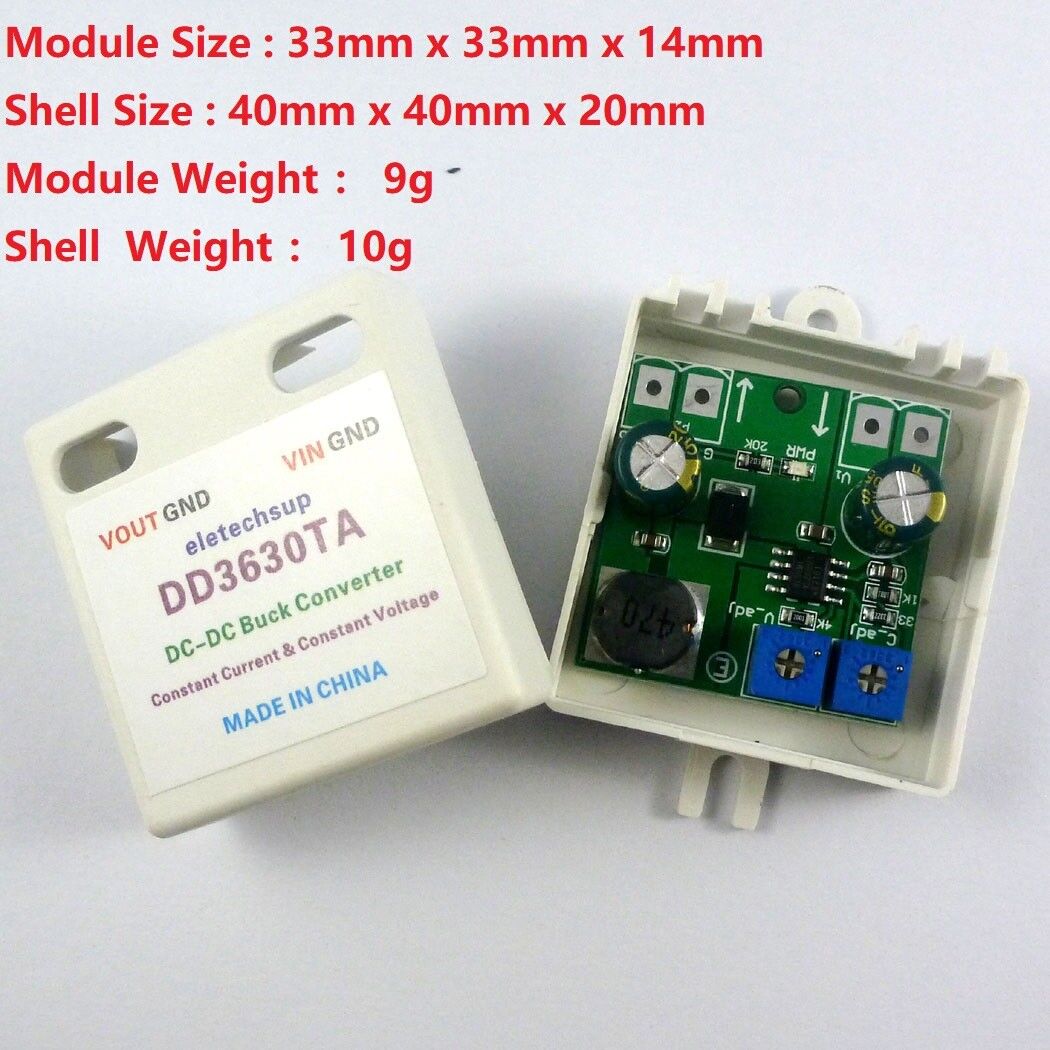

Module Size : 33mm x 33mm x 14mm

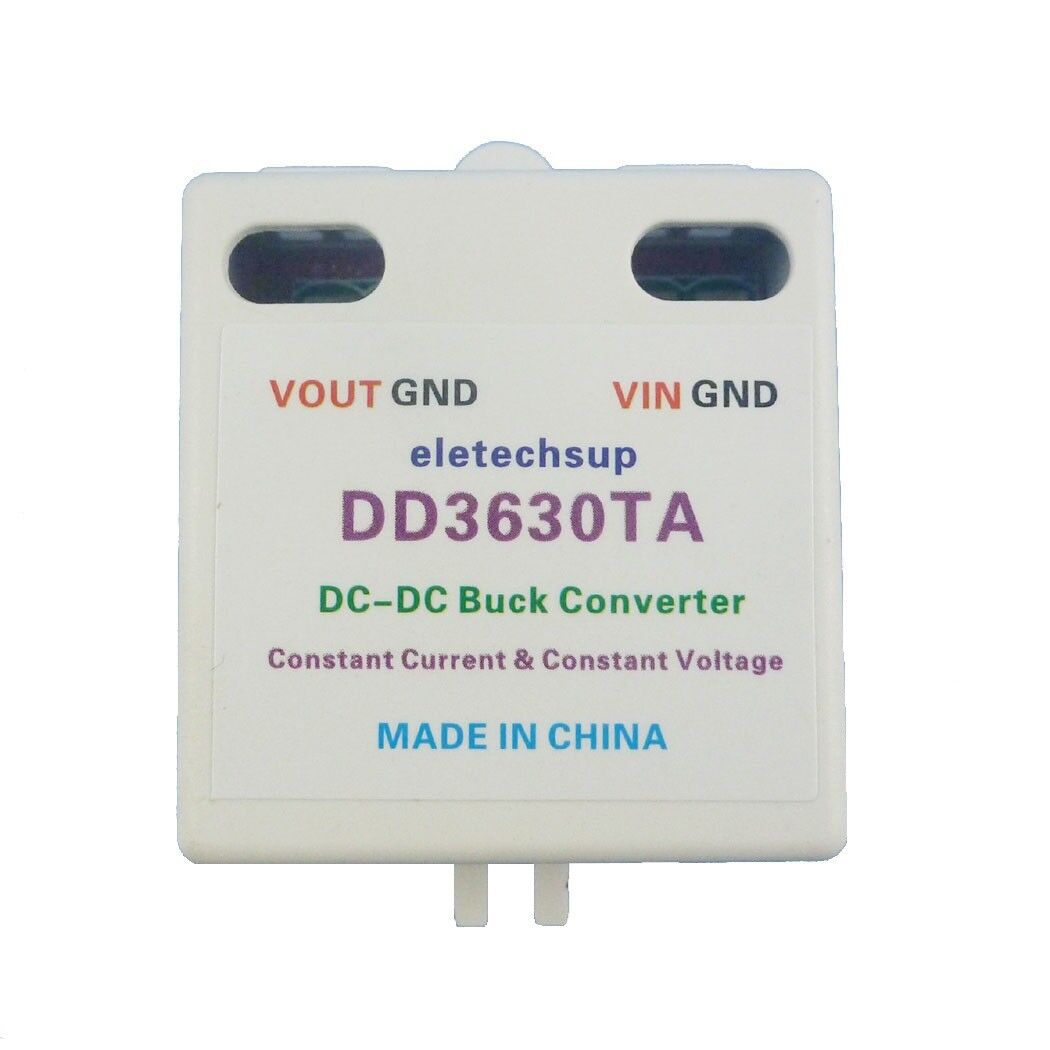

Shell Size : 40mm x 40mm x 20mm
Module Weight ： 9g
Shell Weight ： 10g

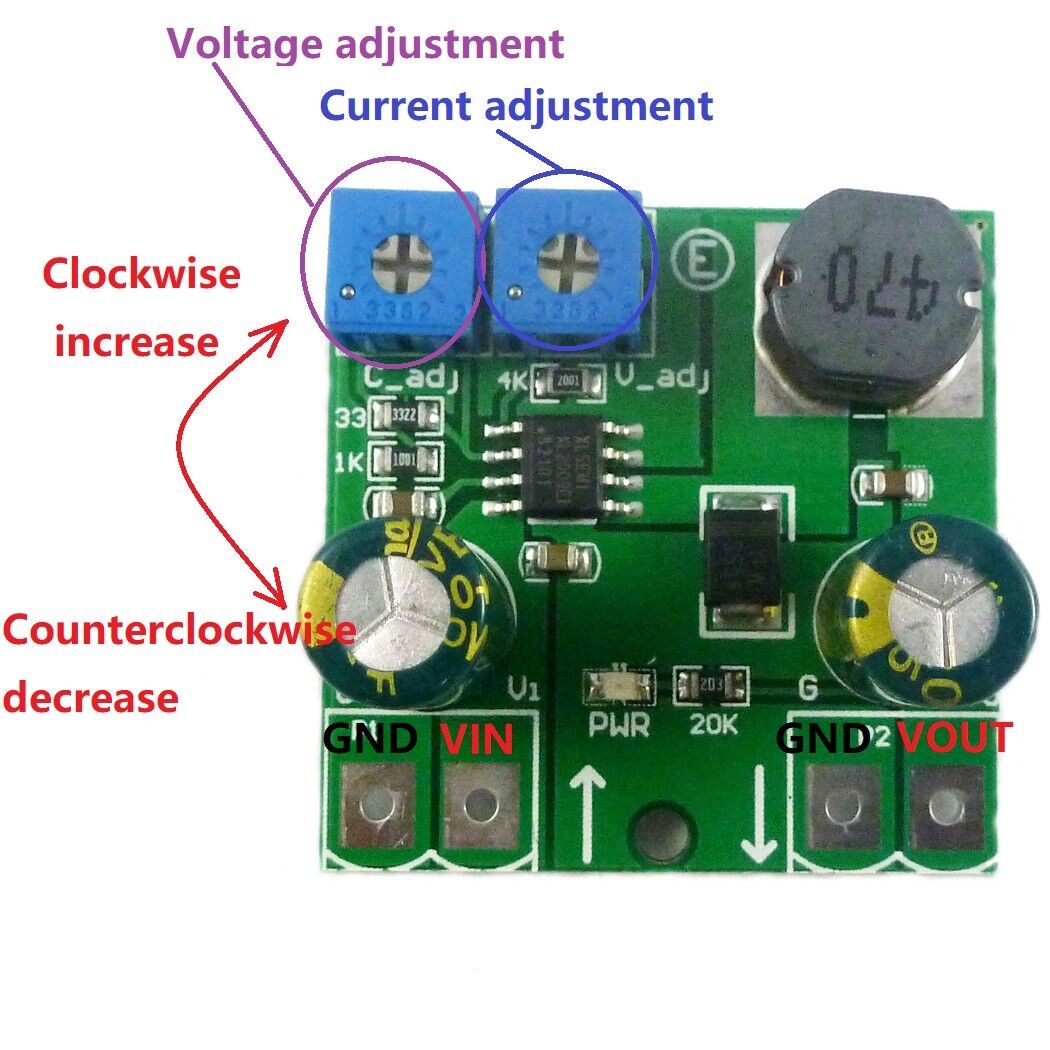

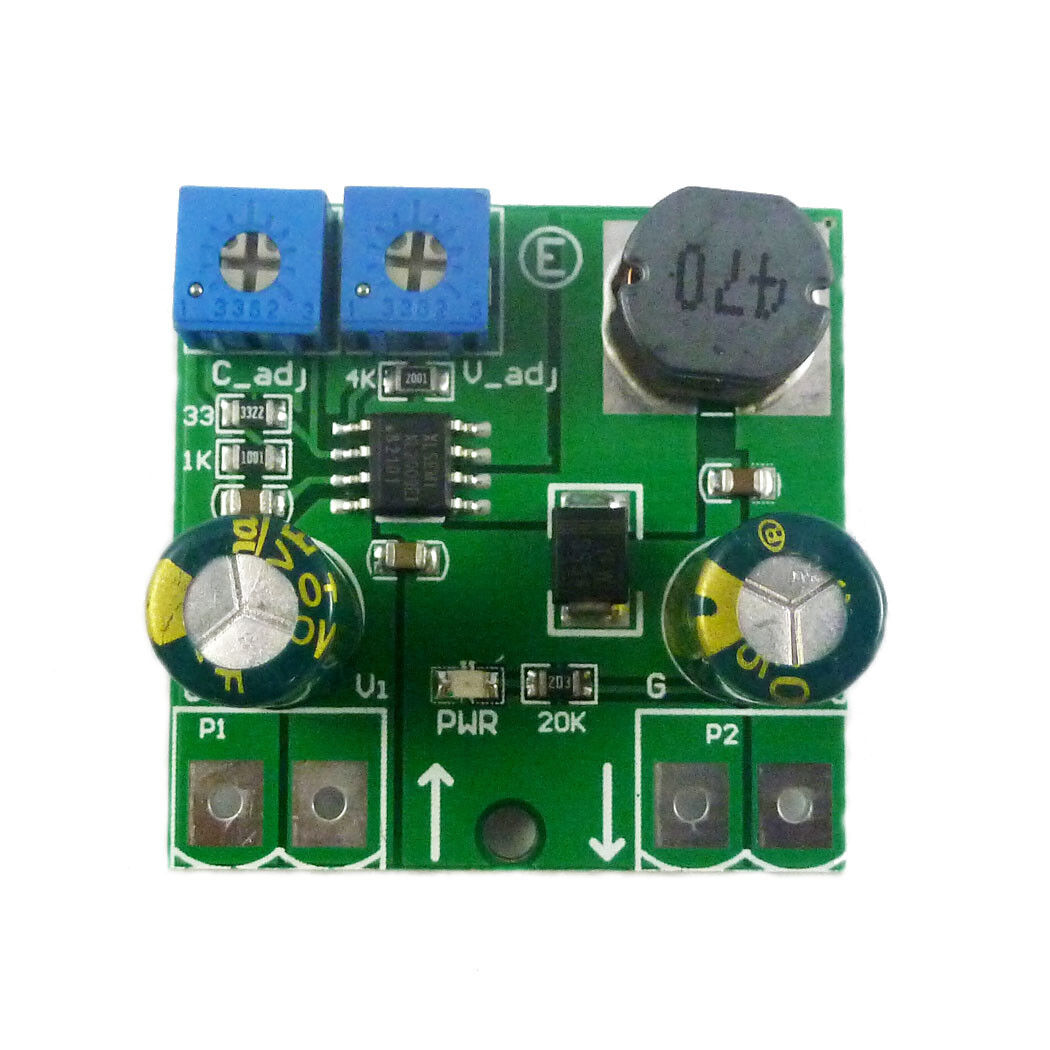

Adjustable resistance description:
V_adj : Adjustable voltage output DC 2-30V(Input Voltgae > Output Voltage),
Increase voltage clockwise and reduce voltage counterclockwise.
C_adj : Adjustable current output 0.2-2.5A(Input Power > Output Power),
Increase current clockwise and reduce current counterclockwise.
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
