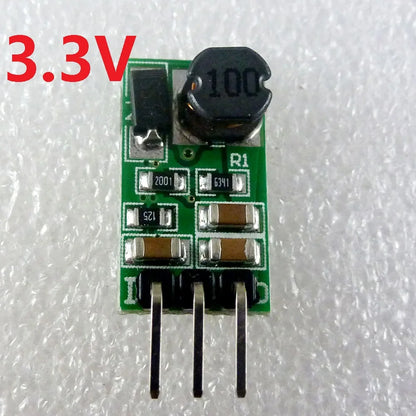

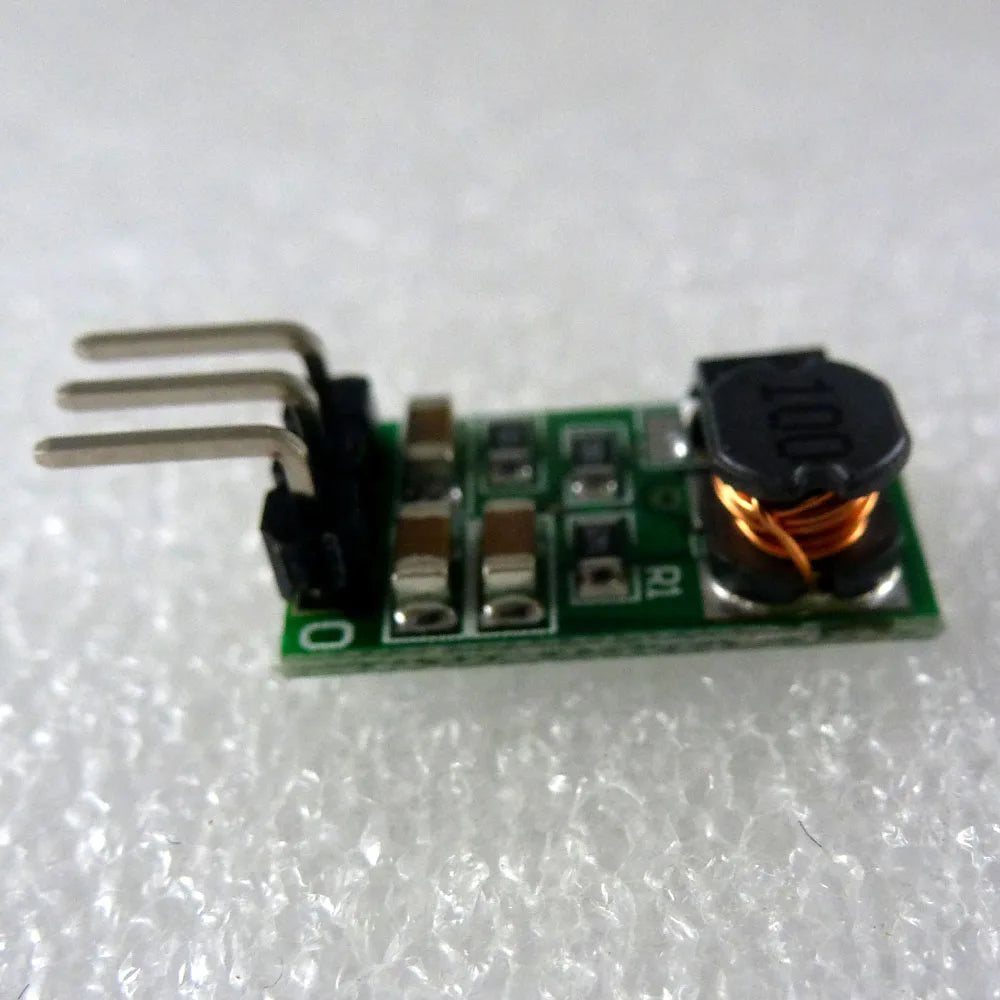

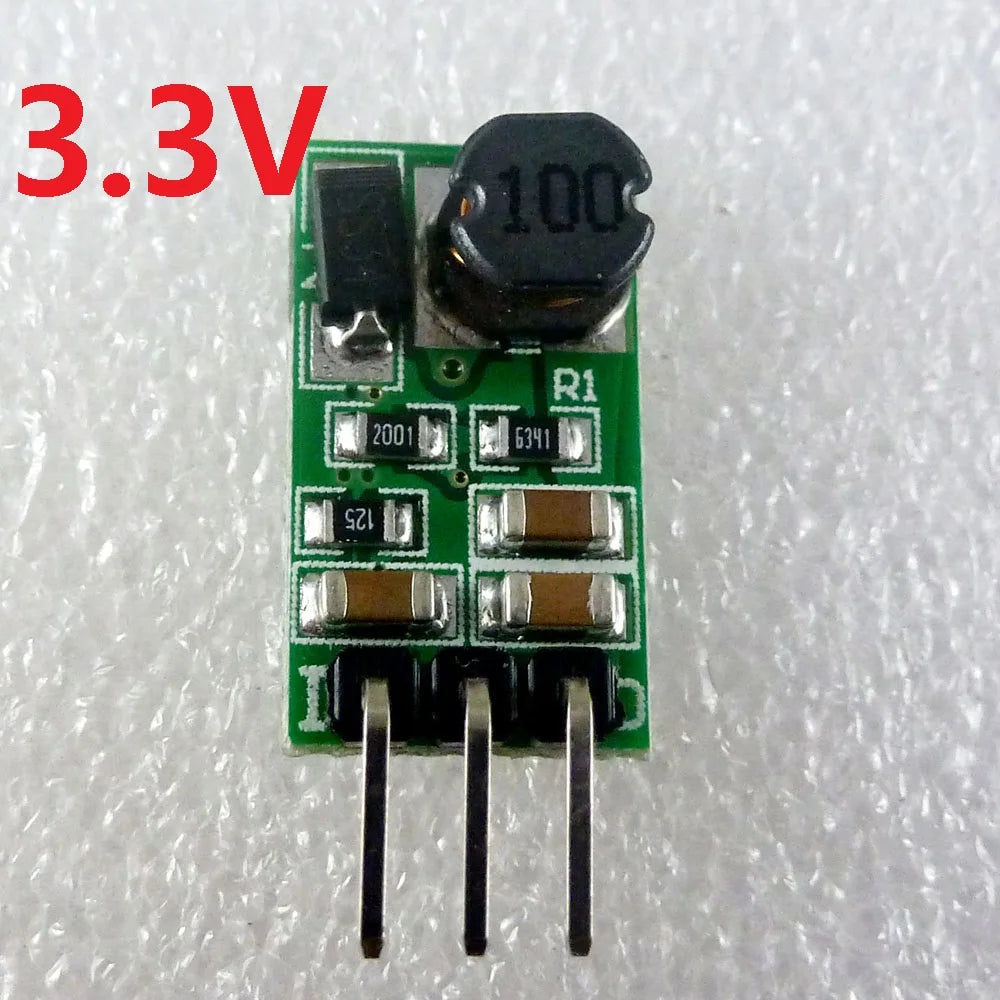

DD4012SA DC DC Step-Down Buck Converter Voltage Regulator Module for Arduiuo Pro mini breadboard

Product Name :
1PCS  5W 7-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V DC DC Buck Converter Module Step-Down Voltage regulator Board



Packing list(Does not include L7805):

  1PCS  DD4012SA 5W 7-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V 1A DC DC Buck Converter Module

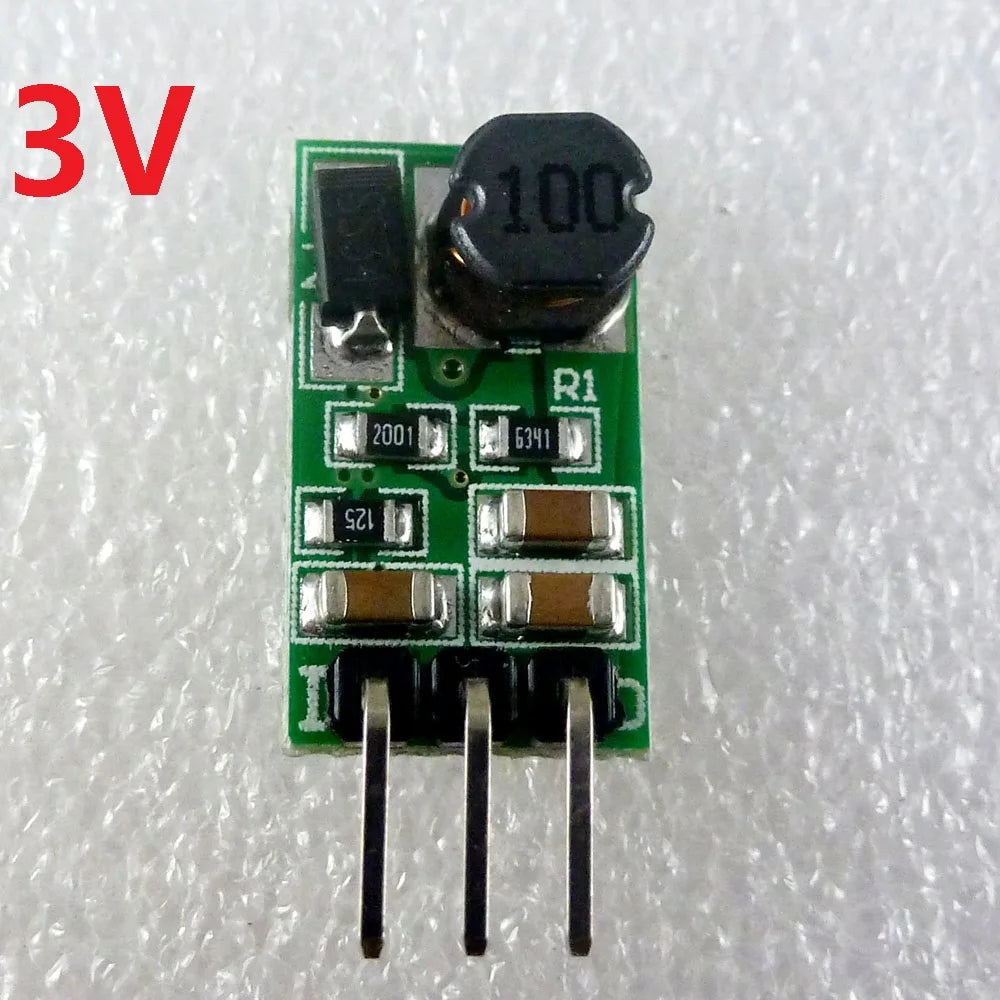

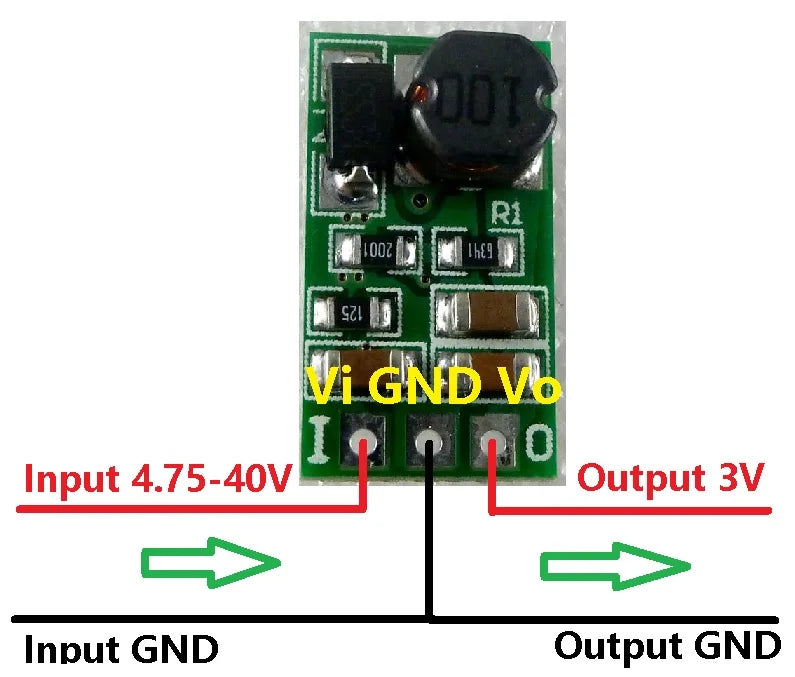

3V:
Description:

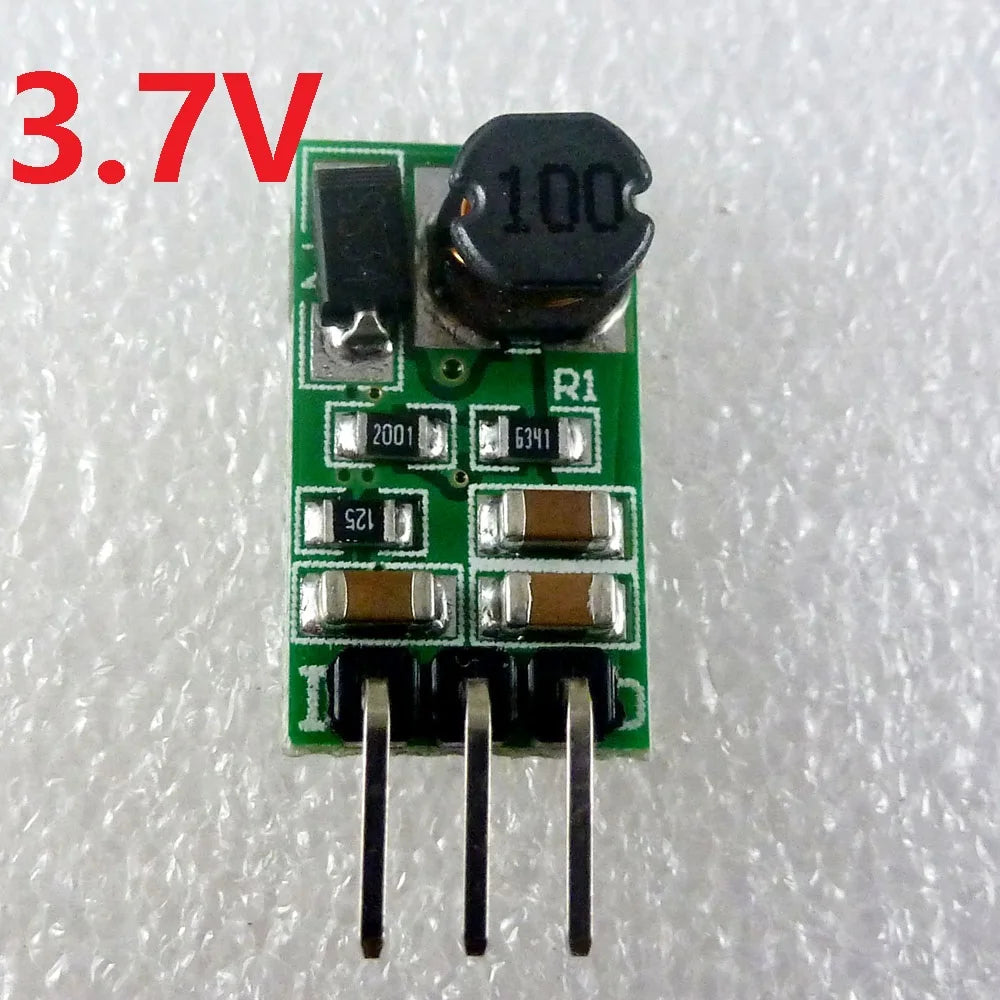

3V7:

Description:

Input voltage 5~40V,output 3.7V



Maximum output current 1A



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.



2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly

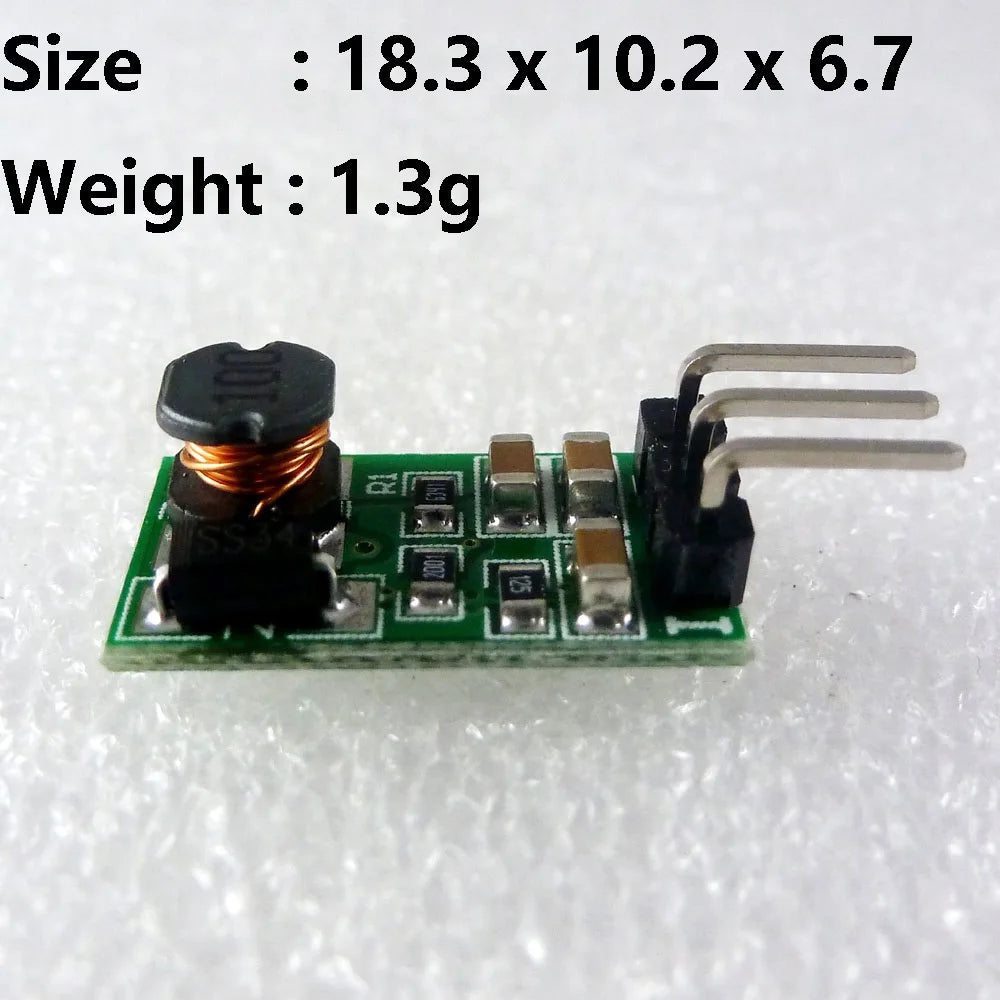

Excluding Pin Size 18.4mm x 10.3mm x 6.6mm( small)



Weight : about 1.38g(Very light)

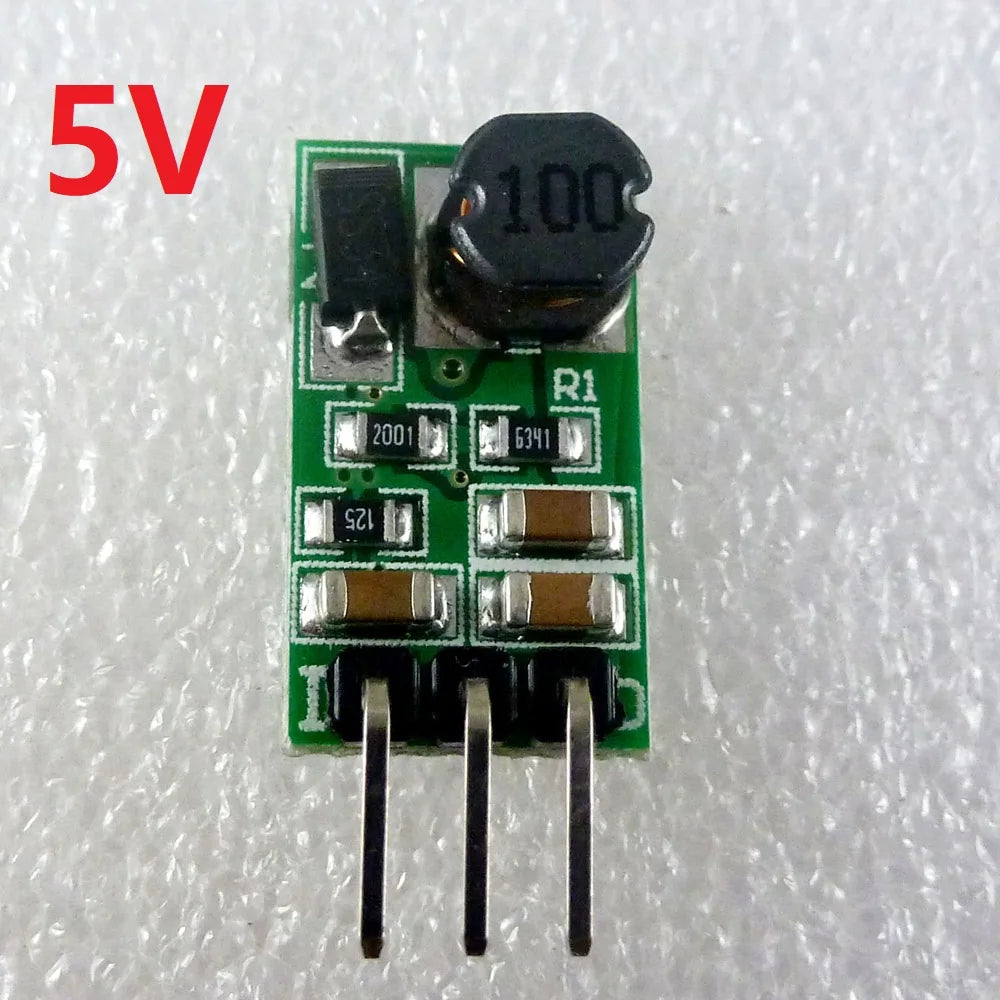

5V:



Input voltage 6.5~40V,output 5V



Maximum output current 1A



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

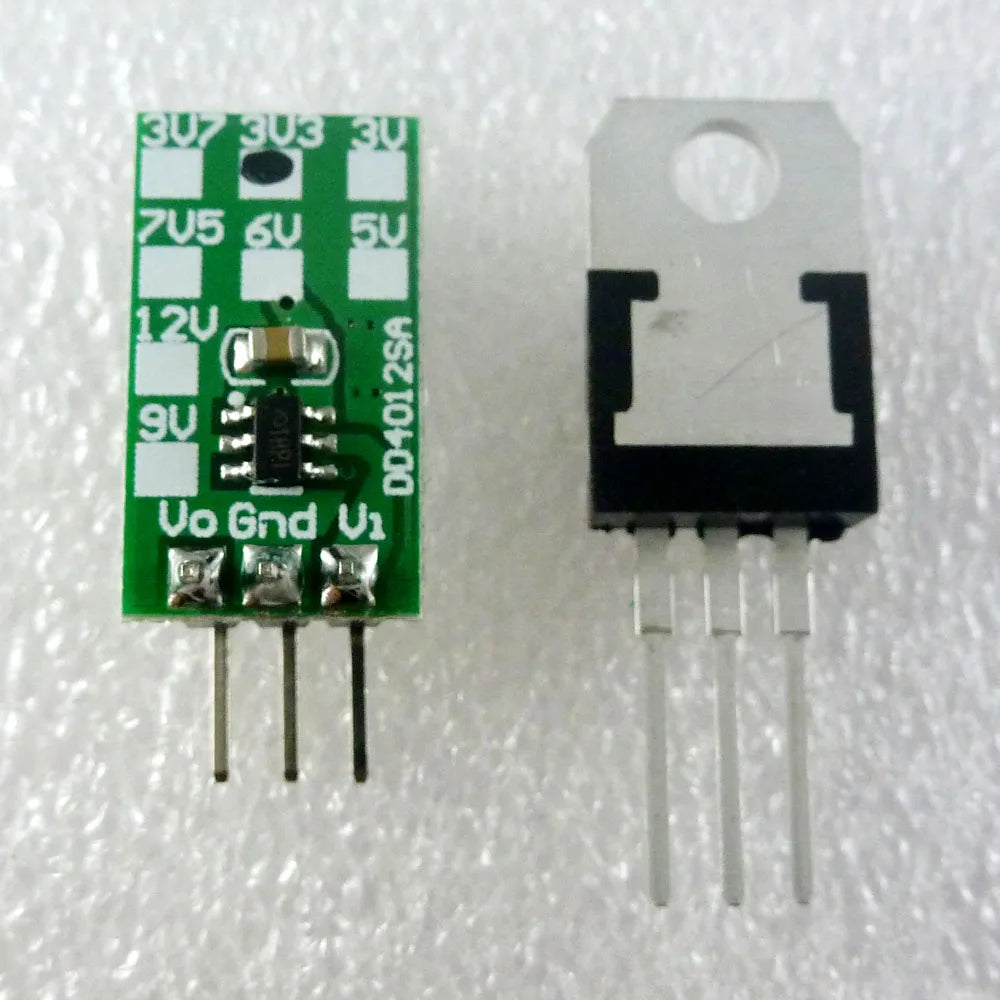

2.54mm pin pitch,Can directly replace the L78XX LM78XX TO-220 IC













6V:



Description:



Input voltage 7.5~40V,output 6V



Maximum output current 1A



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.



2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly



Excluding Pin Size 18.4mm x 10.3mm x 6.6mm( small)



Weight : about 1.38g(Very light)

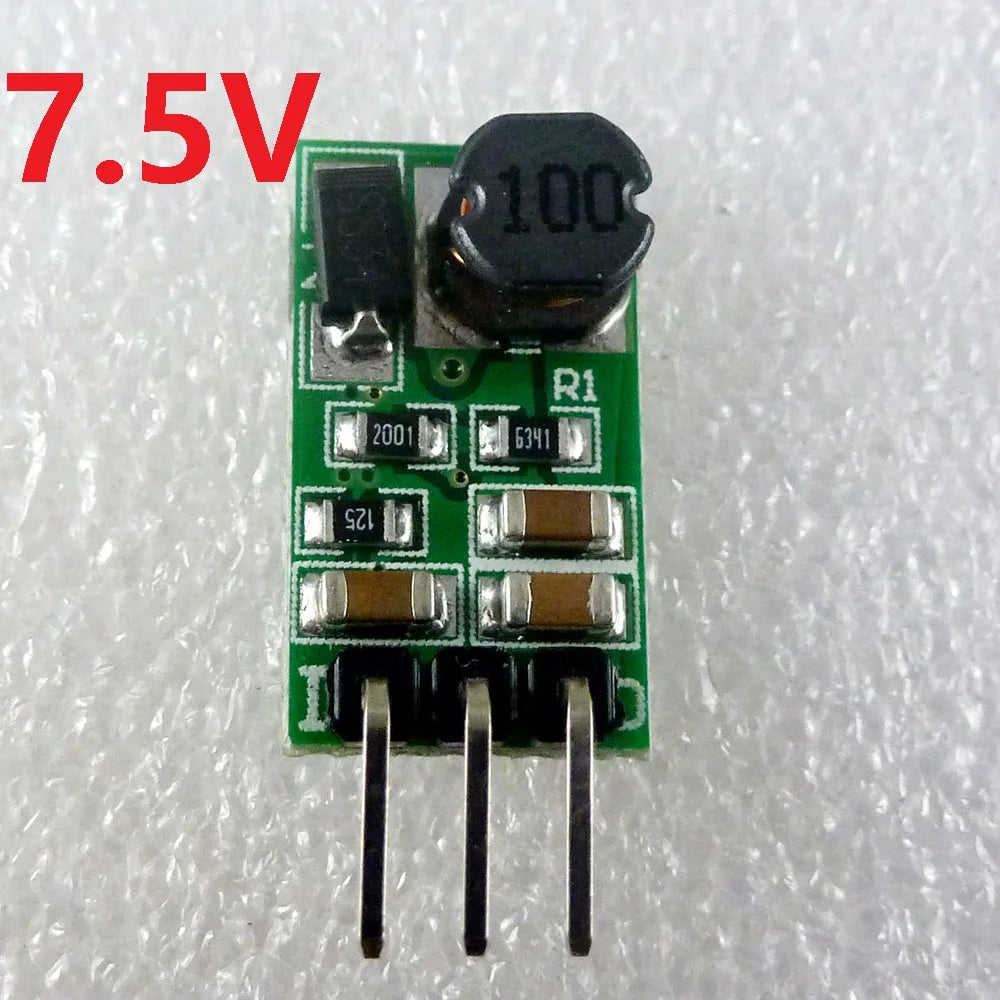

Input voltage 9~40V,output 7.5V



Maximum output current 1A



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.



2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly



Excluding Pin Size 18.4mm x 10.3mm x 6.6mm( small)



Weight : about 1.38g(Very light)

















9V:



Description:



Input voltage 11~40V,output 9V



Maximum output current 900MA



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.



2.54mm pin pitch,Can directly replace the L78XX LM78XX TO-220 IC









​

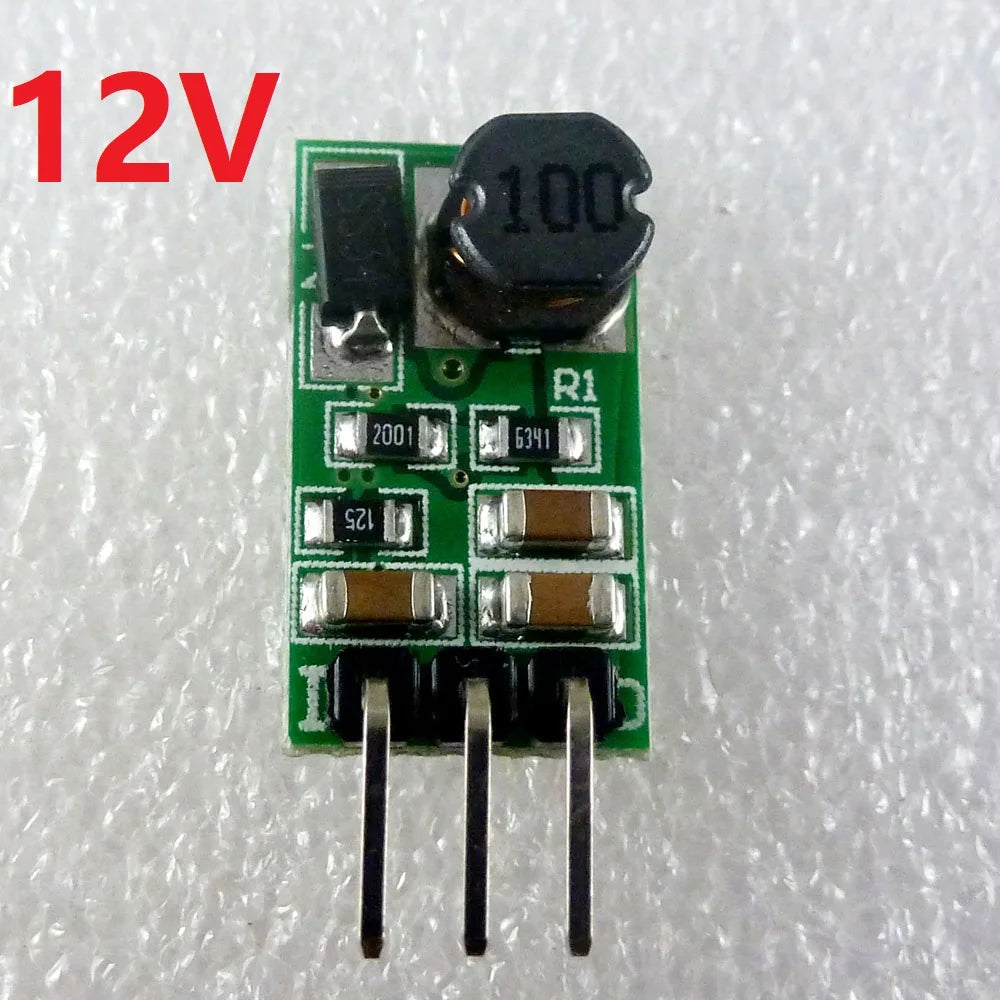

12V:



Description:



Input voltage 14~40V,output 12V



Maximum output current 800MA



DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 74-90% .



Quiescent current: about 1.5MA



Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.



2.54mm pin pitch,Can directly replace the L78XX LM78XX TO-220 IC





Applications:



Motor


WIFI router


315M 433M Wireless Control


CCTV camera


Toy car


Smart home / home automation


Distributed Power Systems


Battery Charger


Pre-Regulator for Linear Regulators


​ replace LM7812 L7812 LDO
