DDIS24QC 15W DC 24V 36V 48V to 12V 5V 3.3V DIN Rail Isolated Power Supply Module DC-DC Buck Converter for PLC RS485 IO Relay LED
DDIS24QC 15W DC 24V 36V 48V to 12V 5V 3.3V DIN Rail Isolated Power Supply Module DC-DC Buck Converter for PLC RS485 IO Relay LED
SKU:DDIS24QC_12V
1000 in stock
Regular price
$8.99
Regular price
$9.80
Sale price
$8.99
Unit price
per
Couldn't load pickup availability
Product Title: 15W DC 24V 36V 48V to 12V 5V 3.3V DIN Rail Isolated Power Supply Module DC-DC Buck Converter for PLC RS485 IO Relay LED
Product List:1PCS 15W DC 24V 36V 48V to 12V 5V 3.3V DIN Rail Isolated Power Supply Module
(Specific according to the version and quantity you choose)

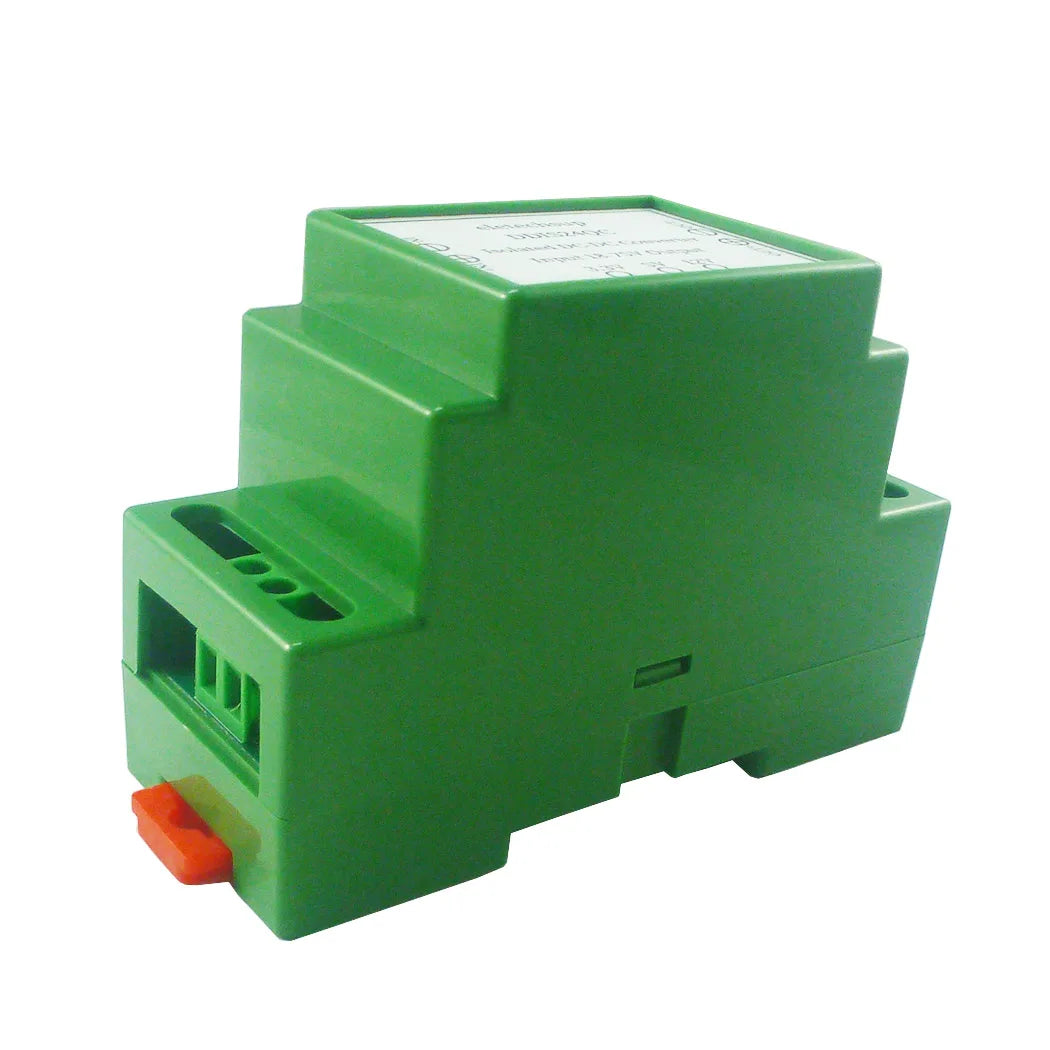

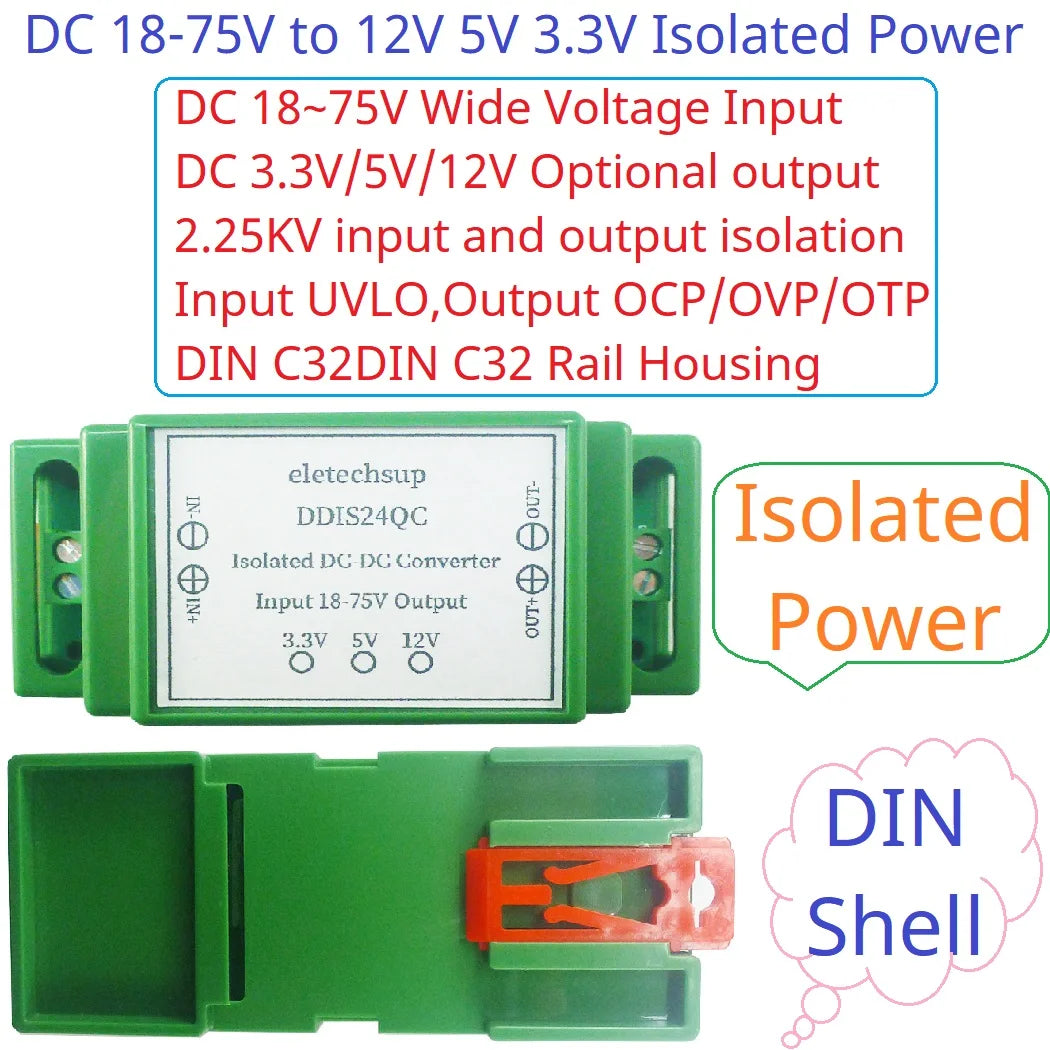

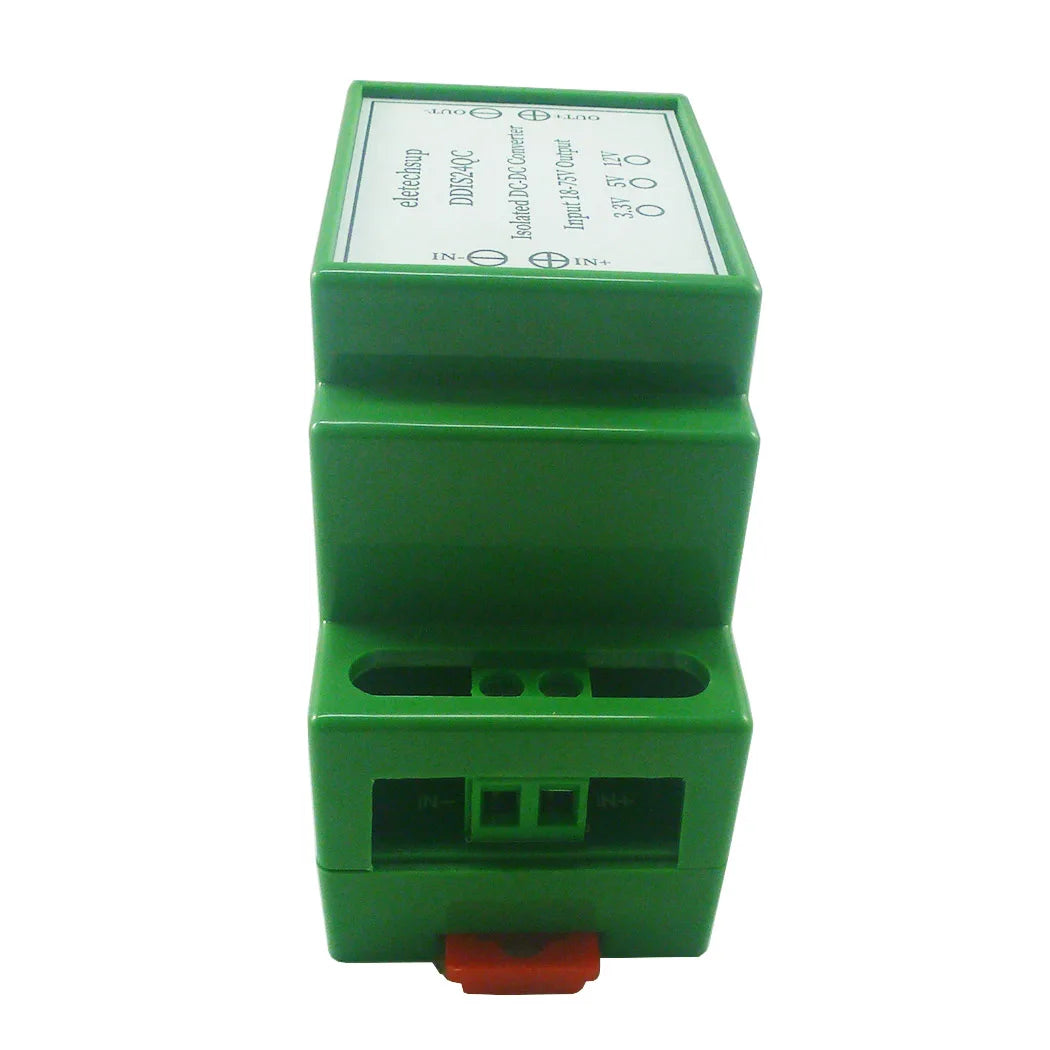

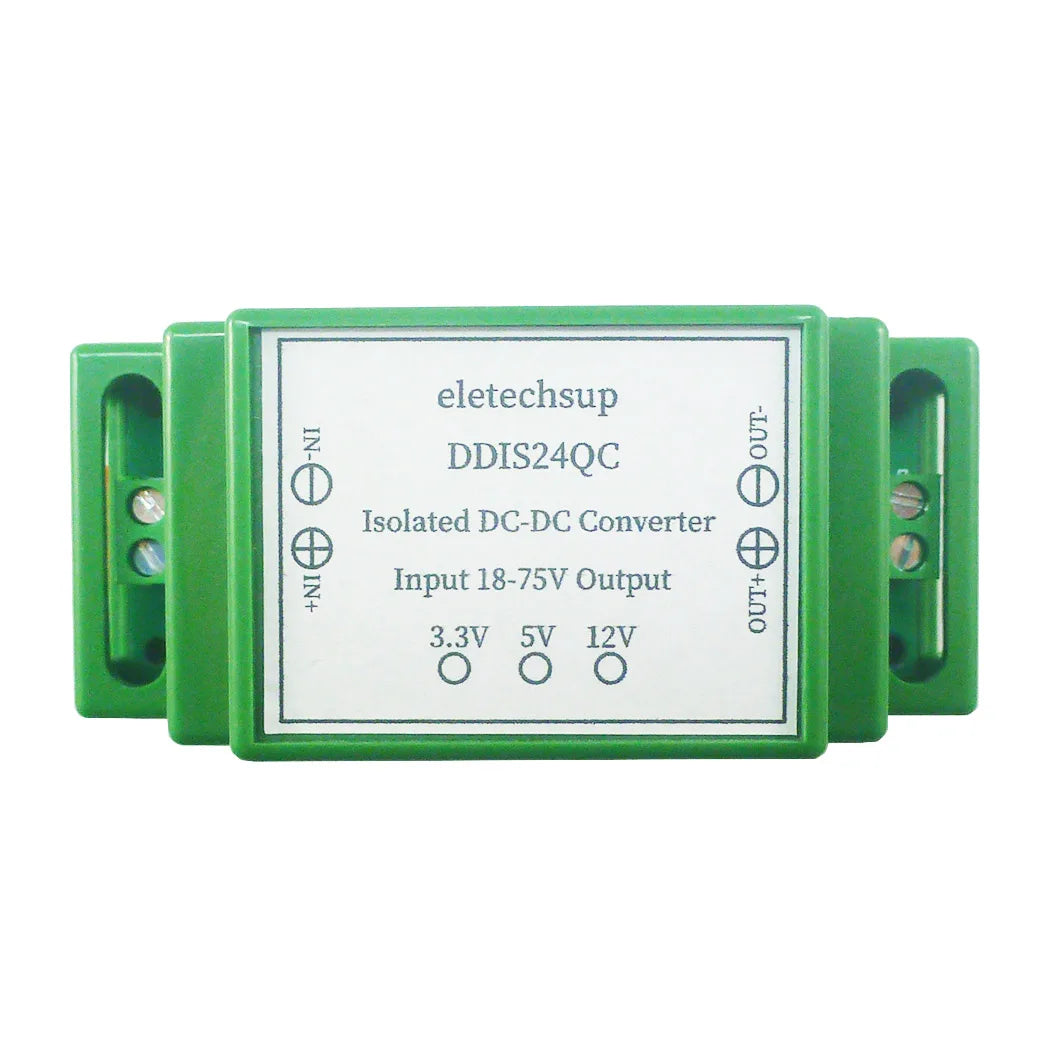

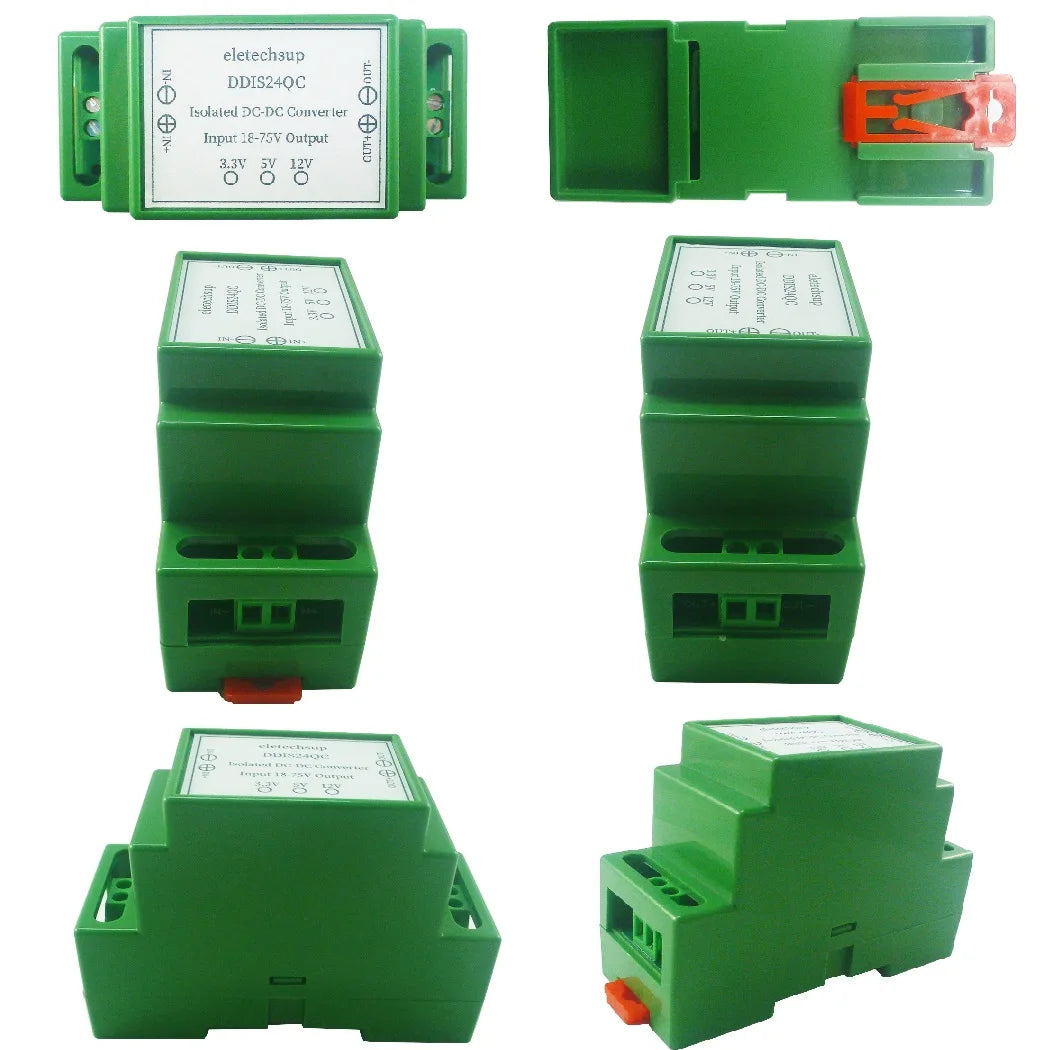

DDIS24QC is a DC 18-75V to 12V/5V/3.3V isolated DC DC converter designed and produced by eletechsup. It has various protection functions and comes with a DIN rail housing. Is an ideal PLC expansion board RS485 IO power supply device
Features:

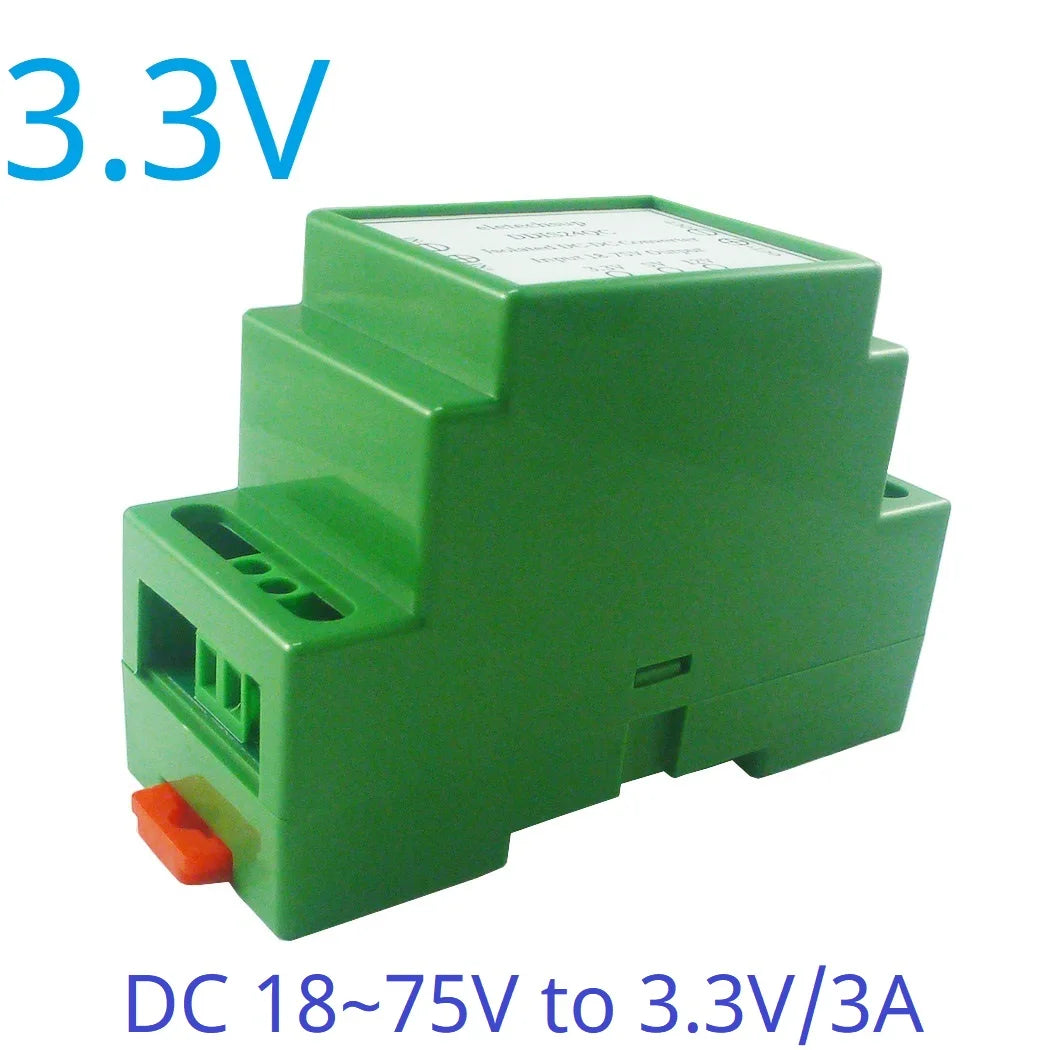

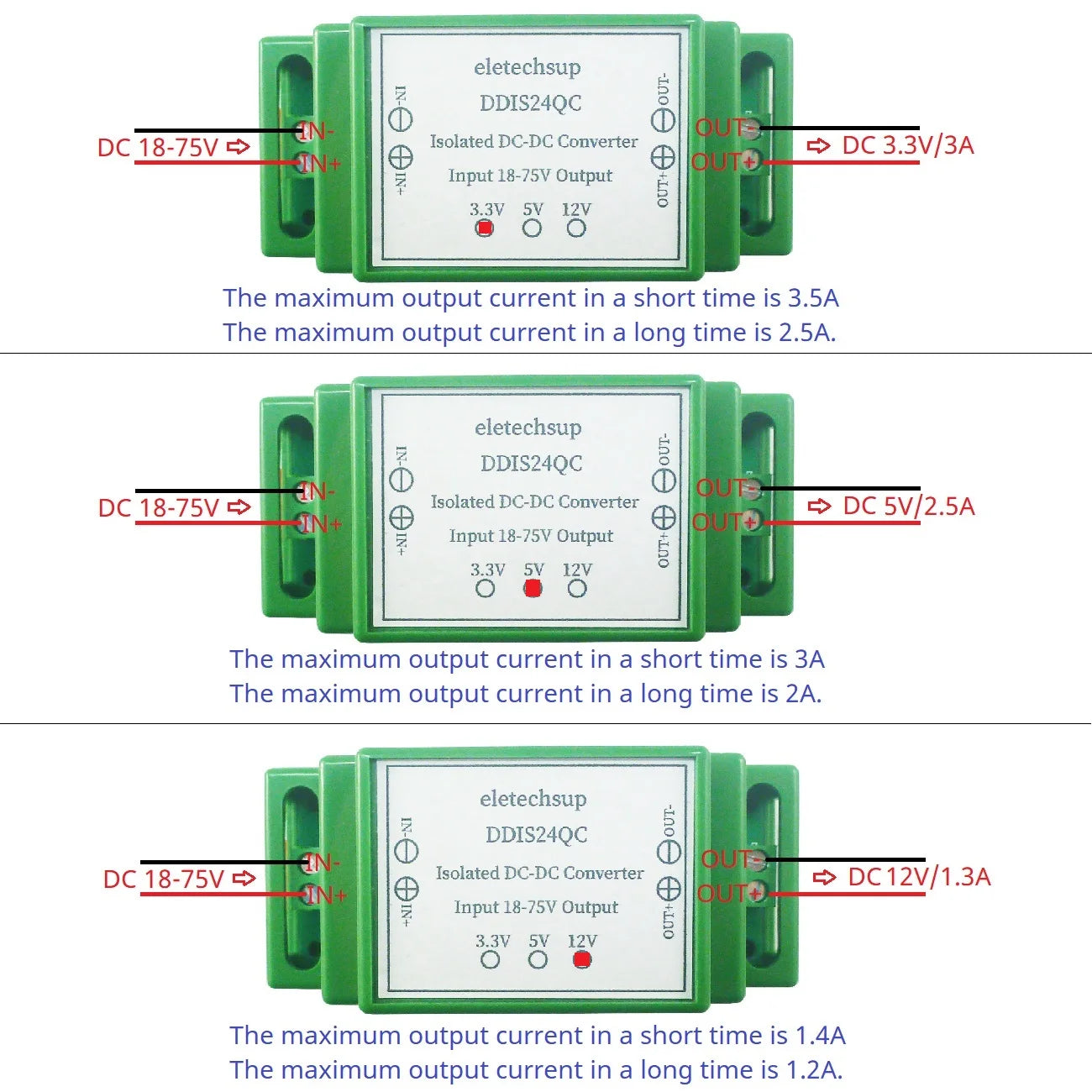

3.3V Version:
Input DC 18~75V,3.3V isolated output
The maximum output current in a short time is 3.5A
The maximum output current in a long time is 2.5A.
Switching Frequency 450 kHZ
High efficiency : 85% @ 3.3V/2.5A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 60g

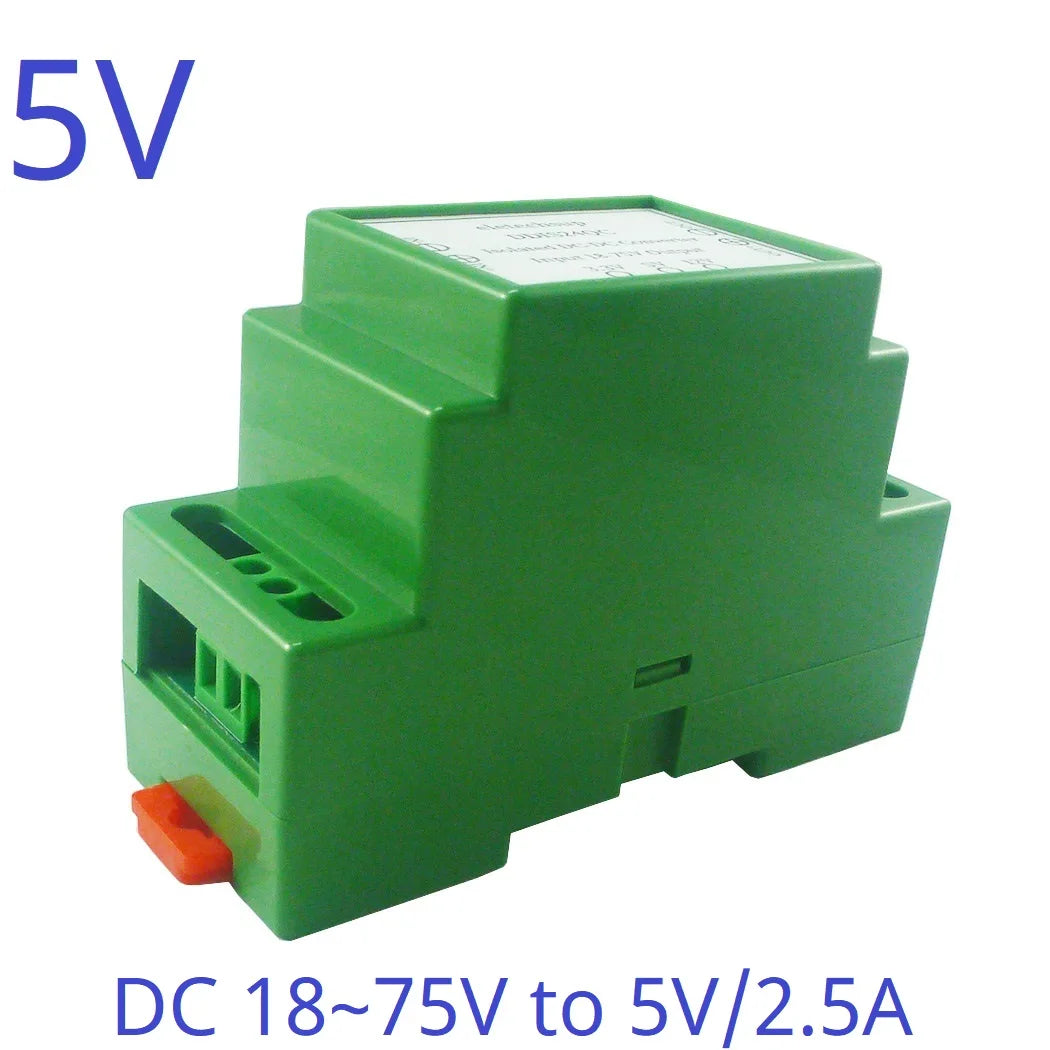

5V Version:
Input DC 18~75V,5V isolated output
The maximum output current in a short time is 3A
The maximum output current in a long time is 2A.
Switching Frequency 450 kHZ
High efficiency : 85% @ 5V/2A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 60g

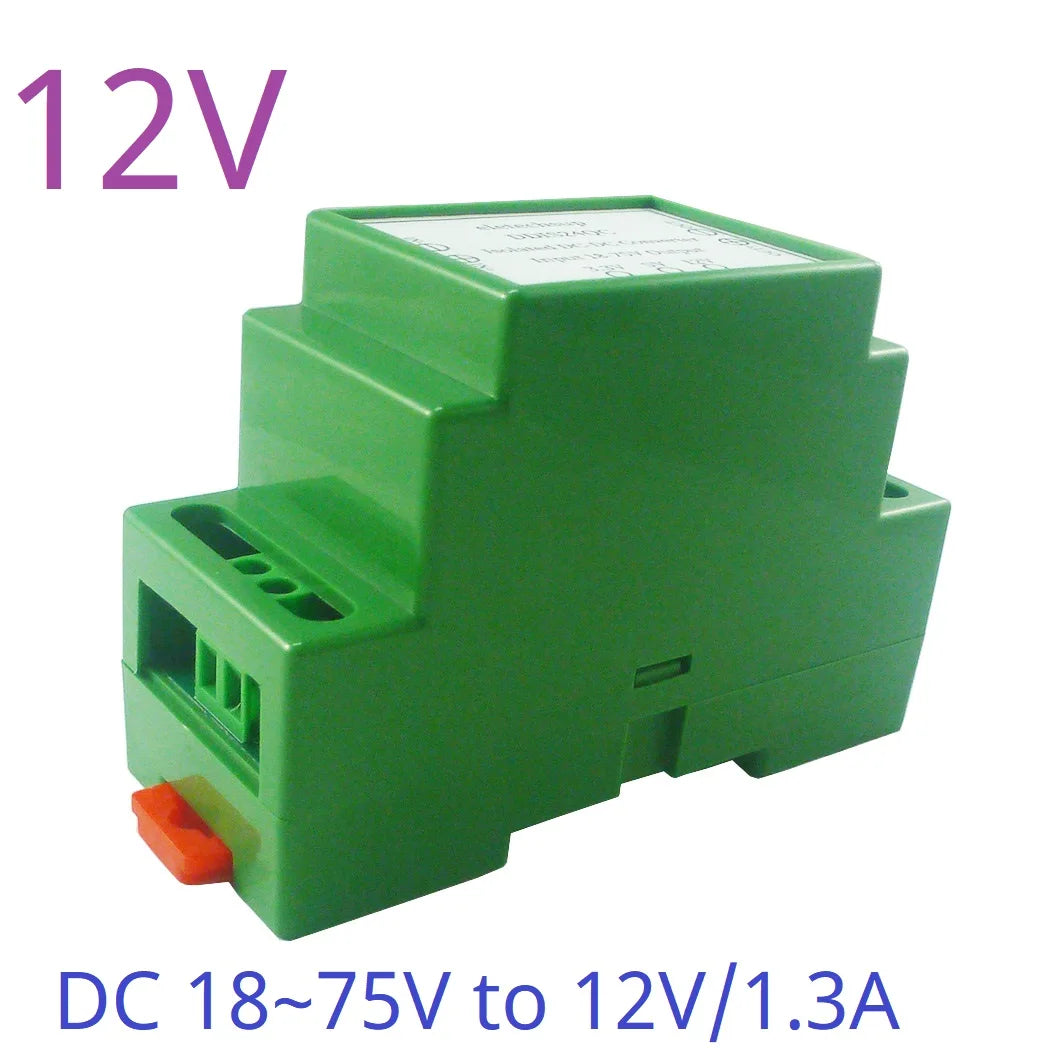

12V Version:
DC 18~75V Wide Voltage Input
DC 12V/1.3A isolated output
Switching Frequency 450 kHZ
High efficiency : 87% @ 12V/1.3A
Input UVLO,Output OCP/OVP/OTP
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C
Size : 87 x 59 x 35mm
Weight : 58.5g
