DDTC12UA_PRO Full Function Type-C PD QC USB 5V to 5V to 6V 9V 12V 15V 24V 9W DC-DC Boost Converter for Arduino Smart Home Speaker

DDTC12UA_PRO Full Function Type-C PD QC USB 5V to 5V to 6V 9V 12V 15V 24V 9W DC-DC Boost Converter for Arduino Smart Home Speaker

DDTC12UA_PRO_6V

1000 in stock

$1.99
$1.41 $1.99
Sale Sold out

Product Title:
Mini 9W Full Function Type-C DC-DC Boost Converter USB DC 5V to 6V 9V 12V 15V 24V Step-up Voltage Regulator for QC PD Charger


 Product List:
1PCS Mini 9W Full Function Type-C DC-DC Boost Converter USB DC 5V to 6V 9V 12V 15V 24V Step-up Voltage Regulator
 (Specific according to the version and quantity you choose)

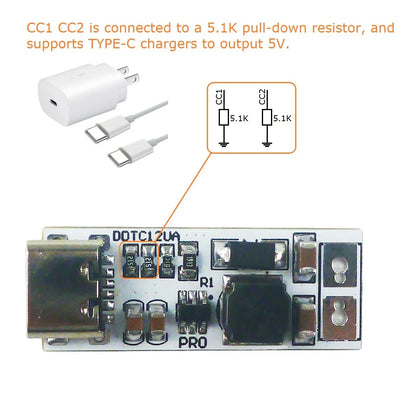

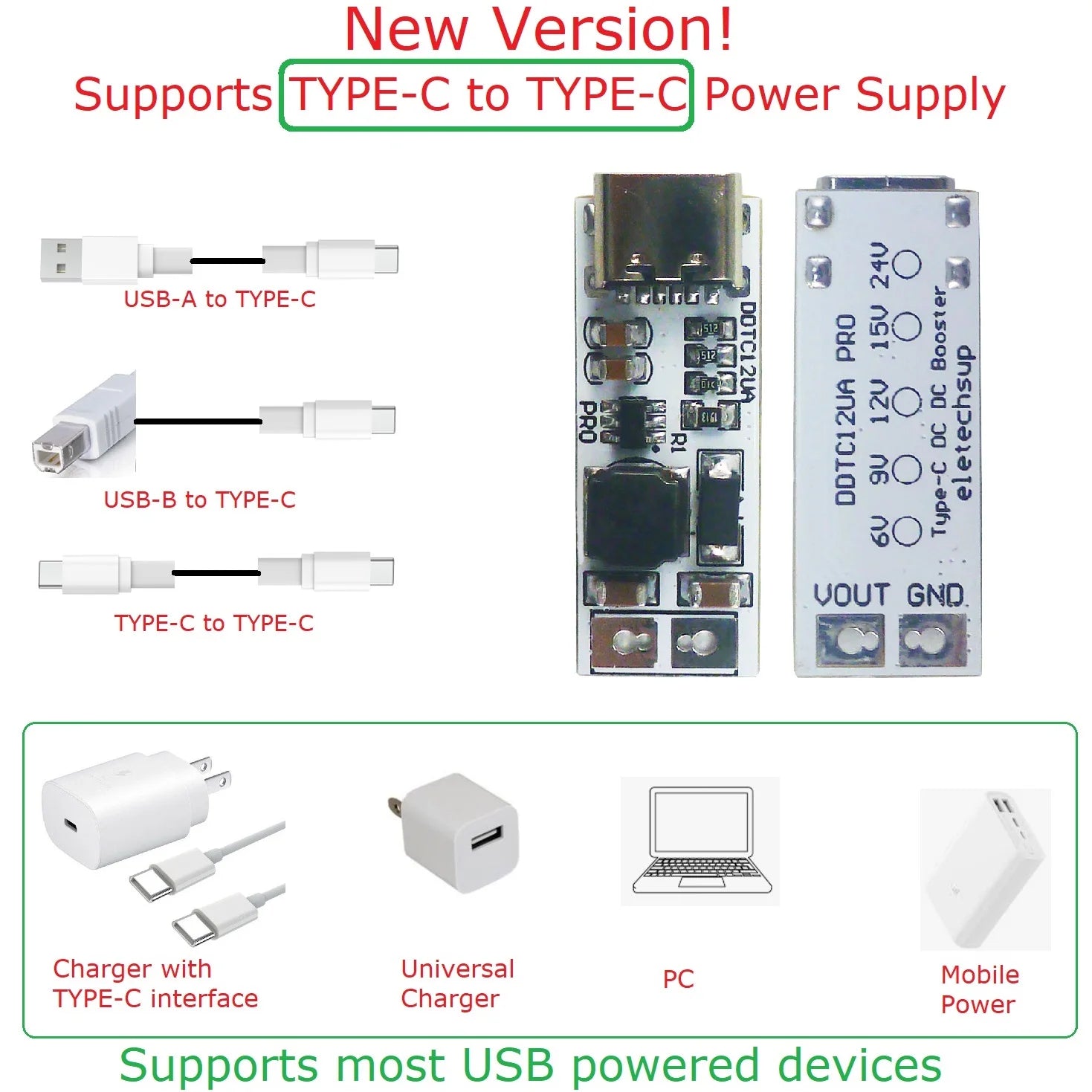

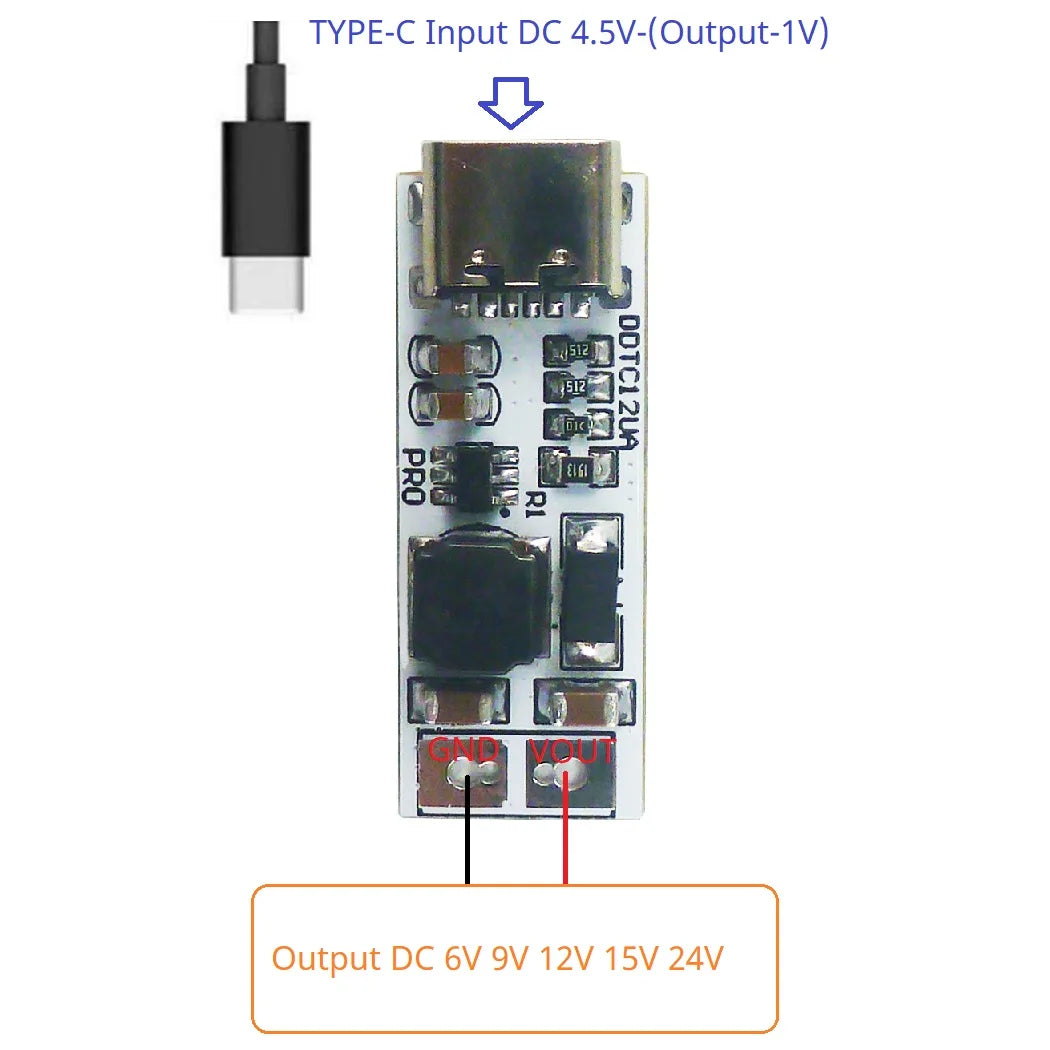

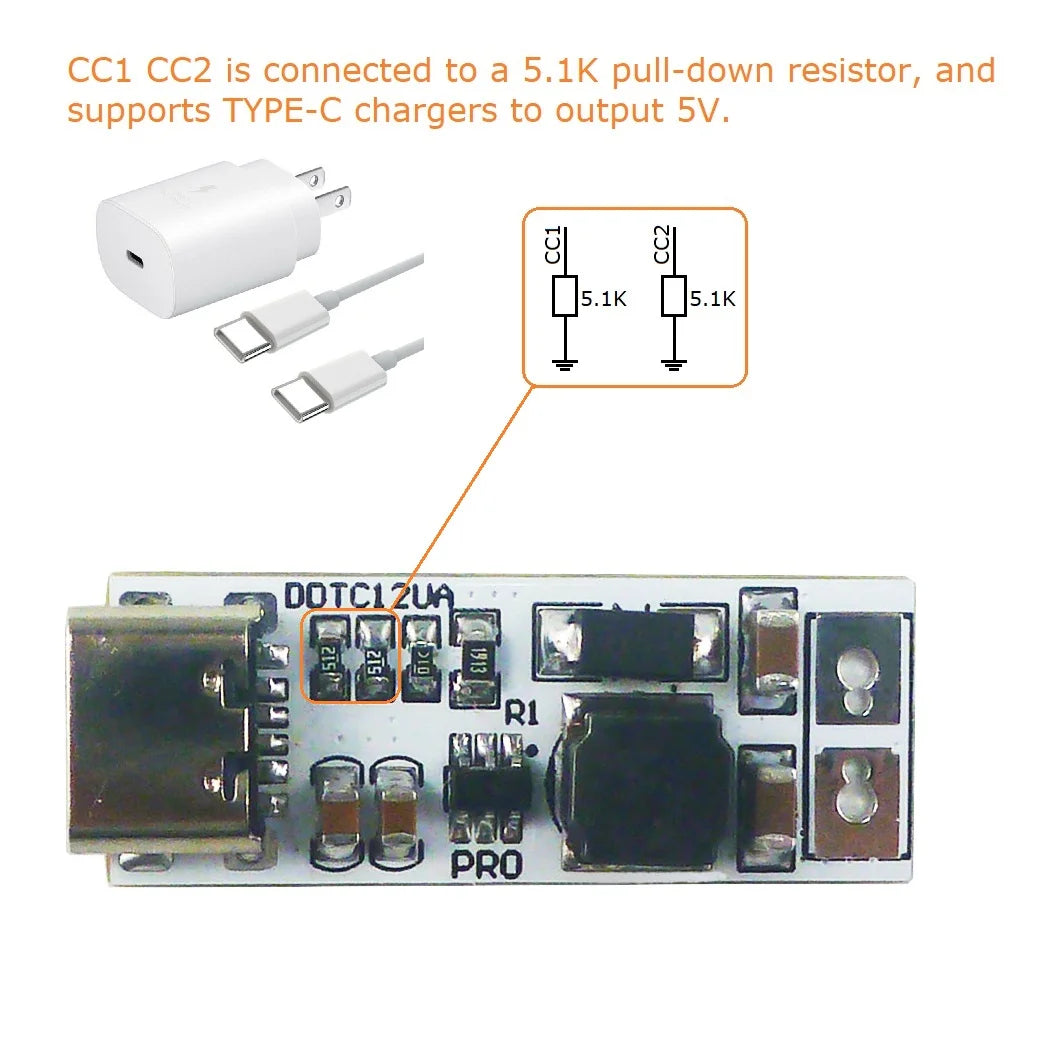

This is an upgraded version of DDTC12UA TYPE-C boost module designed and produced by eletechsup. It fixes the BUG that the old version cannot use TYPE-C TO TYPE-C power supply device



Features:


DC DC Boost Converter Module working frequency 1.2MHZ.

Supports almost all TYPE-C power inputs


Up to 94% Efficiency (usually is 83%-93%)

Quiescent Current (PFM) : 0.1uA.
Quiescent Current (PWM): 1.5mA

Automatic Pulse Frequency Modulation Mode at Light Loads

Under voltage lockout,Current limiting,Thermal overload protection

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

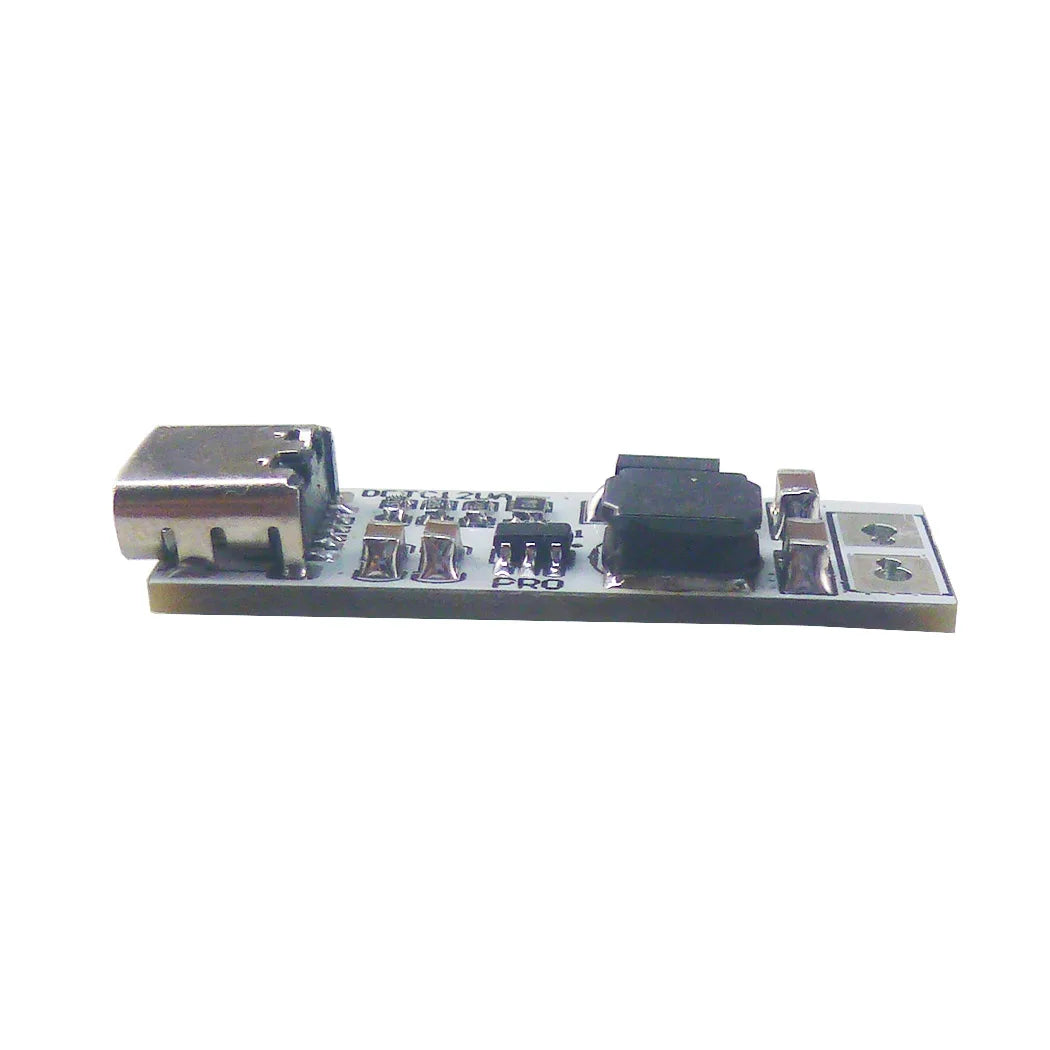

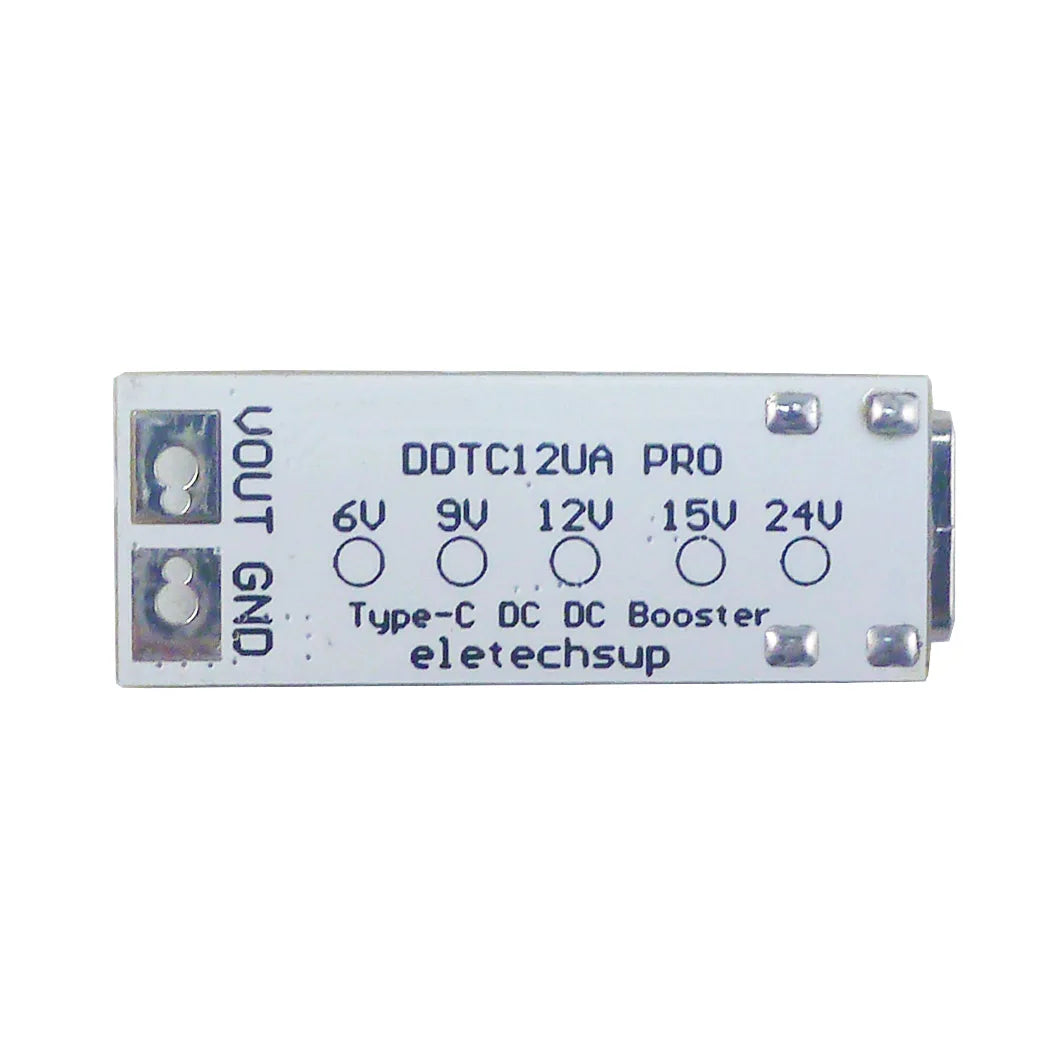

Size : 31mm x 11.5mm x 4.5mm
Weight : 2g

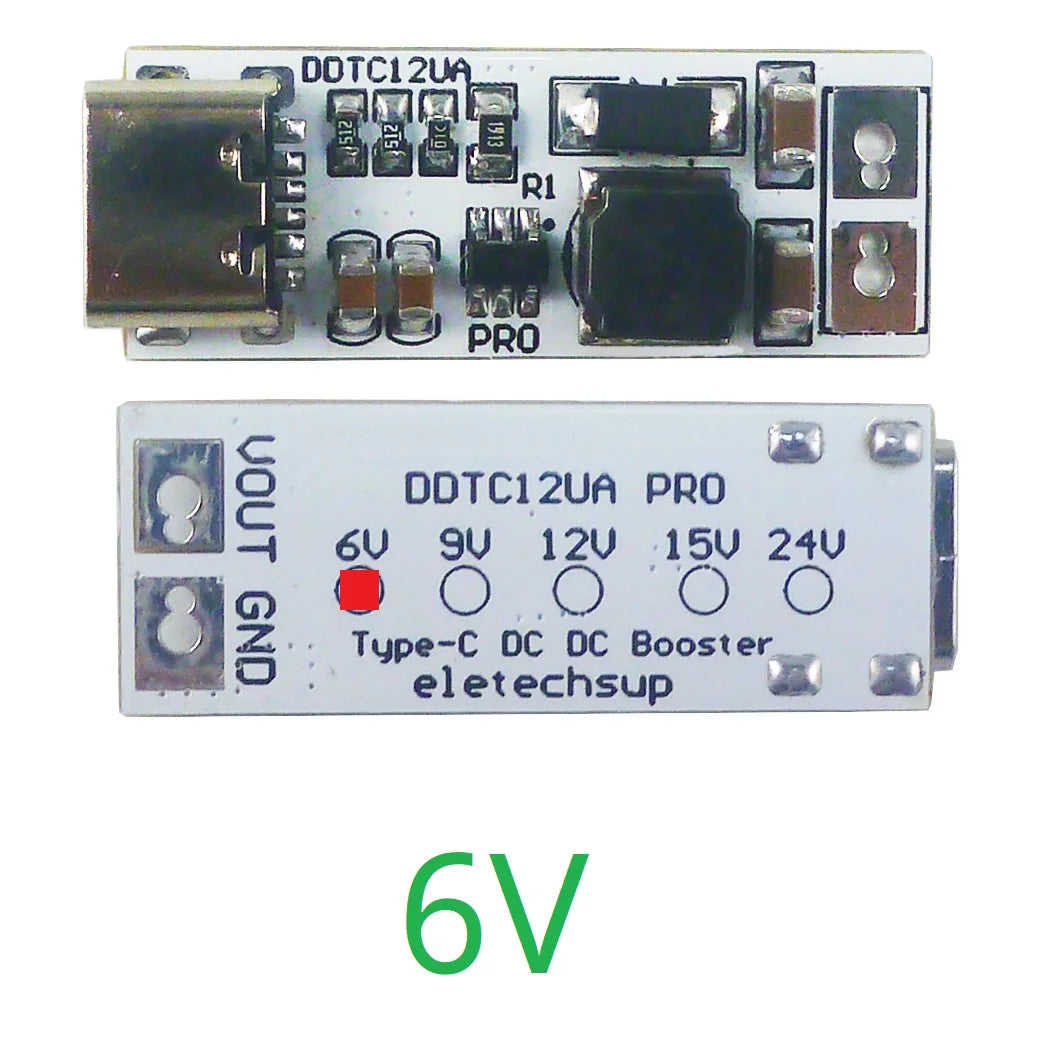

Output 6V :

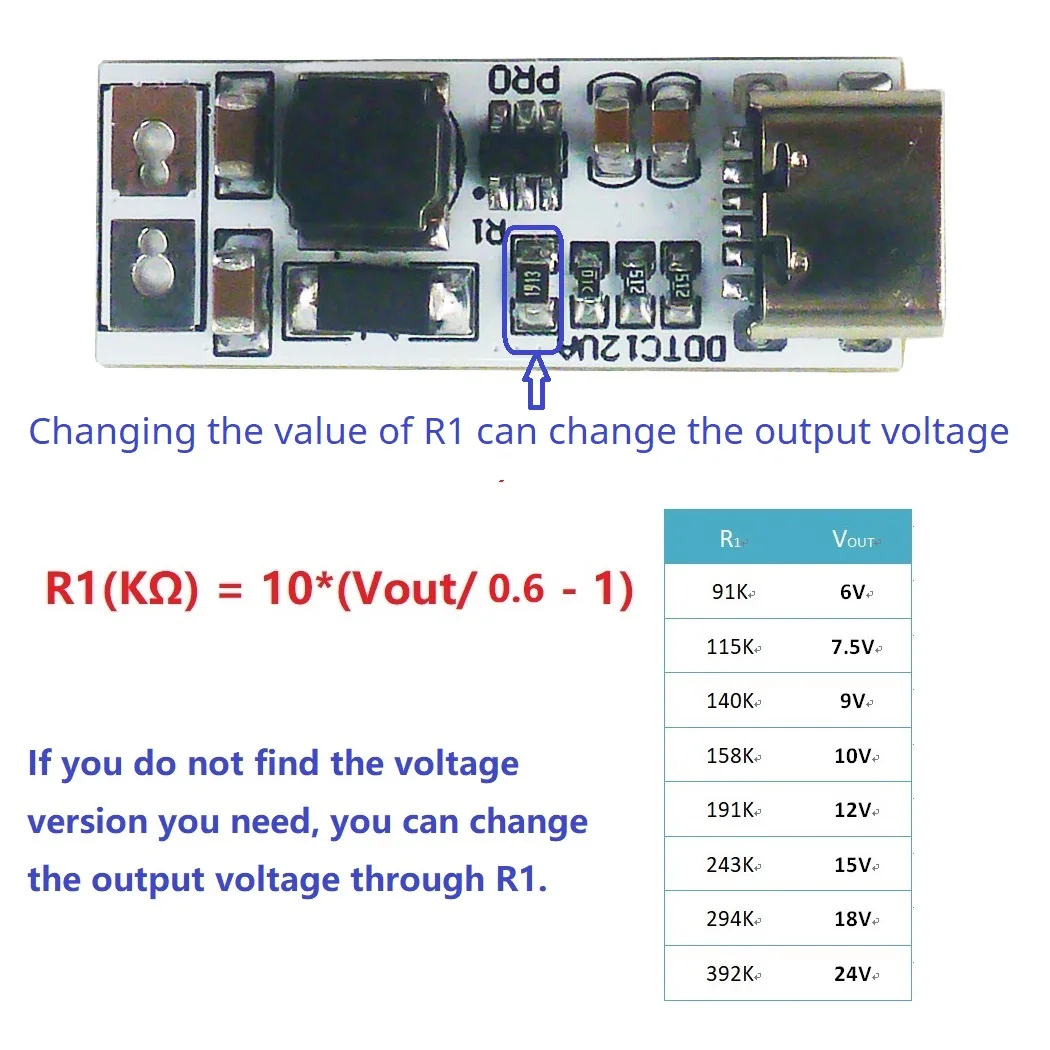

Input voltage DC 4.5 ~ 5.2V,output DC 6V±2%

Maximum output : 6V/1500MA

Input DC 5V 1.32A,Output 6V 1.00A;

Input DC 5V 1.63A,Output 6V 1.20A;

Input DC 5V 2.00A,Output 6V 1.50A;

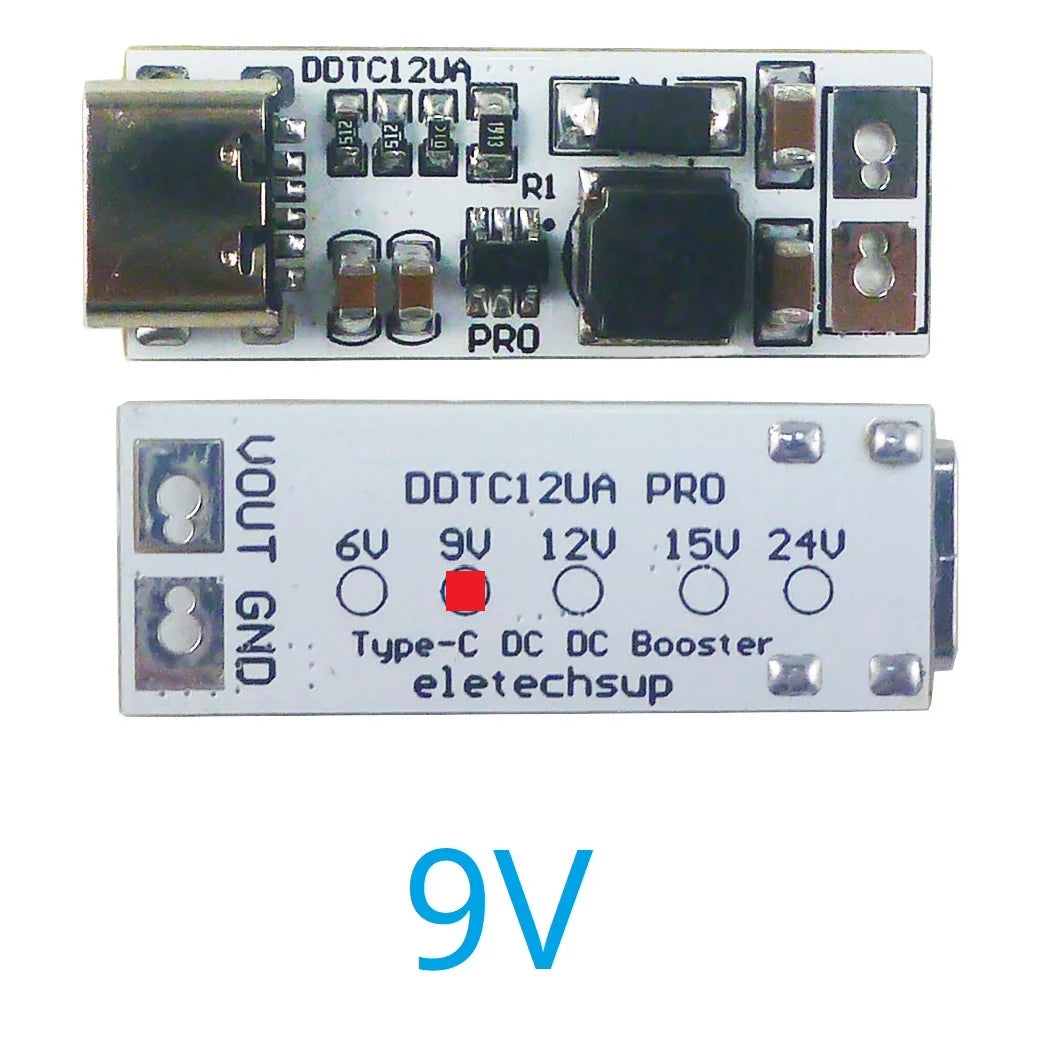

Output 9V :

Input voltage DC 4.5 ~ 8V,output DC 9V±2%

Maximum output : 9V/1000MA(See the table below for details)

Input DC 5V 1.00A,Output 9V 0.52A;

Input DC 5V 1.50A,Output 9V 0.76A;

Input DC 5V 2.00A,Output 9V 1.00A;



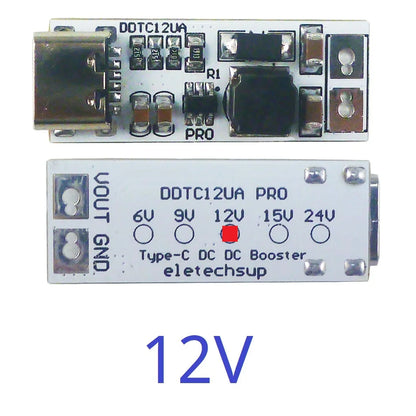

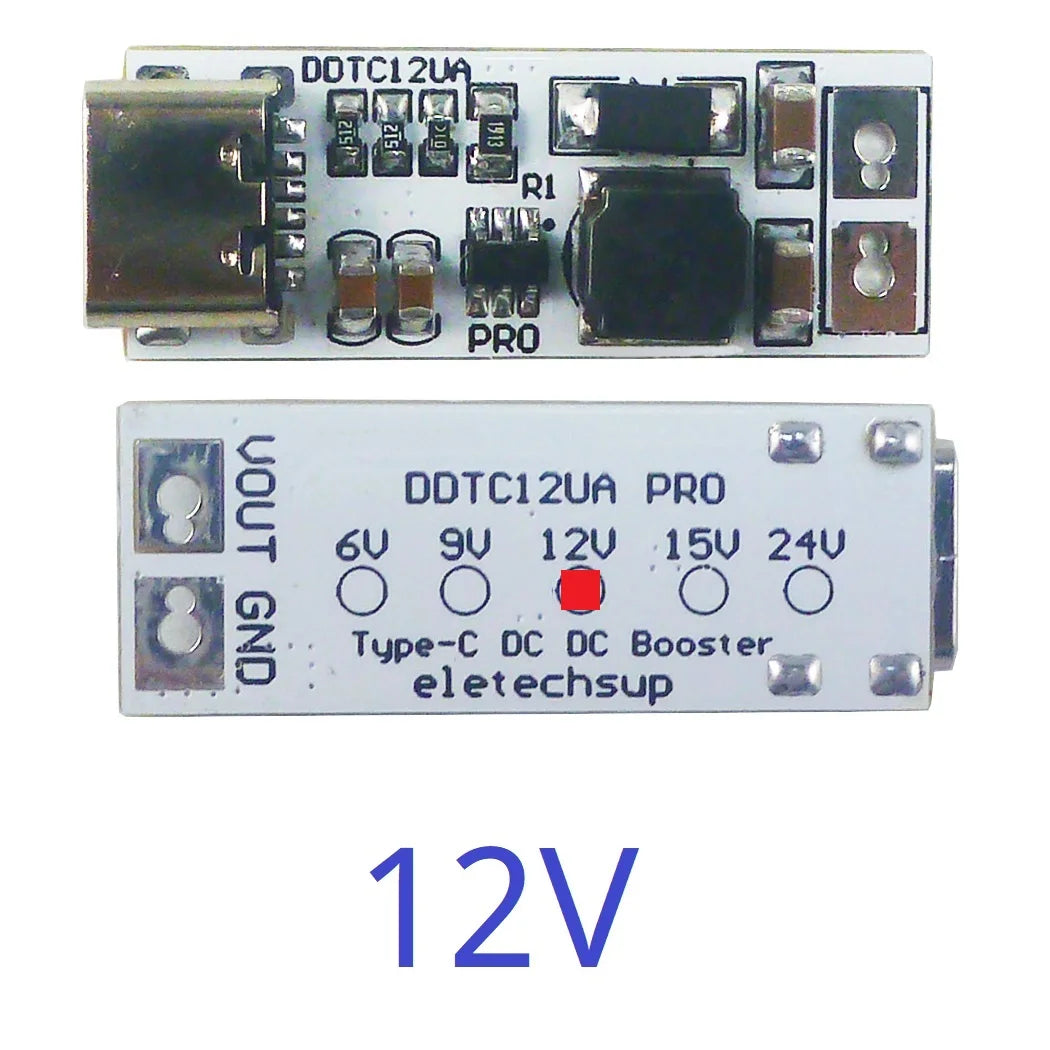

Output 12V :

Input voltage DC 4.5 ~ 11V,output DC 12V±2%

Maximum output : 12V/750MA(See the table below for details)

Input DC 5V 1.00A,Output 12V 0.39A;

Input DC 5V 1.50A,Output 12V 0.57A;

Input DC 5V 2.00A,Output 12V 0.75A;




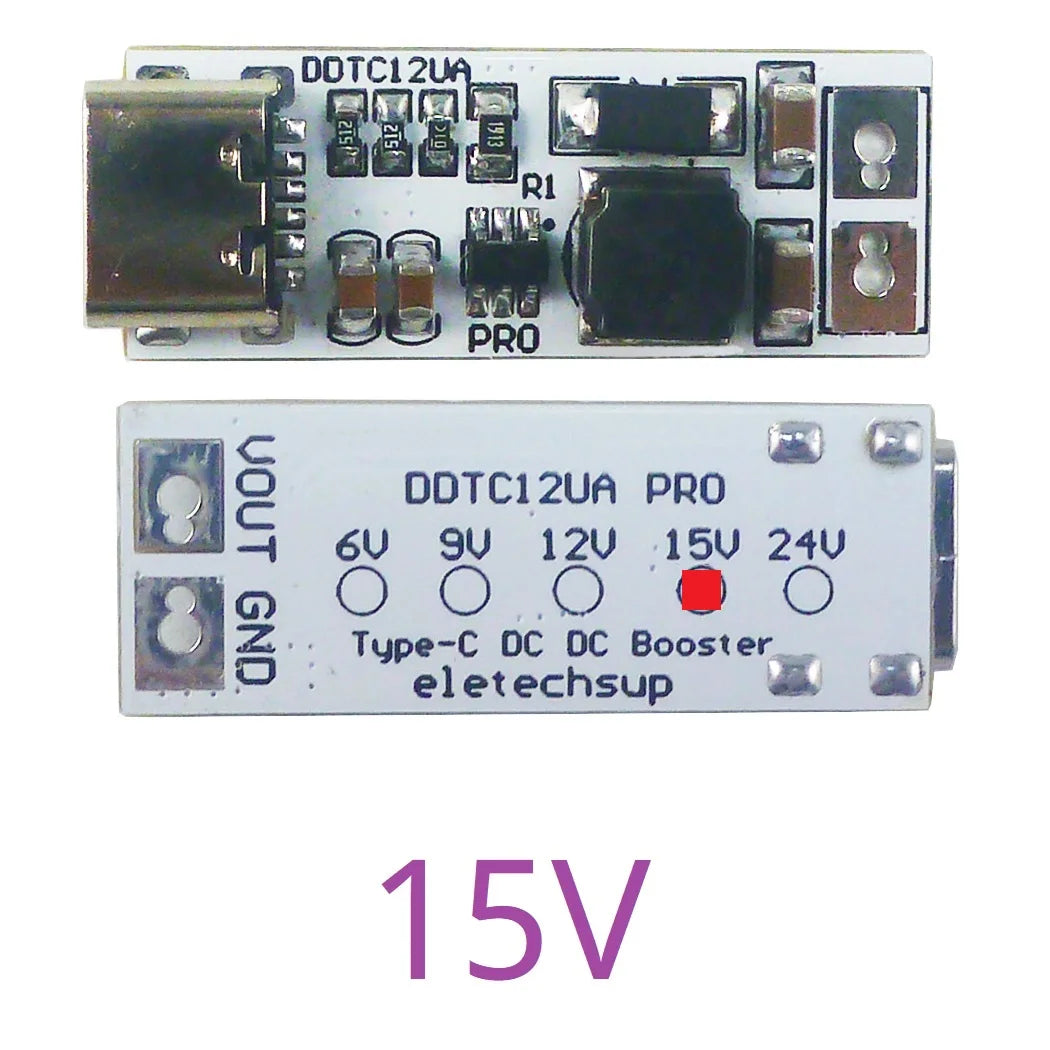

Output 15V :

Input voltage DC 4.5 ~ 14V,output DC 15V±2%

Maximum output : 15V/600MA(See the table below for details)

Input DC 5V 1.00A,Output 15V 0.31A;

Input DC 5V 1.50A,Output 15V 0.45A;

Input DC 5V 2.00A,Output 15V 0.60A;




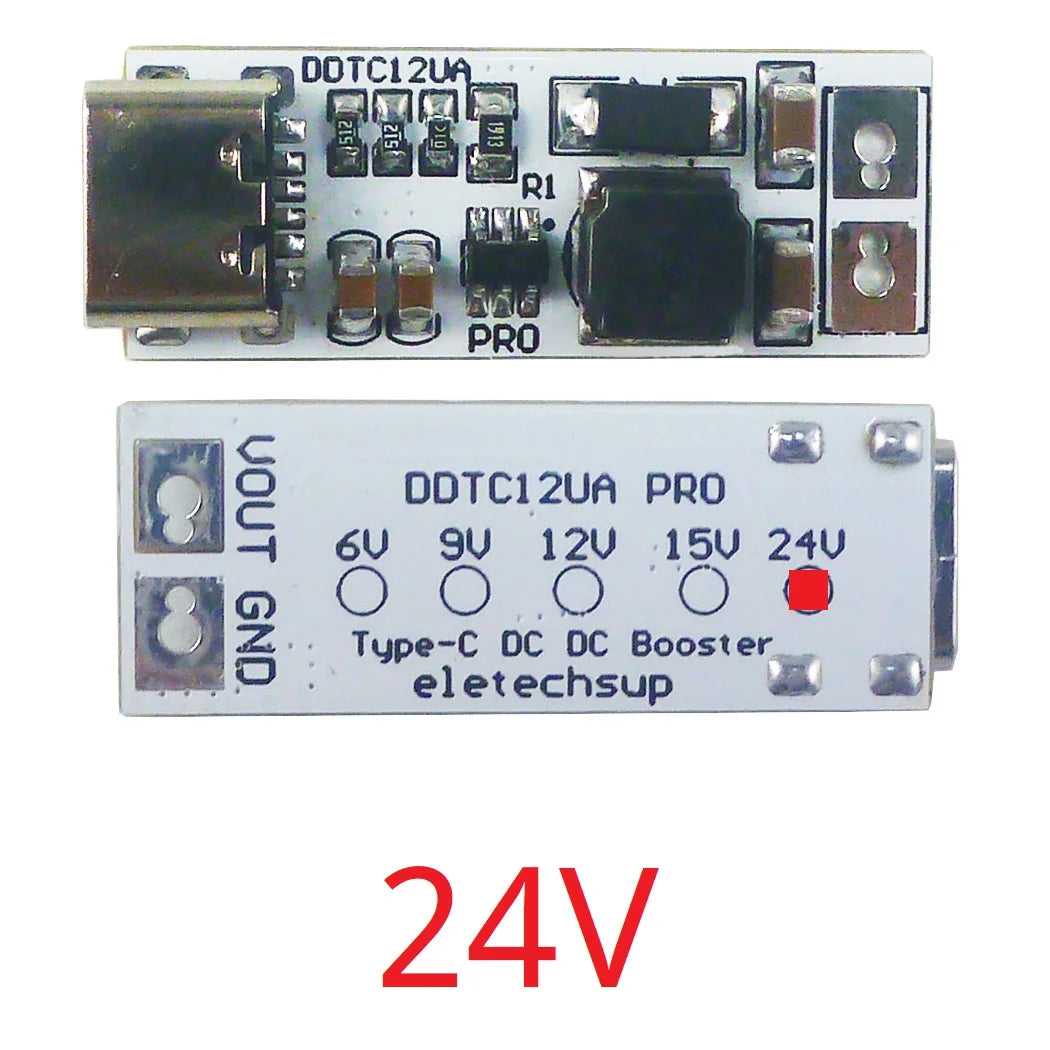

Output 24V :

Input voltage DC 4.5 ~ 18V,output DC 24V±2%

Maximum output : 24V/300MA(See the table below for details)

Input DC 5V 1.00A,Output 24V 0.19A;

Input DC 5V 1.50A,Output 24V 0.27A;

Input DC 5V 1.60A,Output 24V 0.30A;




Applications

Lion lipo Battery powered equipment
Instrumentation, Multimeter
Type-c USB equipment
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
Power Bank Diy
Solar battery
LED Motor
WIFI Router
PLC RS485 devices







Attention :

This is a DC-DC voltage converter module,Must be noted when using

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:


Q : Why output voltage is less than the nominal voltage

A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
