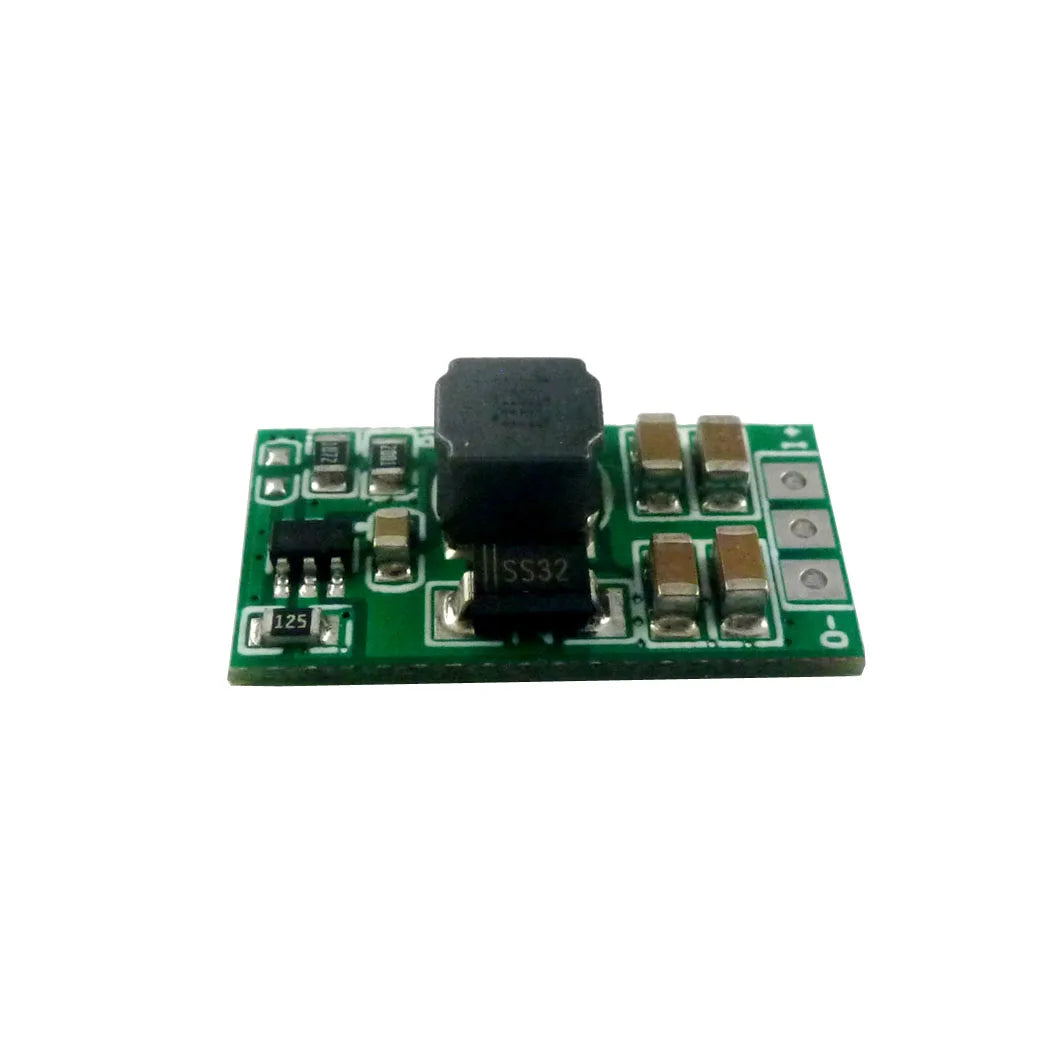

DDUB12NA mini 3W 5V 6V 9V 12V 15V 24V to -5V -10V -12V-15V Positive to Negative Voltage DC DC Boost-Buck Converter Board for ADC LCD OP

DDUB12NA mini 3W 5V 6V 9V 12V 15V 24V to -5V -10V -12V-15V Positive to Negative Voltage DC DC Boost-Buck Converter Board for ADC LCD OP

DDUB12NA_5V

1000 in stock

$1.49
$1.49 $1.49
Sale Sold out

Click on the picture or search SKU for product details

We are a professional manufacturer, if you don't find the product you need, please contact us directly.

Product

SKU

Click Picture

Description

Boost-Buck
+ to - voltage

DD0315NA




Input voltage : DC +3~+15V,
Output : DC -3.3V -5V -6V -9V -12V -15V;
Maximum output current : 180-500MA

Boost-Buck
+ to - voltage

DDUB12NA

Input voltage : DC +4.8V-+28V,
Output : DC -5V/-10V/-12V/-15V;
Maximum output current : 250-500MA

Boost
+ to +/-voltage

DD1718PA

Input voltage : DC +3~+18V,
Output : DC ±5 ±6 ±9 ±12 ±15 ±24
Maximum output current : 100-200MA

Boost-Buck
+ to +/-voltage

DD39AJPA

Input voltage : DC +3.6~+30V,
Output : DC ±3~±30V adjustable
Maximum output current : 200-3000MA

Boost-Buck
+ to +/-voltage

DD1912PA

Input voltage : DC +3~+24V,
Output : DC ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V
Maximum output current : 100-1000MA

1% +/-voltage
reference Module

ZD3605PA

Input voltage : DC +-3.5~+-20V,
Output : DC ±2.5V ±3.3V ±5V ±7.5V ±10V ±12V
Maximum output current : 14MA

Product Name:  mini 3W 5V 6V 9V 12V 15V 24V to -5V -10V -12V-15V  Positive to Negative Voltage DC DC Boost-Buck Converter Board for ADC LCD OP
Packing list:

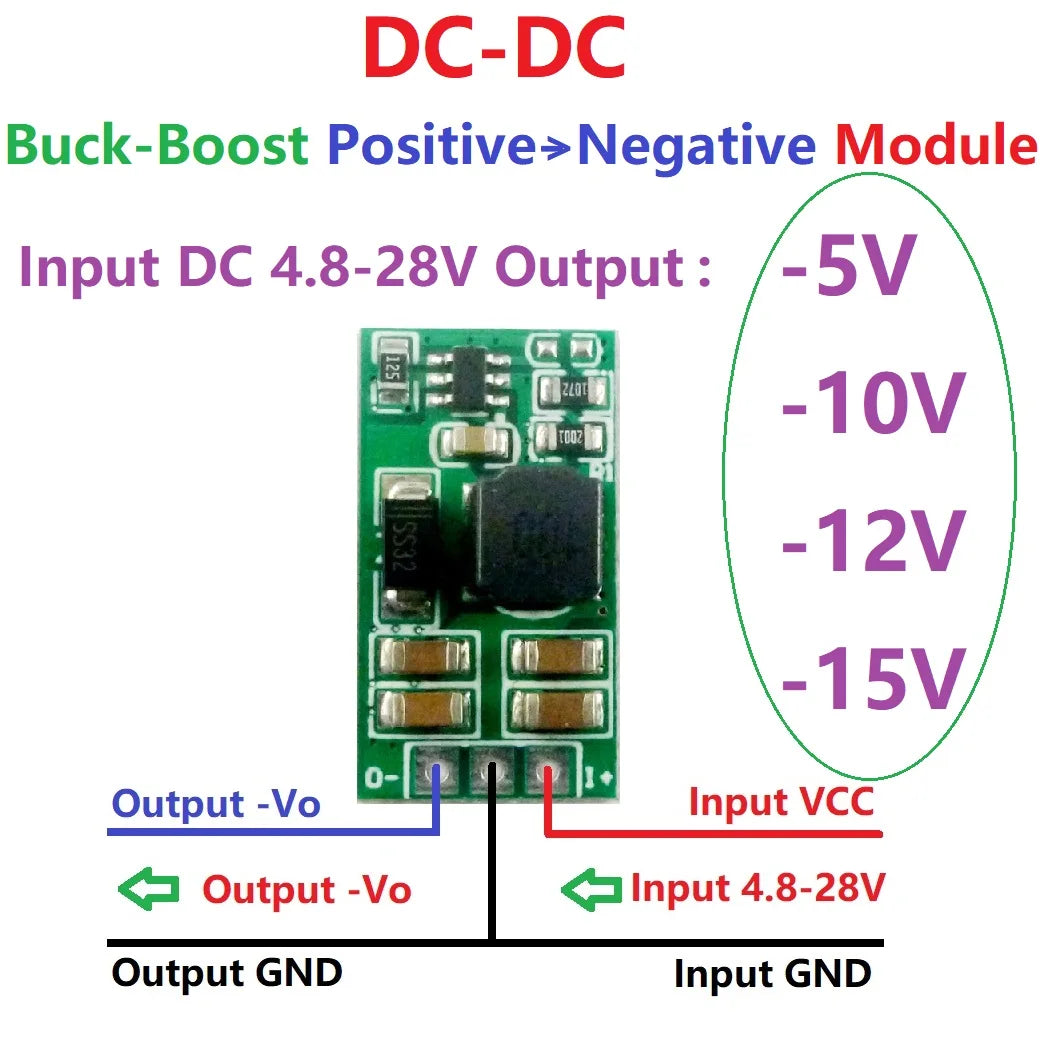

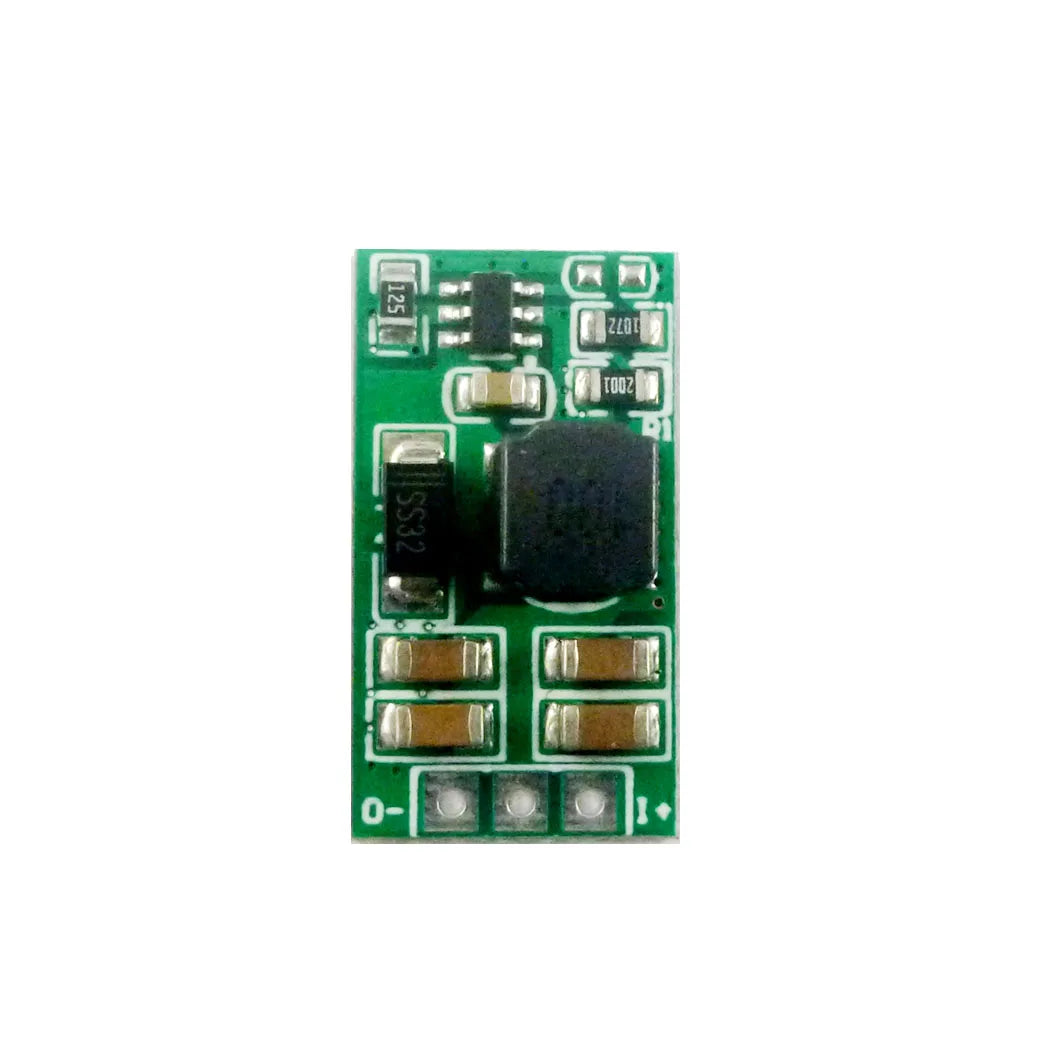

1 PCS 4.8V-28V TO -5V/-10V/-12V/-15V Boost-Buck + to - voltage Converter Module


Description:

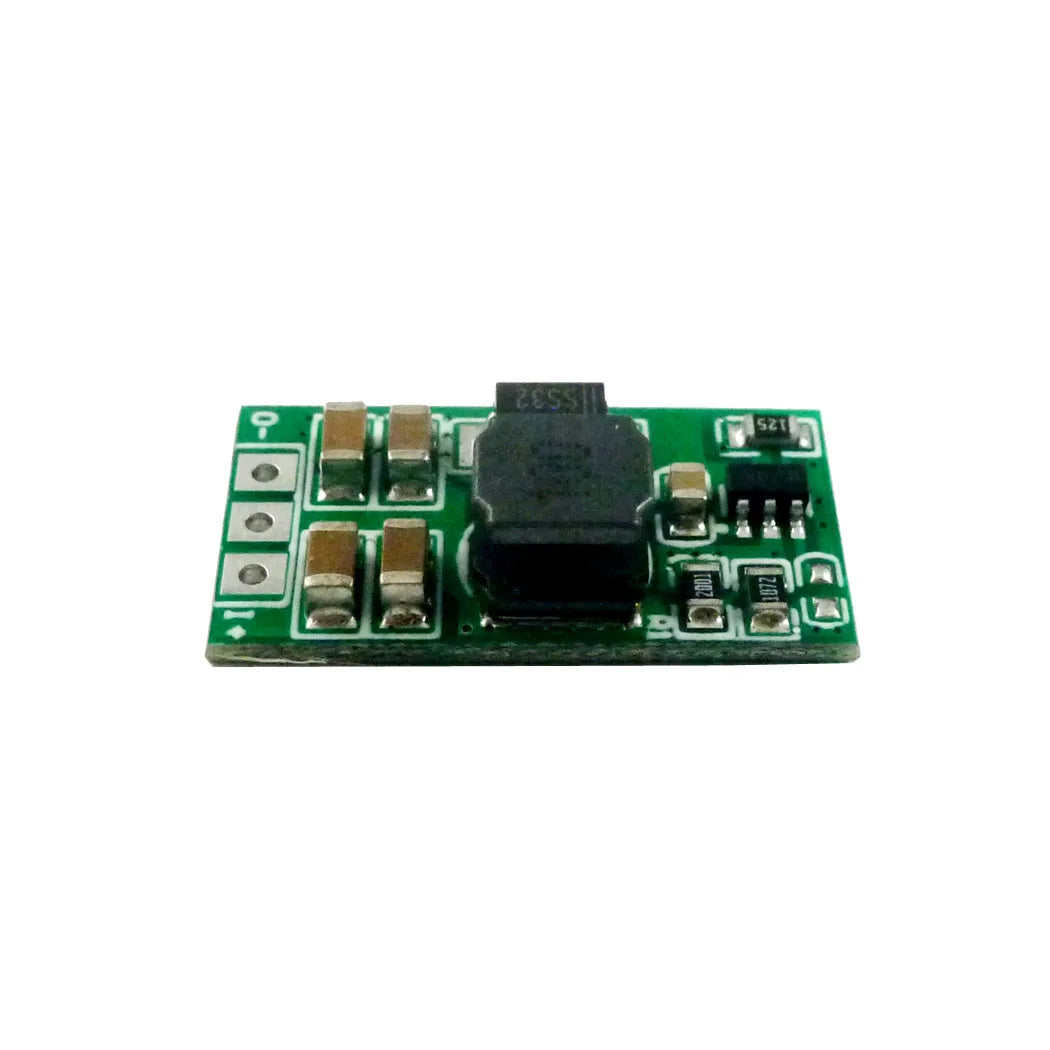

DC-DC Boost-Buck Inverting switch regulators Module

-5V :
Input voltage DC +4.8~+28V,output DC -5V(Deviation is ±3%)
Maximum input current   :500mA
Maximum output current : 500mA


-10V :

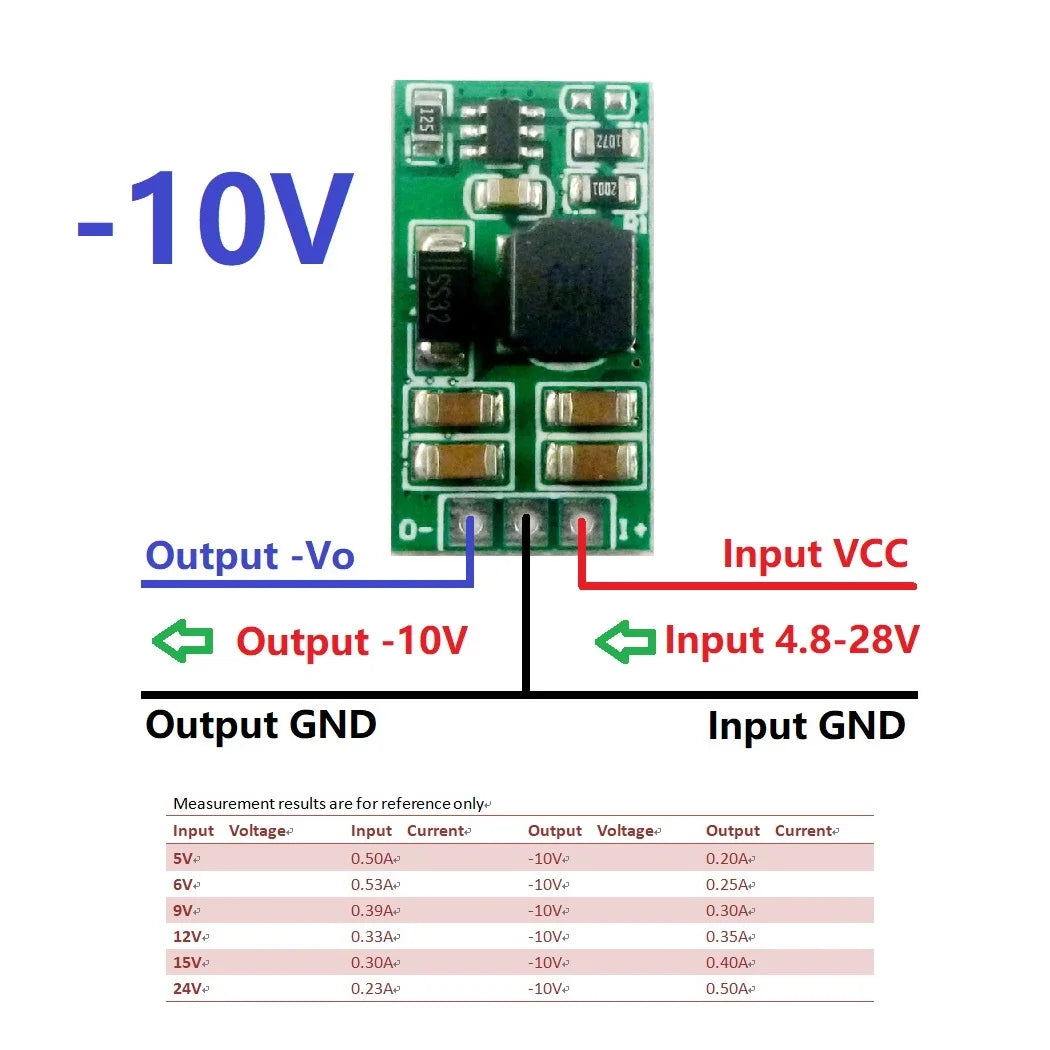

Input voltage DC +4.8~+28V,output DC -10V(Deviation is ±3%)
Maximum input current   :500mA
Maximum output current : 500mA

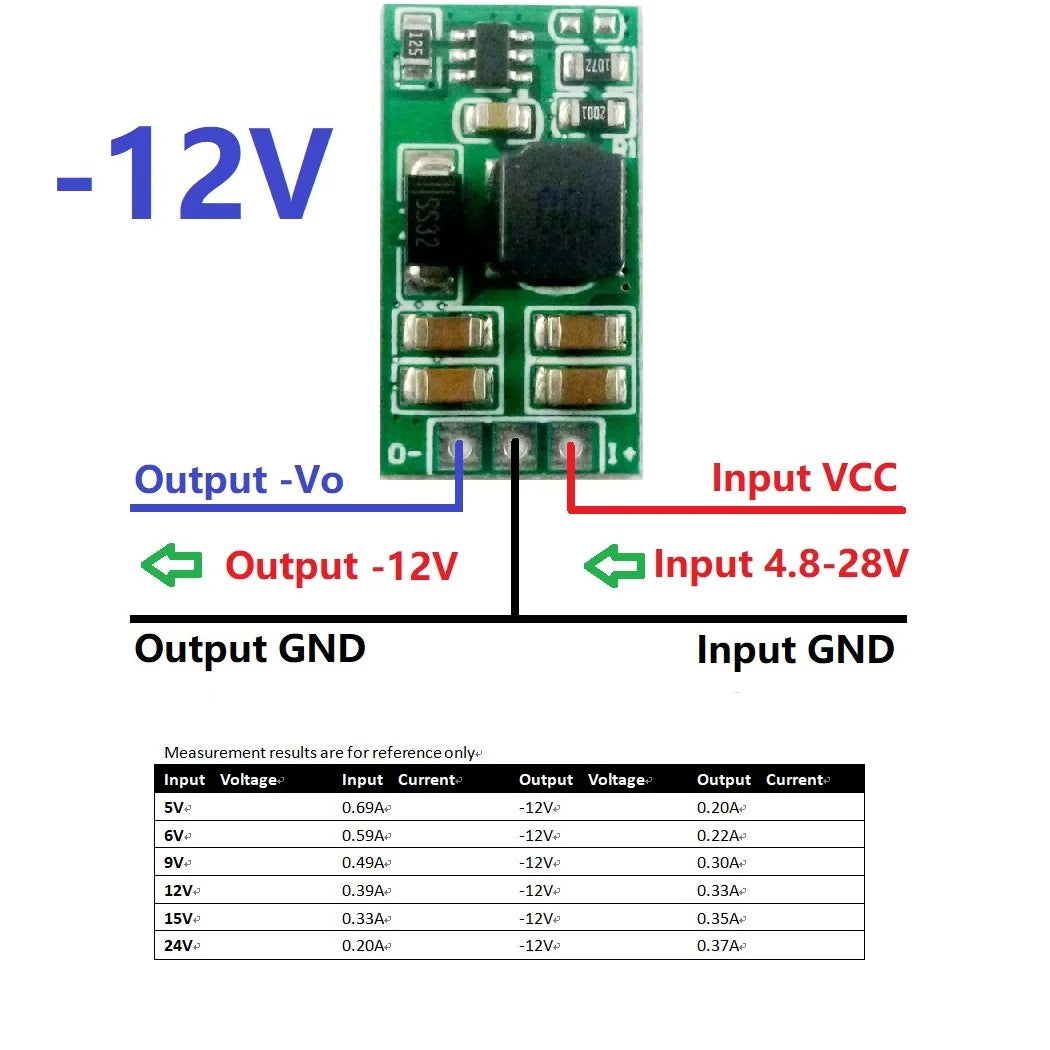

-12V :
Input voltage DC +4.8~+28V,output DC -12V(Deviation is ±3%)
Maximum input current   :690mA
Maximum output current : 370mA


-15V :

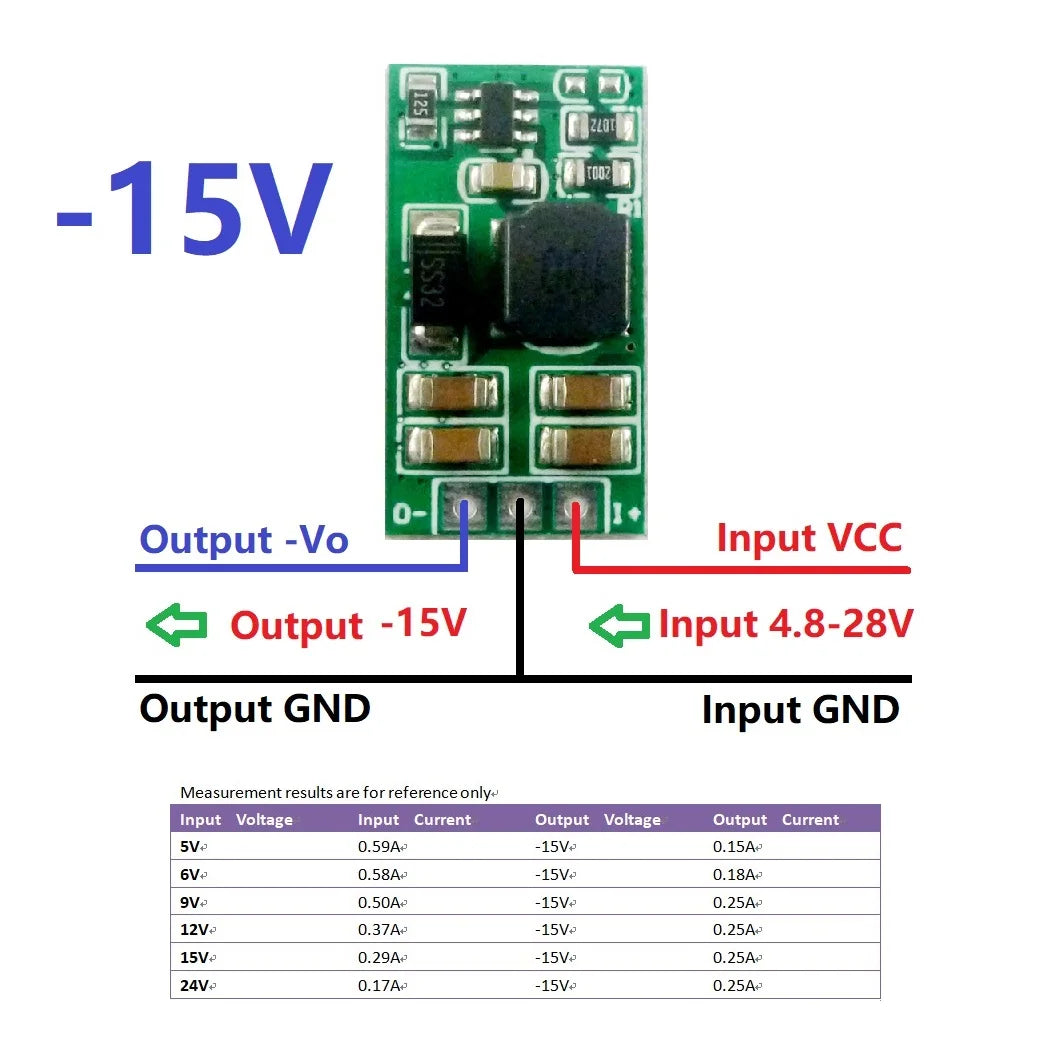

Input voltage DC +4.8~+28V,output DC -15V(Deviation is ±3%)
Maximum input current   :590mA
Maximum output current : 250mA



DC-DC Boost-Buck Inverting switch regulators Module working frequency 590KHz. efficiency is 75-90% .
Quiescent current: 1-2mA
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.
Operating temperature range : -40~+80 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius

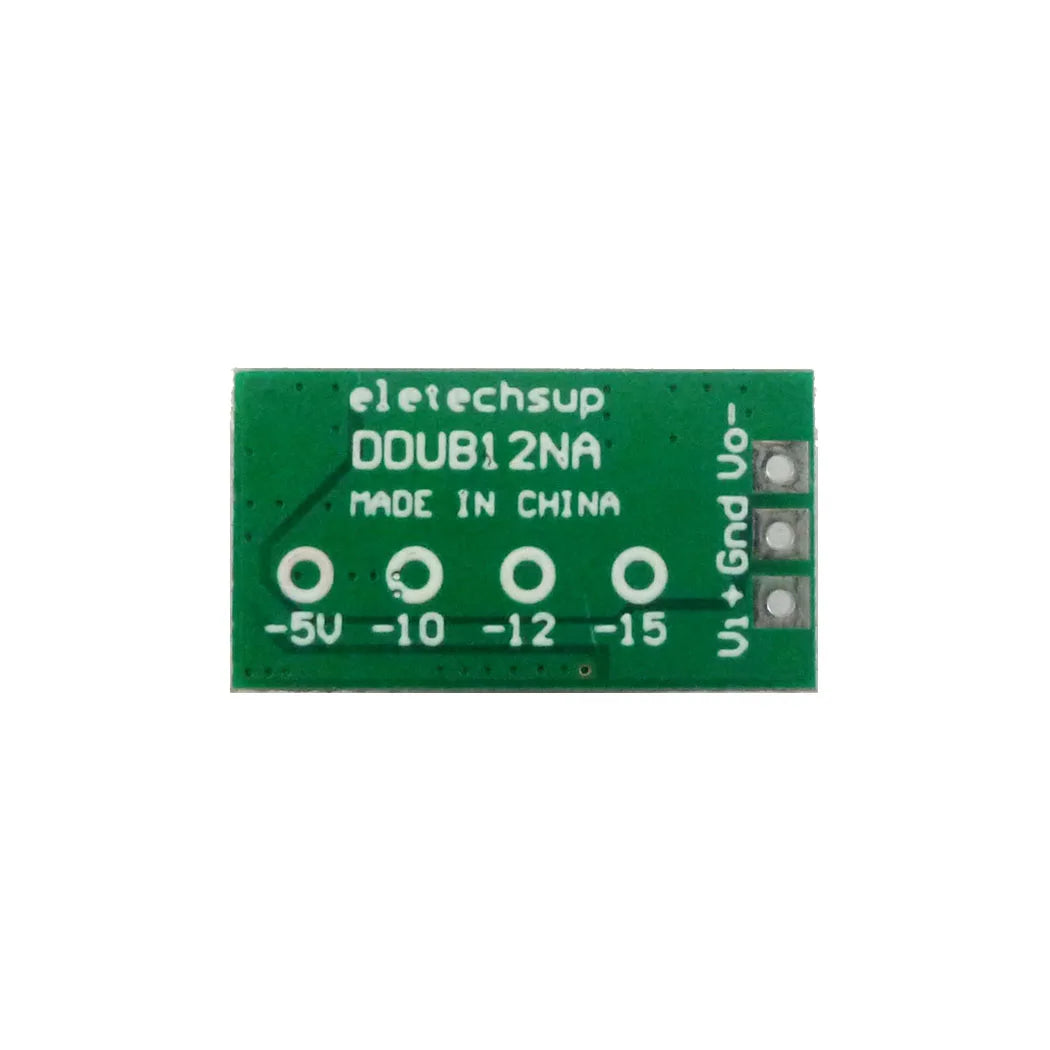

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

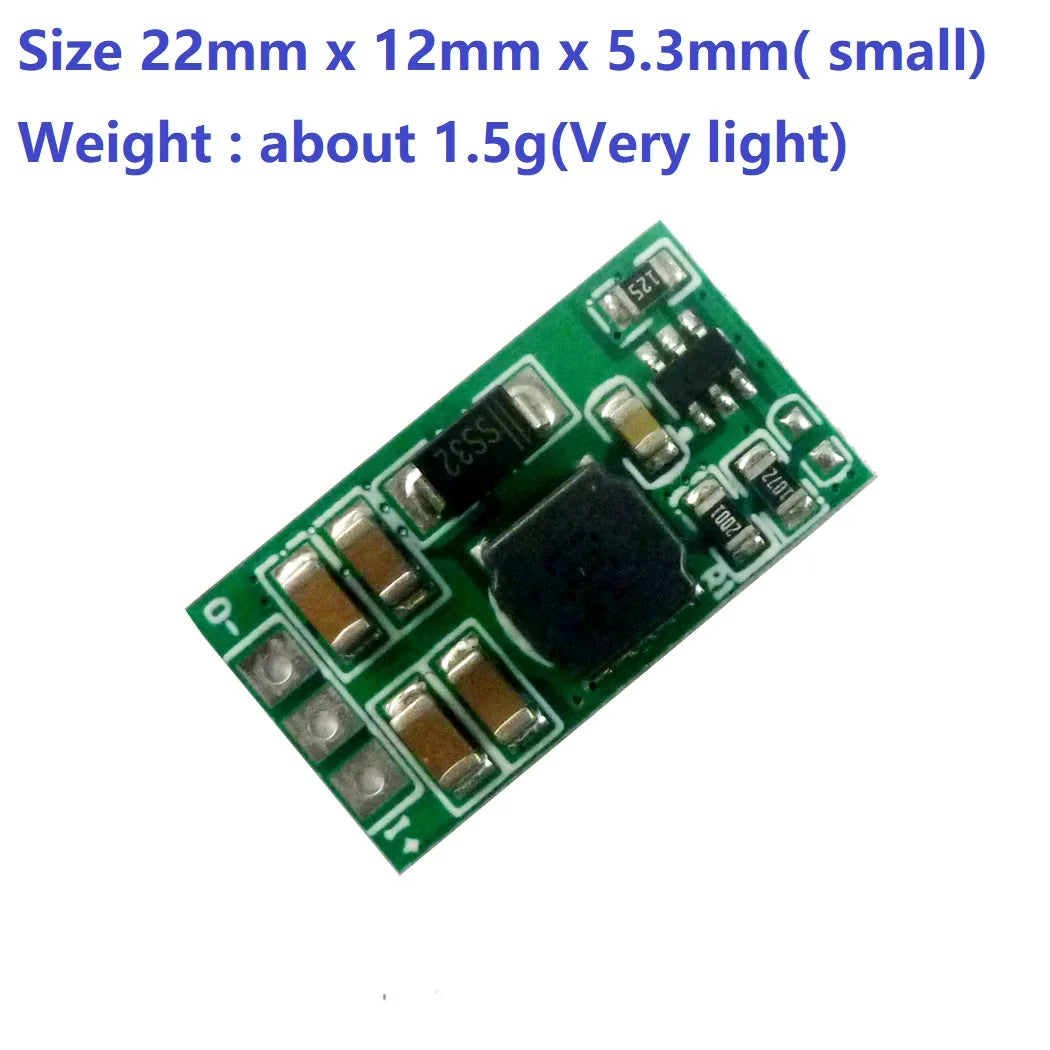

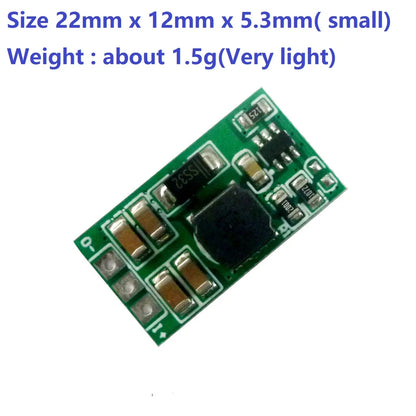

Size 22mm x 12mm x 5.3mm( small)
Weight : about 1.5g(Very light)


Applications

ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
LCD power supply
Instrumentation equipment
ARM STM32 MCU Board
Motor Power
Instrumentation multimeter
Wifi/Router/Ethernet devices

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
