DDUPCRUA 20W QC3.0 2.0 FCP Fast Quick Charger 3.7V 3.8V 4.2V 4.5V to 5V 9V 12V USB DC-DC Boost Module Smart Phone PAD Charging

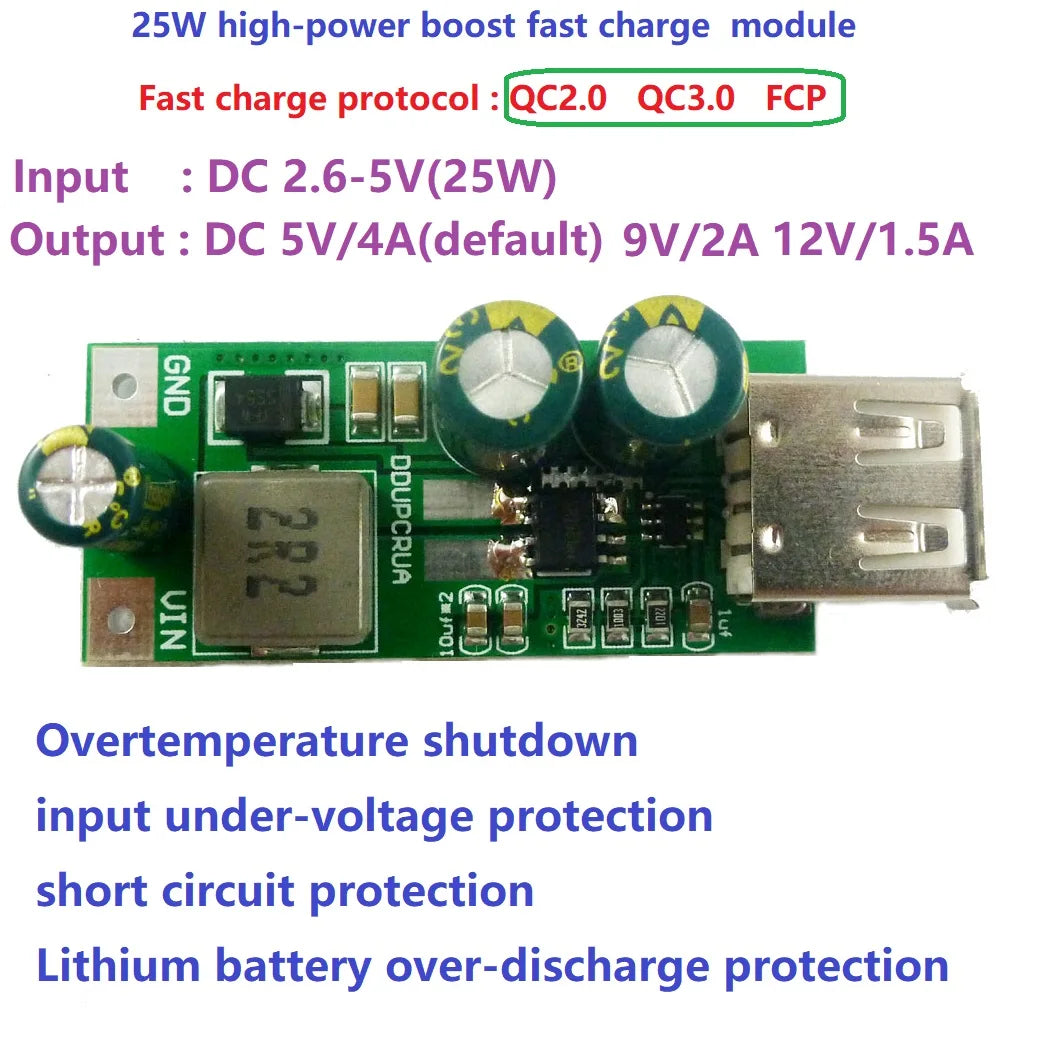

25W high-power boost fast Quick charge QC2.0/QC3.0/FCP module

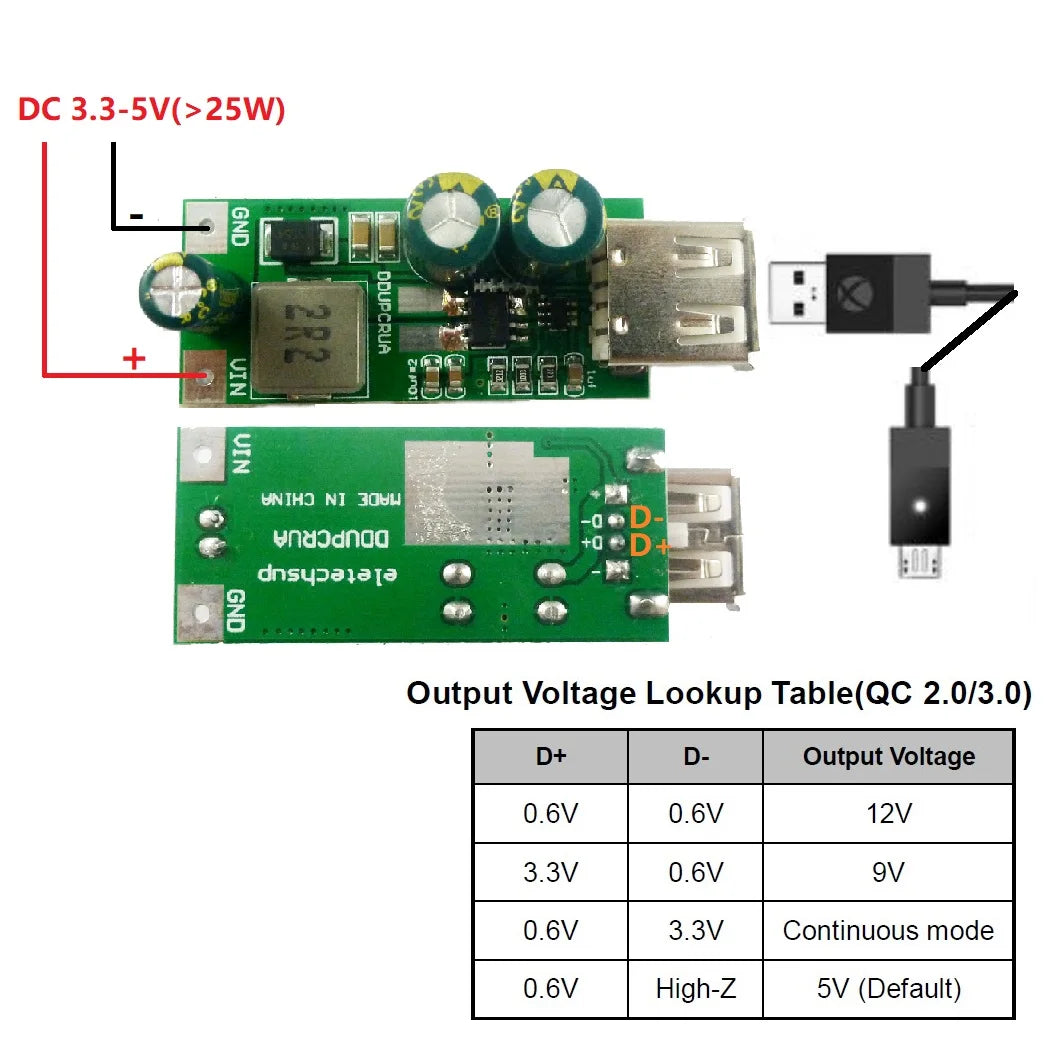

Input DC 3.3-5V(25W),Output : DC 5V/4A(default),9V/2A,12V/1.5A(QC2.0/QC3.0)
Quiescent current: about 1MA
Efficiency : <=95%

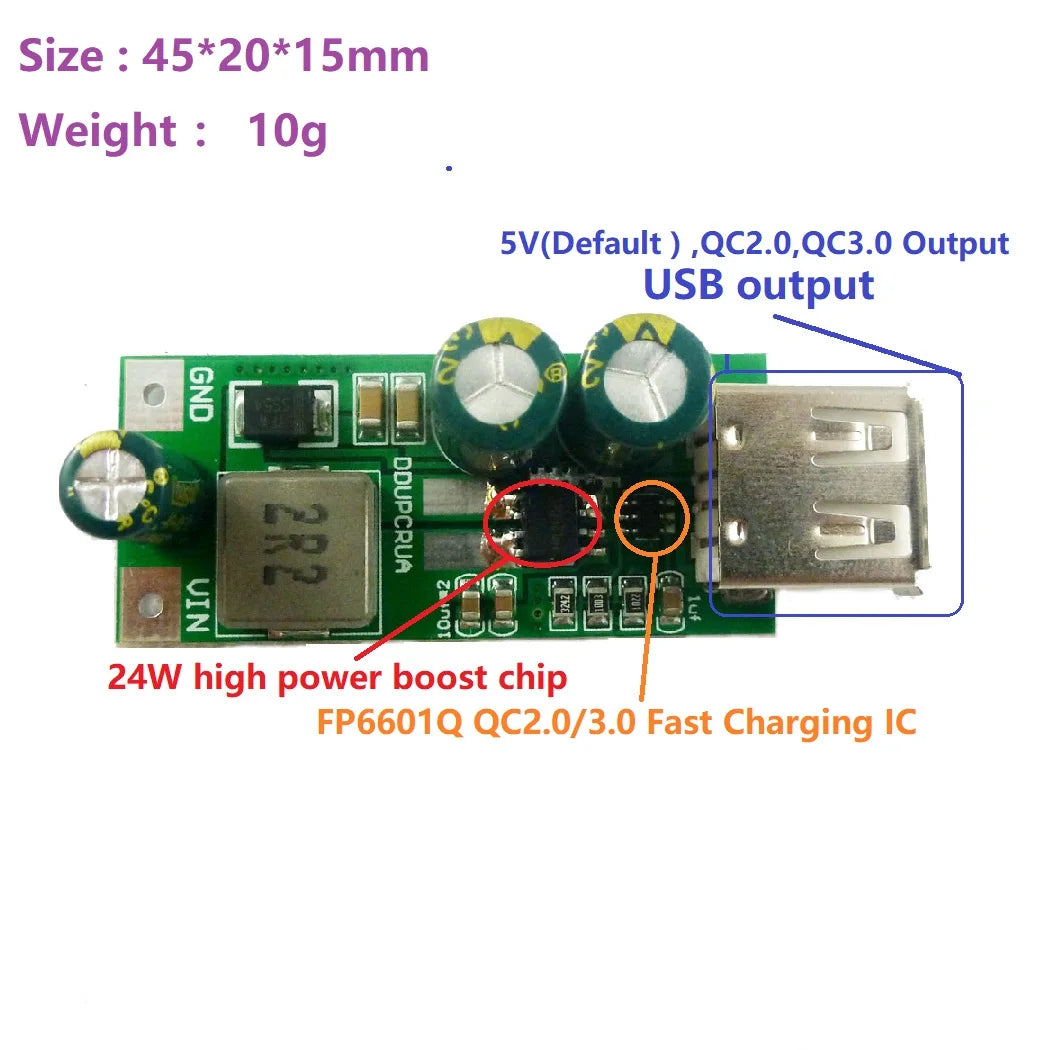

FP6601Q QC2.0/QC3.0/FCP Quick Fast Charging IC
Switching Frequency : 600KHz fixed
Overtemperature shutdown, input under-voltage protection and short circuit protection.

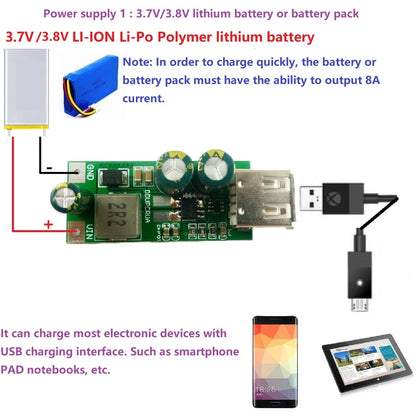

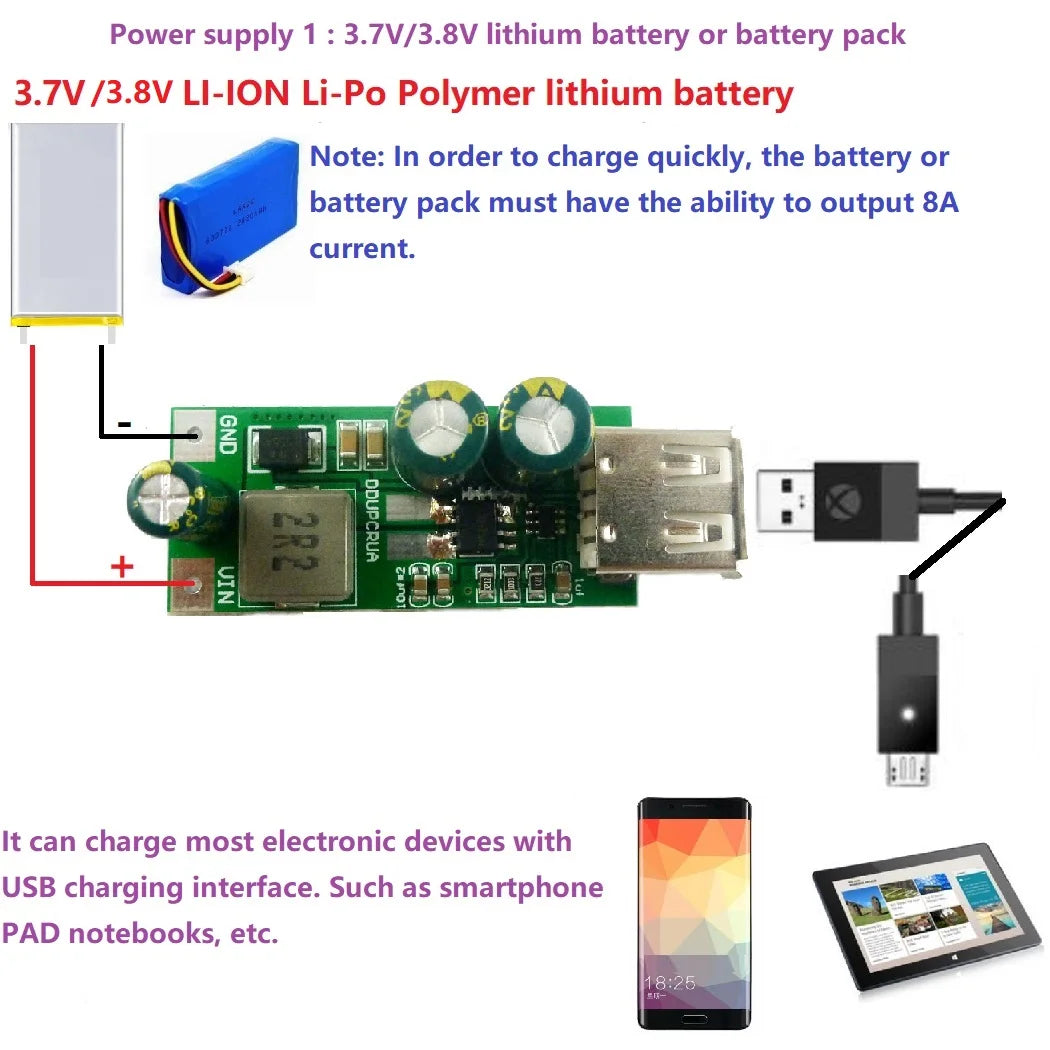

UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V/3.8V/3.85V lithium battery power supply
Operating Ambient Temperature : -40 to 85 °C
Storage Temperature : -55 to 150°C

Size : 45*20*15mm
Weight : 10g


Attention :

This is a high-power boost QC2.0/QC3.0/FCP Fast Charging module. Please pay attention to the following when using:

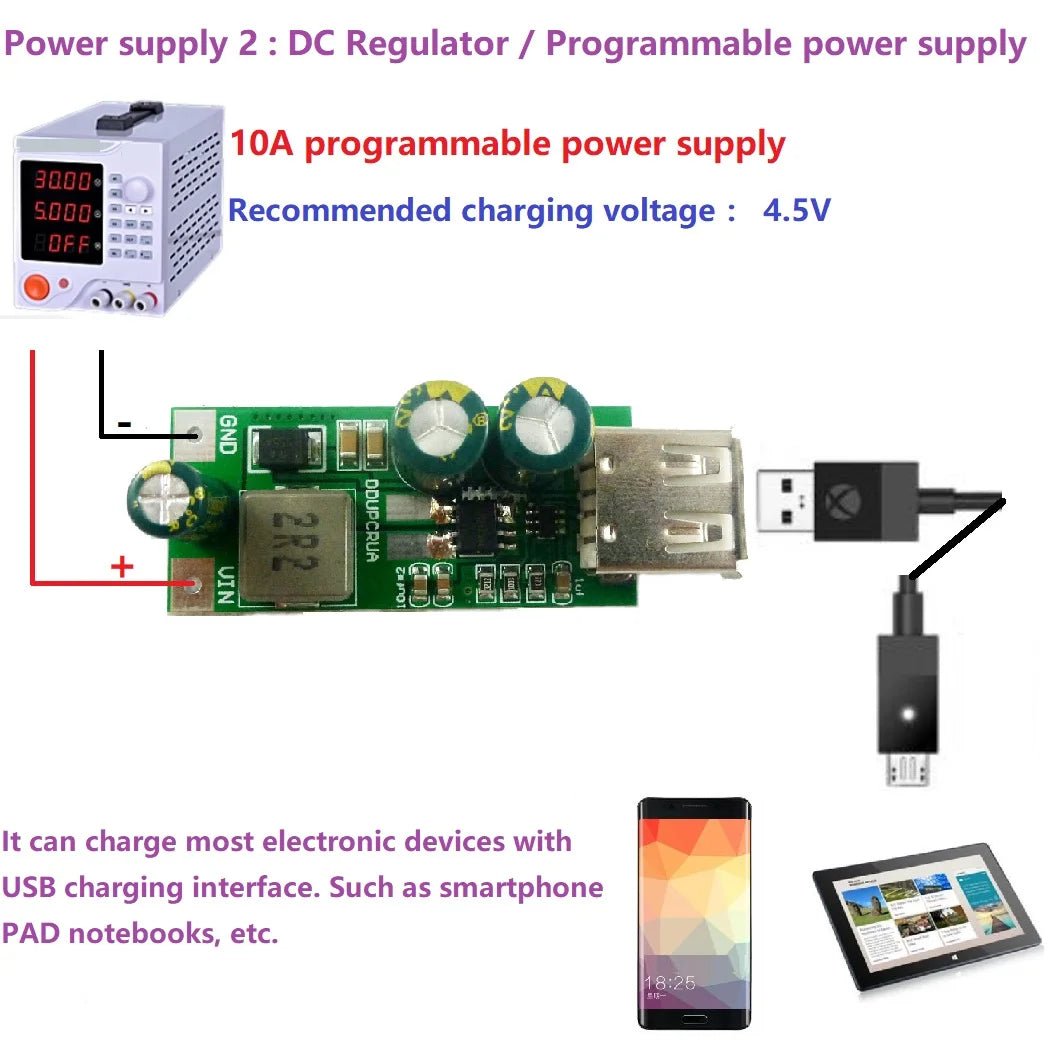

1 The power supply must be sufficient. Can at least 30W output power

2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.

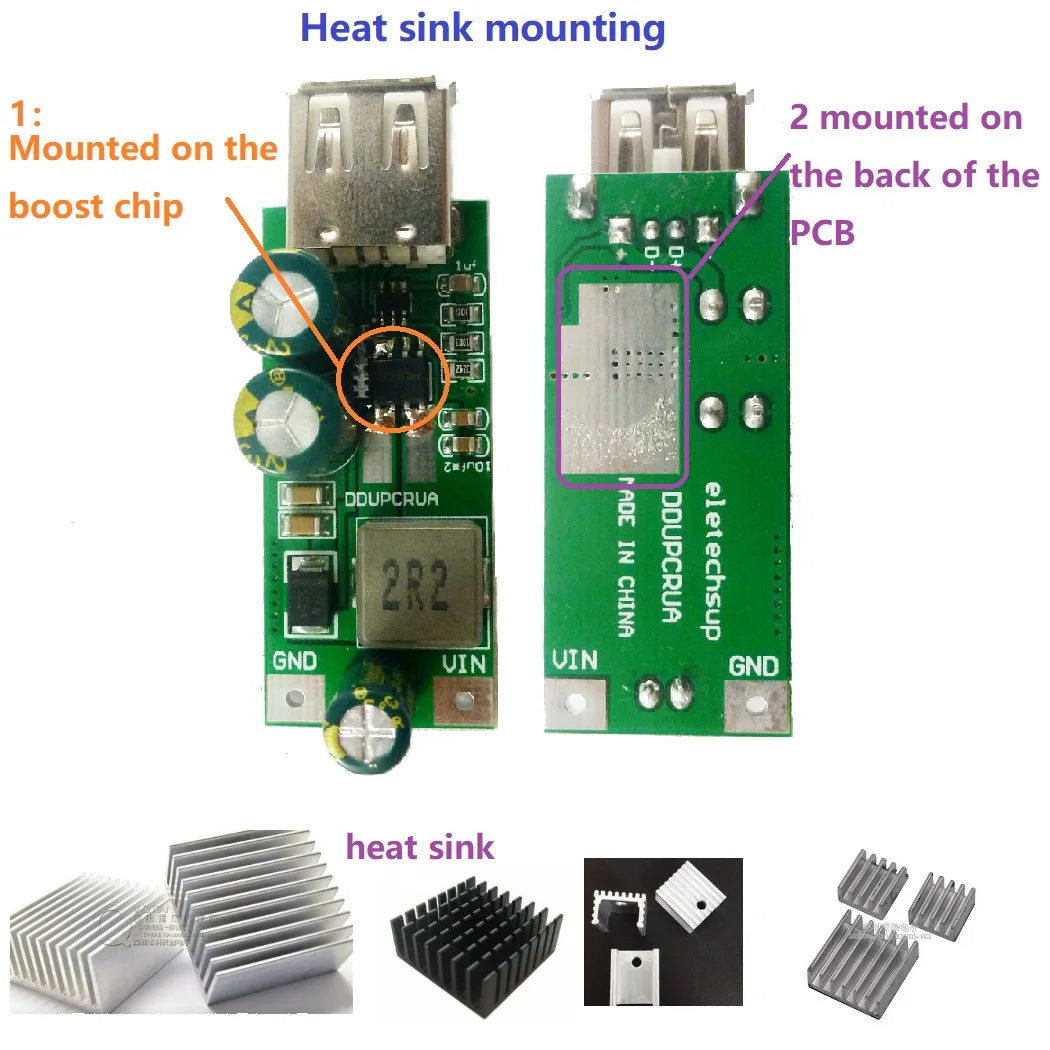

3 When charging quickly, the module generates a lot of heat. Please pay attention to ventilation and heat dissipation.It is recommended to add heat sink or fan to dissipate heat.


Applications:

QC2.0 QC3.0 FCP Fast Charging
Wall-Adapter, Smart Phones, Tablets, Notebooks
Mobile / Tablet Power Bank
Car Charger
LI-ION Li-Po Polymer lithium battery Charger
USB Power Output Ports
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment
