LIFECRMA Dedicated 3.2V LiFePO4 Battery Charger Module 3.6V 1A CV/ CC wtih Overvoltage Protection Automatic Recharge Low-Power Sleep Mod







Complete Charge Management for Single Cell LiFePO4 Battery

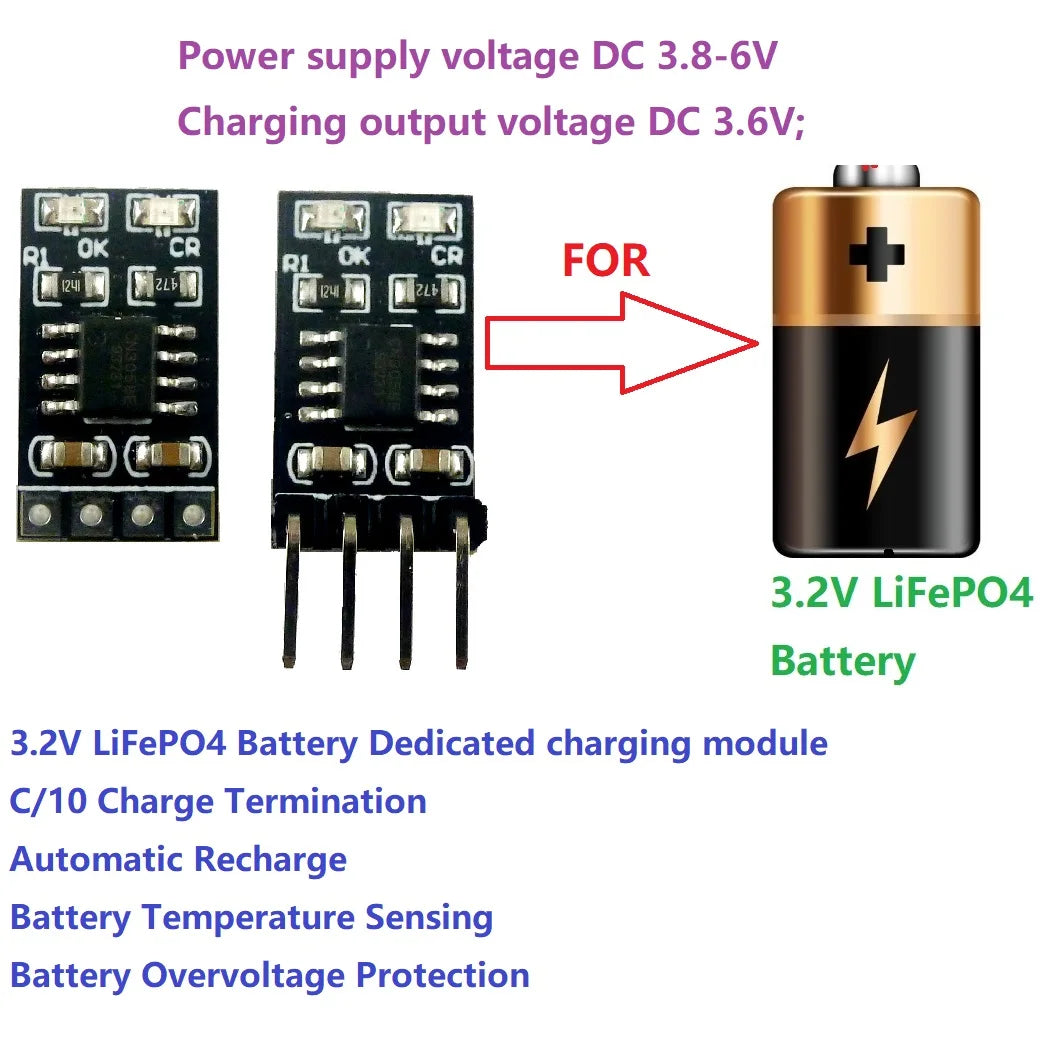

Power supply voltage DC 3.8-6V,Charging output voltage DC 3.6V;

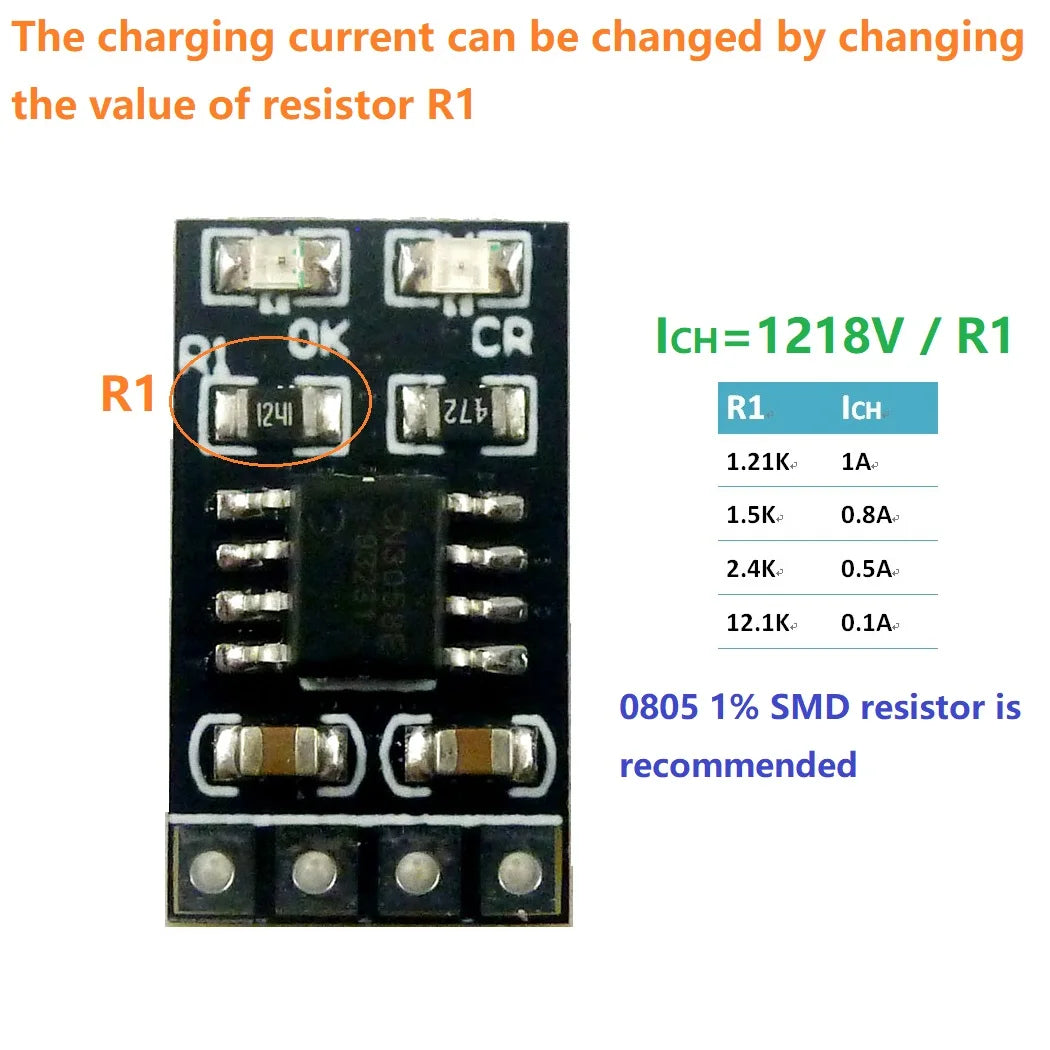

The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor.

Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

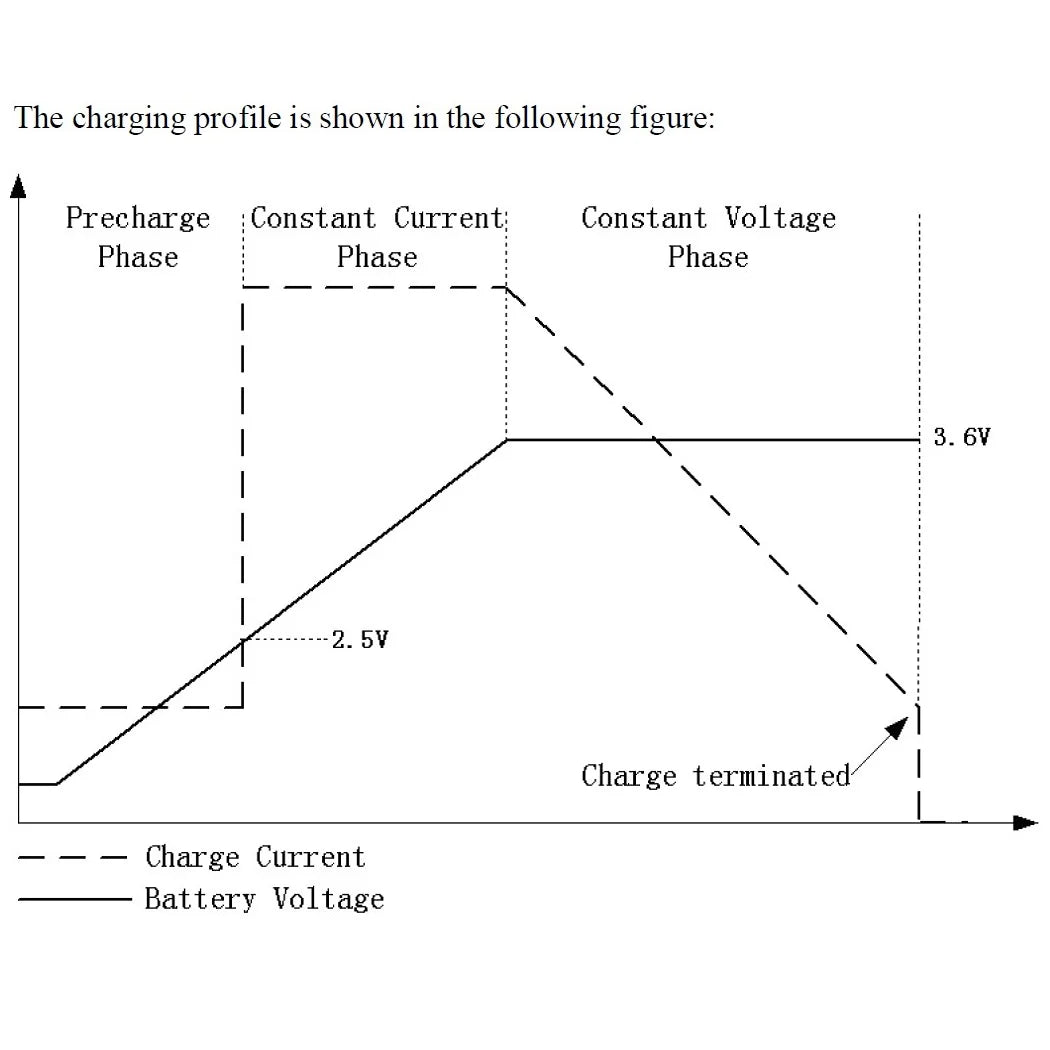

Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed

C/10 Charge Termination

Automatic Recharge

Battery Temperature Sensing

Battery Overvoltage Protection

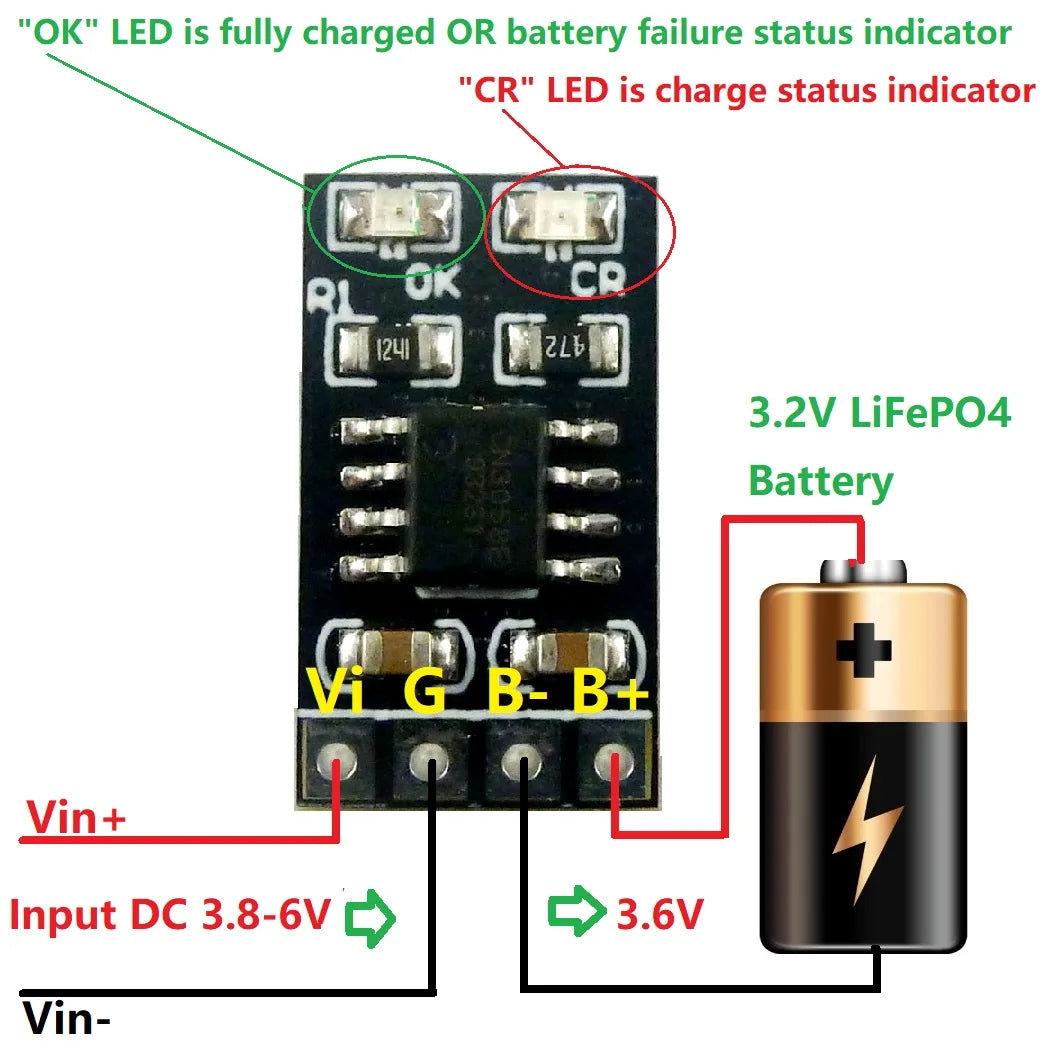

Led indicator :  ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;

Operating Ambient Temperature－40℃ to ＋85℃

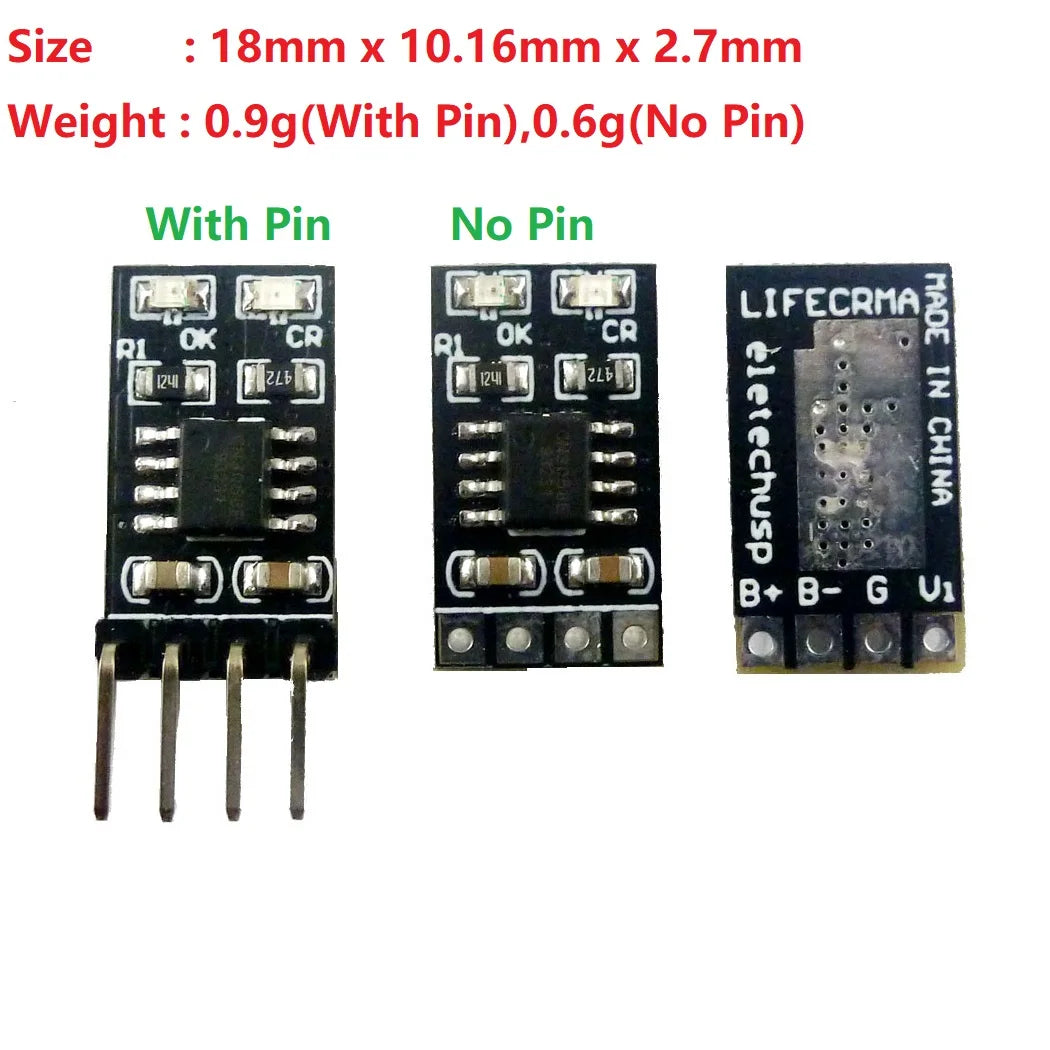

Size 18mm x 10.16mm x 2.7mm
Weight : 0.9g(With Pin),0.6g(No Pin)









Car battery charging
Children's toy car, toy airplane

Solar battery charging

Mobile Loadspeaker

Electric Bicycle Charger
UPS  Uninterruptible power supply

Portable Industrial and Medical Equipment

Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Miner's lamp
LiFePO4 battery applications
