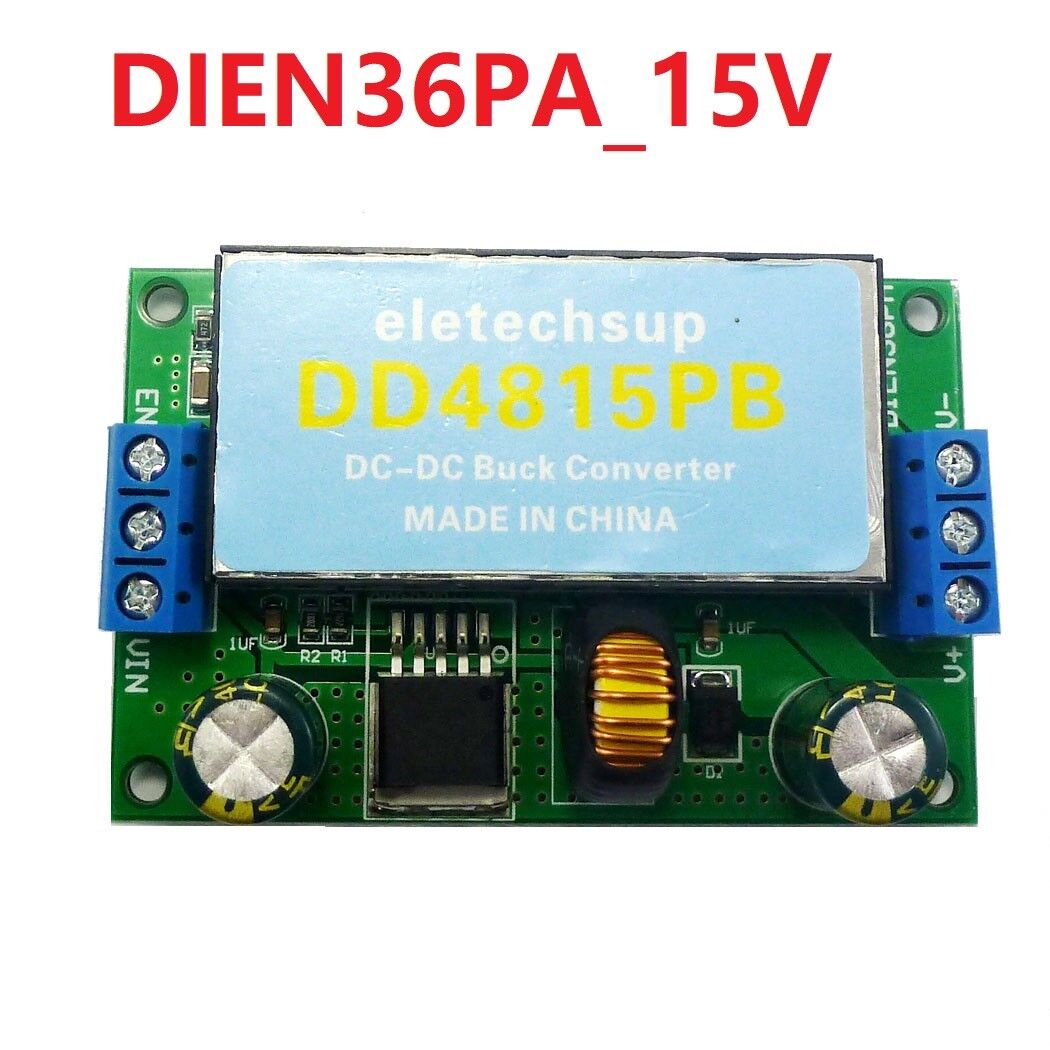

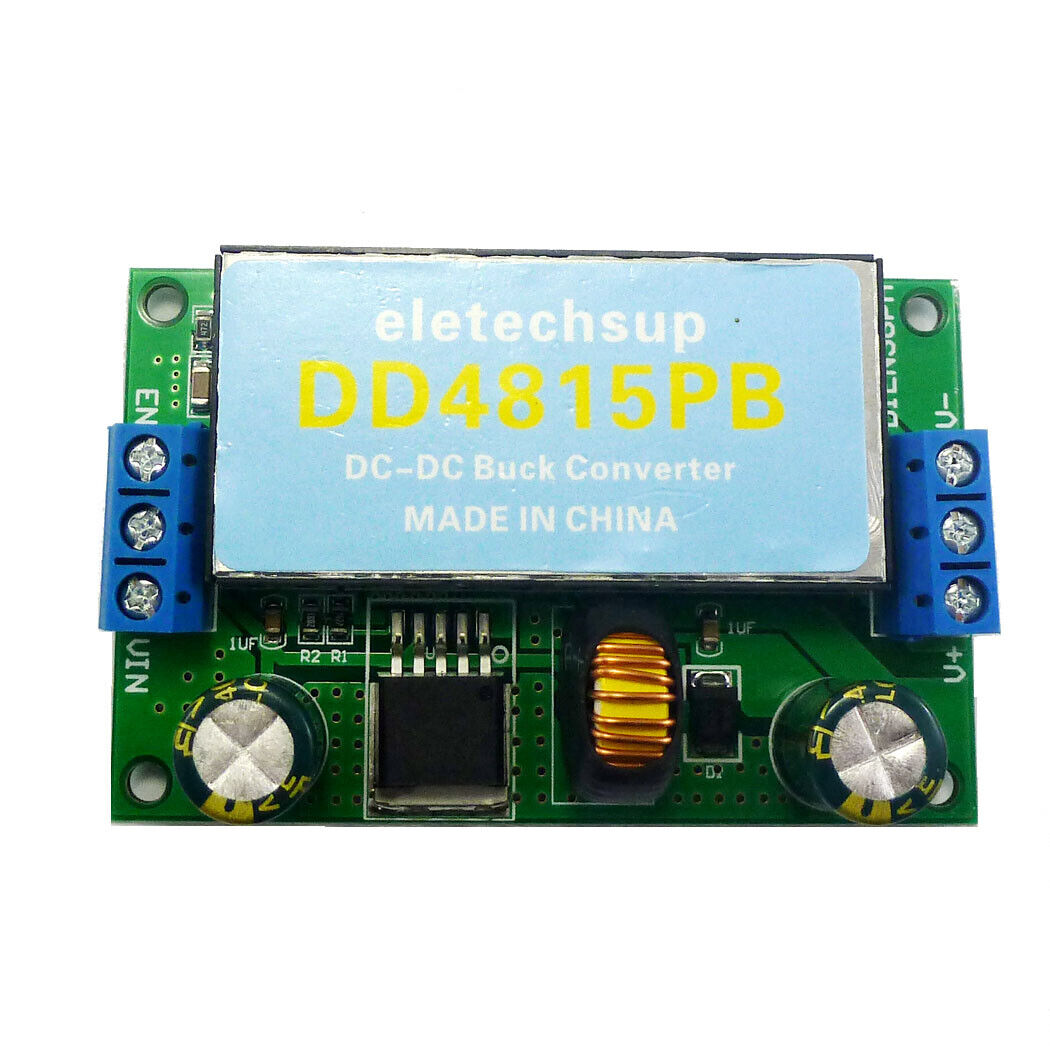

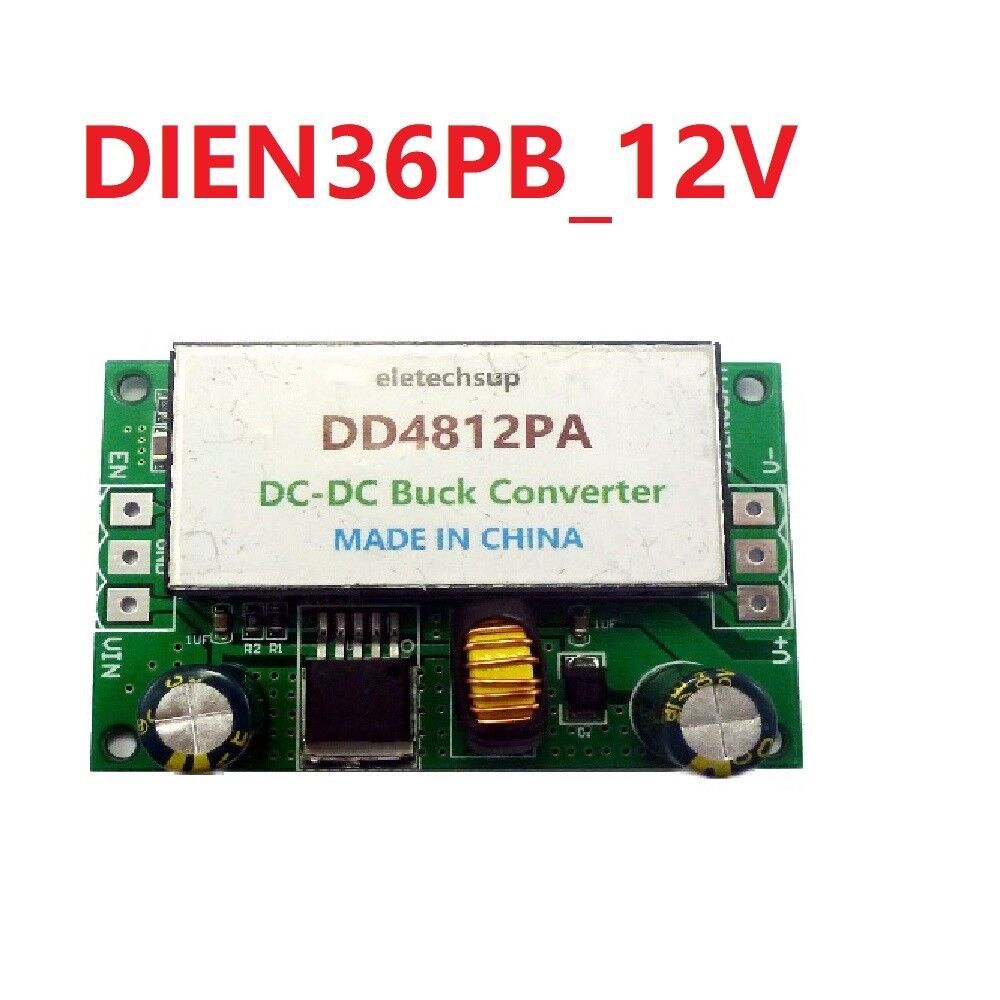

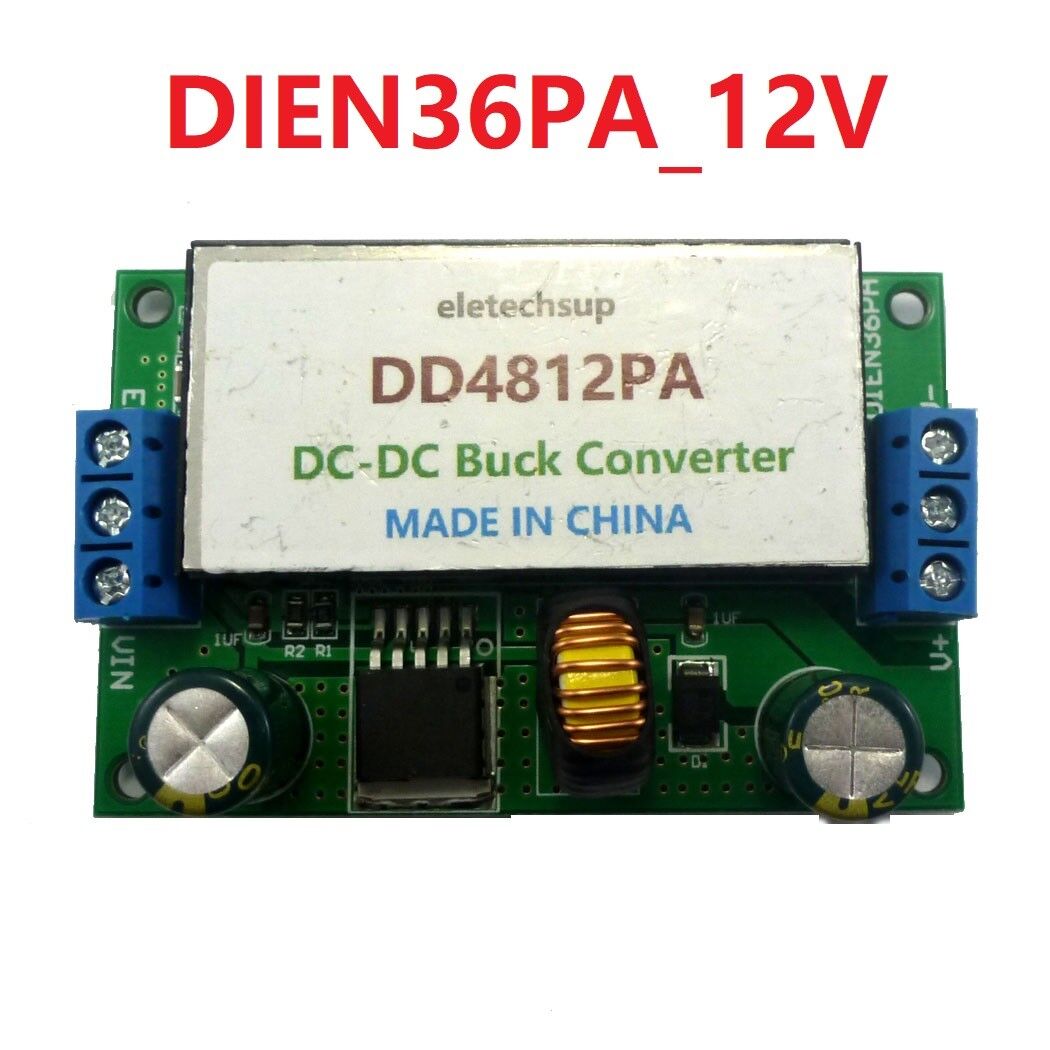

DIEN36PA Dual Isolated Power DC DC Boost-Buck Converter 5-32V to +-12V 15V
DIEN36PA Dual Isolated Power DC DC Boost-Buck Converter 5-32V to +-12V 15V
SKU:DIEN36PA_12V
1000 in stock
Regular price
$7.89
Sale price
$7.89
Unit price
per
Couldn't load pickup availability
Applications
ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
Low power audio power supply
Car audio amplifier dual power board
LCD power supply
Instrumentation equipment
Instrumentation multimeter
Product Name:
1 PCS 15W Isolated Dual Power Supply 5-32 to +-12V 15V 24V 30V DC DC Boost-Buck
Packing list:
1 PCS 5-32 VDC to ±12V/±15V Isolated DC-DC Buck Converter
Description:
2 in 1 Isolated DC-DC Boost-Buck Converter
Input Voltage Range: 5-32 VDC

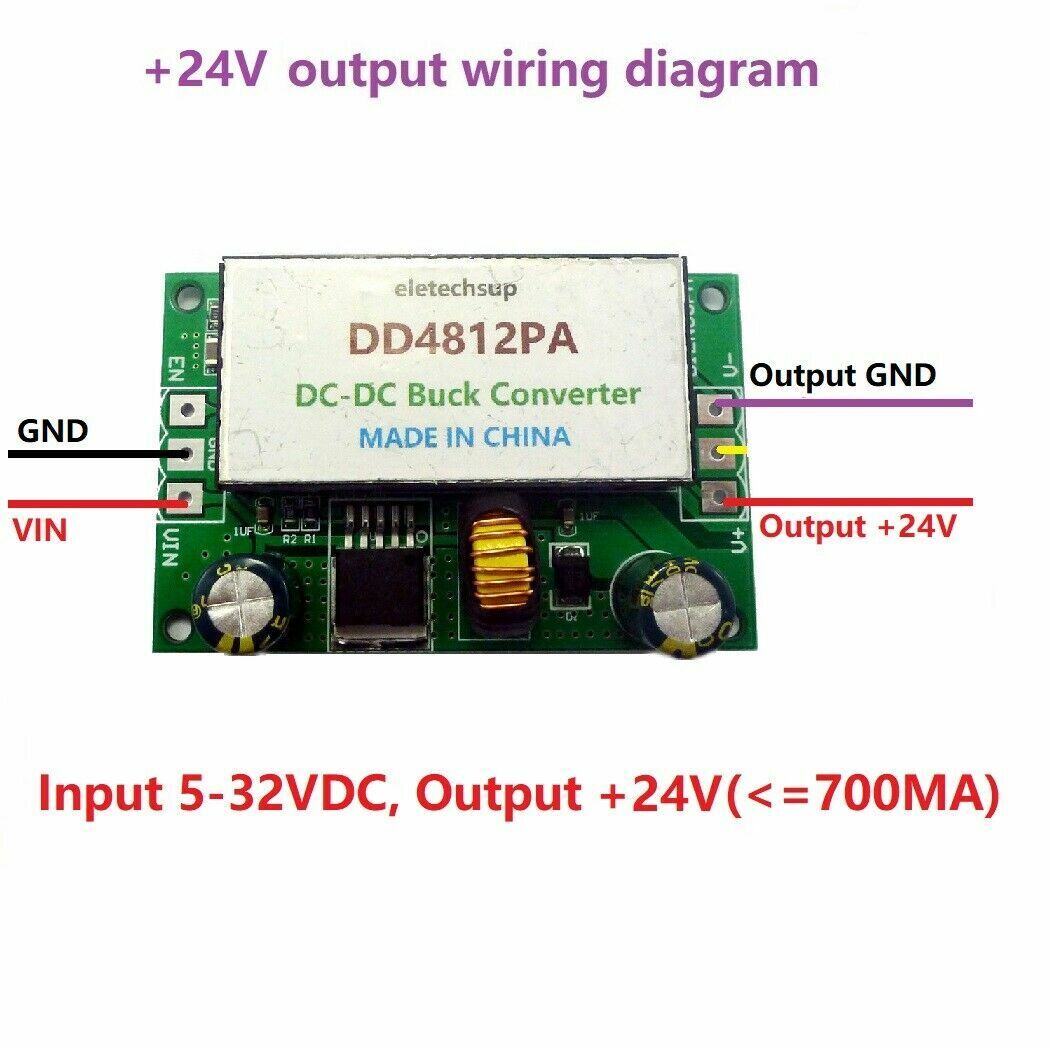

Output Voltage : ±12V/+24V(MAX 700MA); ±15V/+30V(MAX 550MA)
Minimum Load Requirements: 0% (as+24V/+30V Output), 10% (as +-12/+-15 Output)
Efficiency : 70%-88%
Quiescent current : 68mA(Input 12V)
Low Noise : 50mV
Hihg Accuracy ：+/-1%
Working frequency 400KHz
Isolation (Input to Output): 1500VDC minimum (1 minute)
Isolation Capacitance: 1200pF
Short Circuit Protection
Operating ambient temperature : -40~+85 Degrees Celsius
Storage Temperature Range: -55 to +125 Degrees Celsius
Size : 68 x 44 x 16mm
Weight : 39g(With terminal), 34g(no terminal)

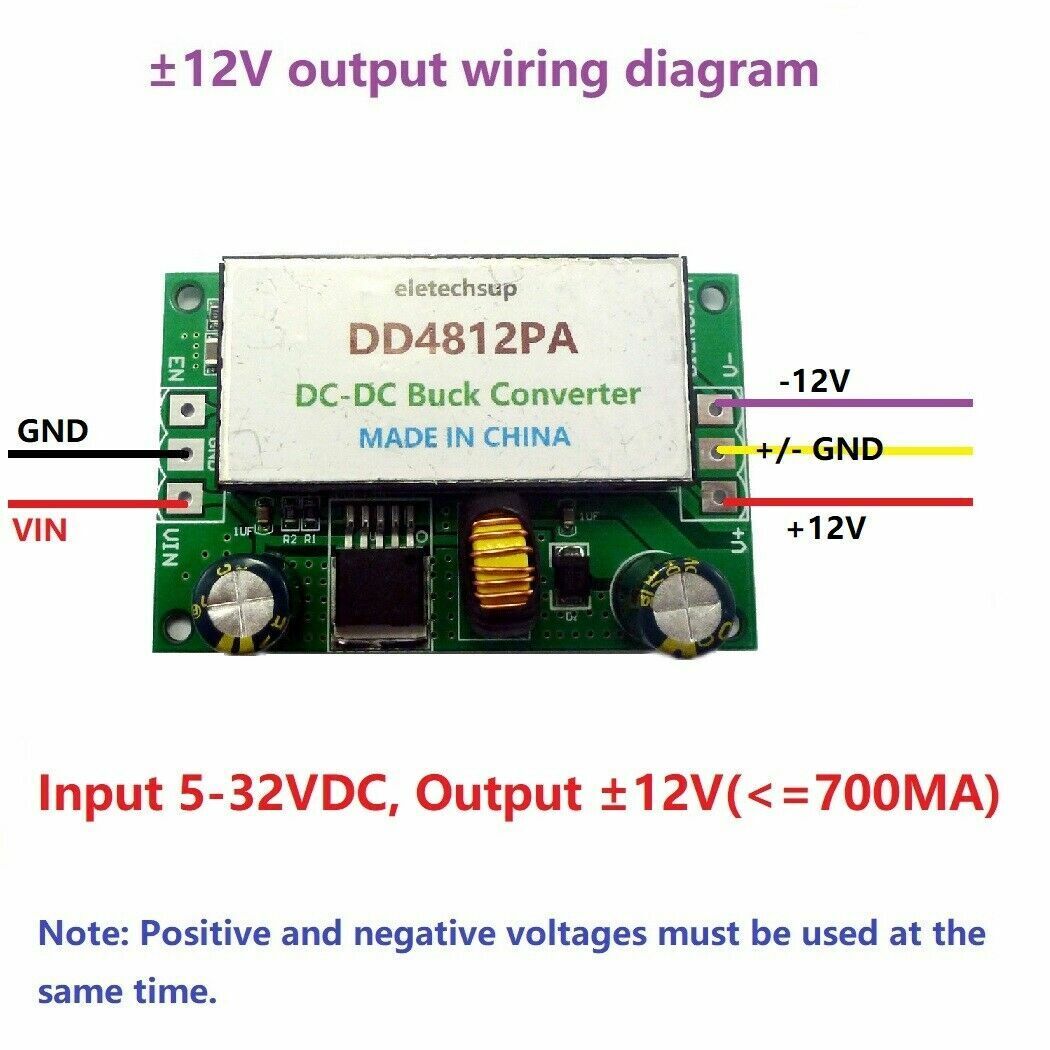

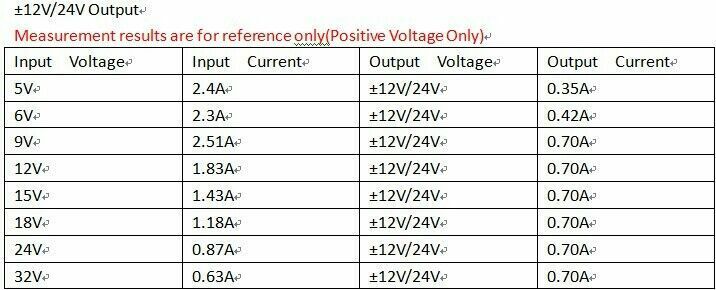

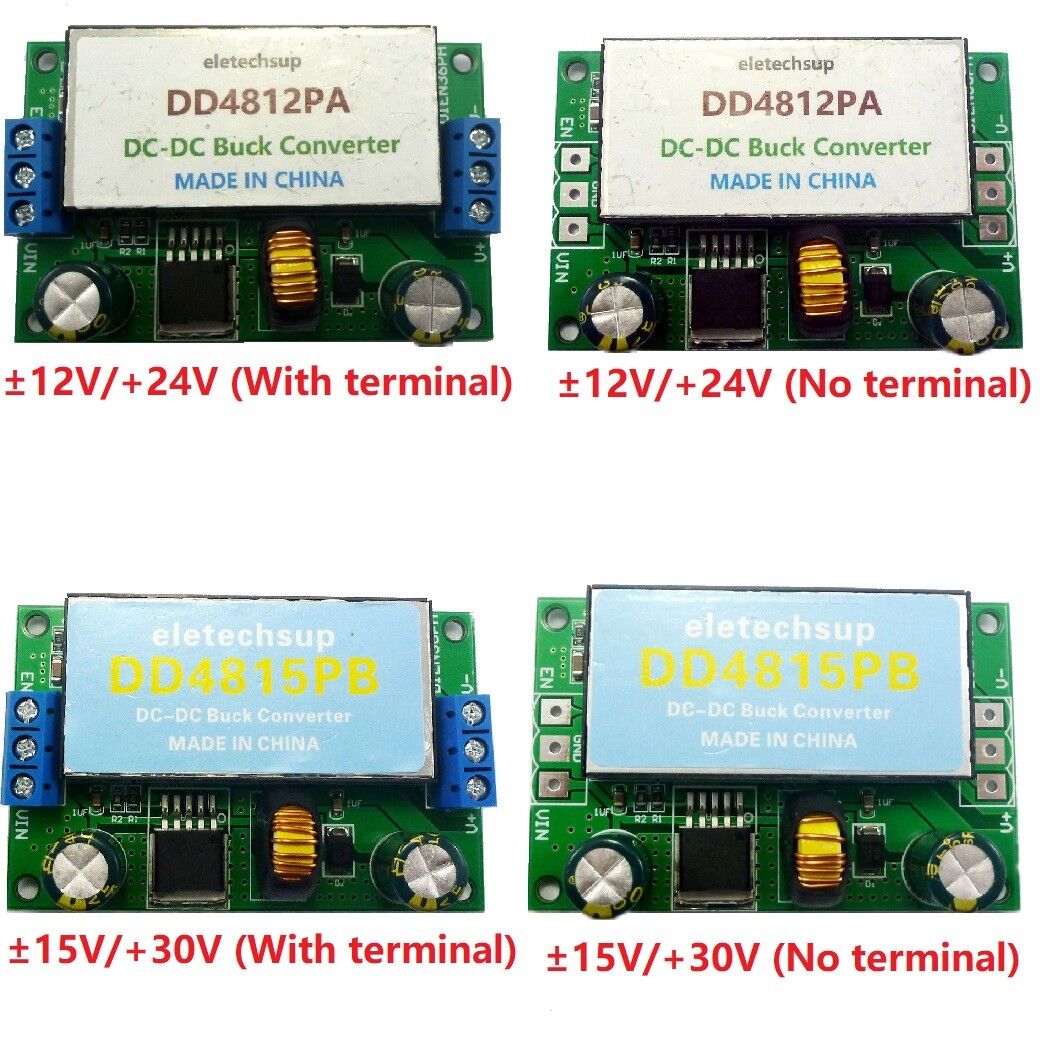

+-12V/+24V

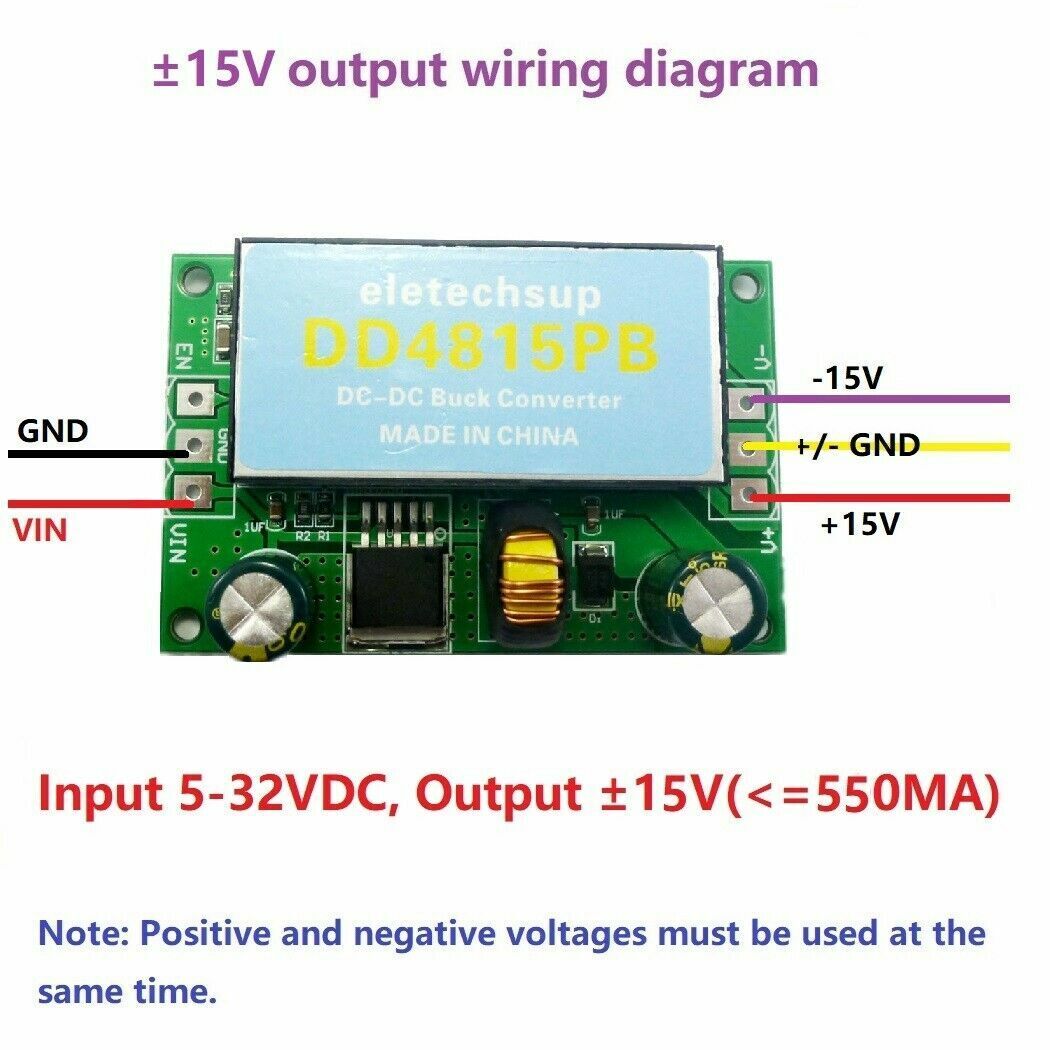

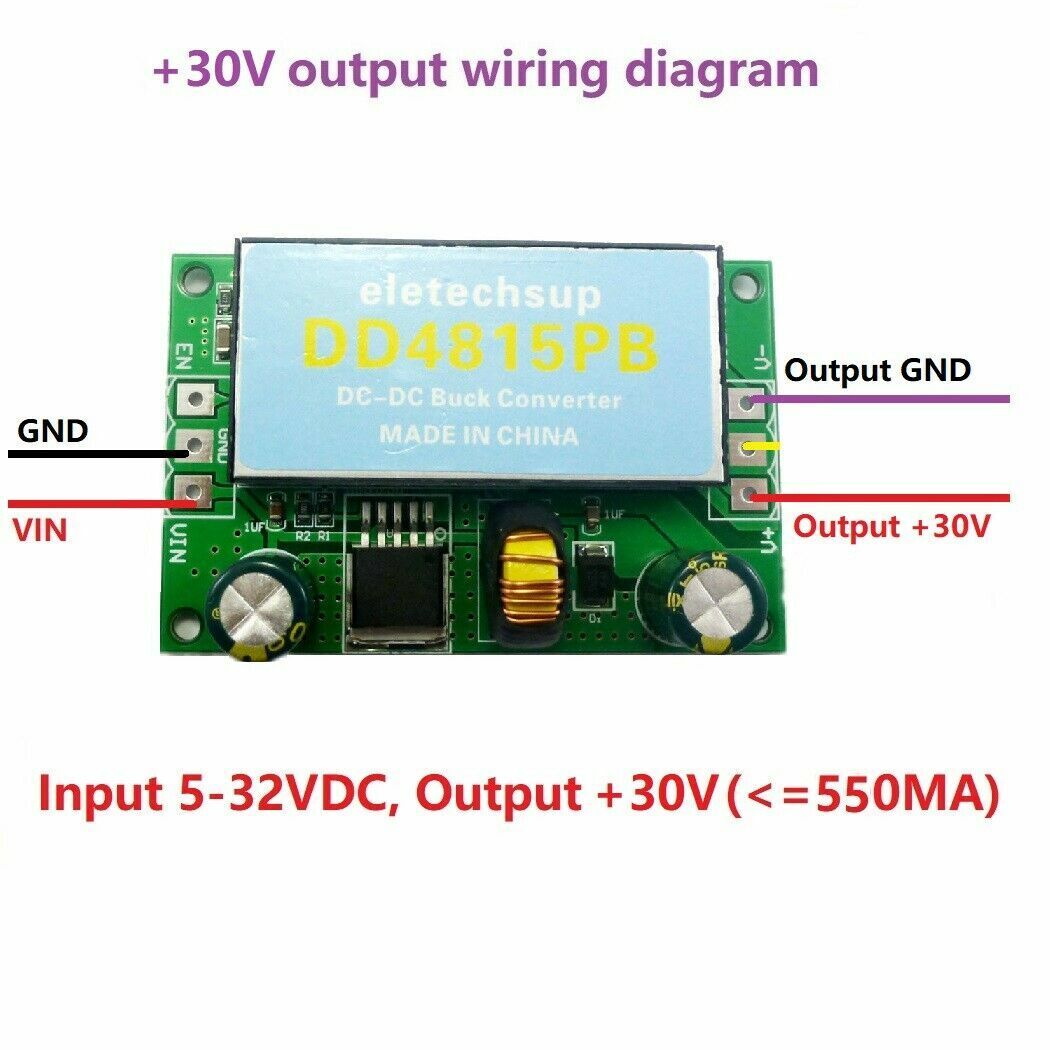

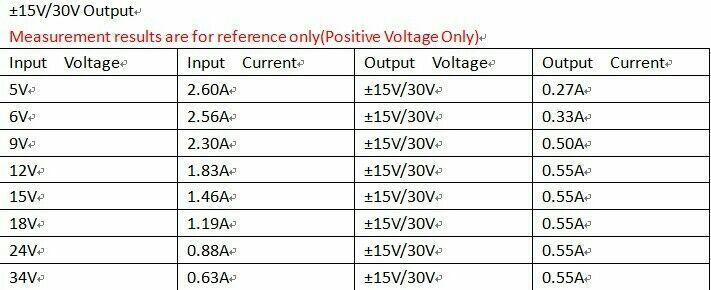

+-15V/+30V
Pin description:
VIN : Input positive
GND : Input negative
EN : Input enable (NC or VIN enable, GND disabled)
V+ : Isolated output positive voltage
COM : Isolated output common
V- : Isolated output negative voltage
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
