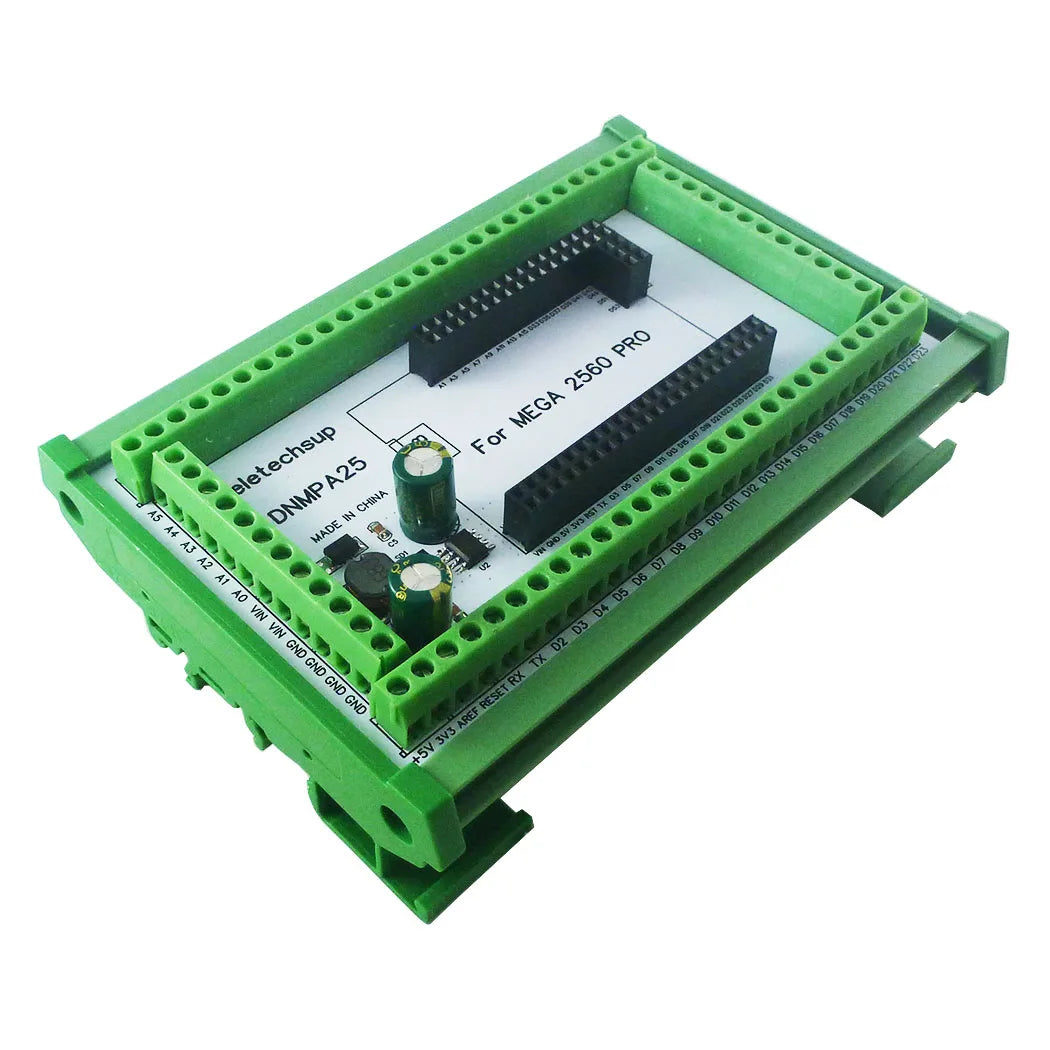

DNMPA25 DIN Rail Mount Screw Terminal Block Adapter Module DC 12V 24V Expansion Board for Arduiuo MEGA2560 PRO Smart Home DIY DNMPA25
DNMPA25 DIN Rail Mount Screw Terminal Block Adapter Module DC 12V 24V Expansion Board for Arduiuo MEGA2560 PRO Smart Home DIY DNMPA25
SKU:DNMPA25
1000 in stock
Regular price
$13.99
Regular price
$15.95
Sale price
$13.99
Unit price
per
Couldn't load pickup availability
Product Name: MEGA2560 PRO DIN Rail Expansion Board DC-DC 5V 2A Converter 3.96mm Mount Screw Terminal Block Adapter Module DNMPA25 for Arduino
Package inlcuded:

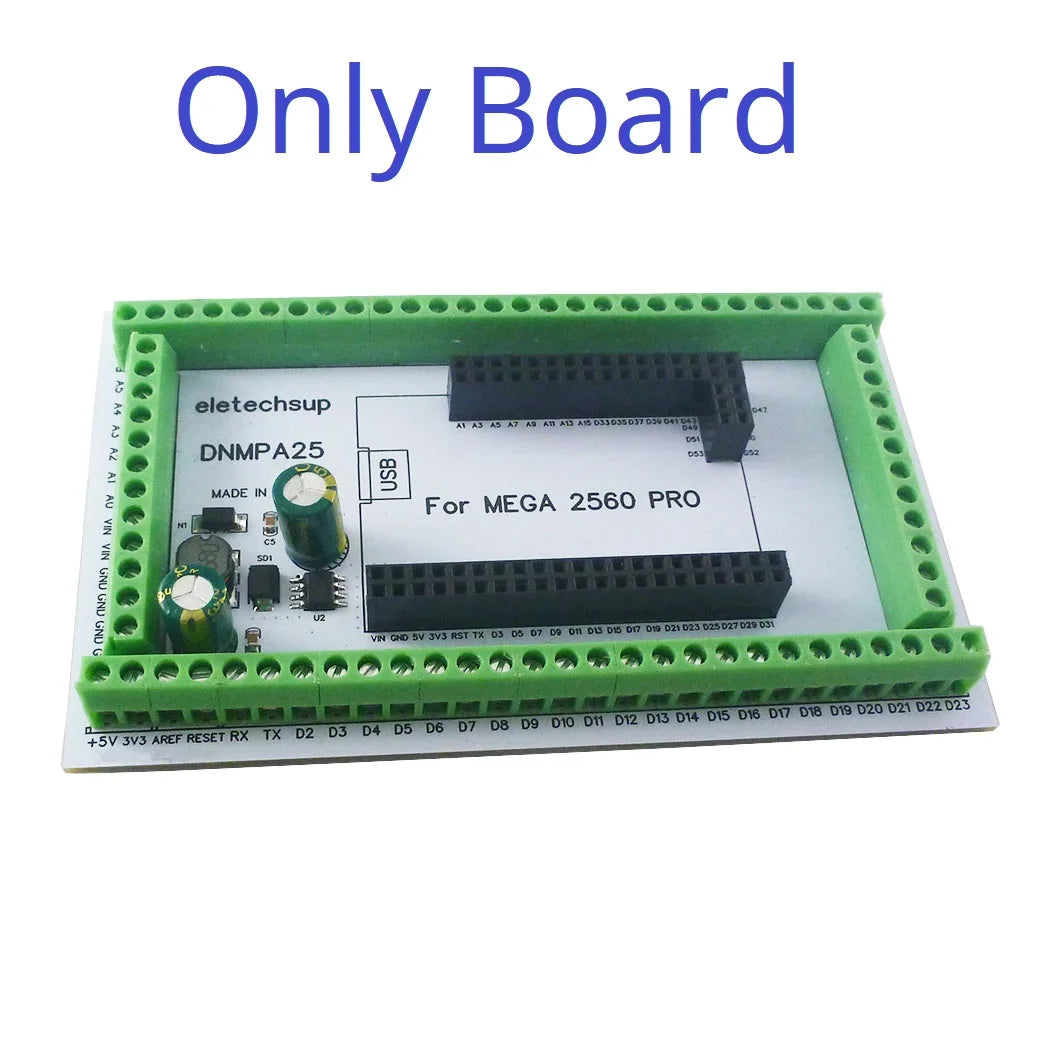

1 PCS DNMPA25 DIN PinBoard for MEGA2560 PRO(only board or with shell)
(does not include the MEGA2560 pro module)
Description:
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

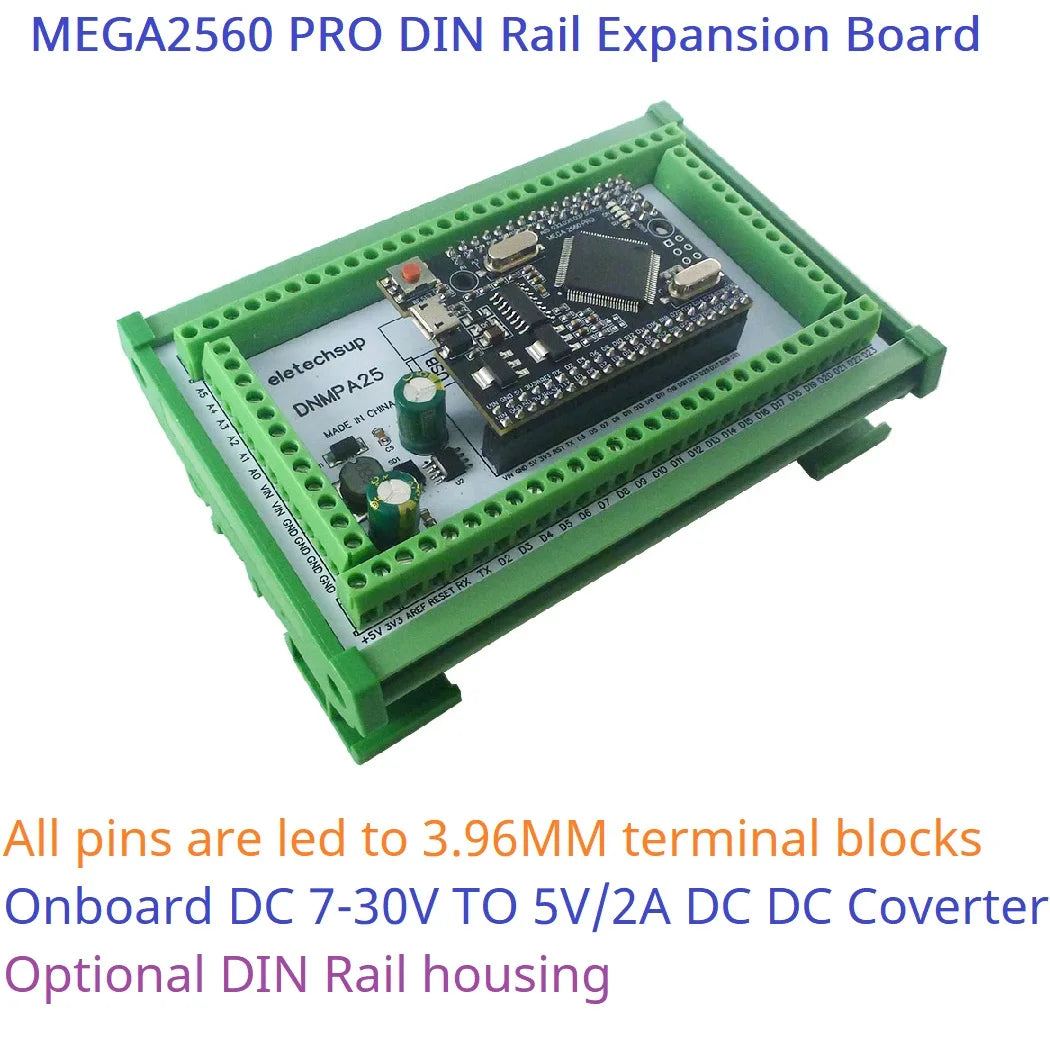

All pins are led to 3.96MM terminal blocks

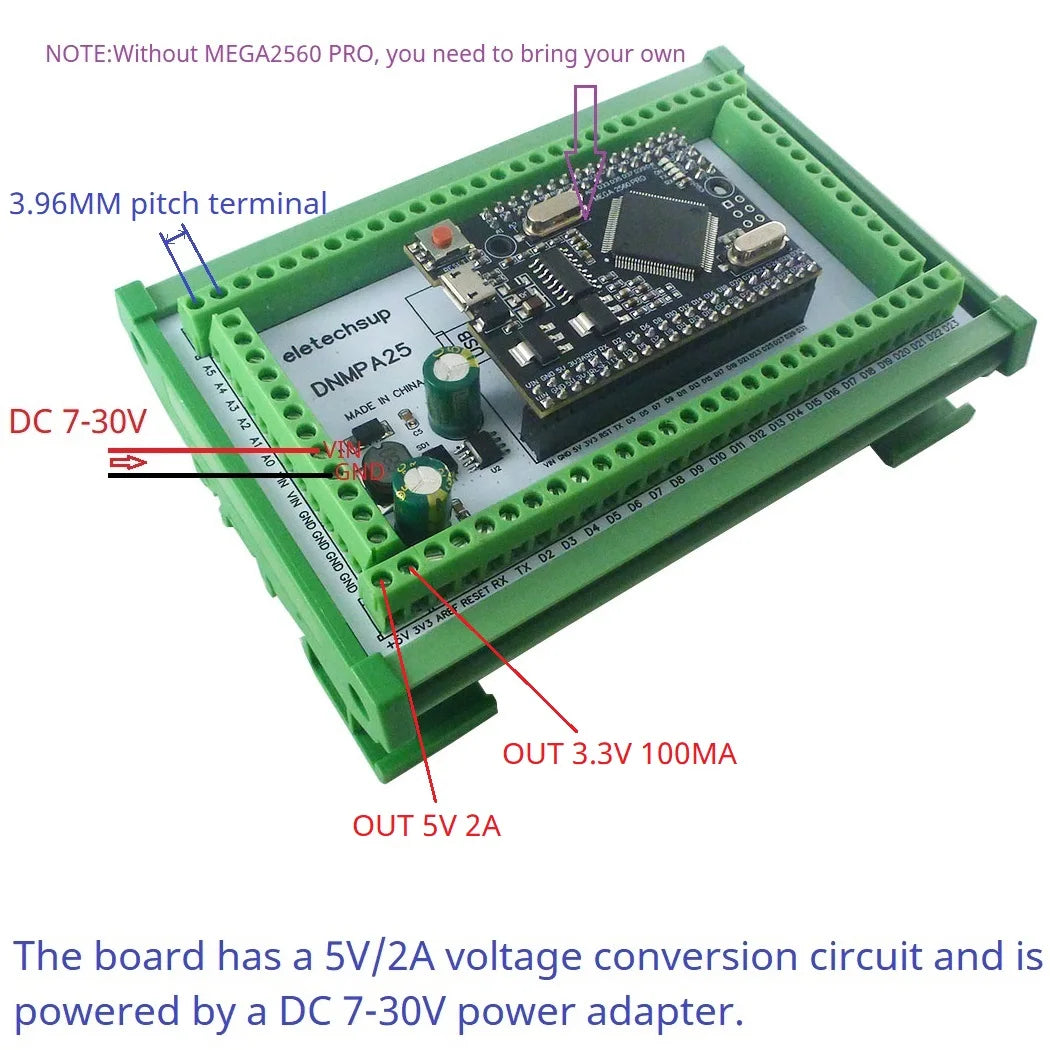

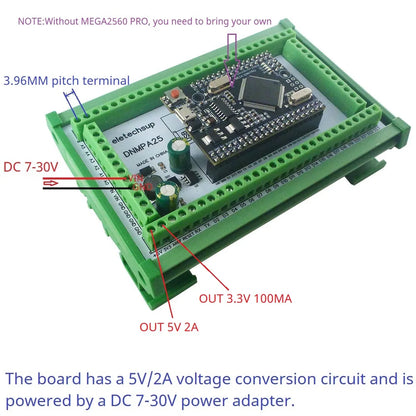

Onboard DC 7-30V TO 5V/2A DC DC Coverter

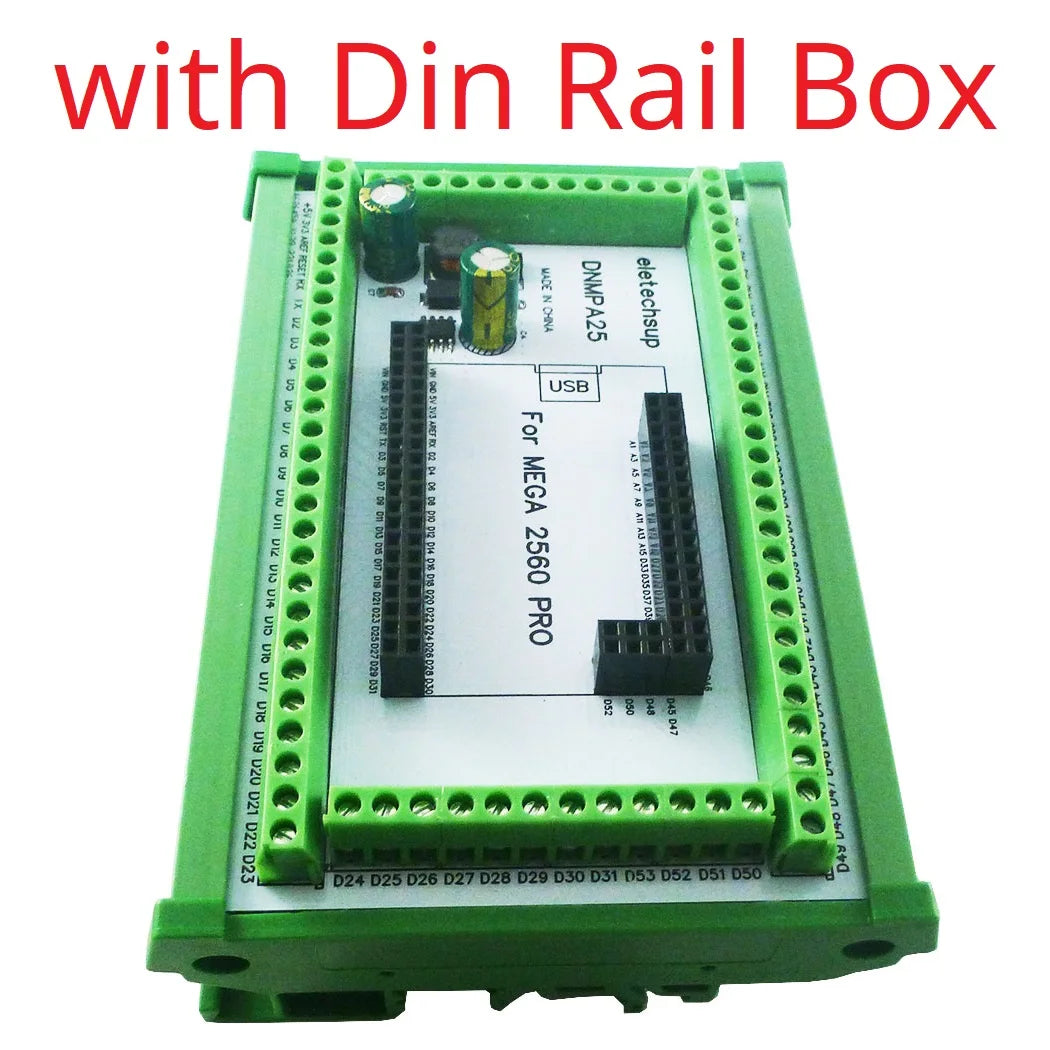

Optional DIN Rail housing

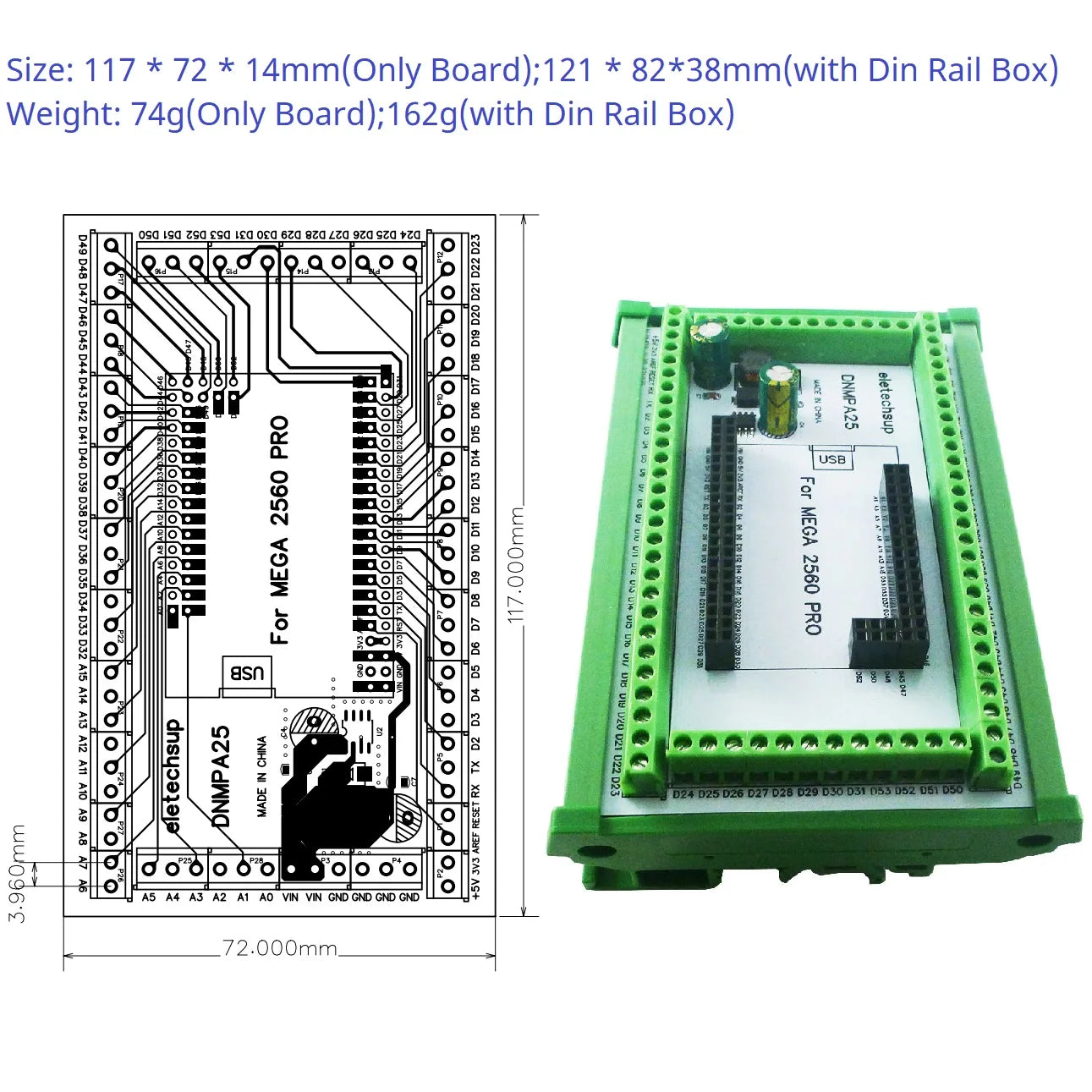

Size: 117 * 72 * 14mm(Only Board);121 * 82*38mm(with Din Rail Box)
Weight: 74g(Only Board);162g(with Din Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino MEGA2560 PRO Board.
With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.
Notice:

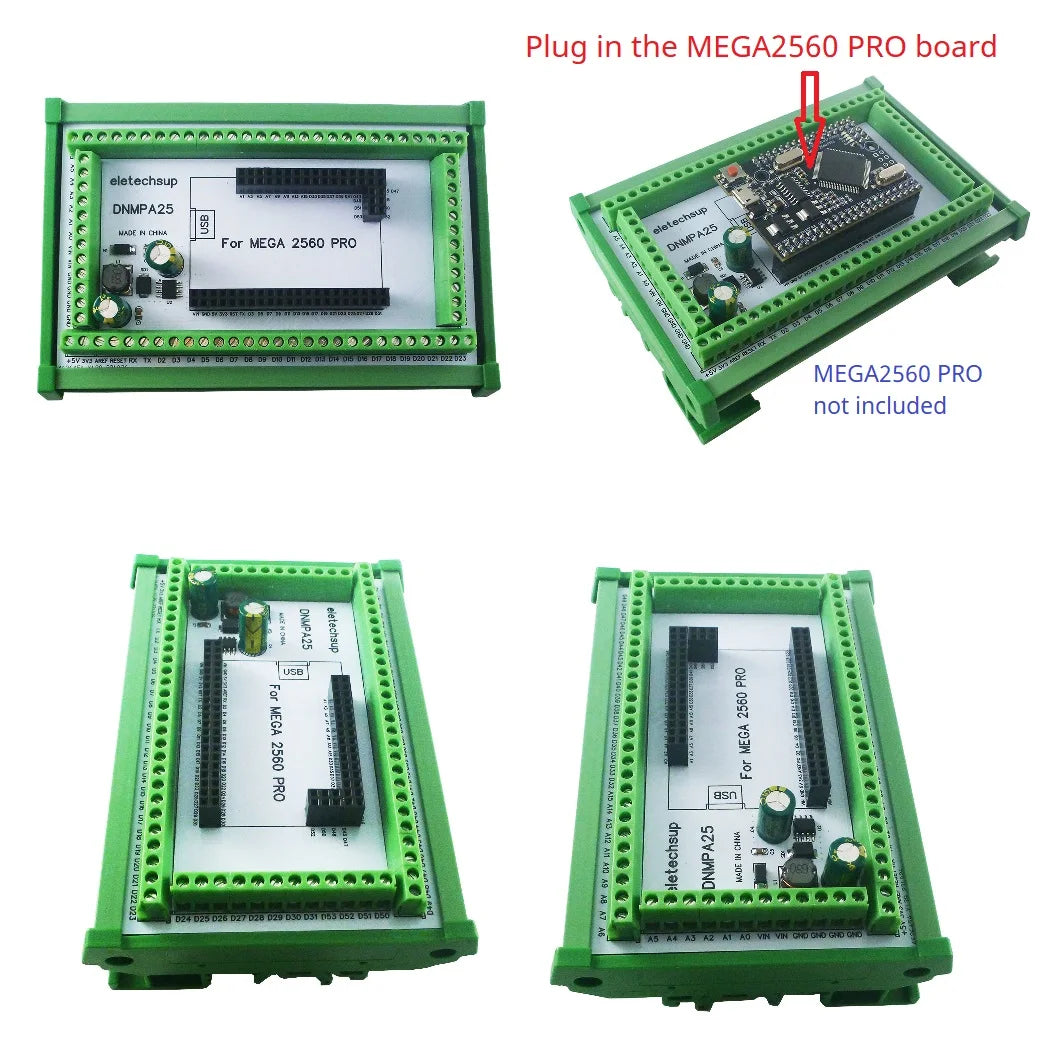

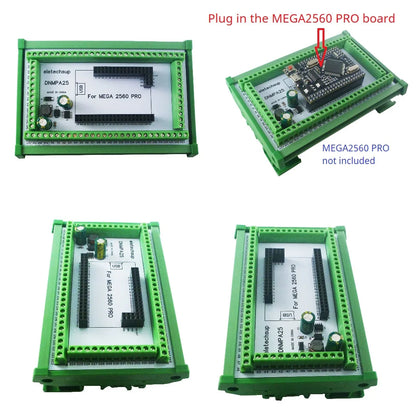

Without MEGA2560 PRO board, you need to bring your own
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 117 mm PCB boards
Net weight: 88g
Installation: DIN35 and C45 rail
