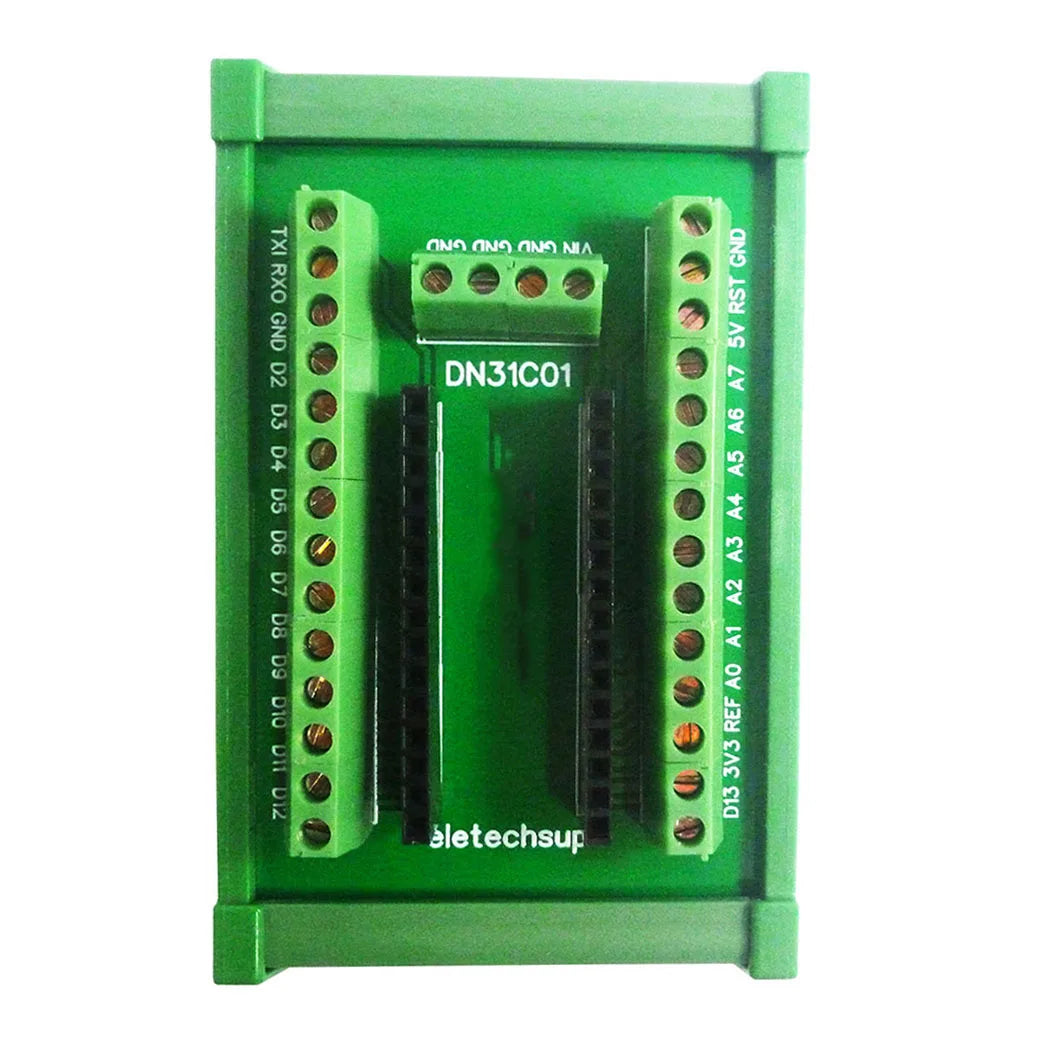

DN31C01 DIN Rail Mount Screw Terminal Block Adapter Module For Arduiuo NANO V3.0 Board

DN31C01 DIN Rail Mount Screw Terminal Block Adapter Module For Arduiuo NANO V3.0 Board

DN31C01

1000 in stock

$4.99
$3.99 $4.99
Sale Sold out

Product Name: DIN Rail Mount Screw Terminal Block Adapter Module For Arduino NANO V3.0 Board

Package inlcuded:

1 Pcs DN31C01 DIN PinBoard for NANO (only board or with shell)
(does not include the NANO module)



Illustrate:

Terminal spacing: 5.08mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 5mm, Metric M2/M2.5 Slotted Screws.
Size: 72 *50 * 12mm

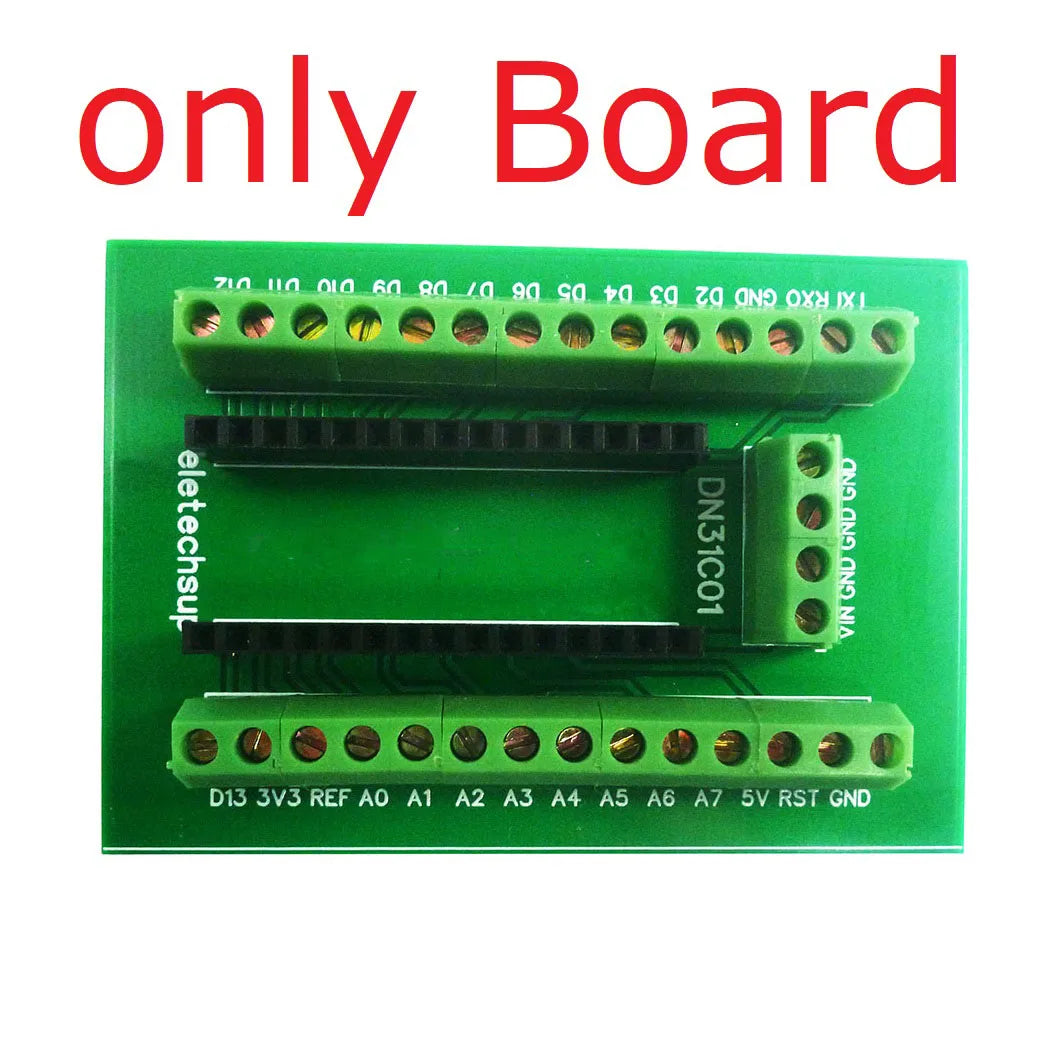

Weight: 30g(only Board),77g(with Rail Box)

 Use:

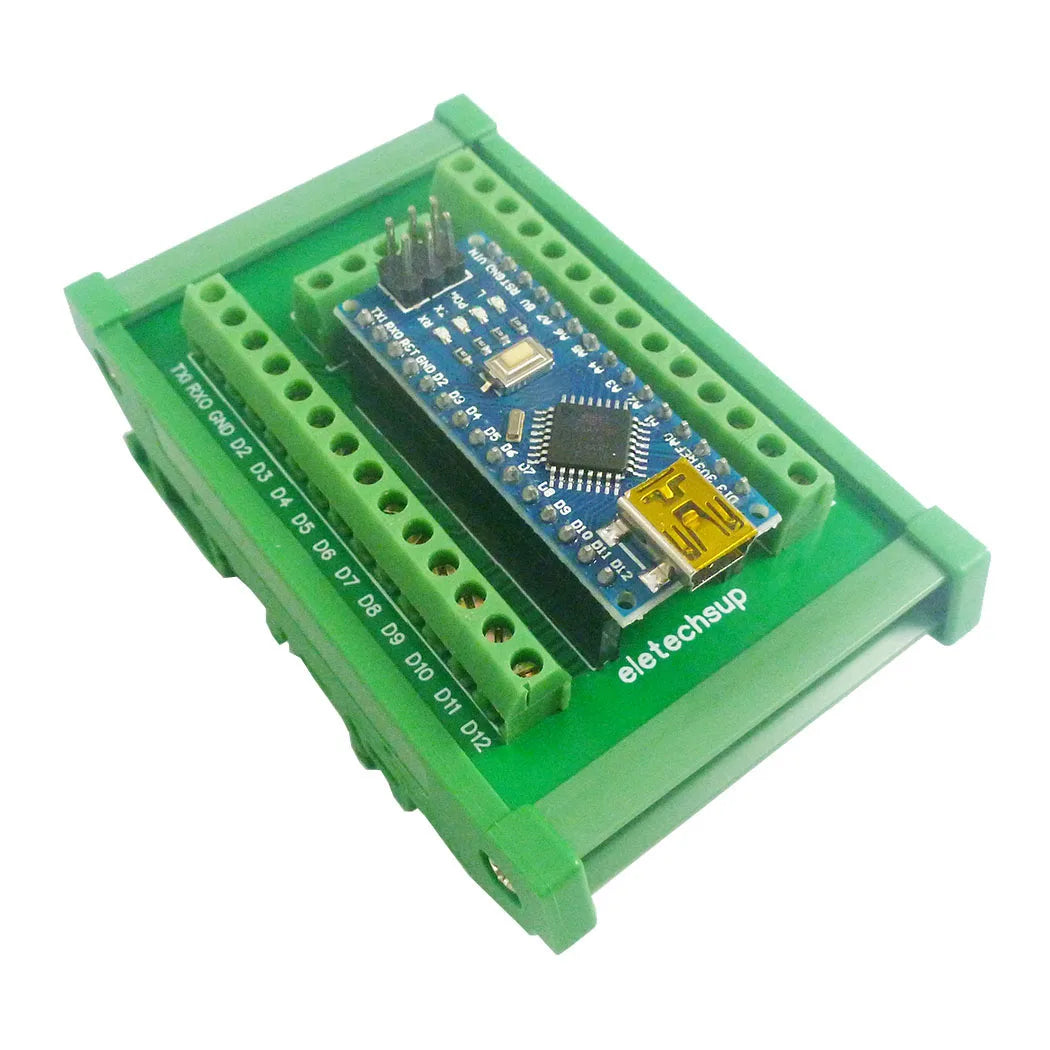

DIN Rail Mount Screw Terminal Adapter Module for Arduino NANO Board.
With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.

Notice:
This product does not include the NANO module

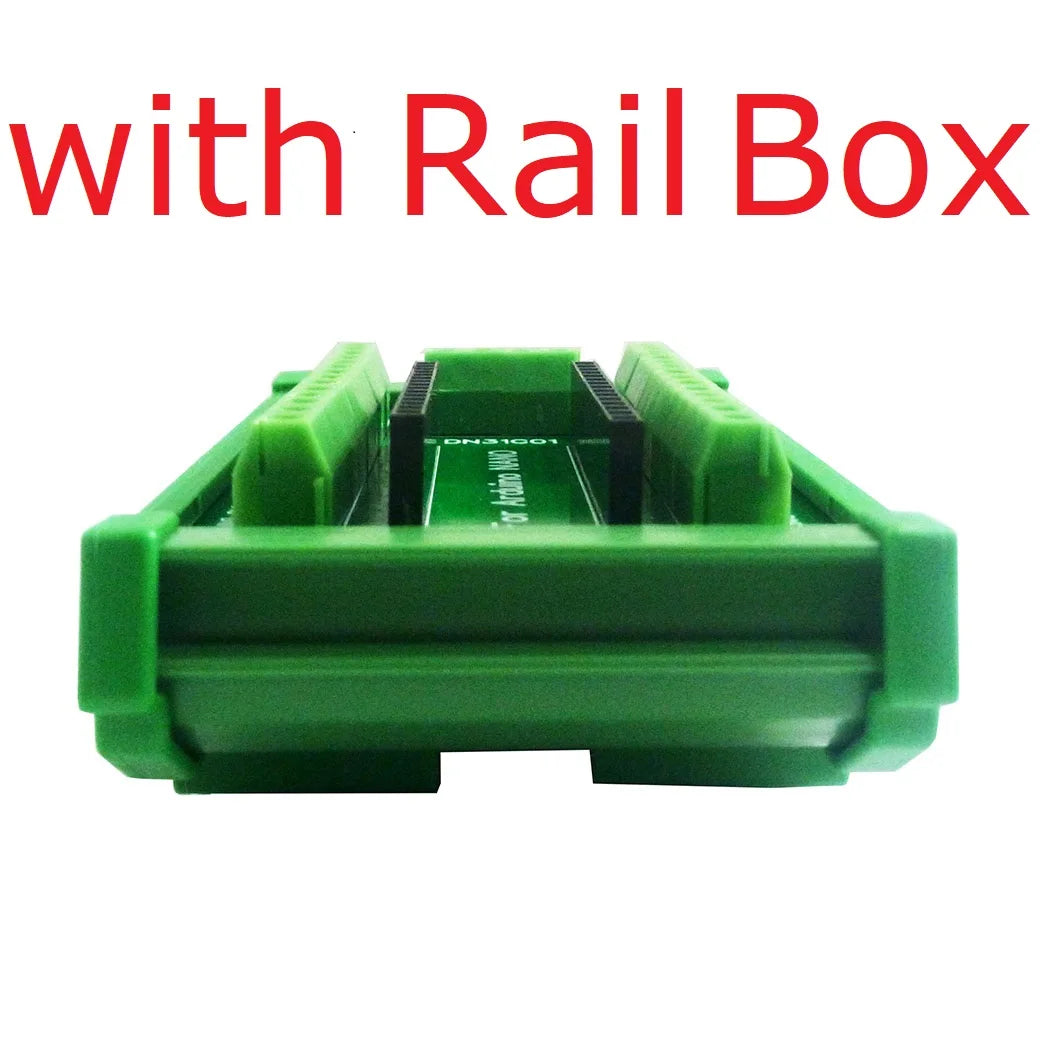

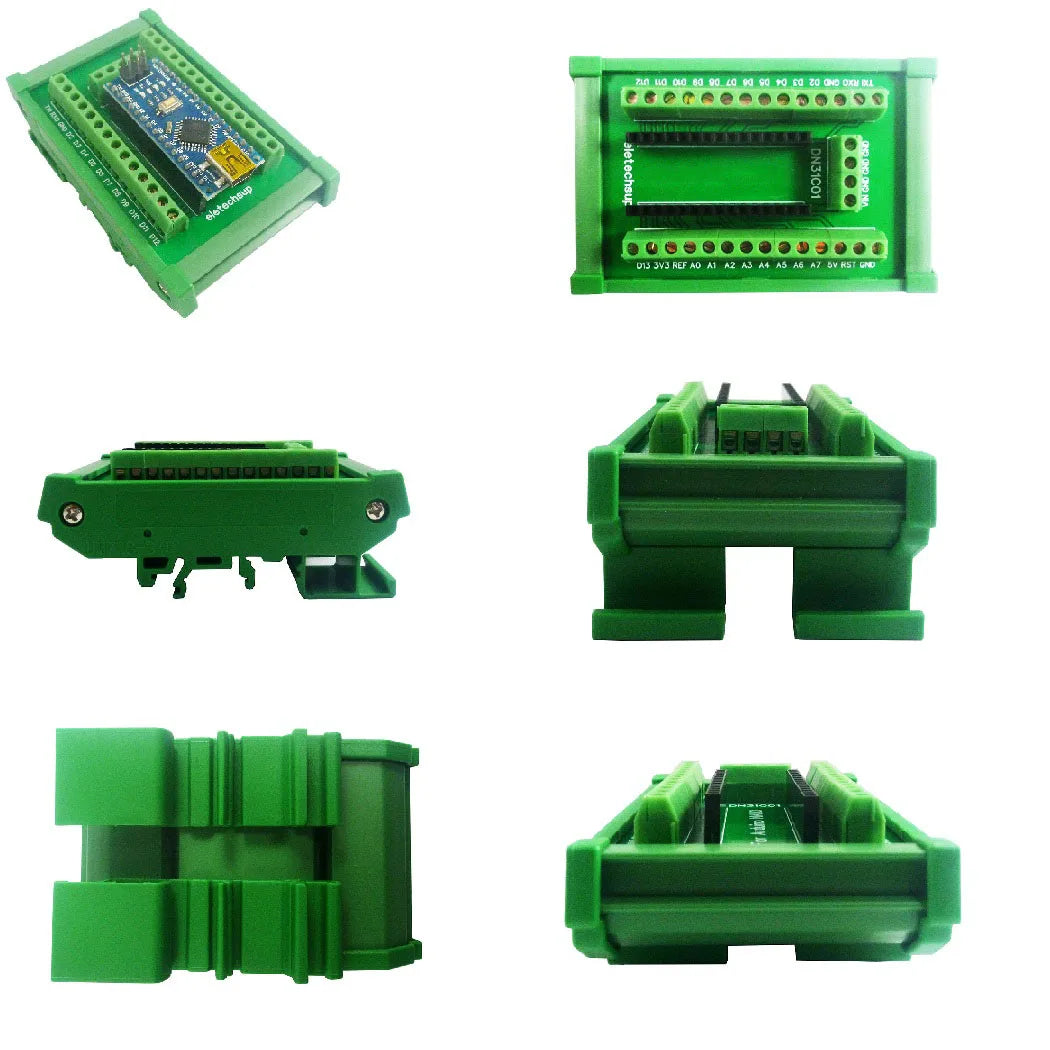

 DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 50 mm PCB boards
Net weight: 47g
Installation: DIN35 and C45 rail
