DN22D08 24V RS485 Master Device Replace PLC/PC/touch Screen Control 8 DI DO

SKU:DN22D08_R_24V

1000 in stock

$23.99

~~$38.98~~ $23.99

Sale Sold out

Quantity

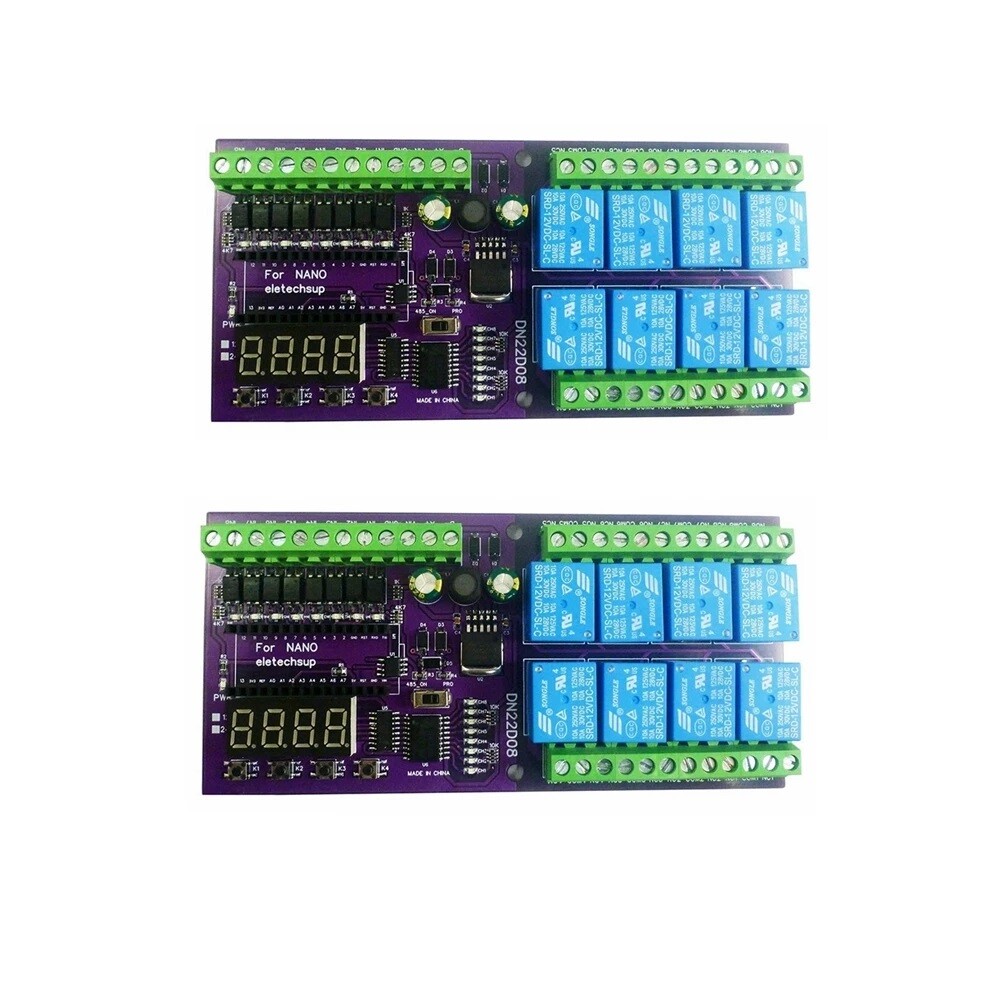

Product Name: 8 Channel 24V Relay Shield Module RS485 PLC IO Expanding Board For Arduino NANO V3.0

Package inlcuded(Ship according to the item you purchased):

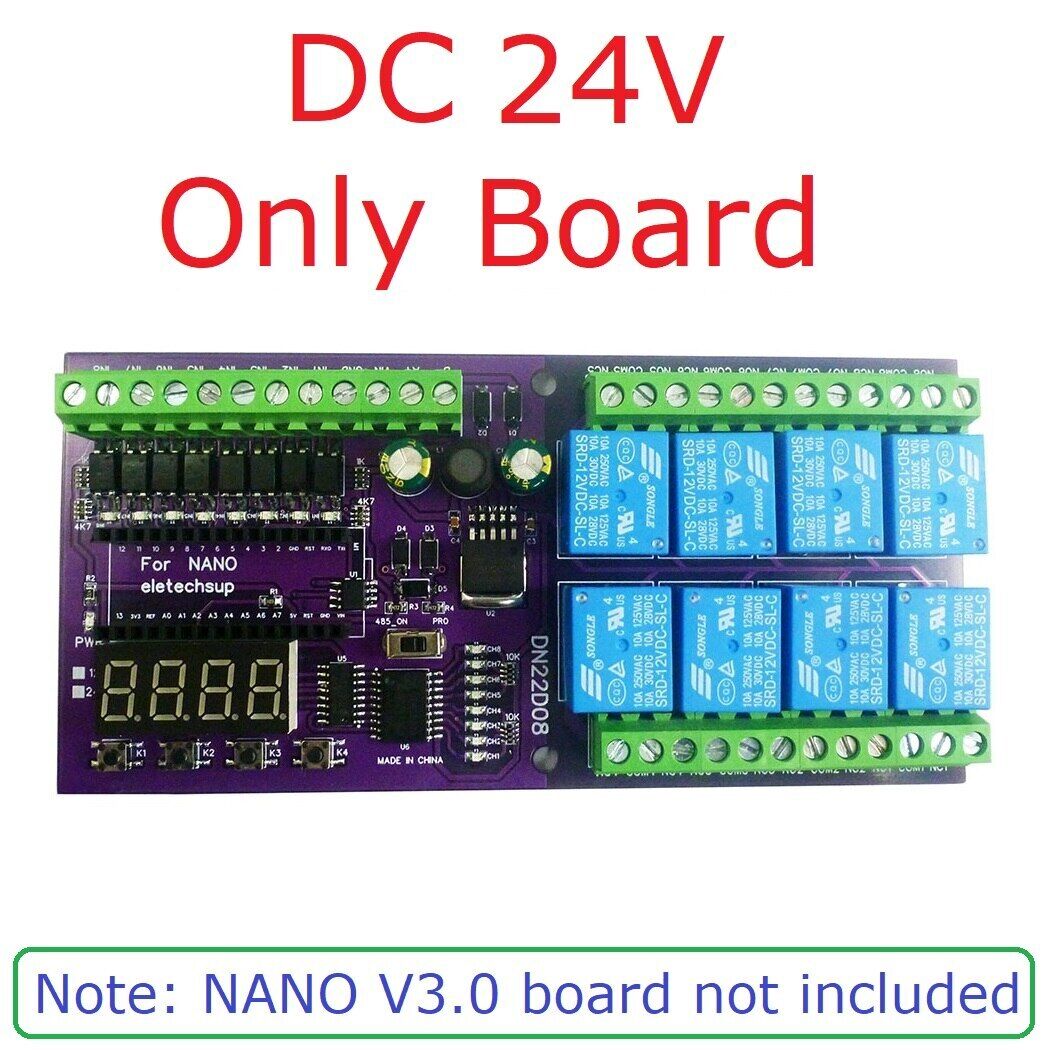

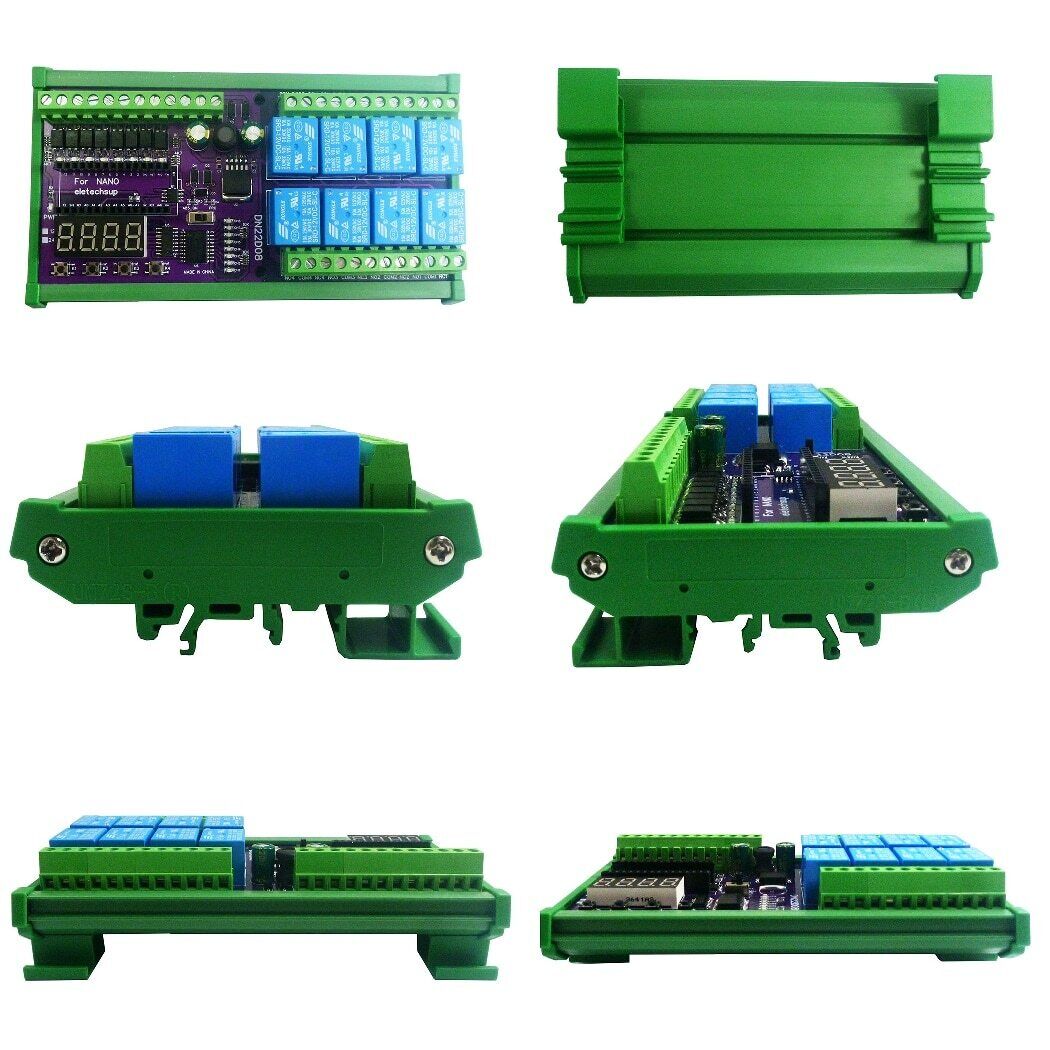

24V 8 channel PLC relay board for NANO V3.0

Product Features:

1 Operating voltage: DC 24V

2 Operating Current : Standby current (Digital tube OFF) 12MA, Standby current 48MA (Digital tube ON), 1 relay open 76MA, 2 relays open 104MA, 3 relays open 131MA, 4 relays open 162MA,5 relays open 184MA, 6 relays open 209MA, 7 relays open 255MA, 8 relays open 288MA

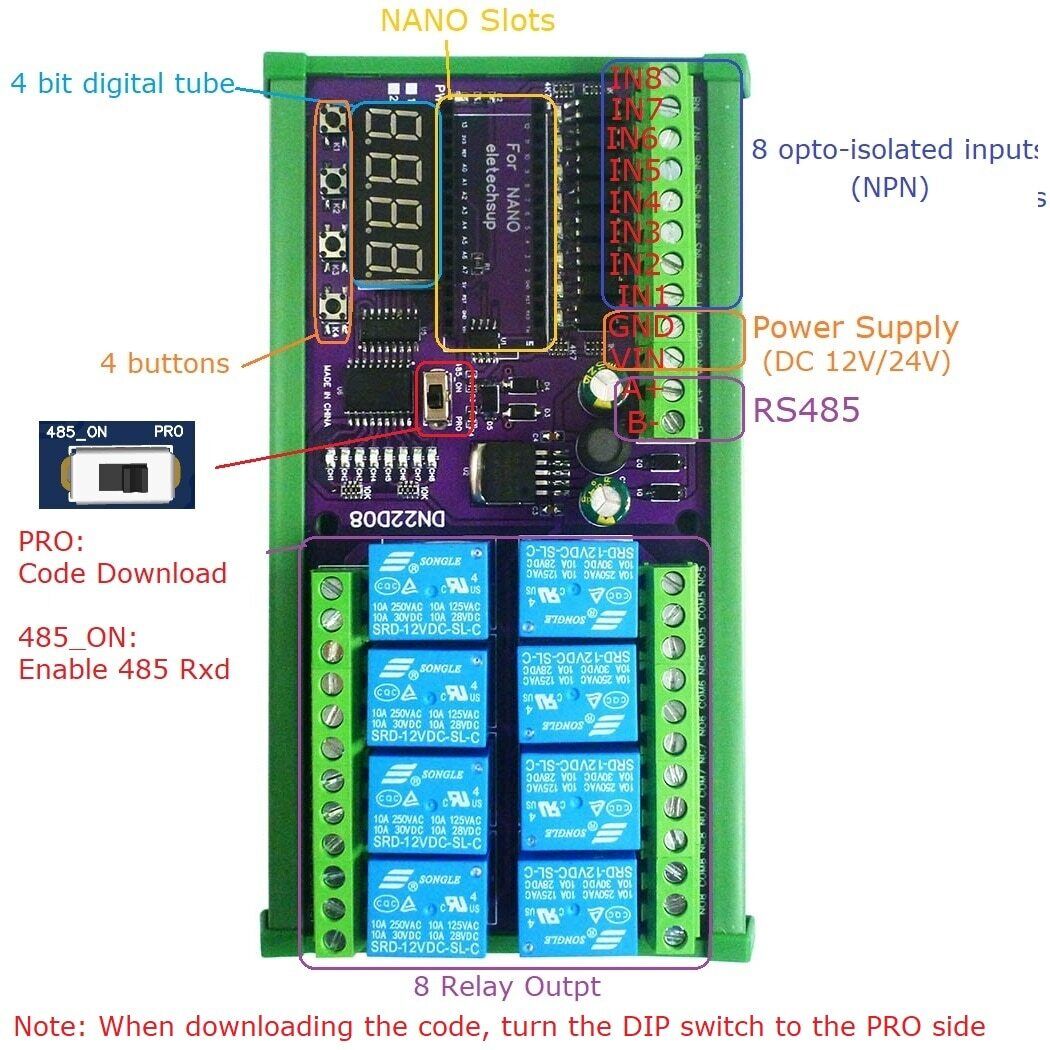

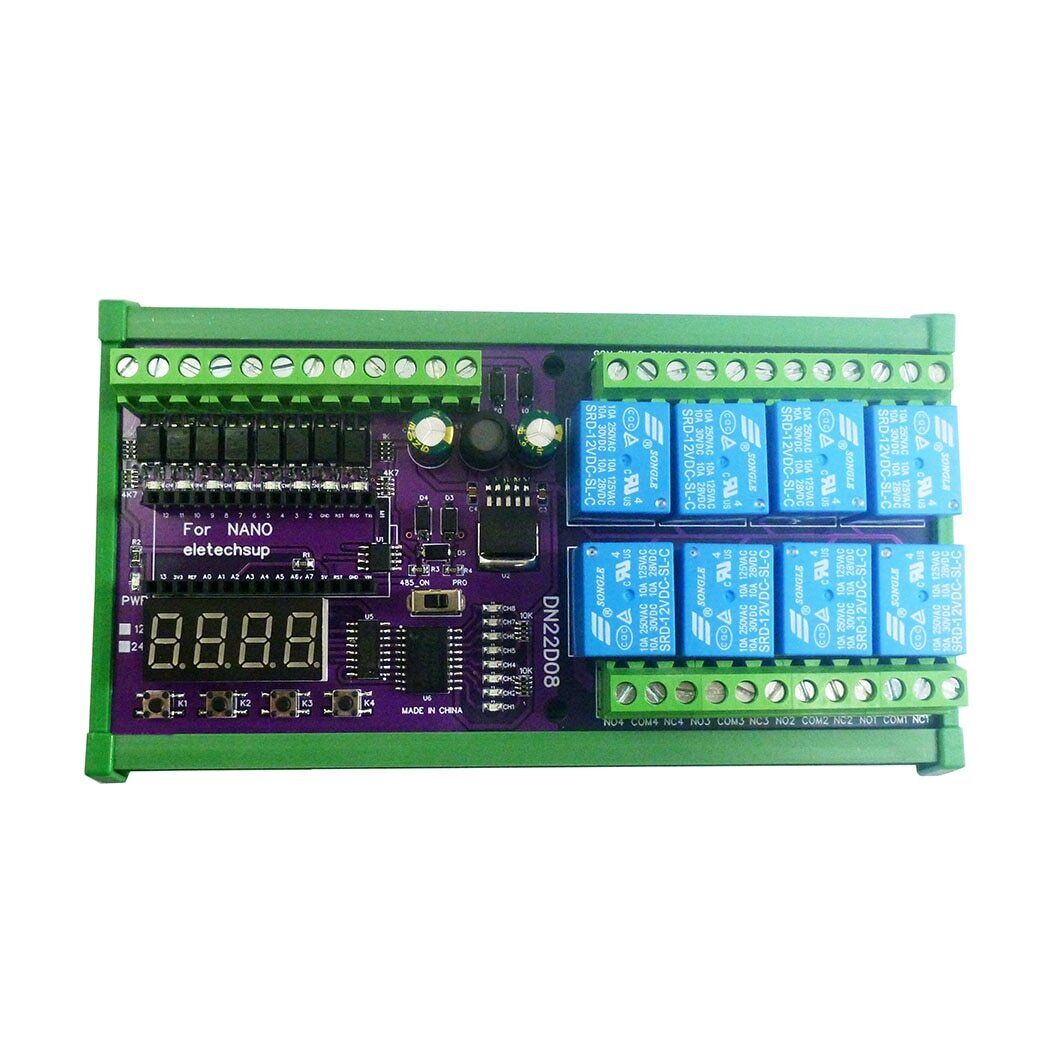

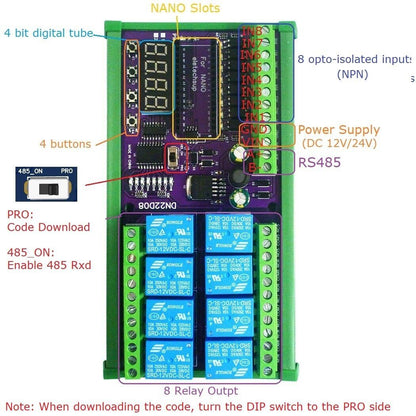

3 On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x buttons, 1x 4 bit digital tube display, 1x NANO V3.0 slots, 8x relay outputs

4 Size 150*72*19mm(Only Board)

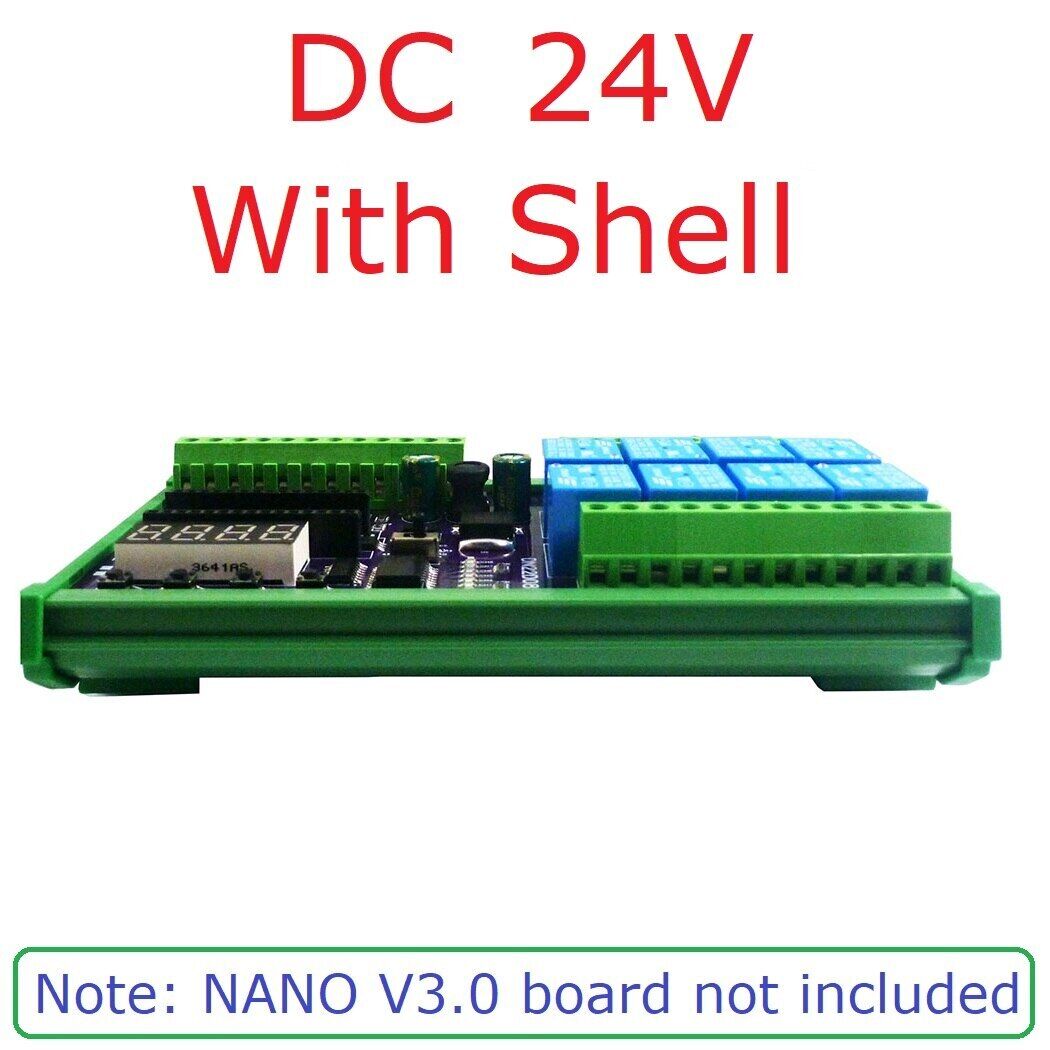

5 Weight : 118g(Only Board), 228g(with shell)

We provide the code(sketch) can only achieve a simple delay function,The delay time is adjusted by modifying the delay parameter of the code(sketch).

If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support

How to use: See video ''DN22D04 DEMO''(You can search for videos on GOOGLE)

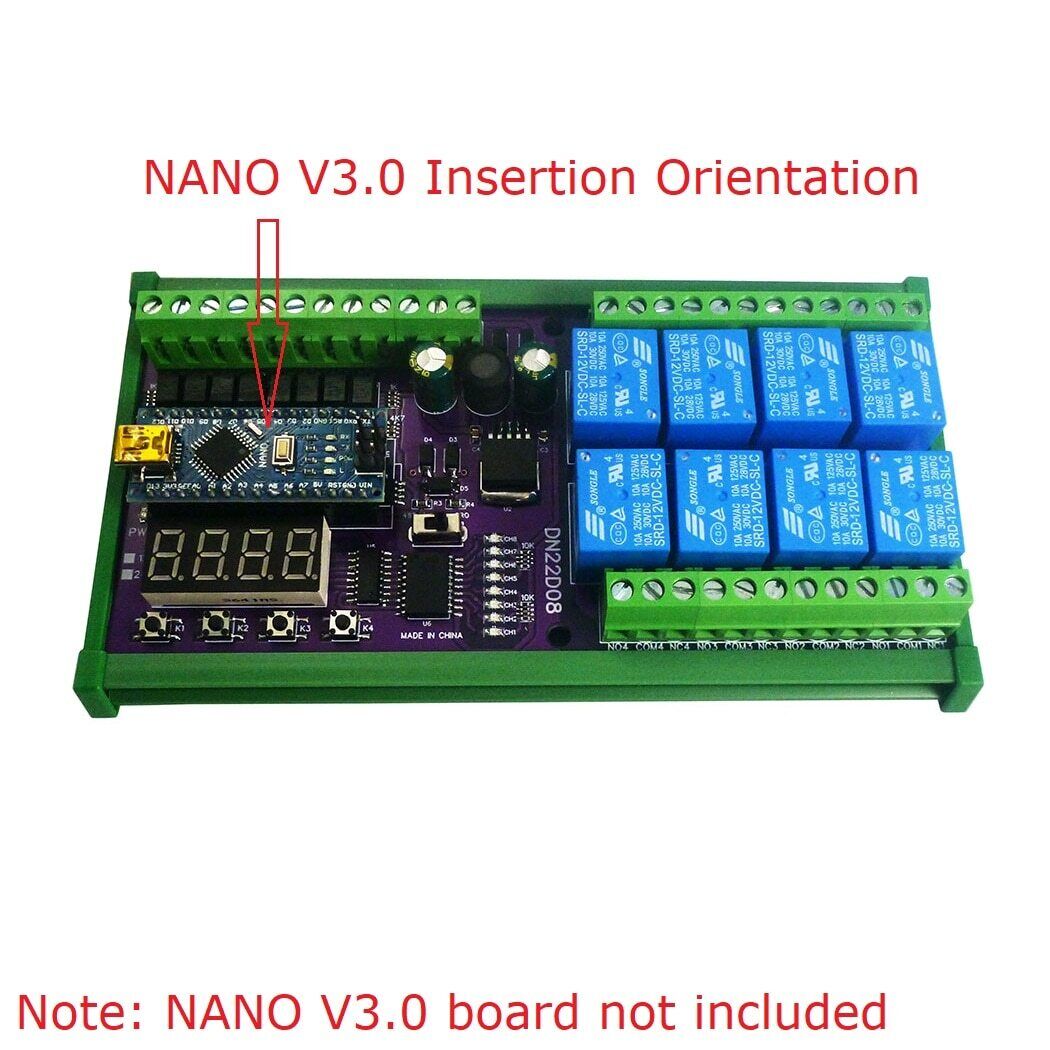

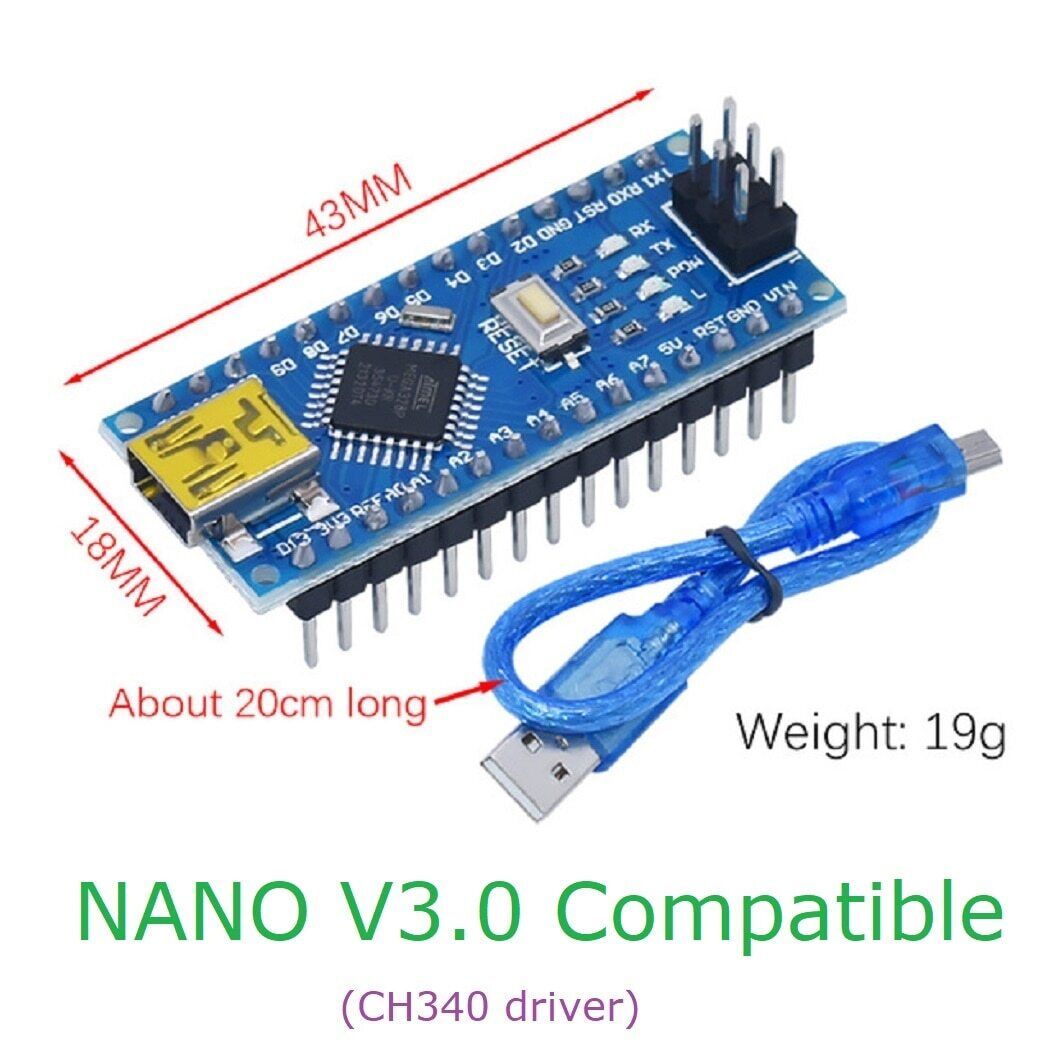

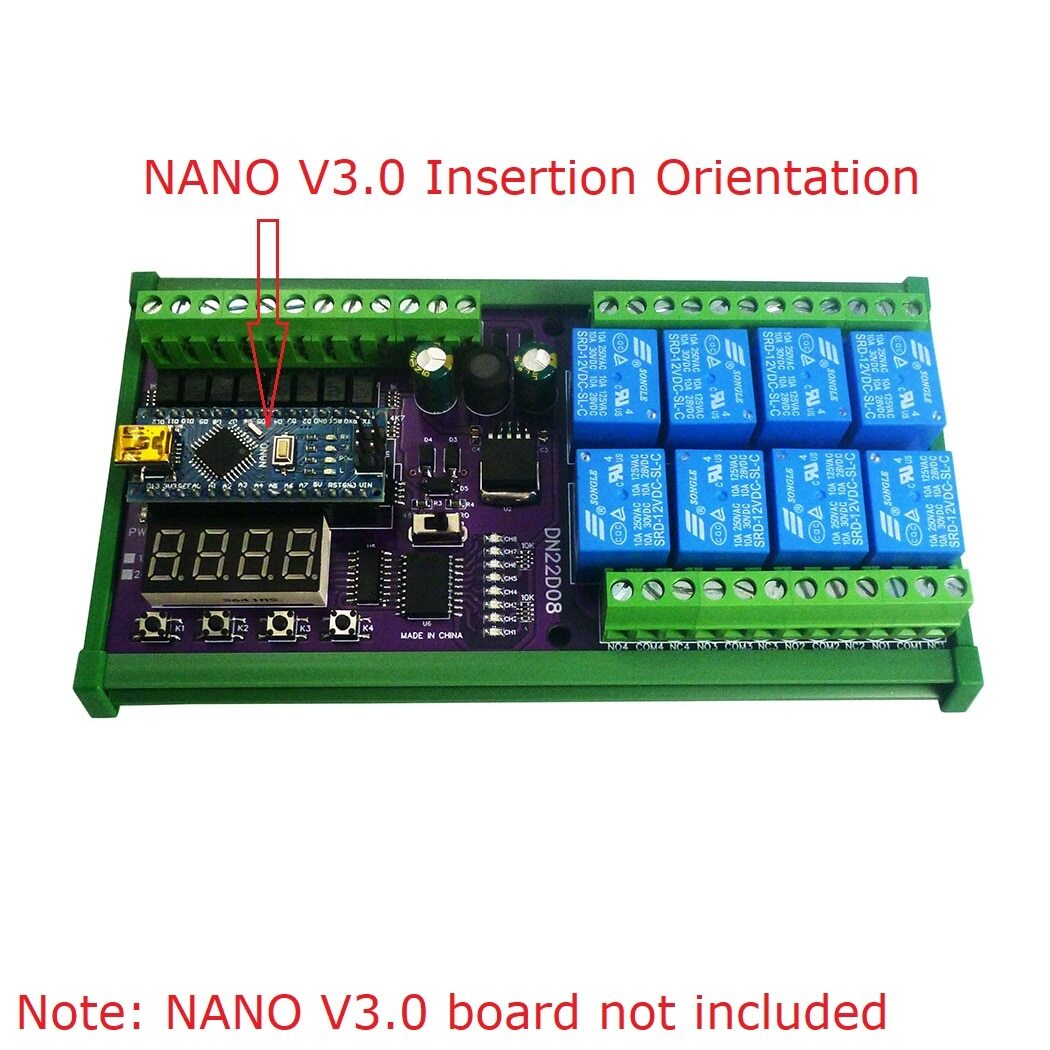

Note: DN22D08 can not work independently, must be under the control of the NANO V3.0 board to work,If you do not have a NANO V3.0 board, Please purchase the kit ''NANO V3.0''

Application examples:

As long as you write ARDUIUO code(sketch),You can use it to achieve a variety of delay timer function,such as:

RS485 Master-Slave Device(PLC MCU)

Motor forward and reverse,

Timing on,

Timing off,

Power-up delay,

Trigger delay,

Infinite loop delay,

A finite number of cyclic delays,

Power sequencer,

And so on.

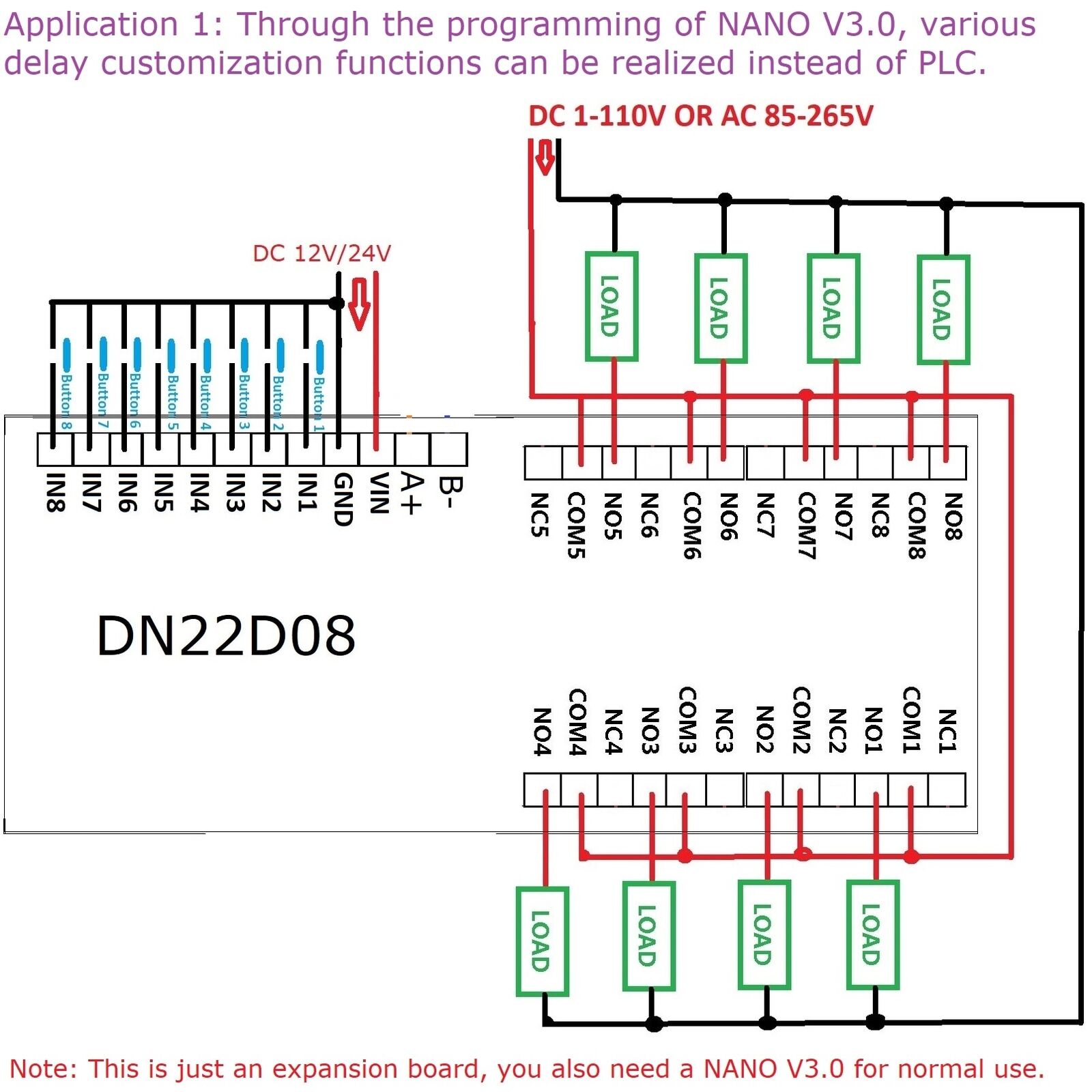

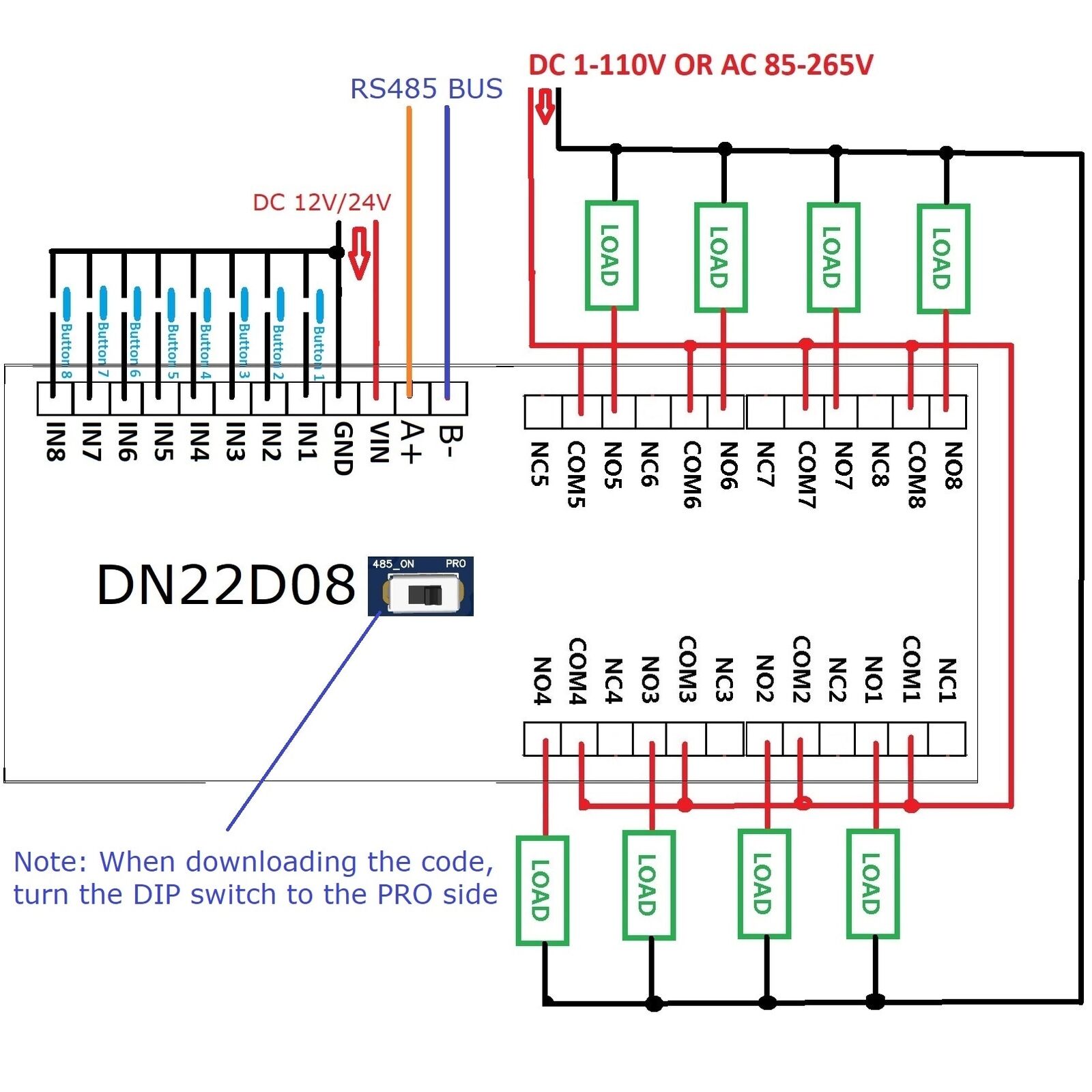

Application 1: Through the programming of NANO V3.0, various delay customization functions can be realized instead of PLC.

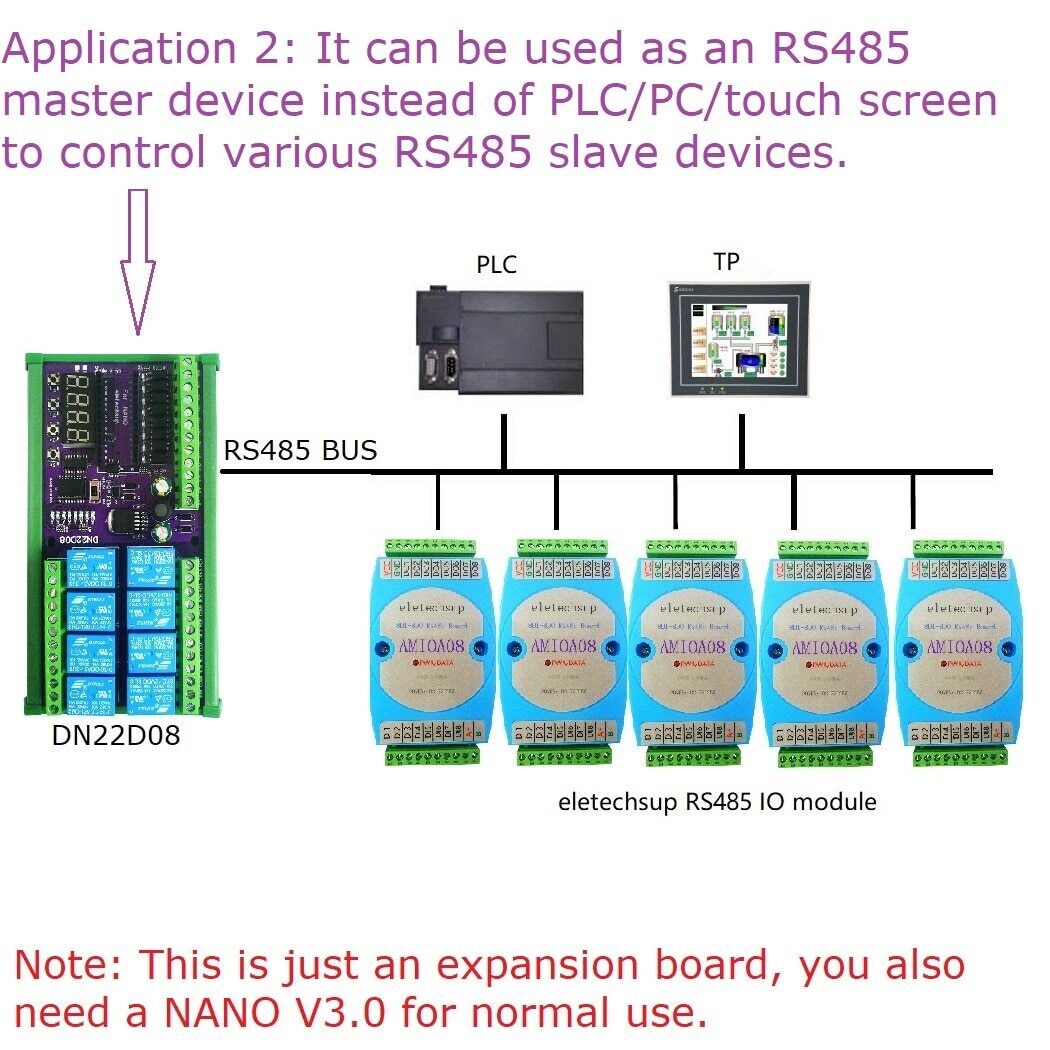

Application 2: It can be used as an RS485 master device instead of PLC/PC/touch screen to control various RS485 slave devices.

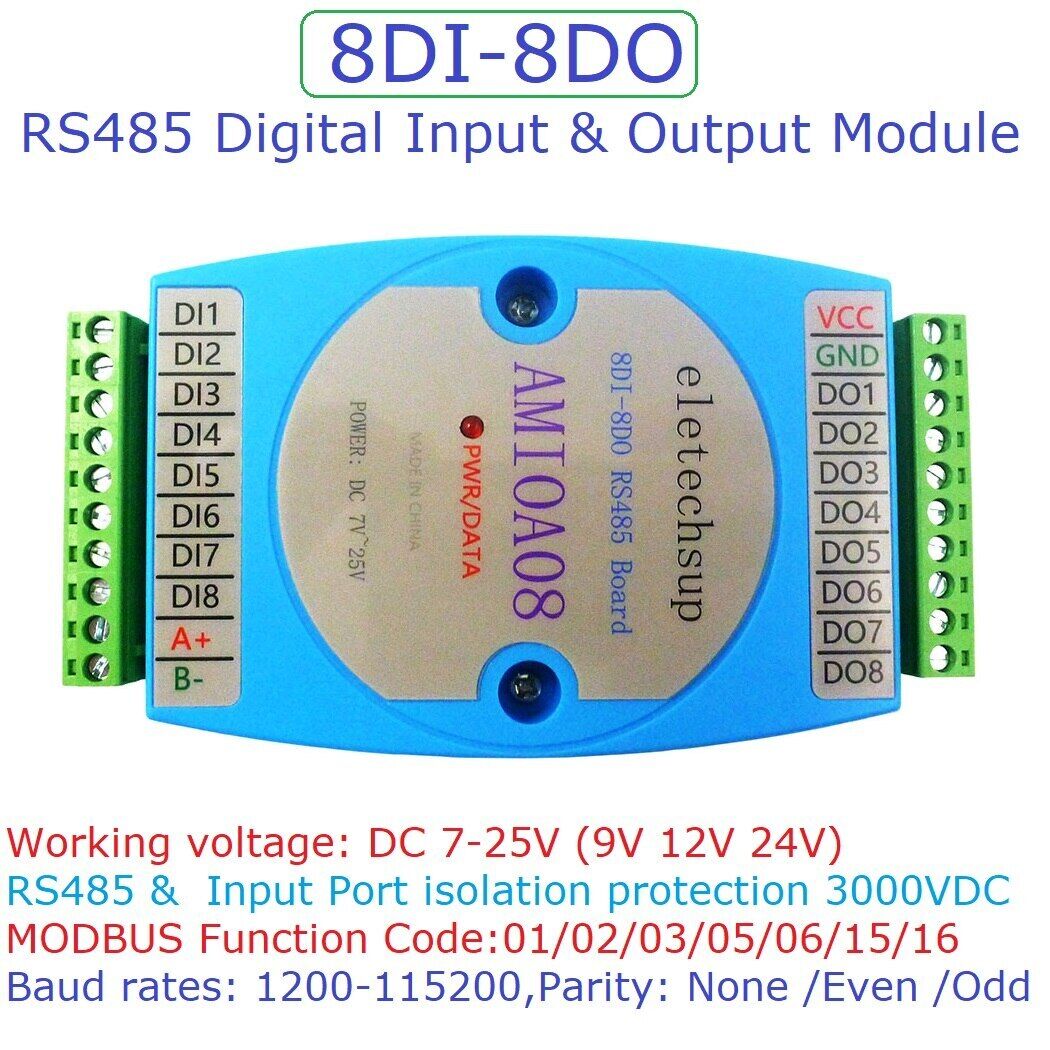

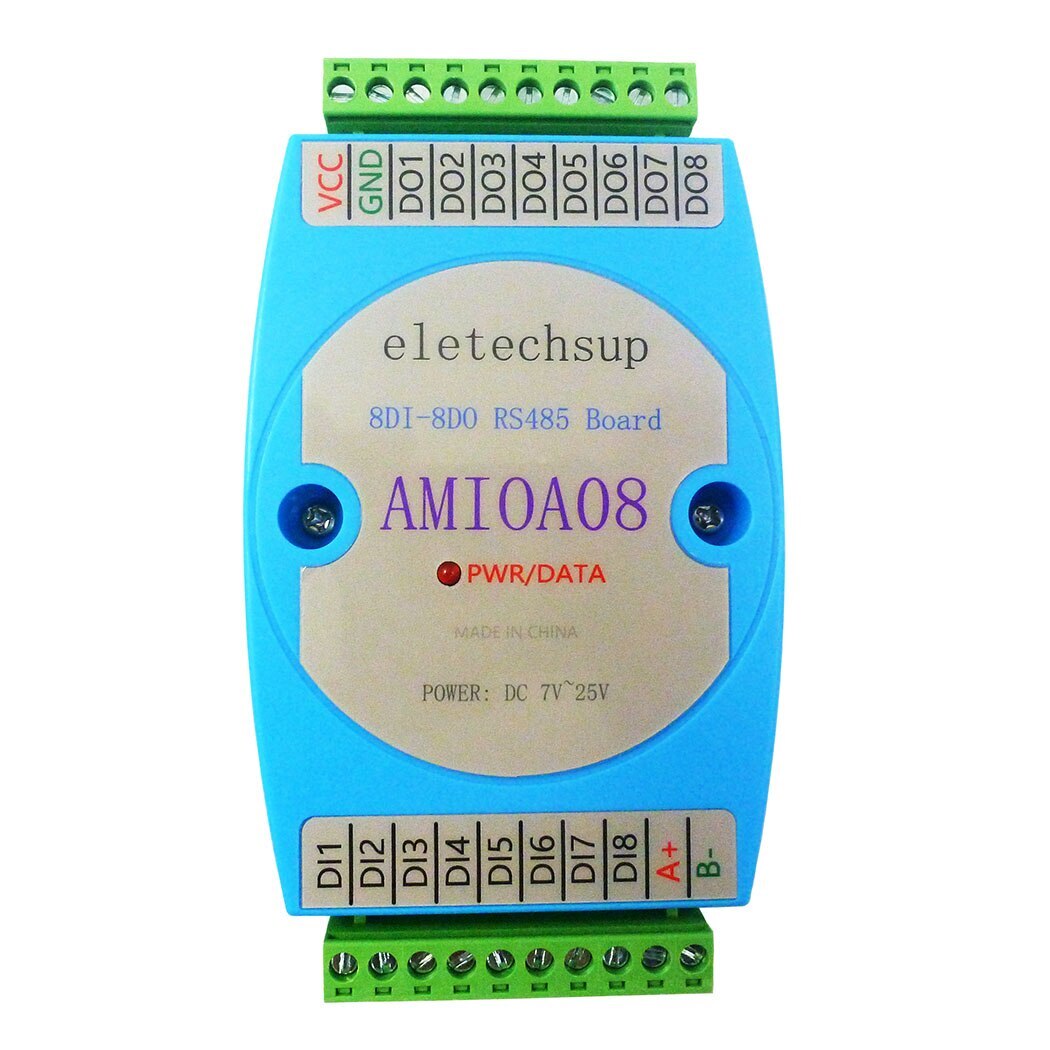

Product Name: 8DI-8DO Digital input and output module Optocoupler isolated RS485 MODBUS RTU communication Board

Package inlcuded:

1 PCS DC 12V-24V 8DI-8DO RS485 Digital Input & Darlington tube Output Module

1 Product description
8ch optoelectronic isolation digital input channel (NPN Low level input)
8ch Darlington tube Digital output channel (ULN2803 NPN output)
RS485 MODBUS RTU standard communication protocol

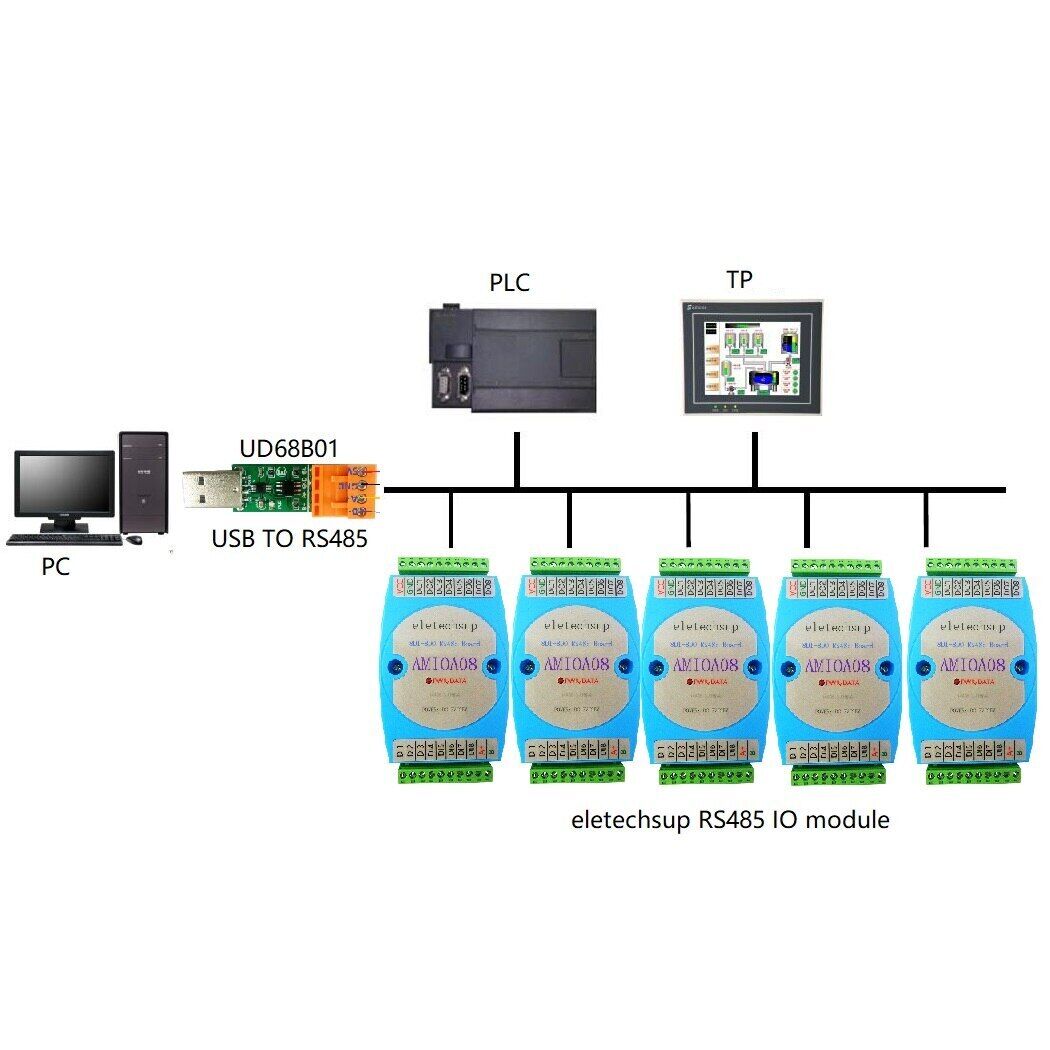

Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field

2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 8 optically isolated input ports (NPN active low)
4 8 Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC

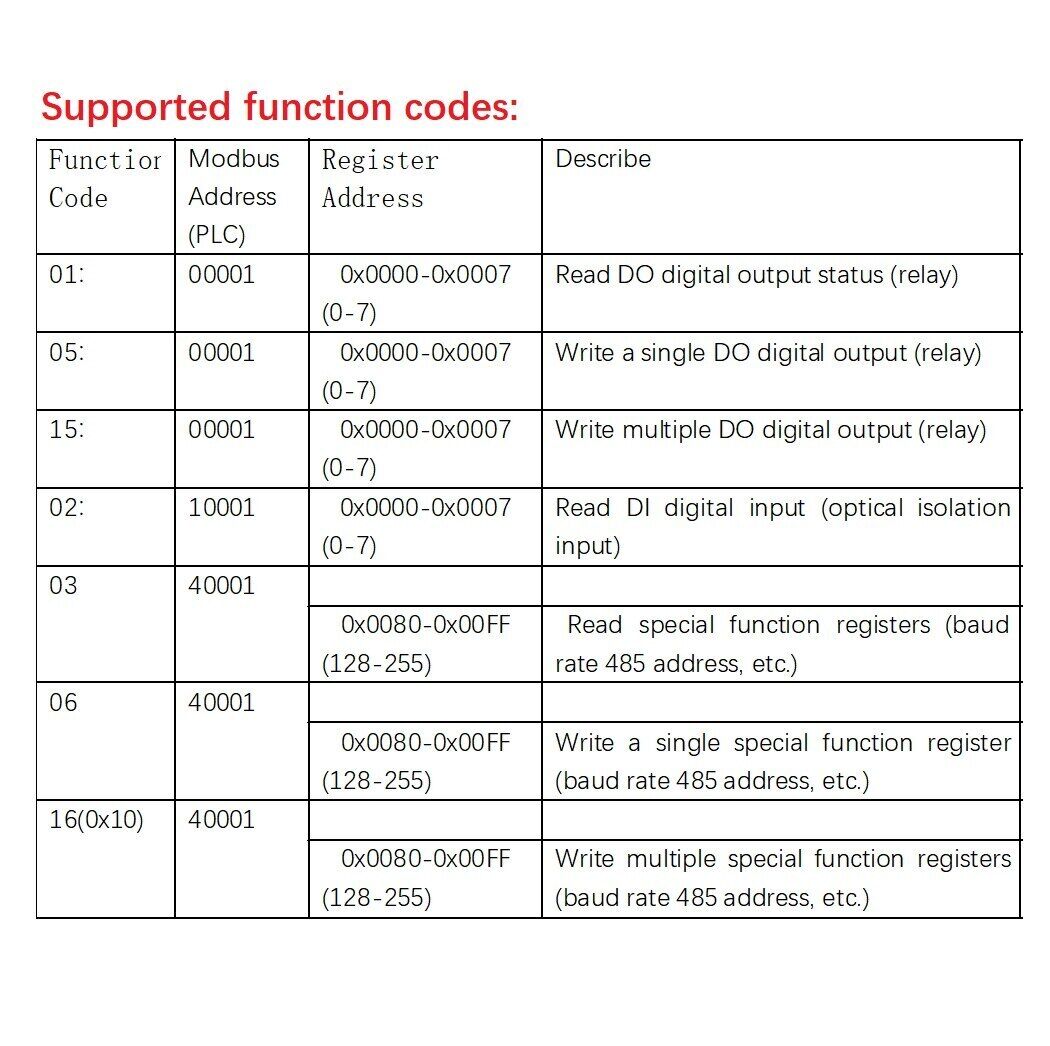

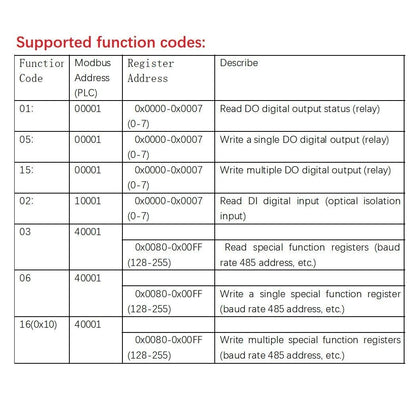

6 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
7 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
8 Parity bits: None (default) /Even /Odd
9 Installation method Standard DIN rail installation
10 Dimensions 125×70×30mm
11 Weight: 114 grams

3 Interface definition:
VCC : Power input+
GND: Power input-
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
DO5: digital output channel 5
DO6: digital output channel 6
DO7: digital output channel 7
DO8: digital output channel 8
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DI5 : Digital input channel 5
DI6 : Digital input channel 6
DI7 : Digital input channel 7
DI8 : Digital input channel 8
A+: RS485 signal A+
B-: RS485 signal B-

For more information, please contact me

Application

PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;

PTZ CCTV Camera

Security Monitoring

Identification system;

Motor FW & BW
Automatic curtain control

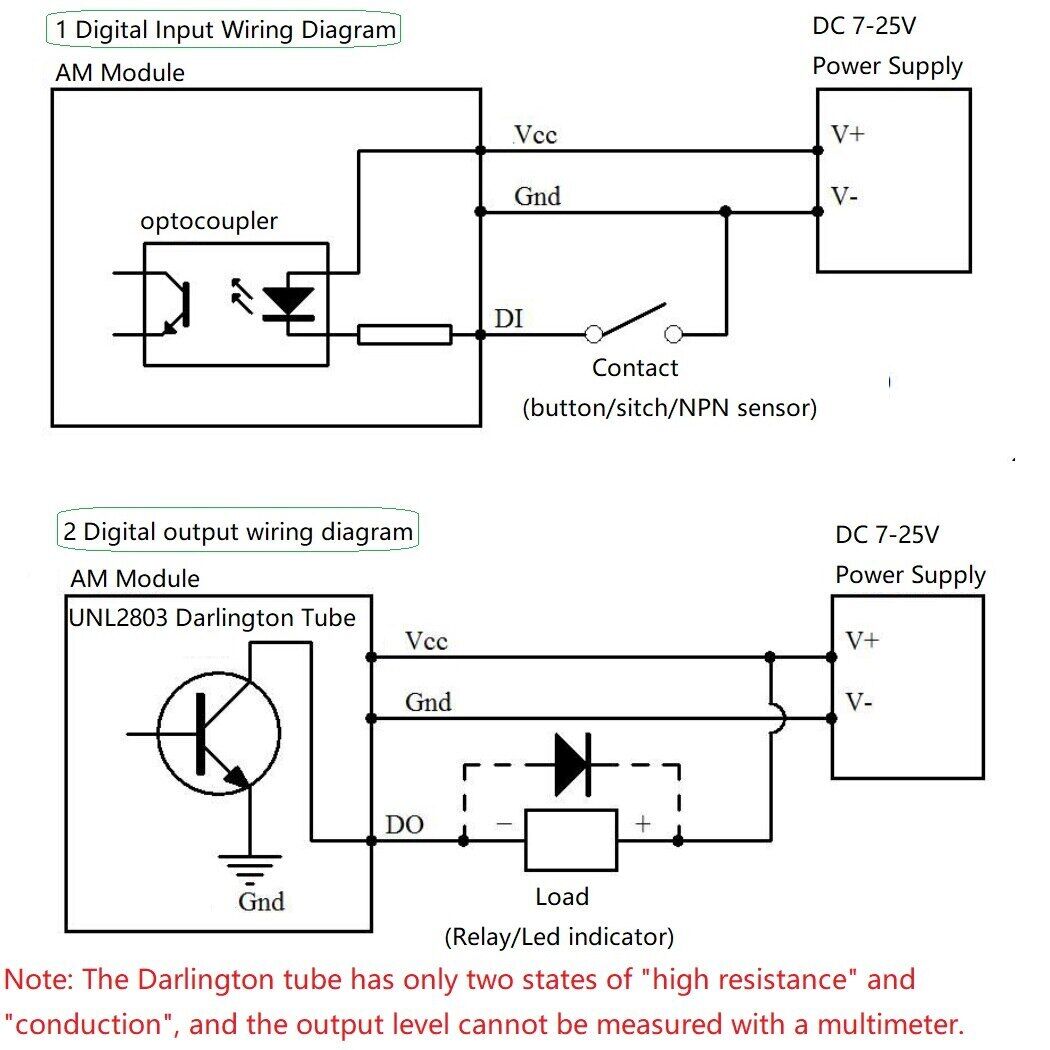

1 Digital Input Wiring Diagram
2 Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.
