DNLCB30 ESP32 Wifi 3.3V to 5V Bidirectional Level Converter LvTTL to TTL IO Automatic Switching Din Rail Expansion Board for Arduino IOT
DNLCB30 ESP32 Wifi 3.3V to 5V Bidirectional Level Converter LvTTL to TTL IO Automatic Switching Din Rail Expansion Board for Arduino IOT
SKU:DNLCB30
1000 in stock
Regular price
$11.99
Regular price
$17.11
Sale price
$11.99
Unit price
per
Couldn't load pickup availability

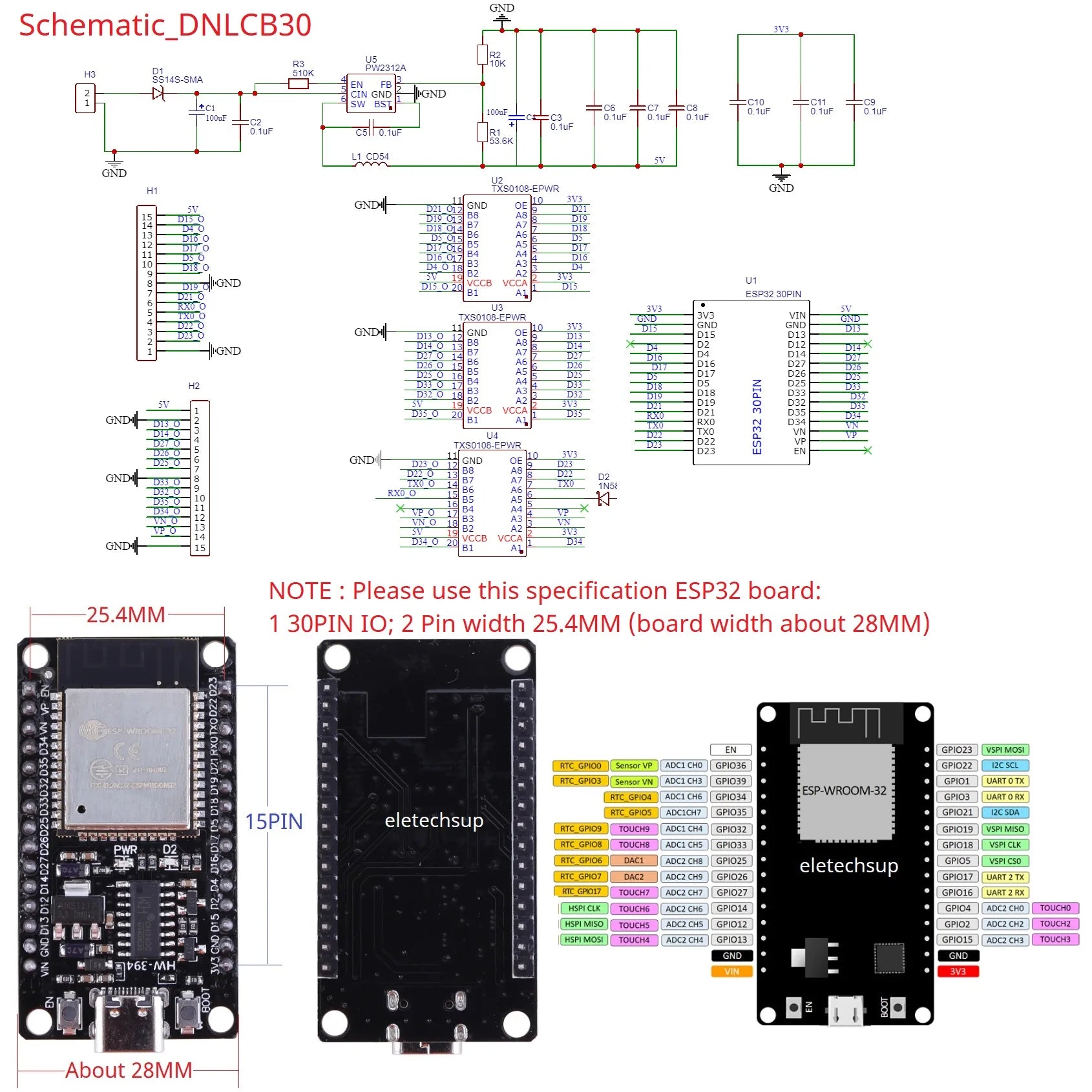

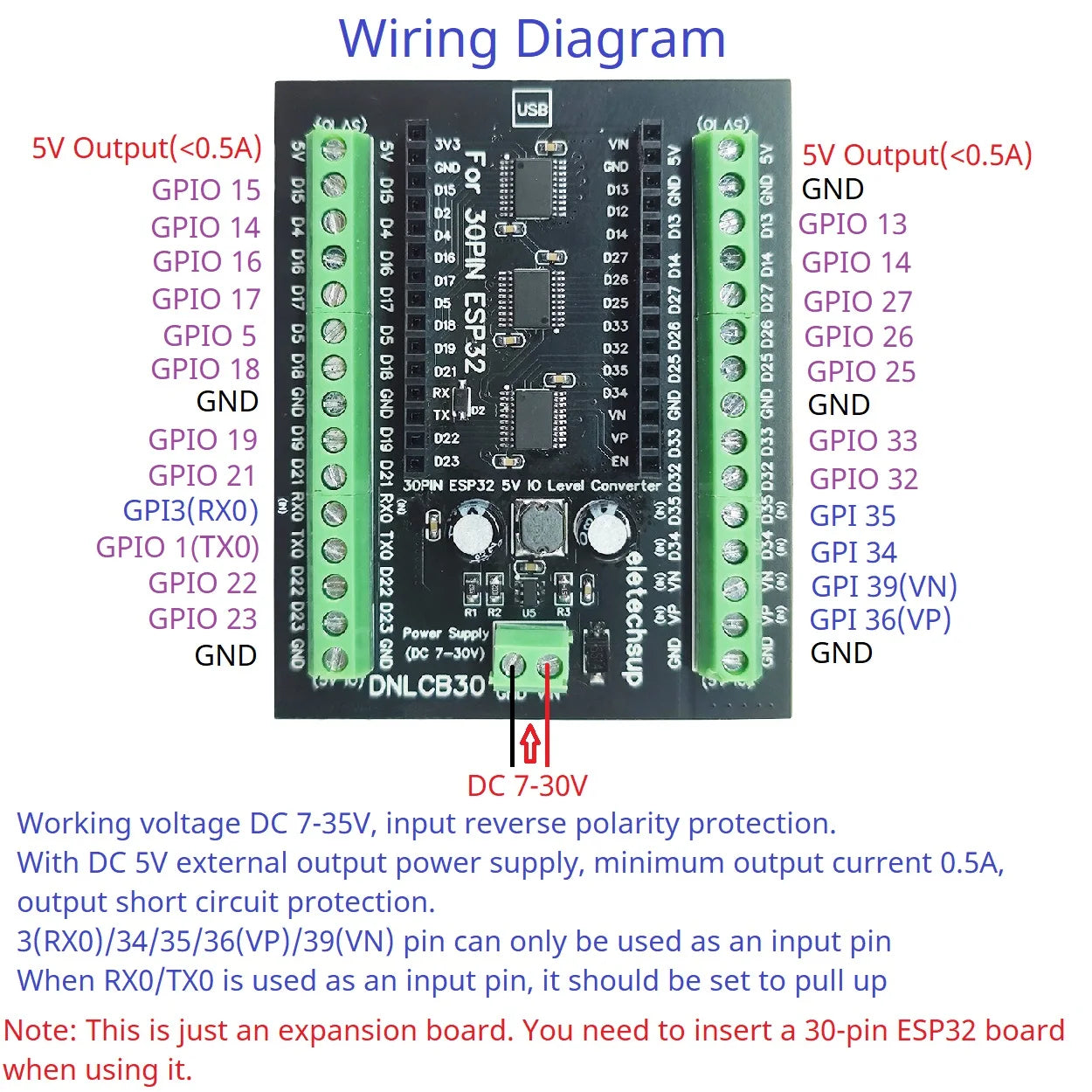

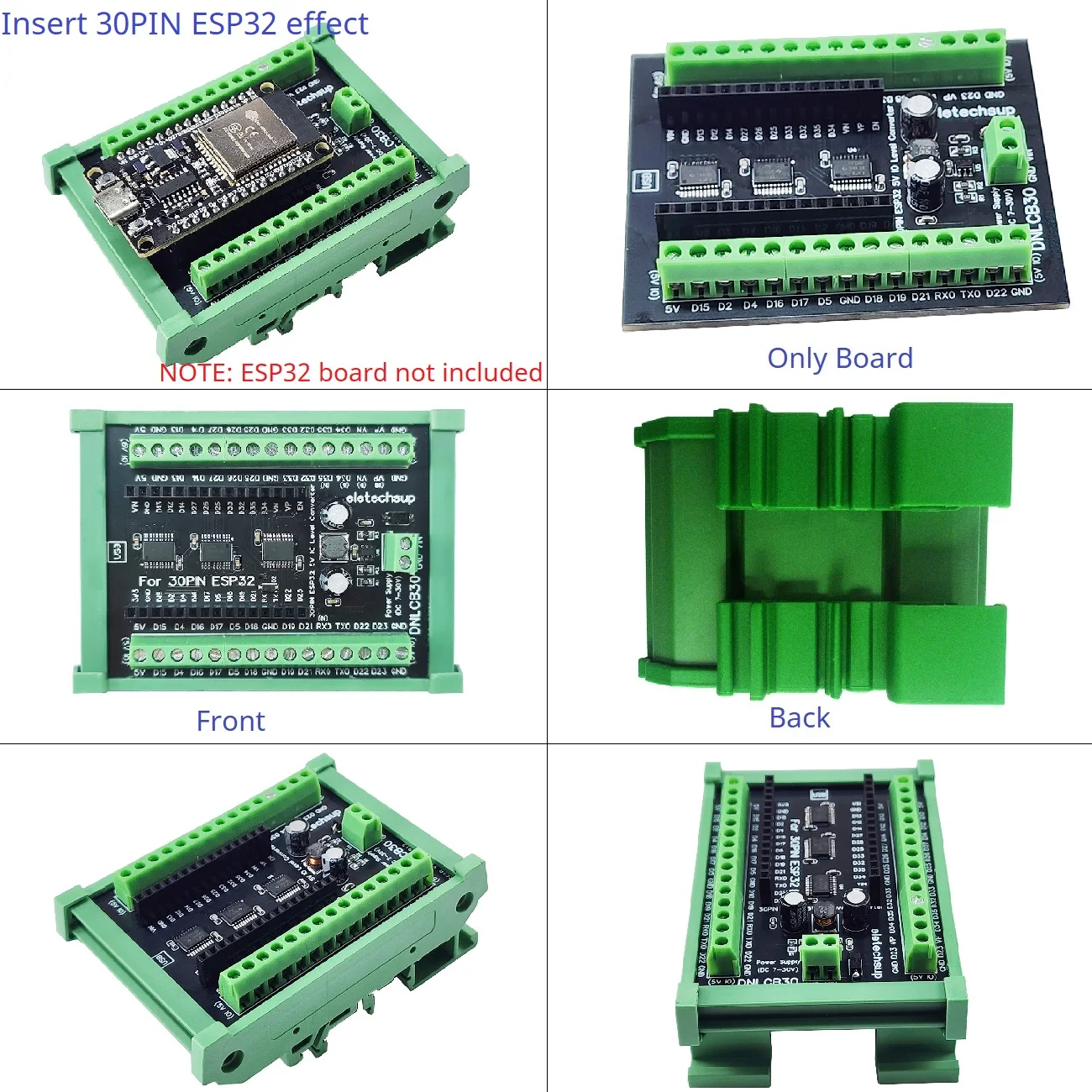

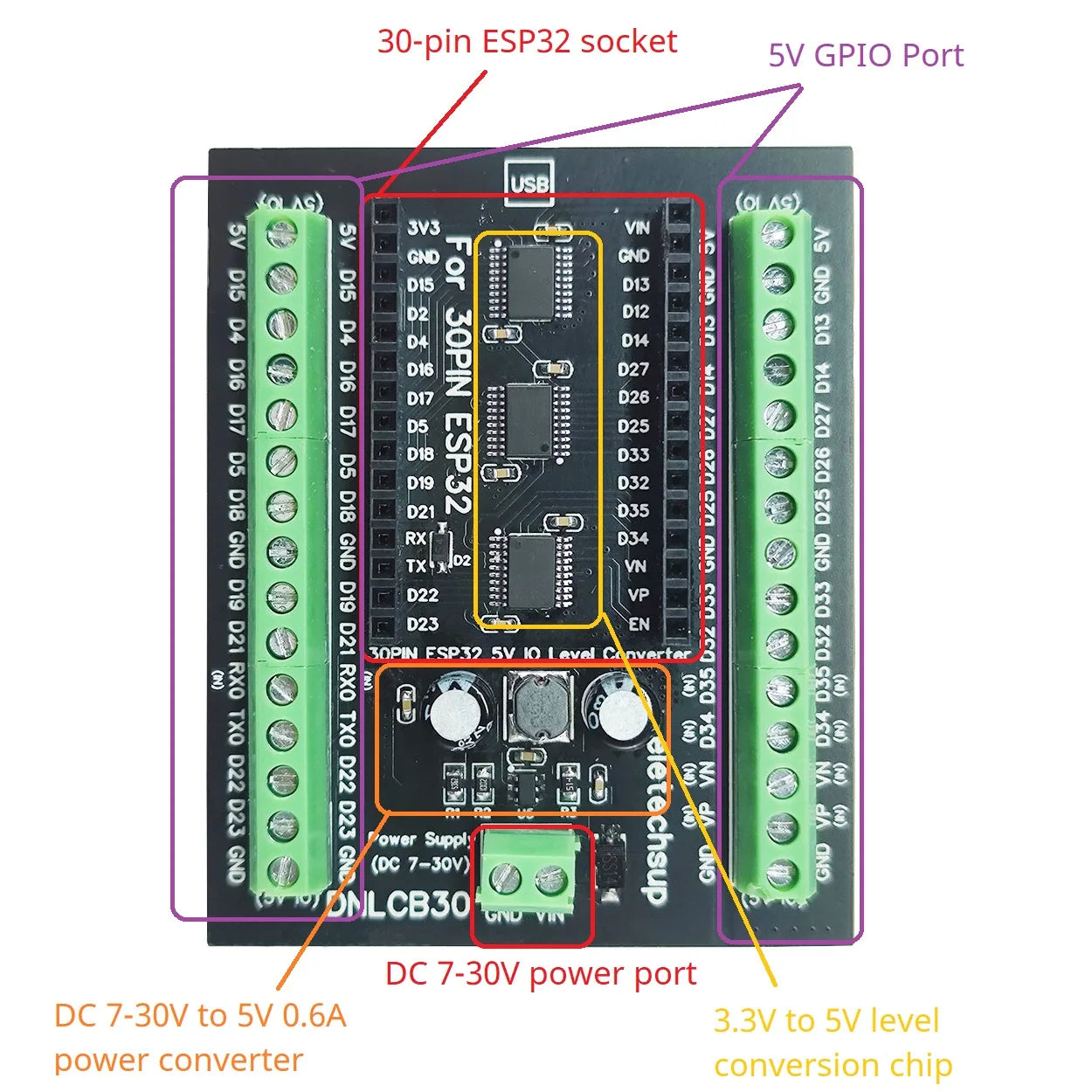

DNLCB30 is a 30PIN ESP32 3.3V to 5V bidirectional level converter board. It can convert the 3.3V level of ESP32 to 5V level input/output.
Description:
30PIN ESP32 3.3V to 5V Bidirectional Level Converter
1 Working voltage DC 7-35V, input reverse polarity protection.
2 With DC 5V external output power supply, minimum output current 0.5A, output short circuit protection.
3 3.3V to 5V DIO level bidirectional conversion
4 Lead out almost all IO ports (Except 2/12PIN)
5 Automatic input and output switching
6 Maximum conversion rate 1000KHZ
7 Terminal spacing: 3.96mm.
8 Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

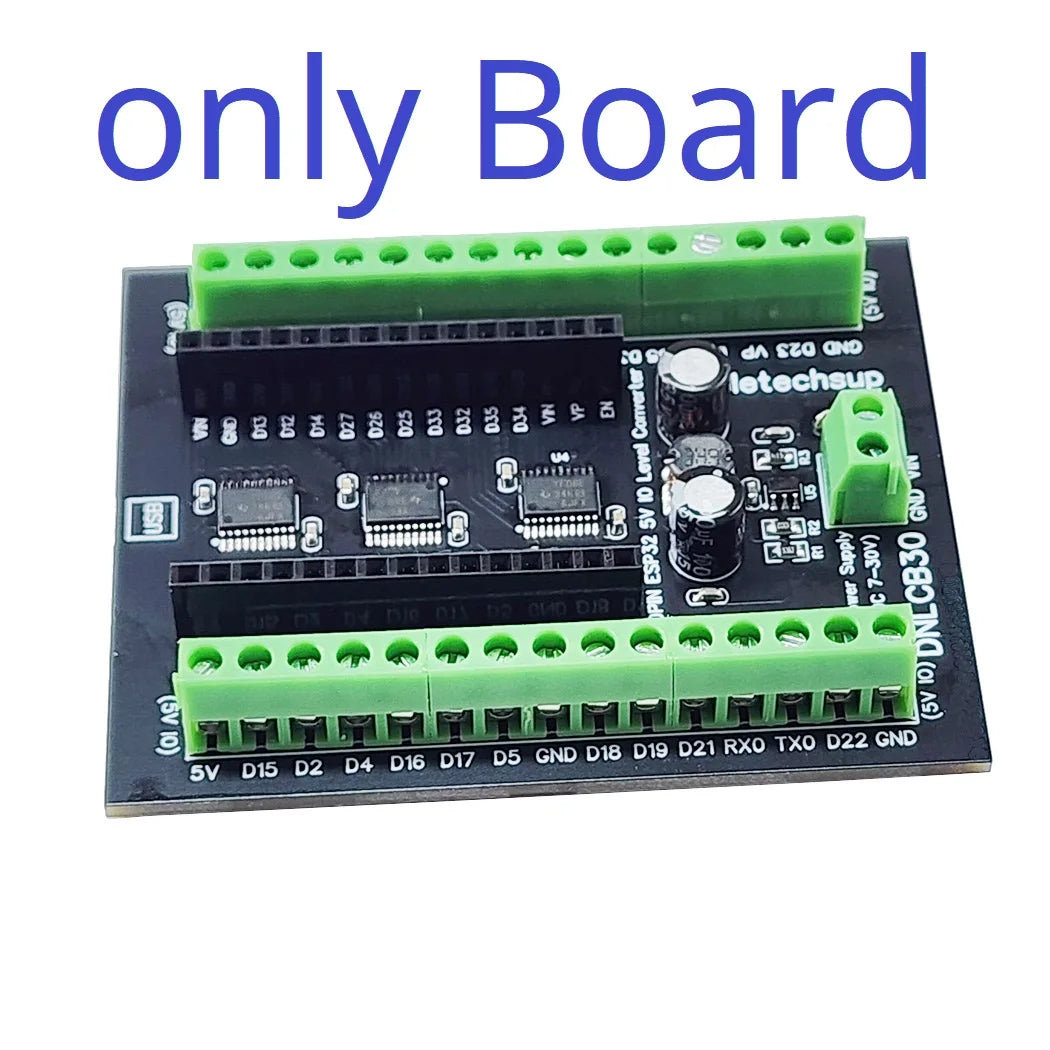

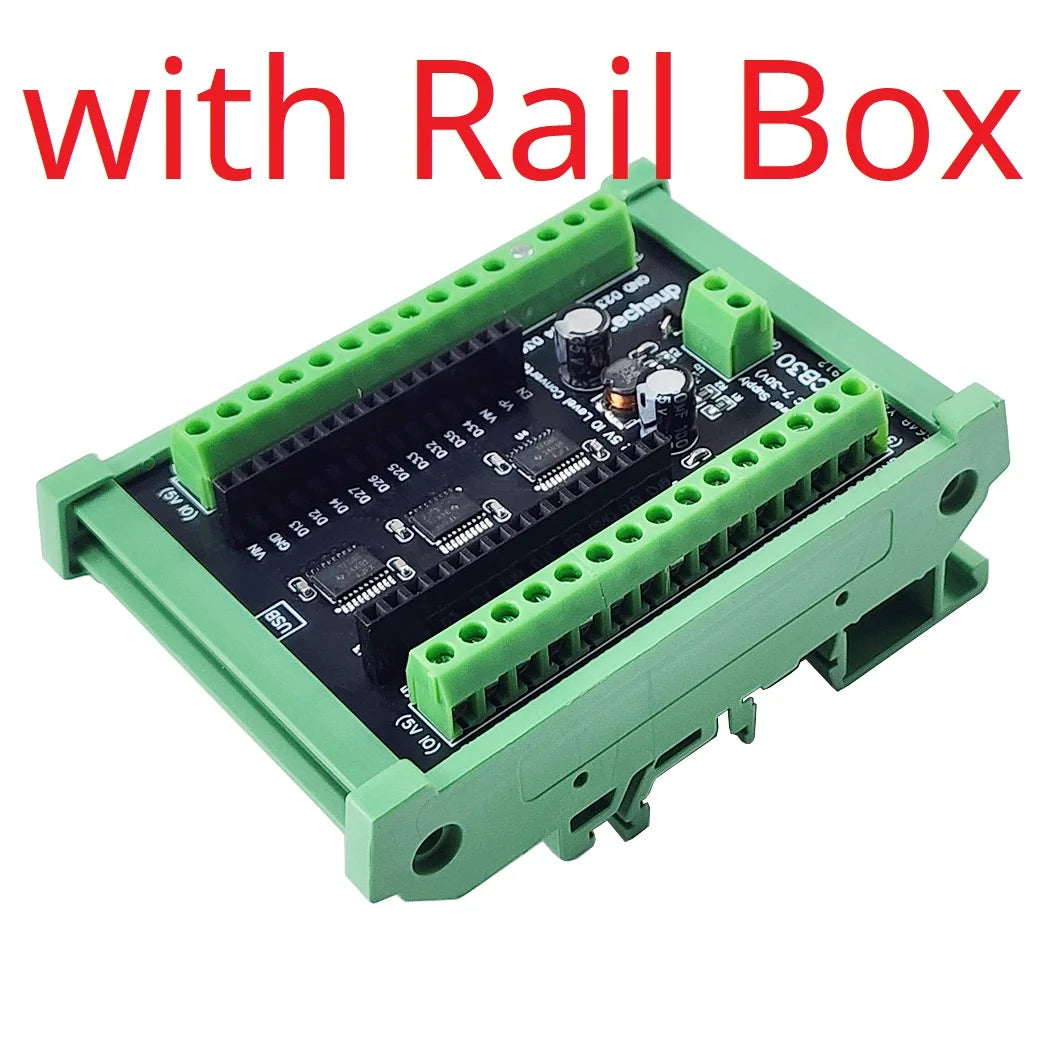

9 Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)
10 Weight: 33g(only Board),82g(with Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.
Notice:

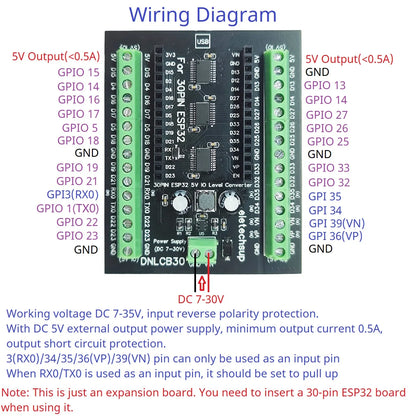

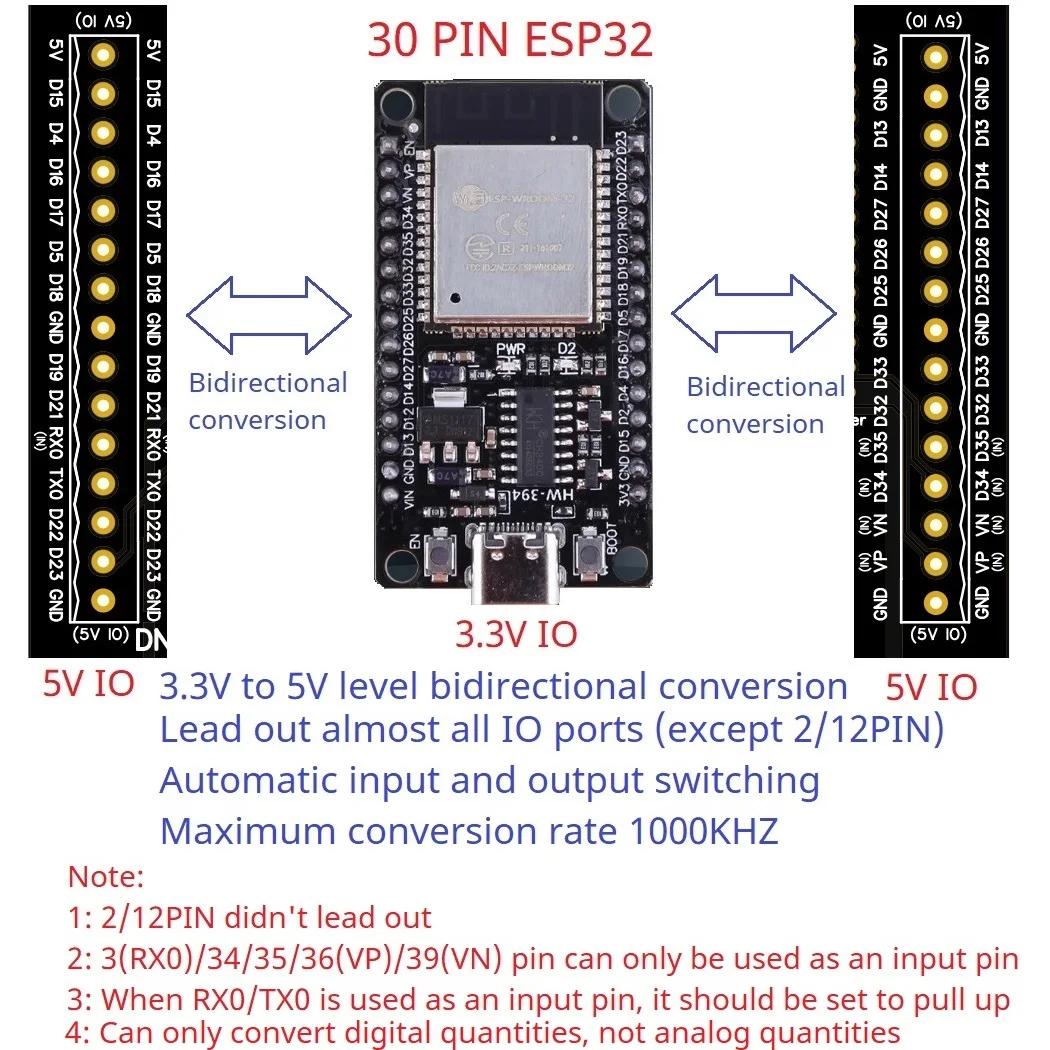

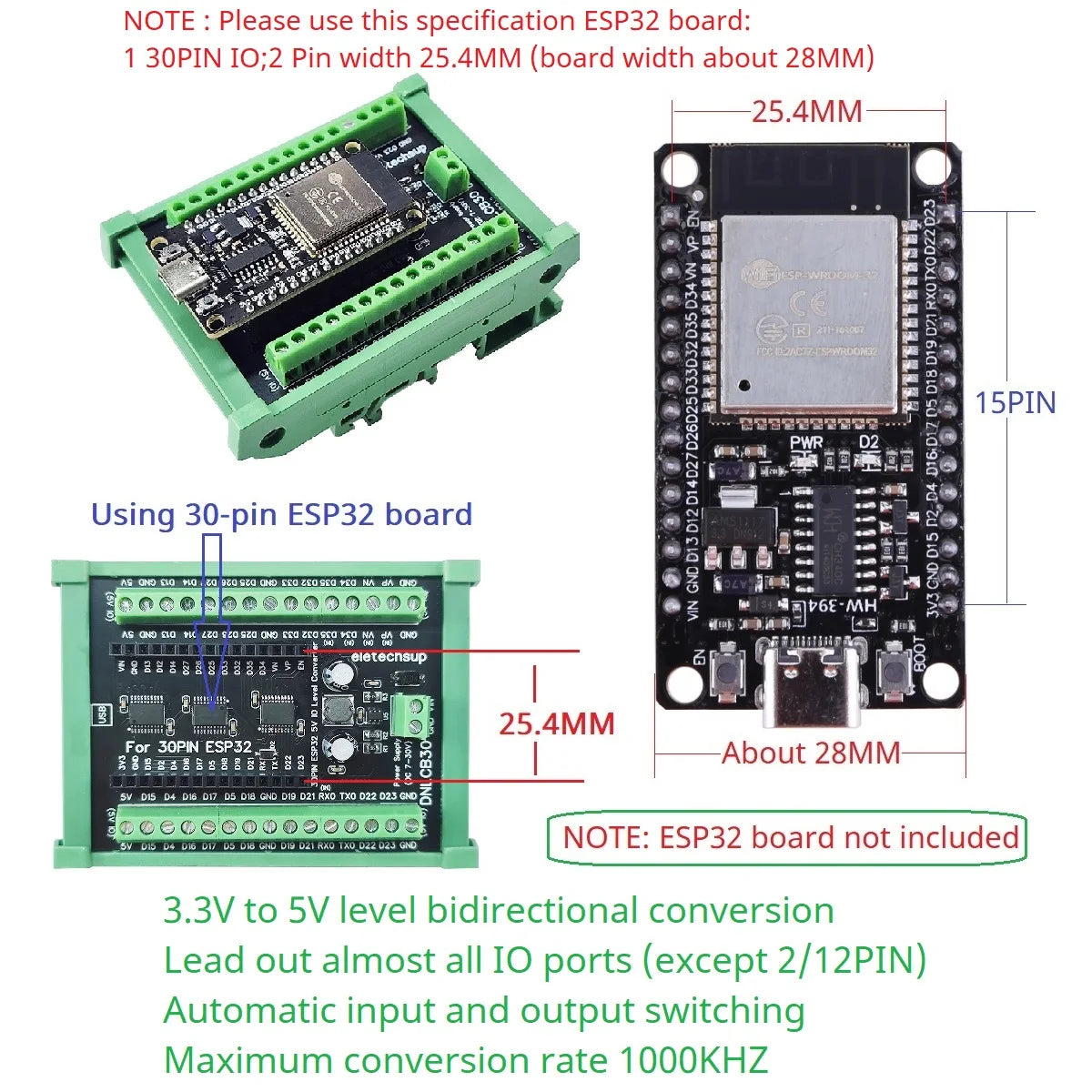

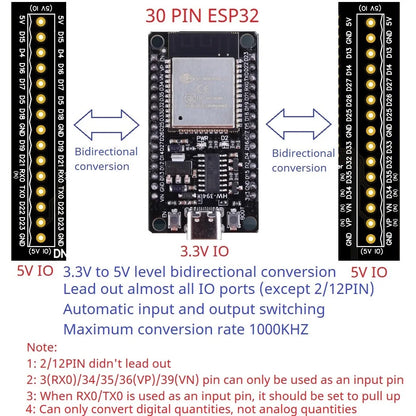

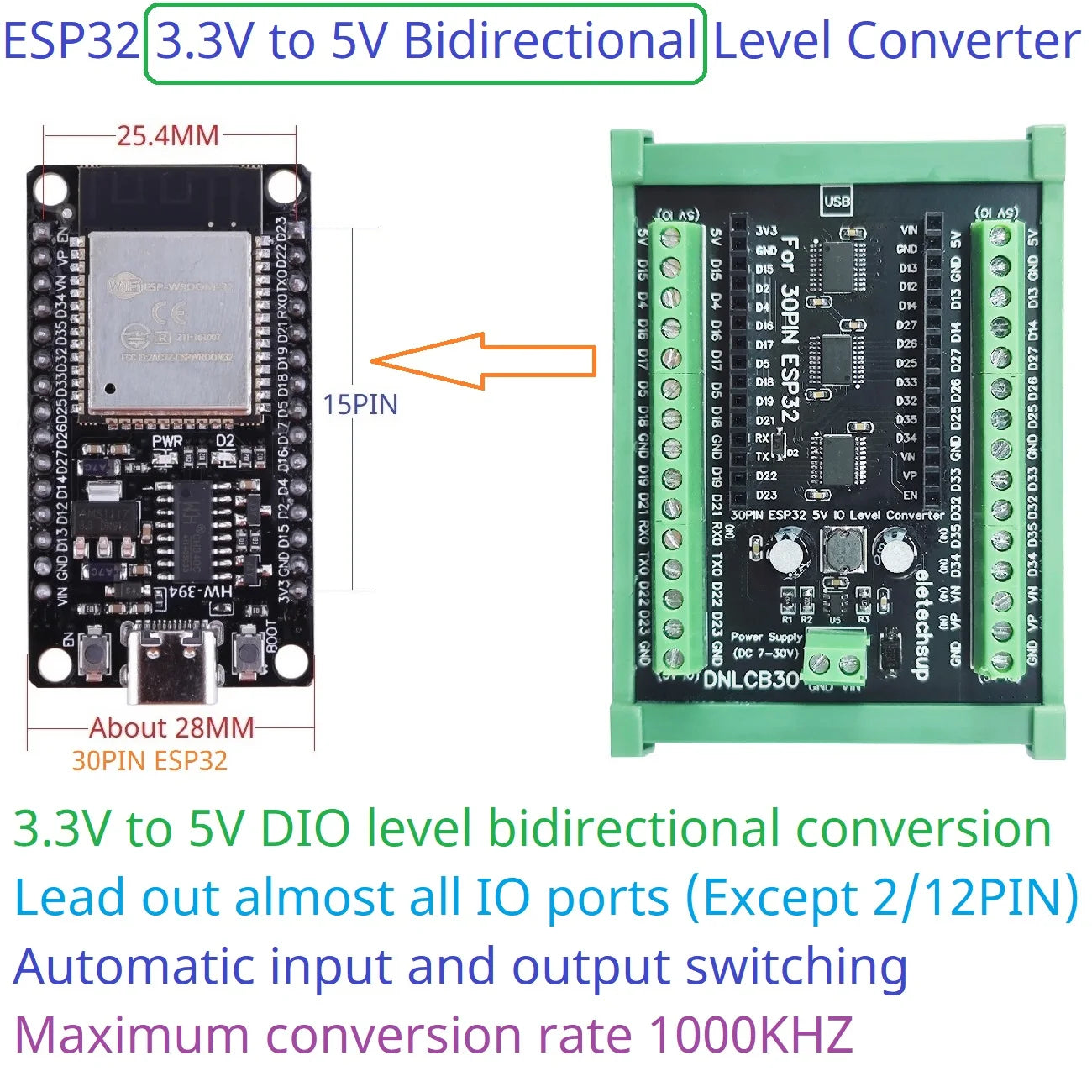

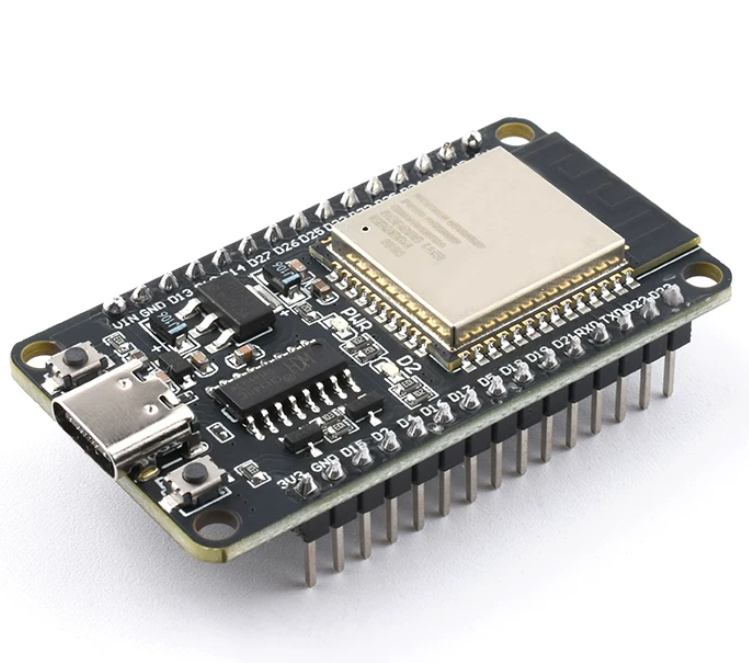

1:This is just an expansion board. You need to insert a 30-pin ESP32 board when using it.
2: 2/12PIN didn't lead out
3: 3(RX0)/34/35/36(VP)/39(VN) pin can only be used as an input pin
4: When RX0/TX0 is used as an input pin, it should be set to pull up
5: Can only convert digital quantities, not analog quantities
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 48g
Installation: DIN35 and C45 rail
