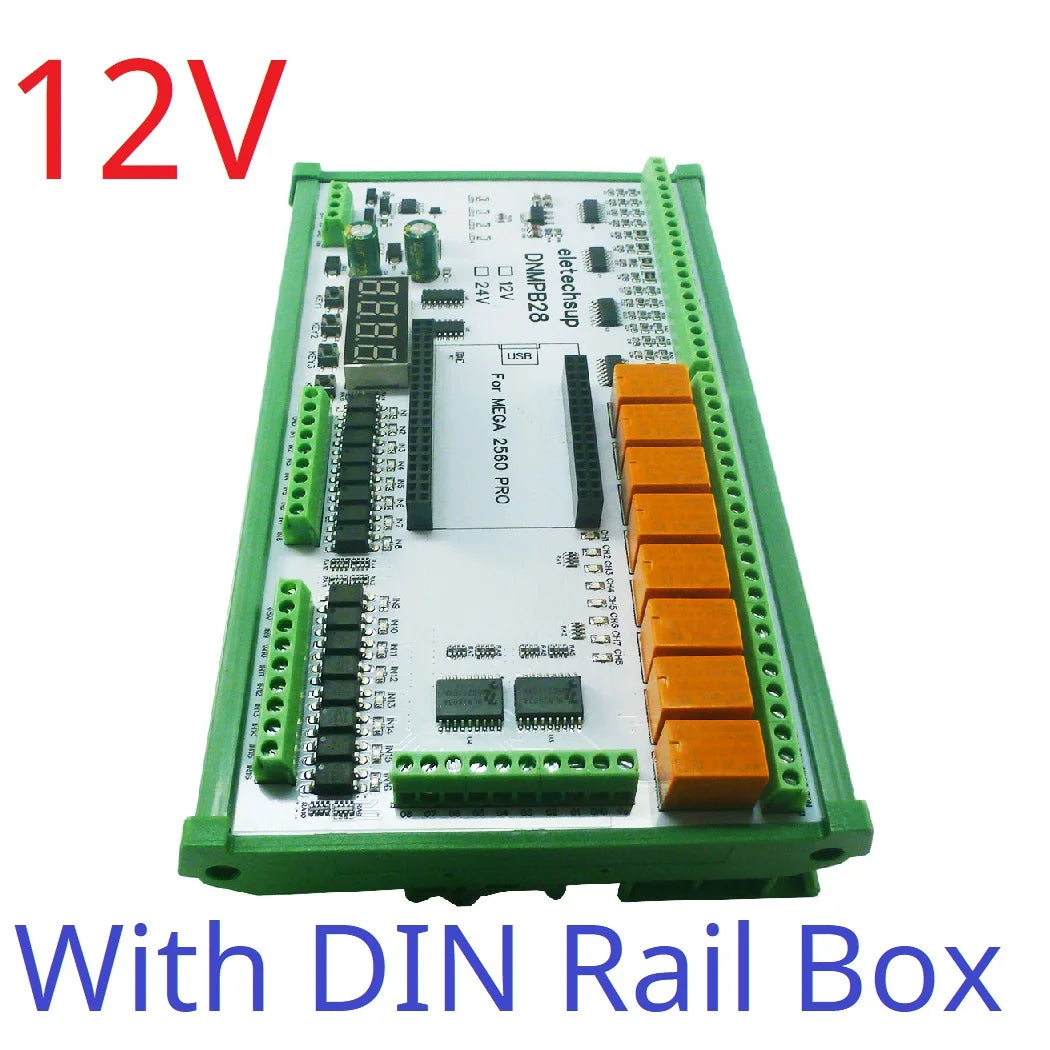

DNMPB28 DC 12 24V Multifunction MEGA2560 Pro Expanding Board Current Voltage ADC Collection NPN PNP Isolated DI Relay Mos DO for Arduiuo
DNMPB28 DC 12 24V Multifunction MEGA2560 Pro Expanding Board Current Voltage ADC Collection NPN PNP Isolated DI Relay Mos DO for Arduiuo
SKU:DNMPB28_12V
1000 in stock
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Couldn't load pickup availability
Product Name: 16AI-16DI-16DO 4-20MA 0-10V Current Voltage Dry Wet Contact MOS RS485 Relay 12V 24V MEGA2560 Pro Simple PLC IO Board for Arduino
Product Features:
Product Features:
1 Operating voltage: DC 12V/DC 24V
2 Operating Current : Standby current (Digital tube OFF) 12MA, Standby current 20MA (Digital tube ON), 1 relay open 38MA... 8 relays open 150MA
3 Rich external expansion resources: 16ch NPN/PNP Digital Input;16ch Dry contact Wet contact digital output;16ch current and voltage analog input; RS485 Interface,4-digit digital tube, 4 LEDs, 4 buttons.

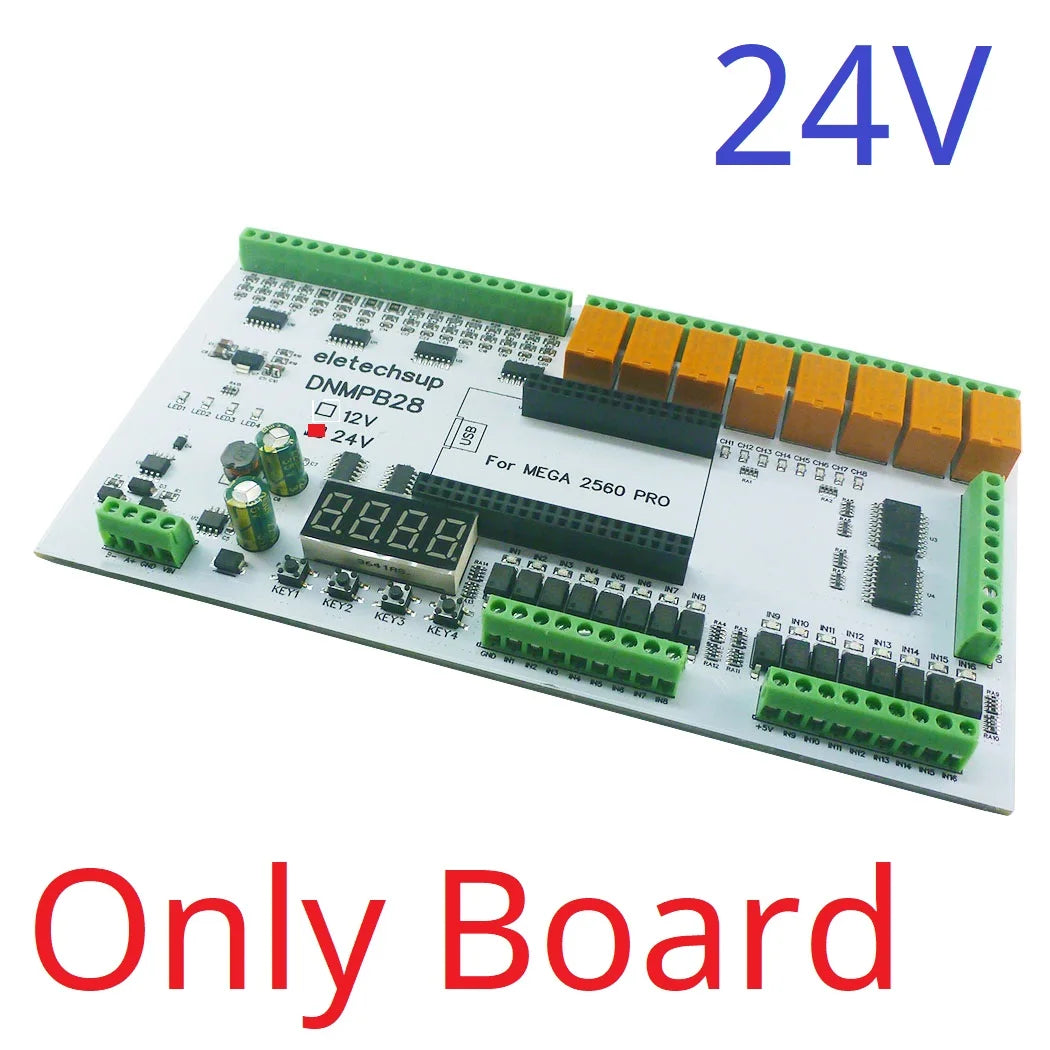

4 size 183*100*18mm(Only Board)
5 Weight : 146g(Only Board), 320g(with shell)
This is an expansion board based on MEGA2560 PRO, and the code(sketch) we provide is only used to test the experimental hardware.
If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support
For more information details, please contact me.
How to use: See video
'' DNMPB28_RS485_Receiving_Sending_DEMO''
'' DNMPB28_Analog_RS485_DEMO''
''DNMPB28_8NPN_8Relay_DEMO''
(You can search for videos on Googel)

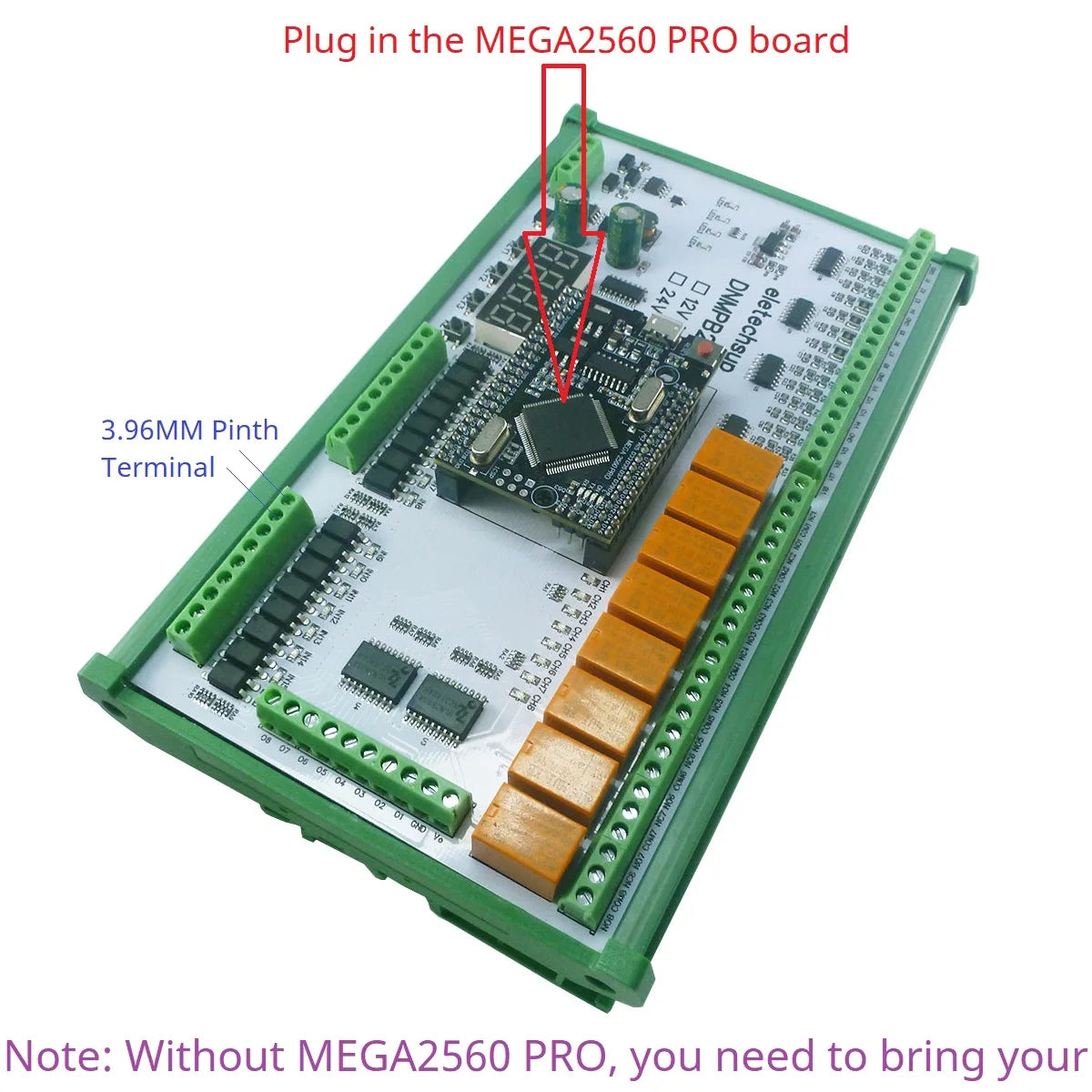

Note: DNMPB28 can not work independently, must be under the control of the MEGA2560 PRO board to work,If you do not have a MEGA2560 PRO board, purchase it separately or purchase a kit with MEGA2560 PRO

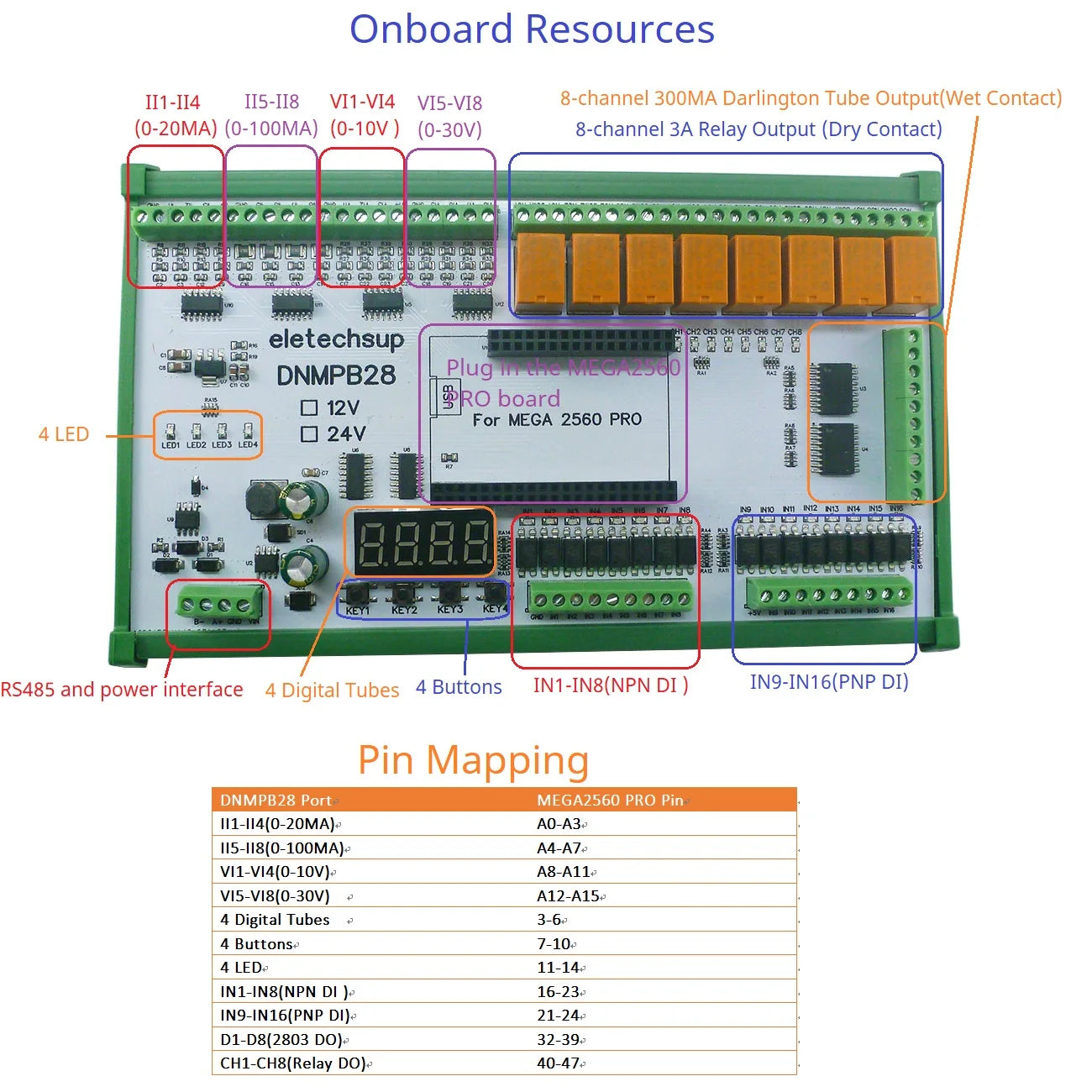

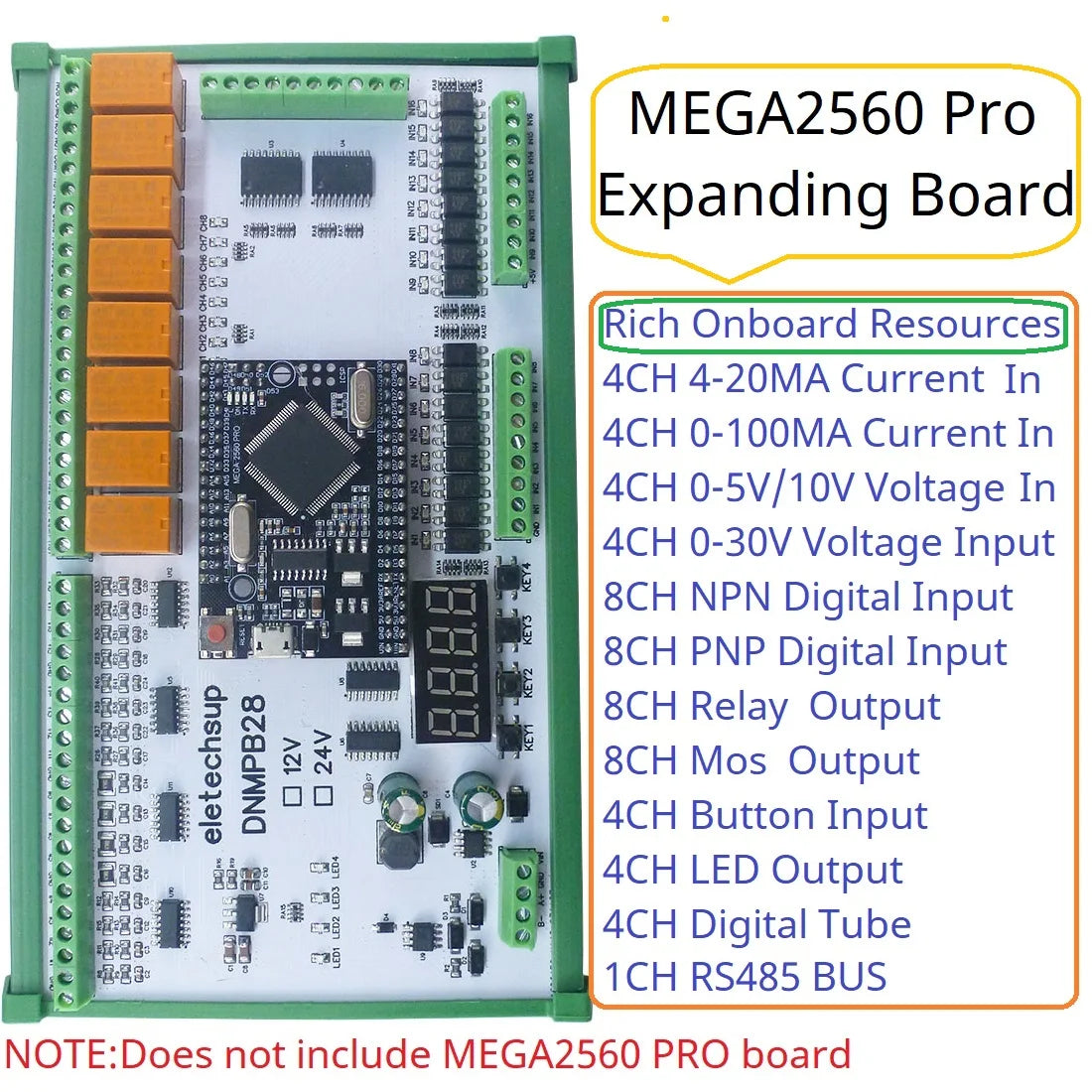

Rich Onboard Resources
4CH 4-20MA Current Input
4CH 0-100MA Current Input
4CH 0-5V/10V Voltage Input
4CH 0-30V Voltage Input
8CH NPN Digital Input
8CH PNP Digital Input
8CH Relay Output
8CH Mos Output
4CH Button Input
4CH LED Output
4CH Digital Tube
1CH RS485 BUS
Application examples:
As long as you write ARDUIUO code(sketch),You can use it to achieve a variety of delay timer function,such as:
RS485 Master-Slave Device(PLC MCU),
4x 0/4-20MA Current Collection,
4x 0-100MA Current Collection,
4x 0-5V/10V Voltage Collection,
4x 0-30V Voltage Collection,
Motor forward and reverse,
Timing on,
Timing off,
Power-up delay,
Trigger delay,
Infinite loop delay,
A finite number of cyclic delays,
Power sequencer,
And so on.
