DNNOA01 NANO V3.0 DIN35 C45 DIN Rail Expansion Board 3.96MM Mount Screw Terminal Block Adapter Module for Arduino Open PLC Smart Home
DNNOA01 NANO V3.0 DIN35 C45 DIN Rail Expansion Board 3.96MM Mount Screw Terminal Block Adapter Module for Arduino Open PLC Smart Home
SKU:DNNOA01
1000 in stock
Regular price
$4.99
Regular price
$7.12
Sale price
$4.99
Unit price
per
Couldn't load pickup availability

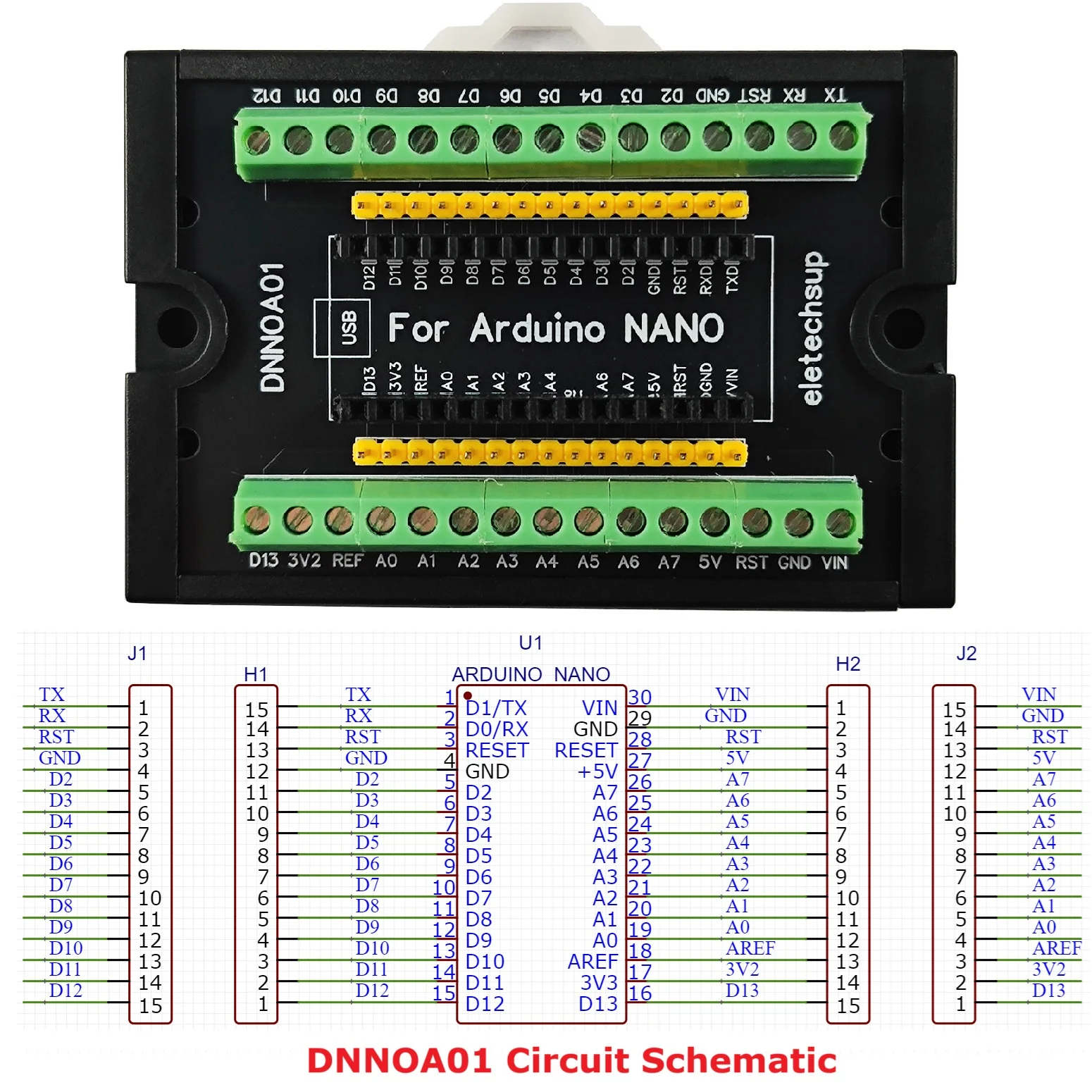

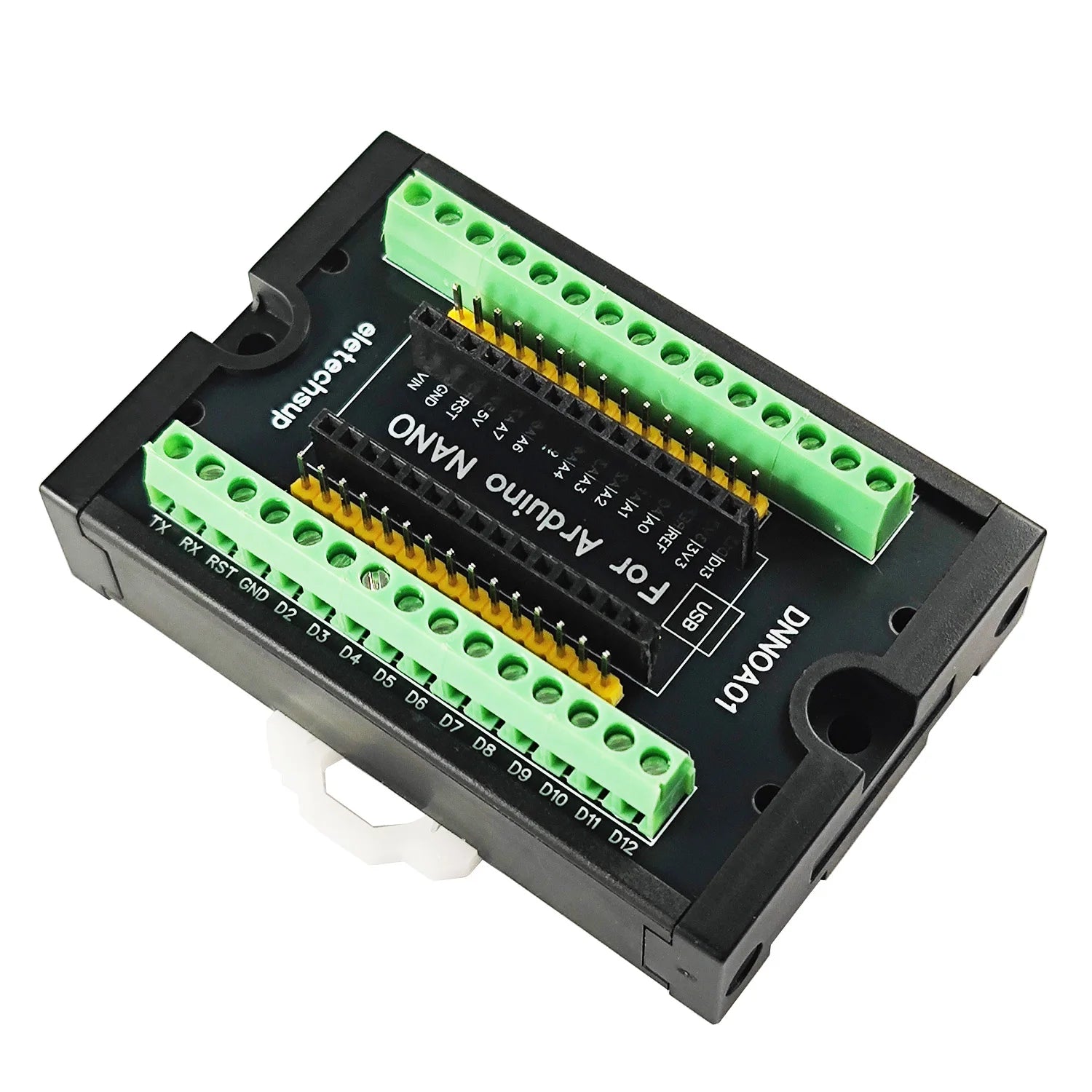

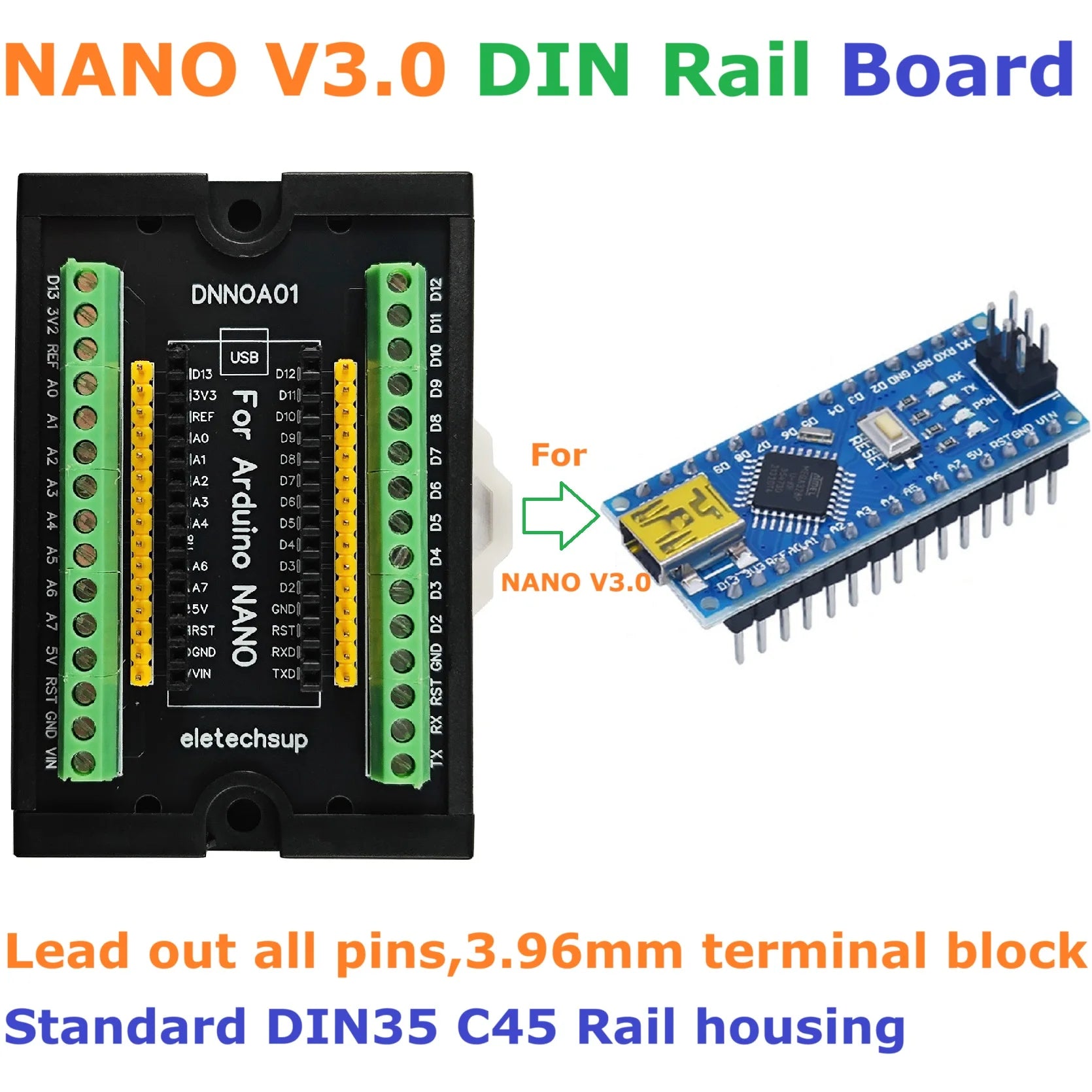

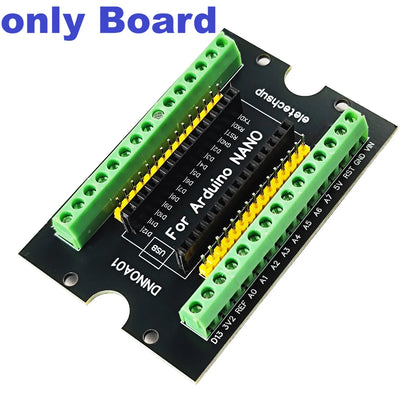

DNNOA01 is a standard NANO V3.0 DIN Rail expansion board produced by eletechsup. It uses 3.96MM terminal blocks to lead out all pins. It uses an industrial-grade DIN rail housing and can be easily embedded in a cabinet.

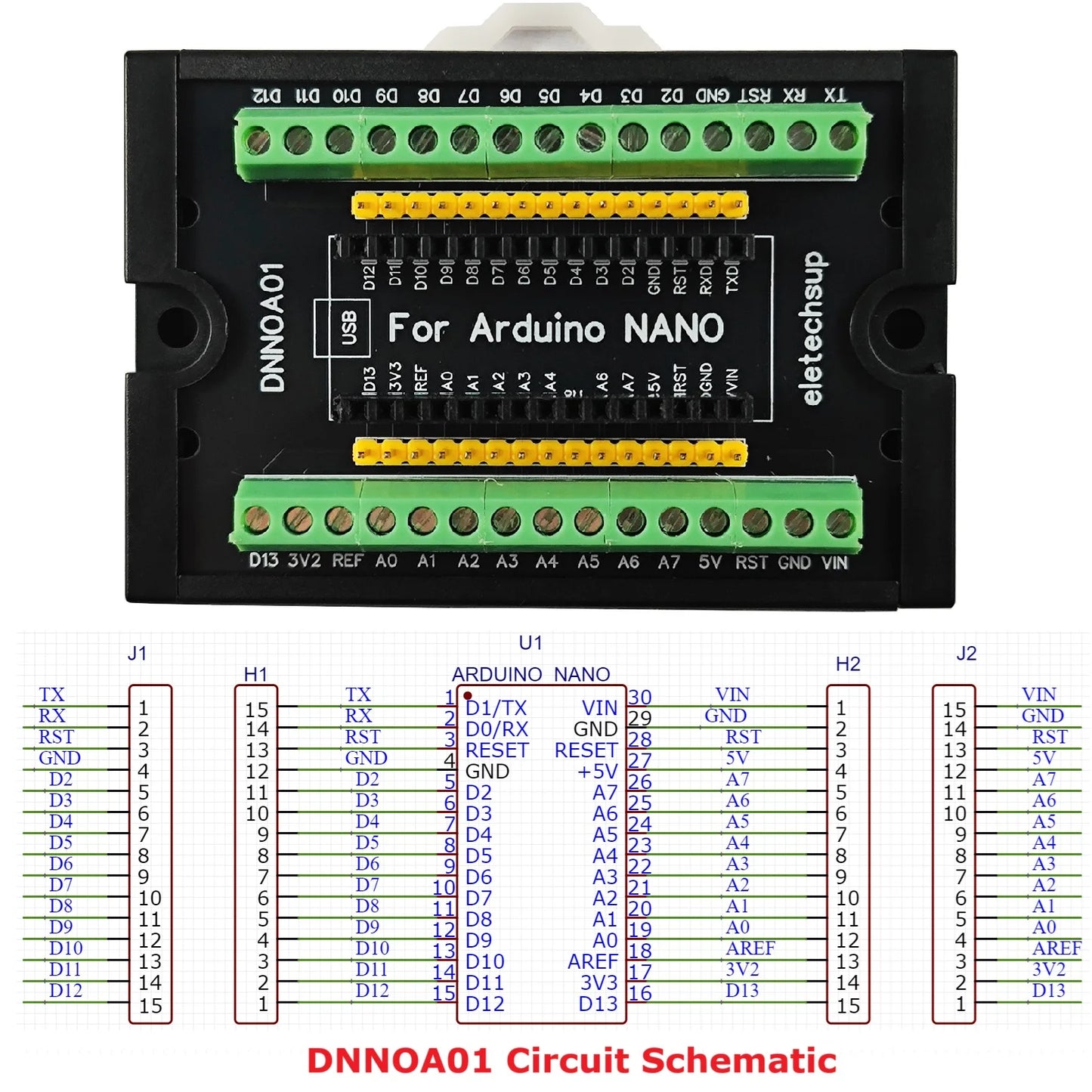

NANO V3.0 DIN Rail Expansion Board:
1 Working voltage DC 5-9V

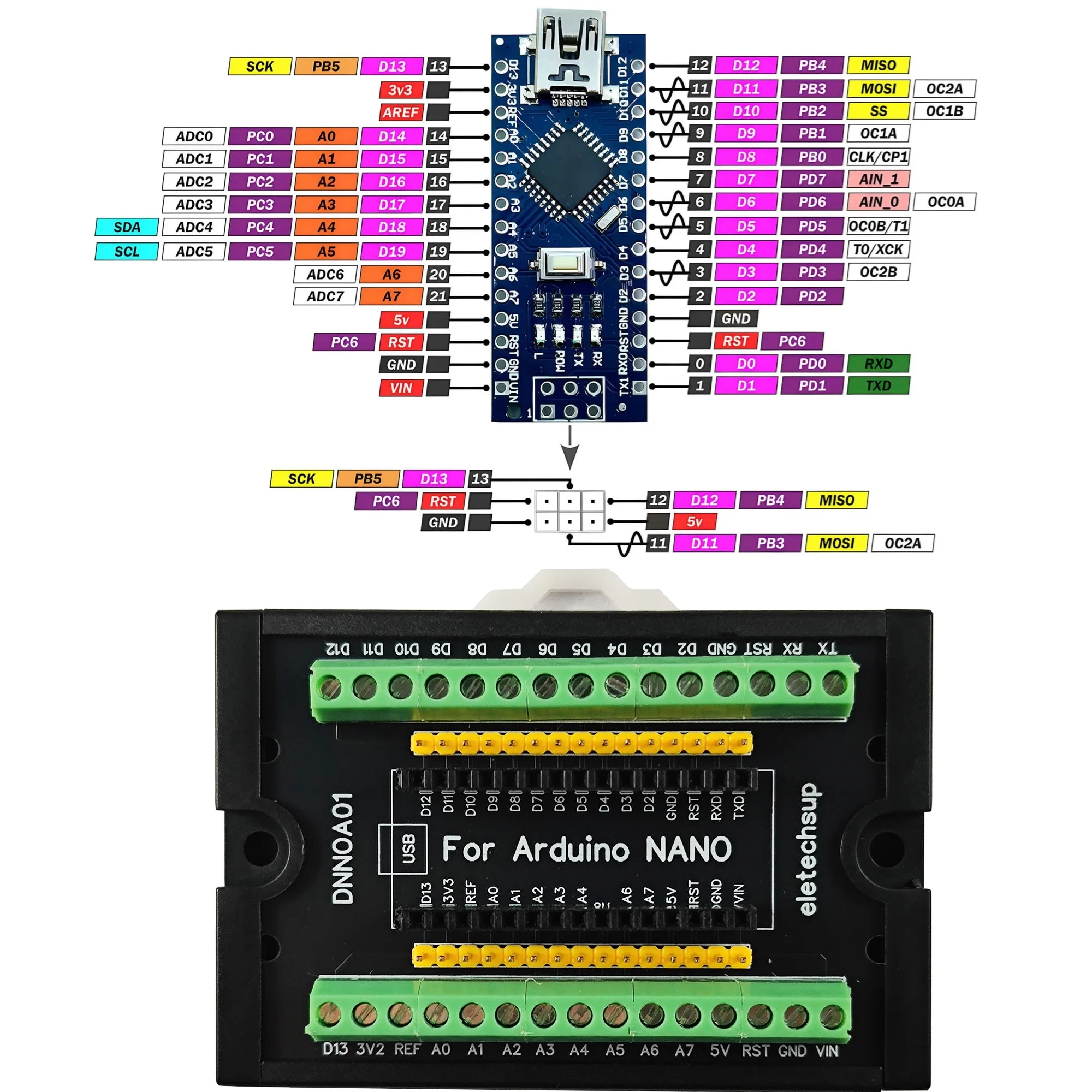

2 Lead out almost all IO ports
3 Optional industrial standard DIN rail enclosure
4 Terminal spacing: 3.96mm.
5 Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

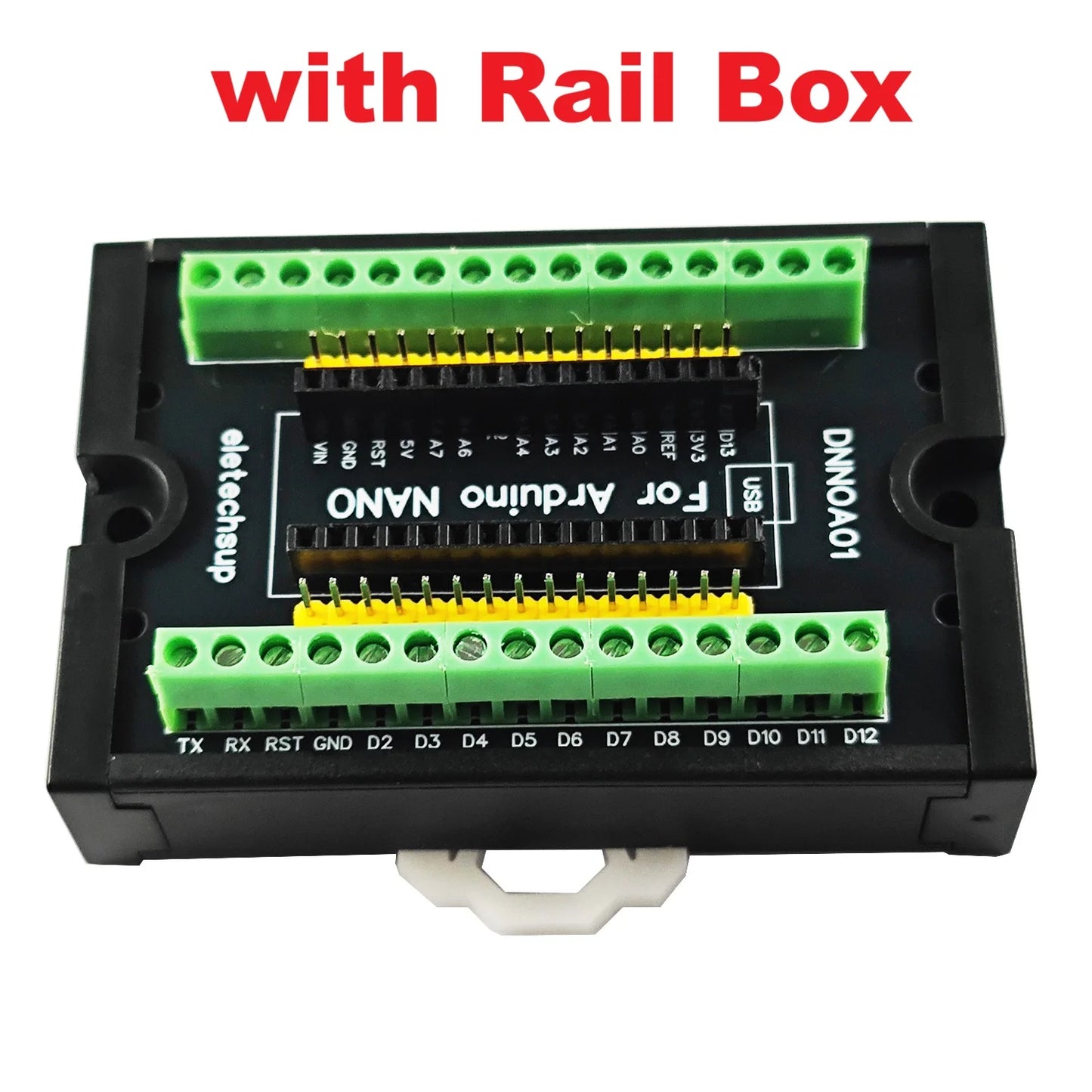

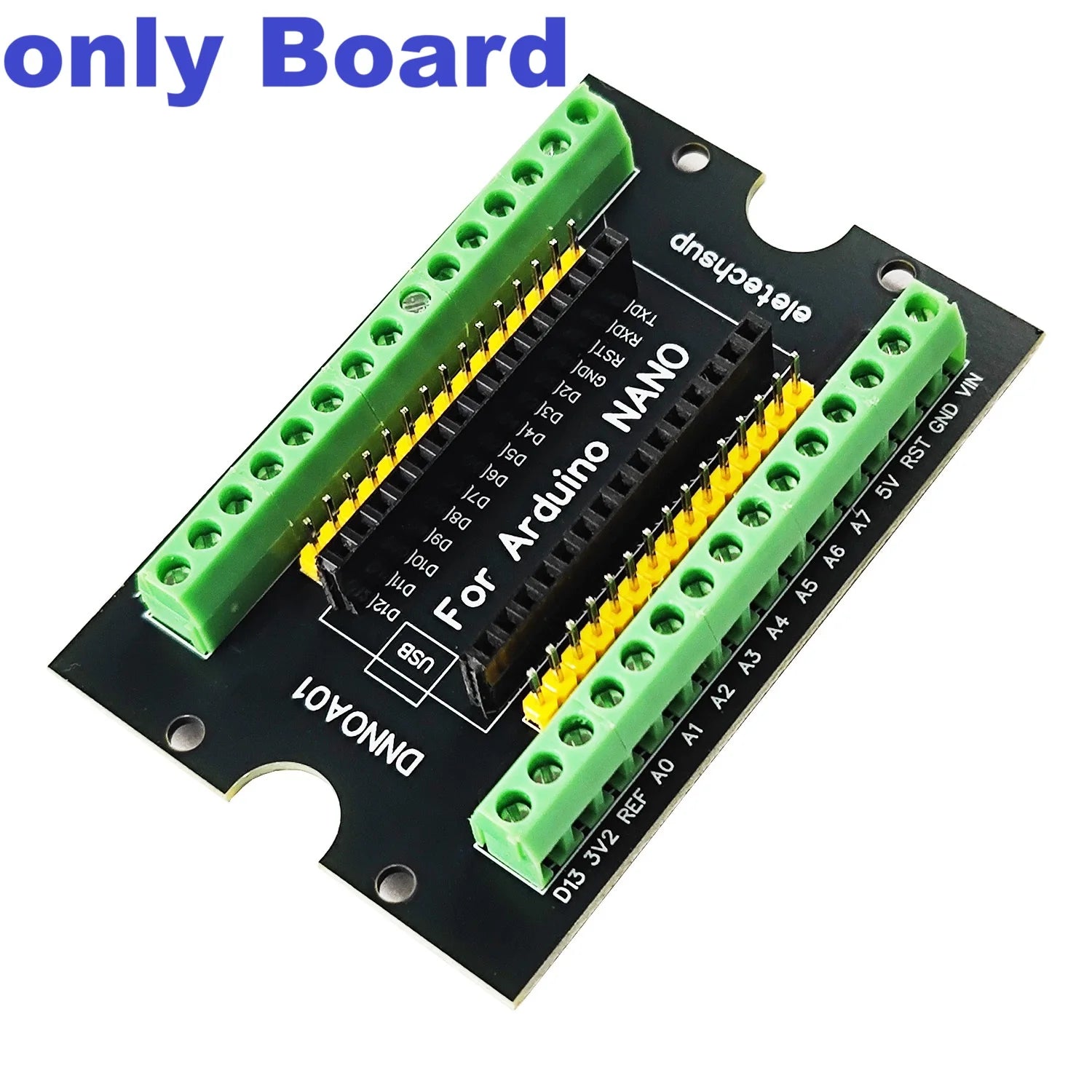

6 Size: 75*50*12(only Board),80 *55 * 26mm(with Rail Box)
7 Weight: 29g(only Board),60g(with Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino NANO Board.
With this adapter modules, you can easily extend your Arduino projects to industrial control applications.
Notice:
This product does not include the NANO V3.0 Module

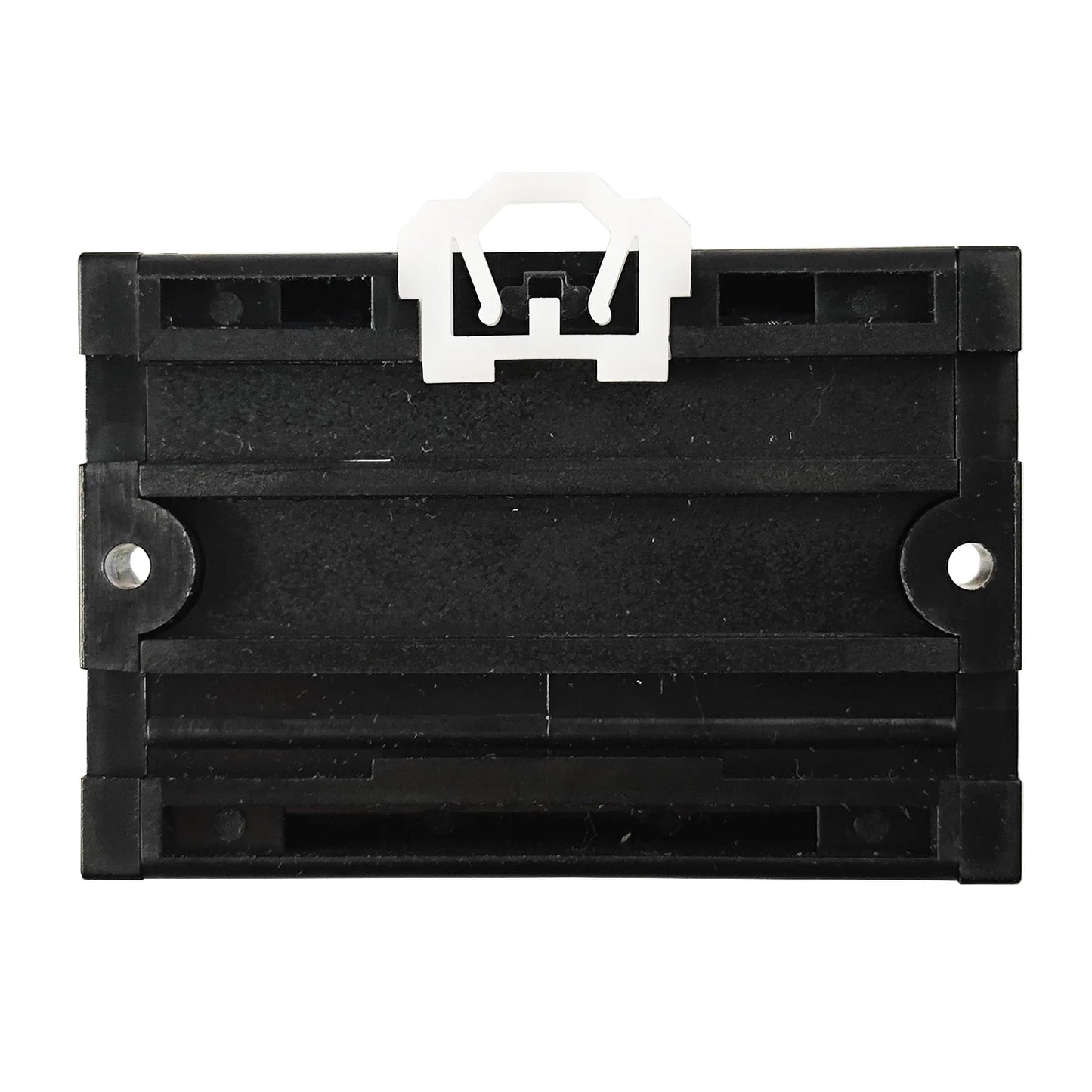

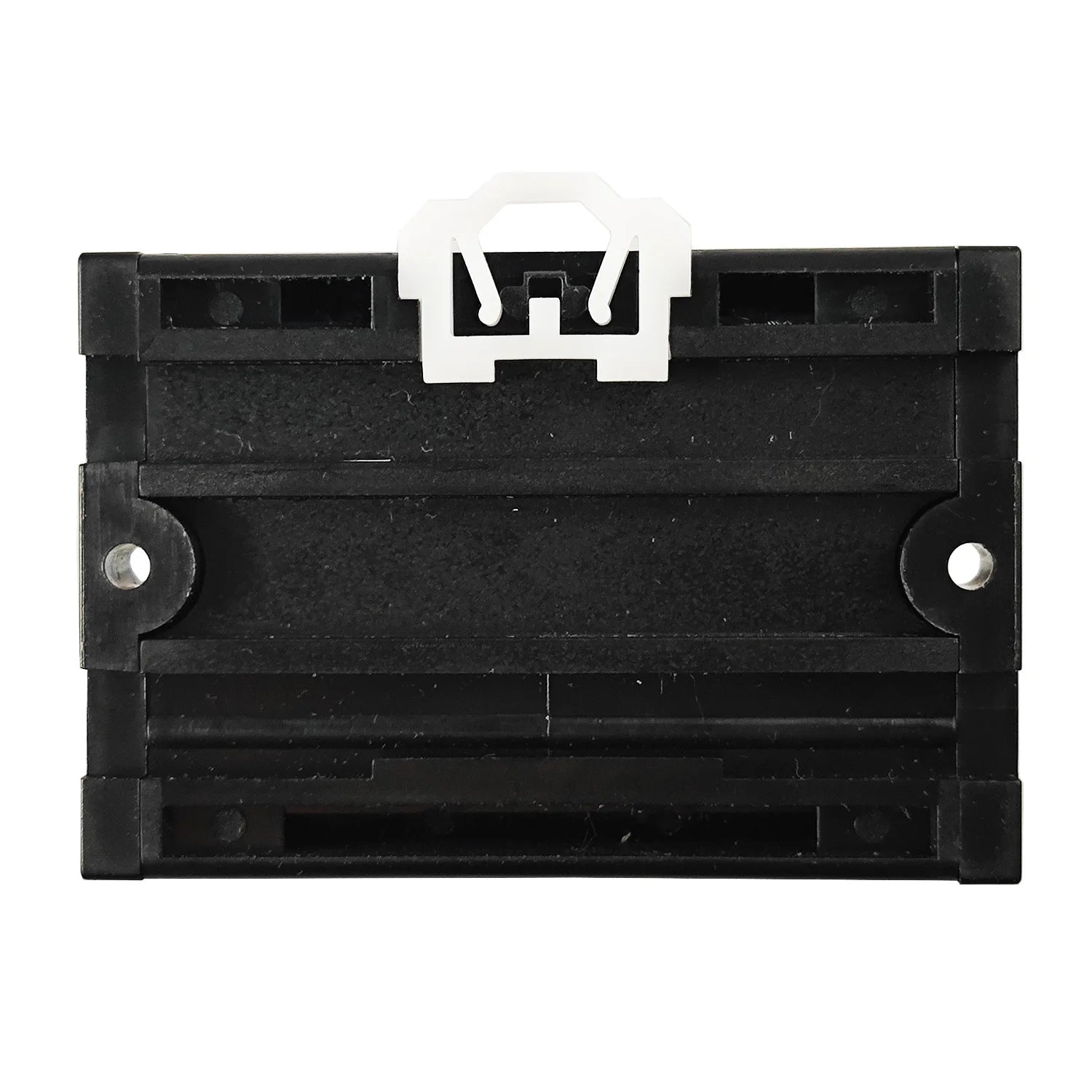

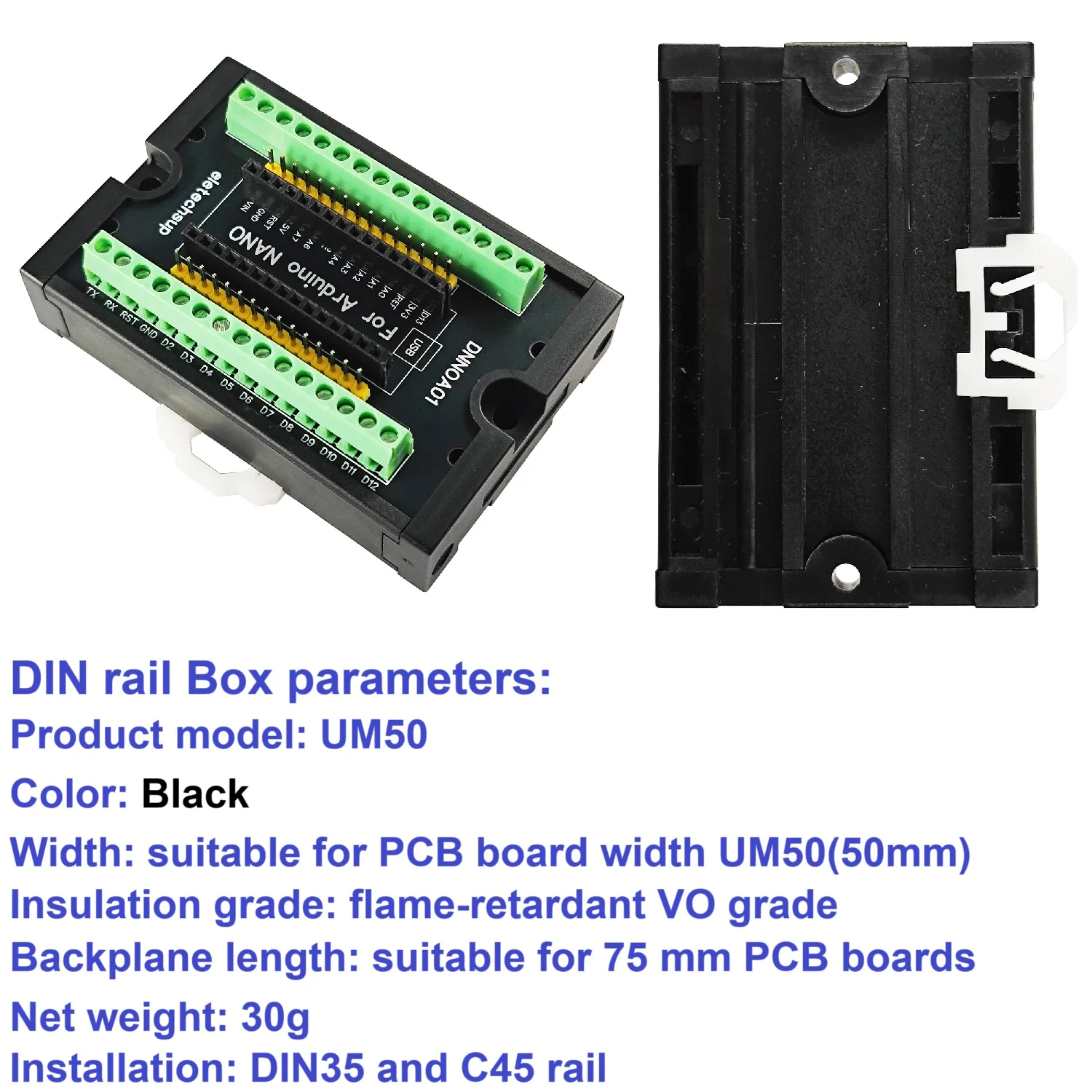

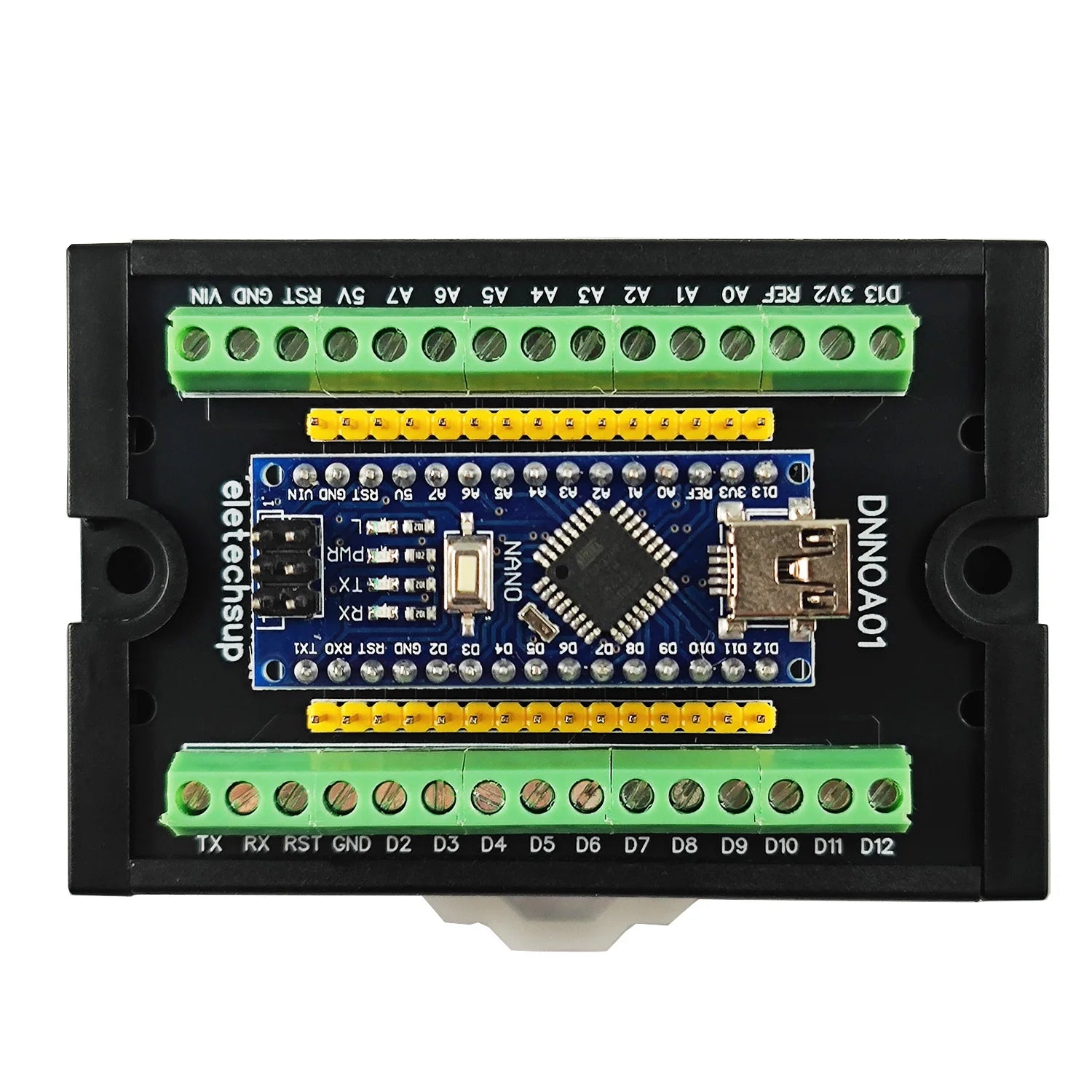

DIN rail Box parameters:
Product model: UM50
Color: Black
Width: suitable for PCB board width UM50(50mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 75 mm PCB boards
Net weight: 30g
Installation: DIN35 and C45 rail
