DNUNA16 DC 12V 24V DIN Rail Analog Digital Inpuut Output Expanding Board Simple Open PLC Diy Module for Arduino UNO LED Solar Battery
DNUNA16 DC 12V 24V DIN Rail Analog Digital Inpuut Output Expanding Board Simple Open PLC Diy Module for Arduino UNO LED Solar Battery
SKU:DNUNA16_R
1000 in stock
Regular price
$21.99
Regular price
$27.12
Sale price
$21.99
Unit price
/
per
Couldn't load pickup availability
Share
Product Features:
1 Working voltage: DC 7-30V
2 Working Current : Standby current (Digital tube OFF) 13MA, Standby current 20MA (Digital tube ON), 1 relay open 40MA... 4 relays open 120MA
3 Rich external expansion resources: 6ch NPN Digital Input;4ch Dryt contact digital output; 6ch current and voltage analog input; RS485 Interface, 1 LEDs.

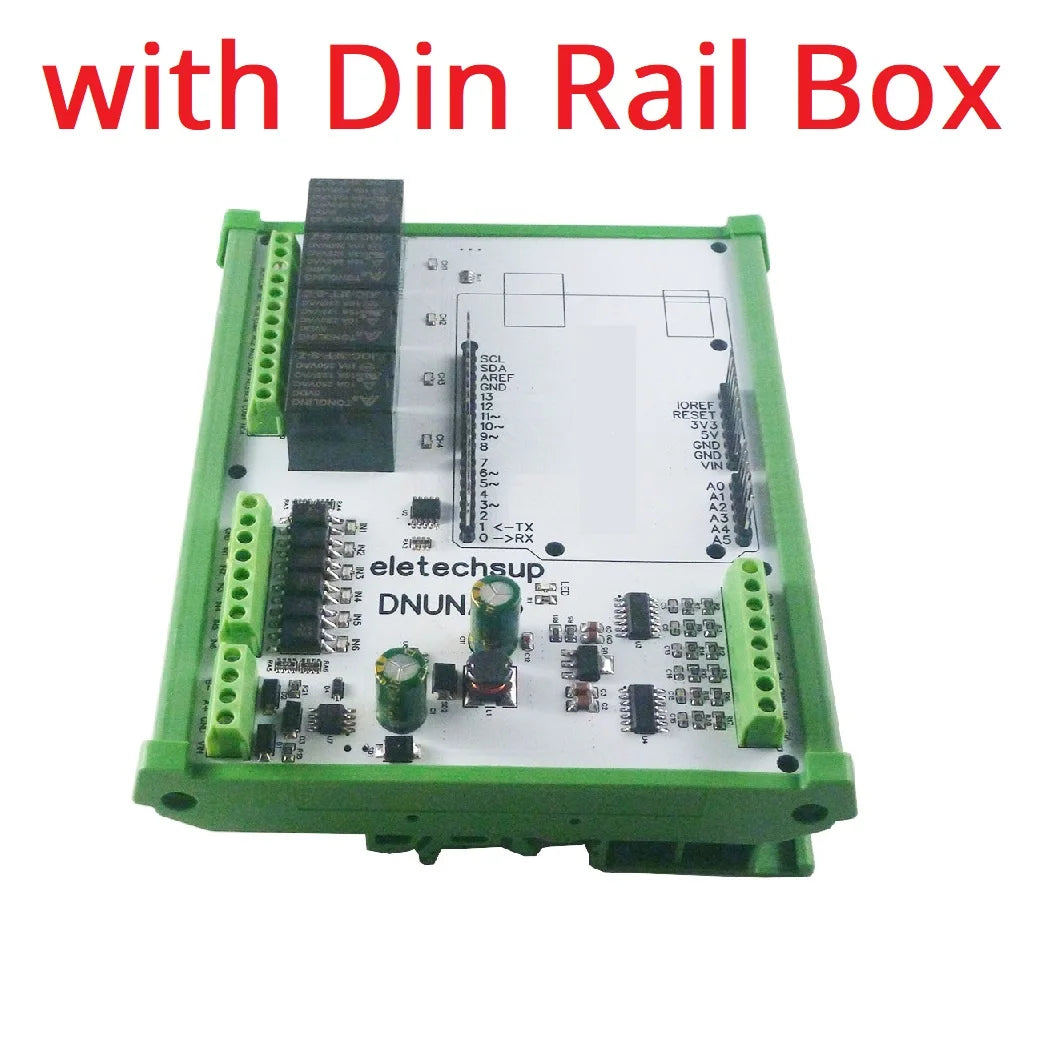

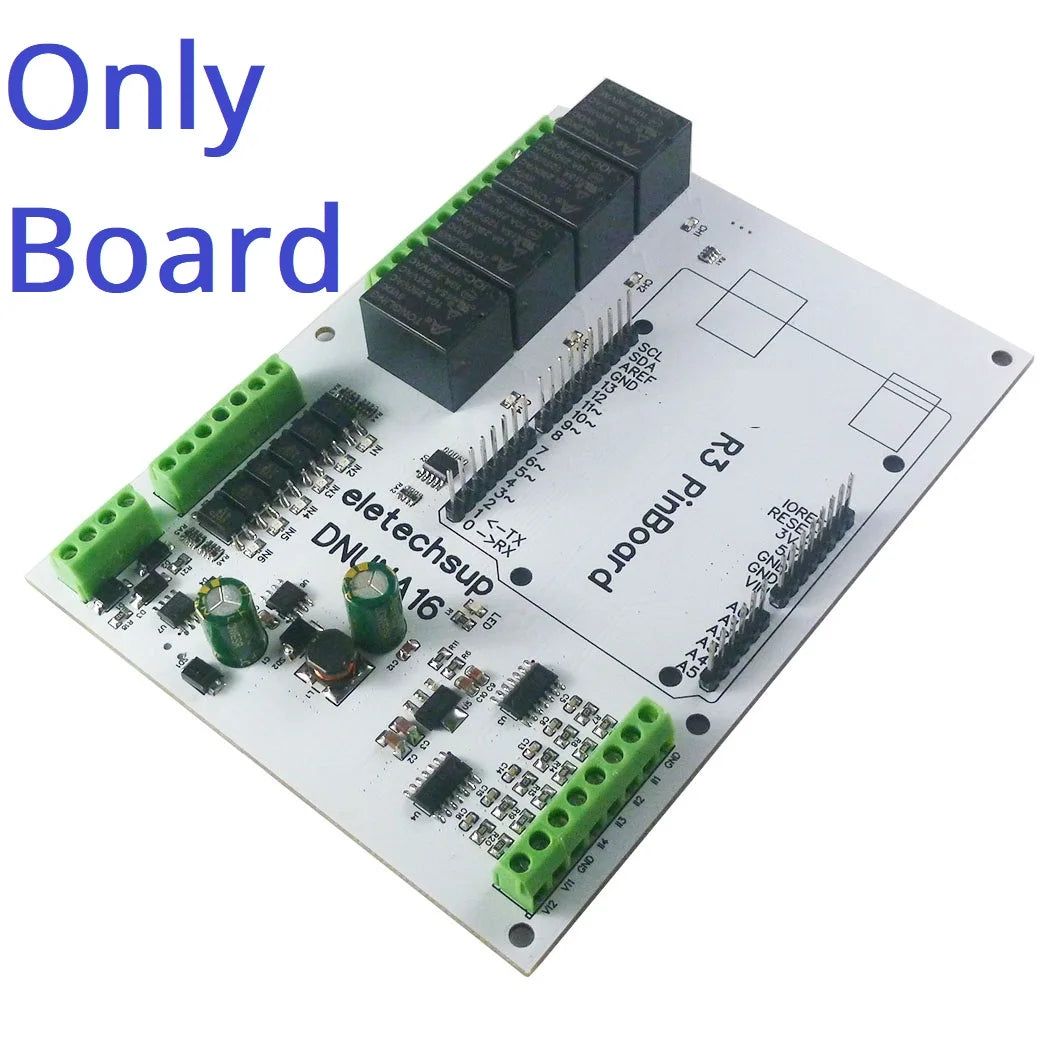

4 size 132*100*19mm(Only Board),136*115*29mm(with Din Rail Box)
5 Weight : 101g(Only Board), 224g(with Din Rail Box)
This is an expansion board for UNO R3, and the code(sketch) we provide is only used to test the experimental hardware.
If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support
For more information details, please contact me.
How to use: See video
''DNUNA16_6DI_4Relay_DEMO''
''DNUNA16_Analog_RS485_DEMO''
(You can search for videos on Google)
Note: Eletechsup

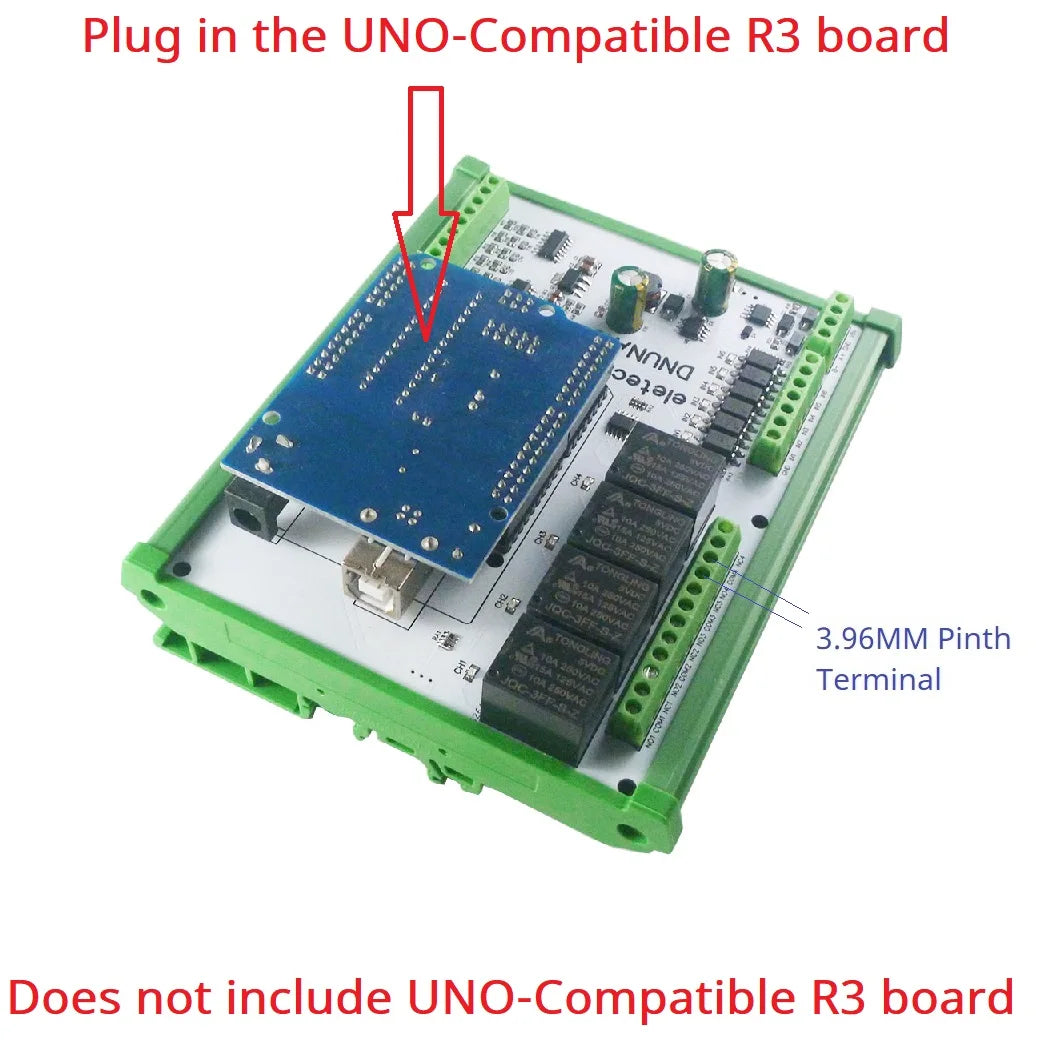

DNUNA16 is just an expansion board, it can
not work independently, must be under the control of the
UNO-Compatible
R3 board to work.

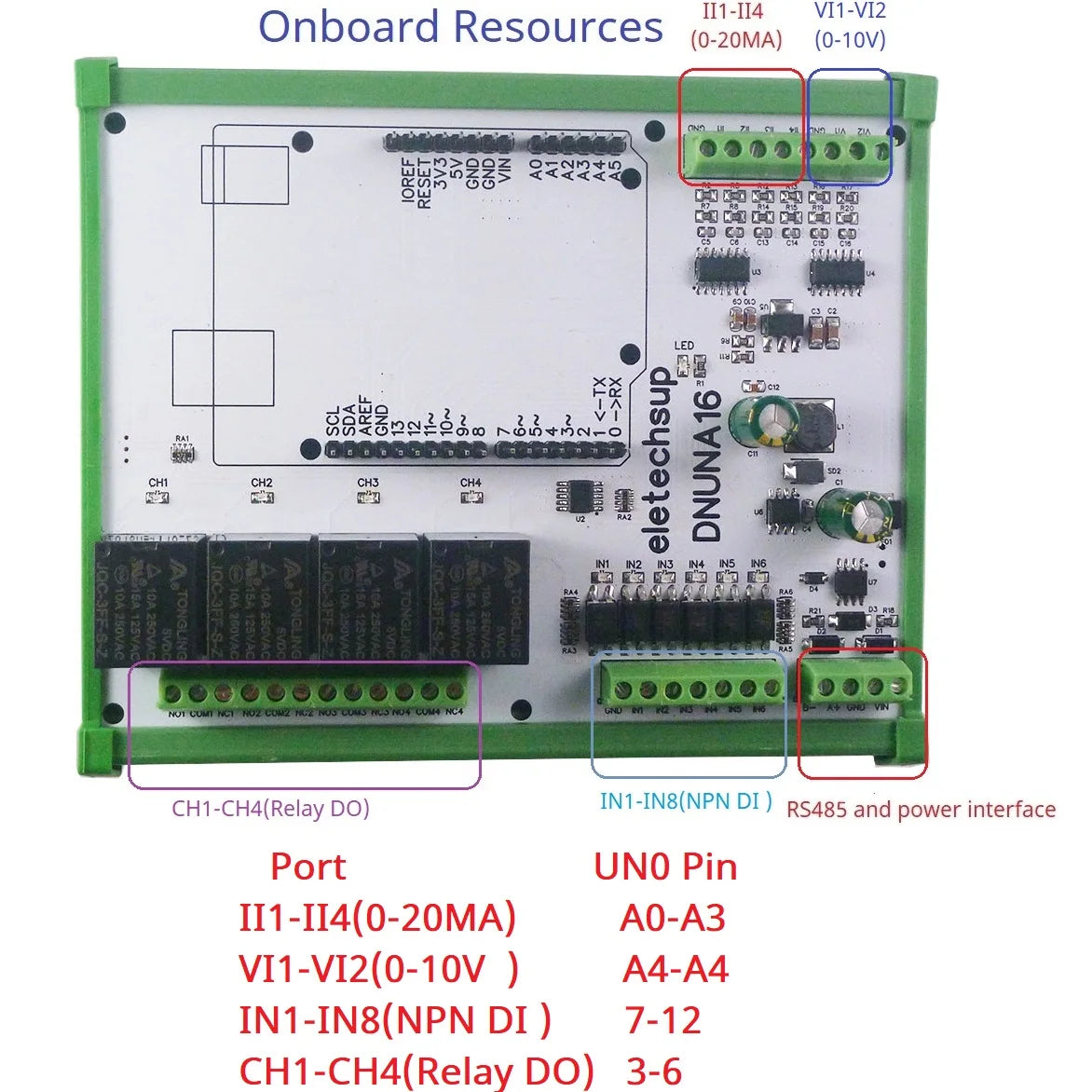

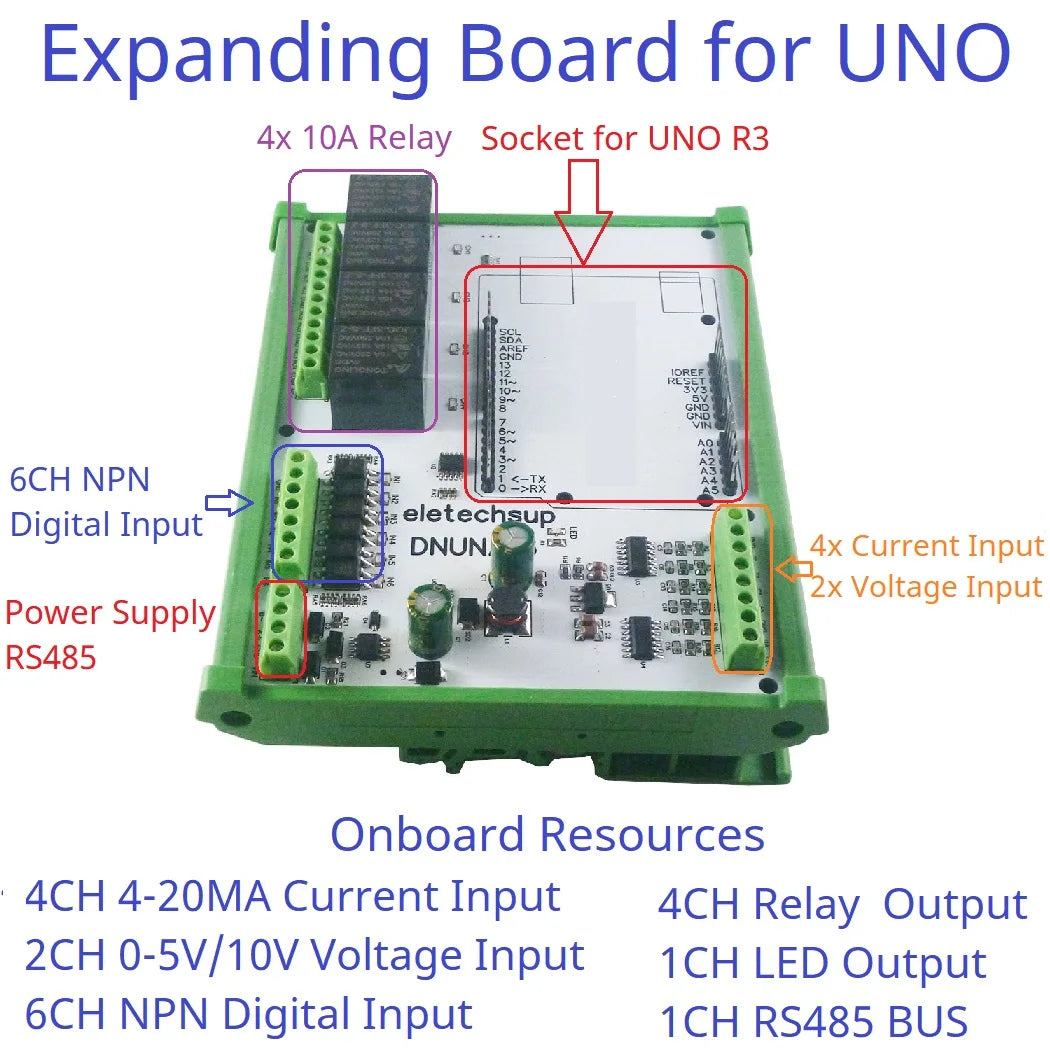

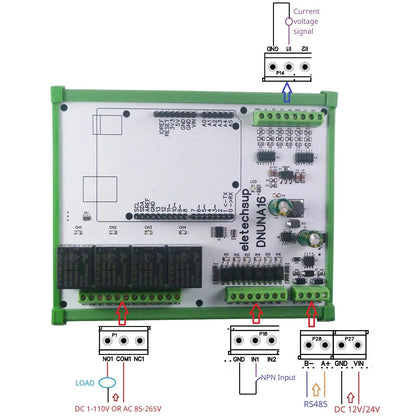

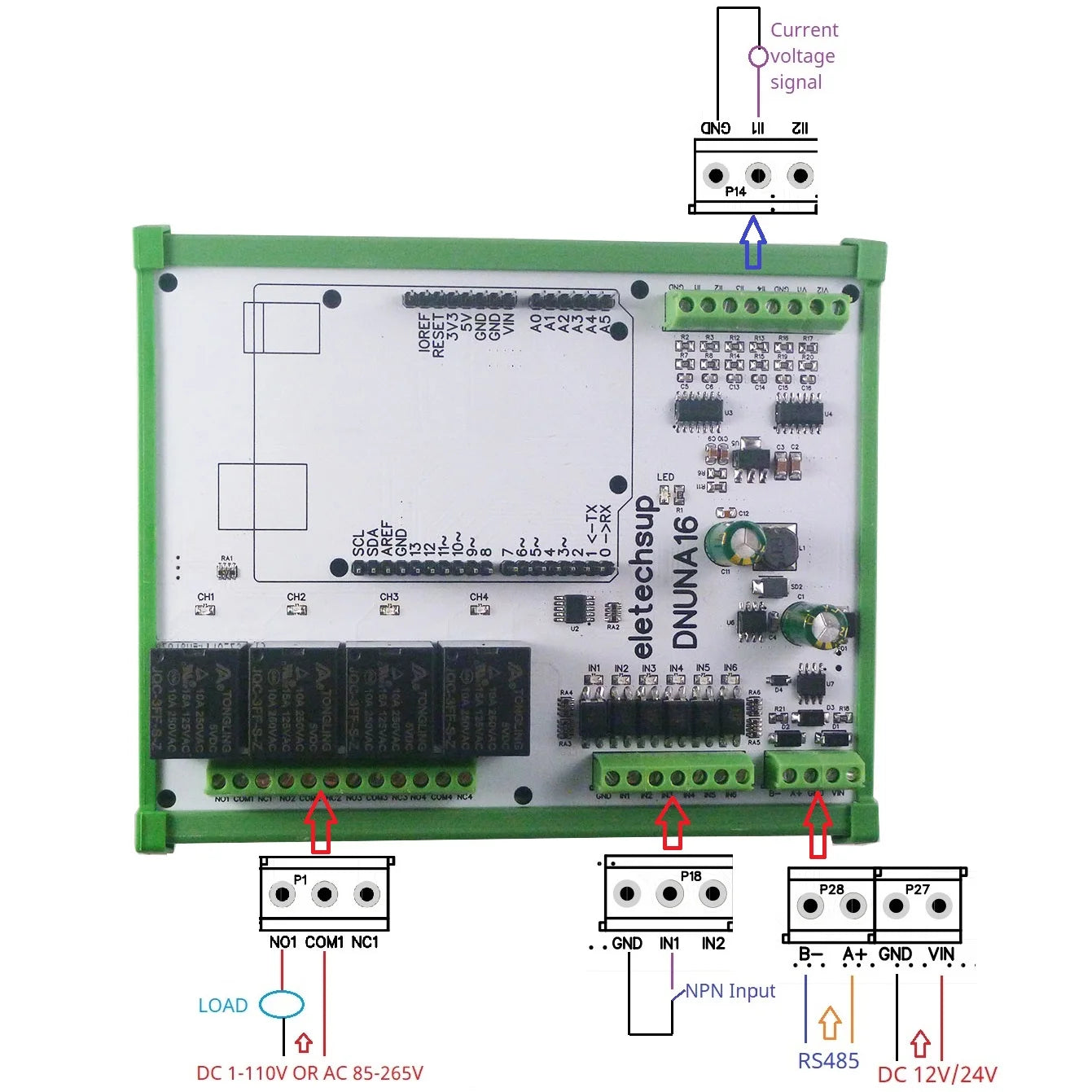

Rich Onboard Resources
4CH 4-20MA Current Input
2CH 0-5V/10V Voltage Input
6CH NPN Digital Input
4CH Relay Output
1CH LED Output
1CH RS485 BUS

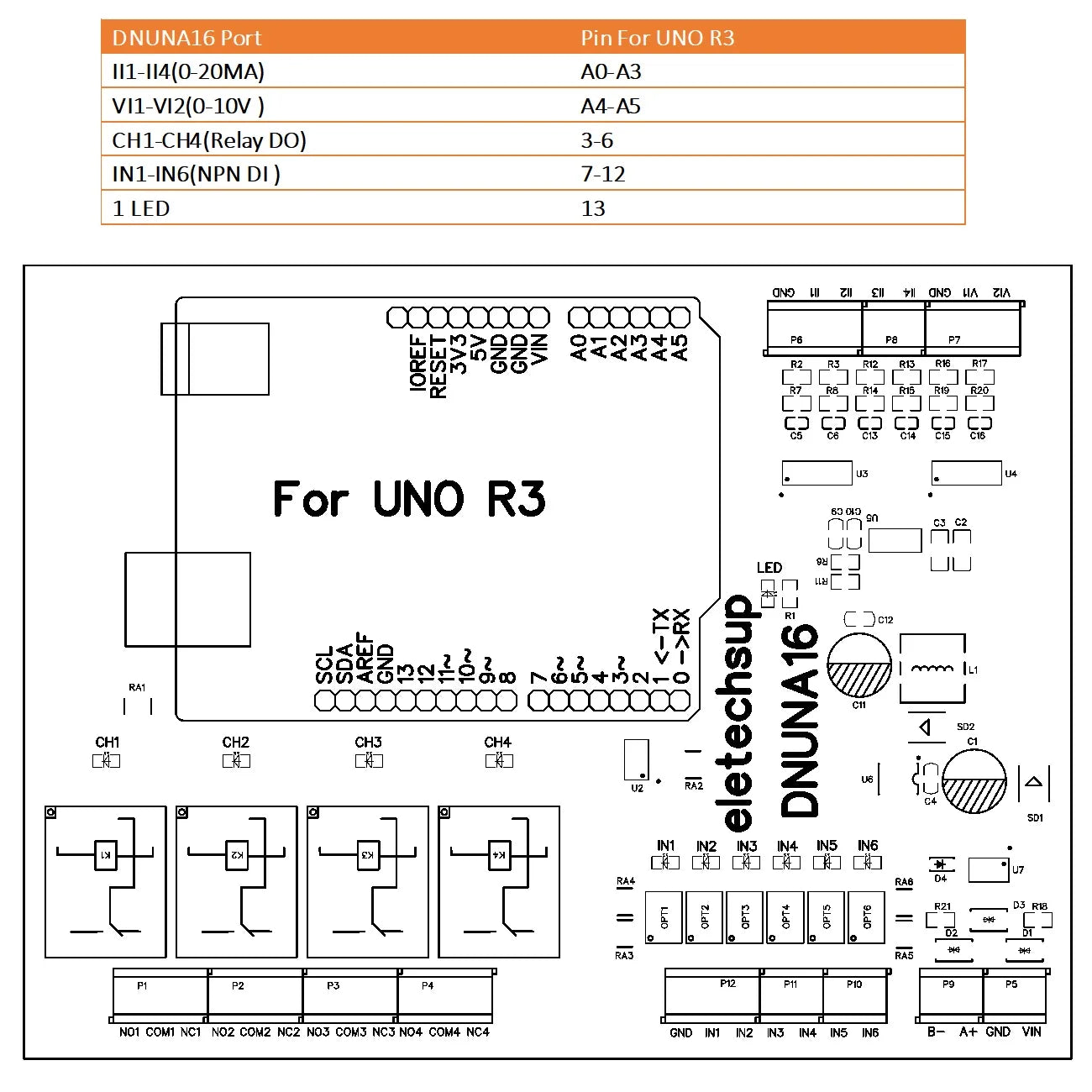

Port----------------- UN0 Pin
II1-II4(0-20MA)-------A0-A3
VI1-VI2(0-10V)--------A4-A5
IN1-IN8(NPN DI)------7-12
CH1-CH4(Relay DO)---3-6

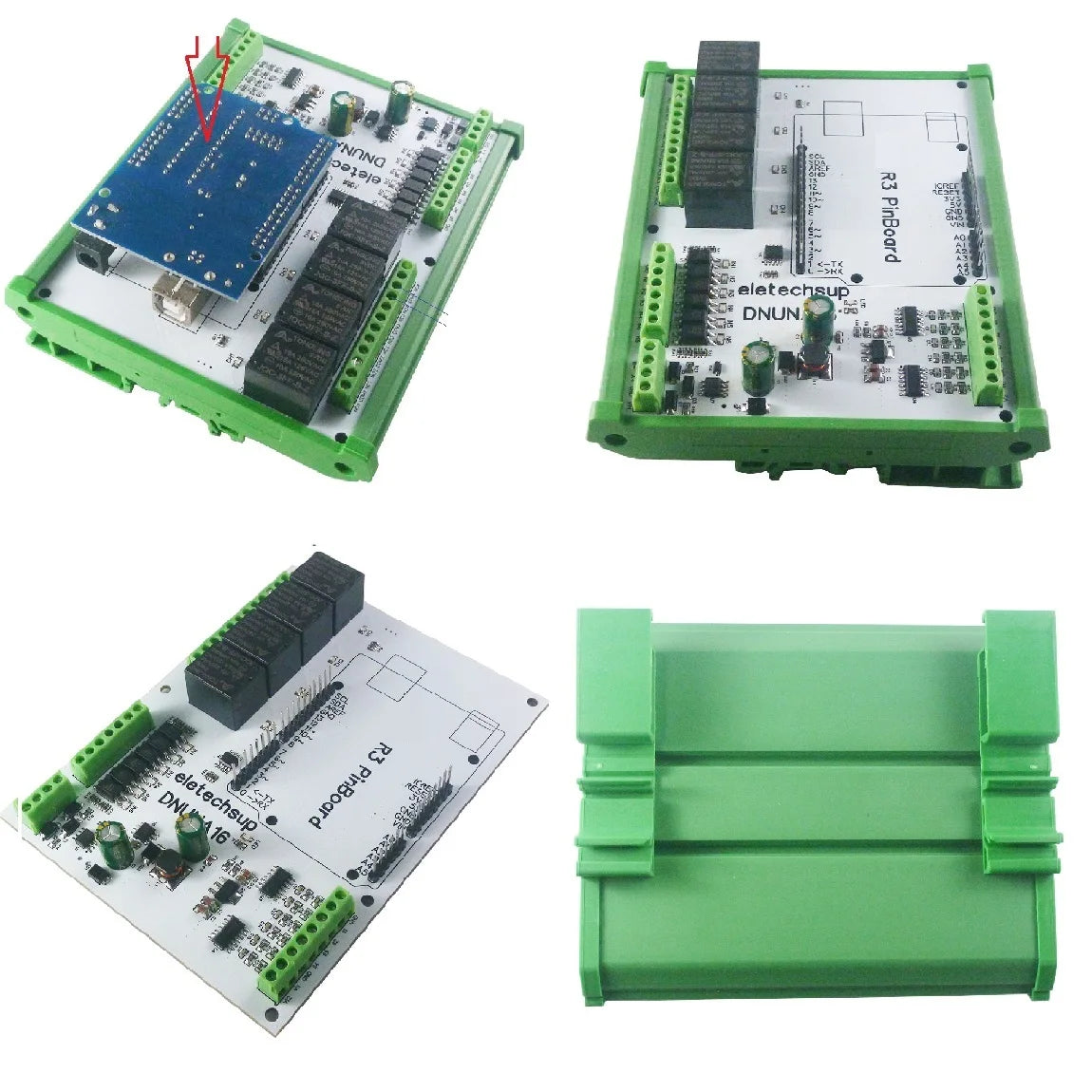

Product model: UM100
Color: Green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 132 mm PCB boards
Net weight: 122g
Installation: DIN35 and C45 rail
