DR21A01 DR21B01 DR21C01 DR2101 DC 5V 12V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Toy car boat model aircraft
DR21A01 DR21B01 DR21C01 DR2101 DC 5V 12V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Toy car boat model aircraft
SKU:DR21A01
990 in stock
Regular price
$1.99
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Typical applications:
Automotive electronics
Audio and video equipment
lithium battery 18650
Motor,Toy car, boat, model aircraft
Emergency lighting

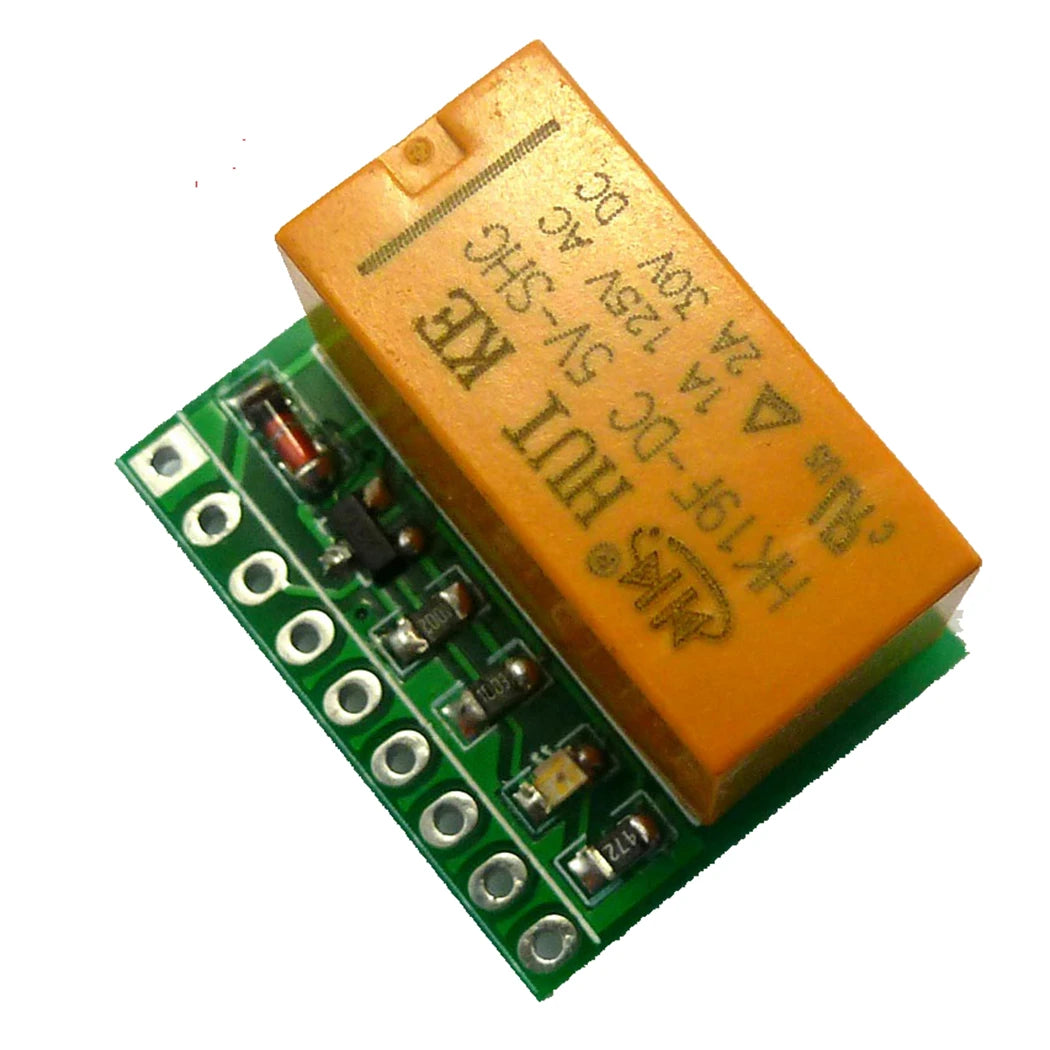

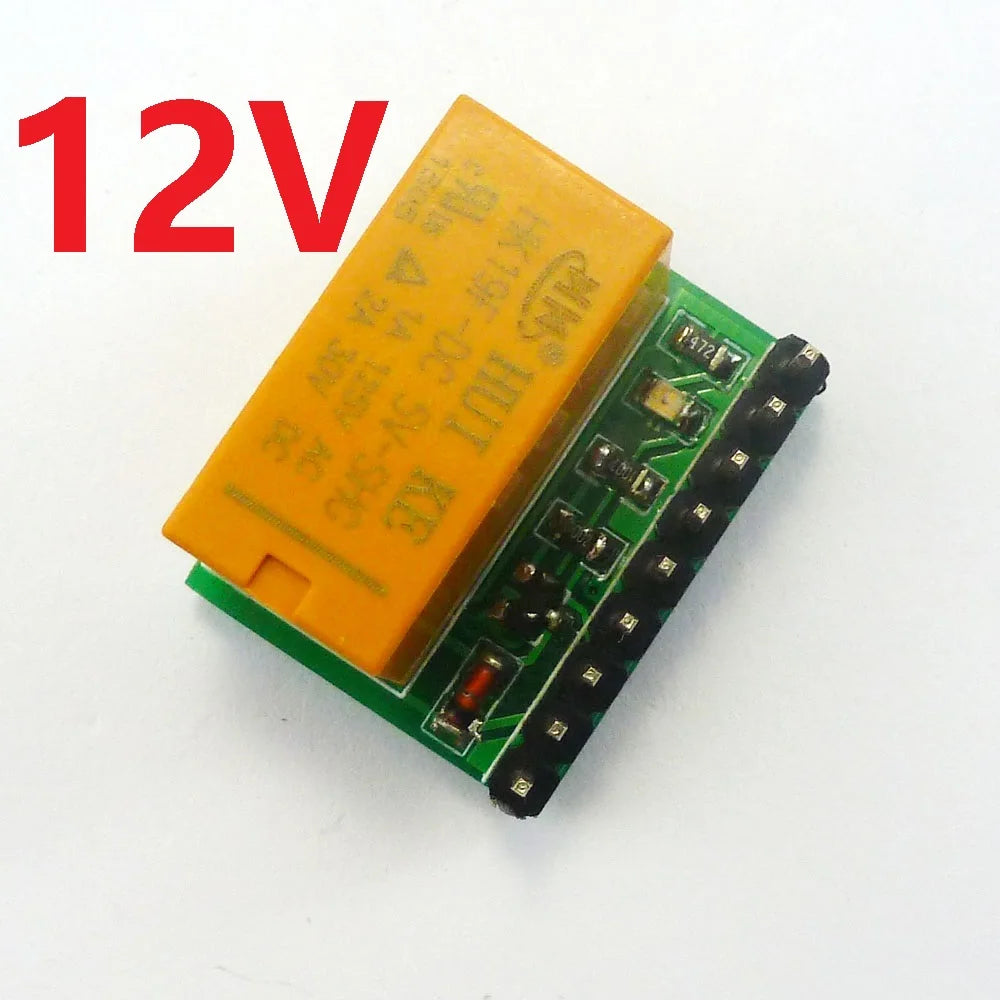

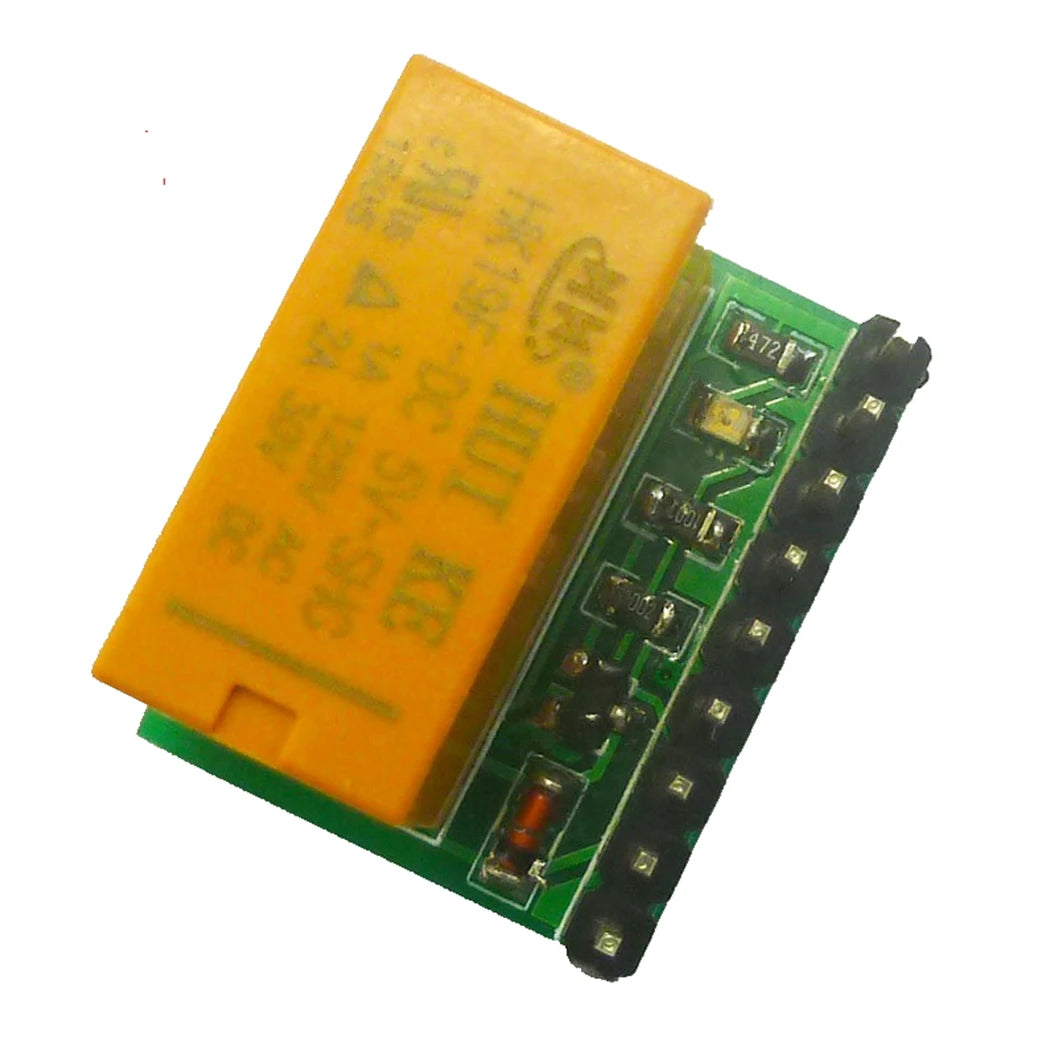

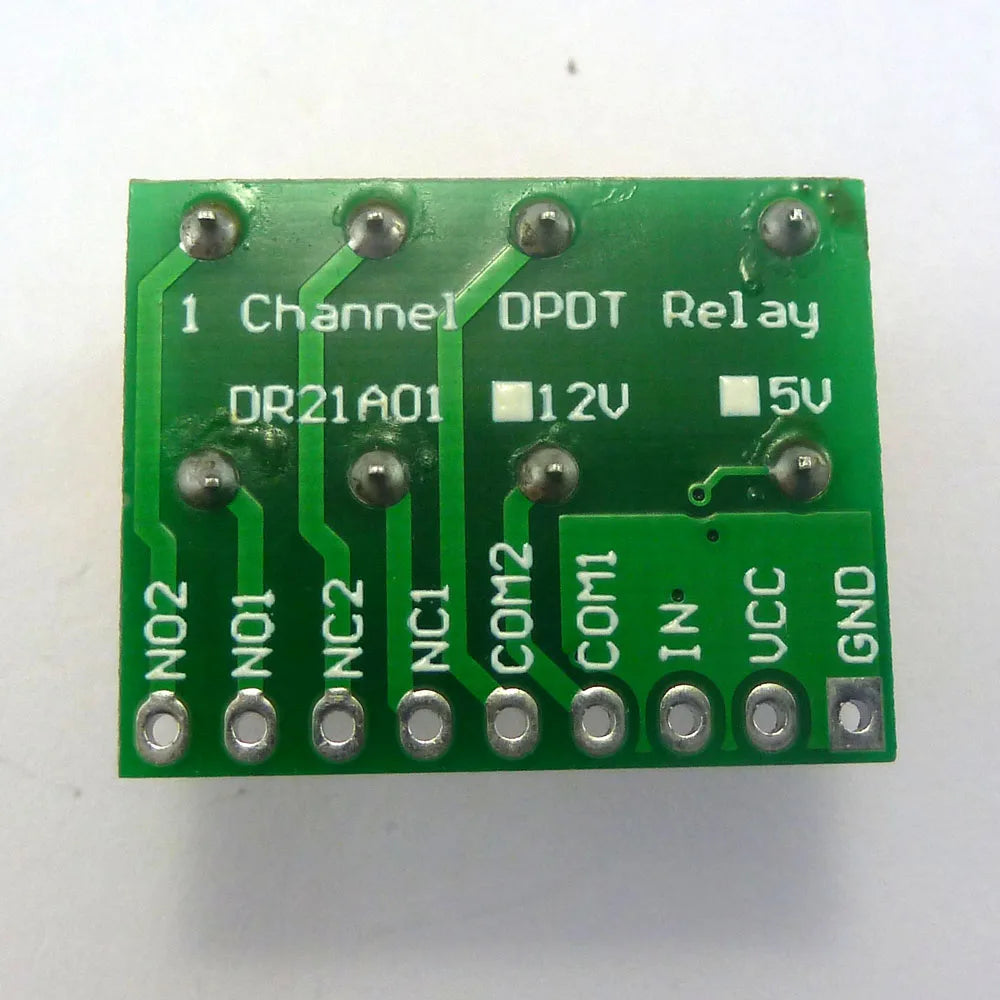

Product Name : DC 5V 12V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Stereo Audio Switch
Packing list:
1 PCS one Channel DC 5V 12V DPDT Relay Module
Description:

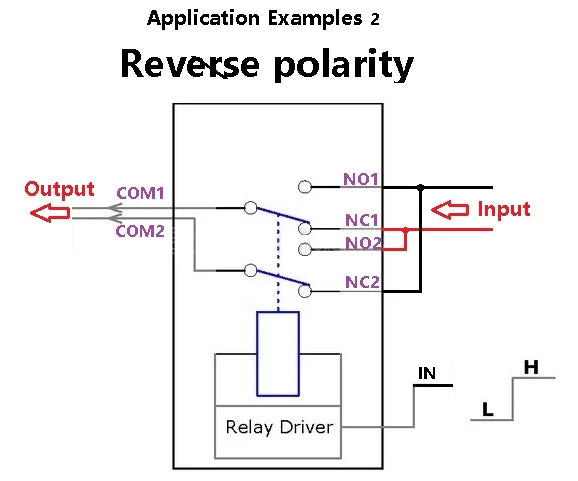

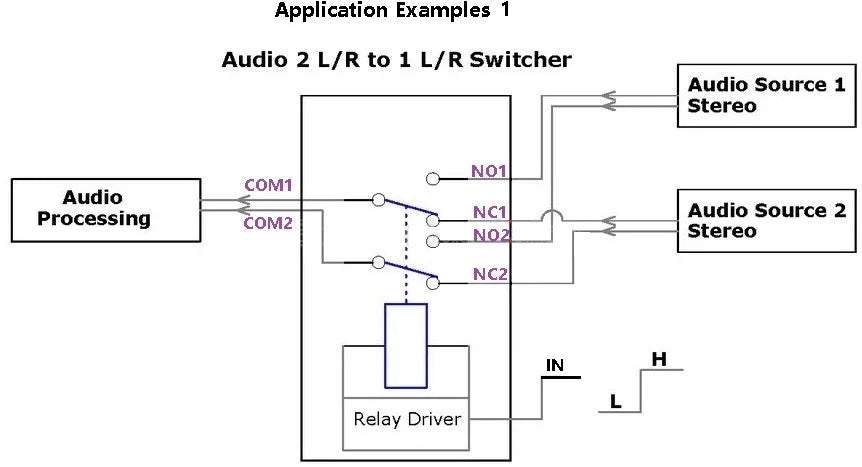

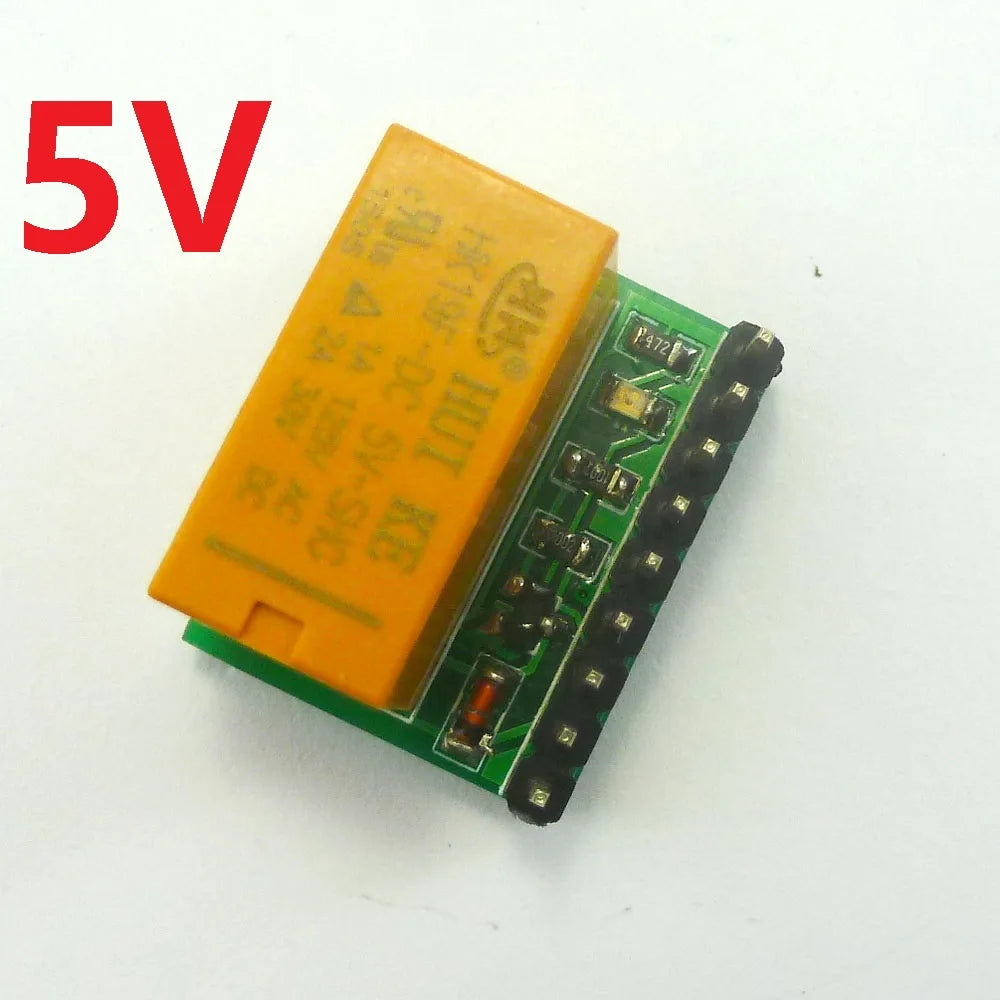

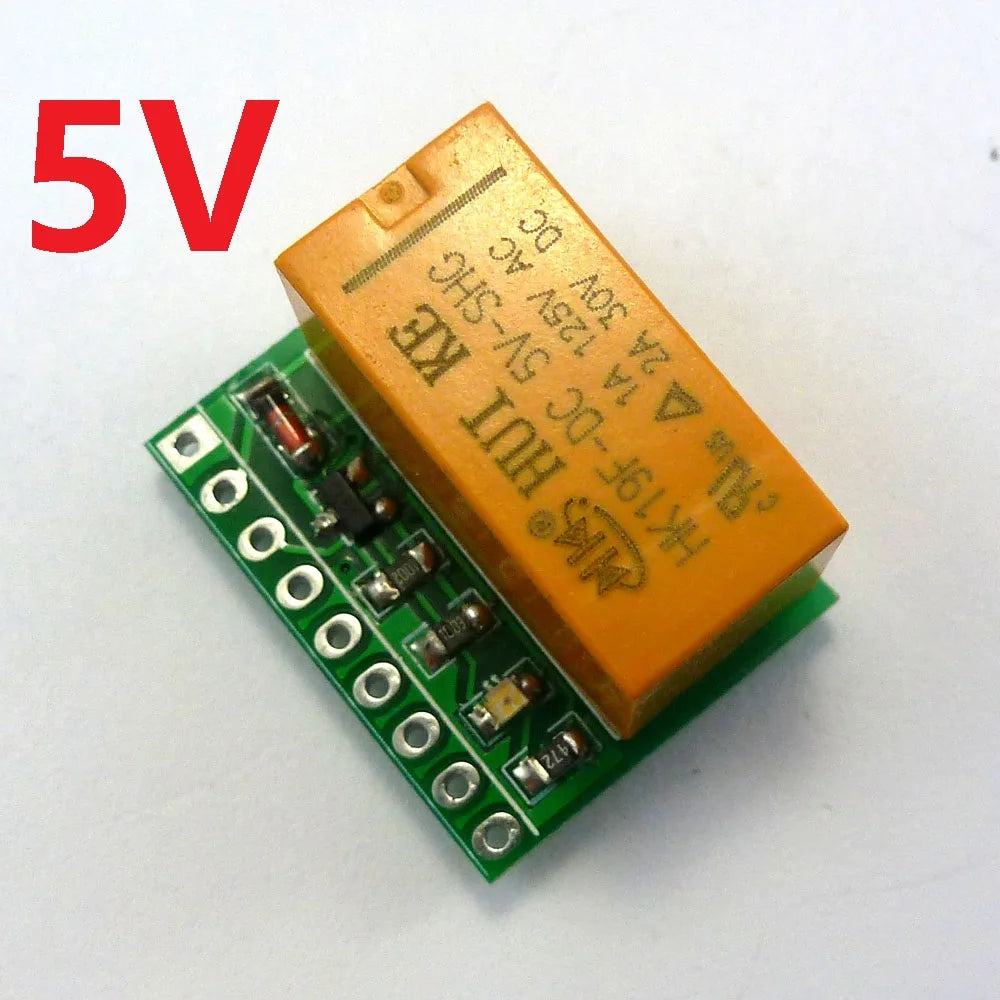

5V:
5VDC one Channel DPDT Relay Board
Operating Voltage : DC 4.5-5.5V(5V)
Operating Current(Relay ON): 36MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage:
0V - 0.6V Low stage (relay is OFF),
0.6V – 2.5V (unknown state).
2.5V - 24V High state (relay is ON).
Input control signal high state current:
2.5V: 0.15mA
5V: 0.4mA
12V: 1.2mA
20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC

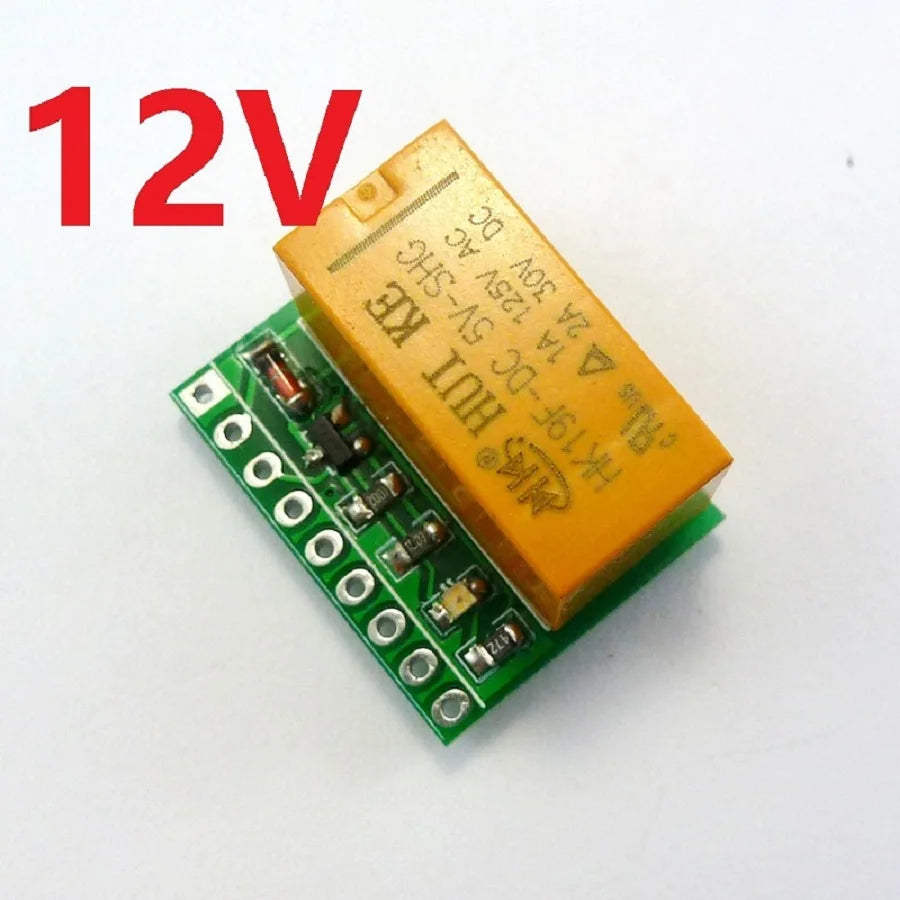

12V:
12VDC one Channel DPDT Relay Board
Operating Voltage : DC 12V
Operating Current(Relay ON): 15MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage:
0V - 0.6V Low stage (relay is OFF),
0.6V – 2.5V (unknown state).
2.5V - 24V High state (relay is ON).
Input control signal high state current:
2.5V: 0.15mA
5V: 0.4mA
12V: 1.2mA
20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC

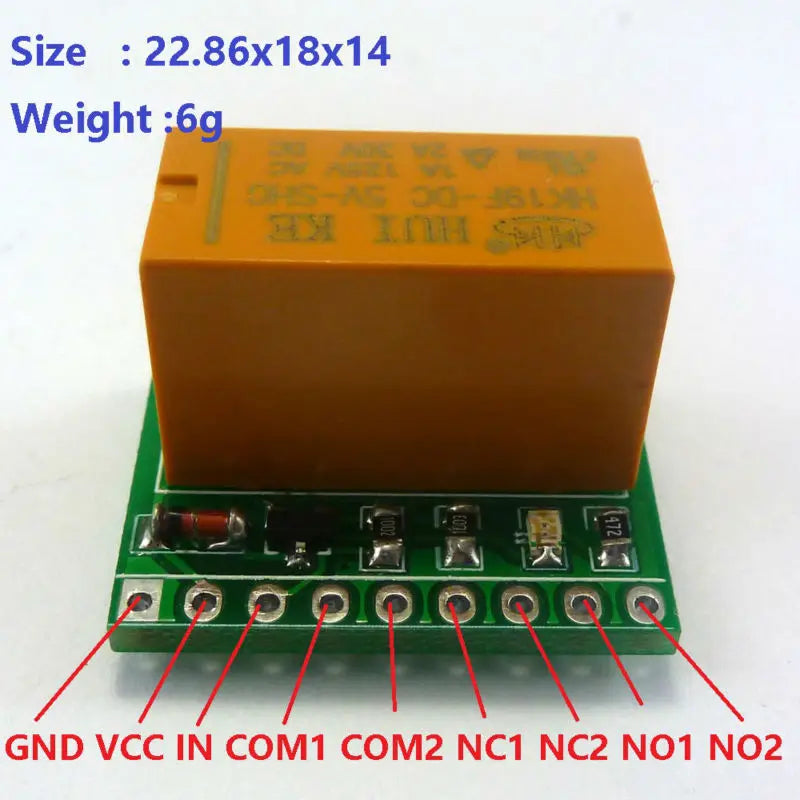

Size : 22.86x18x14
Weight :6g
Schematic:
