DR26F01 DC 9V 12V 24V 36V 5A Flip-Flop Self-locking DPDT Relay Module Bistable Double Swords and Double Throws Switch Board

DR26F01 DC 9V 12V 24V 36V 5A Flip-Flop Self-locking DPDT Relay Module Bistable Double Swords and Double Throws Switch Board

DR26F01

1000 in stock

$7.12
$7.12 $7.12
Sale Sold out

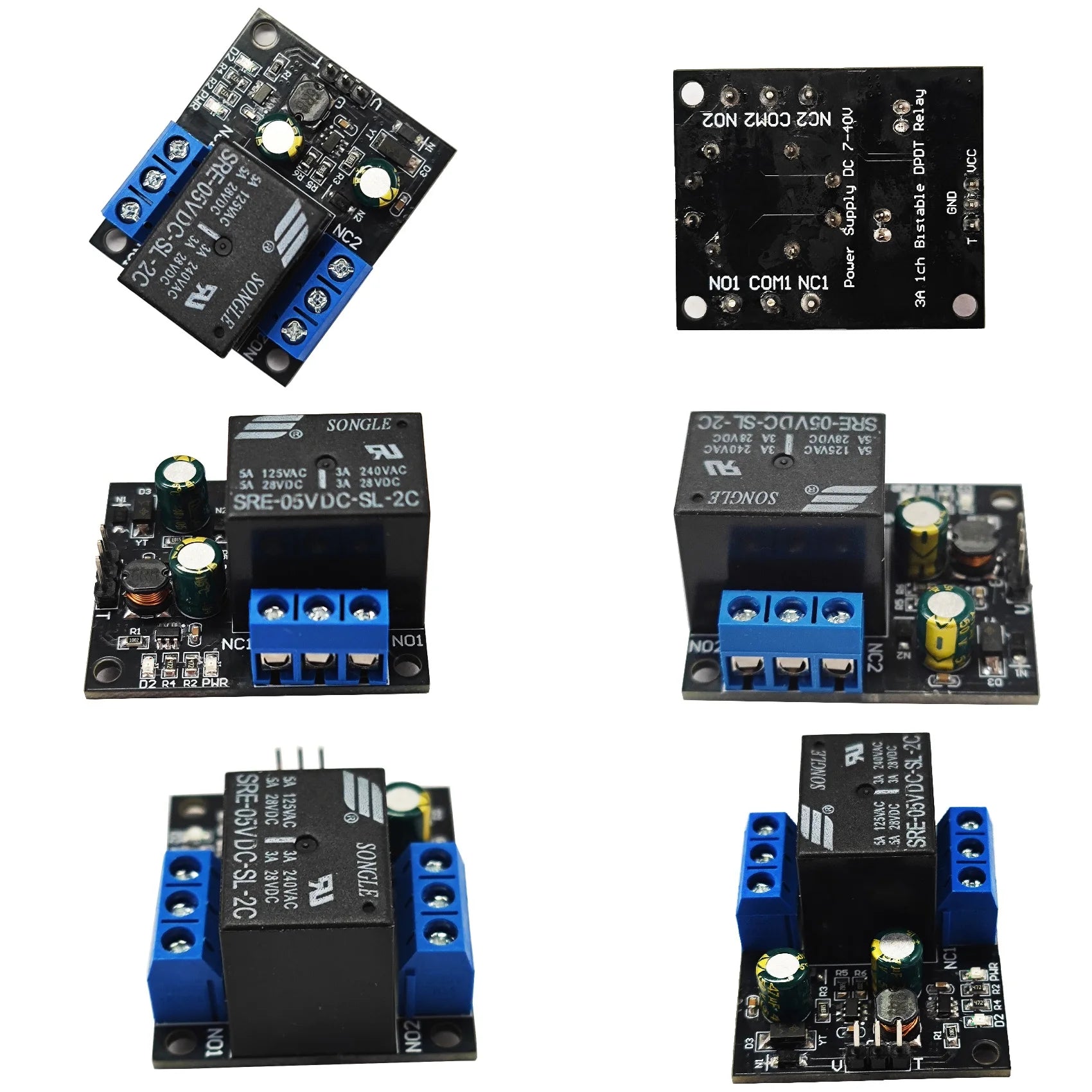

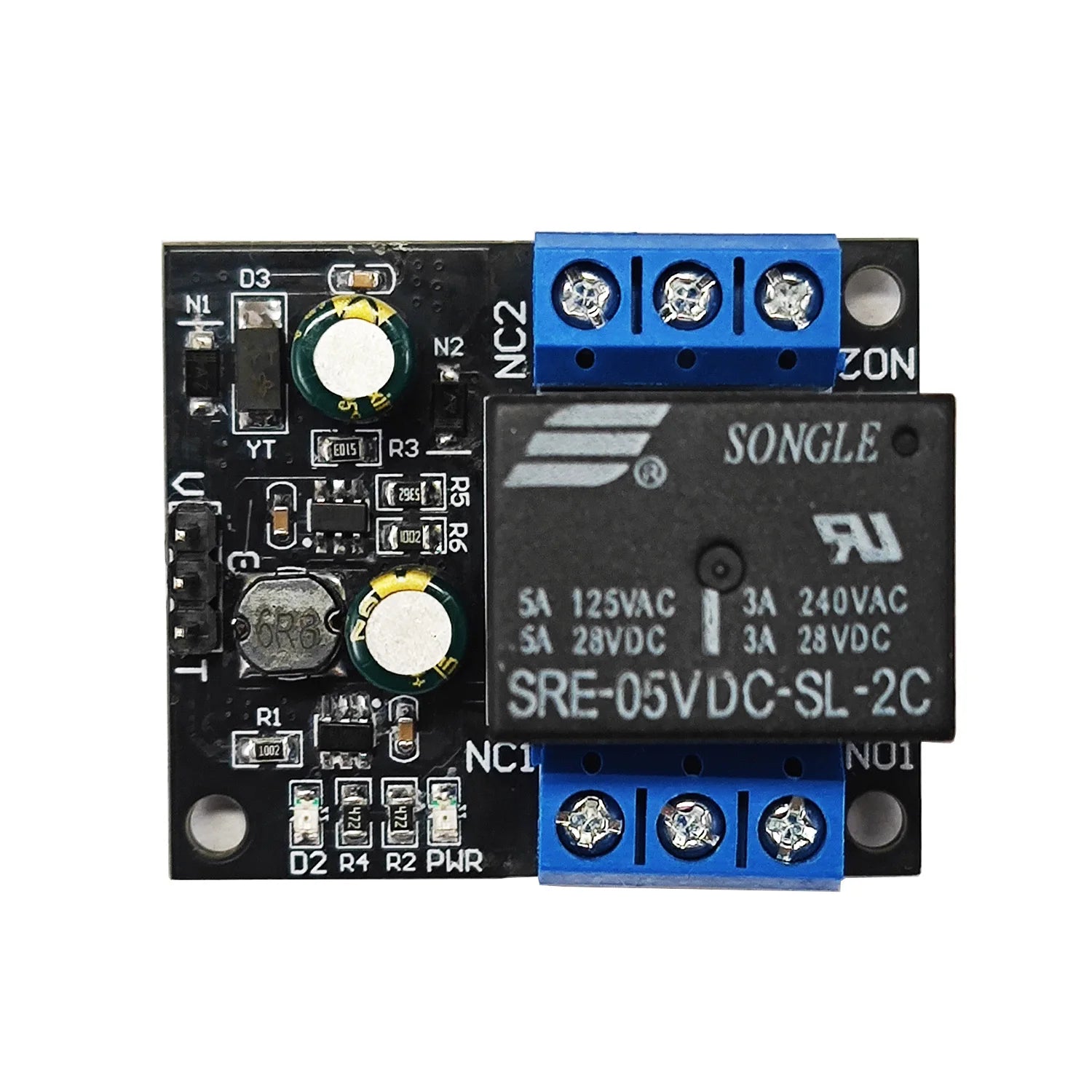

DR26F01 is an ultra-wide voltage DPDT self-locking relay designed and manufactured by eletechsup. It is an upgraded version of the DR25E01, fully compatible in function and size, but with higher voltage withstand and greater stability.

Description:

3A Self-locking (Bistable) DPDT Relay controller

1 Ultra-wide operating voltage:DC 7-40V
2 Working current:Standby 1-2ma;Relay ON power: 0.5-0.6W;
3 Load current: Maximum 5A(Inductive load <=2A)
4 Power indicator AND Working indicator
5 Control method : low pulse trigger
6 Size: 39.5mm X 33.3mm X 23.3mm
7 Weight: 25 g

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

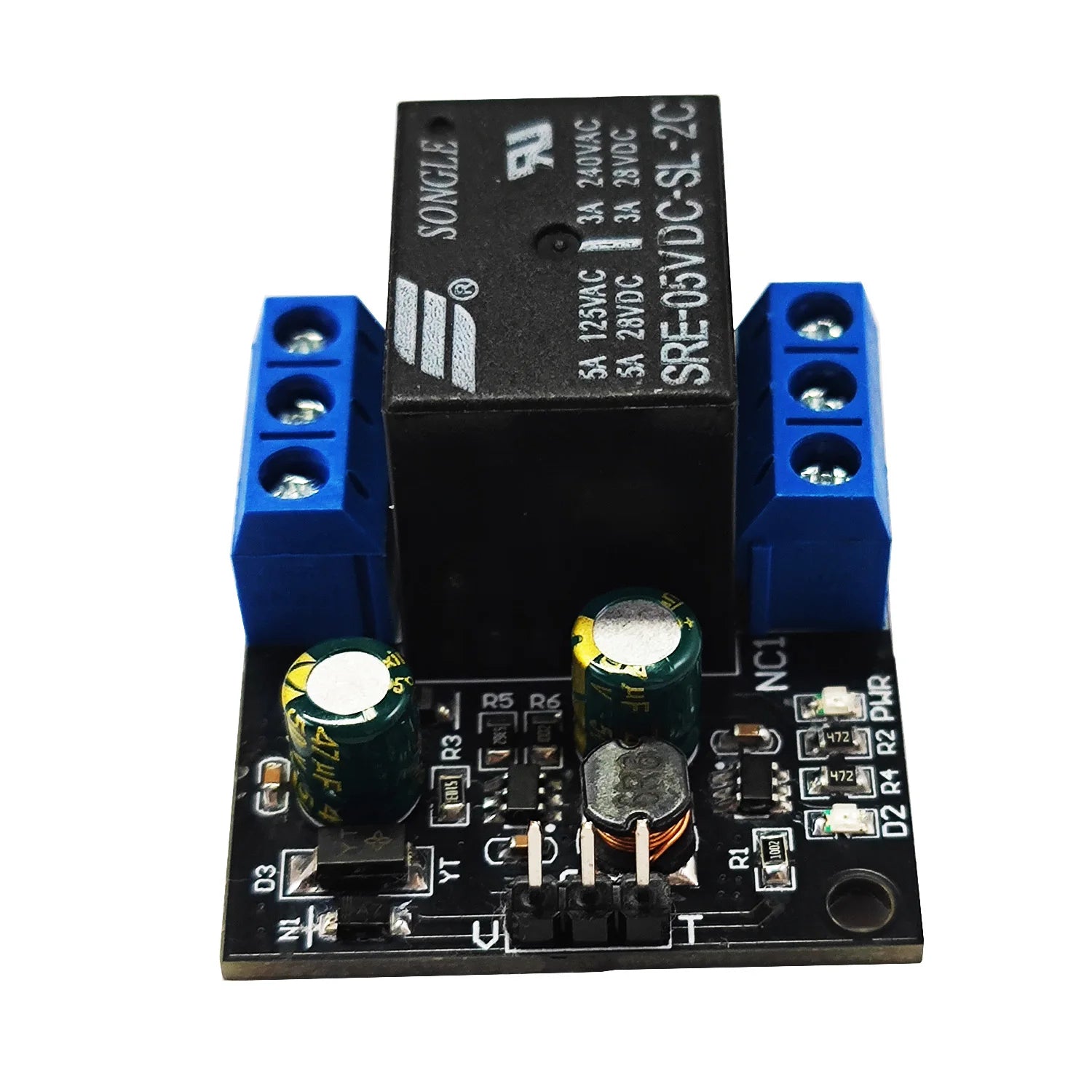

Module interface:
1. V positive power supply (VCC)
2. G negative power supply (GND)
3. T : Low pulse trigger(0.2-2 second low pulse trigger)

DPDT Relay outputs:
1. NO1: normally open relay interface
2. COM1: Common Interface Relays
3. NC1: normally closed relay interface
4. NO2: normally open relay interface
5. COM2: Common Interface Relays
6. NC2: normally closed relay interface

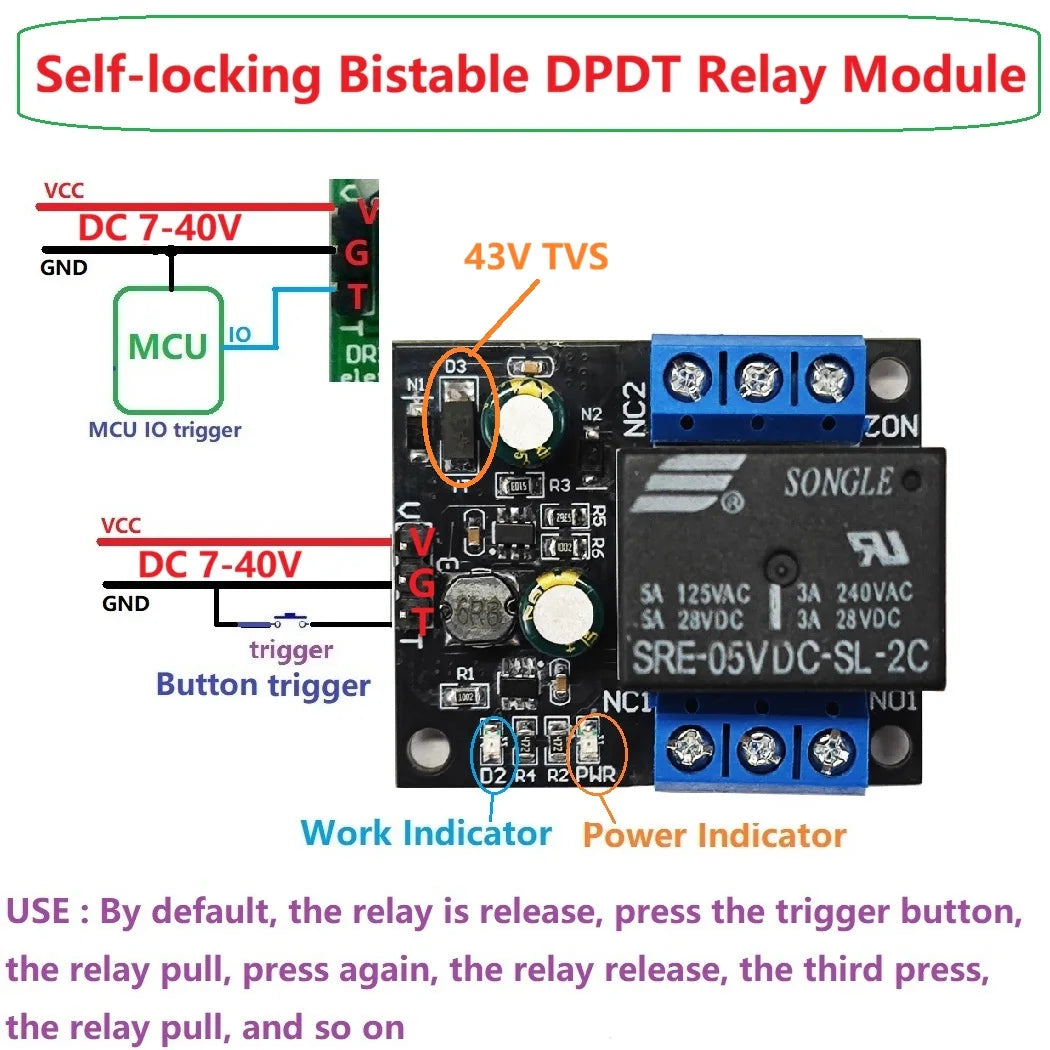

How to use:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

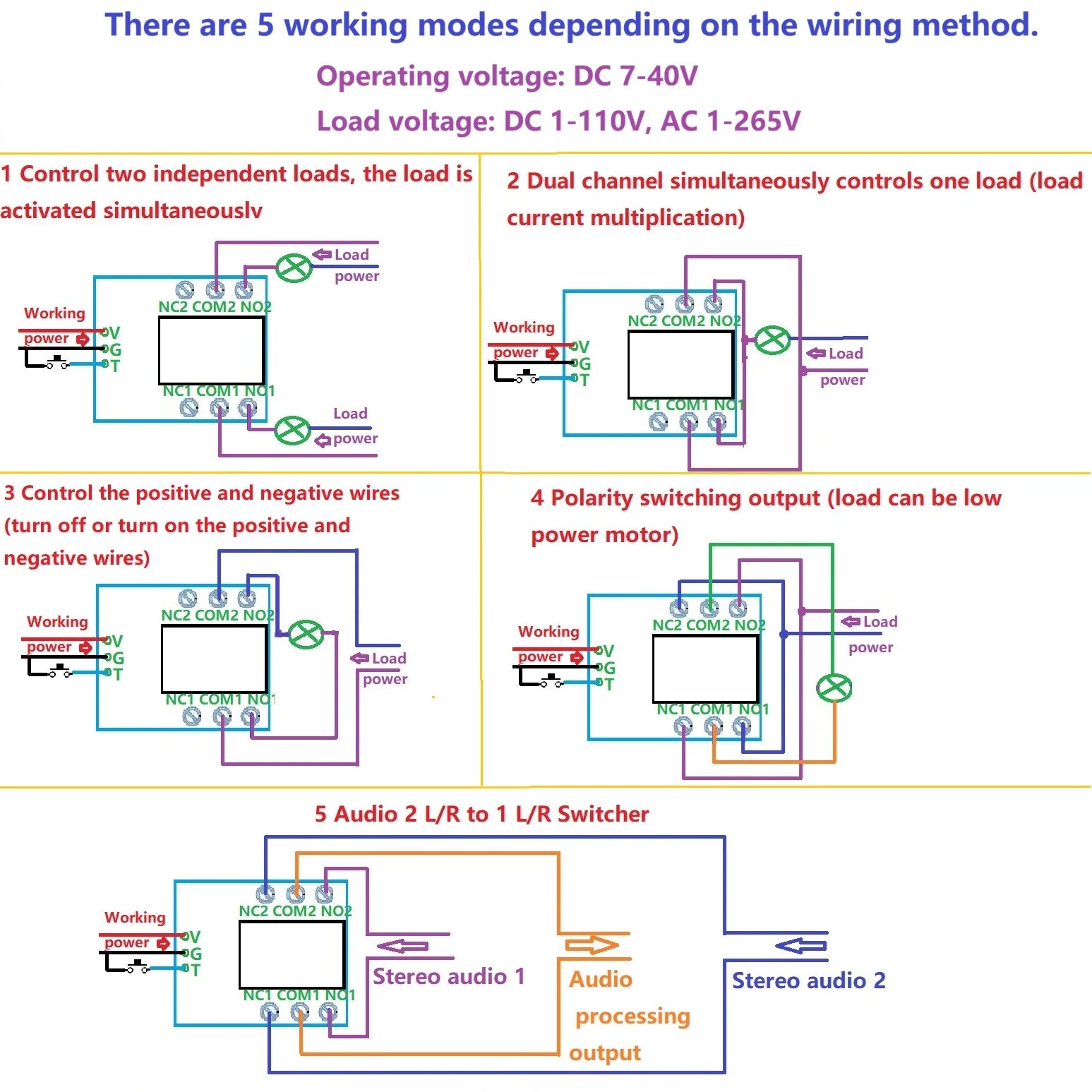

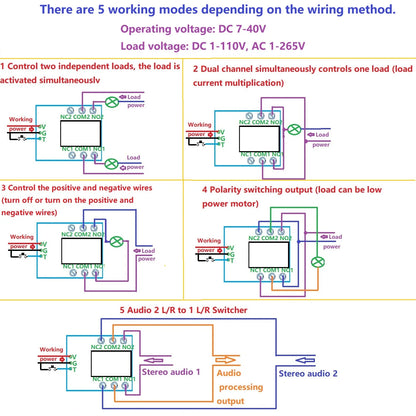

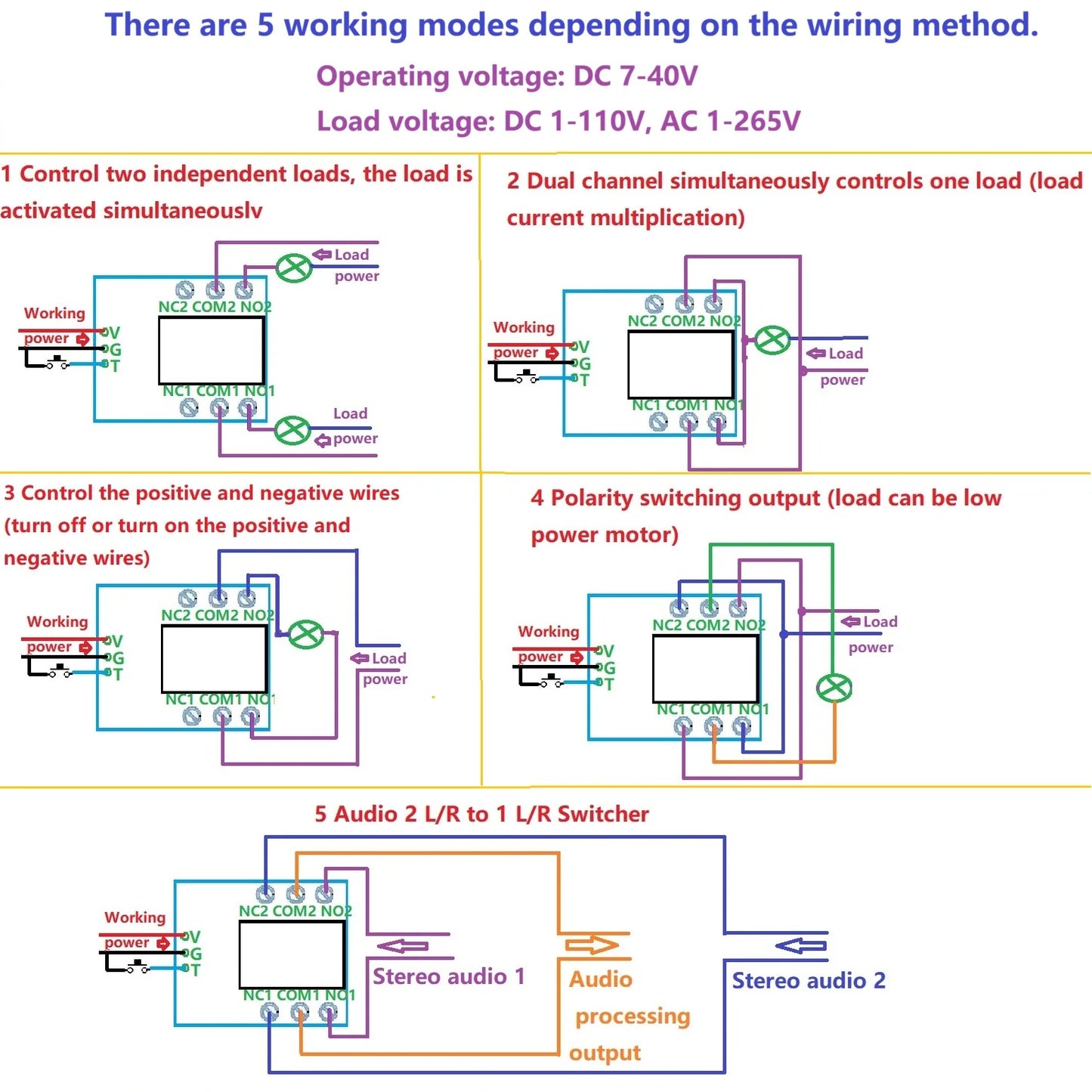

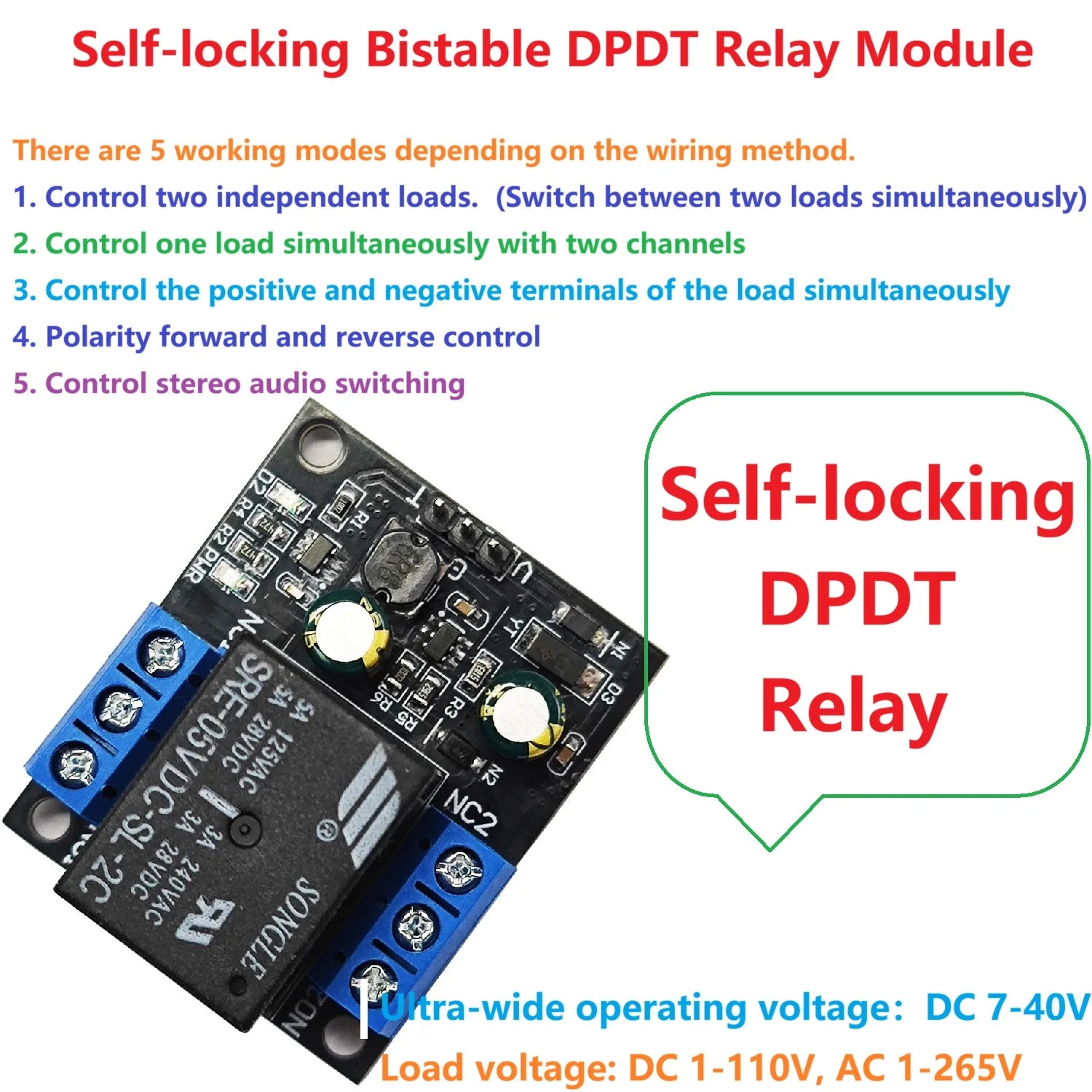

There are 5 working modes depending on the wiring method.
1. Control two independent loads. (Switch between two loads simultaneously)
2. Control one load simultaneously with two channels (doubles the load current)
3. Control the positive and negative terminals of the load simultaneously (completely cut off power)
4. Polarity forward and reverse control (can control motor forward and reverse rotation)
5. Control stereo audio switching

Typical applications:
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU development board
Toy car
Audio Mixer
