CE037 DTMF Dial Tones decoder with LCD Display MT8870 Audio Voice for Mobile phone key pad DTMF Encoder
CE037 DTMF Dial Tones decoder with LCD Display MT8870 Audio Voice for Mobile phone key pad DTMF Encoder
SKU:CE037
1000 in stock
Regular price
$15.89
Regular price
$15.89
Sale price
$15.89
Unit price
per
Couldn't load pickup availability
Eletechsup Module No.: CE037
Product Name:
DTMF Dial Tones decoder with LCD Display MT8870 Audio Voice for Mobile phone key pad DTMF Encoder
Package:
(
Does not include phone
):
1 PCS MT8870 DTMF Voice decoding display module;
1 PCS 50cm Male to Male audio cable ( 3.5mm jack );
Description:
Operating voltage: DC 5V
Operating current: turn on the backlight 15MA; turn off the backlight 11MA
Characters that can be displayed : 0123456789#*,ABCD
Display number of characters: maximum 32. More than 32 characters, the screen will move the display (New character overwrites Thirty-second characters, the thirty-second characters covering the Thirty-first characters ....... the second characters covering the first character, the first character disappears).

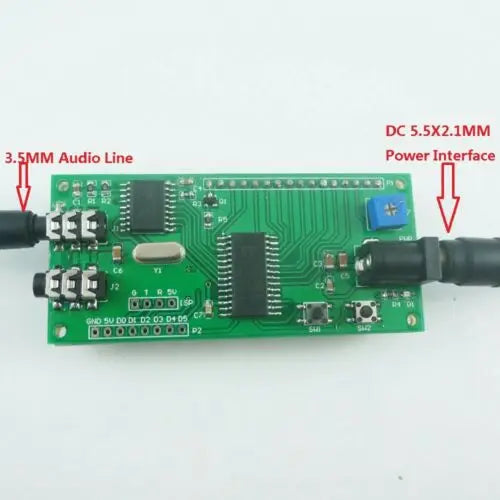

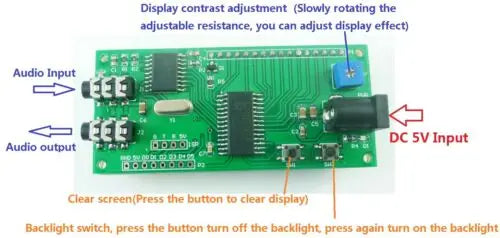

Power Interface: DC 5.5*2.1mm

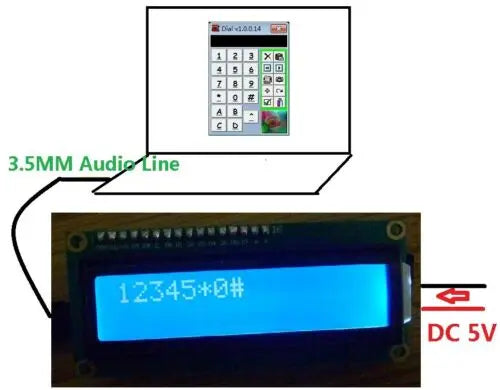

Audio Interface: 3.5MM audio cable
Dimensions: 80x36x24 (length x width x height)
Weight: 46 g
