DTMFA32 120-Byte DTMF Decoder LCD Display Audio Decoding Module MT8870 Smart Home Controller Board for Phone Walkie-talkie

DTMFA32 is a newly designed DTMF decoding display from eletechsup. Compared to the older model, it offers better performance and more powerful features. It includes overcurrent and overvoltage protection circuitry, provides superior decoding performance, and can decode 120 codes simultaneously.

Package:

1 PCS DTMFA32 DTMF Voice decoding display module;
1 PCS 50cm Male to Male audio cable (3.5mm jack );

Description:

Operating voltage: DC 5V (4.5-5.5V)
Operating current: turn on the backlight 28MA; turn off the backlight 12MA

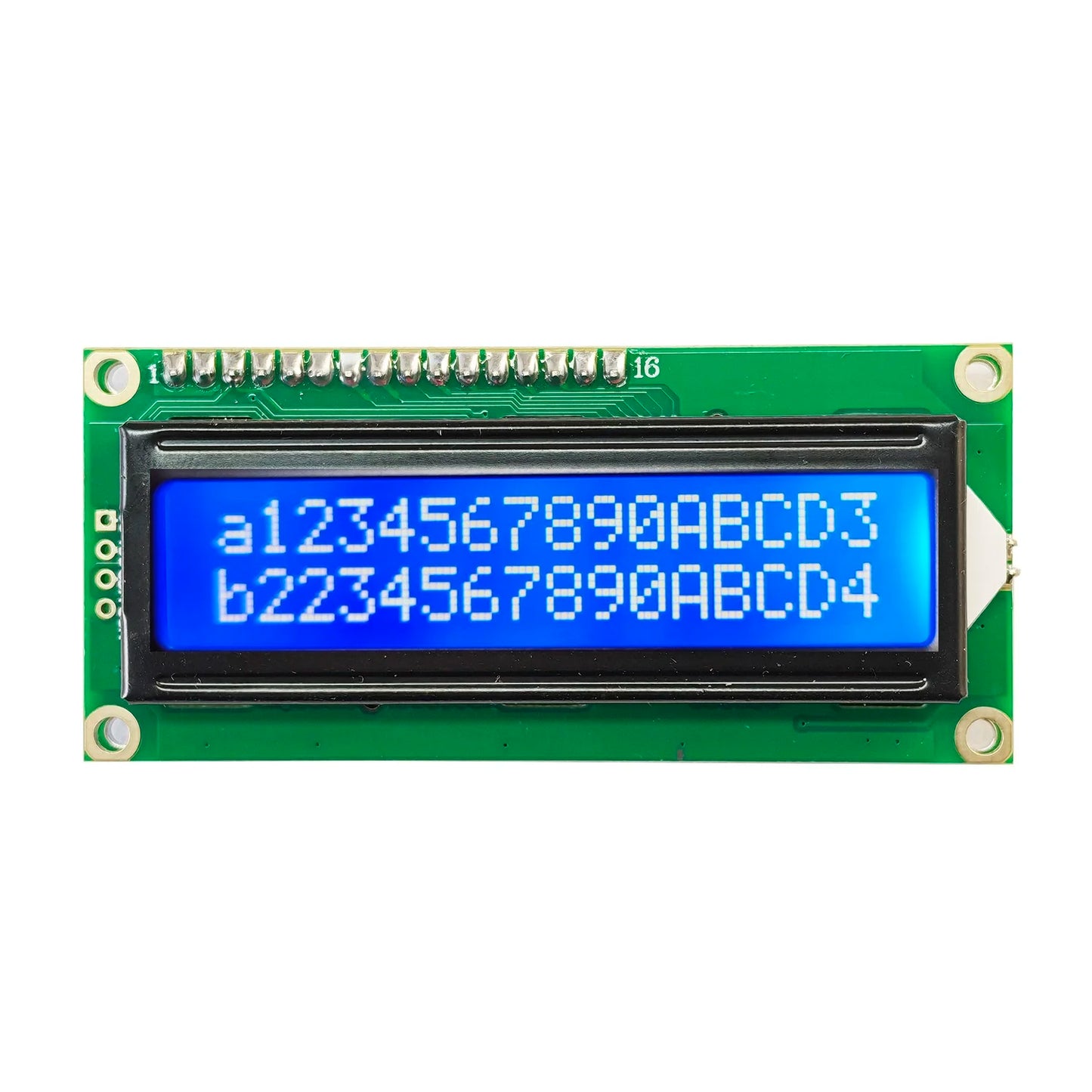

Characters that can be displayed : 0123456789#*,ABCD
Display number of characters: maximum 32. More than 32 characters, the screen will move the display (New character overwrites Thirty-second characters, the thirty-second characters covering the Thirty-first characters ....... the second characters covering the first character, the first character disappears).
Power Interface: DC 5.5*2.1mm
Audio Interface: 3.5MM audio cable
Dimensions: 80x36x24MM (length x width x height)
Weight: 46 g

Note: If used with a walkie-talkie, since many walkie-talkies have poor audio quality, please ensure that the walkie-talkie can transmit clear DTMF encoding; otherwise, it cannot be decoded.
