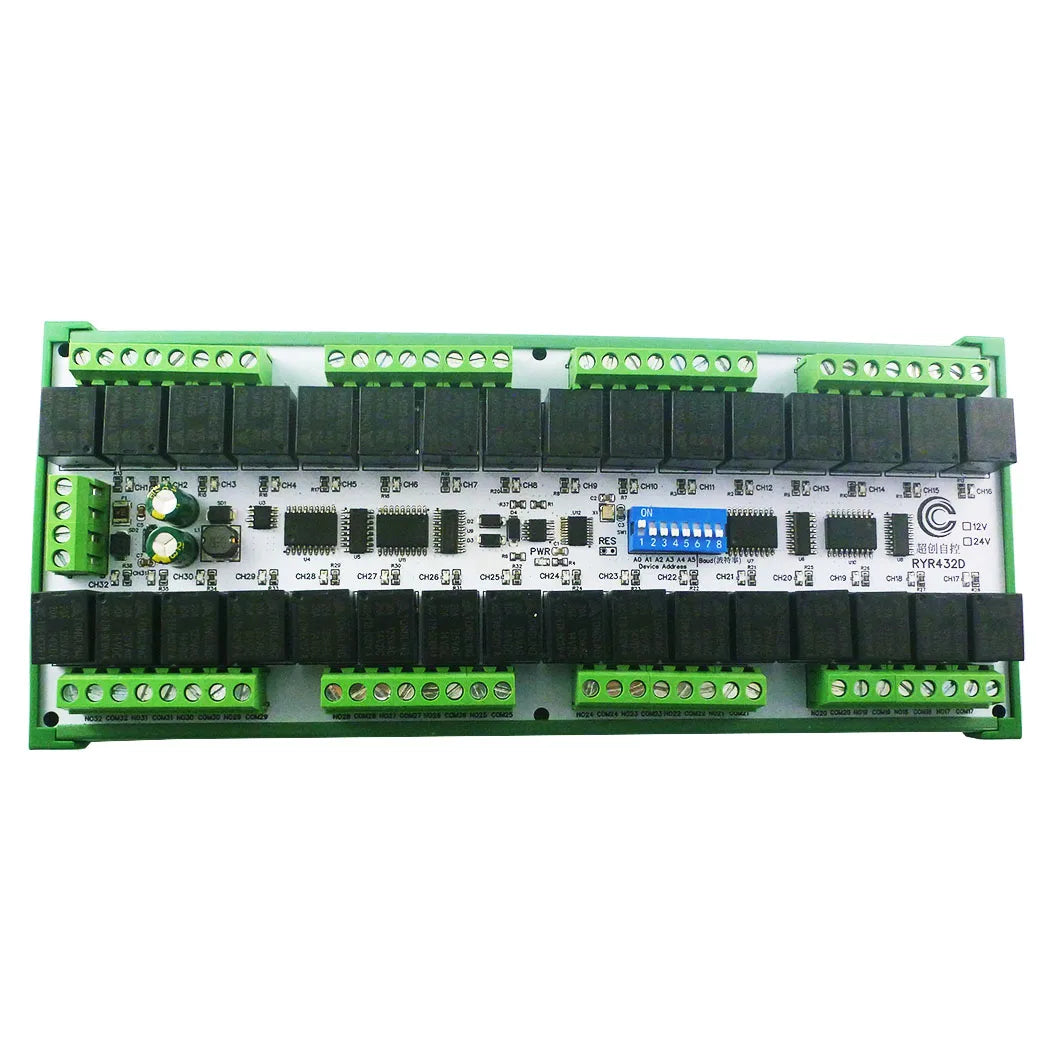

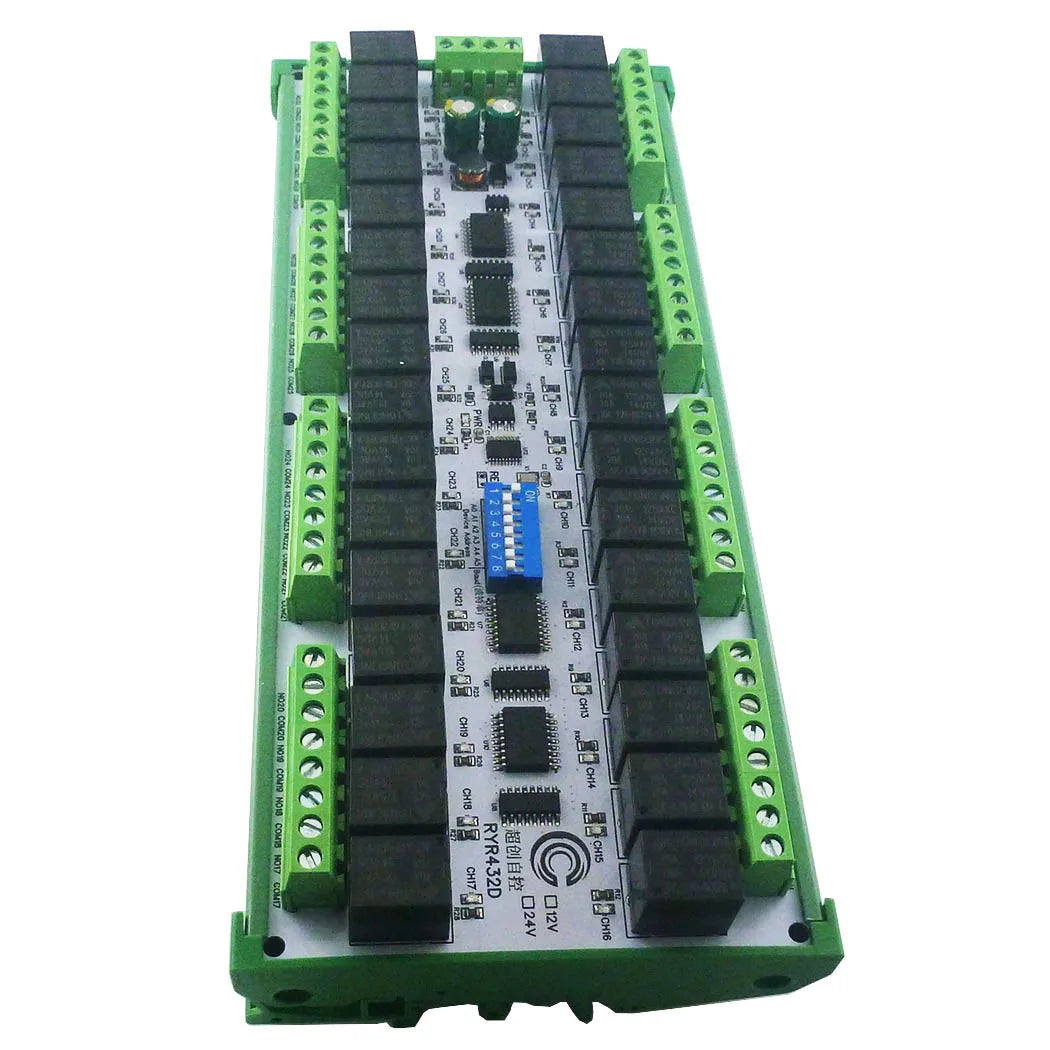

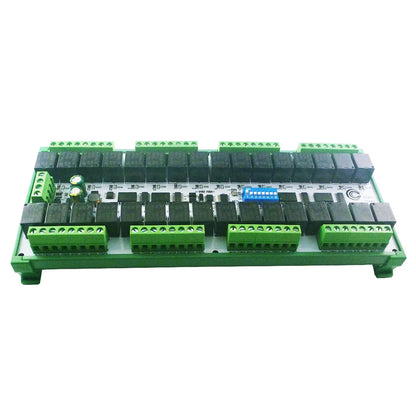

RYR432D Easy to Install DIN Rail Box DIP Switch Setup Parameters DC 12V 24V 20A 32CH Modbus RTU RS485 Relay Module RYR432D
RYR432D Easy to Install DIN Rail Box DIP Switch Setup Parameters DC 12V 24V 20A 32CH Modbus RTU RS485 Relay Module RYR432D
SKU:RYR432D_R_12V
998 in stock
Regular price
$45.99
Regular price
$61.41
Sale price
$45.99
Unit price
per
Couldn't load pickup availability
Product Title:
12V 24V 20A 32CH RS485 Relay Module Multifunction Modbus RTU Switch PLC Remote IO Board
Product List: 1PCS 12V 24V 20A 32CH RS485 Relay Module Modbus RTU Board
(Specific according to the version and quantity you choose)
Description:

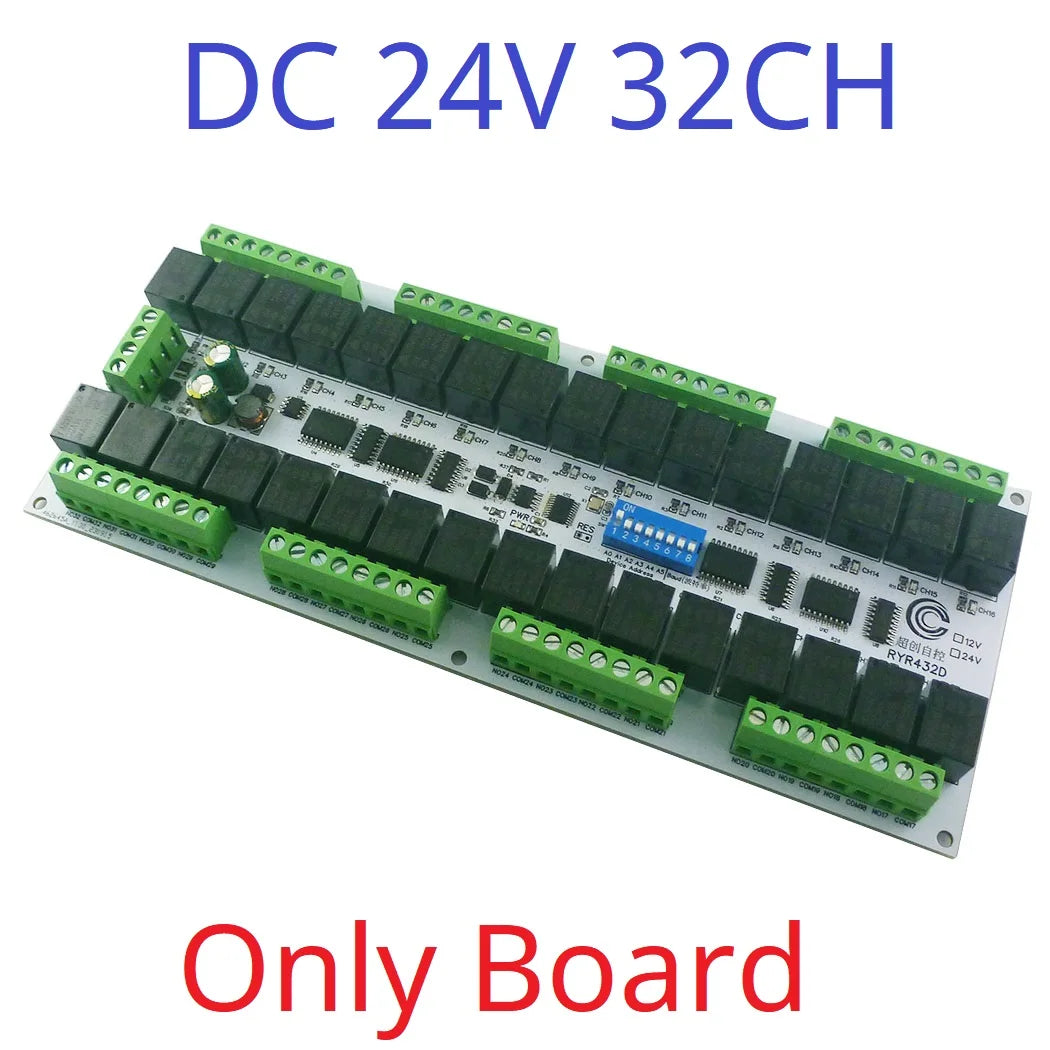

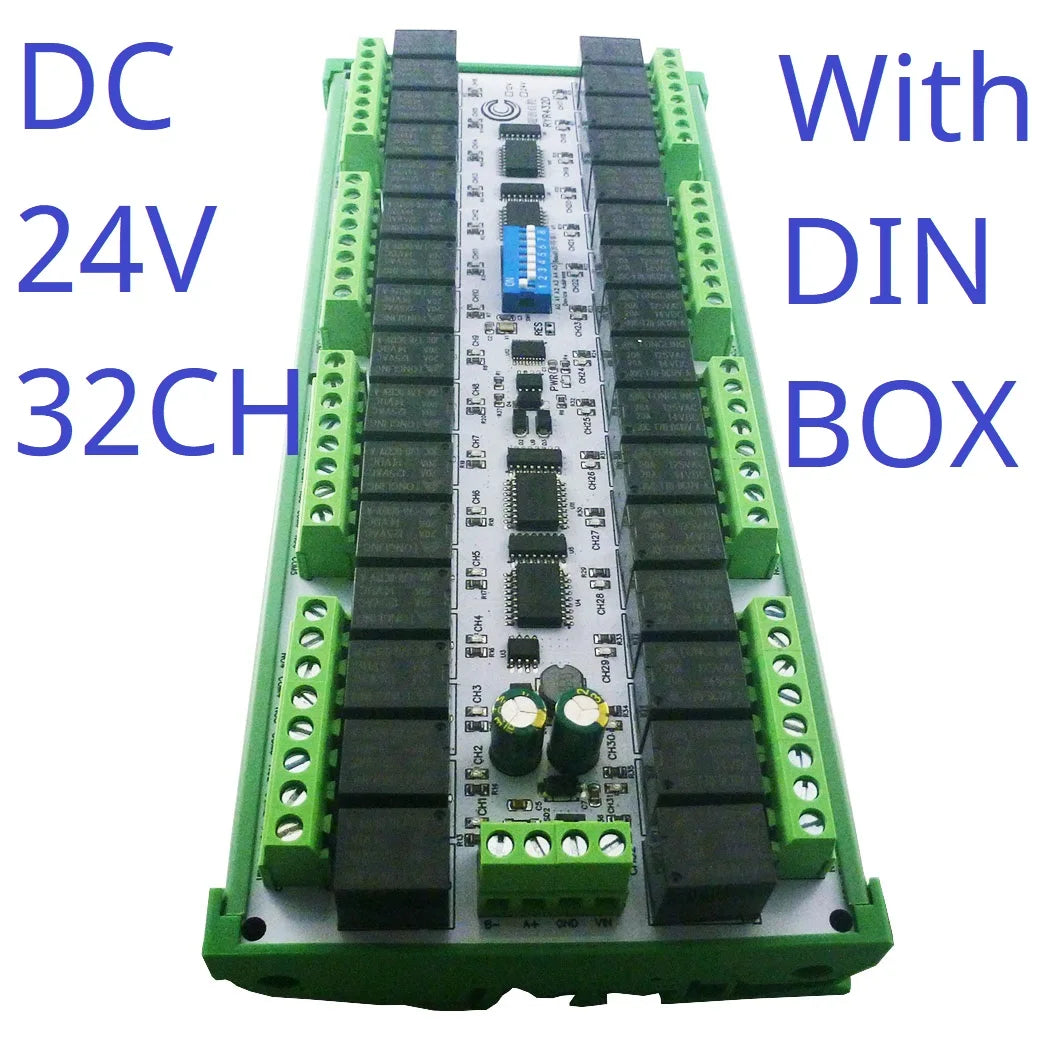

1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,ALL relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

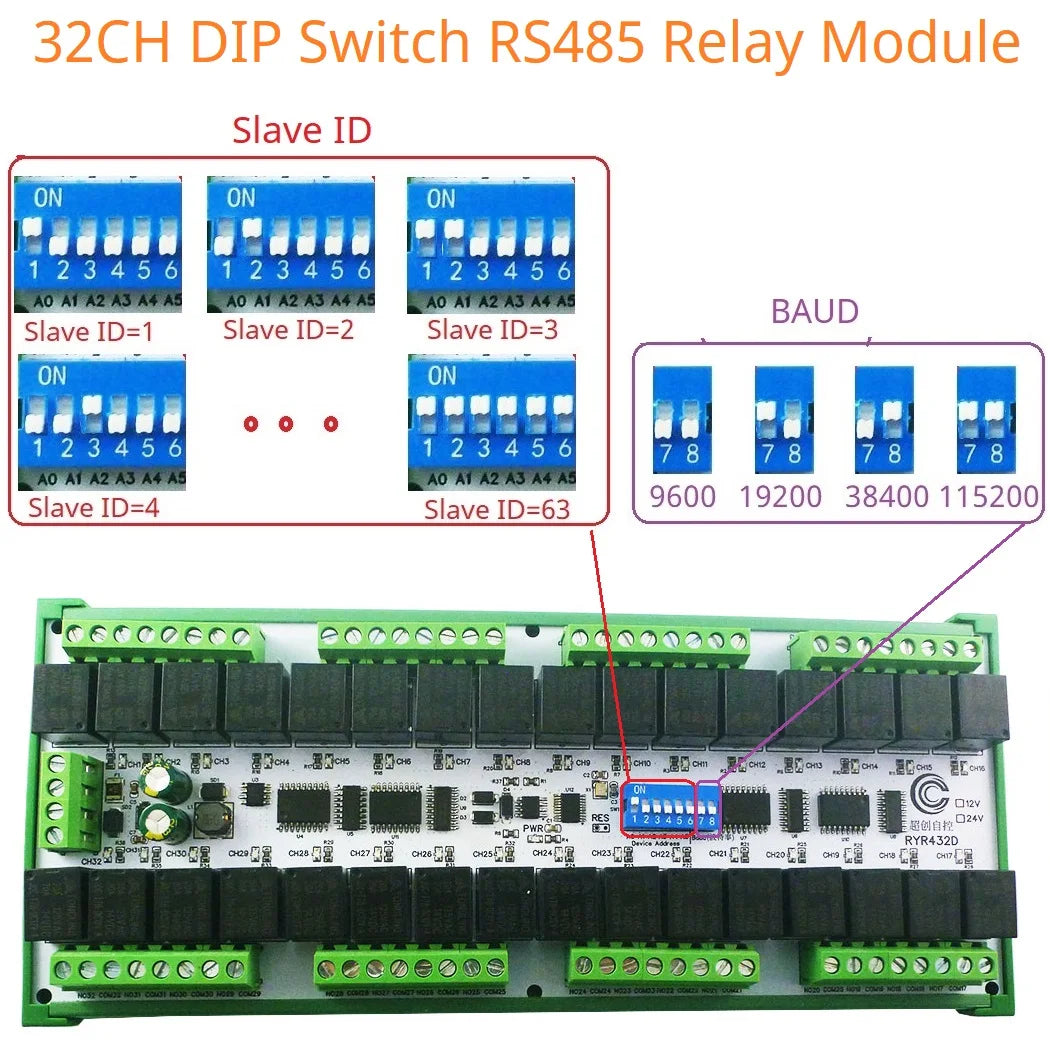

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

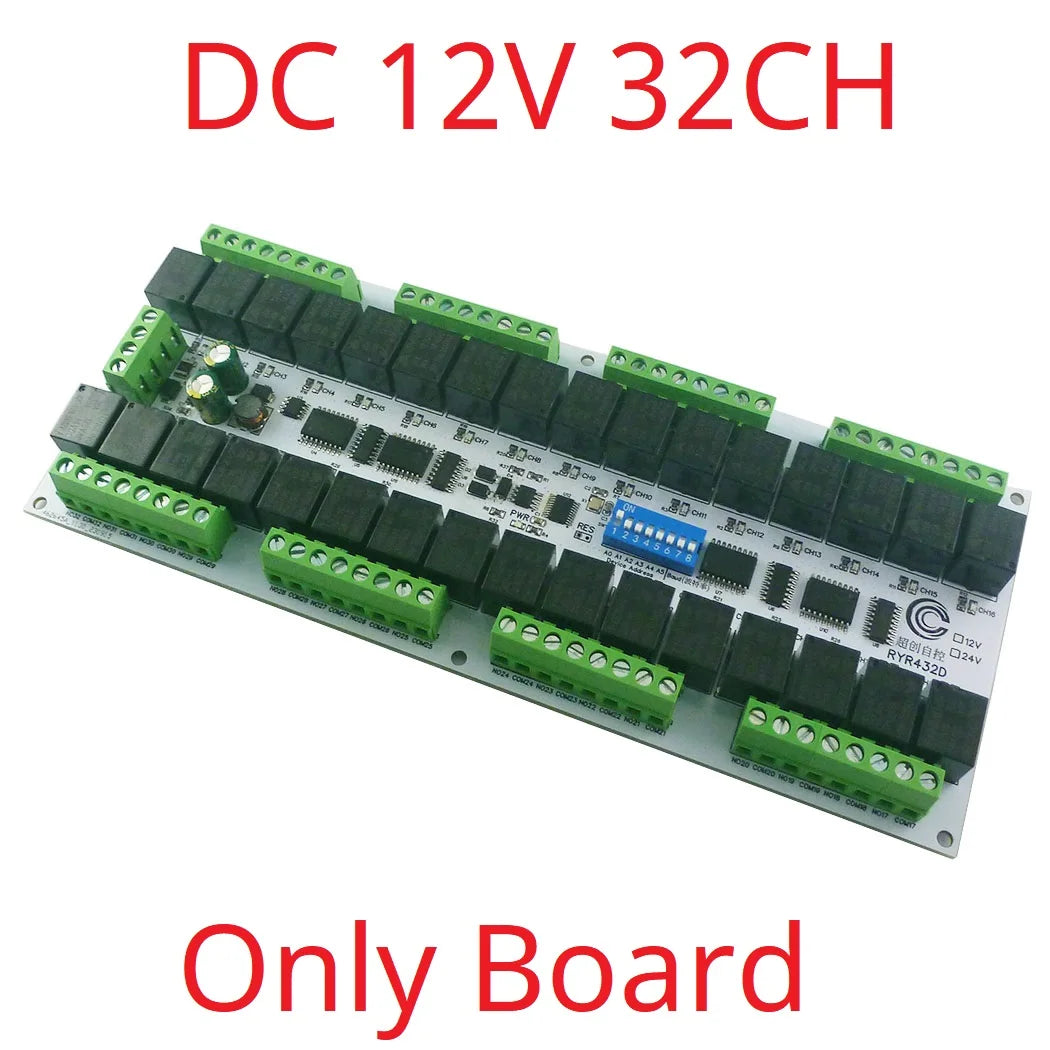

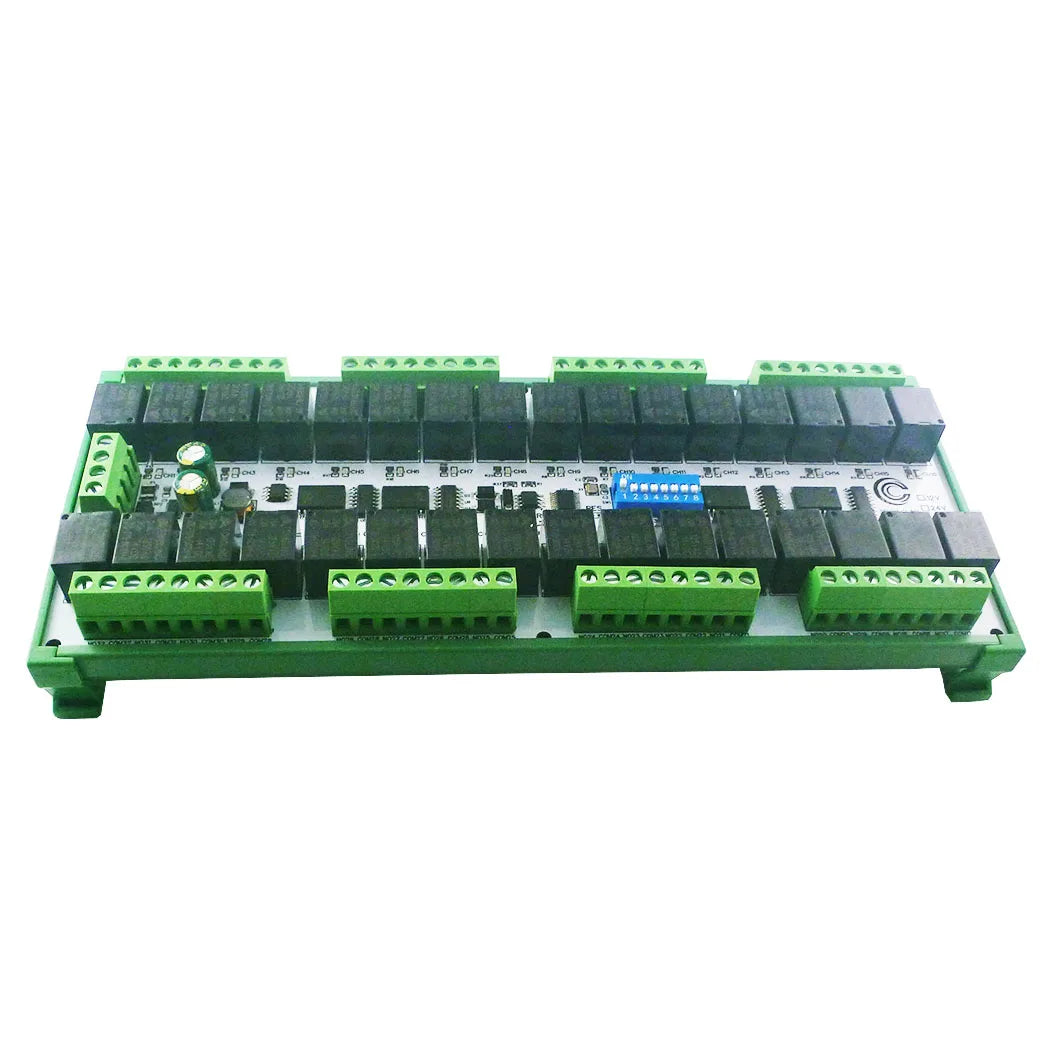

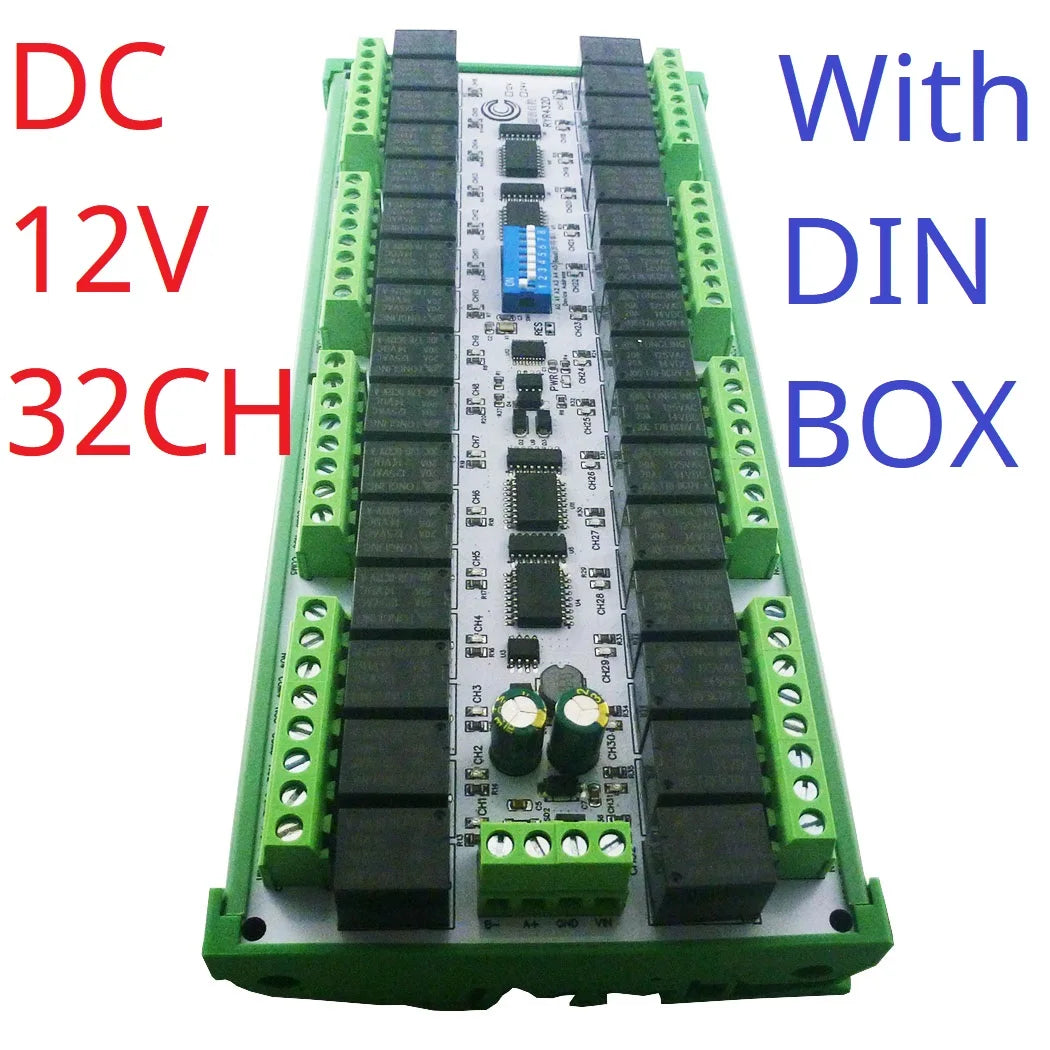

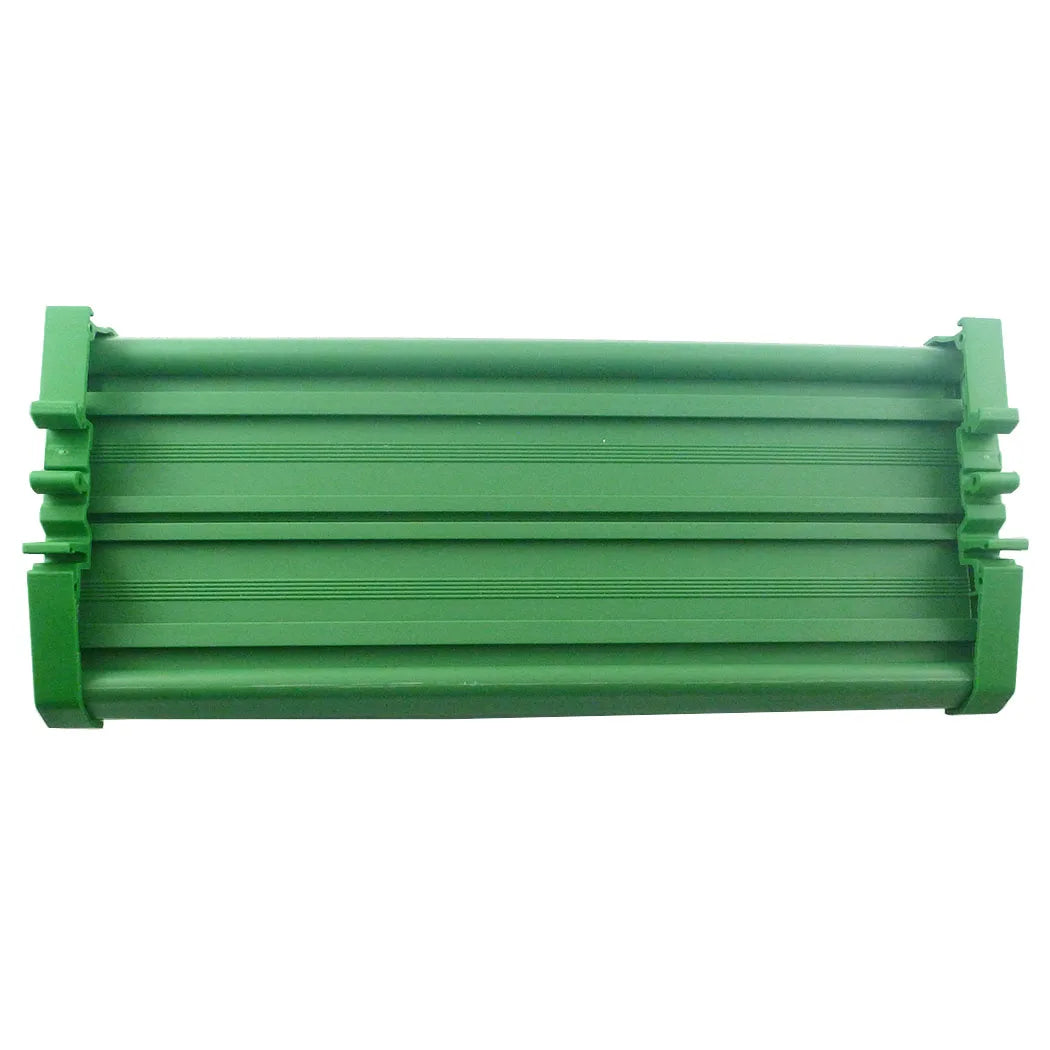

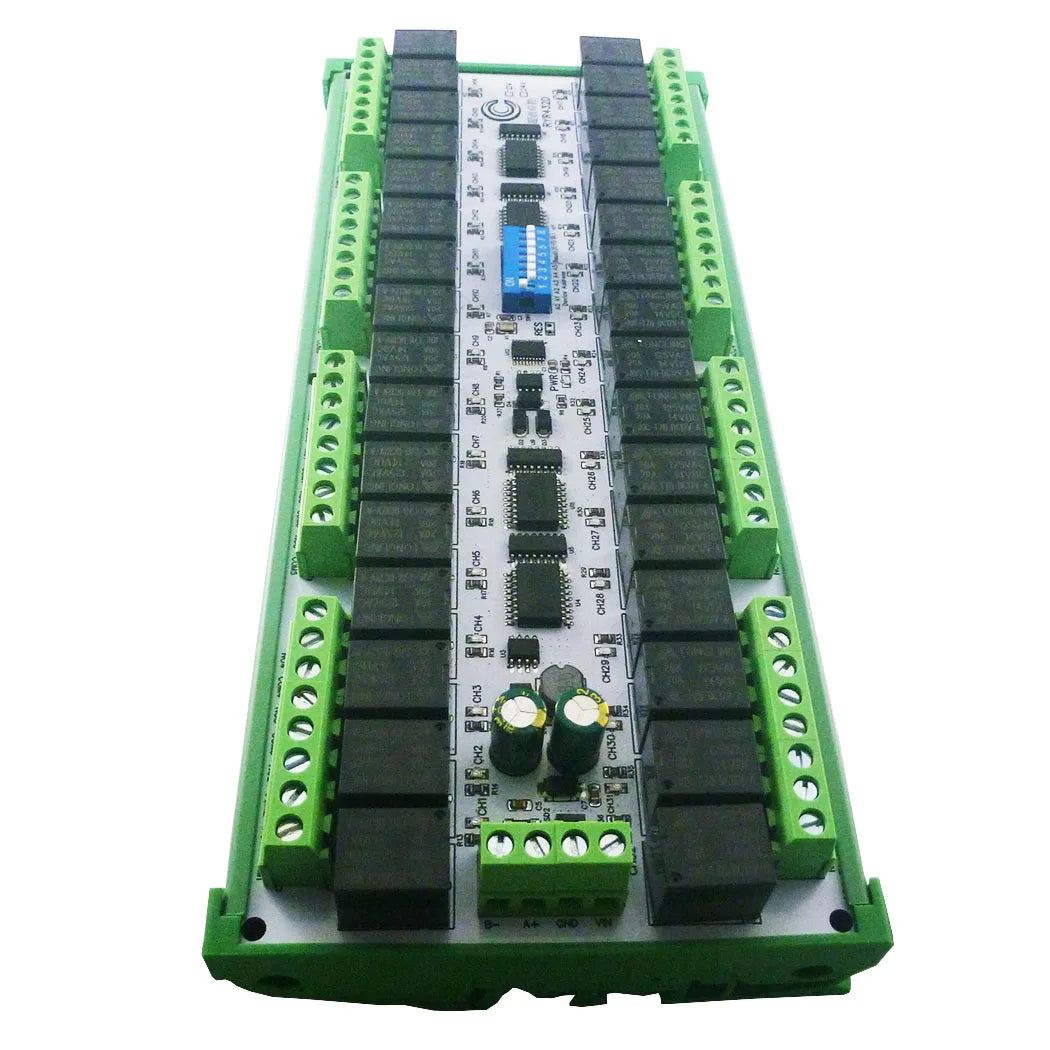

10 Size : 224*90*16MM(Only Board);228*106*36MM(With DIN Box);
11 Weight : 330g(Only Board),447g(With DIN Box)
12 Maximum load: 7A 120VAC;10A 28VDC
For more information, please contact me
Application
Product List: 1PCS 12V 24V 20A 32CH RS485 Relay Module Modbus RTU Board
(Specific according to the version and quantity you choose)
Description:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,ALL relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd
10 Size : 224*90*16MM(Only Board);228*106*36MM(With DIN Box);
11 Weight : 330g(Only Board),447g(With DIN Box)
12 Maximum load: 7A 120VAC;10A 28VDC
For more information, please contact me
Application
PLC IO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
