ES30G29 Transparent Cover ESP32 Devkit Expansion Board Din Rail 5.0 Cross Terminal Block Adapter Module for Bluetooth Arduino Wifi IOT
ES30G29 Transparent Cover ESP32 Devkit Expansion Board Din Rail 5.0 Cross Terminal Block Adapter Module for Bluetooth Arduino Wifi IOT
SKU:ES30G29
1000 in stock
Regular price
$9.99
Regular price
$14.14
Sale price
$9.99
Unit price
per
Couldn't load pickup availability
ES30G29 is a 30-pin ESP32 expansion board designed and produced by eletechsup. It has a DC-DC conversion circuit and can be powered by a DC 6-28V wide voltage. All IO ports are brought out and the second function is marked. It uses a transparent upper cover. While protecting the board, it is also convenient for development and design.
Note: Due to the material, the transparent cover is easy to attract fingerprints and scratches. However, this shell is very strong and durable.

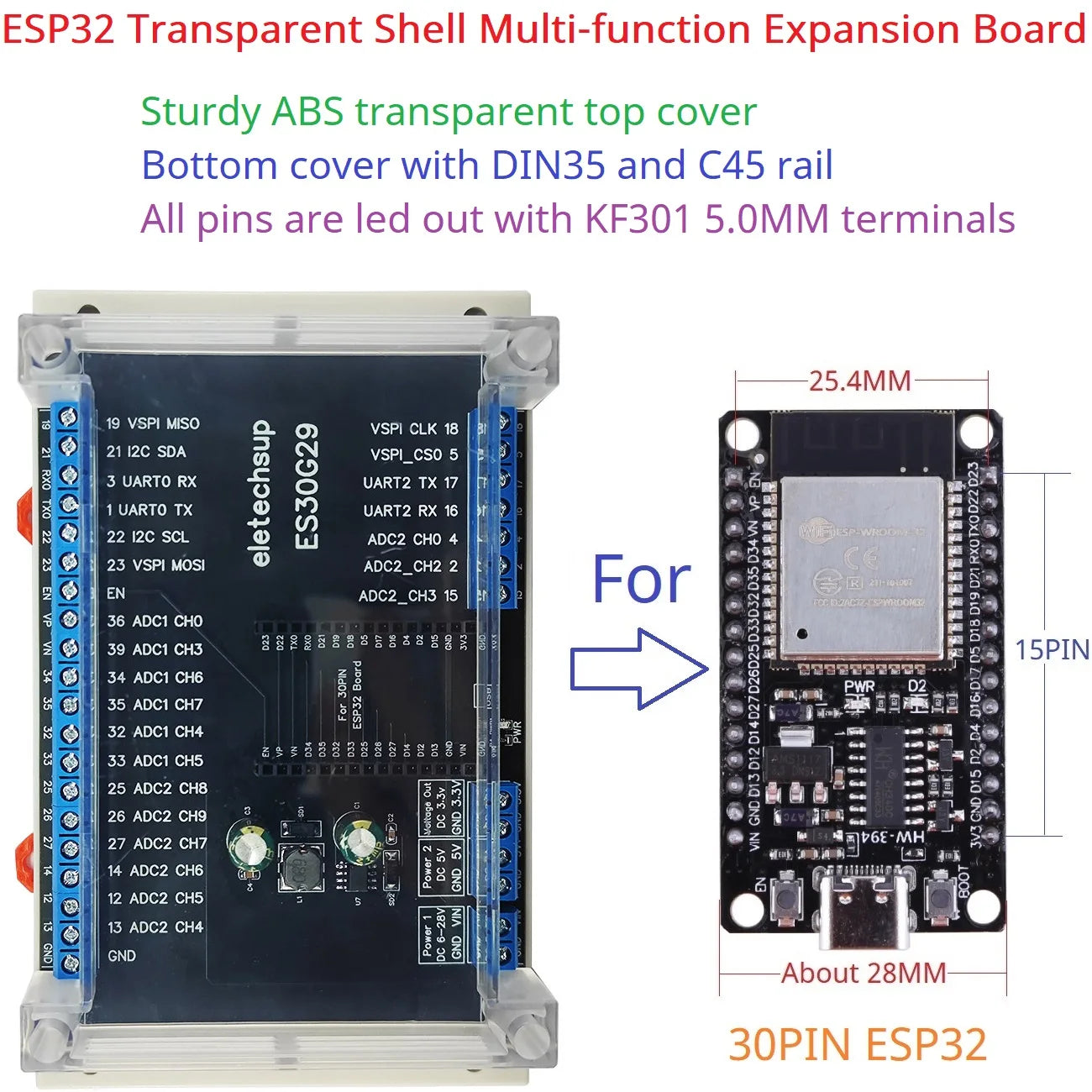

This is a 30PIN ESP32 Transparent ABS Shell expansion board, which leads out all the IO ports.
30PIN ESP32 Transparent Shell Multi-function Expansion Board

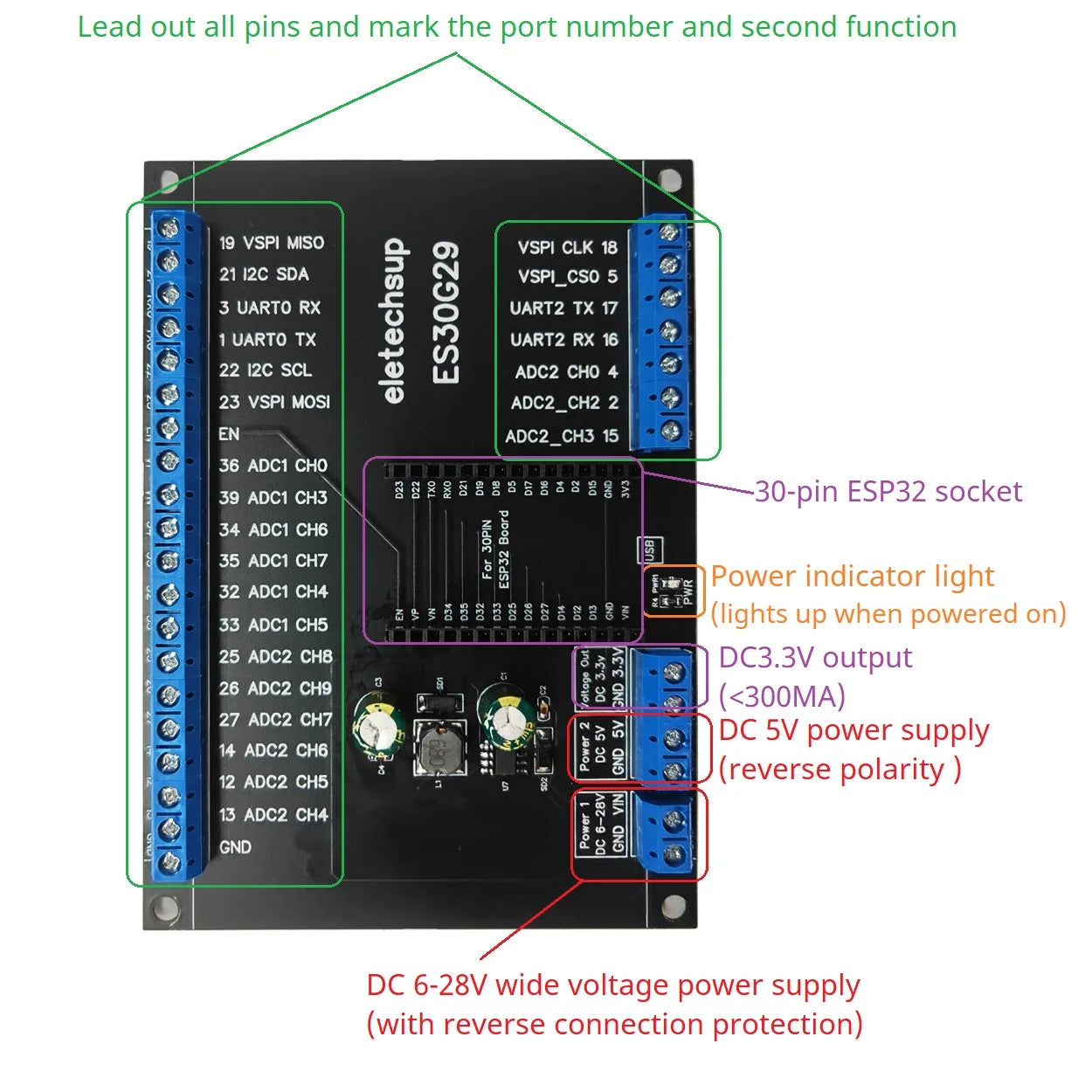

Dual power supply (use only one): DC 6-28V/DC 5V
1 Channel 3.3V 300mA power output (depends on ESP32 board)
Lead out all ports and identify the port number and secondary function
Sturdy ABS transparent top cover
Bottom cover with DIN35 and C45 rail
Terminal spacing: 5.0mm.
Terminal Blocks: Wire Range 22-14AWG, Strip Length 5.0mm, Metric M2.5/M3 Phillips screwdriver

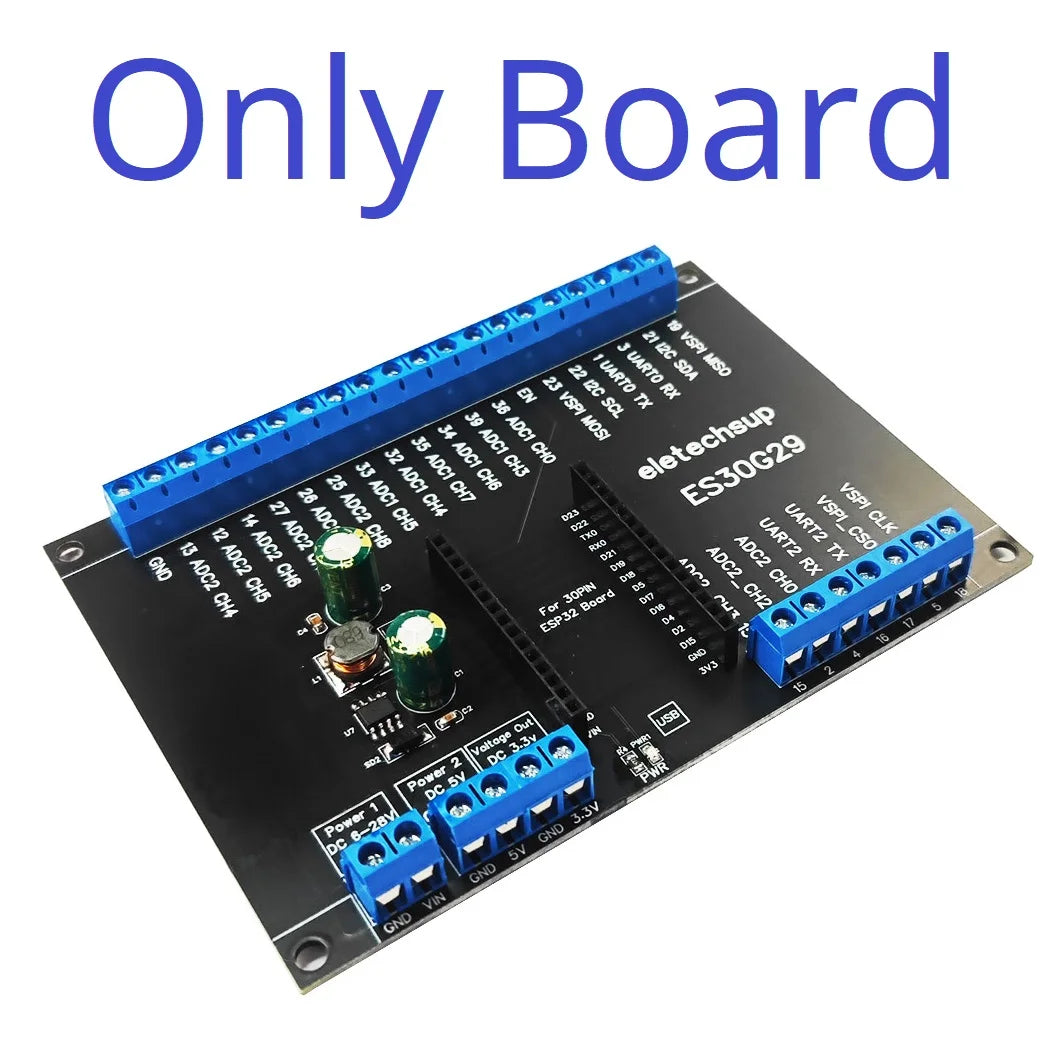

Size: 122 *88 * 13mm(only Board),145X90X40mm(with Case)
Weight: 66g(only Board),159g(with Case)
Use:
Transparent ABS Shell Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.
Notice:

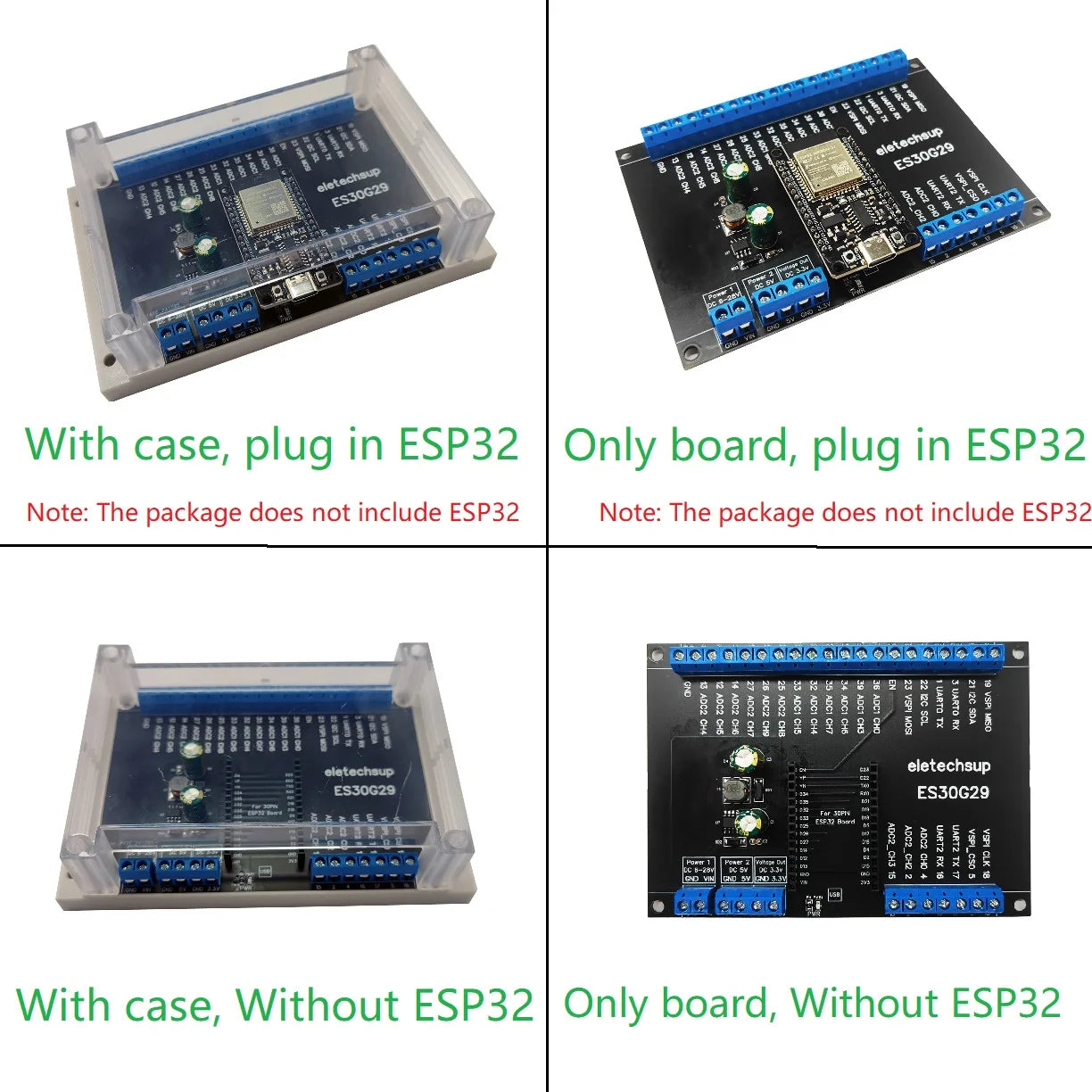

1 This product does not include the ESP32 Board

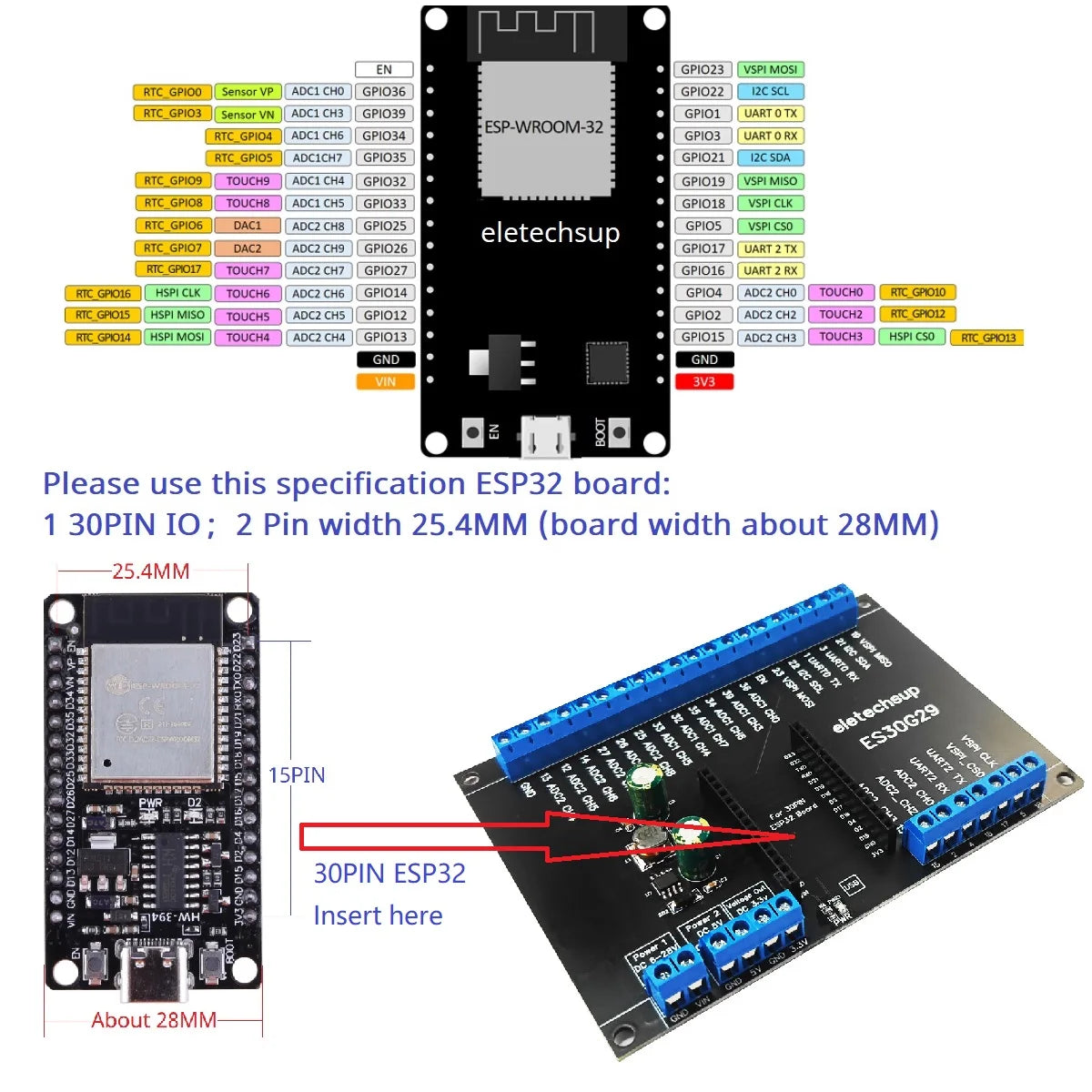

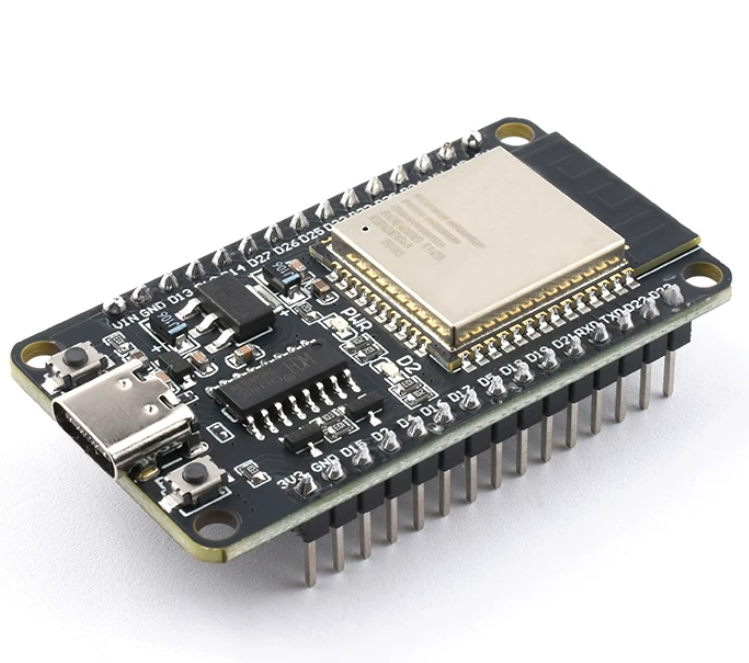

2 Please use 30PIN ESP32,Pin width 25.4MM (Board width about 28MM)

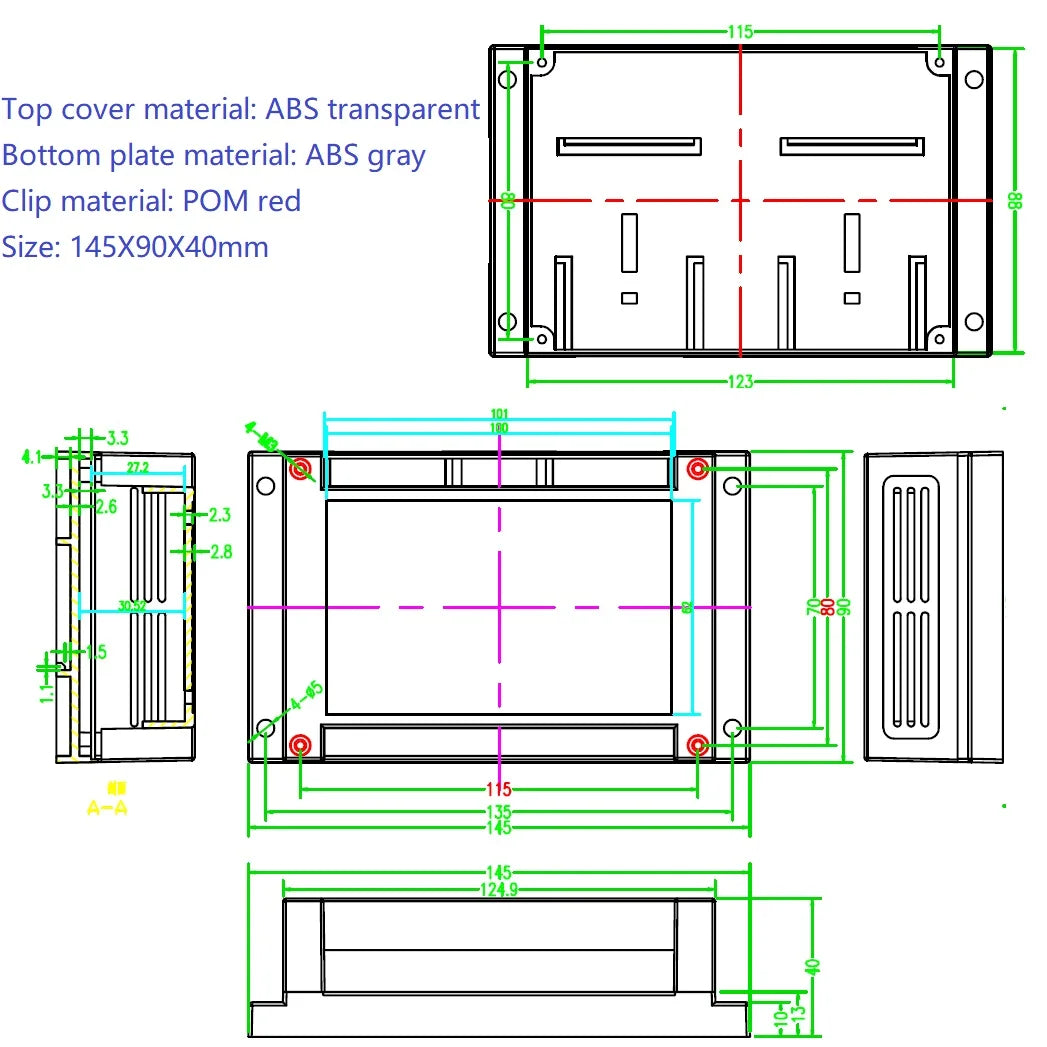

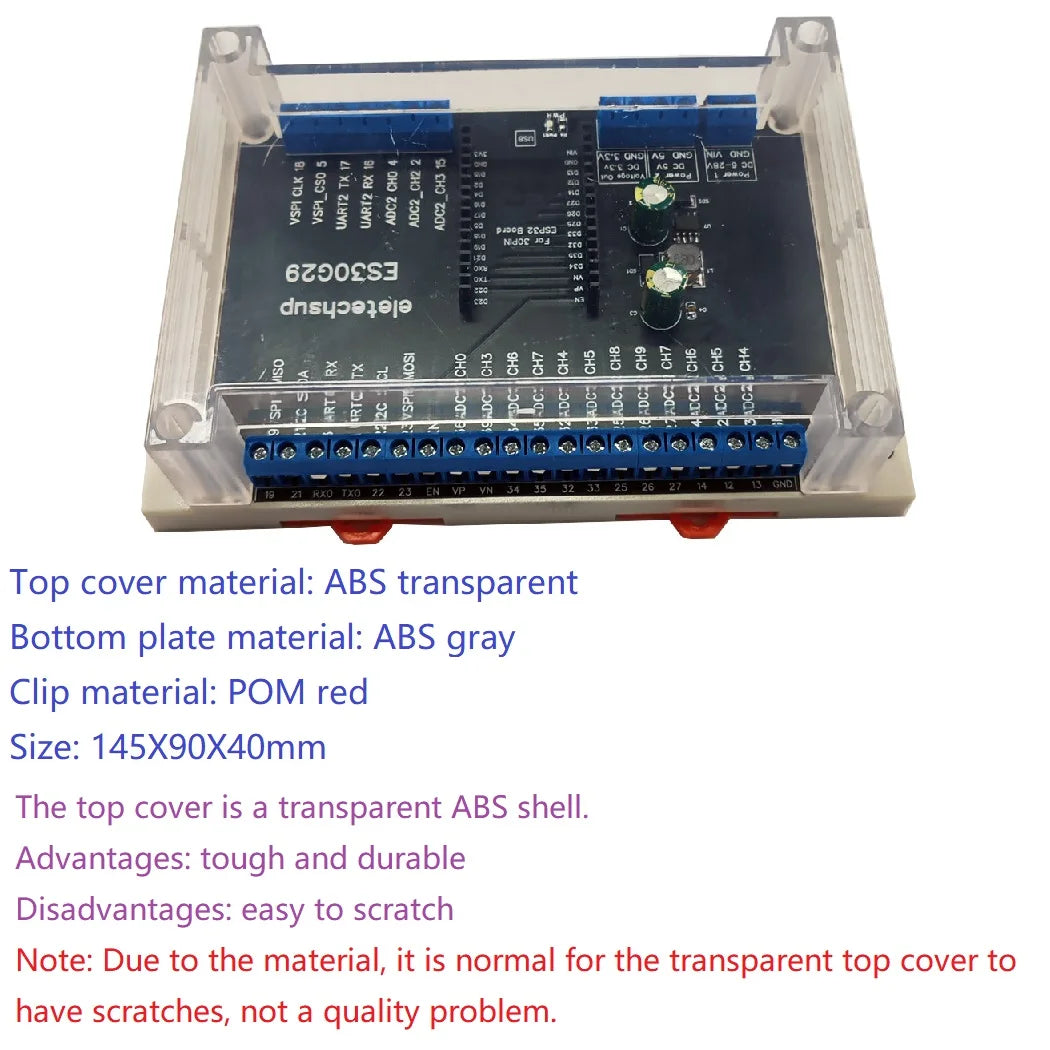

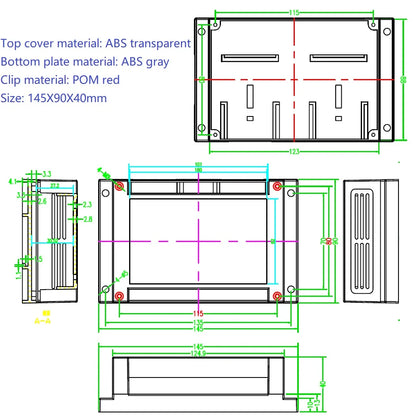

Top cover material: ABS transparent
Bottom plate material: ABS gray
Clip material: POM red
Size: 145X90X40mm
The top cover is a transparent ABS shell.
Advantages: tough and durable
Disadvantages: easy to scratch

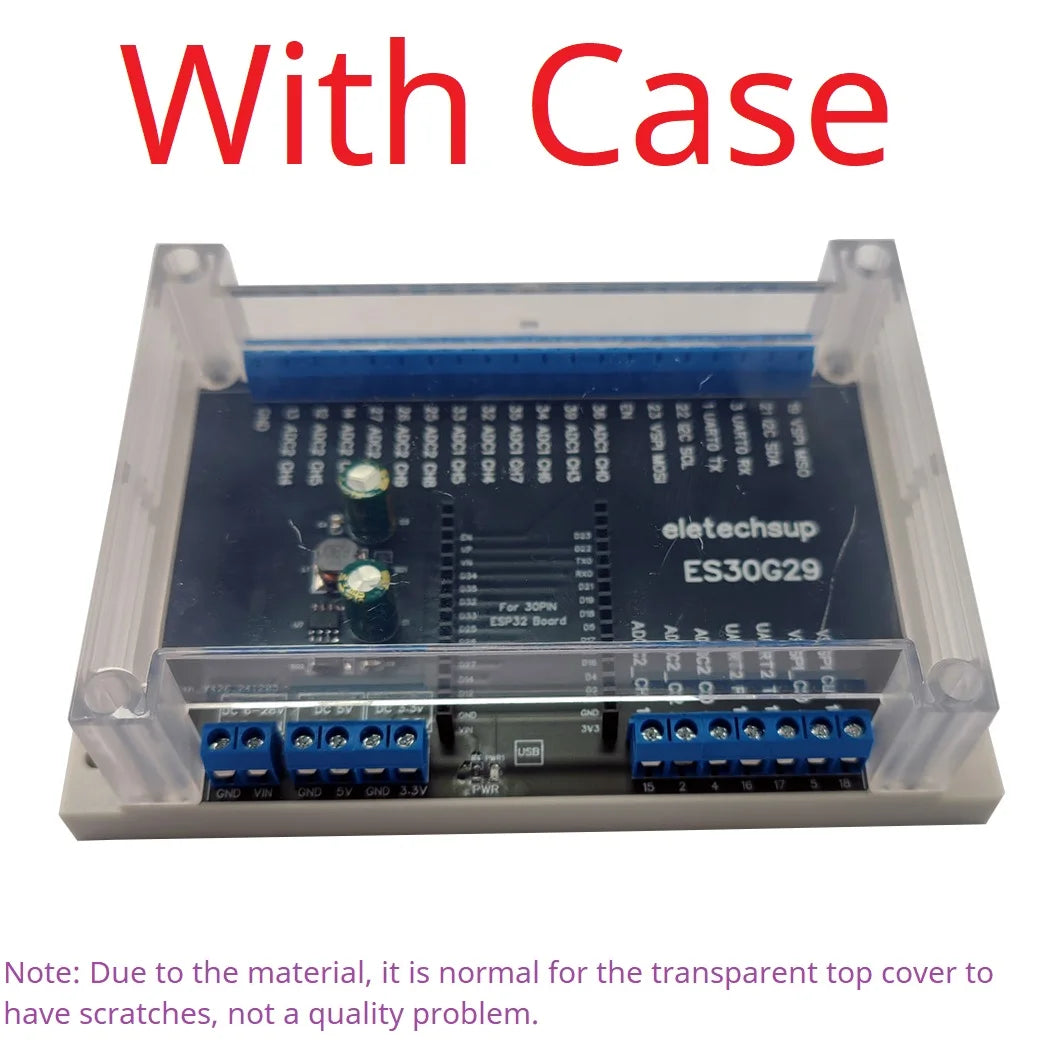

Note: Due to the material, it is normal for the transparent top cover to have scratches, not a quality problem.
