ES38485 ESP32 DevkitC V4 DIN Rail Expansion Board RS485 to WiFi 38PIN PLC HMI Ethernet BLE Smart Home Development Board for IoT Projects

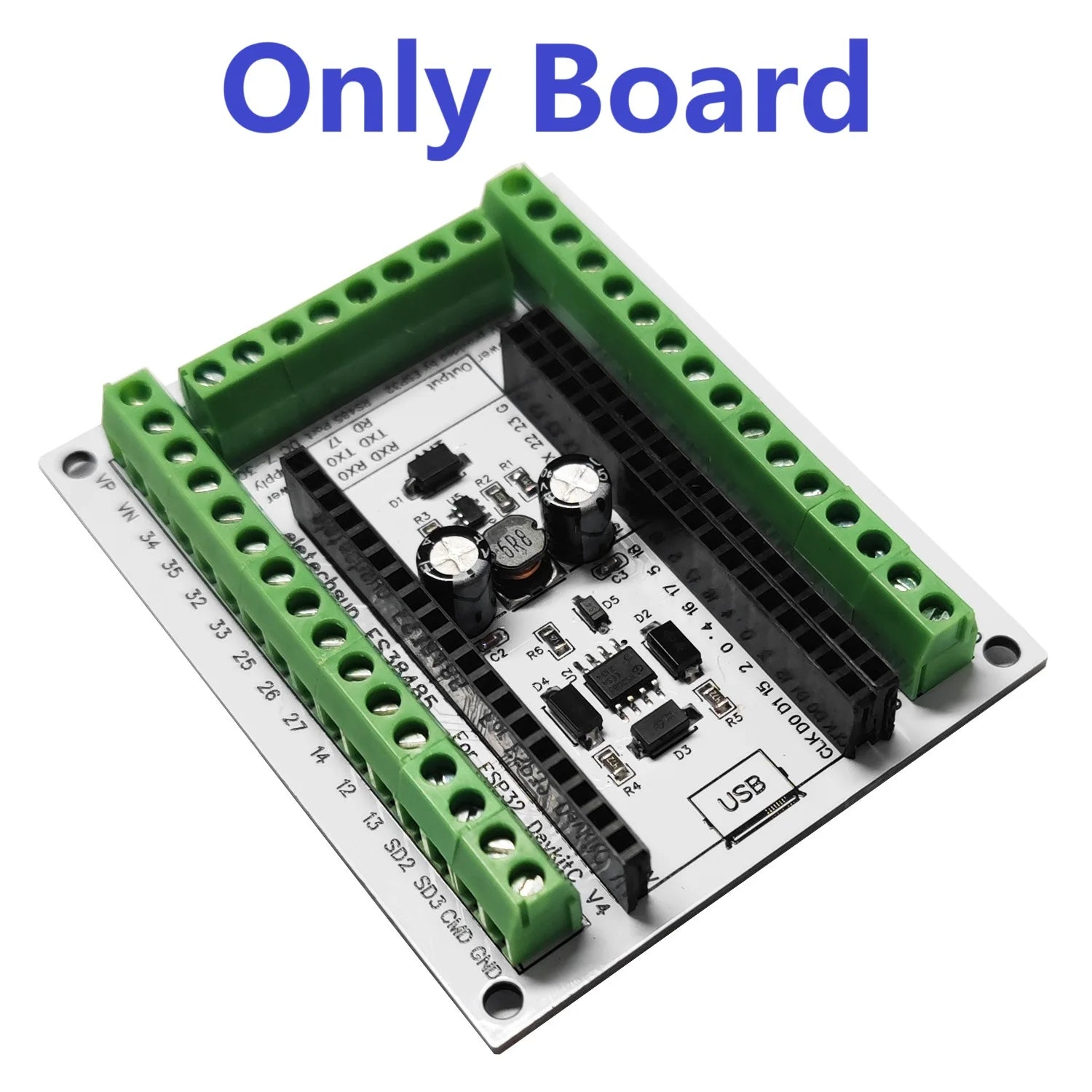

ES38485 is a 38-pin ESP32(Espressif ESP32 DevkitC v4) expansion board with RS485 bus interface produced by ELETECHSUP. It lead out all the useful pins except the 3 ports required for RS485. In addition, it also has a wide voltage step-down circuit and can be powered by DC 7-30V. When plugged into the ESP32 board, it becomes a cost-effective main control board with WIFI and RS485.

38PIN ESP32(ESP32 DevkitC v4) RS485 Expansion board
1 Working voltage DC 7-30V, input reverse polarity protection.
2 With DC 5V external output power supply, minimum output current 0.5A, output short circuit protection.
3 DC 3.3V/100MA outputpower supply(output only after inserting ESP32 board)
4 Lead out almost all IO ports (Except RS485 PIN IO1/IO3/IO17)

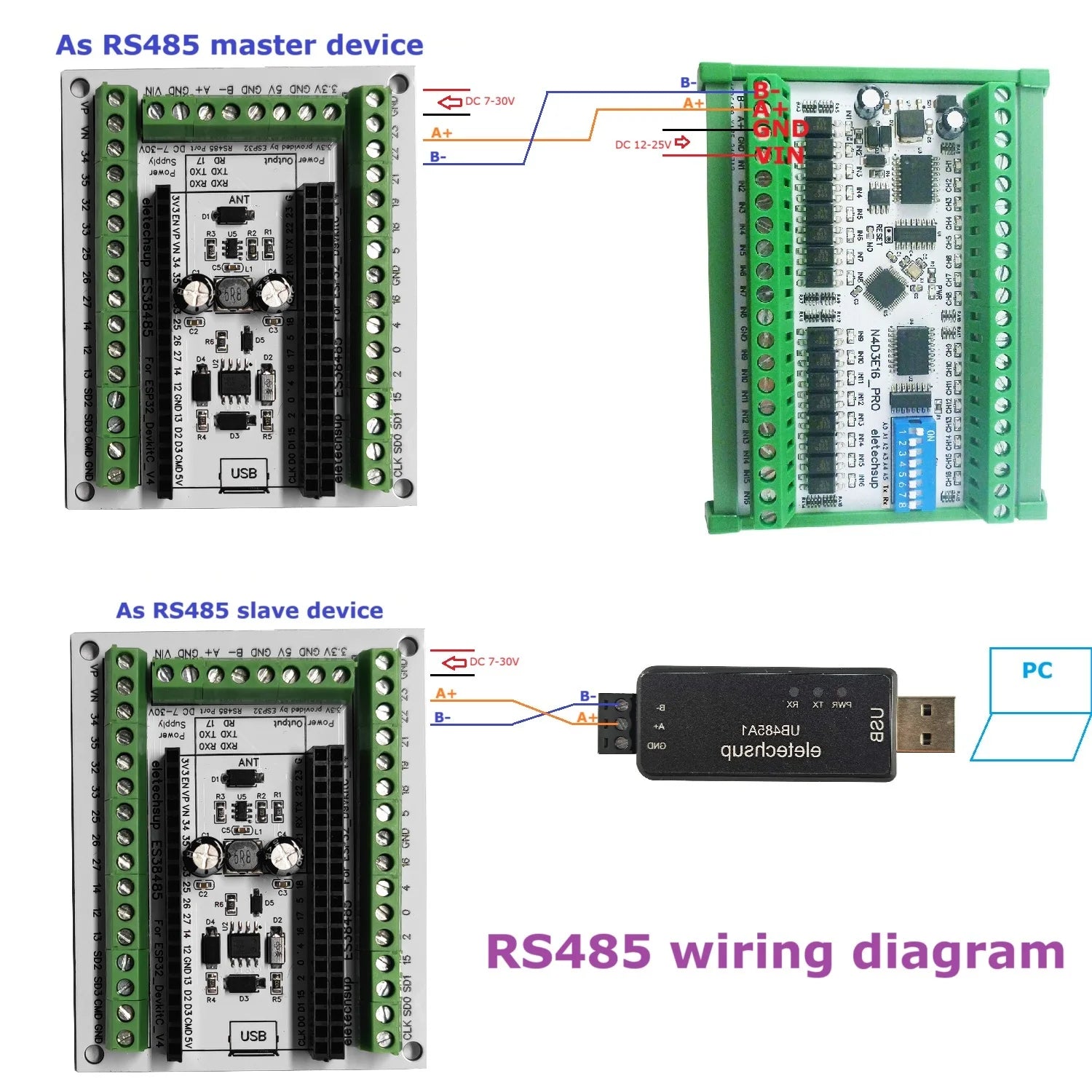

5 With high-speed RS485 interface (Baud Rate 0.05K-1000KBPS)
6 RS485 interface with surge protection

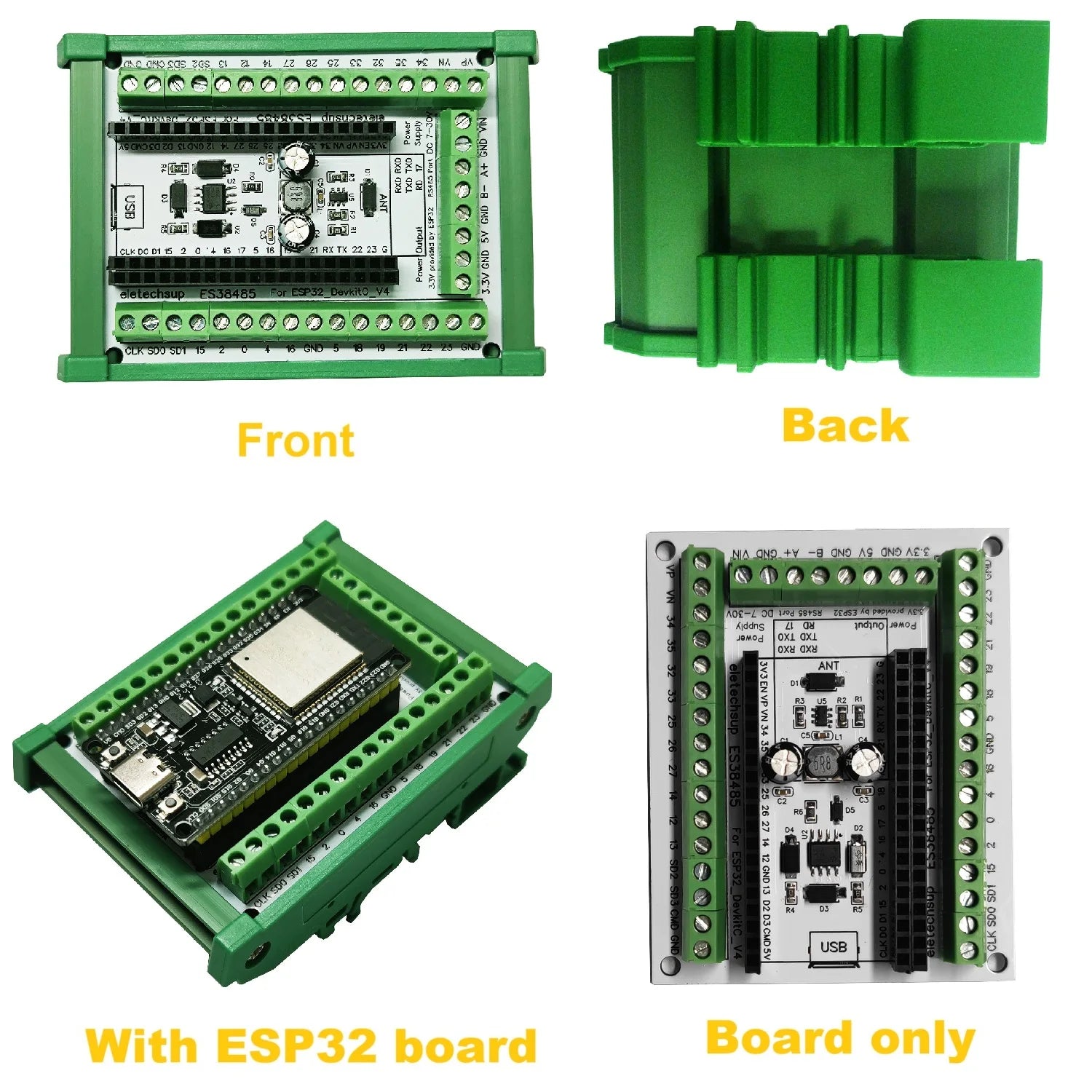

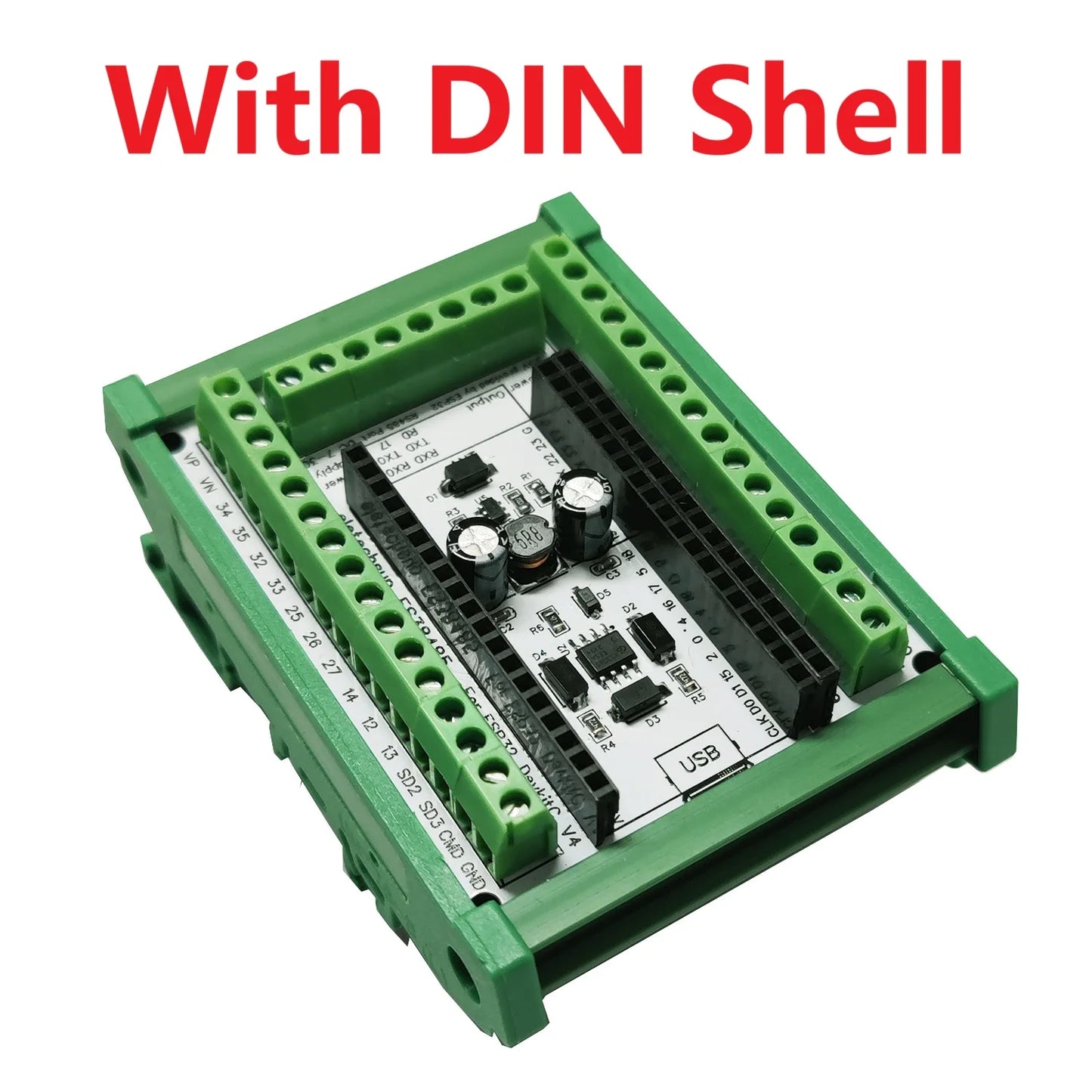

7 Optional industrial standard DIN rail enclosure
8 Terminal spacing: 3.96mm.
9 Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
10 Size: 72 *58 * 12mm(only Board),88 *61 * 35(with Rail Box)
11 Weight: 38g(only Board),90g(with Rail Box)

Use:

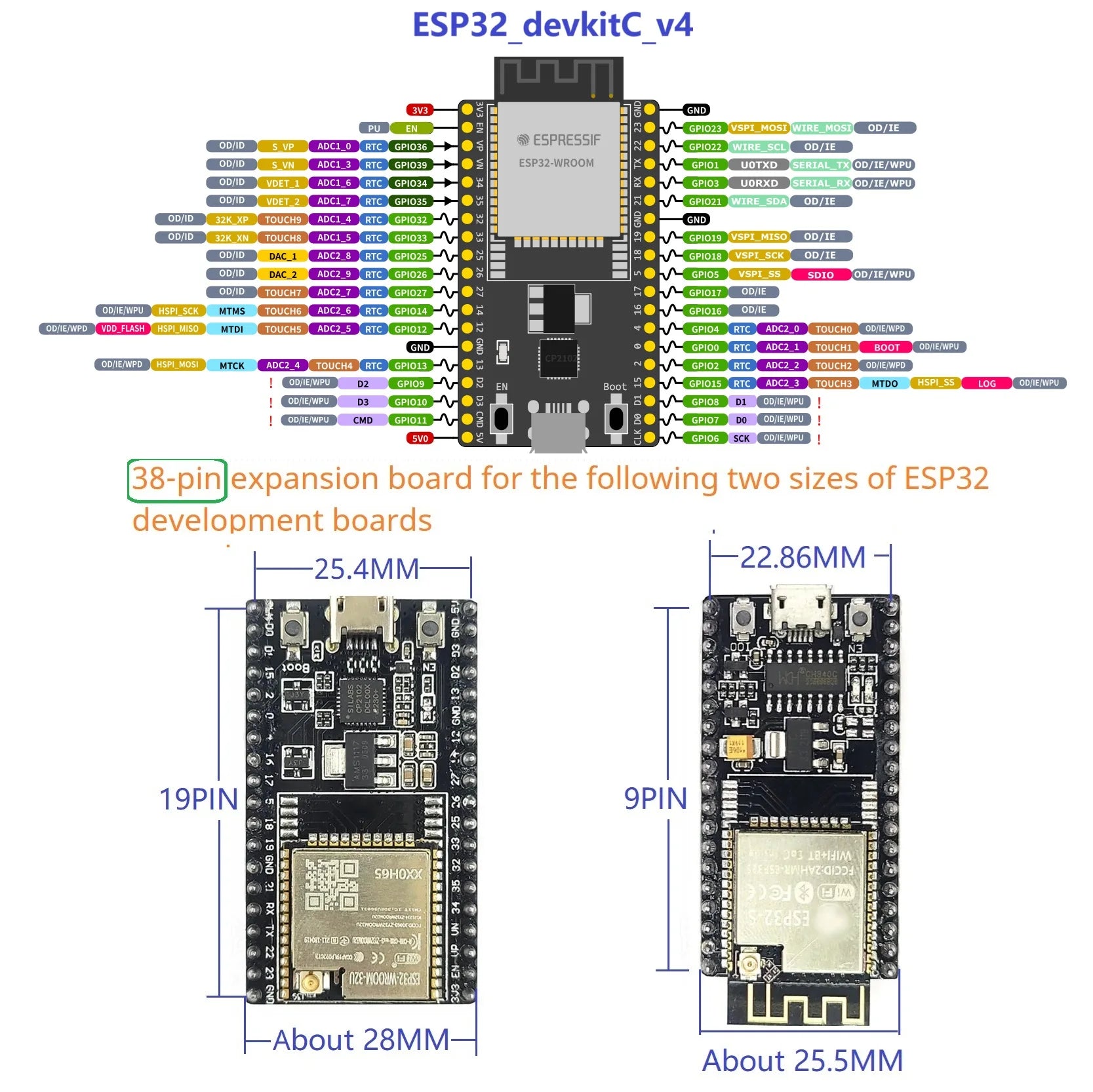

DIN Rail Mount Screw Terminal Adapter Module for 38 PIN ESP32 Board(ESP32 DevkitC v4).

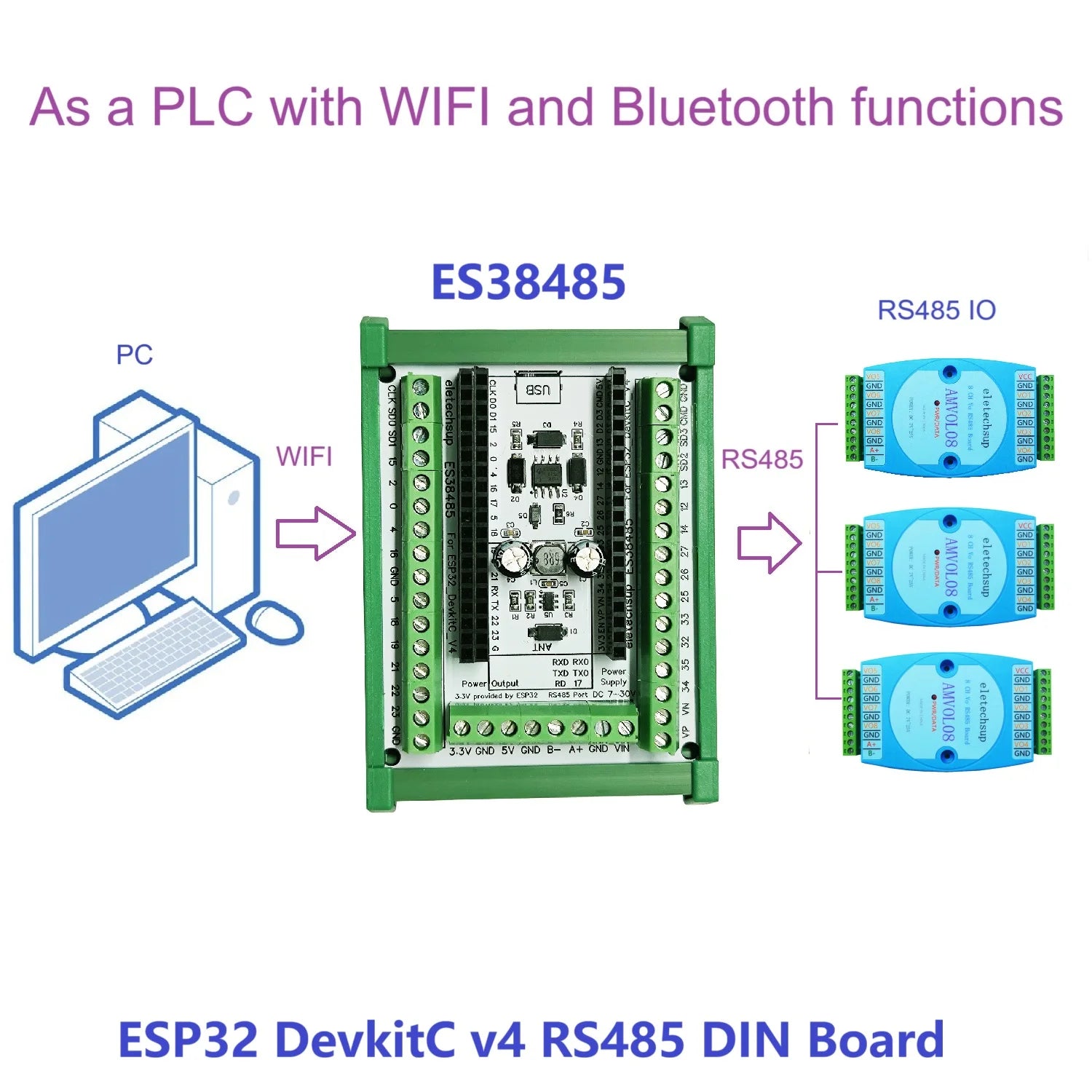

With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.

Notice:

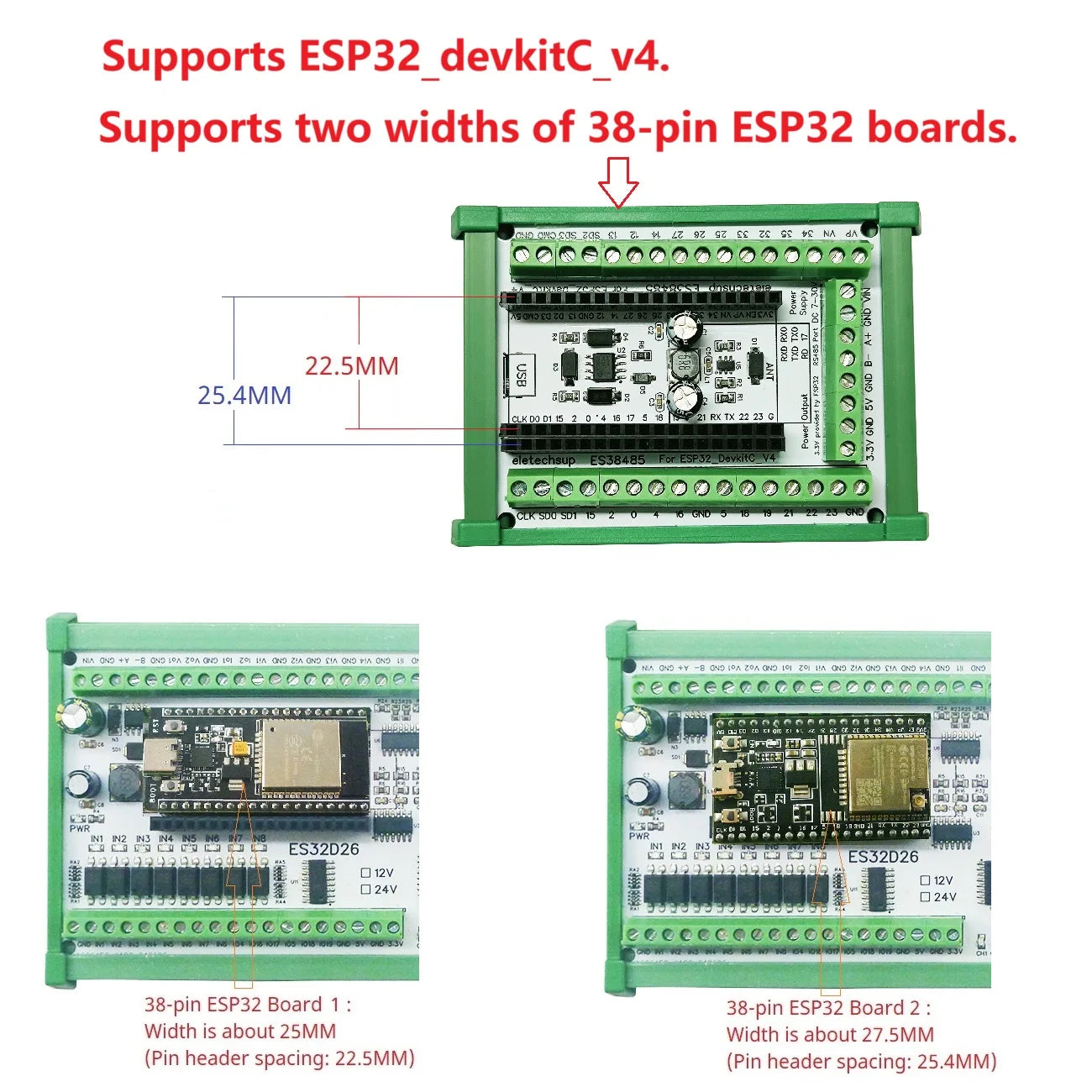

1:This is just an expansion board. You need to insert a 38-pin ESP32 board when using it.
2: 1/3/17PIN is RS485 pin, not individually led out

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58mm PCB boards
Net weight: 52g
Installation: DIN35 and C45 rail
