for Arduno 6 Digit 7 Seg SPI LCD LED Display Module with R3 MEGA2560 example Cod

for Arduno 6 Digit 7 Seg SPI LCD LED Display Module with R3 MEGA2560 example Cod

TB232

1000 in stock

$13.48
$13.48 $13.48
Sale Sold out

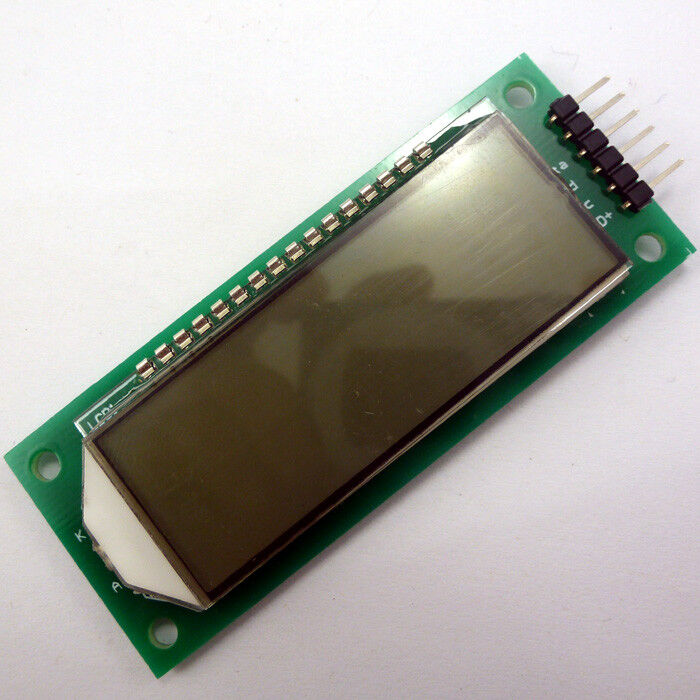

Product Name: Arduino 6 Digit 7 Seg SPI LCD LED Display Module with UNO MEGA2560 example Code



Module No.:  TB232


Qty:
1 pcs 6 Digit 7 Seg SPI LCD Display Module(Does not include Arduino MEGA2560);

Description:

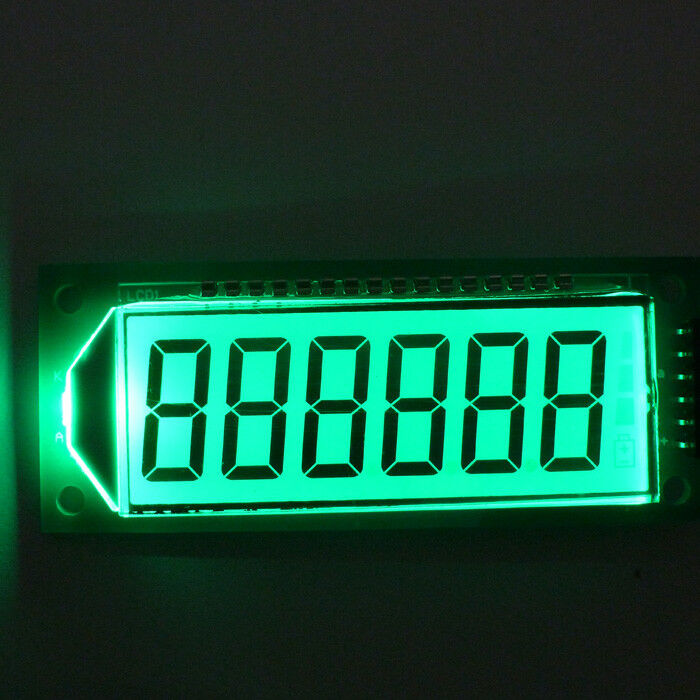

6 Digit 7 segment Display,provide Arduino MEGA2560/UNO Code;

Backlight          :   Green
Supply voltage  :   DC 5V
Driver IC          :   HT1621
Interface           :   SPI(Only three control signal,CS WR Data)
Support display characters : 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o,P,r,t,U,-
Size                  :   77mm * 31mm

Arduino uno/mega2560 Code fragment:
After purchase, please contact me for complete code!

//*******************************************//
      .......

 void setup()
{
   pinMode(CS, OUTPUT); //Pin 2
   pinMode(WR, OUTPUT); //Pin 3
   pinMode(DATA, OUTPUT); //Pin 4
}

void loop()
{
 ...

Init_1621() ;
   ...

    while(1)
    {

    //display 0 to 999999
   for(t=0;t<999999;t++)
   {
     displaydata(t,1,1,1,1);
     delay(100) ;
    }
 ...

//****************************************************************************//

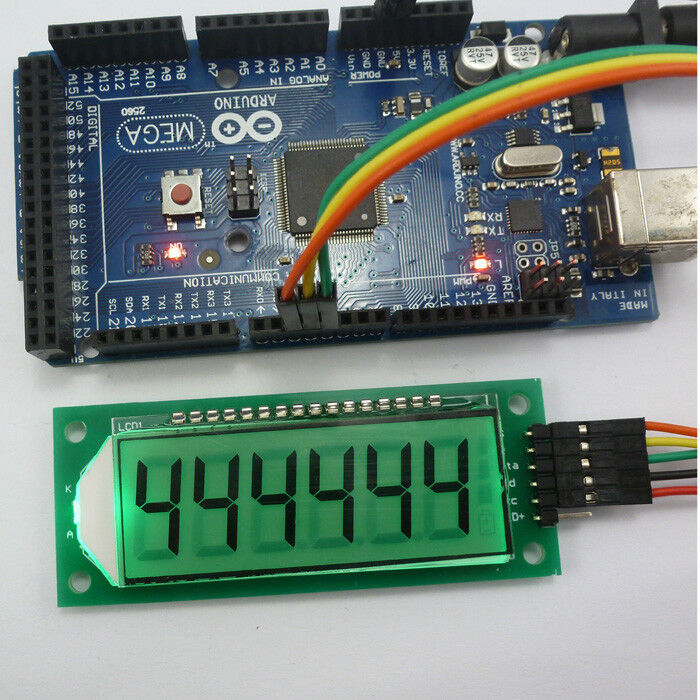

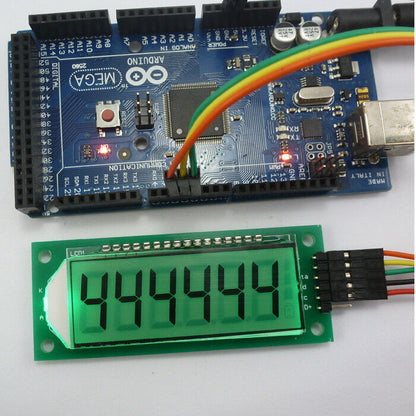

Connect with arduino mega2560(Does not include Arduino MEGA2560  )
