Eletechsup Original Factory Official Store
CE006 CJ003 for Arduno Demo Wireless Decode Kit 4CH RF Remote control switch EV1527 Keyfob
CE006 CJ003 for Arduno Demo Wireless Decode Kit 4CH RF Remote control switch EV1527 Keyfob
SKU:CE006*1+CJ003*1
1000 in stock
Regular price
$23.98
Regular price
$23.98
Sale price
$23.98
Unit price
/
per
Couldn't load pickup availability
Share
Product Name: Arduino Demo Wireless Decode Kit 4CH RF Remote control switch EV1527 Keyfob
Package inlcuded (Does not include Arduin):

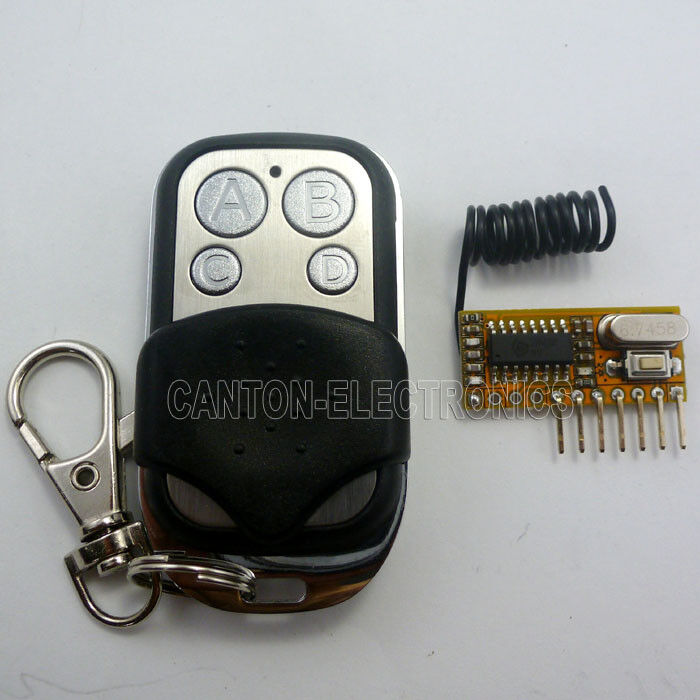

1 pcs 433M 1527/2262 Superheterodyne

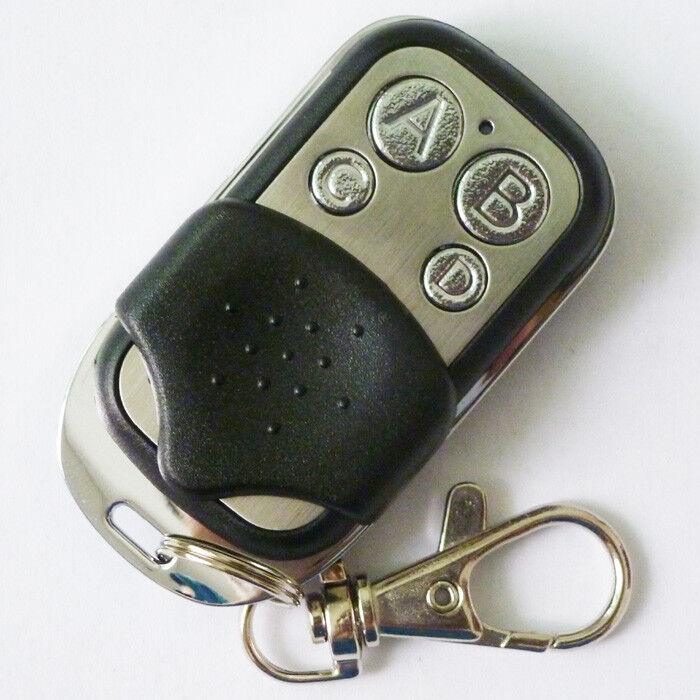

Receiver decoder module； 1 pcs 433M EV1527 transmitter remote.
Arduino /mega2560 Code fragment:
//*******************************************//
//Author: cantone-electonics
//More information welcome to :
//Arduino 1.0.4
//Arduino uno R3

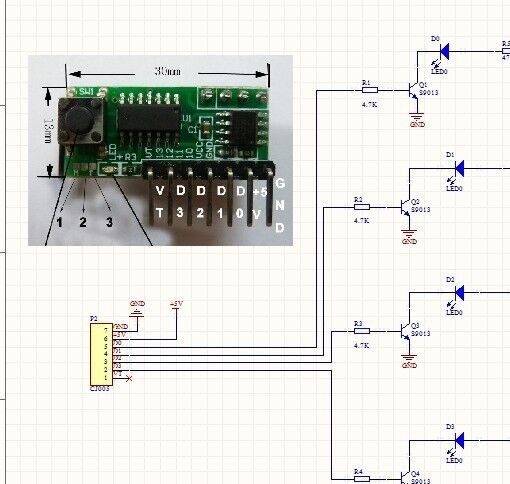

//Arduino 4 channel EV1527/PT2262 Decoding module
int VCC = 13;//as power vcc
int D3 = 12;
int D2 = 11;
int D1 = 10;
int D0 = 9;
int VT = 8;
int InputState = 1; // variable for reading the input status
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin
pinMode(VCC, OUTPUT);
pinMode(D3, INPUT);
pinMode(D2, INPUT);
pinMode(D1, INPUT);
pinMode(D0, INPUT);
pinMode(VT, INPUT);
digitalWrite(VCC, HIGH);//AS VCC
Serial.begin(9600);
delay(2000);//Waiting for rf receiver module startup
}
// the loop routine runs over and over again forever:
void loop() {
InputState = digitalRead(VT);
if(InputState)
{

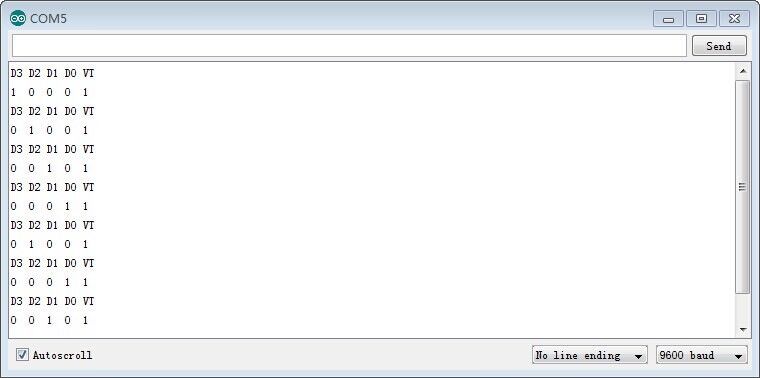

Serial.print("D3 D2 D1 D0 VT \n");
InputState = digitalRead(D3);
if(InputState) Serial.print("1 ");else Serial.print("0 ");
InputState = digitalRead(D2);
if(InputState) Serial.print("1 ");else Serial.print("0 ");
InputState = digitalRead(D1);
if(InputState) Serial.print("1 ");else Serial.print("0 ");
InputState = digitalRead(D0);
if(InputState) Serial.print("1 ");else Serial.print("0 ");
Serial.print("1\n");
}
do{
InputState = digitalRead(VT);
}while(InputState);
}
.......
//*******************************************//
Description:
433M 1527/2262 Superheterodyne
Receiver decoder module,click here；433M EV1527 transmitter remote,click here.

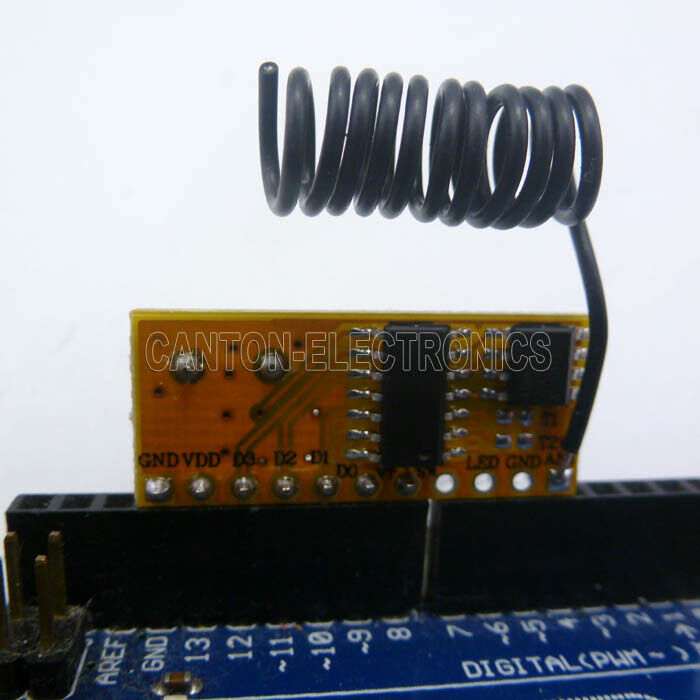

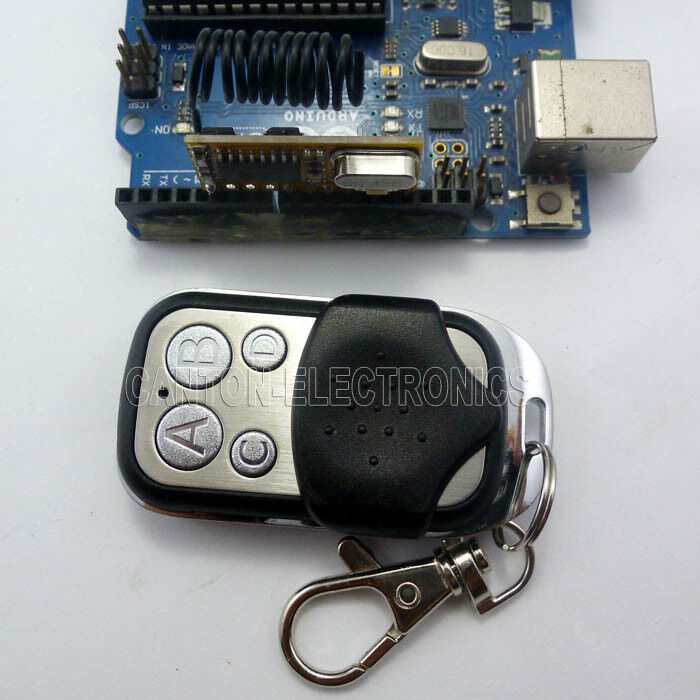

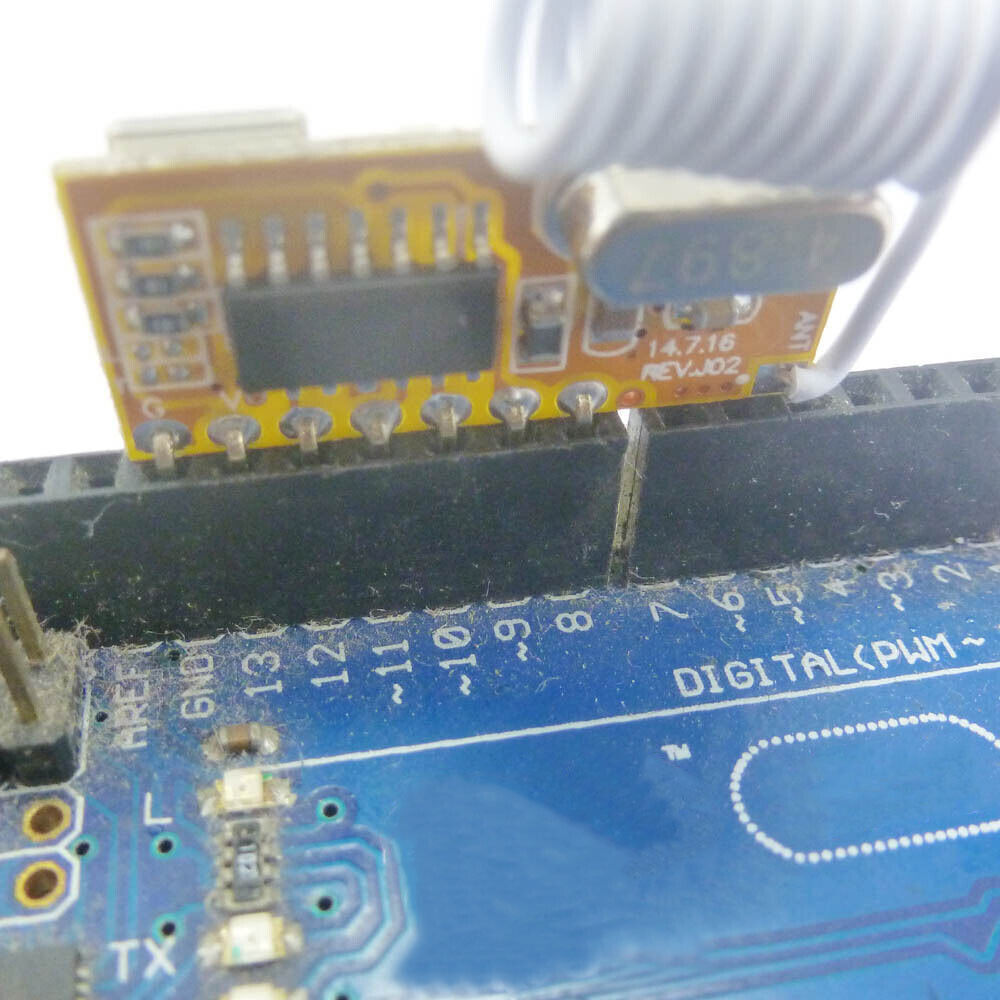

Can directly insert Arduino UNO/MEGA2560/DUE(also can use other MCU:ARM FPGA/CPLD PIC AVR Etc.)
