CE029B for Arduno MCU Wireless Encoder Transmitter RF Control 5V Delay Relay Receiver

CE029B for Arduno MCU Wireless Encoder Transmitter RF Control 5V Delay Relay Receiver

CE029B*2+TB195*2

1000 in stock

$50.98
$50.98 $50.98
Sale Sold out
Arduino MCU Wireless Encoder Transmitter RF Control 5V Delay Relay Receiver 433M



This remote switch allows you to remotely control any 12 Volt DC device. Perfect for controlling any 12V devices such as Lights, Fans, Landscaping Lighting and more. This easy-to-wire kit is perfect for anybody with a basic knowledge of electrical wiring, and can easily be wired to many 12V applications. For PC Modders, the end of result of the Remote Control 12VDC kit is truly impressive and is sure to impress the crowds. For DIYers, the kit will give some magical effect to your projects.

Encoding and Decoding

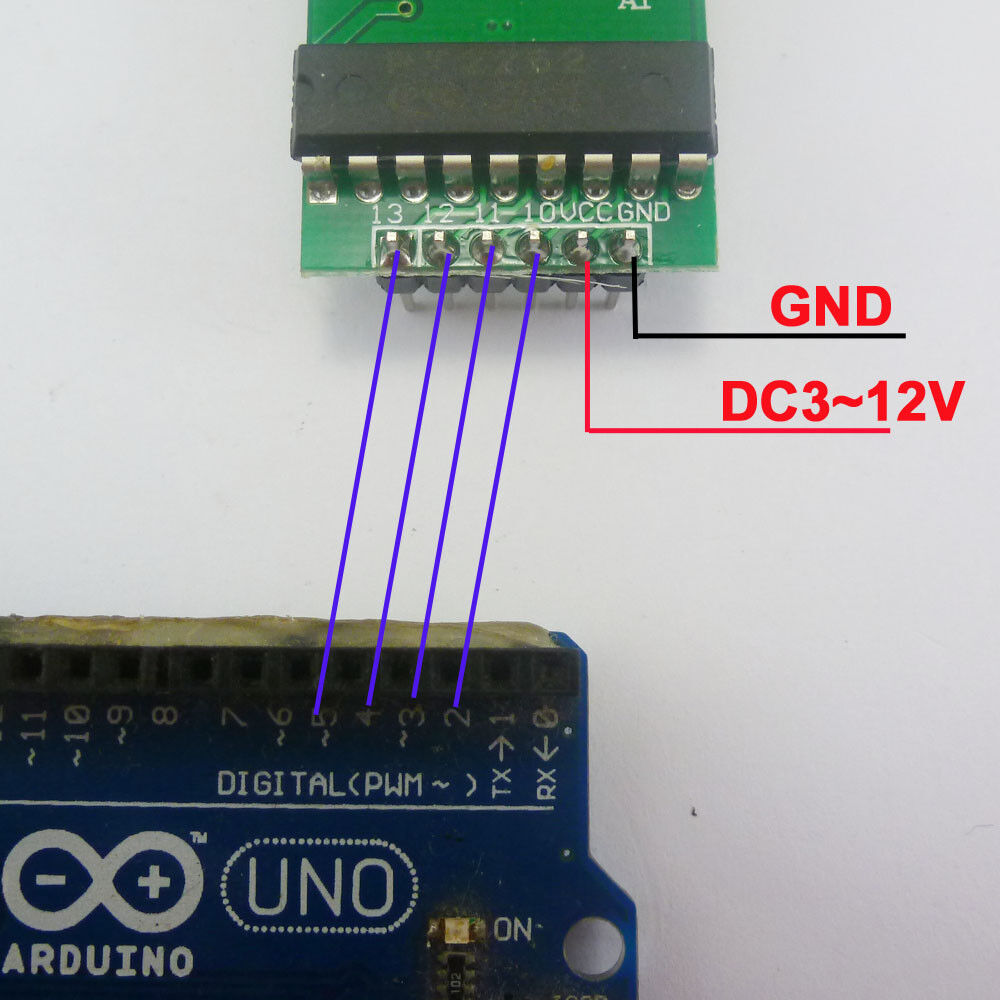

The popular link is like this: MCU -> Encoder -> Transmitter ------ Receiver -> Decoder -> MCU,
PT2262(Encoder) are optional, their existence is to 1)avoid confusing when multiple RF links in range 2) isolate disturbance.
You can integrate the encoding and decoding work to the MCUs on both side. Whenever there is no 433.92MHz devices around, you may use it as direct cable connection.

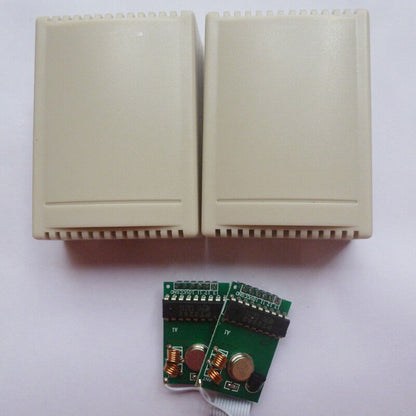

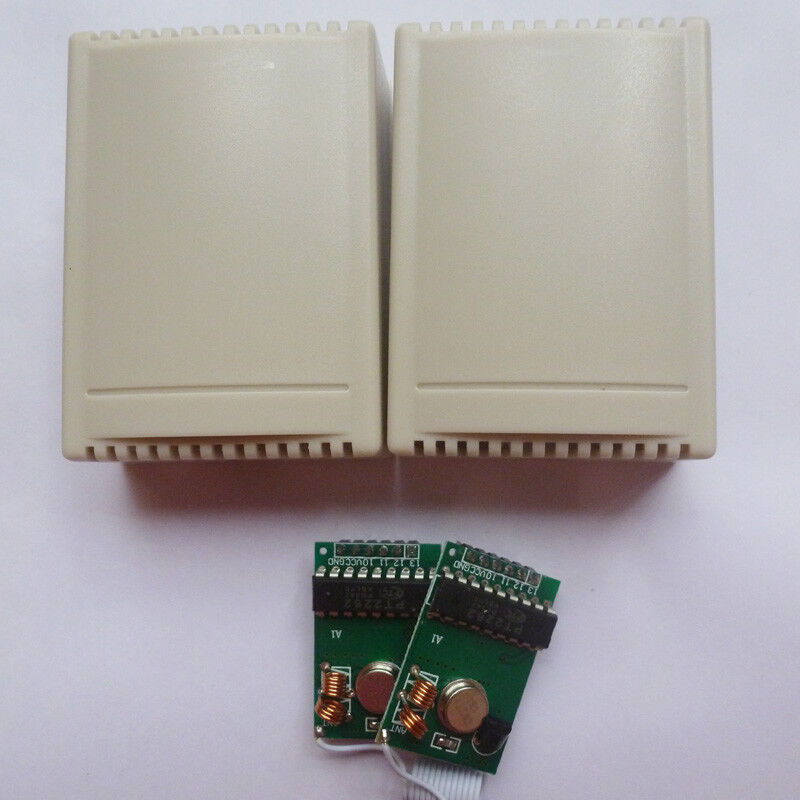

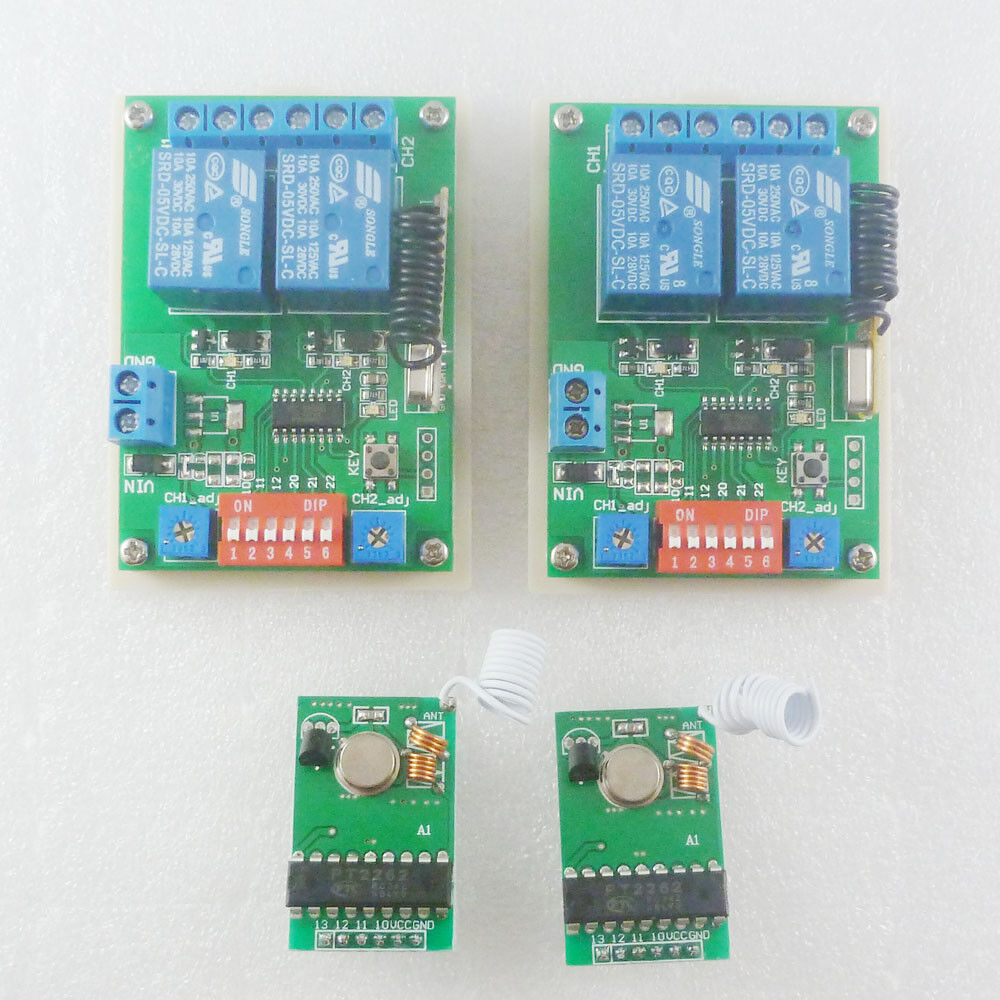

Packing list :
2 pcs 4 Channel transmitter remote ;
2 pcs 2 channel DC5V Receiver relay board ;
(all user guide was provided in this item description , there is no extra manual )




Work mode


Typical applications:
DC 5V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360

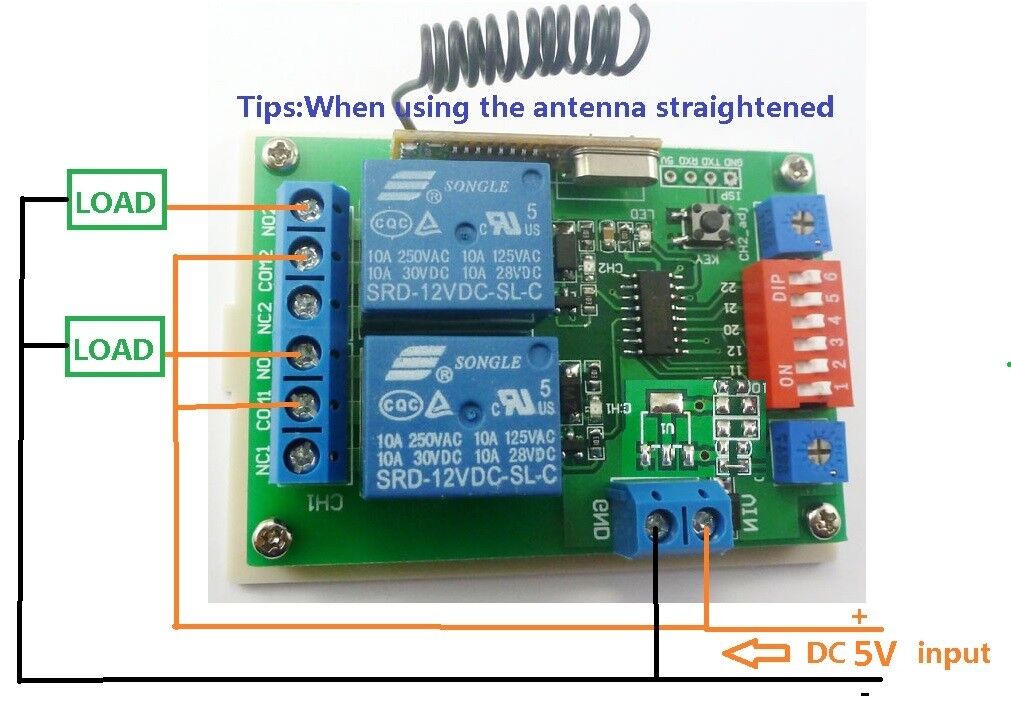

Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 5V

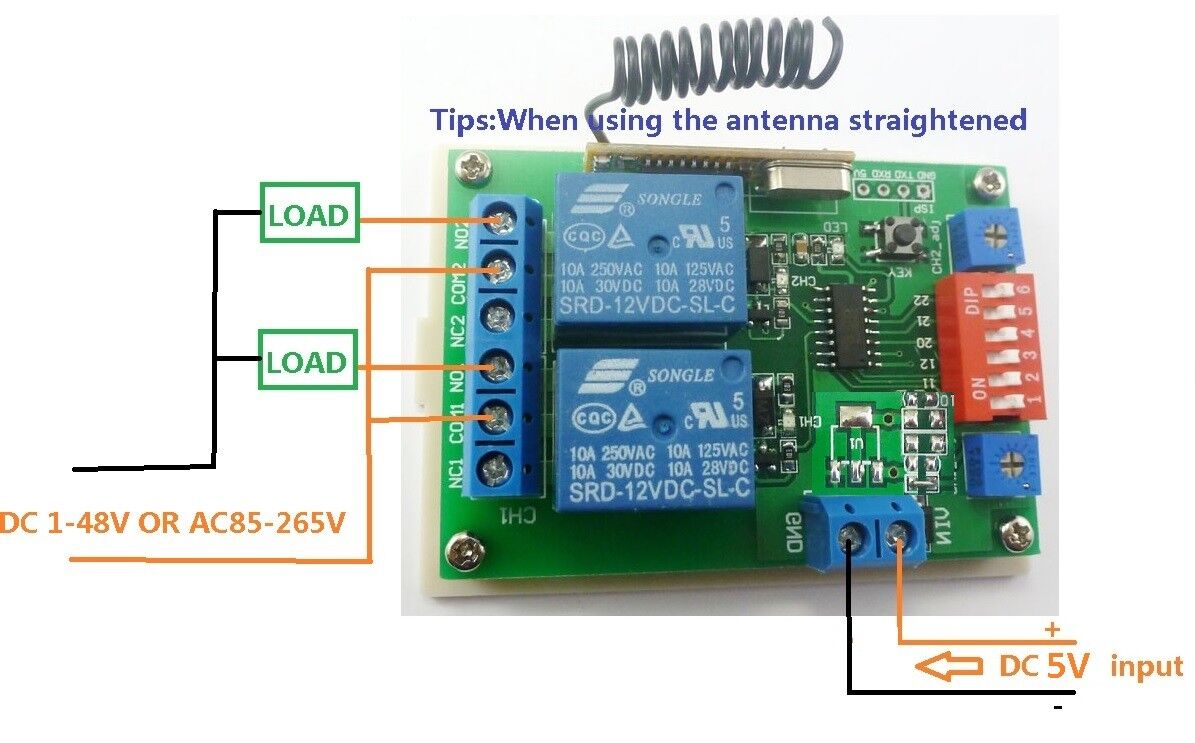

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment














Technical indicators:

Operating voltage : DC 5V

Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay open,about 157MA

Operating frequency : 433.92M;

Receiver sensitivity : -108dB;

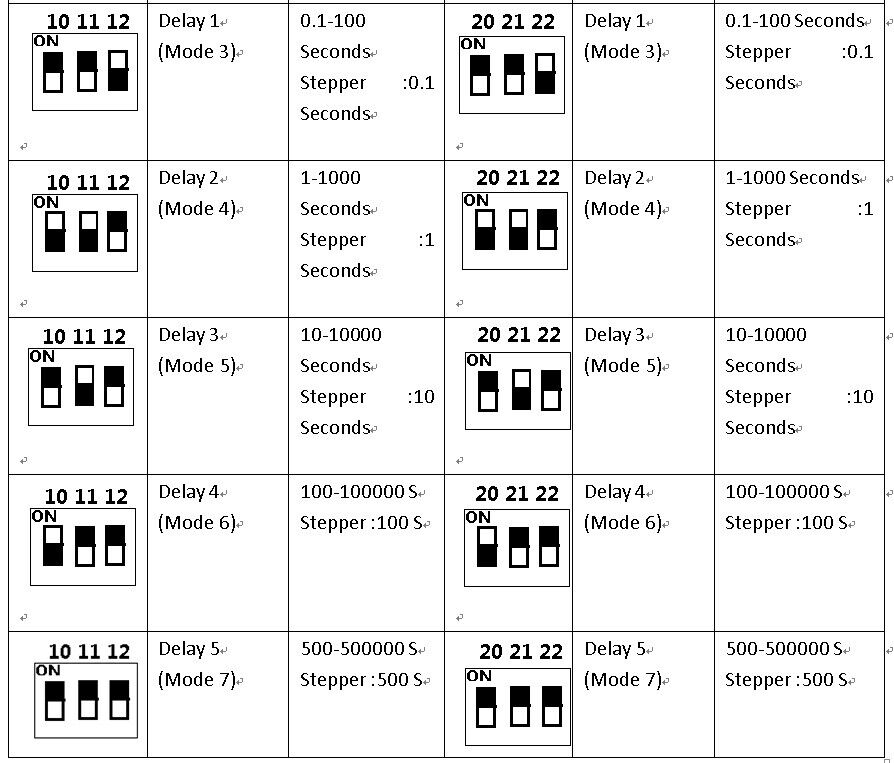

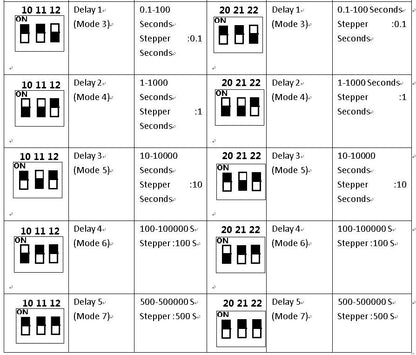

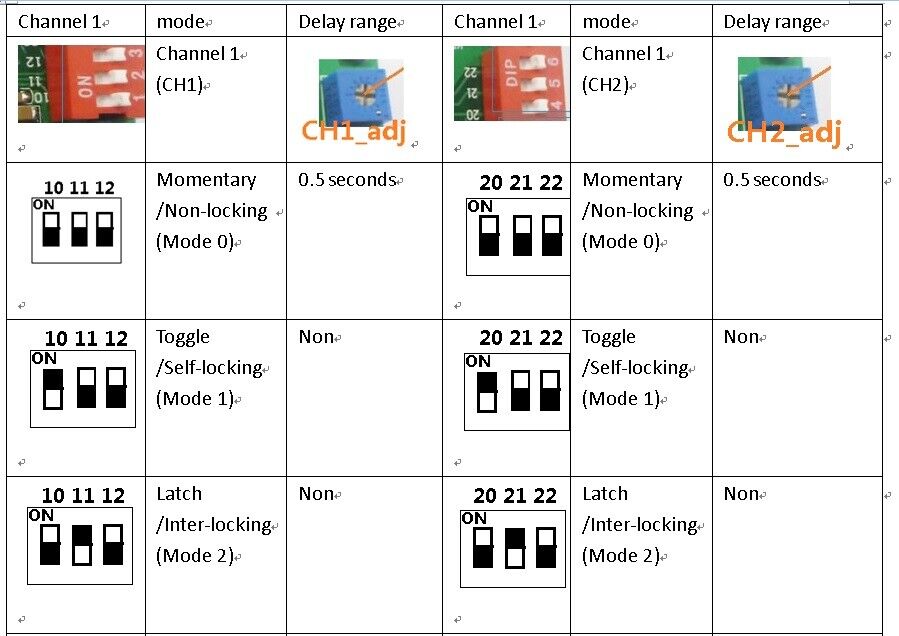

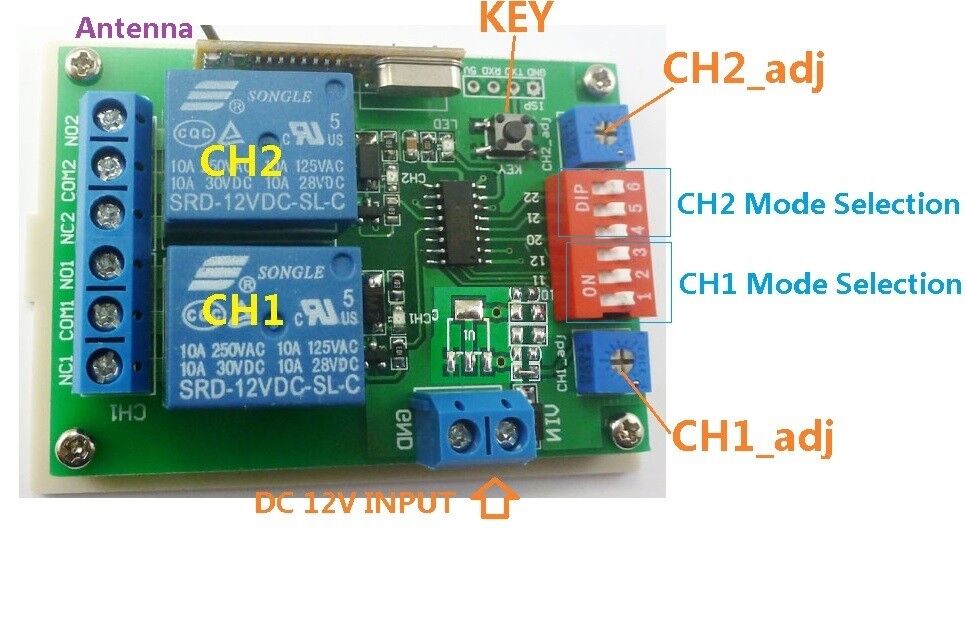

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay

Size(Including housing) : 75*54*28mm

Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );

Max load : 500W;

Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Use more details, please click here!



Transmitter :

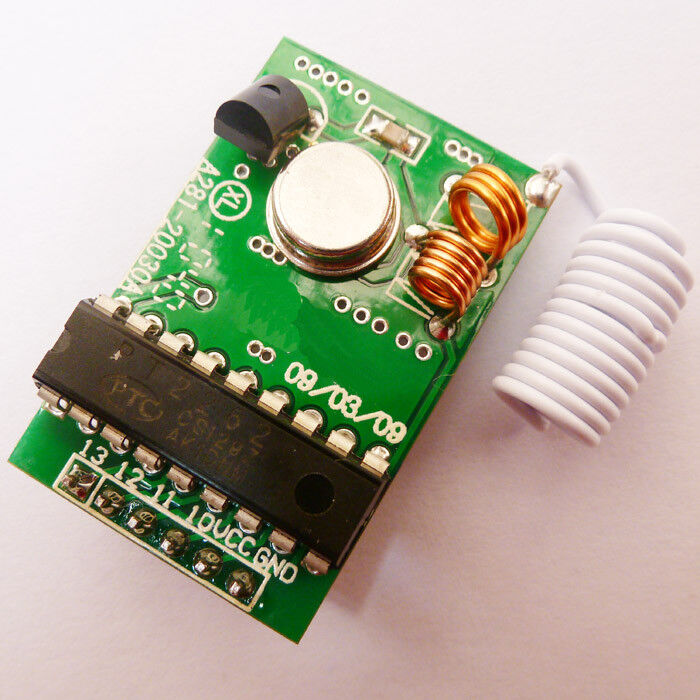

Model No. TB195 Encoder Transmitter
Function discription Encoder Transmitter modules
Operating voltage
3V ~ 12V DC
Static current
max≤8mA(12V)， min≤2mA(3V)
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
Transmitter Power 50mW (315MHz, 12V)
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension 36 * 27mm
Encodeing format PT2264 fixing code (same as PT2262 SC2262 ) ，Work with PT2272 decoder IC
Transmitter distance 300-500M (open area)
