ND0412SA Highly Efficient 7W Mini Boost Step-up Converter Board for Arduino - Converts 2.6-6V to 5V / 6V / 9V / 12V DC

ND0412SA Highly Efficient 7W Mini Boost Step-up Converter Board for Arduino - Converts 2.6-6V to 5V / 6V / 9V / 12V DC

$2.84 USD
$2.84 USD $2.84 USD
Sale Sold out
Color
Below item is powered by eletechsup Ltd .

Product Name: 7W mini 2.6-6V to 5V 6V 9V 12V DC DC Boost Step-up Converter Board for Arduiuo kit Breadboard Stm32 Lcd LED Sensor RS485


Packing list:
1 PCS 7W ND0412SA mini DC-DC Step-up Boost Converter Module


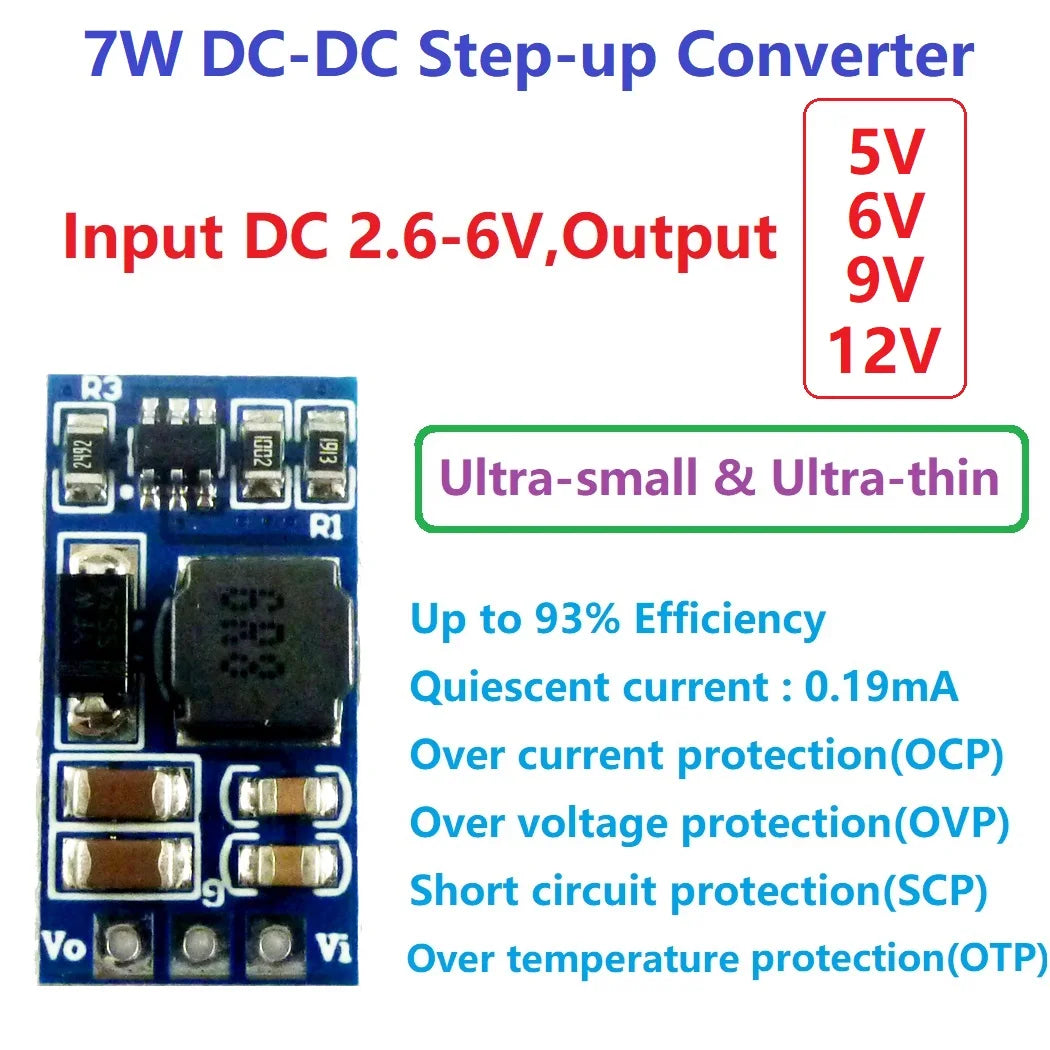

Description:


DC DC Boost Converter Module working frequency 1MHZ.

Up to 93% Efficiency (usually is 84%-91%)

Quiescent current : 190uA.

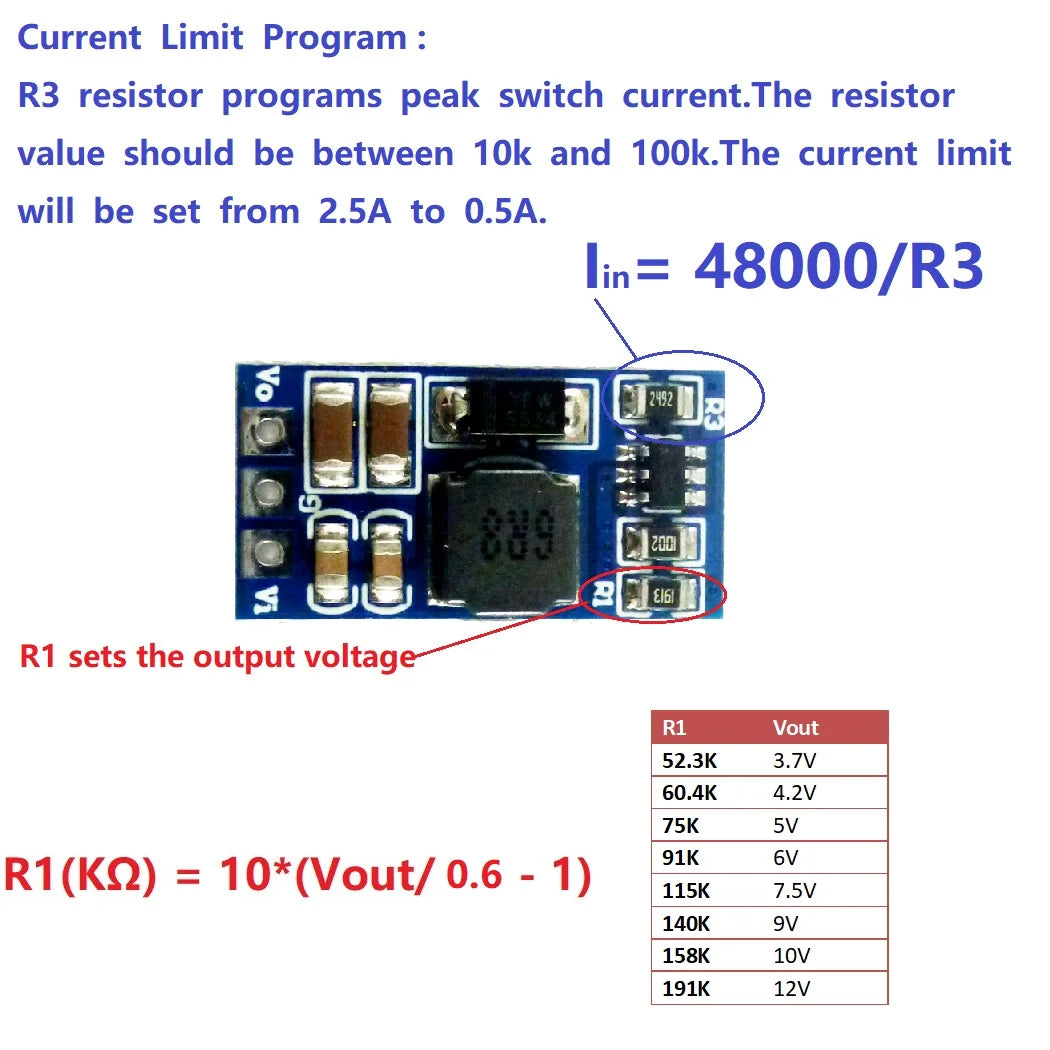

Current Limit Program(0.5-2.5A,Default 1.8A)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size : 21 x 11 x 4mm(no Pin)
Weight : 1.3g(no Pin), 1.5g(with Pin)


Protection :

Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

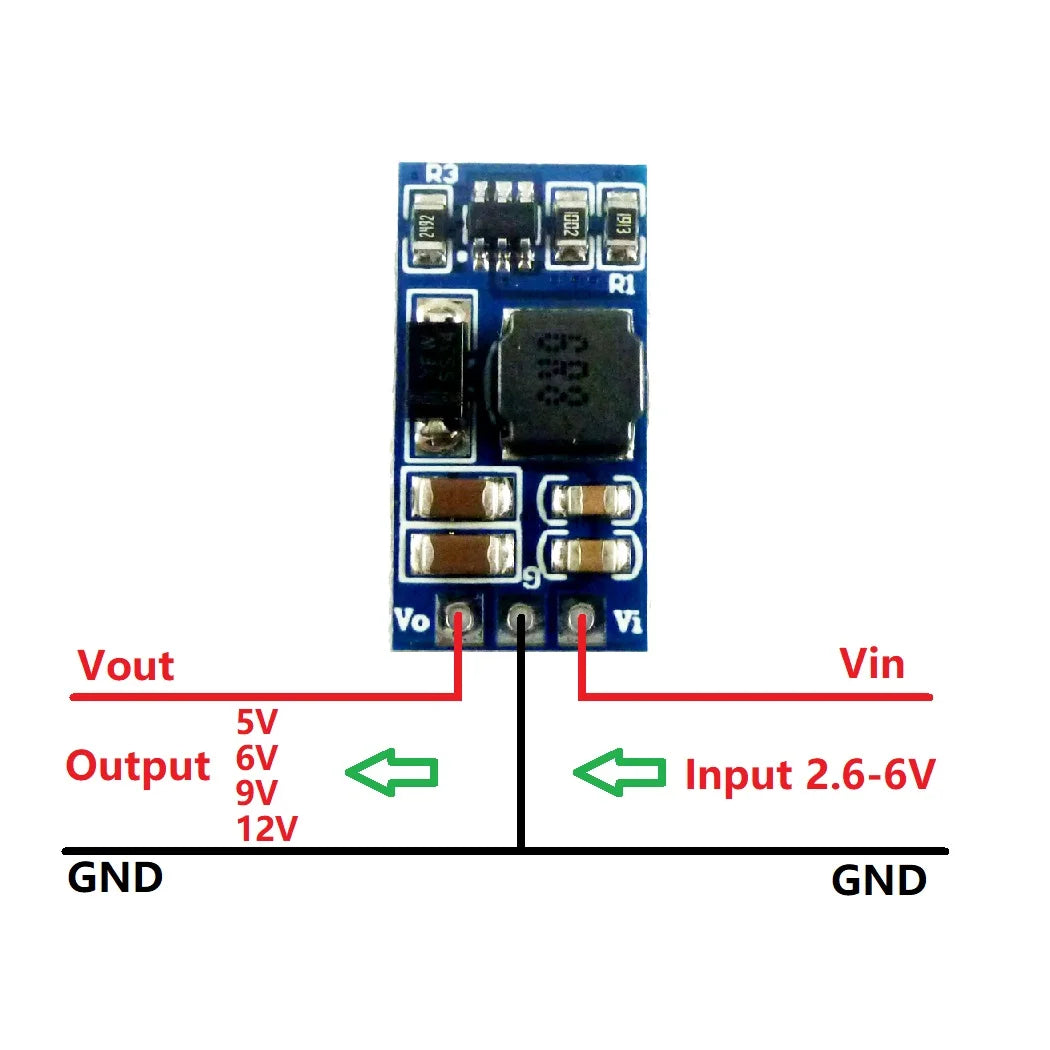

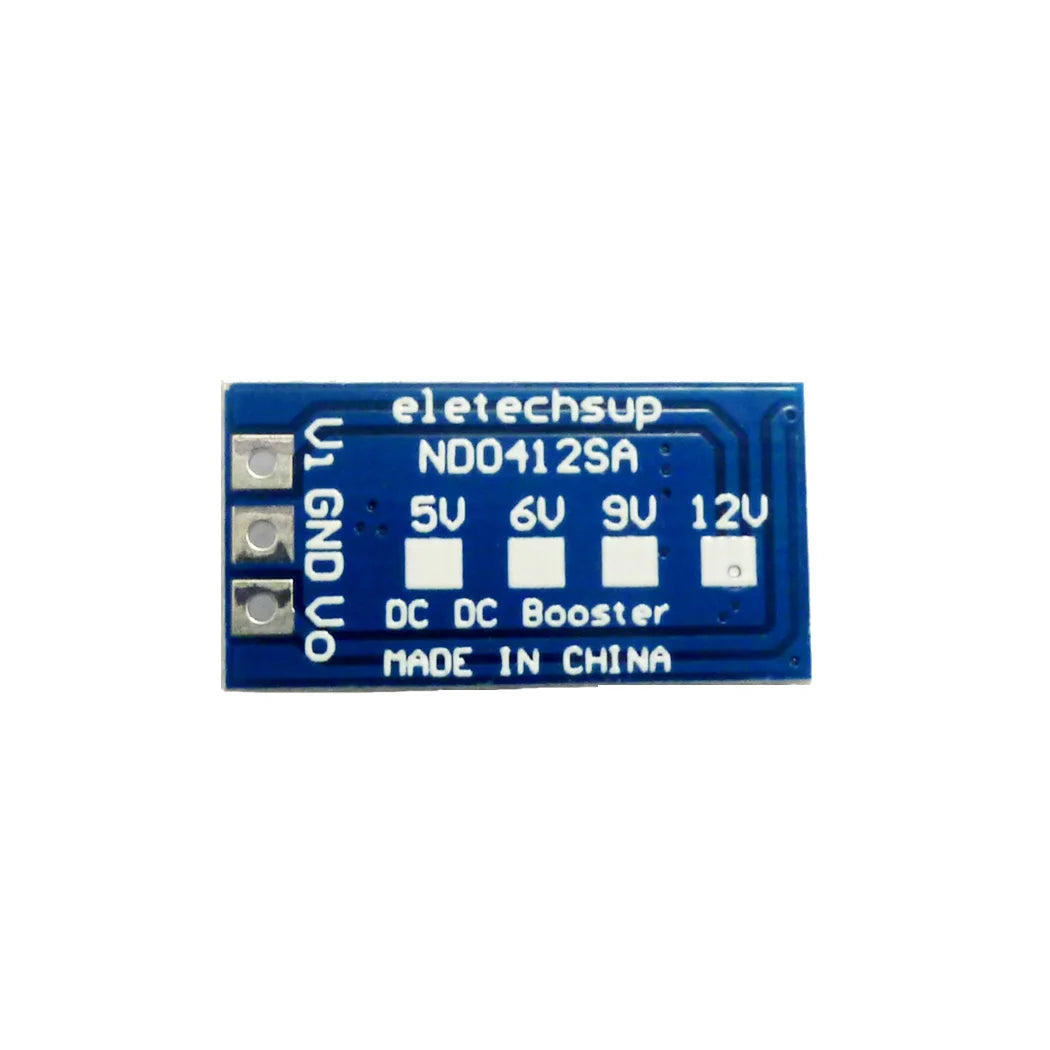

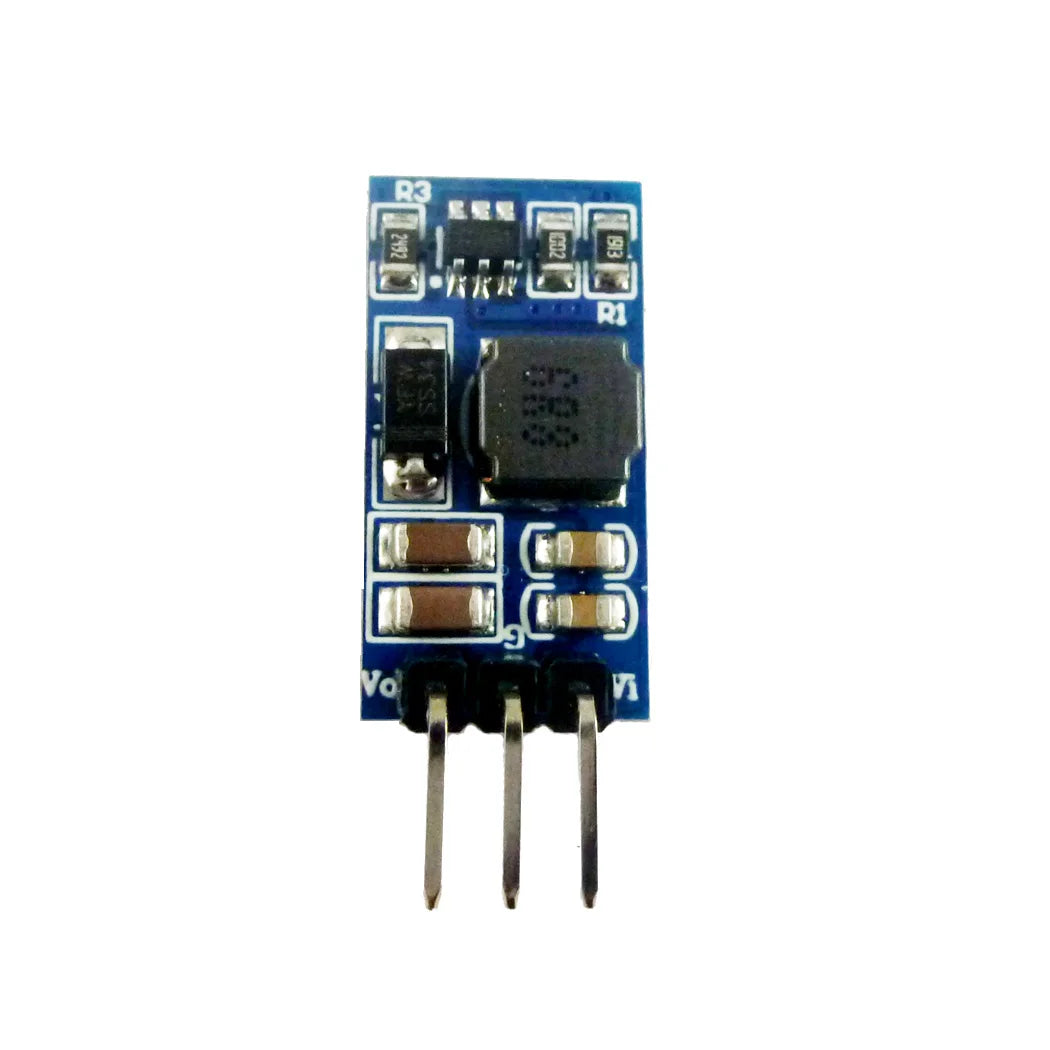

Pin description:

Pin description:
Vi : Input positive(+)
GND : Input and Output negative(GND/-)
Vo : Output positive(+)

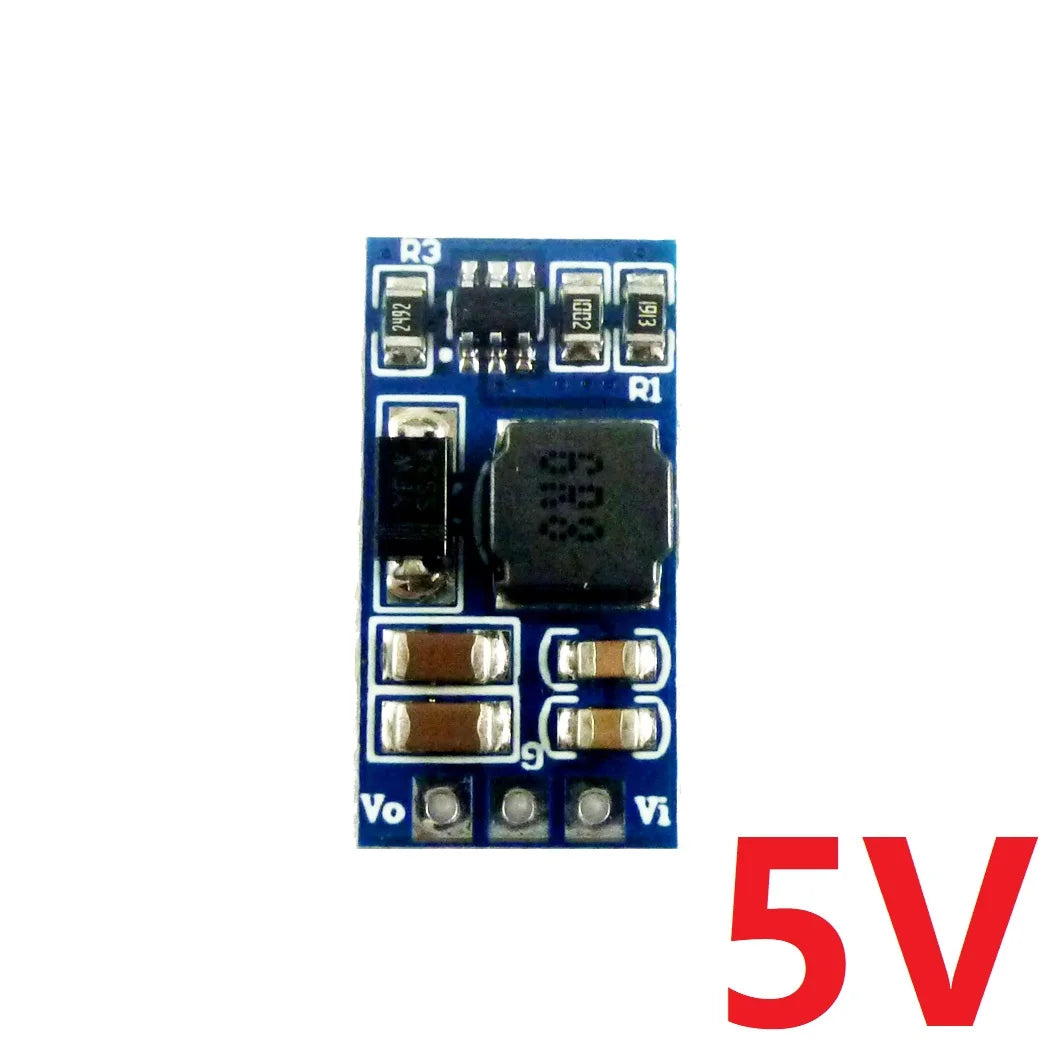

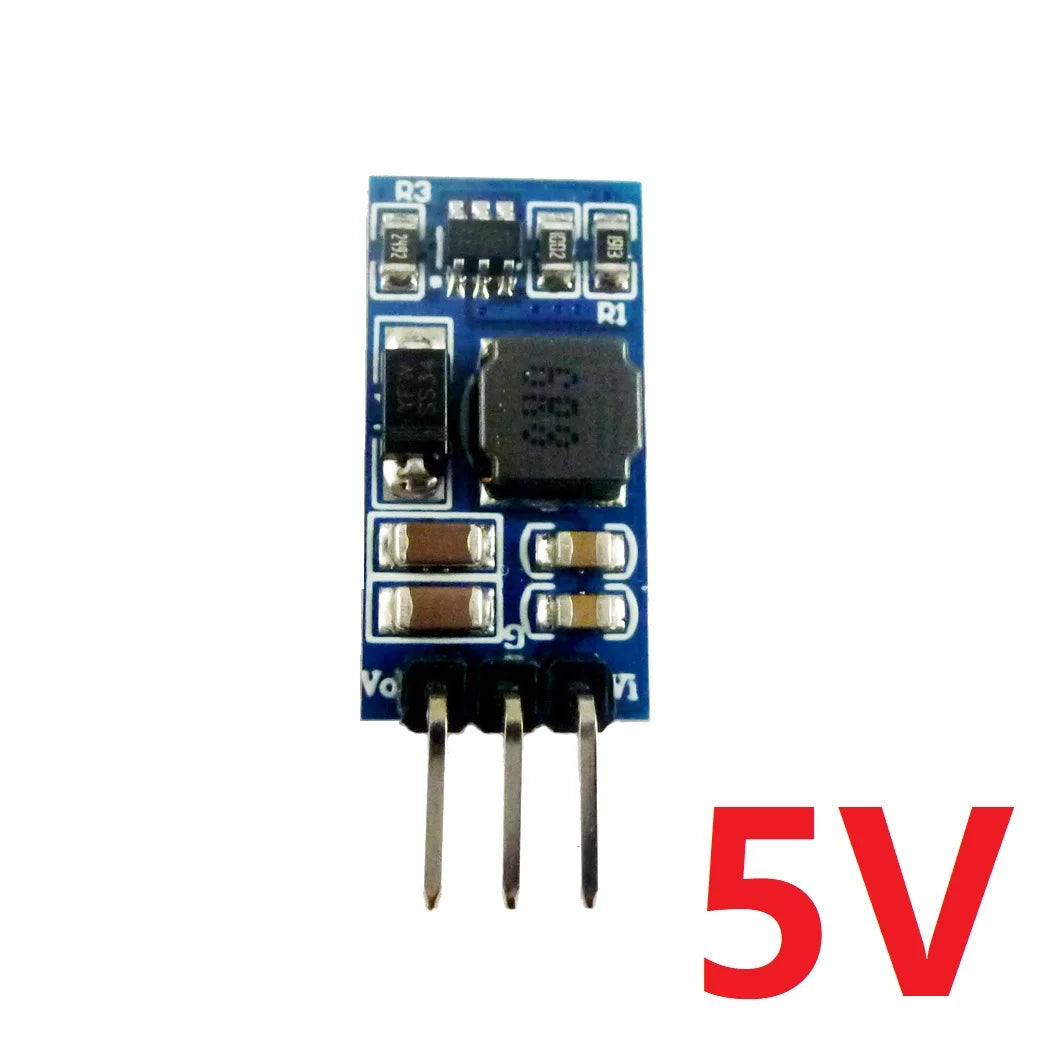

Output 5V :

Input voltage DC 2.6 ~ 4.5V,output DC 5V±3%
Maximum output : 5V/1300MA(See the table below for details)


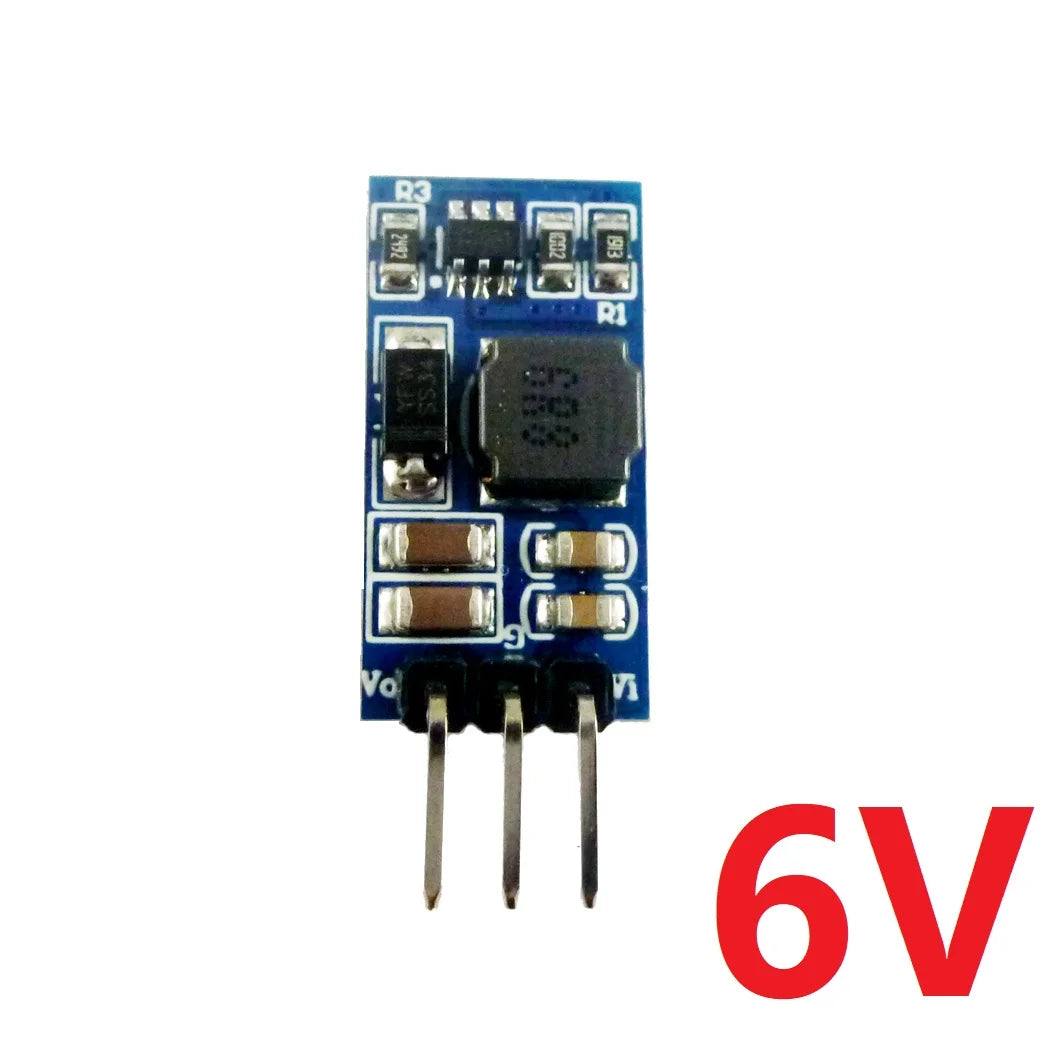

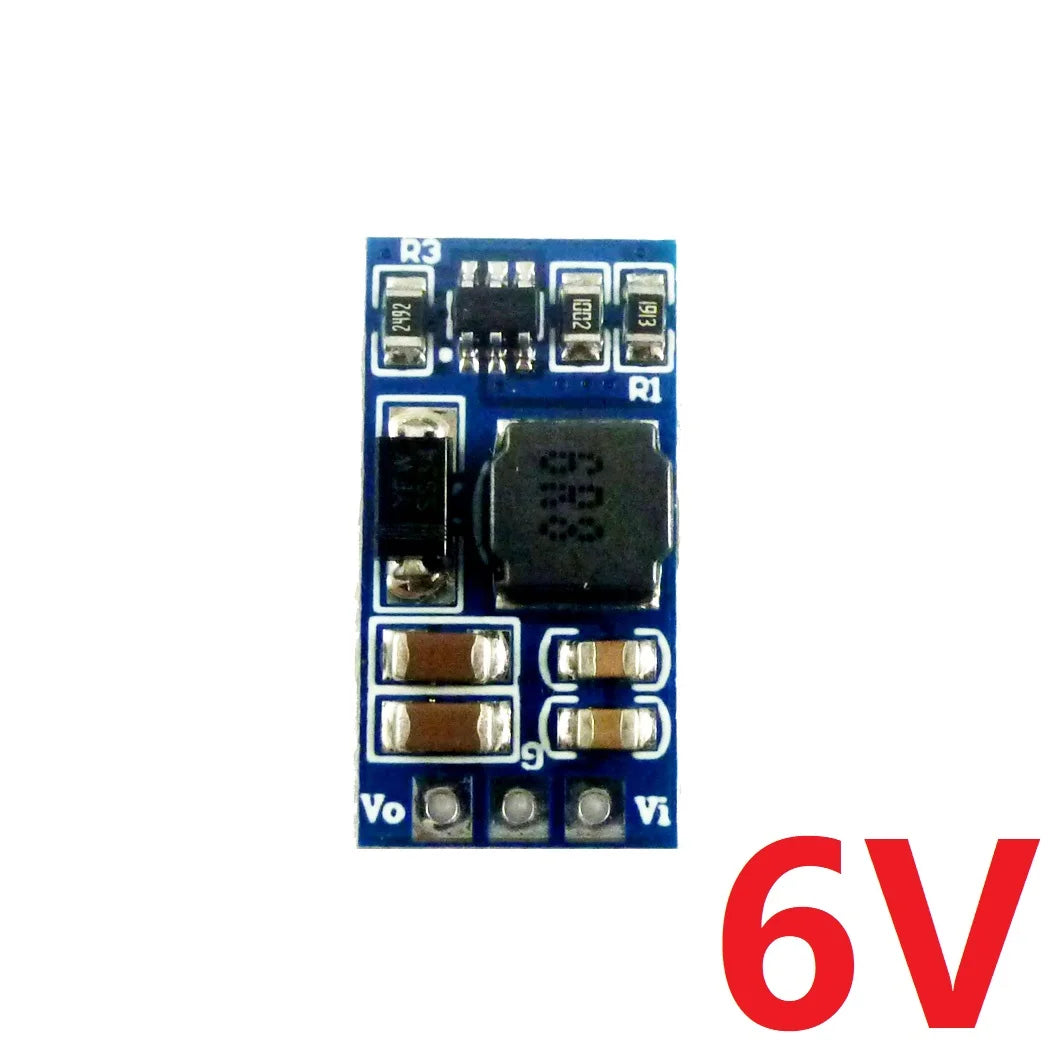

Output 6V :
Input voltage DC 2.6 ~ 5.5V,output DC 6V±3%
Maximum output : 6V/1200MA(See the table below for details)


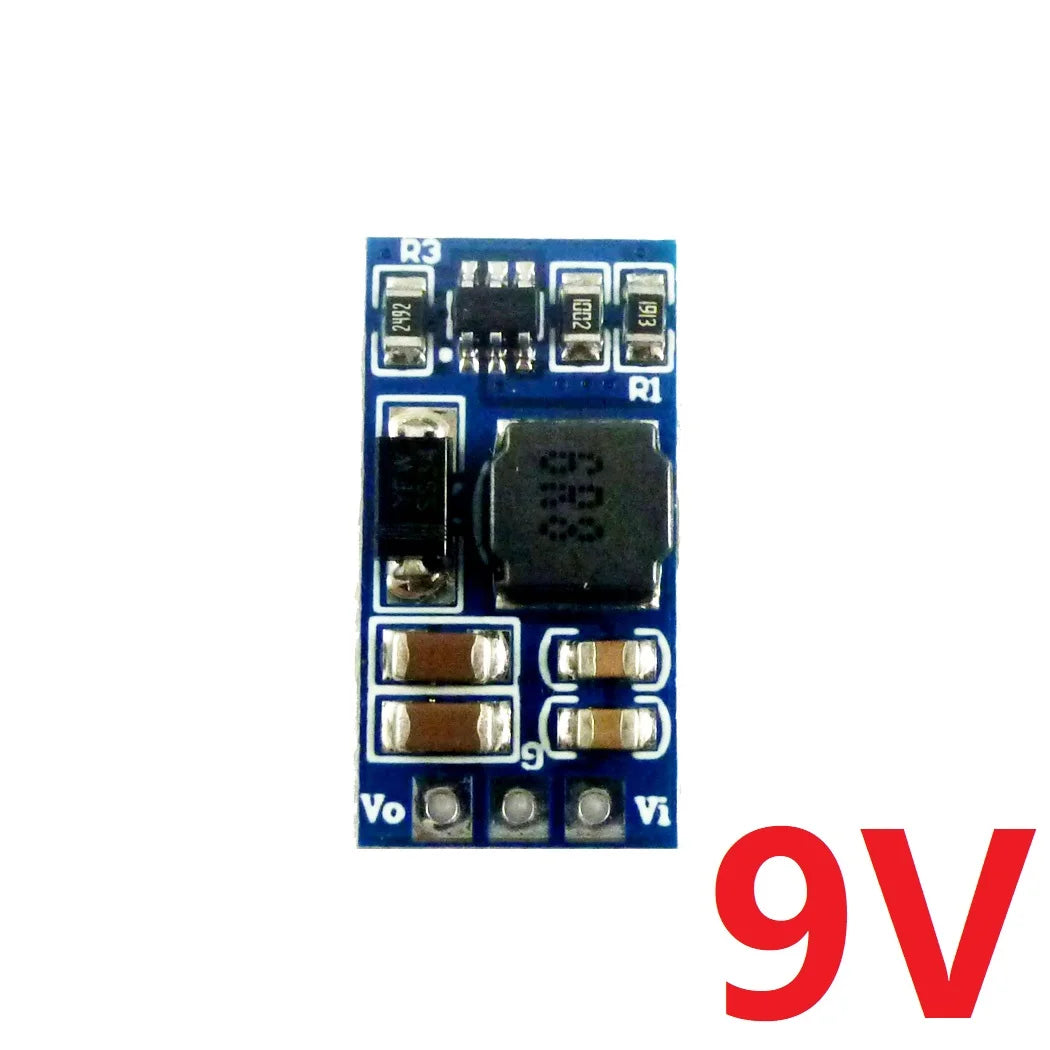

Output 9V :
Input voltage DC 2.6 ~ 6V,output DC 9V±3%
Maximum output : 9V/800MA(See the table below for details)

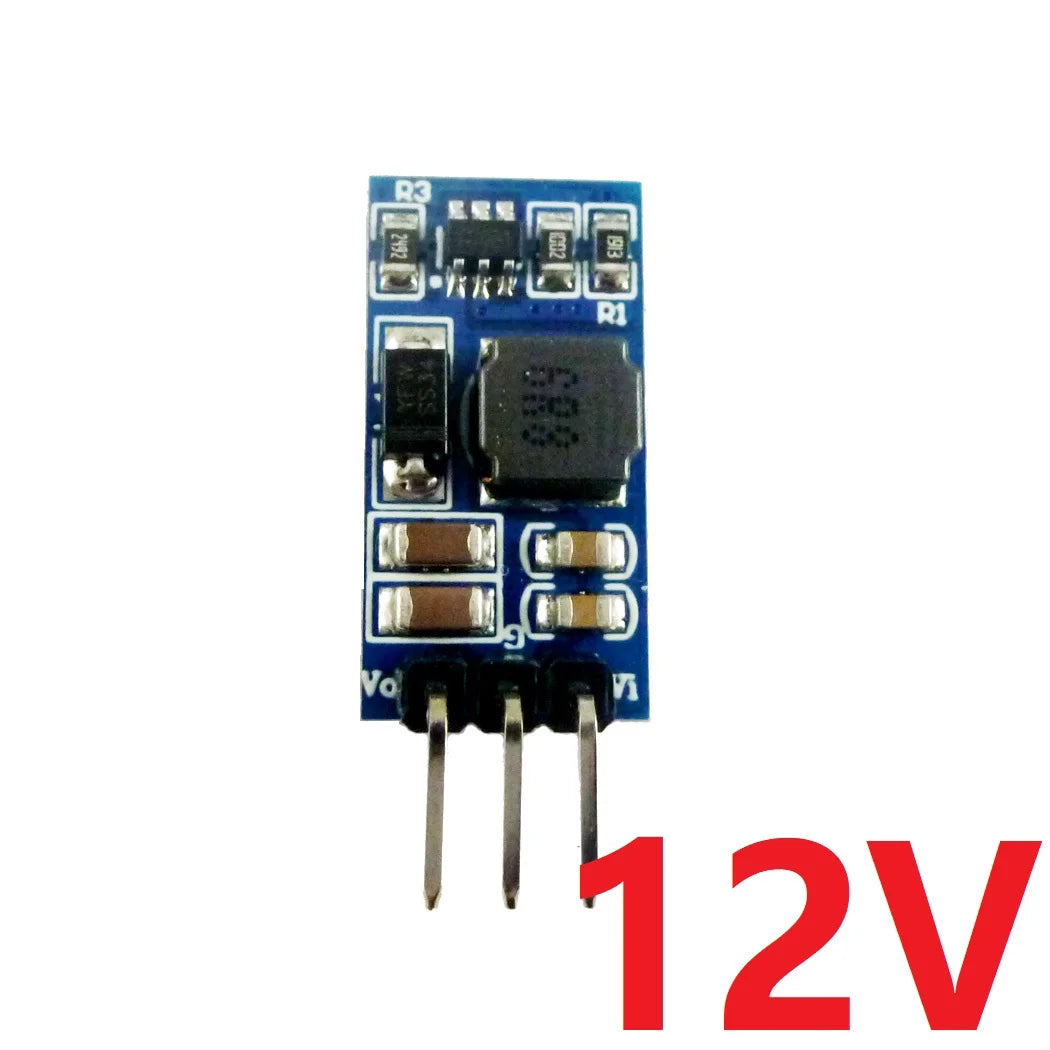

Output 12V :
Input voltage DC 2.6 ~ 6V,output DC 12V±3%
Maximum output : 12V/600MA(See the table below for details)


Applications

Battery powered equipment
Instrumentation, multimeter
Breadboard Stm32 Lcd LED
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Motor
Solar power
WIFI Router
PLC RS485 devices
Lithium battery power supply equipment



Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
