IO22C04 4CH 4 Bit LED Pro mini PLC for Arduino Cycle Delay Time Switch Control

IO22C04 4CH 4 Bit LED Pro mini PLC for Arduino Cycle Delay Time Switch Control

IO22C04+PROMINIP

1000 in stock

$39.99
$39.99 $39.99
Sale Sold out
Product Name: 5V 12V 24V Pro mini PLC Board for Arduino LED Cycle Delay Timing Timer Relay diy

Module No. : IO22C04*1+PROMINIP*1

Package inlcuded:

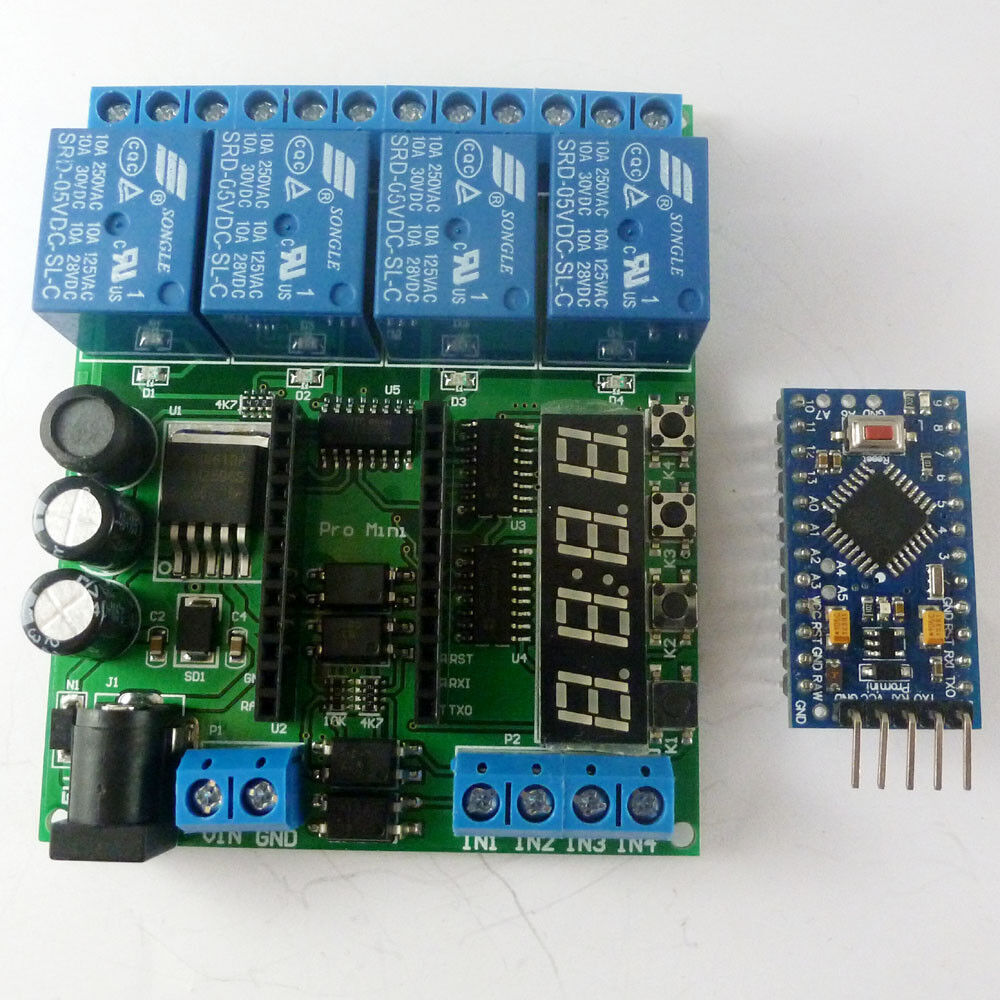

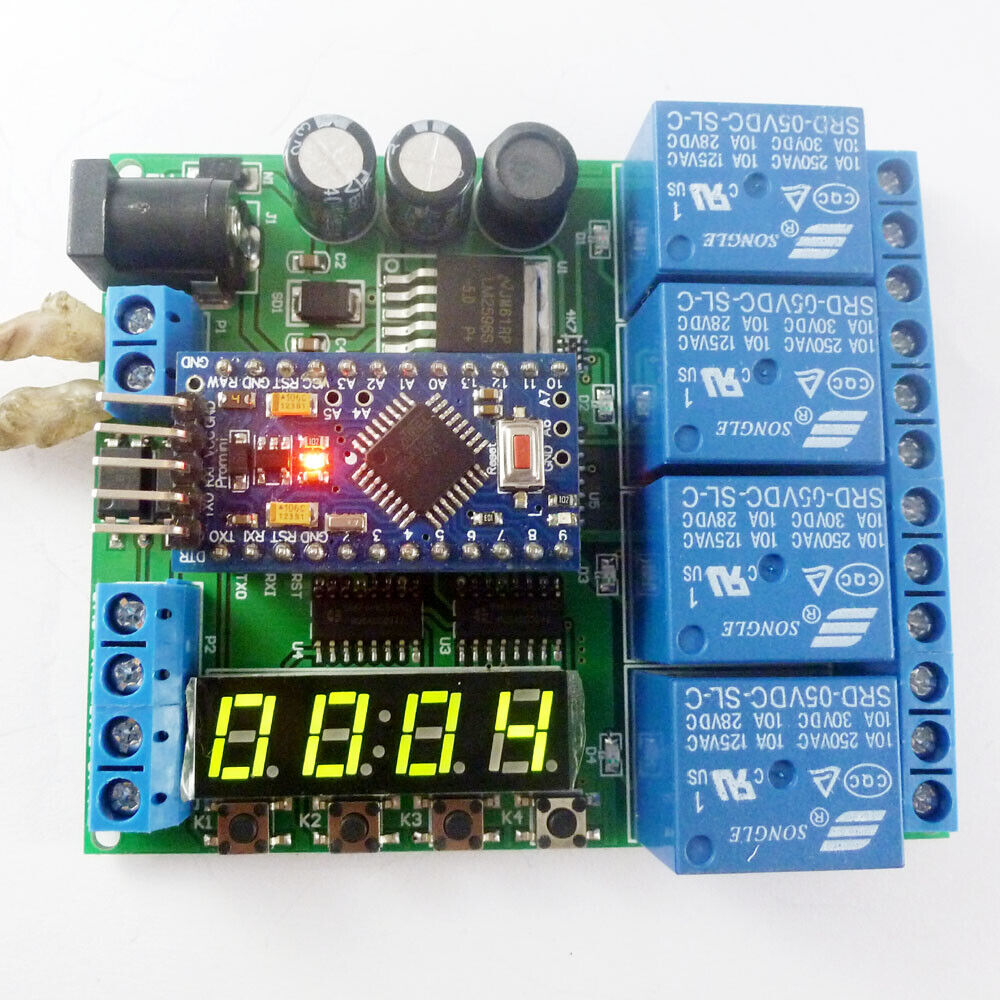

1 PCS DC 5V-24V 4 channel Pro mini PLC relay board
1 PCS pro mini ATMEGA328P 5V/16M(Has been welding pin)




Product Features:

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V


2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 45MA, 2 relays open 77MA, 3 relays open 109MA, 4 relays open 140MA

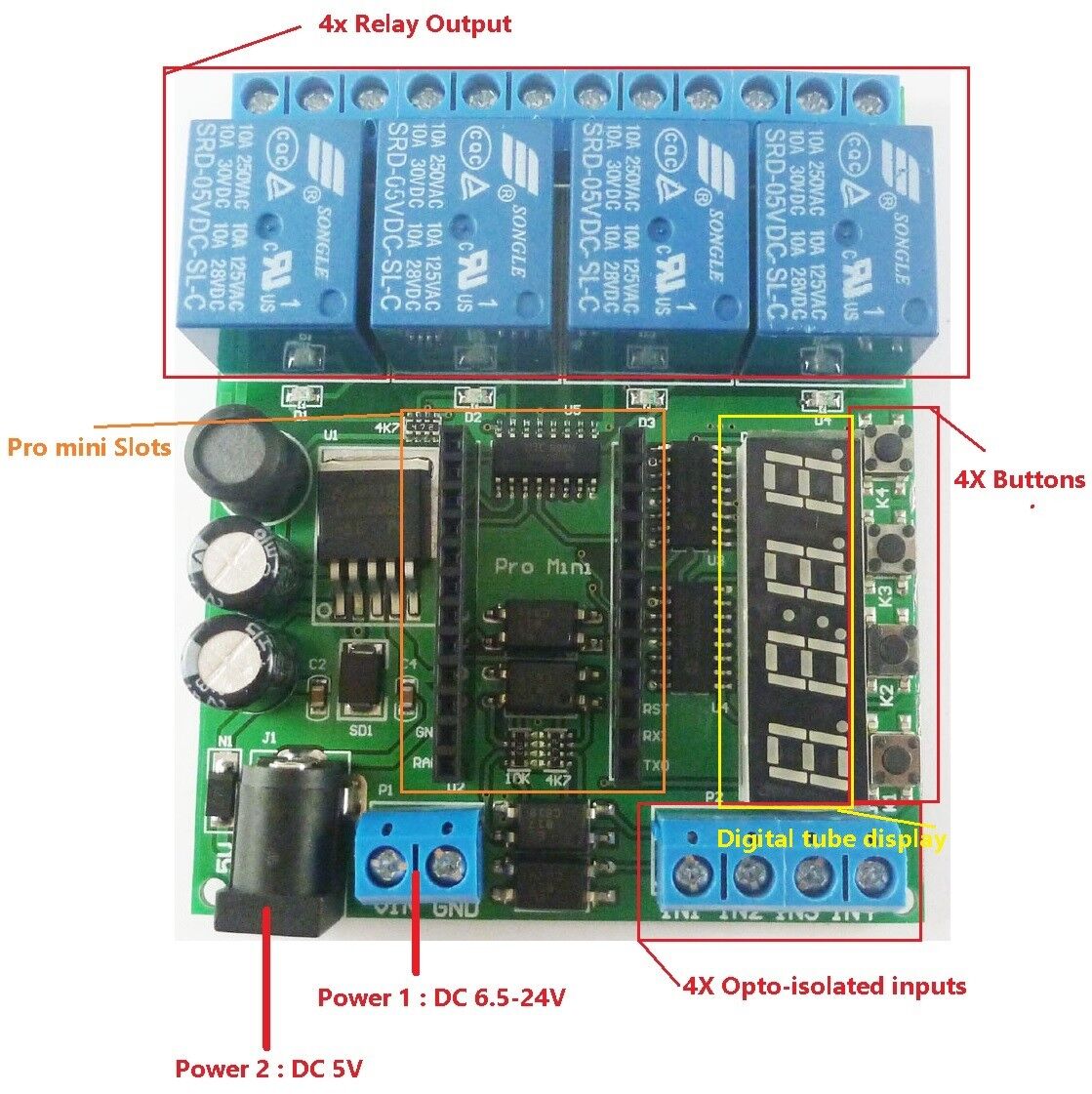

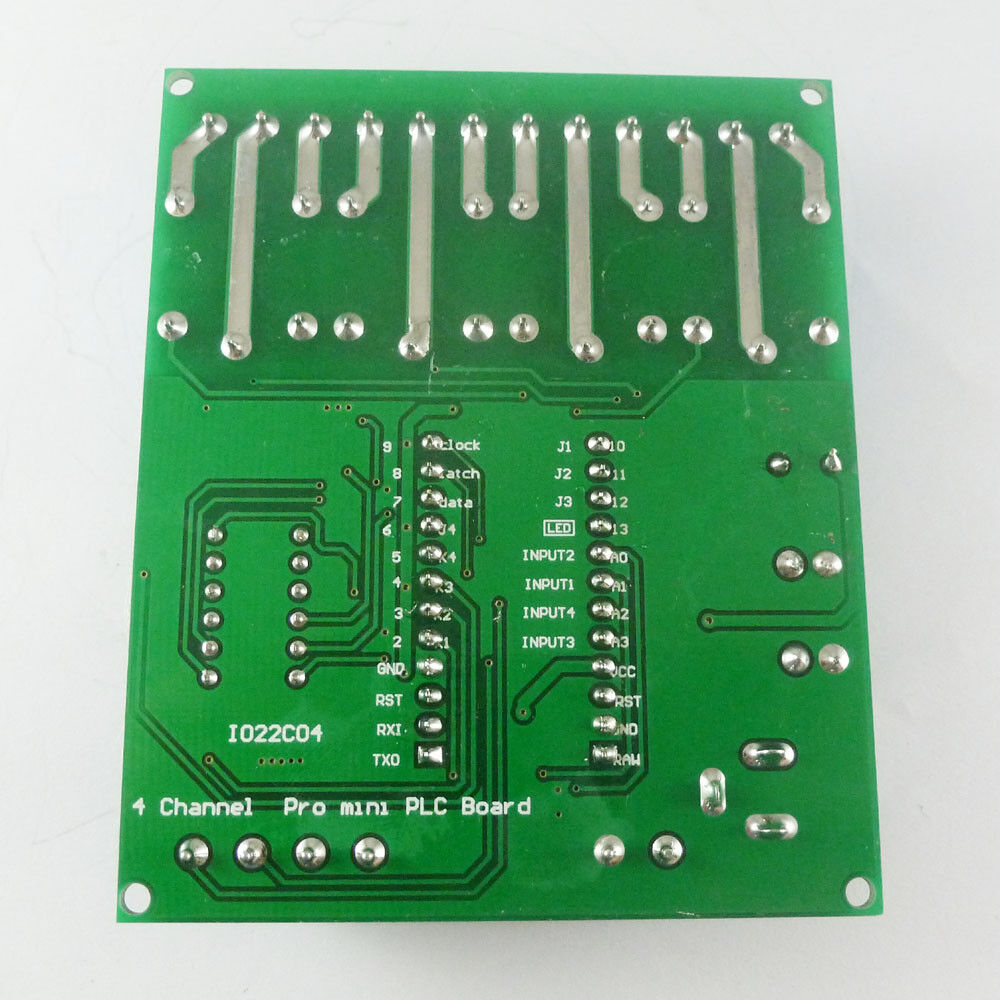

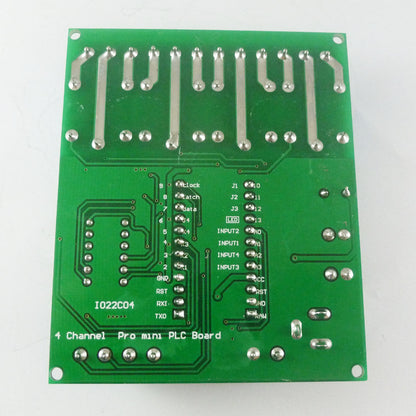

3 on-board resources: 4x opto-isolated inputs (low level trigger, NPN type), 4x buttons, 1x 4 bit digital tube display, 1 pair of Pro mini slots, 4x relay outputs


4 size 80*66*19mm


5 Weight : 79g


We provide the code(sketch) can only achieve a simple delay function,The delay time is adjusted by modifying the delay parameter of the code(sketch).
If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support



How to use: See video " IO22C04 pro mini delay relay demo"

You may need:

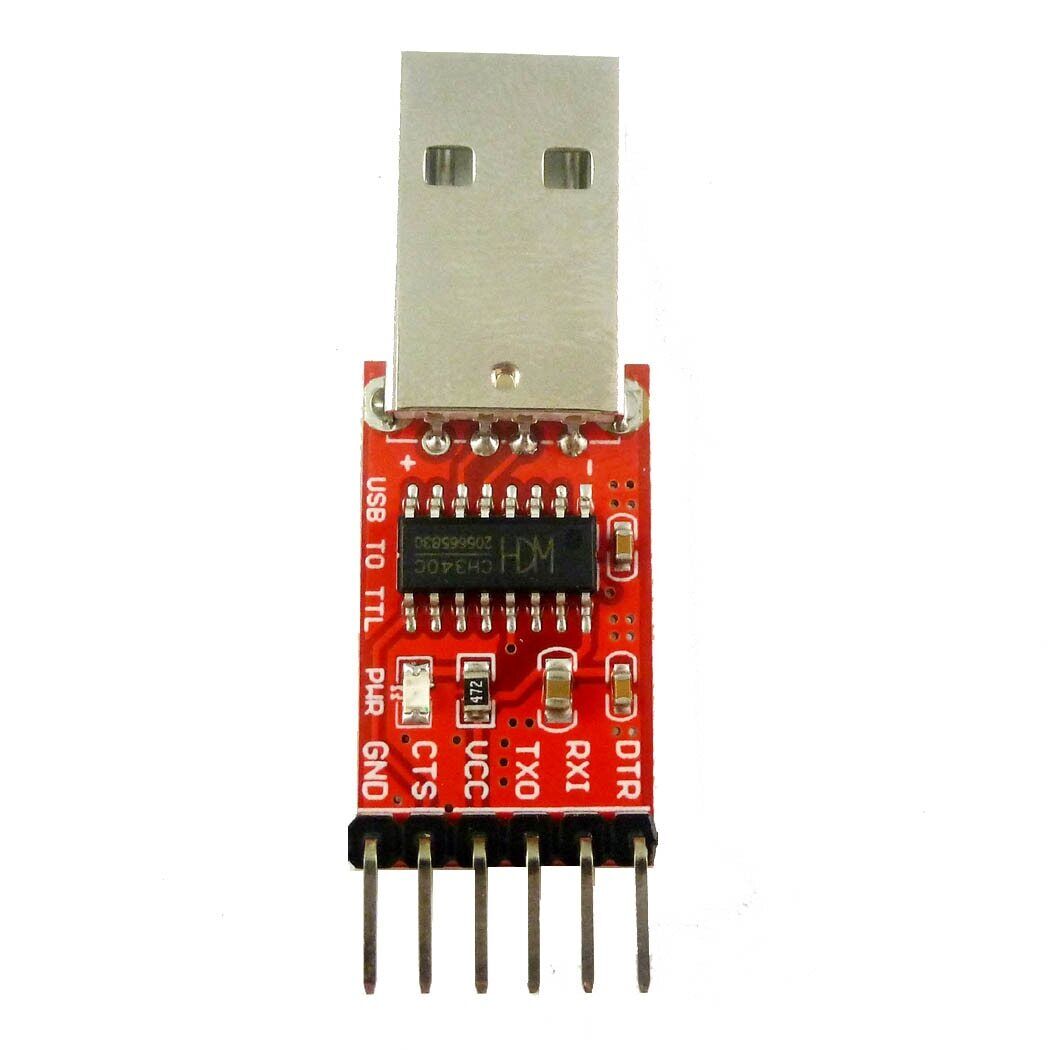

Pro mini Downloader,click here!



Application examples:

As long as you write ARDUIUO Pro mini code(sketch),You can use it to achieve a variety of delay timer function,such as:
Motor forward and reverse,
Timing on,
Timing off,
Power-up delay,
Trigger delay,
Infinite loop delay,
A finite number of cyclic delays,
Power sequencer,
And so on.


Wiring diagram:

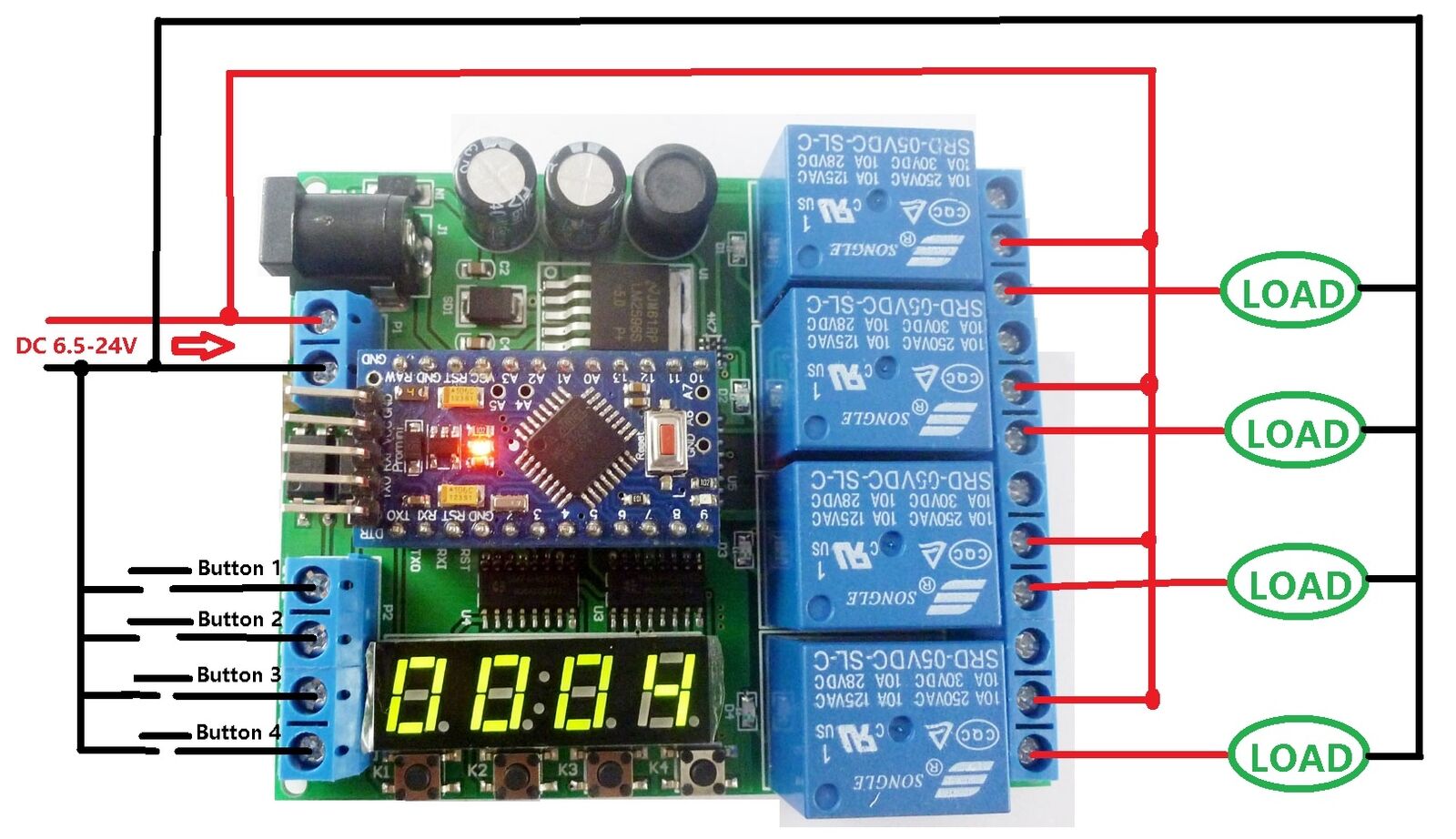

1 DC 6-24V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and
other DC 6-24V equipment

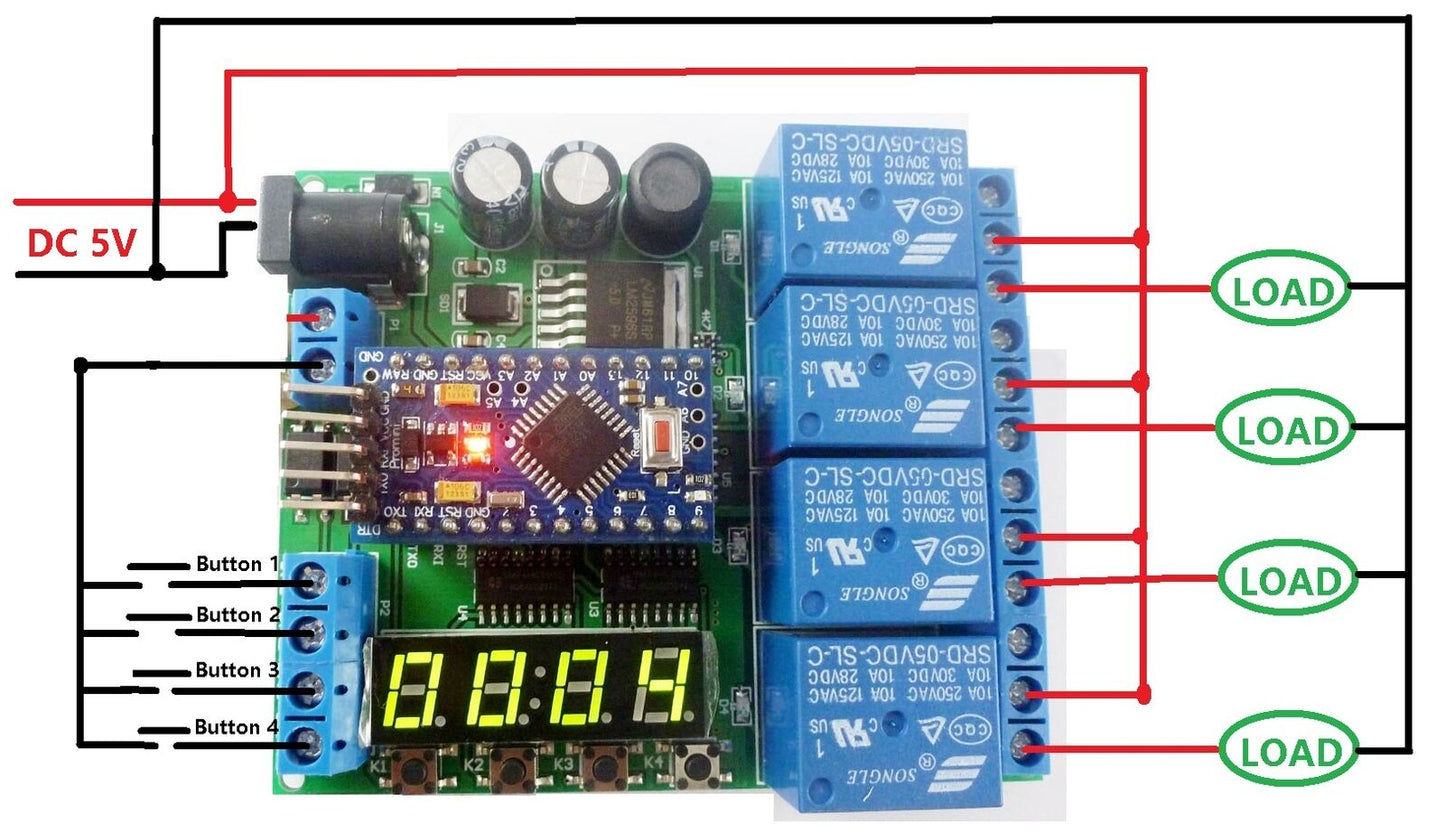

2 DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights,fans, Development board and
other DC 5V equipment

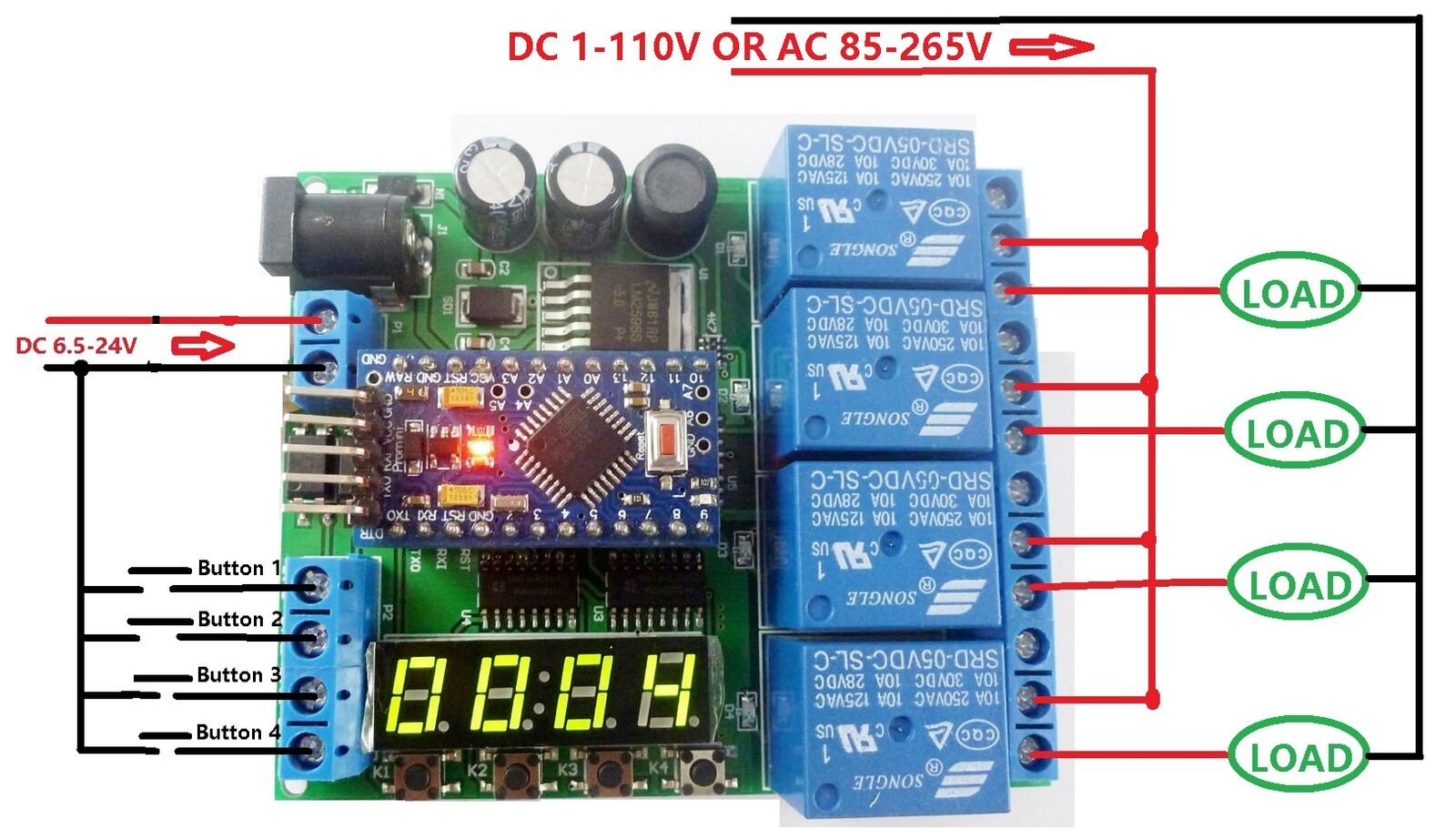

3 Power supply is 6.5-24V, "LOAD" may be DC 1-110V OR AC 85-265V equipment

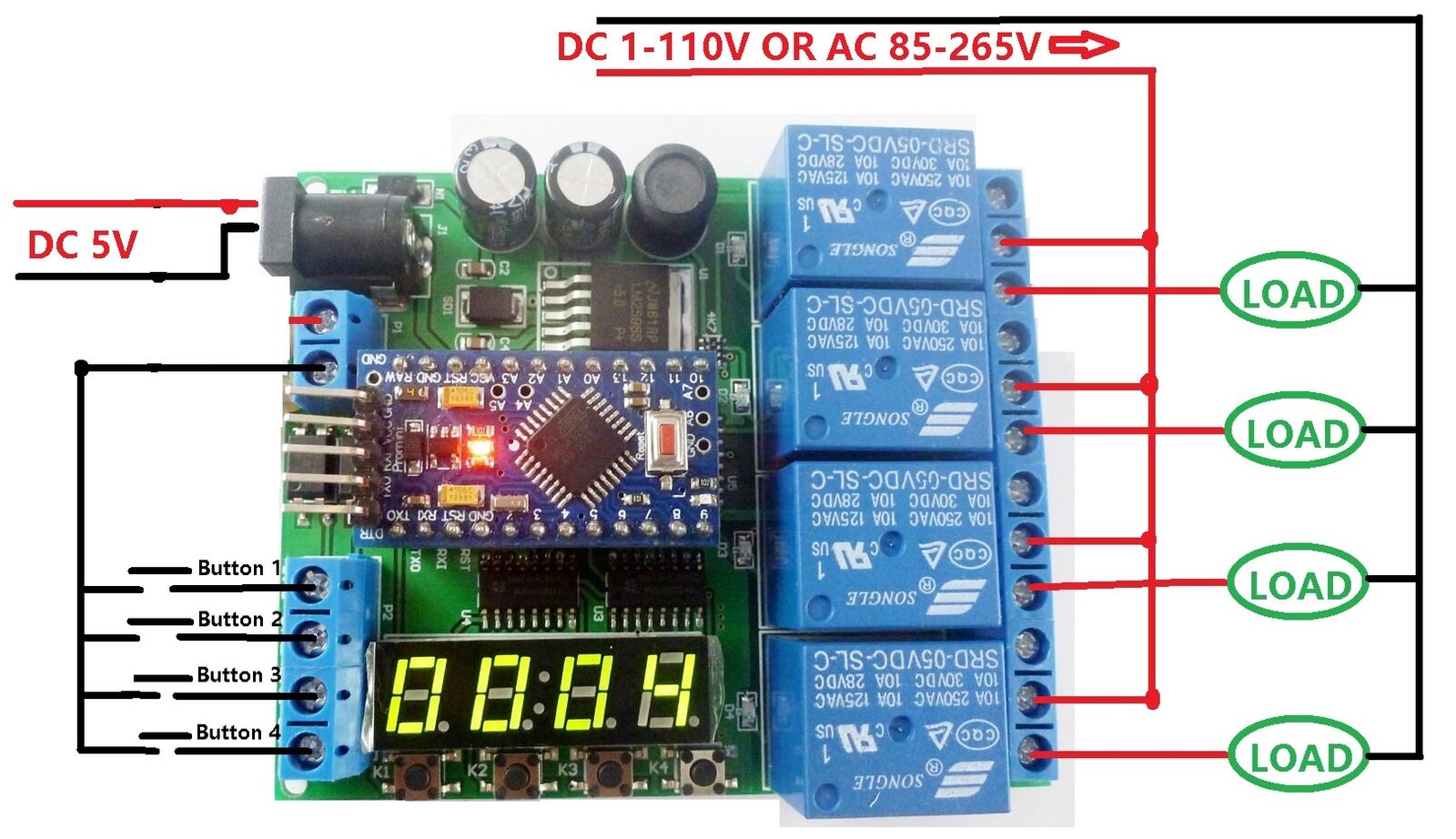

4 Power supply is 5V, "LOAD" may be DC 1-110V OR AC 85-265V equipment
