Product Name:5V 12V 1-4CH Flip-Flop Latch Relay Module Bistable Self-locking Switch Low Pulse Trigger Board For Arduino Smart Home LED Motor
Packing list:
1 pcs1 Channel DC 5V Self-locking Relay Module
Description:

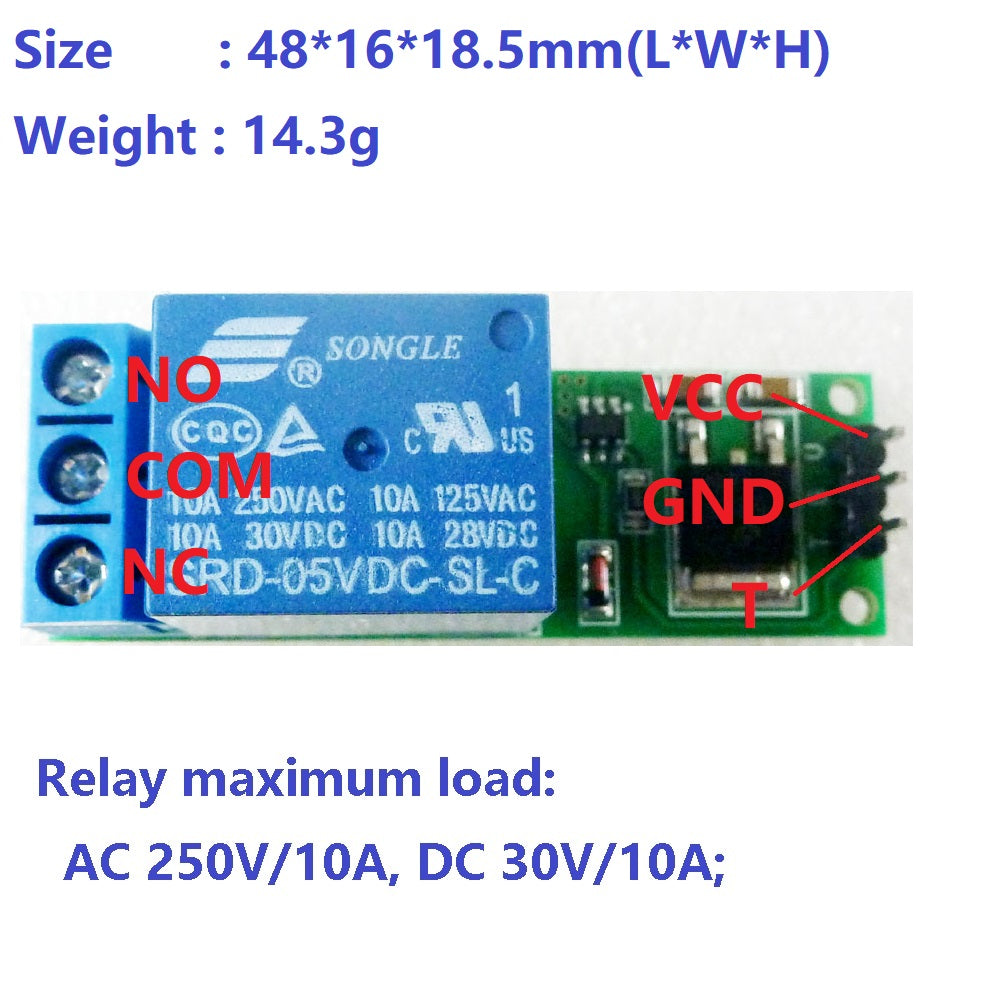

If you need 6-24V version, click here
Working voltage: DC 5V
Working current: 70MA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger

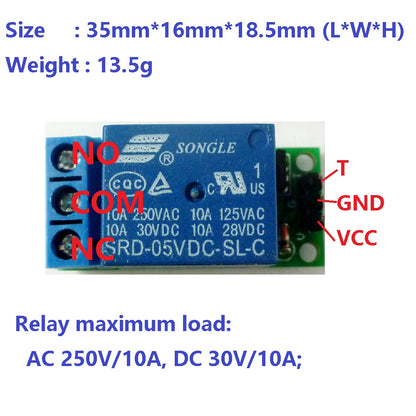

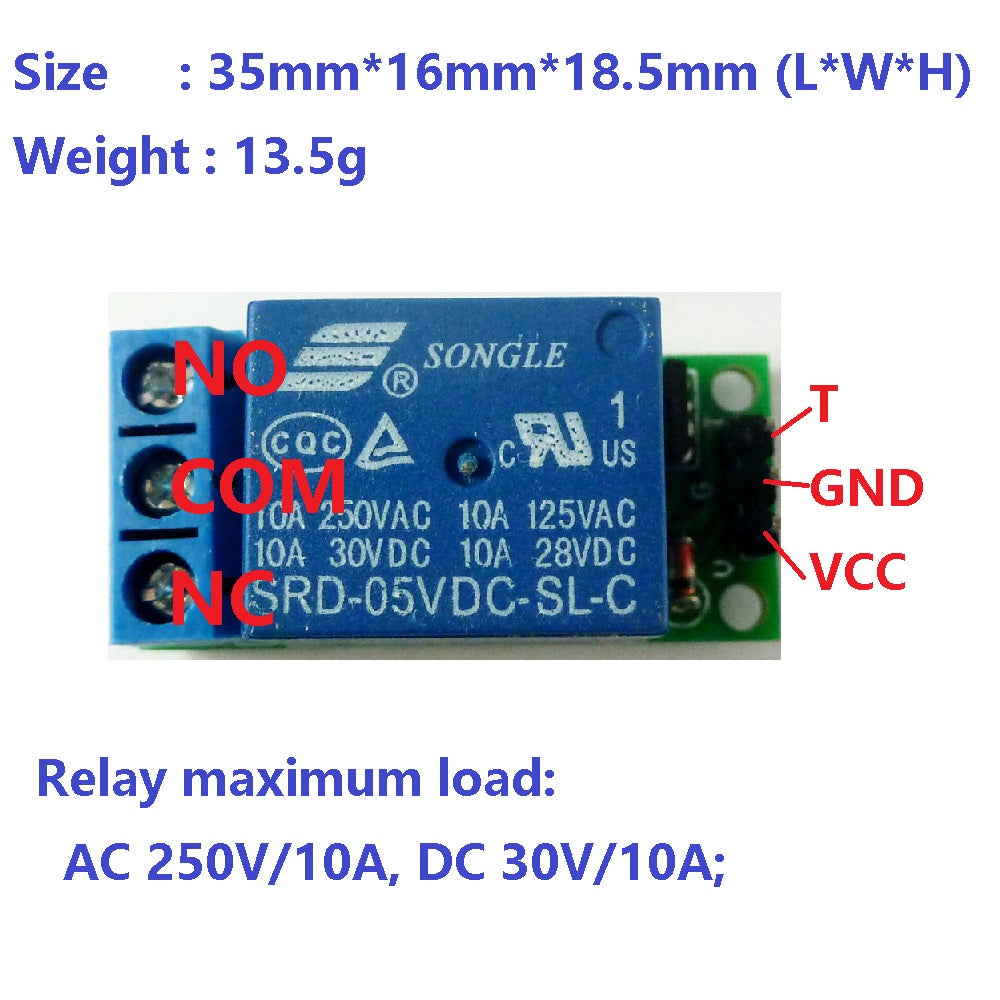

Size: 35mm * 16mm * 18.5mm (L * W * H), Very small size
Weight: 13.5 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T : Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

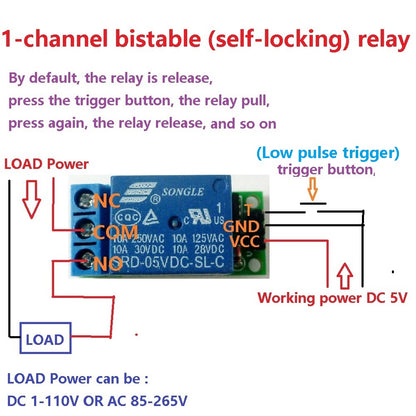

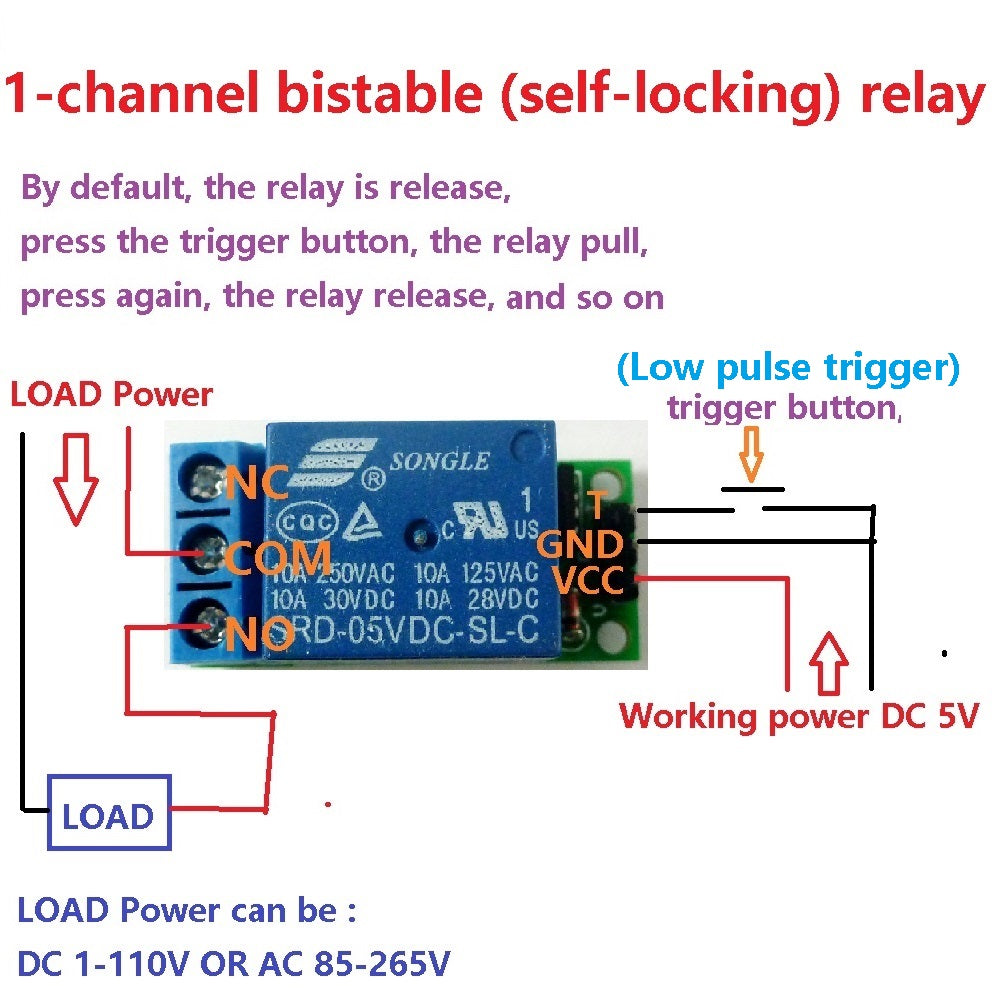

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
