IO25D04 IO25C04 4ch 5V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch
IO25D04 IO25C04 4ch 5V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch
SKU:IO25C04
1000 in stock
Regular price
$5.99
Regular price
Sale price
$5.99
Unit price
per
Couldn't load pickup availability

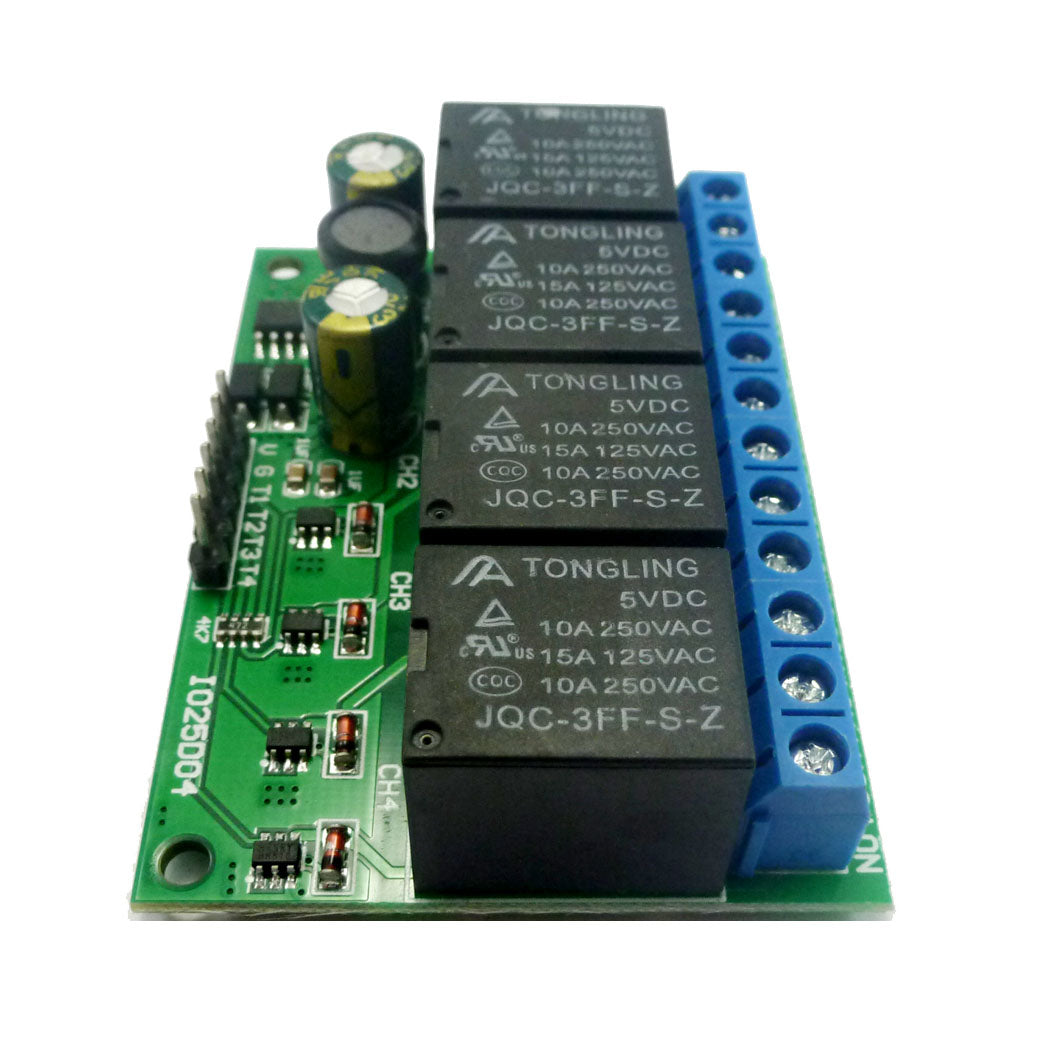

Product Name:4CH 5V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch Low Pulse Trigger Board
Packing list:
1 pcs 4 Channel DC 5V Self-locking Relay Module
Description:
Working voltage: DC 5V
Working current: 1 relay 70MA;2 relay 140MA; 3 relay 210MA; 4 relay 280MA
Standby current: 4UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm * 19mm (L * W * H), Small size
Weight: 52 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. 5V: positive power supply (VCC)
2. G: negative power supply (GND)
3. T1 : Trigger port 1
4. T2 : Trigger port 2
5. T3 : Trigger port 3
6. T4 : Trigger port 4
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE 1:

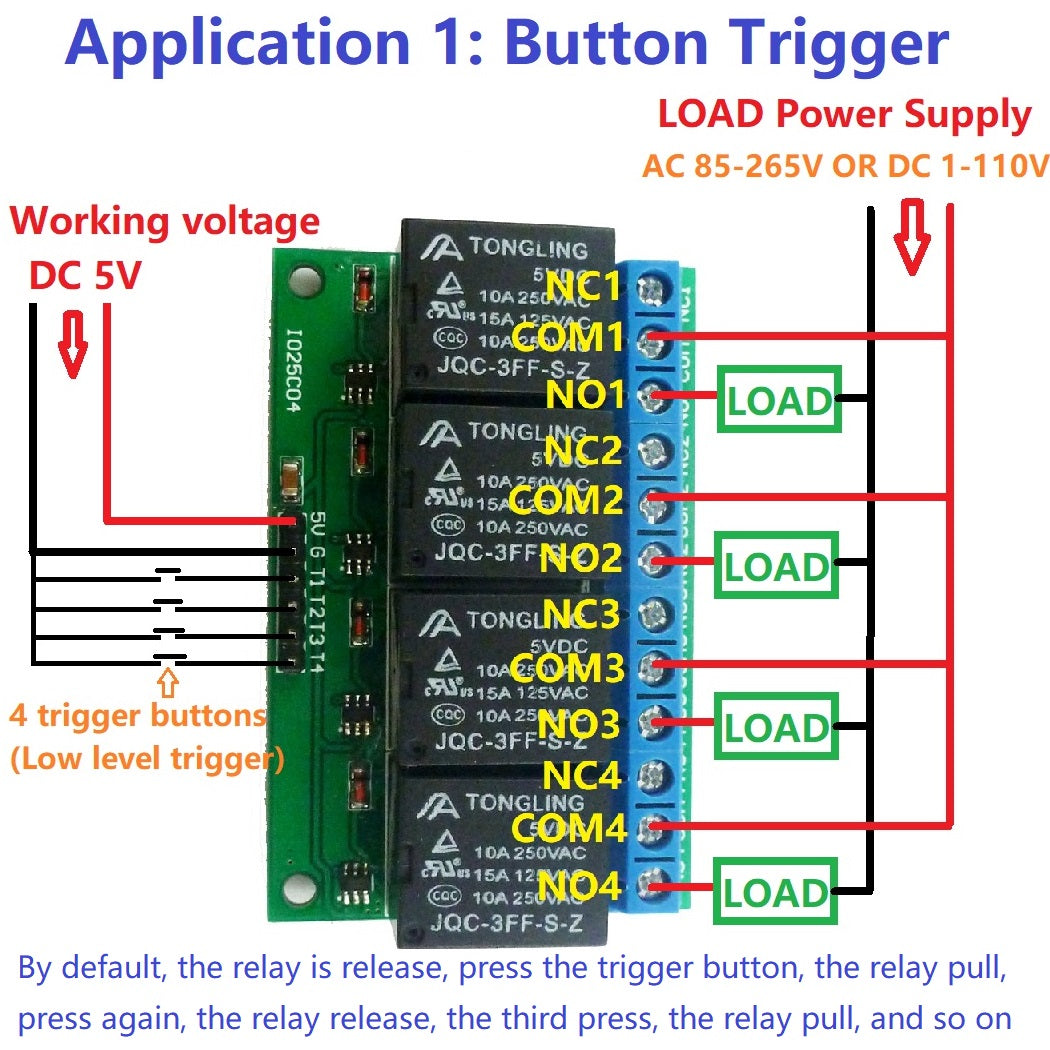

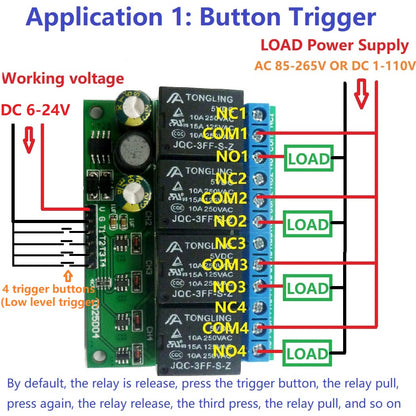

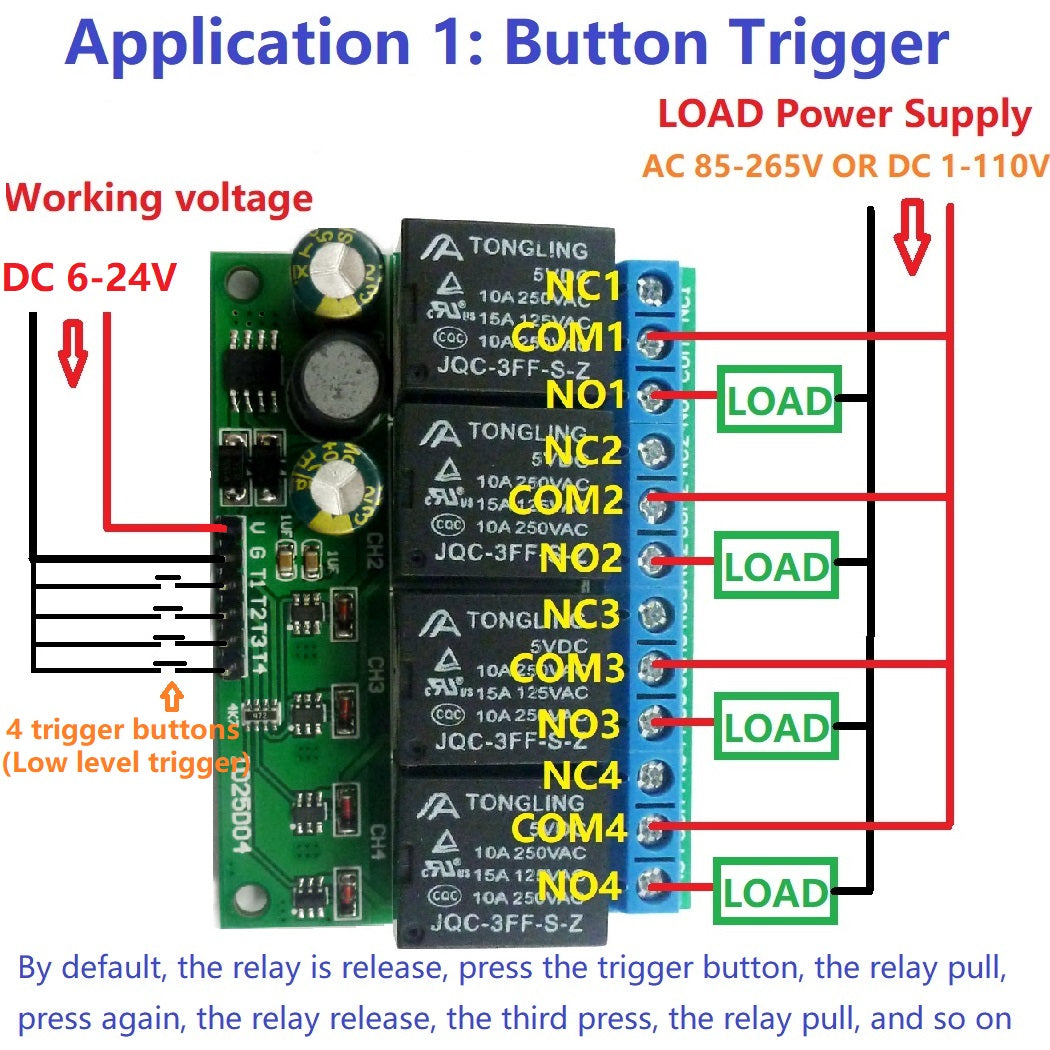

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

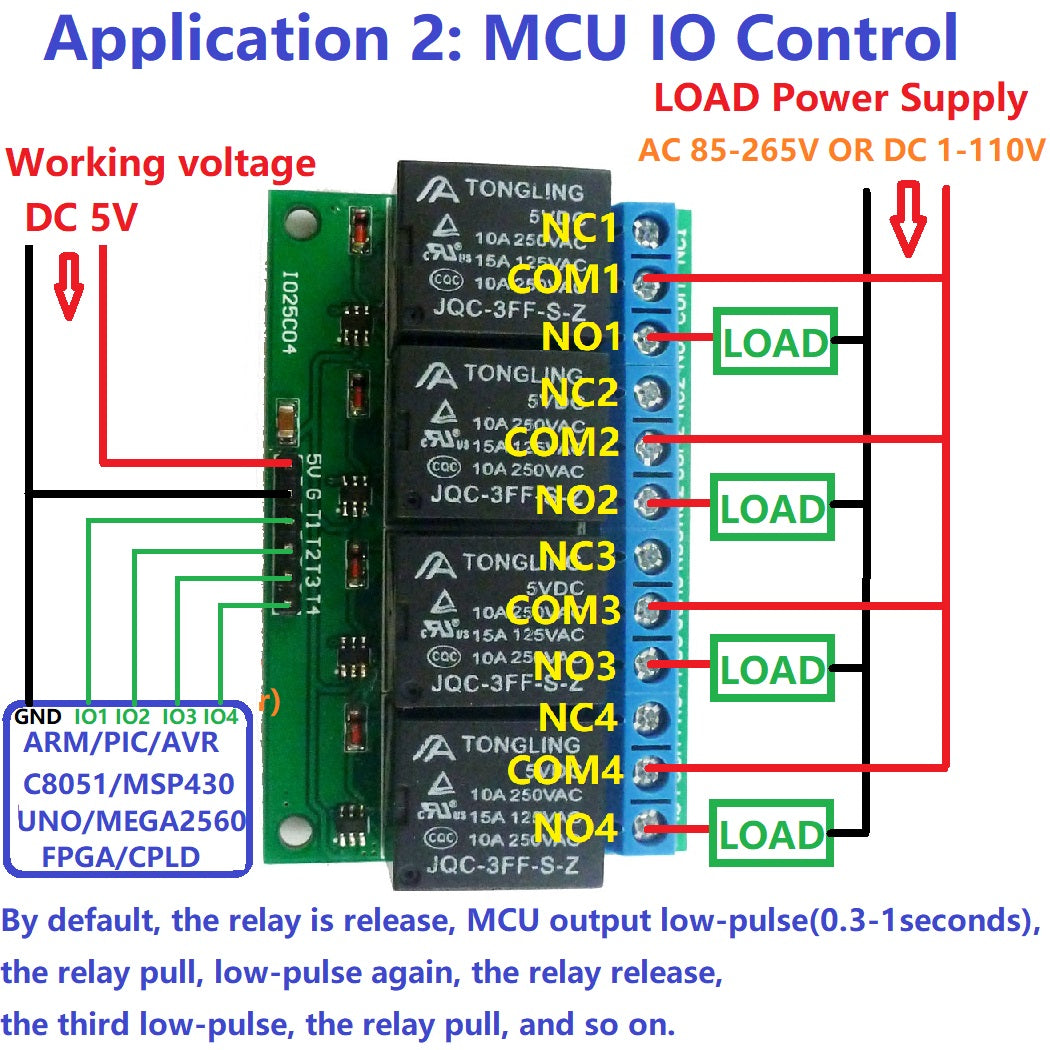

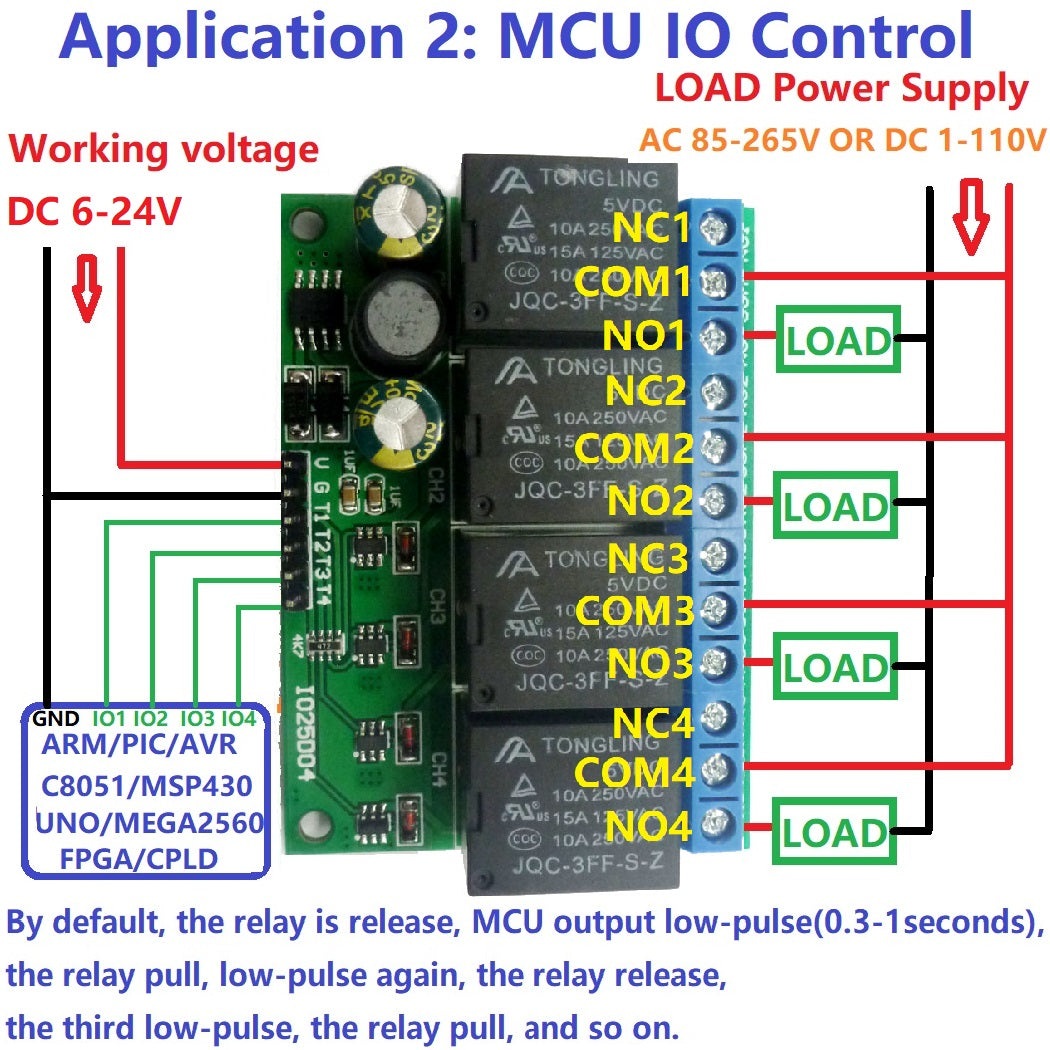

By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.
Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
