IO95A01 8A 3.3V-24V Flip-Flop Latch Switch Module Bistable Self-locking Trigger Board
IO95A01 8A 3.3V-24V Flip-Flop Latch Switch Module Bistable Self-locking Trigger Board
SKU:IO95A01_H
1000 in stock
Regular price
$13.48
Regular price
$13.48
Sale price
$13.48
Unit price
per
Couldn't load pickup availability
Product Name: 8A 3.3V-24V Flip-Flop Latch Switch Module Bistable Self-locking Trigger Board
Packing list:
1 PCS IO95A01 3.3-12V/9-24V 8A LED Motor Flip-Flop Latch Switch Module
Description:
Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power,Optical Isolation.
Low standby power consumption, high output power,Optical Isolation.
Electrical parameters:

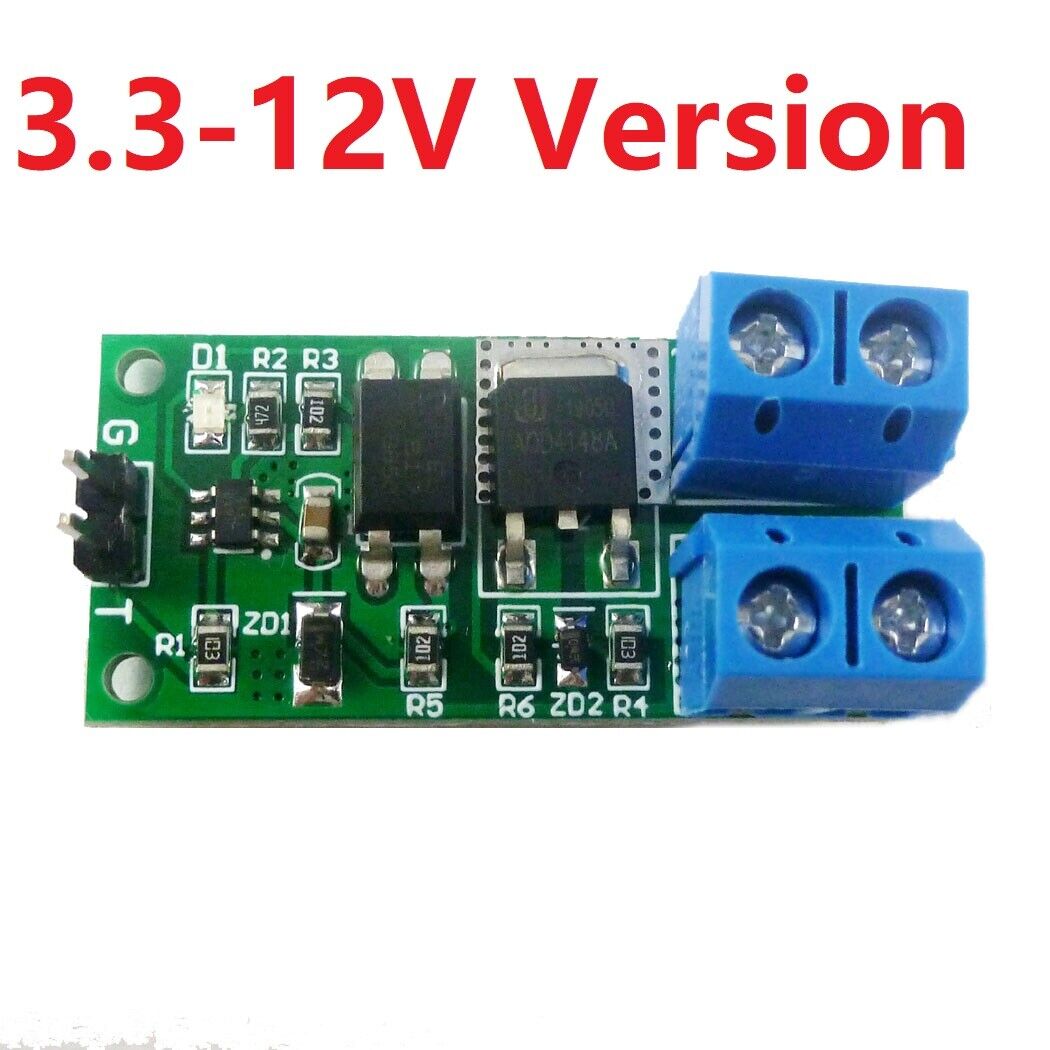

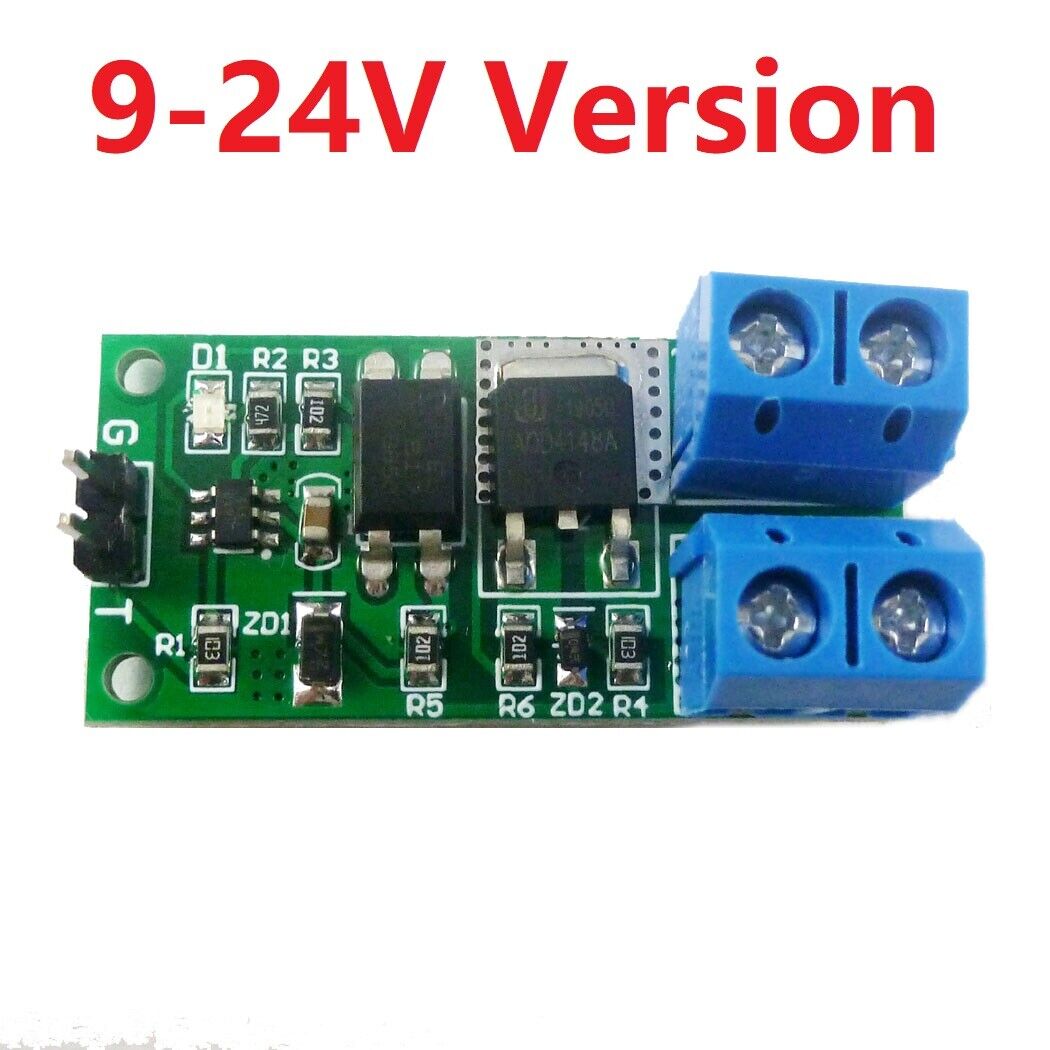

Power supply voltage:DC 3.3-12V(L3V3-12V Version);DC 9-24V(H9-24V Version)
Standby current:less than 0.11-1mA
Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A
Allowing continuous output current:
L3.3-12V Version : 3A(3.3V-3.7V);5A(3.7V-5V);6A(5V-9V);8A(9V-12V)
H9-24V Version : 8A(9V-15V);6A(15V-24V)

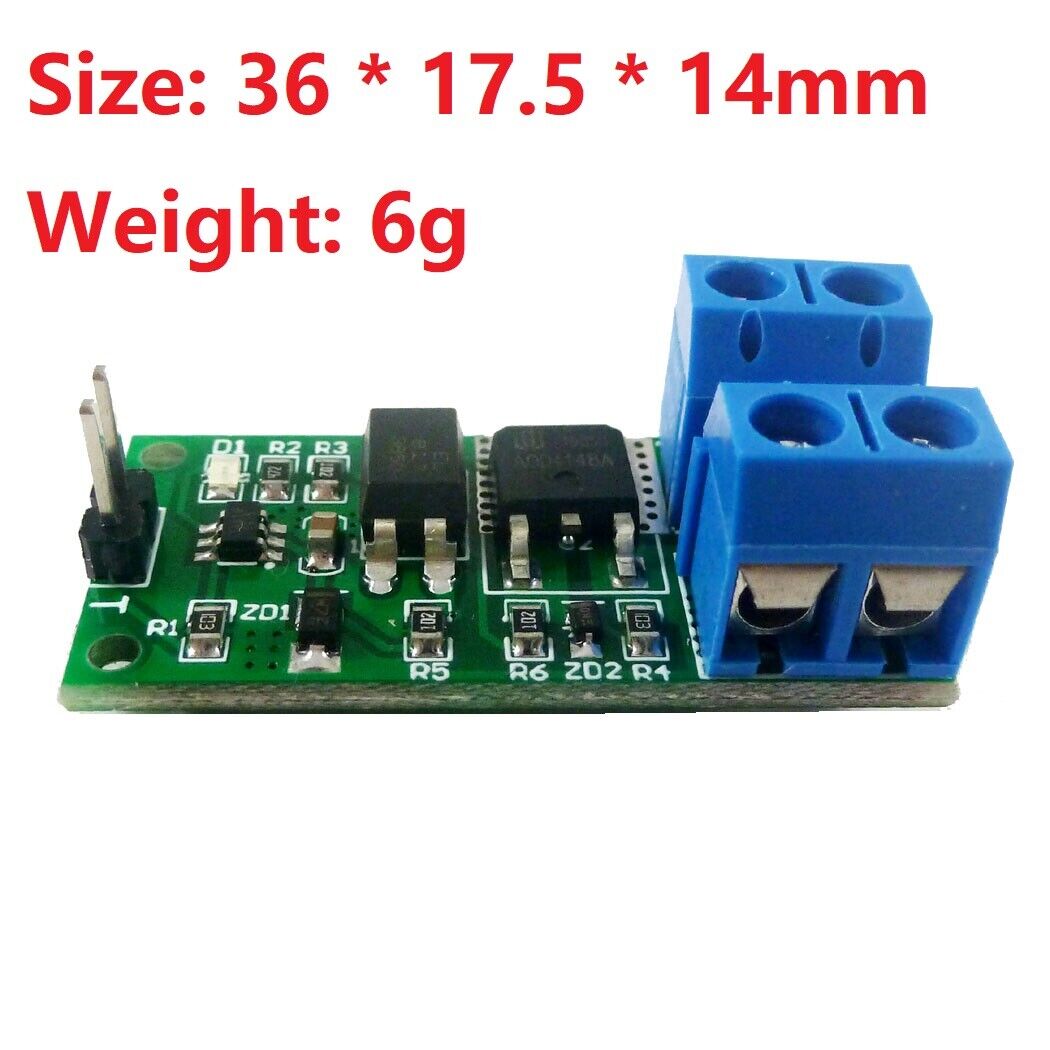

Size: 36 * 17.5 * 14mm
Weight: 6g
Standby current:less than 0.11-1mA
Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A
Allowing continuous output current:
L3.3-12V Version : 3A(3.3V-3.7V);5A(3.7V-5V);6A(5V-9V);8A(9V-12V)
H9-24V Version : 8A(9V-15V);6A(15V-24V)
Size: 36 * 17.5 * 14mm
Weight: 6g

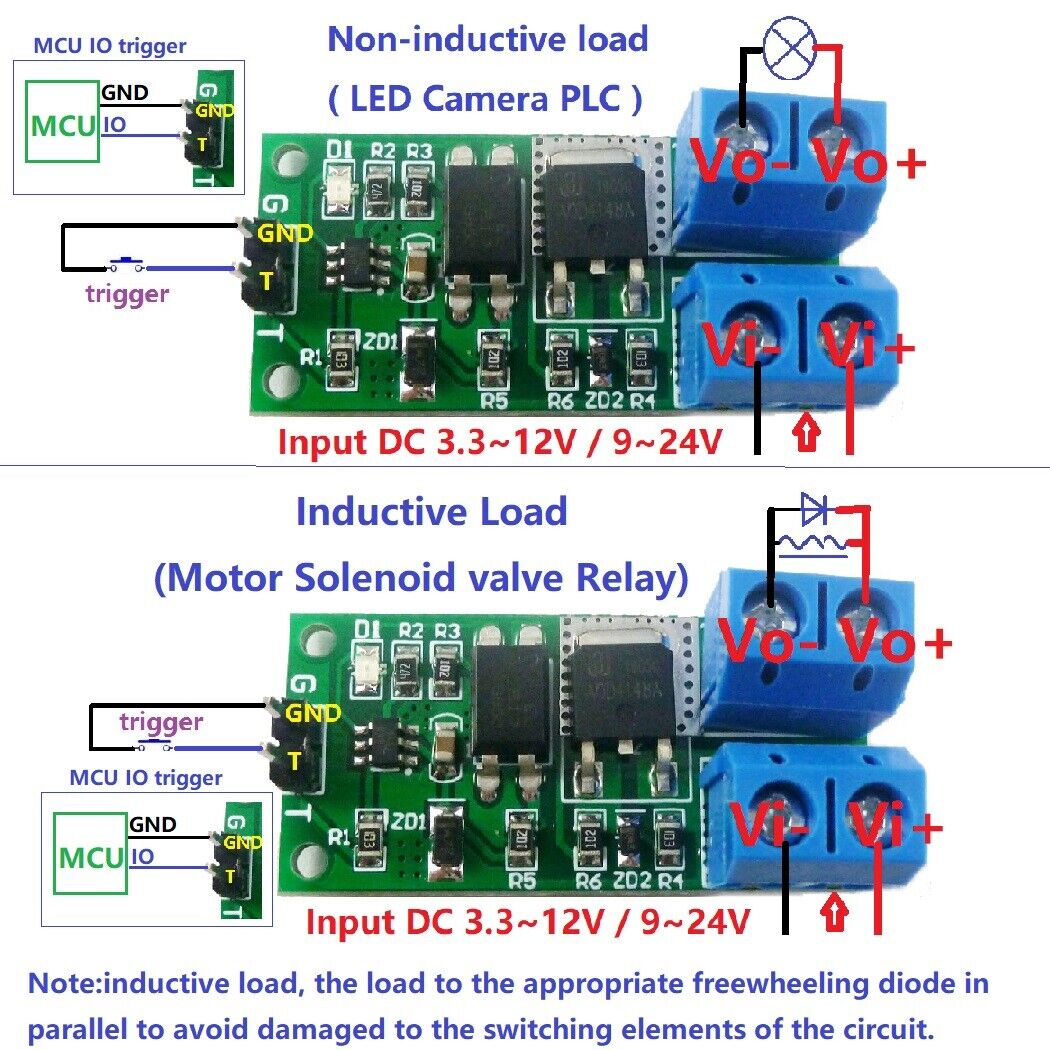

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

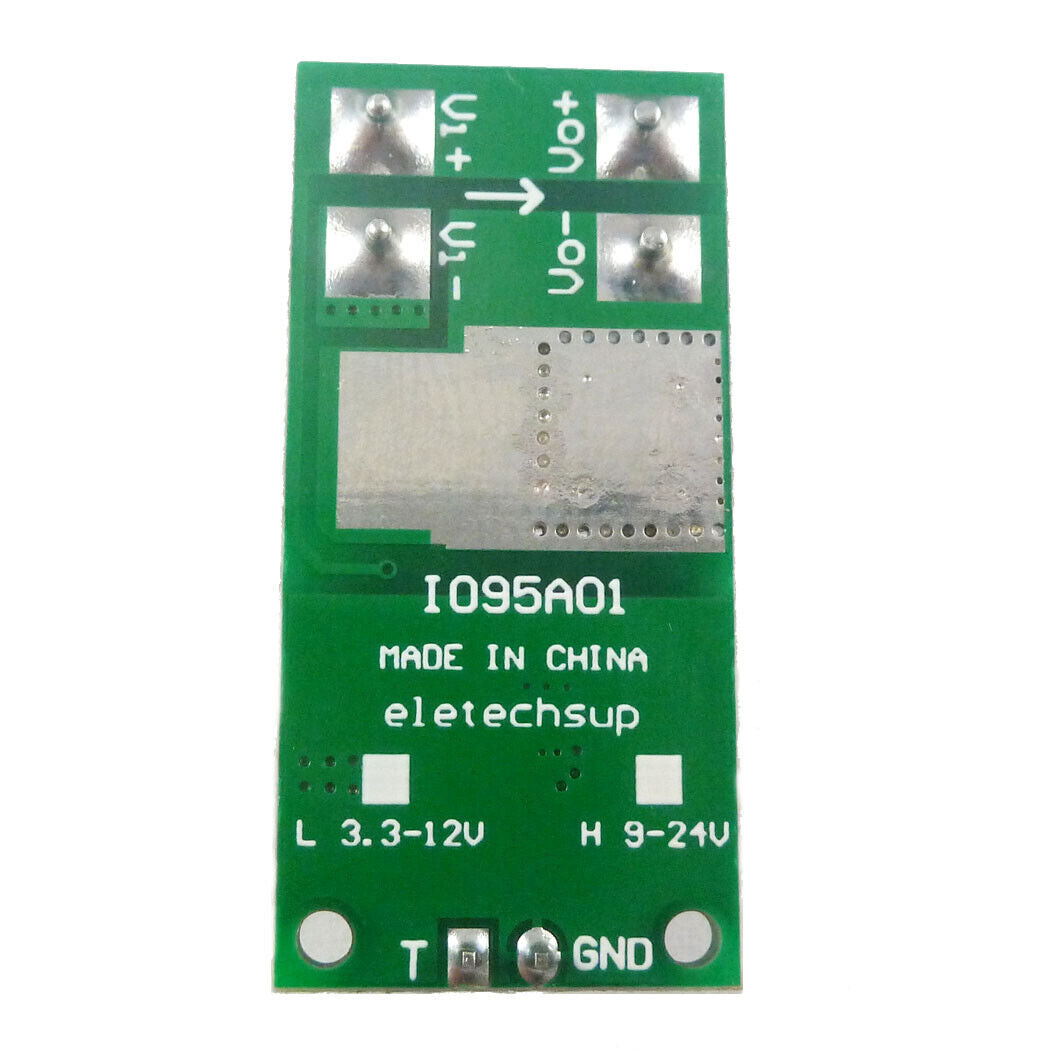

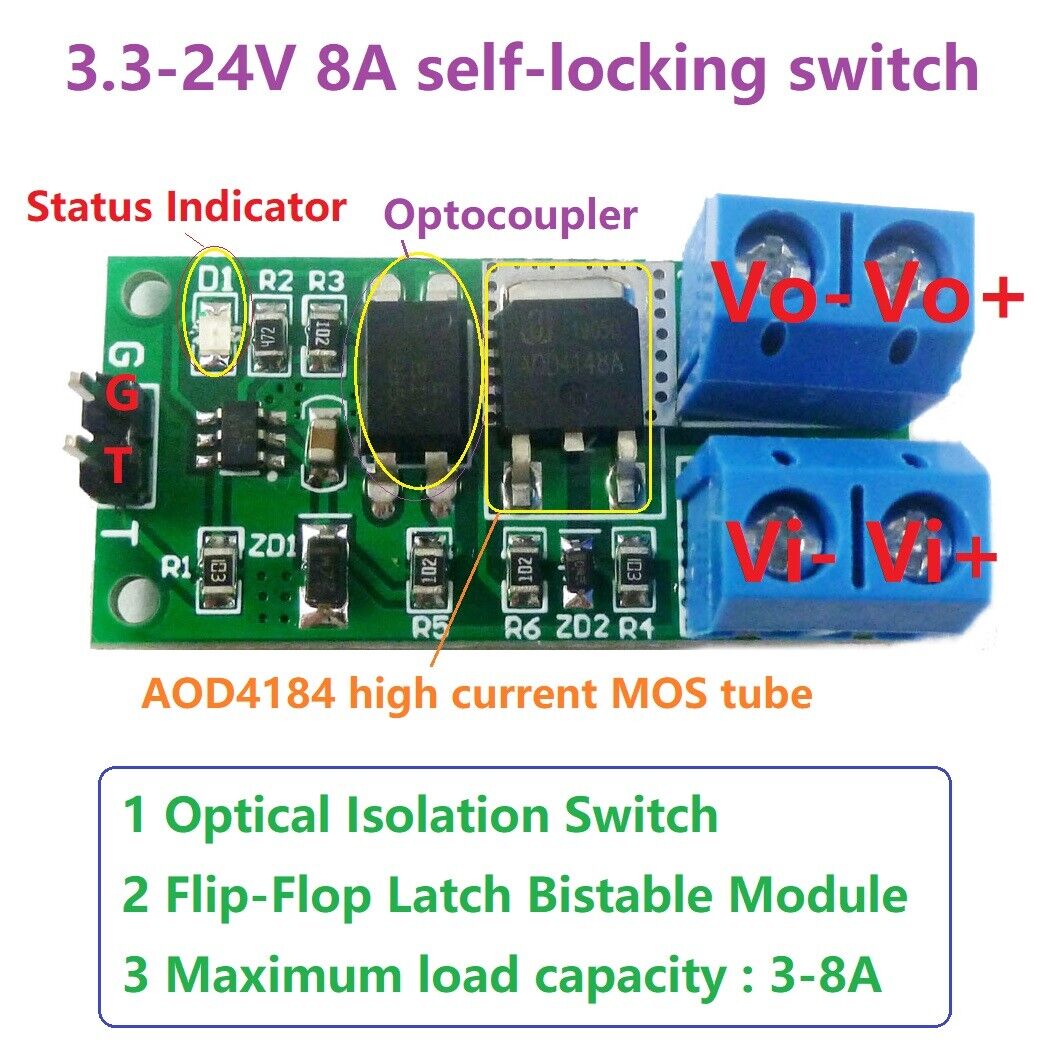

Pin description:
Vi+:Power Input +;
Vi- :Power Input -;
Vo+:Power Output +;
Vo- :Power Output -;
G:trigger signal input ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).
Vi- :Power Input -;
Vo+:Power Output +;
Vo- :Power Output -;
G:trigger signal input ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).
Applications:
Self-locking electronic switch
ARM MCU Development Board
Motor/Relay /Solenoid valve
IP PTZ camera
esp8266 WIFI Router MODULE
315M 433M Wireless remote controller
PLC MODBUS Device
