LDC350MA Ultra-small DC 3V 3.3V 3.7V 5V 260/350mA Constant Sink Current Multifunction LED Driver Board Parallel & series applications

Description:

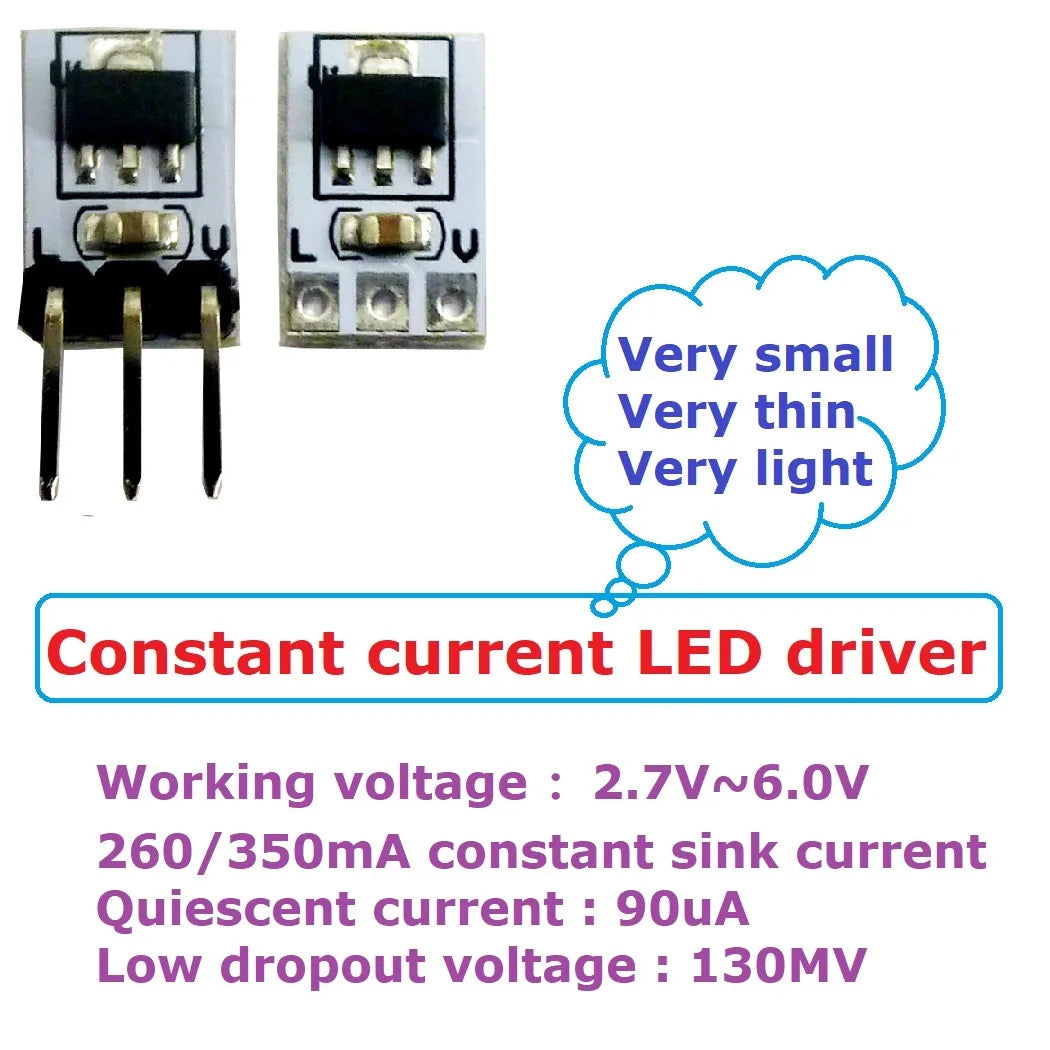

LDC350MA is a low dropout current regulator rated for 260/350mA constant sink current.

It is very small, very thin, and can be easily embedded in various electronic products.

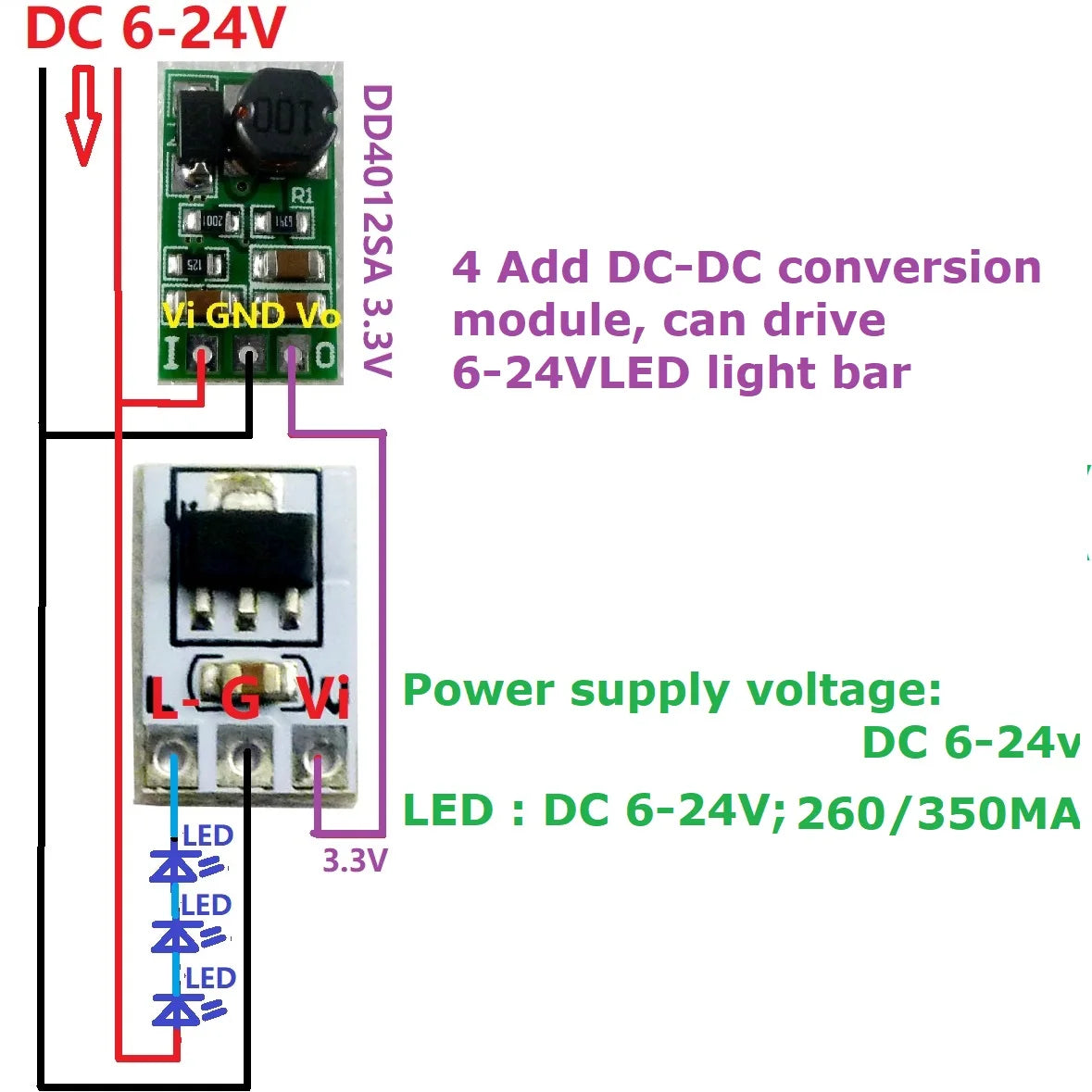

Supply voltage range:2.7V~6.0V(With LDO or Zener diode, it can drive 6-24V LED) ;

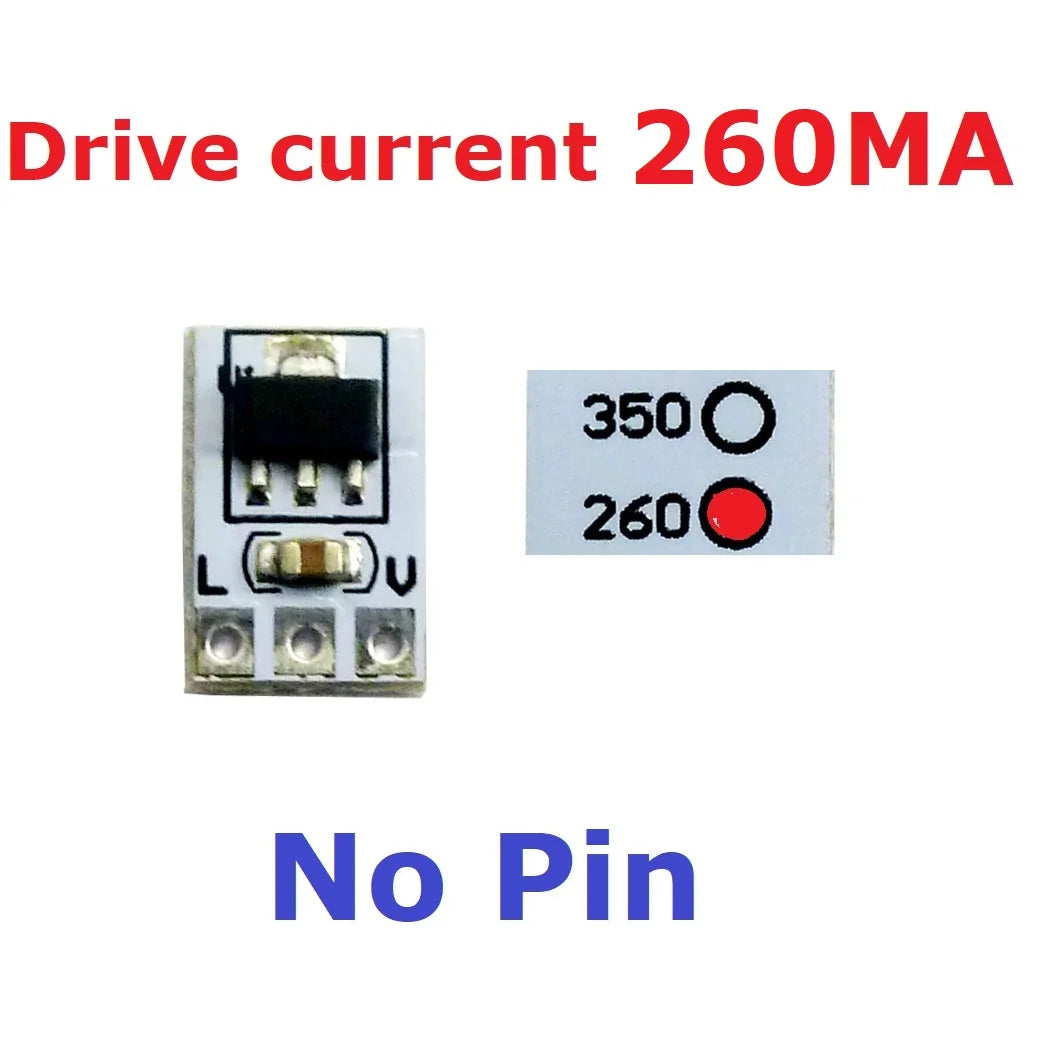

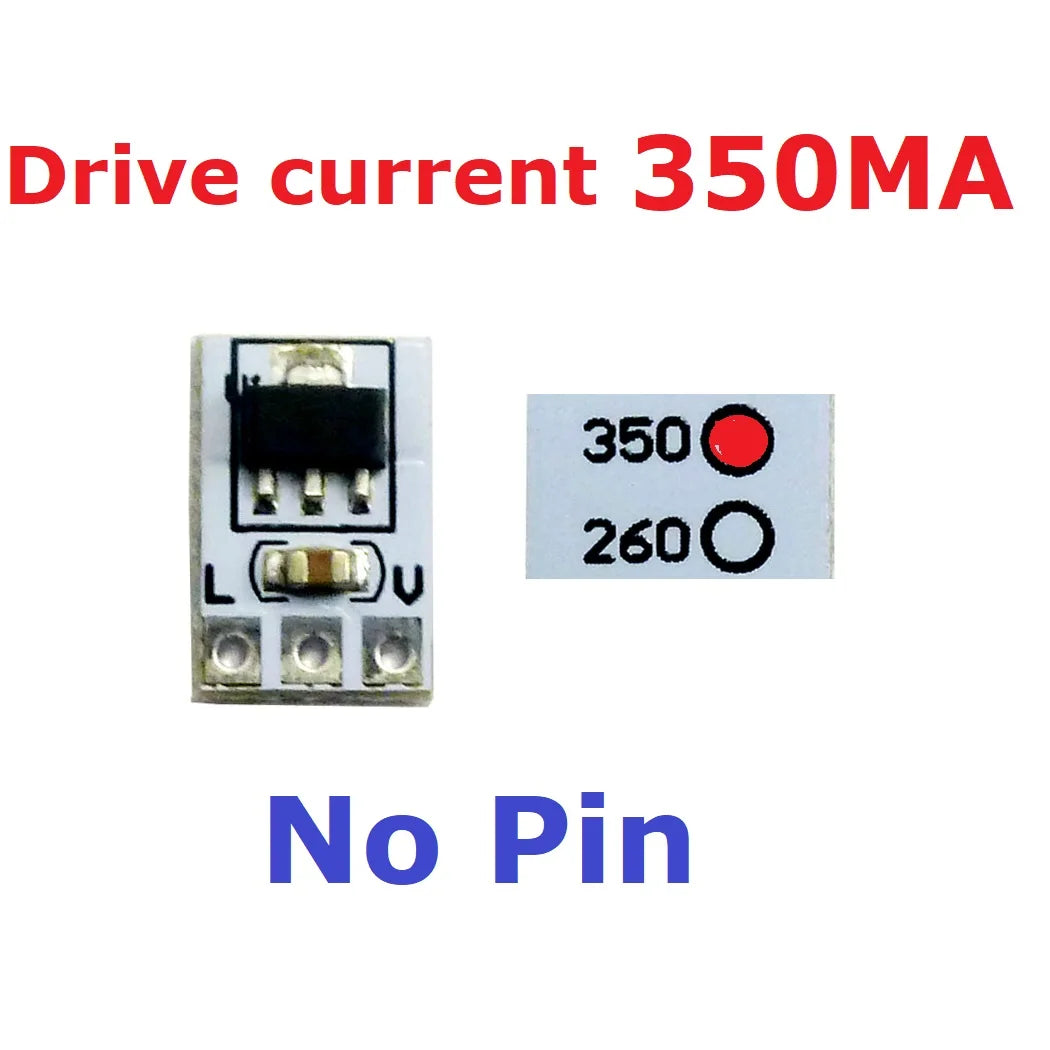

Output Current: 260/350mA(Can be used in parallel to drive 350-3500MA LED)
Quiescent current : 90uA
Low dropout voltage : 130MV
Output dropout voltage: 90% x Iout @Vout=200mv
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

Does not include pin size : 11.5 x 7.62 x 2.6mm(Very small and very thin)

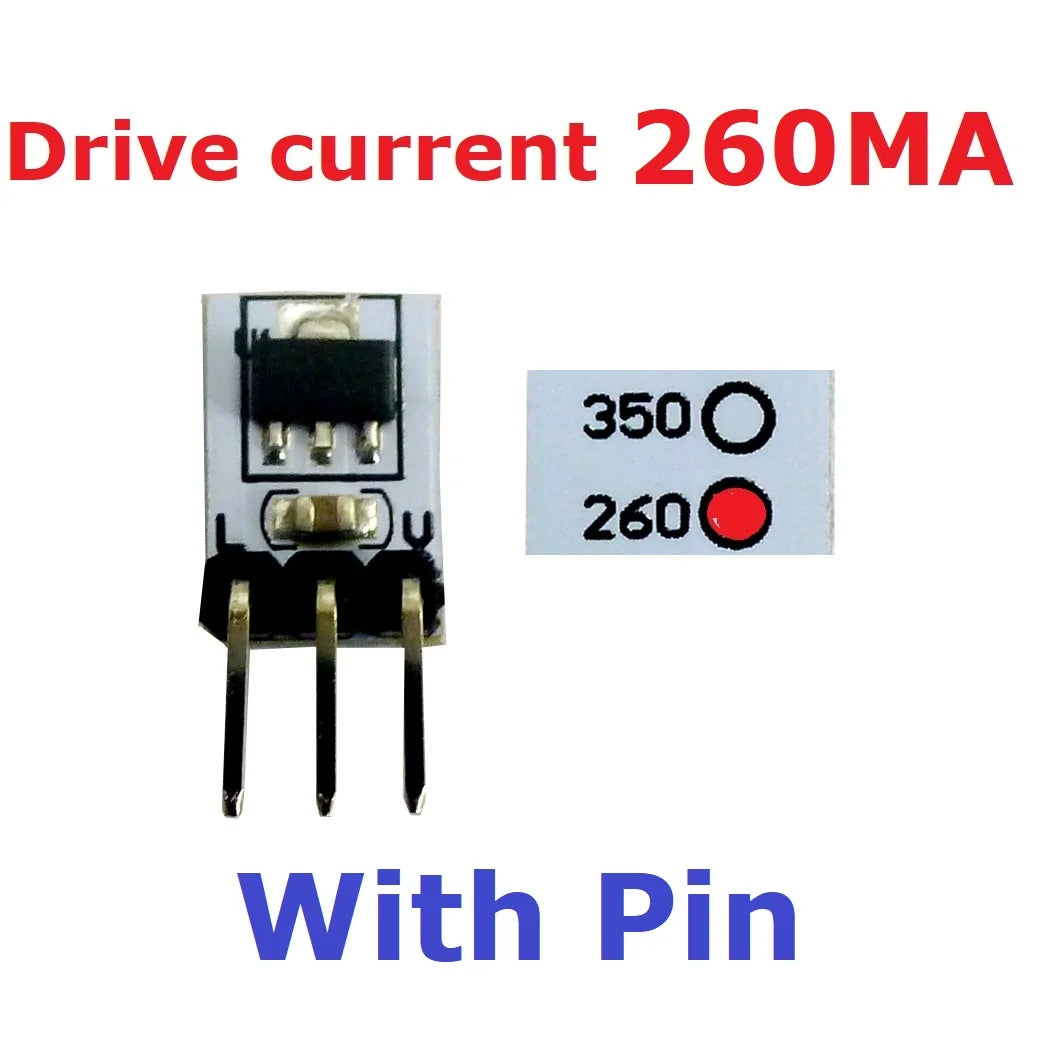

Weight : 0.5g(with Pin),0.26g(no Pin)

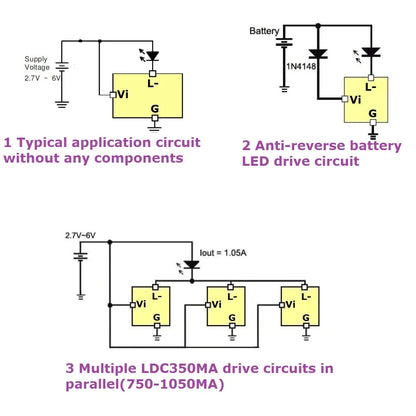

There are multiple wiring methods:

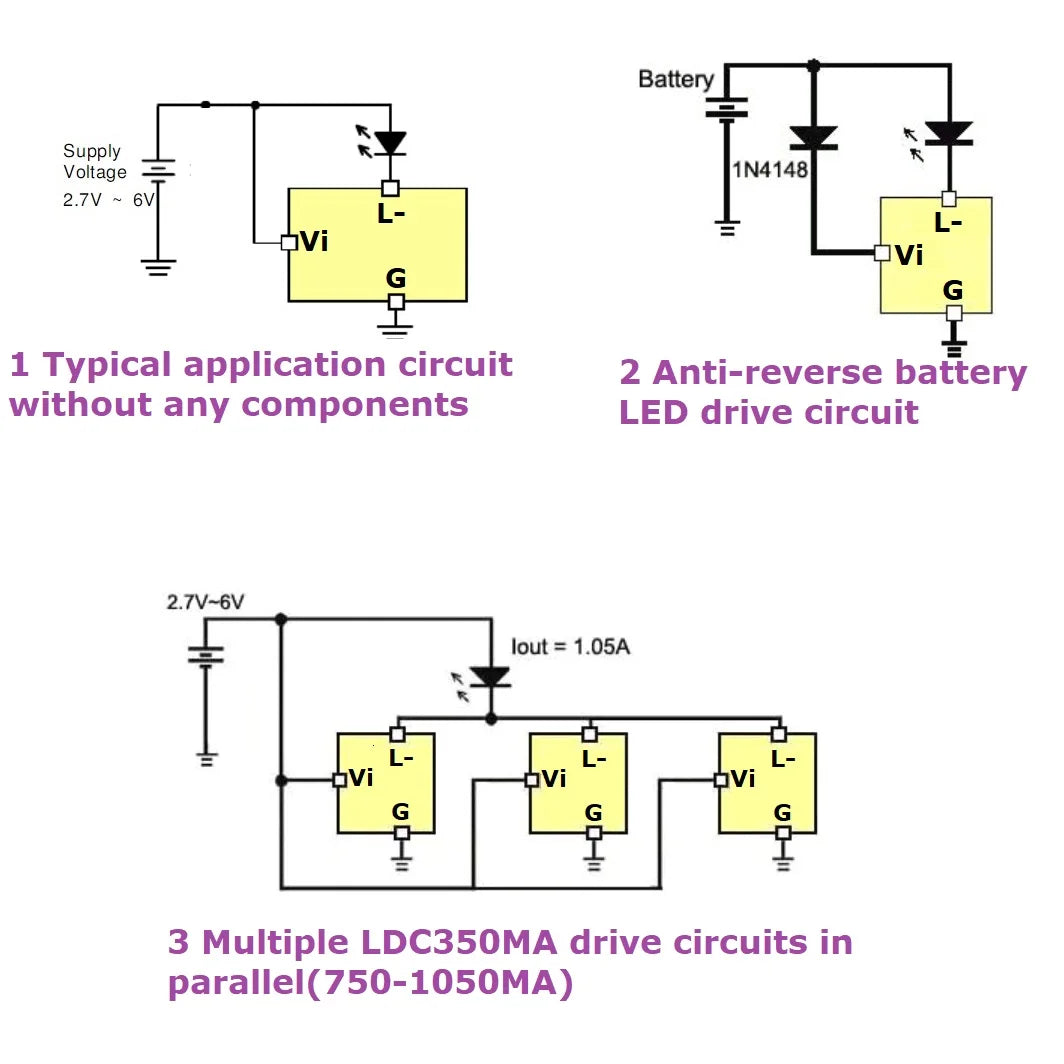

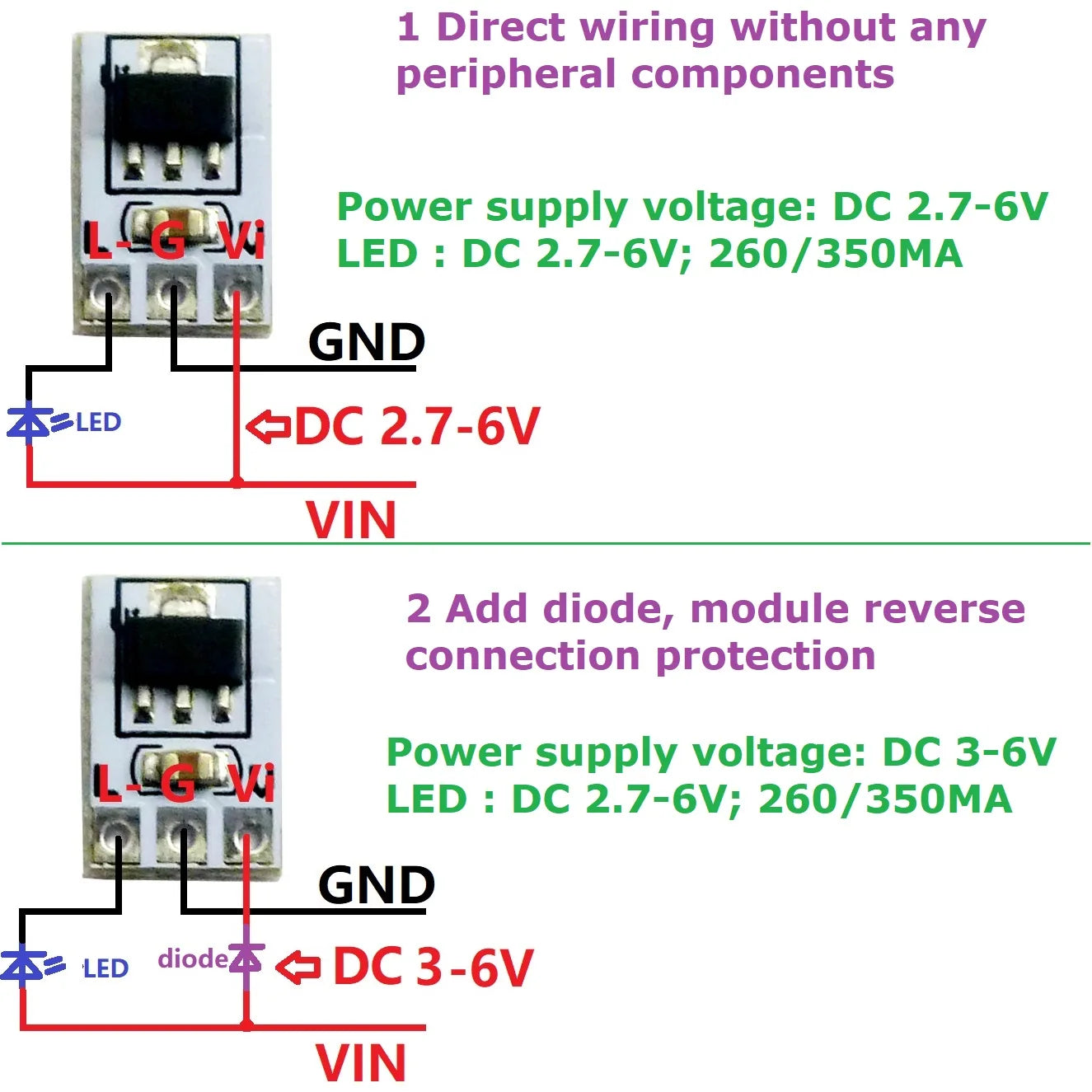

1 Typical application circuit without any components
2 Anti-reverse battery LED drive circuit

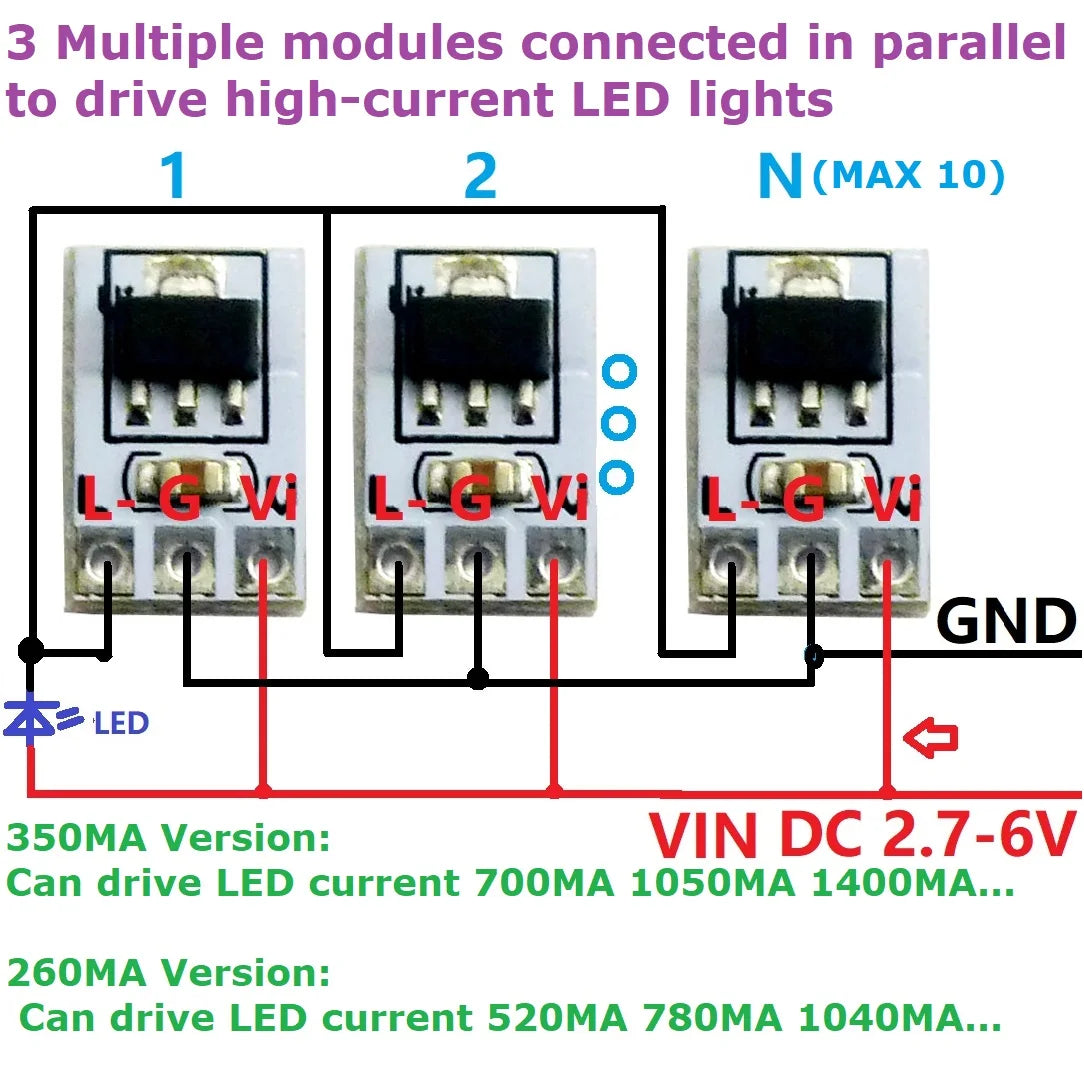

3 Multiple LDC350MA drive circuits in parallel(750-1050MA)

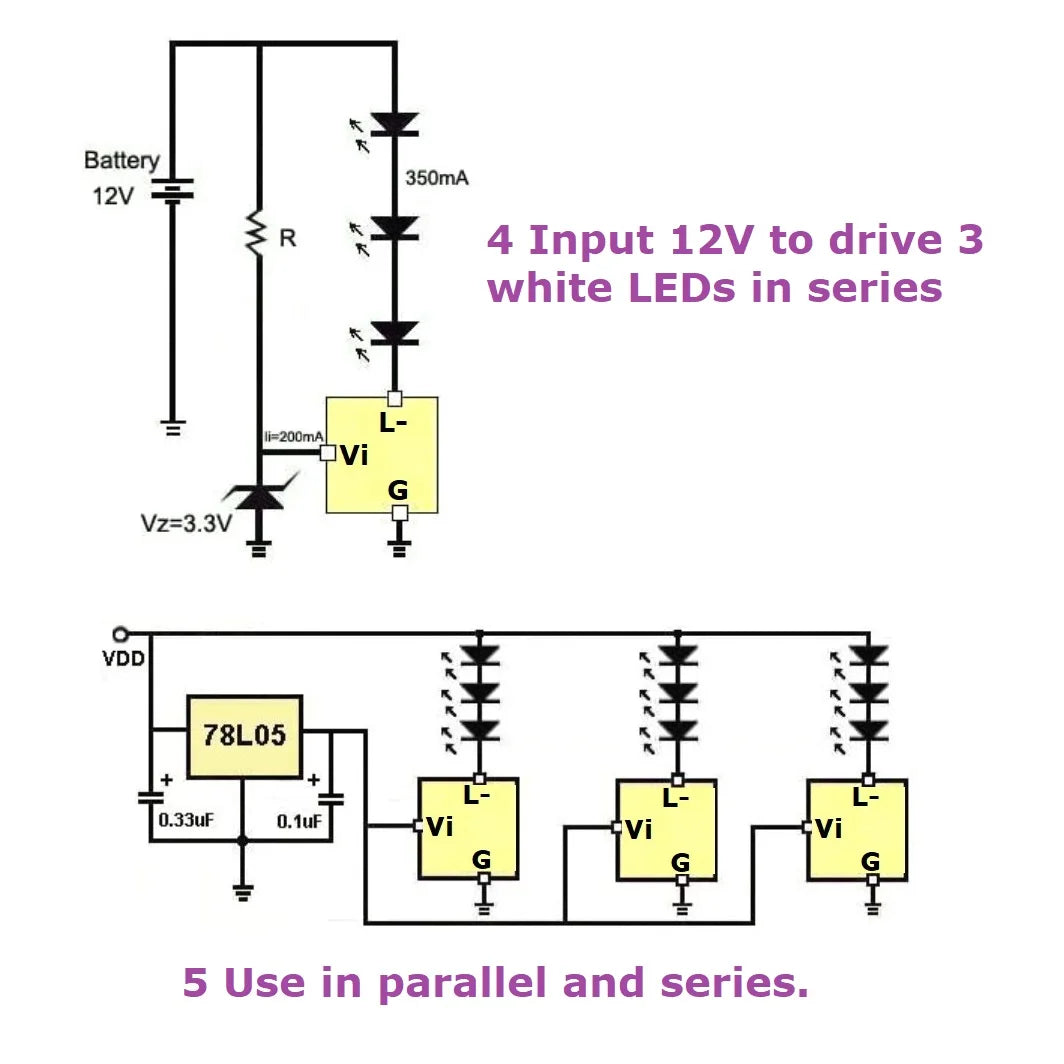

4 Input 12V to drive 3 white LEDs in series
5 Use in parallel and series.
