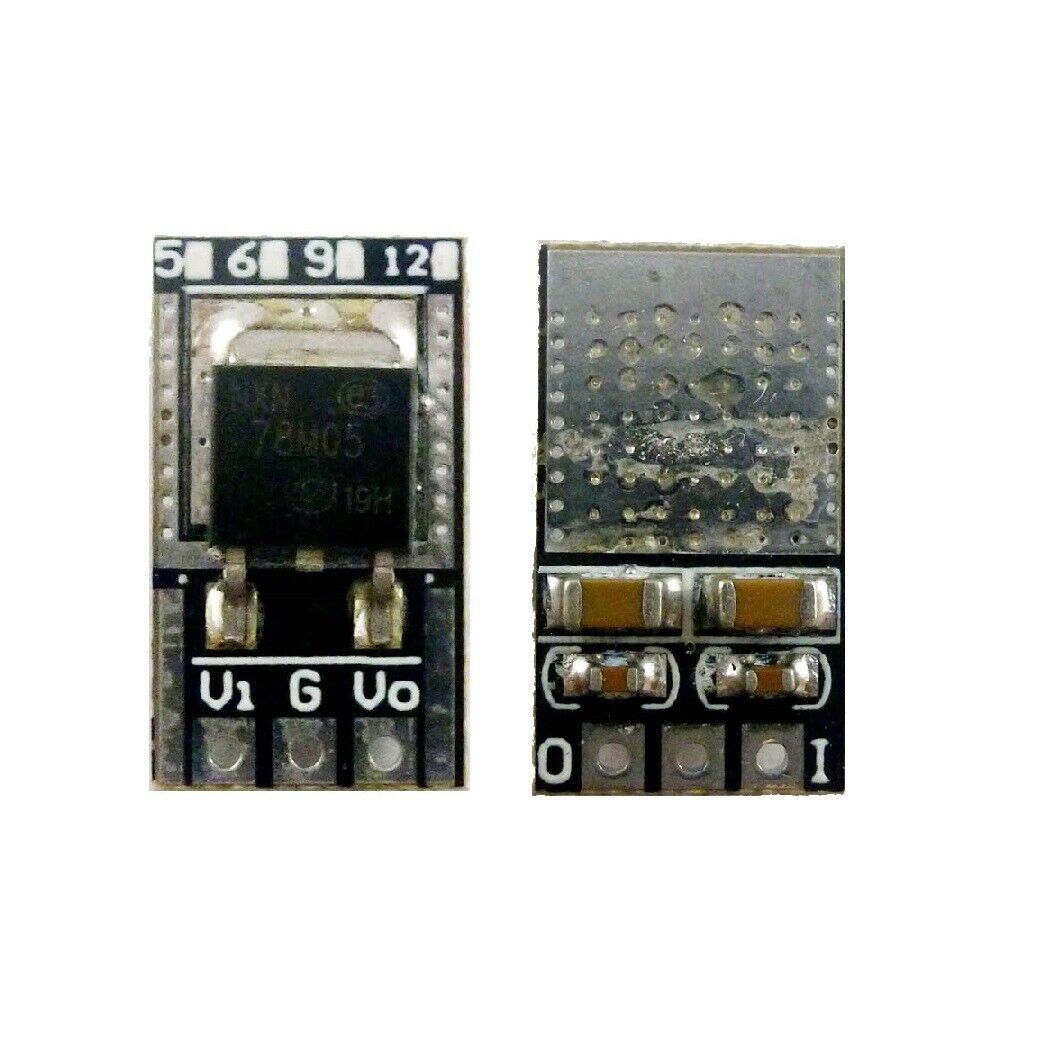

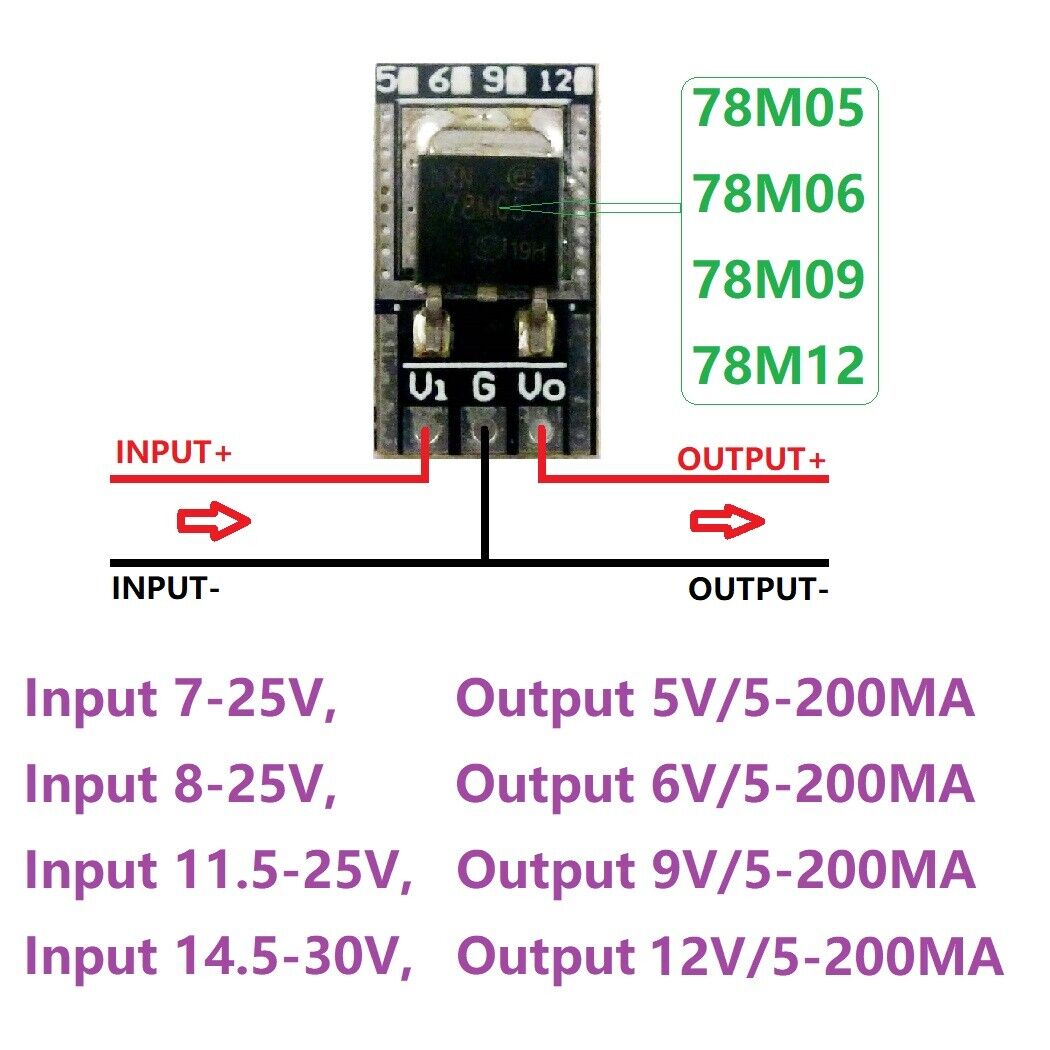

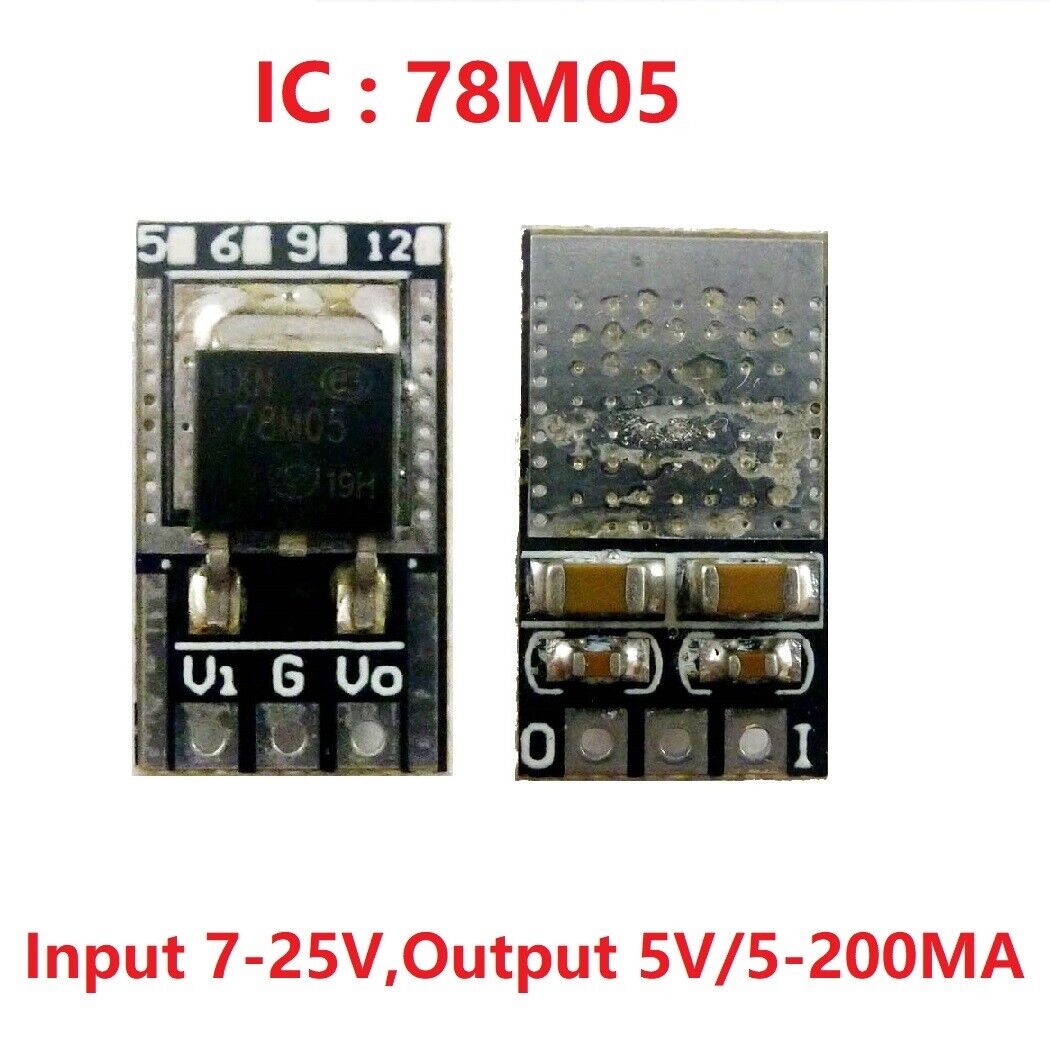

5V : Input voltage: DC 7-25V ,Output voltage: DC 5V Output current : 5- 200mA Short Circuit Current : 300mA

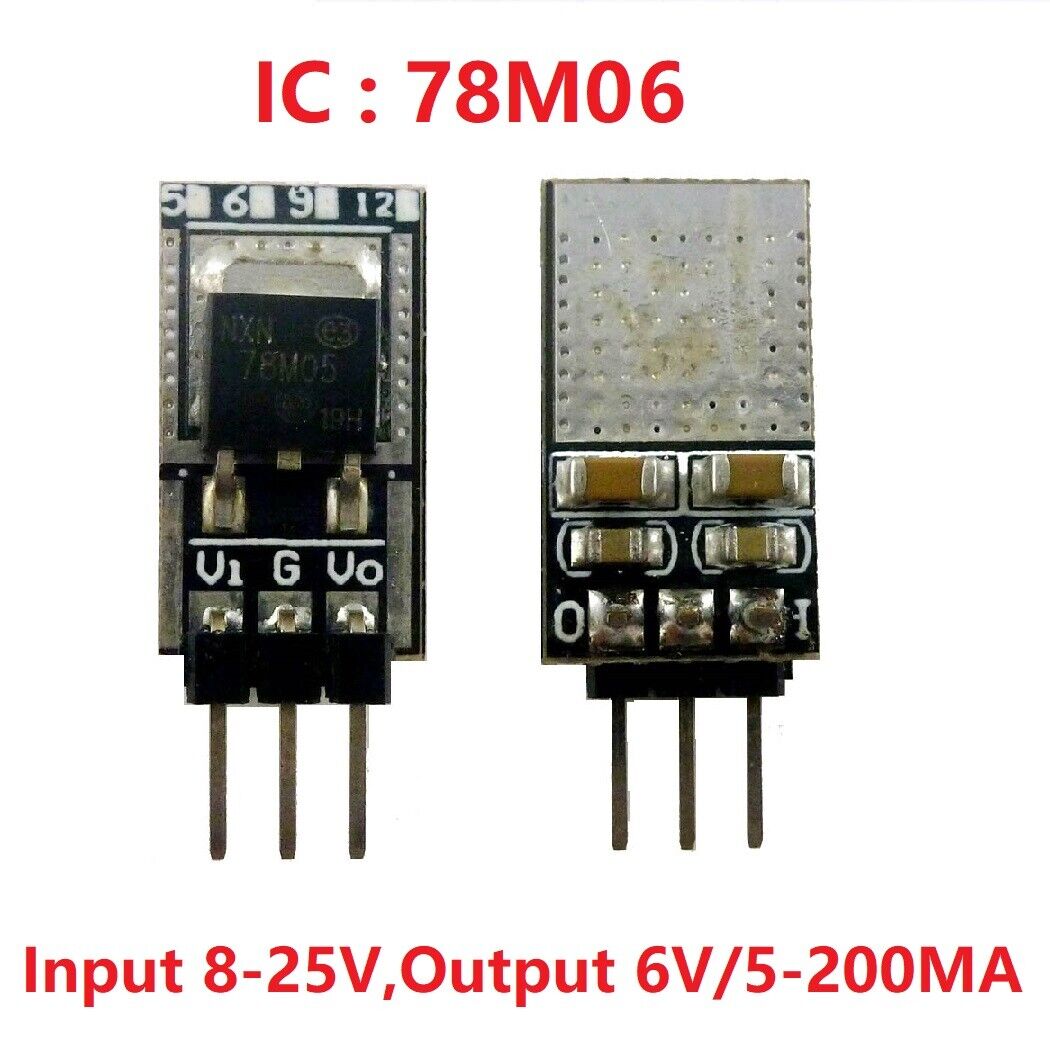

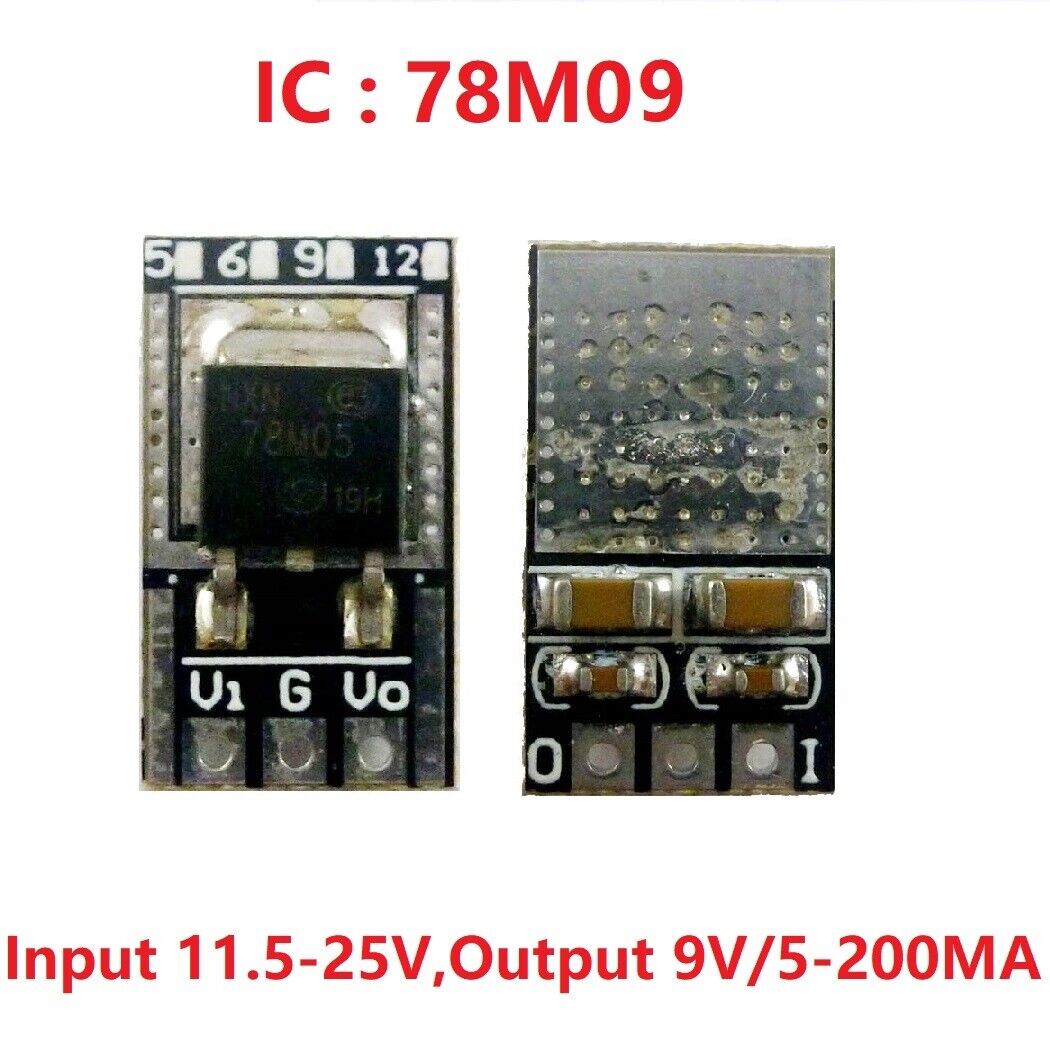

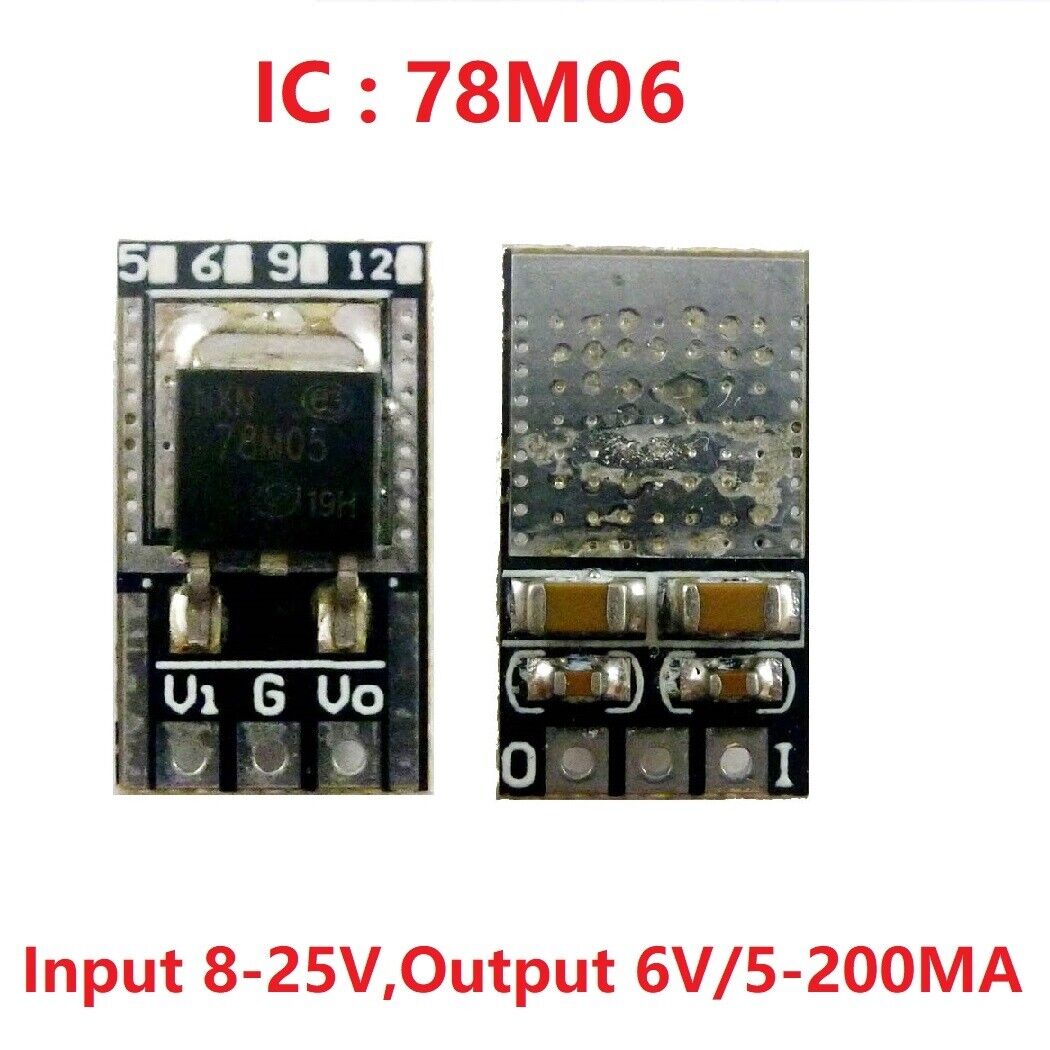

6V : Input voltage: DC 8-25V ,Output voltage: DC 6V Output current : 5- 200mA ; Short Circuit Current : 270mA; 9V : Input voltage: DC 11.5-25V ,Output voltage: DC 9V Output current : 5- 200mA Short Circuit Current : 250mA

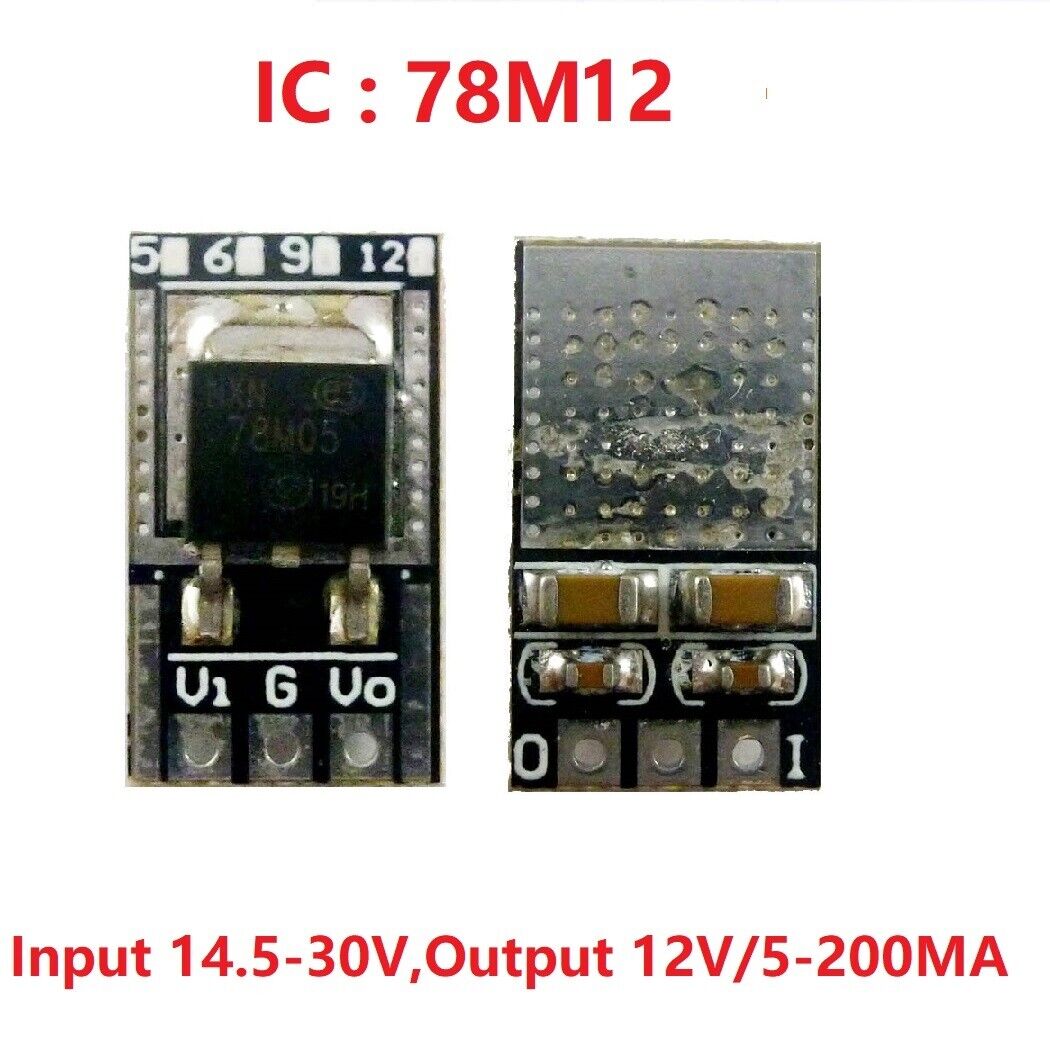

12V : Input voltage: DC 14.5-30V ,Output voltage: DC 12V Output current : 5- 200mA Short Circuit Current : 240mA

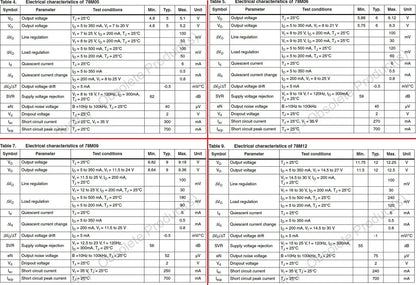

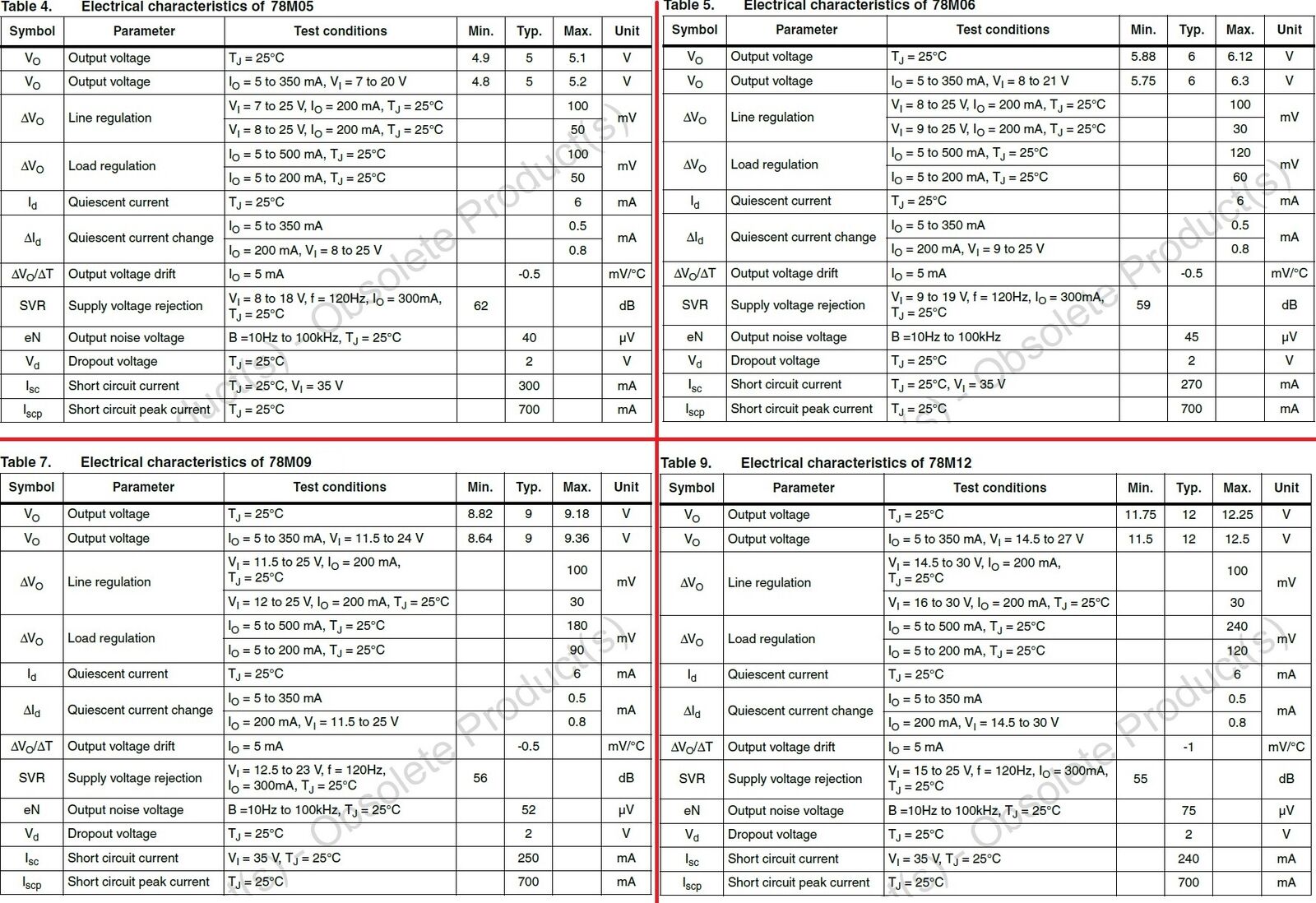

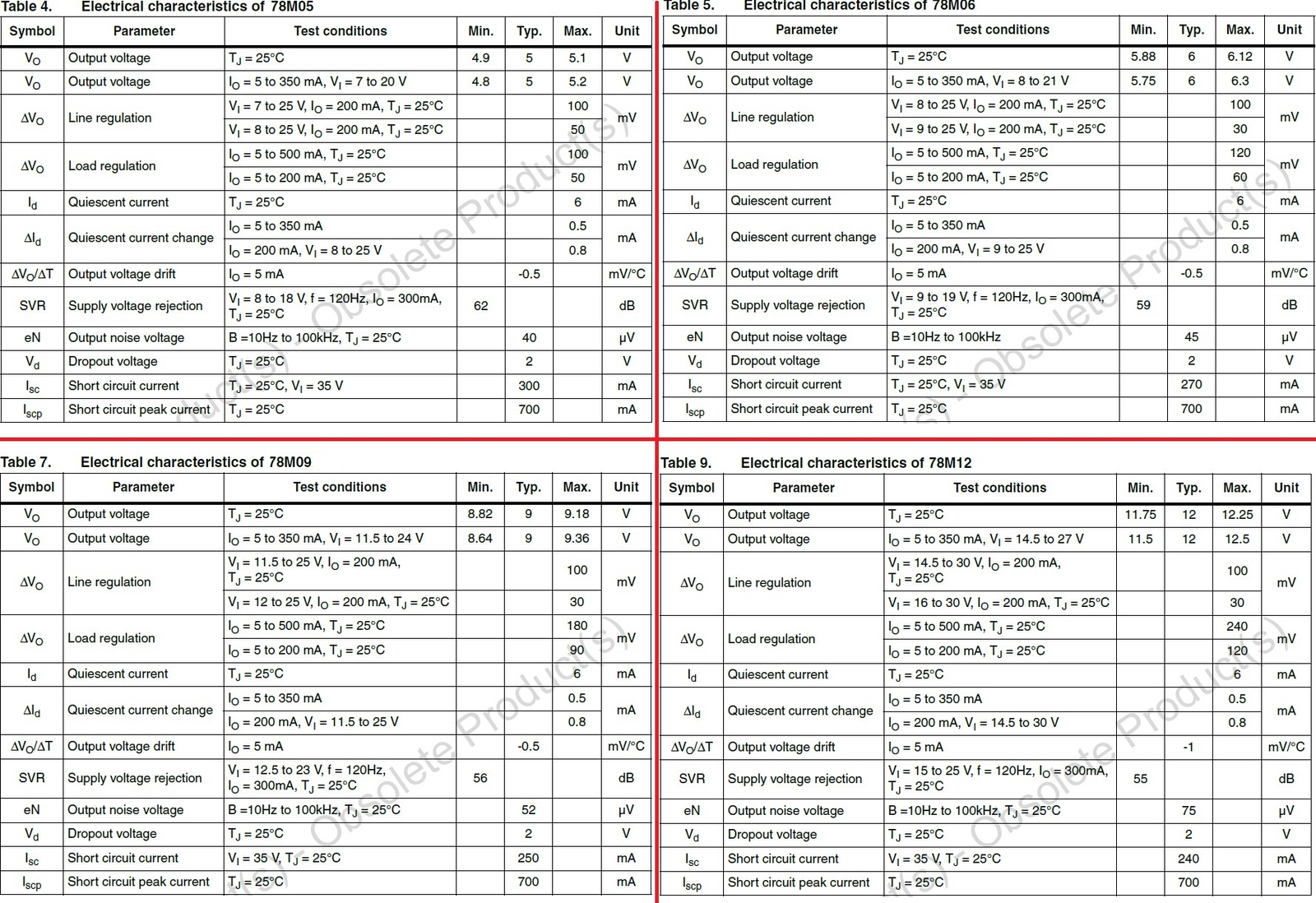

Highly Accurate:±2% Quiescent Current : 6mA Thermal overload protection Short circuit protection Output transition SOA protection ± 2 % output voltage tolerance Guaranteed in extended temperature range Operating Temperature: -40℃ ~ +125℃

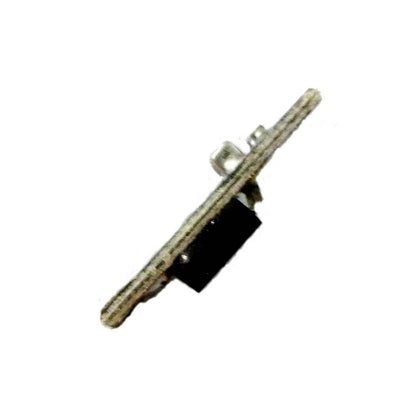

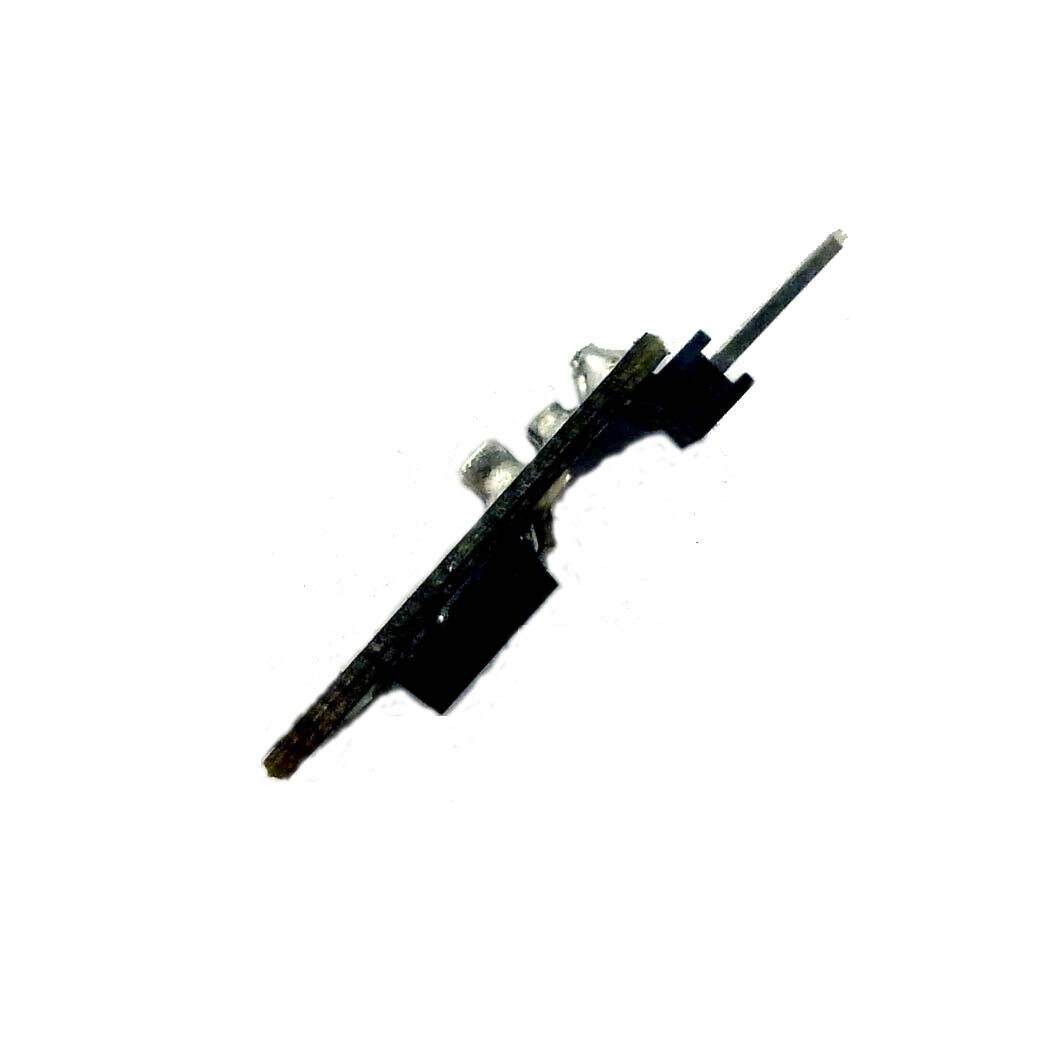

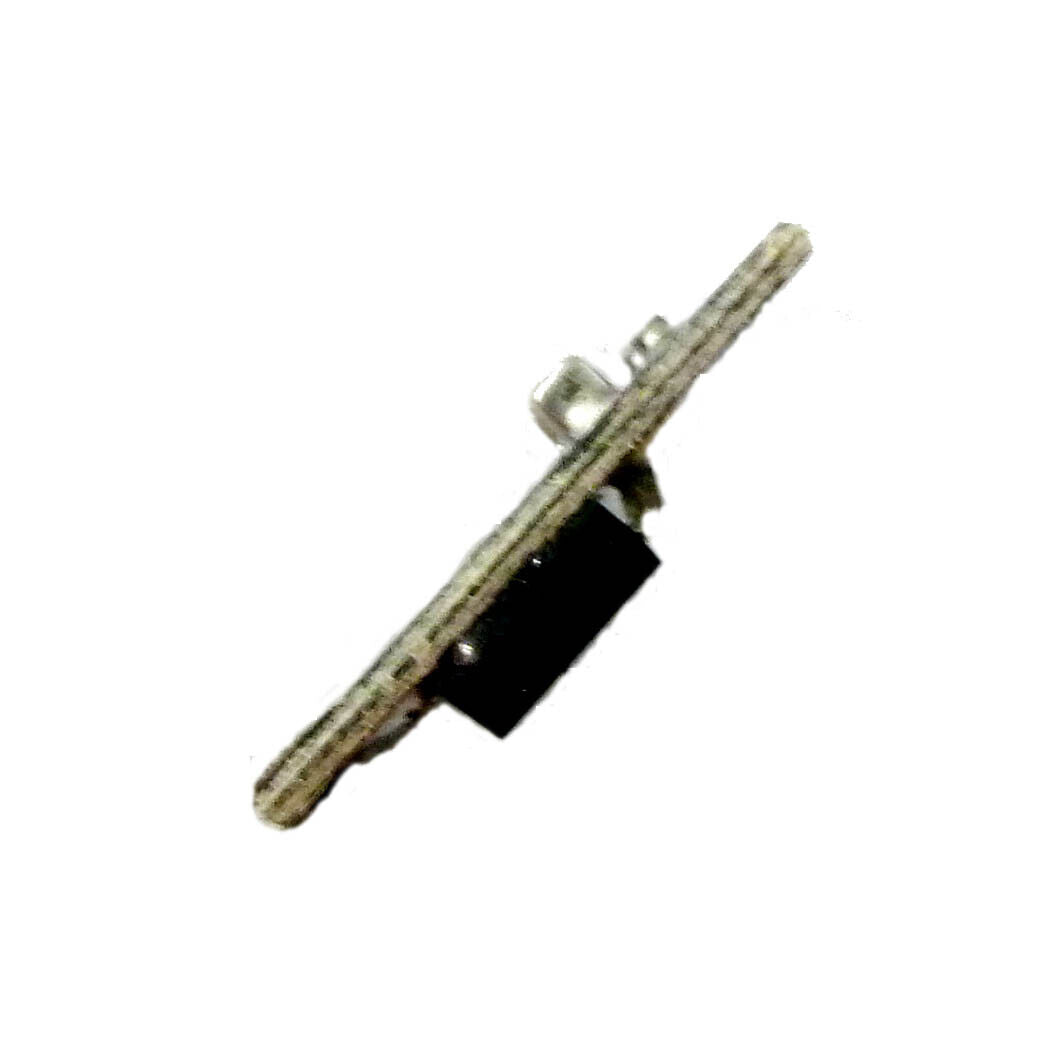

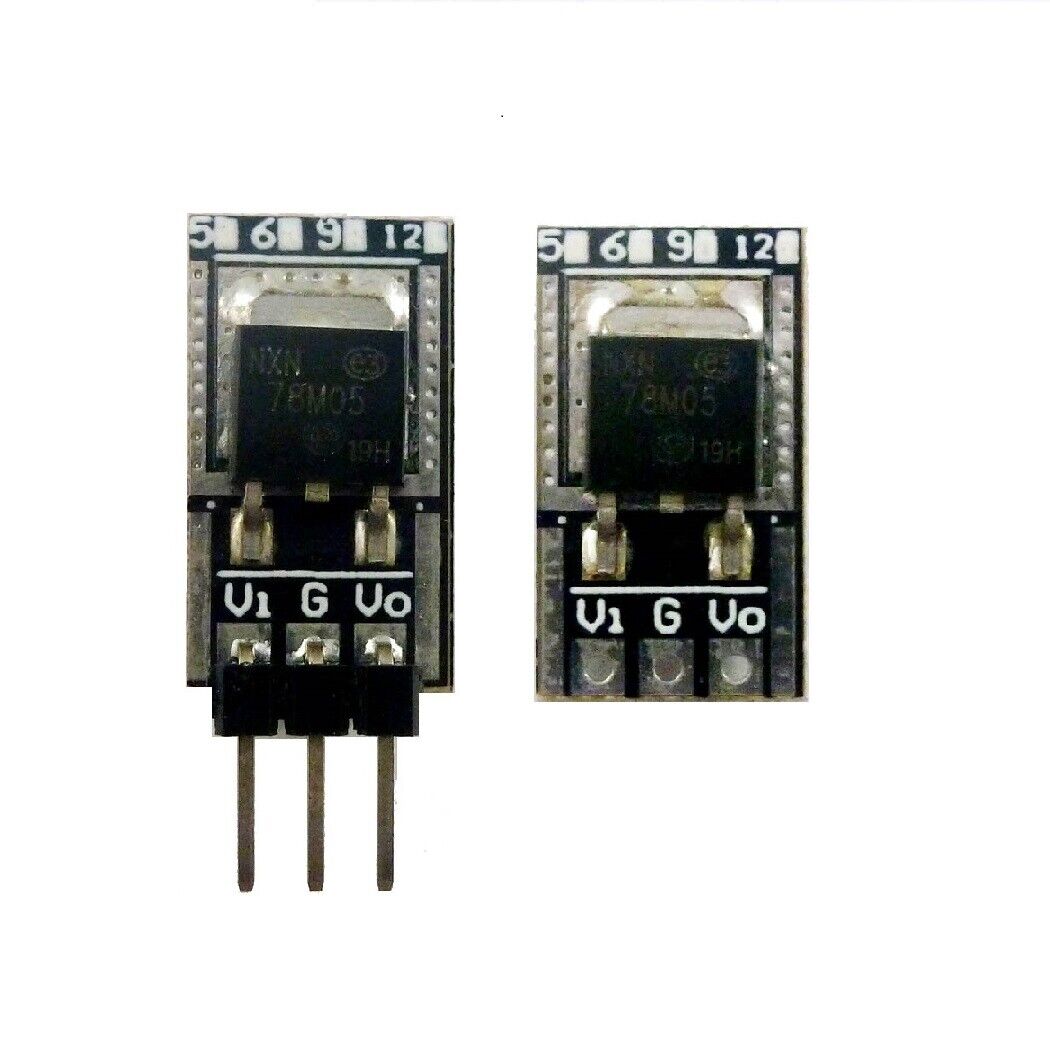

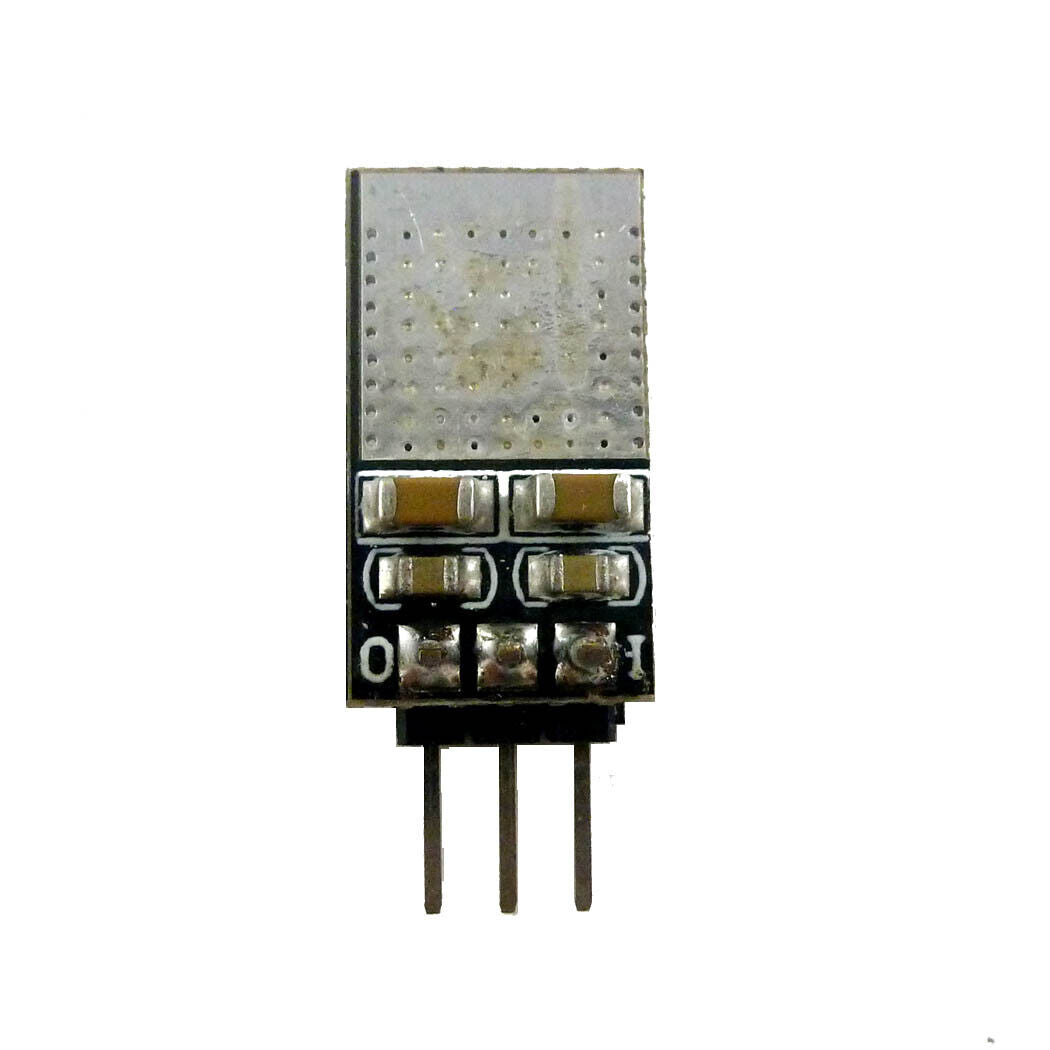

Size : 18 x 10.5 x 5mm; Weight : with pin 1.1g,no pin 0.9g.
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself
