DD0405MA Low Quiescent Current 1.5V 1.8V 3V to 3.3V Boost DC DC Converter Board for ESP8266 nrf24l01 LCD LED RF Wifi Module

DD0405MA Low Quiescent Current 1.5V 1.8V 3V to 3.3V Boost DC DC Converter Board for ESP8266 nrf24l01 LCD LED RF Wifi Module

$1.98 USD
$1.98 USD $1.98 USD
Sale Sold out
Below item is powered by eletechsup Ltd .

Product Name: Low Quiescent Current 1.5V 1.8V 3V to 3.3V Boost DC DC Converter Board for ESP8266 nrf24l01 LCD LED RF Wifi Bluetooth Module

Packing list:

1 PCS High Efficiency ,synchronous PFM step-up DC-DC converter 0.8-3.3V to 3.3V Module

Description:

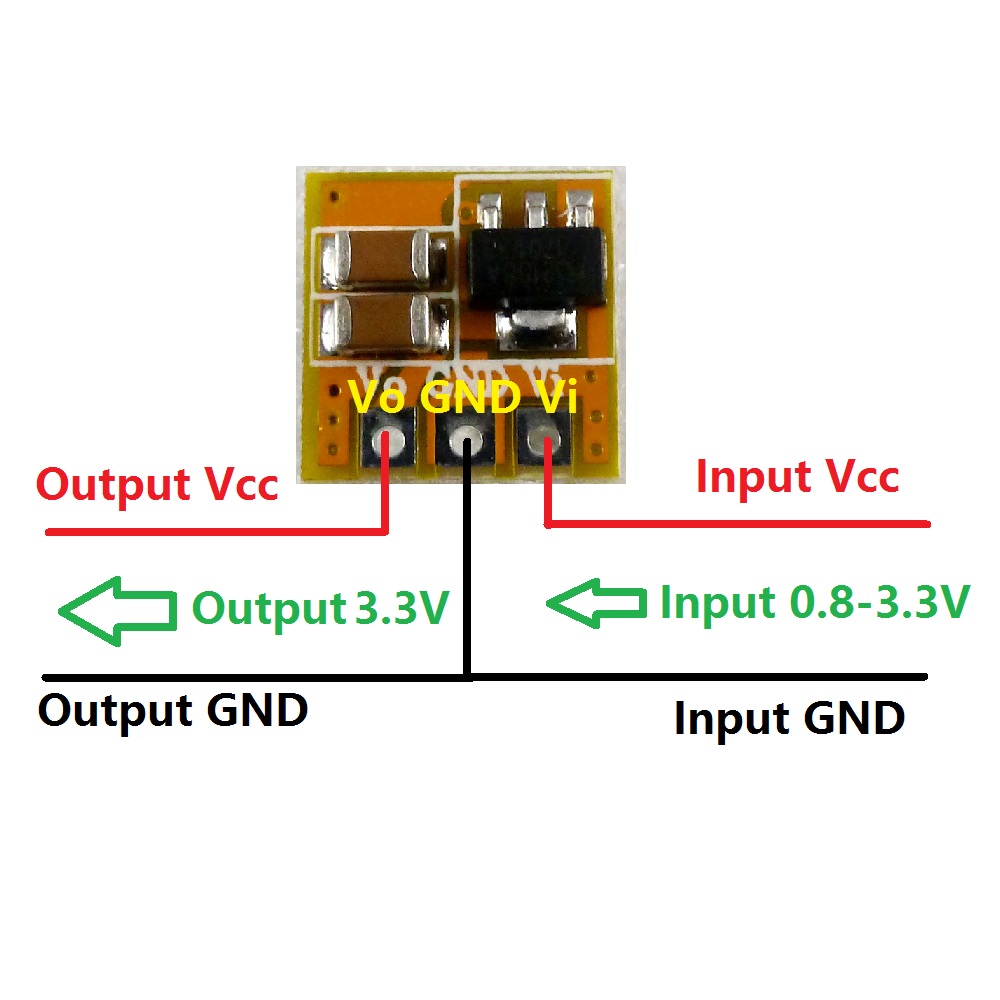

Input voltage DC 0.8 ~ 3.3V,output DC 3.3V±2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : 95% (usually is 75%-93%)
Low Quiescent Current : 13uA
Low ripple and Low noise

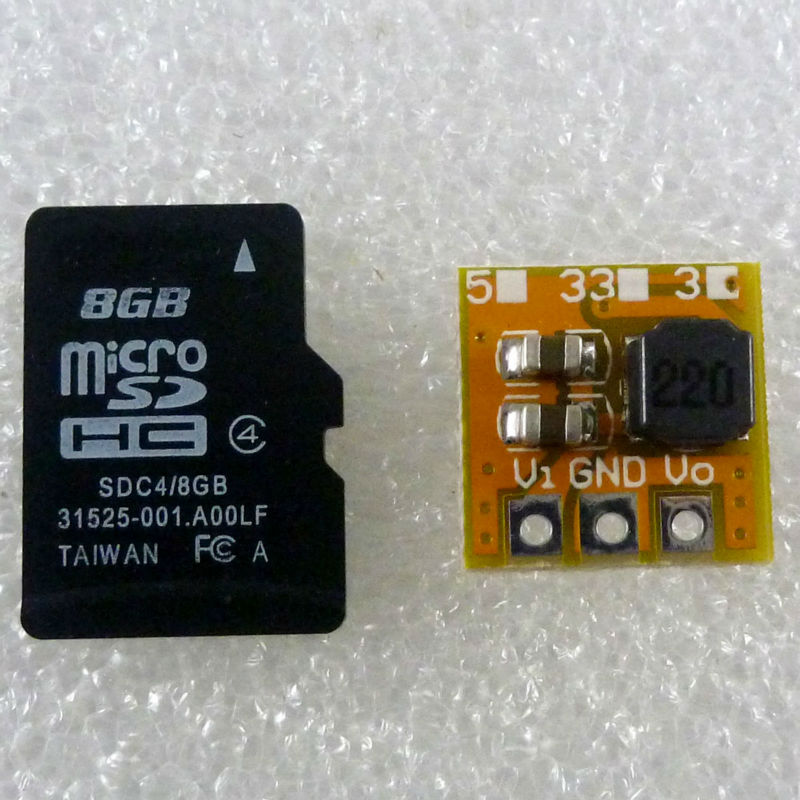

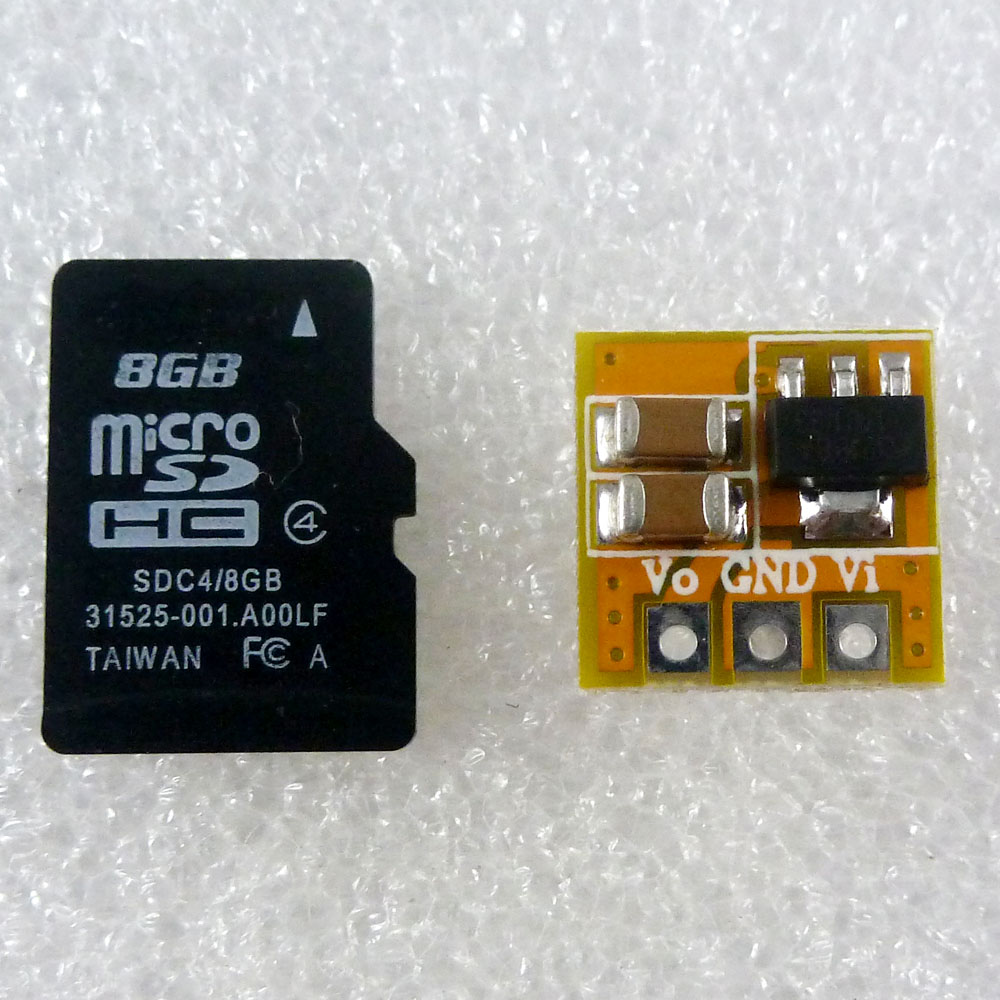

Ultra-small size : 10.7x10.6x5.6mm
Ultra-light weight : 0.65g



Applications

Battery powered equipment
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
STM32 FPGA/CPLD PIC AVR Board
raspberry pi
electronic diy kit
Wifi Module,ESP8266
Bluetooth Module,HC-05,HC-06,SPP-C

Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
