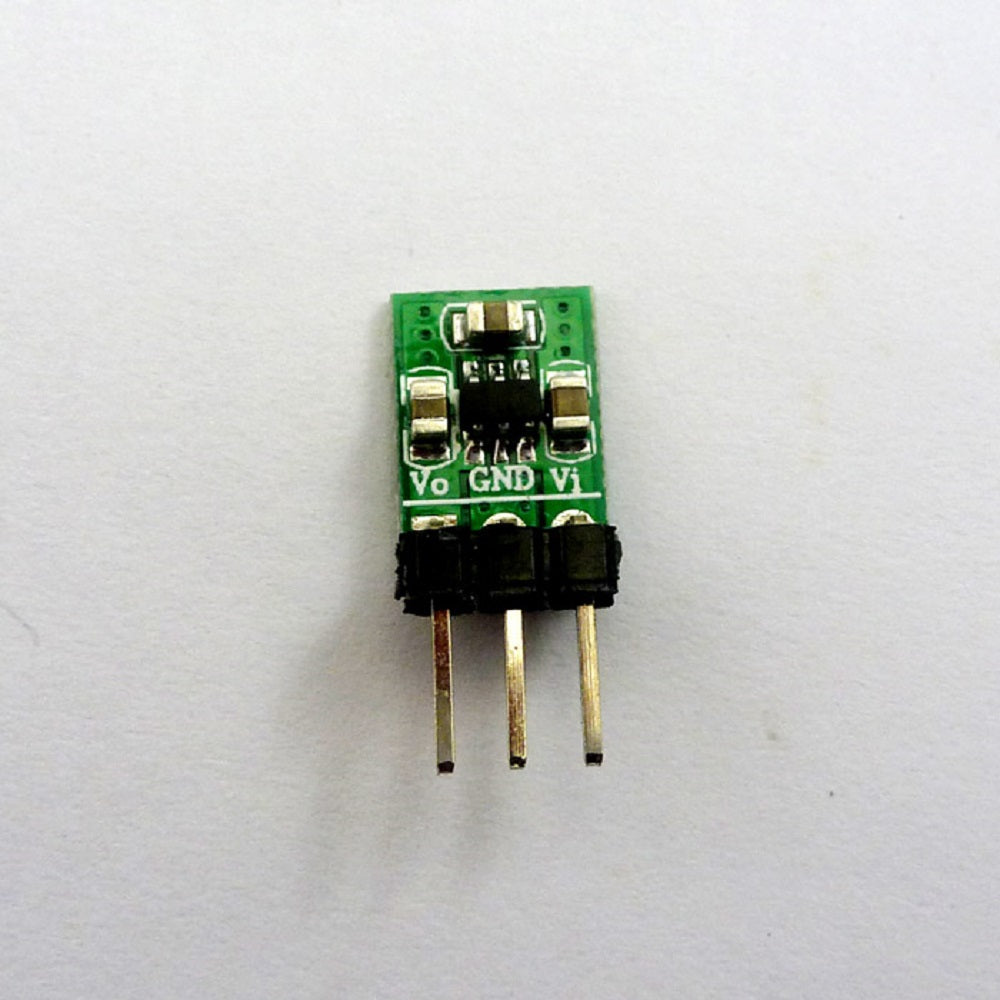

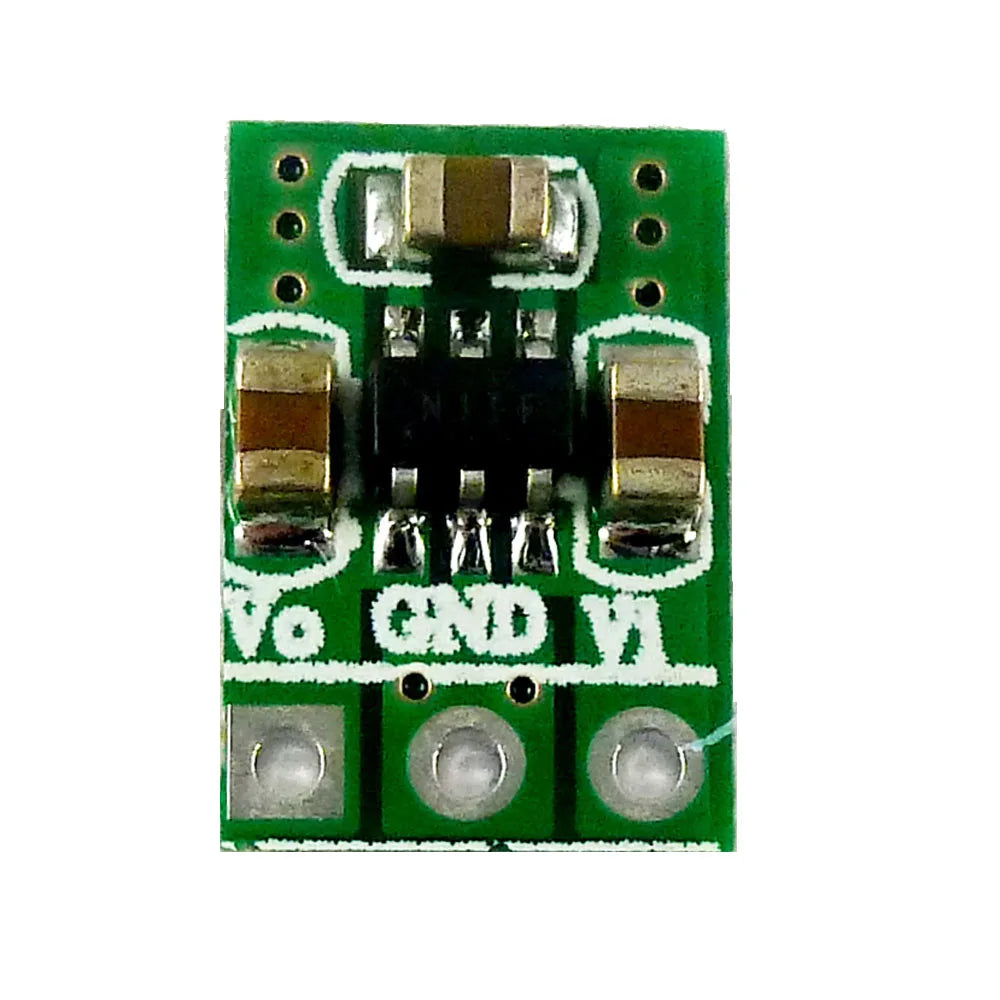

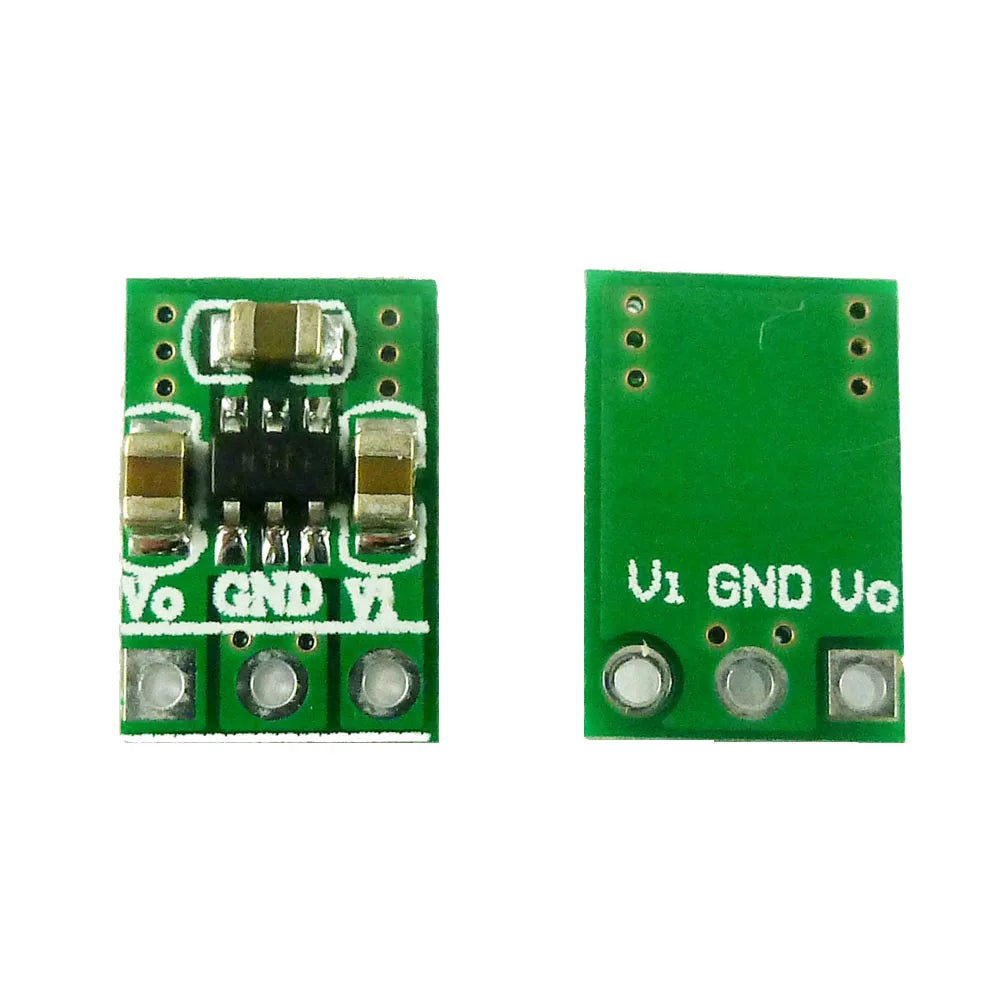

CE021 mini 1.8-5V to 3.3V Low Noise Regulated Charge Pump Step-Down & Step-Up Boost Buck DC-DC Converter
CE021 mini 1.8-5V to 3.3V Low Noise Regulated Charge Pump Step-Down & Step-Up Boost Buck DC-DC Converter
SKU:CE021_A
1000 in stock
Couldn't load pickup availability
Low Noise, Regulated Charge Pump DC/DC Converter
2 in 1 DC-DC Step-Down & Step-Up Converter module
Fixed 3.3V+-4% Output
Voltage Input Range: 1.8~5V
Long time maximum output current 100mA
Short time maximum output current 150mA
working frequency 1.2MHz.
Short-Circuit Protection
No load input current : 0.65mA
Size 11mm x 7.6mm x 4.5mm(small)
Weight : 0.3g(Very very light)
The CE021is a low noise, constant frequency (1.2MHz) switched capacitor voltagedoubler.
It produce a regulated output voltagefrom a 1.8V to 5V input with up to 100mA of output current.Low external parts count (one flying capacitor and two small bypasscapacitors at VIN and VOUT) make theCE021 ideally suited for small,battery-powered applications.
The CE021 have thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. Built-in soft-start circuitry prevents excessive inrush current during start-up.
High switching frequency enables the use of small ceramic capacitors. A low current shutdown feature disconnects the load from VIN and reduces quiescent current to <1uA.
Applications:
Low Power Wifi Module:ESP8266
Low-power Bluetooth module : HC-05 HC-06 SPP-C
Low-power Wireless UART module : HC-11 HC-12
Low-power wireless module : CC1101 CC2500 Nrf24l01+
Low-power LED Driver
Attention :

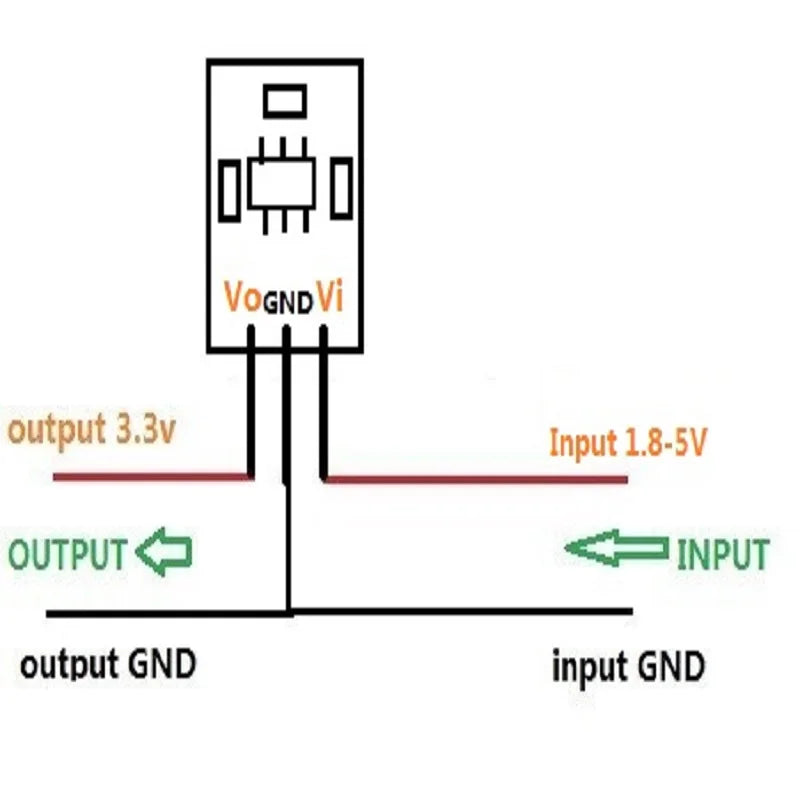

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
