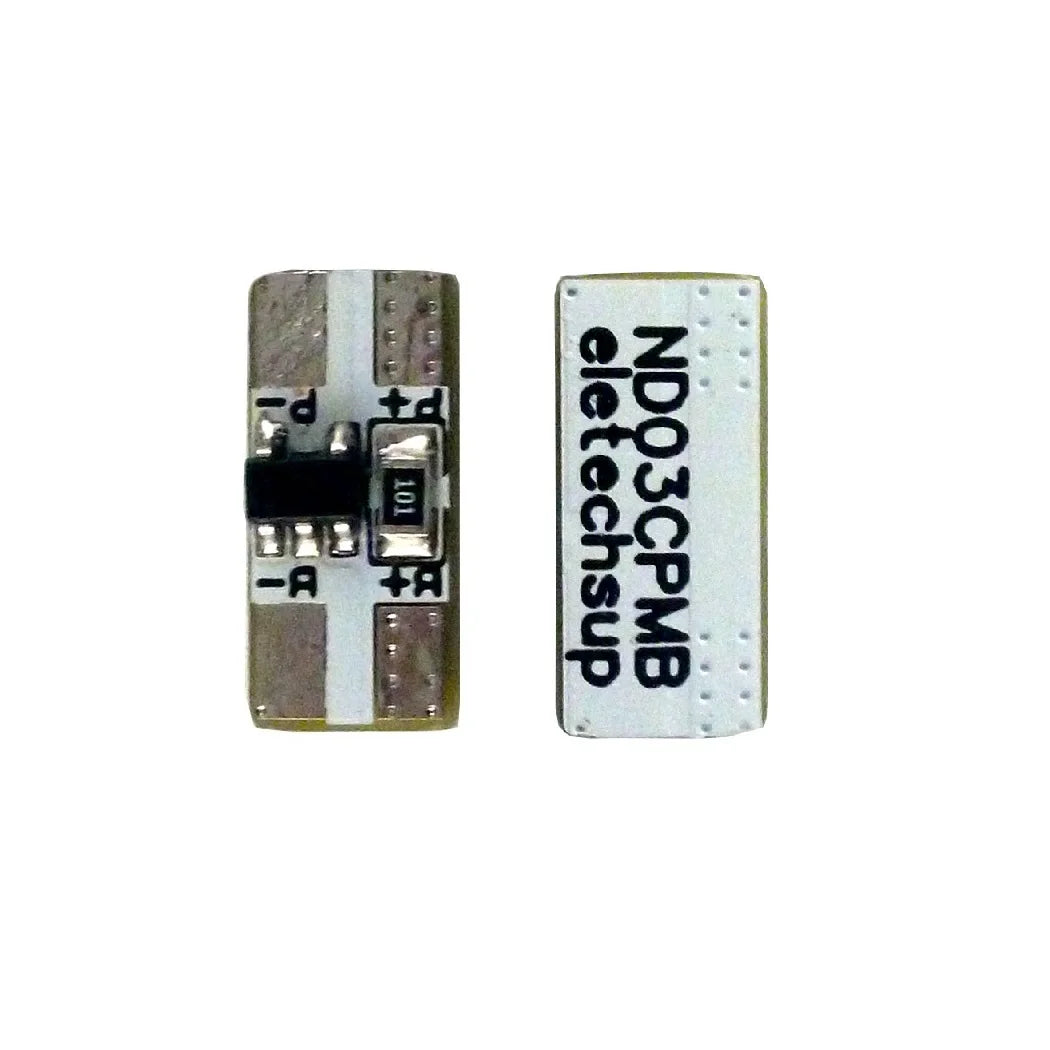

ND03CPMB mini 3.7V 4.2V 3.5A 1-Cell Li-ion Lithium Li-Polymer Battery Charger Over Charge Discharge Overcurrent Protection Board Module

ND03CPMB mini 3.7V 4.2V 3.5A 1-Cell Li-ion Lithium Li-Polymer Battery Charger Over Charge Discharge Overcurrent Protection Board Module

ND03CPMB*2

989 in stock

$1.49
$1.49 $1.49
Sale Sold out
Product Name :2PCS Ultra Small Single-Cell Li-Ion Li-Polymer Batteries Over Charge Discharge Overcurrent Protection Module

Packing list:

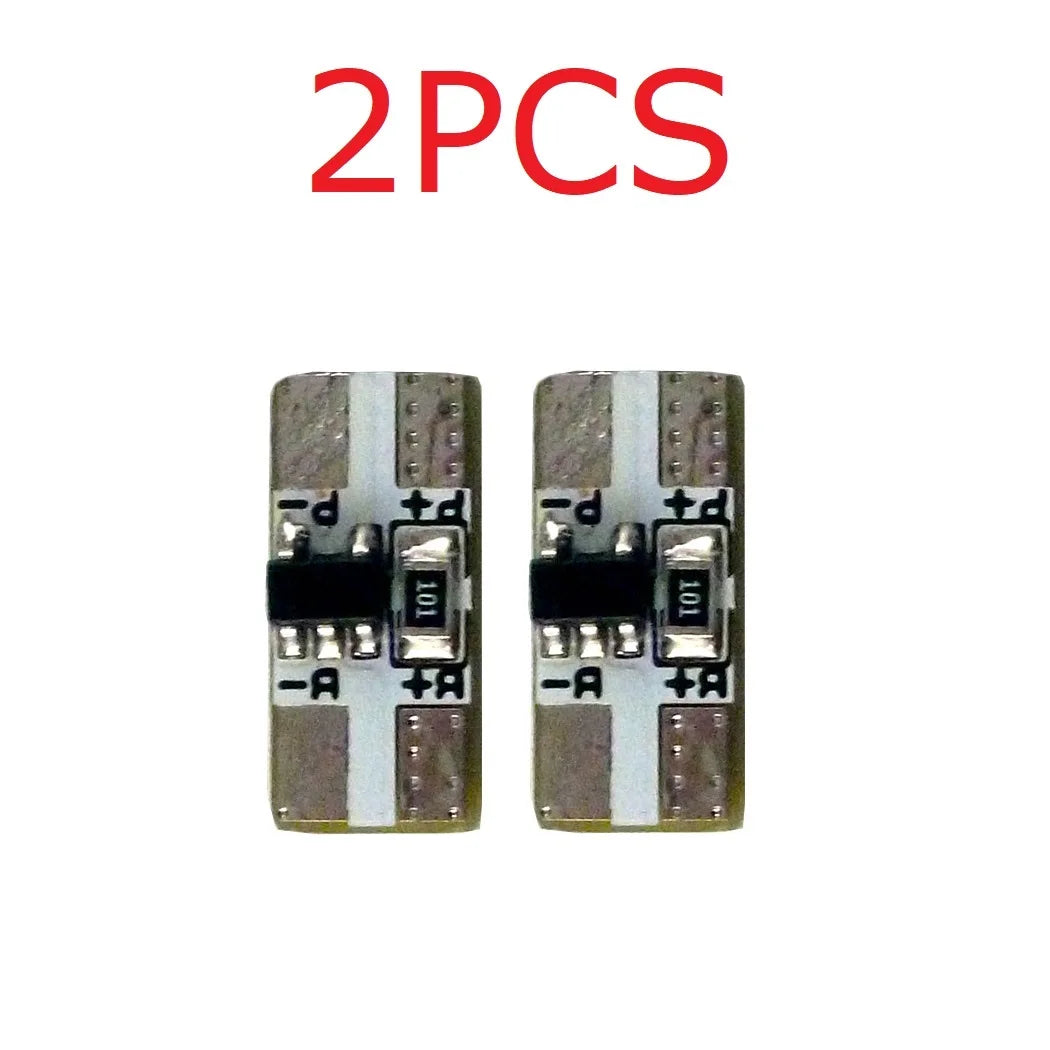

2PCS 3.7V 4.2V 3.5A Charger Over Charge Protection Board


Description:

Functions:
Over Charge Protection
Over Discharge Protection
Short Circuit Protection
Overcurrent Protection

Parameters:
Over Charge Detection Voltage: 4.30±0.05V
Over Charge Release Voltage: 4.10±0.075V
Over Discharge Detection Voltage: 2.44±0.075V
Overvoltage discharge recovery threshold:2.825±0.075V
Continuous load current: 3.5A
Overcurrent protection : 4±0.2A

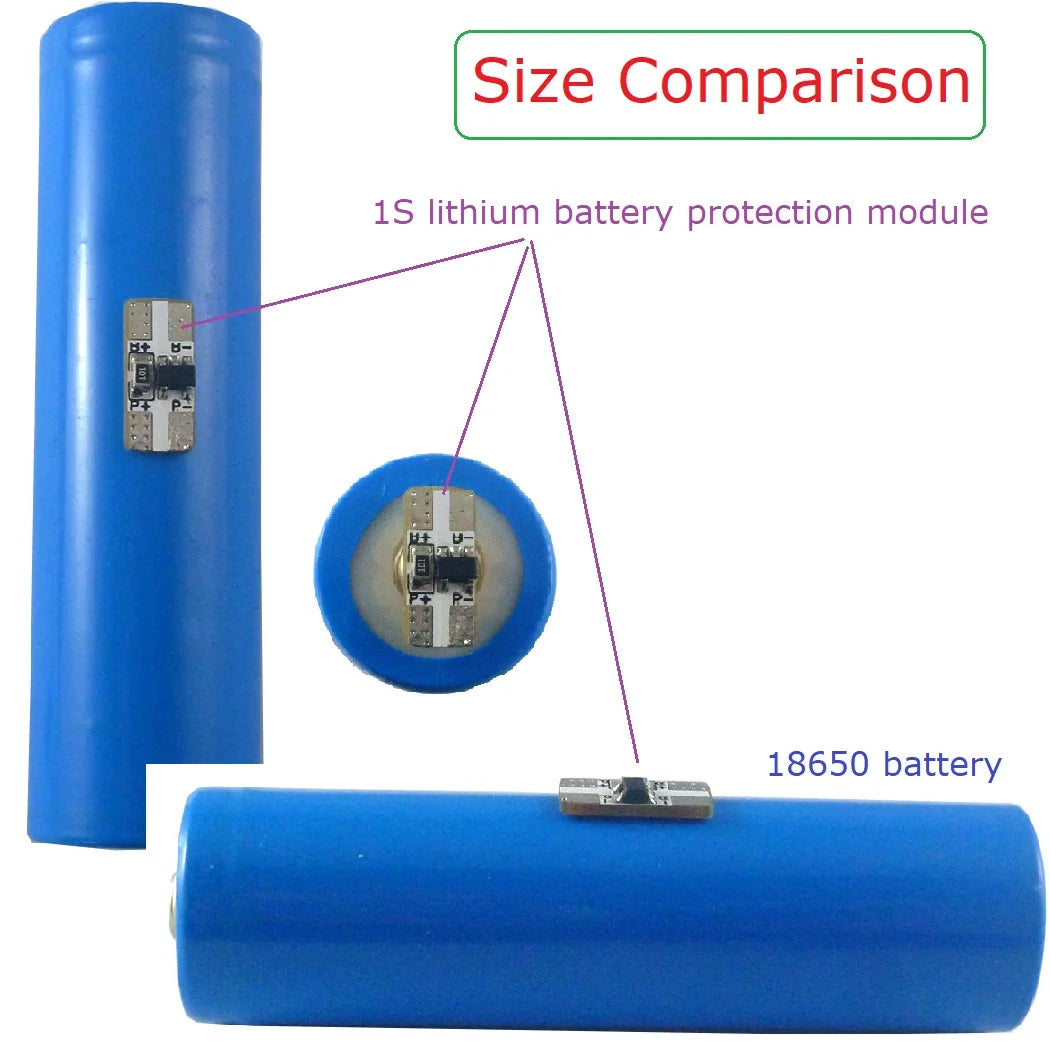

Size : 11.7*5.2*2.1MM
Weight : <0.2g

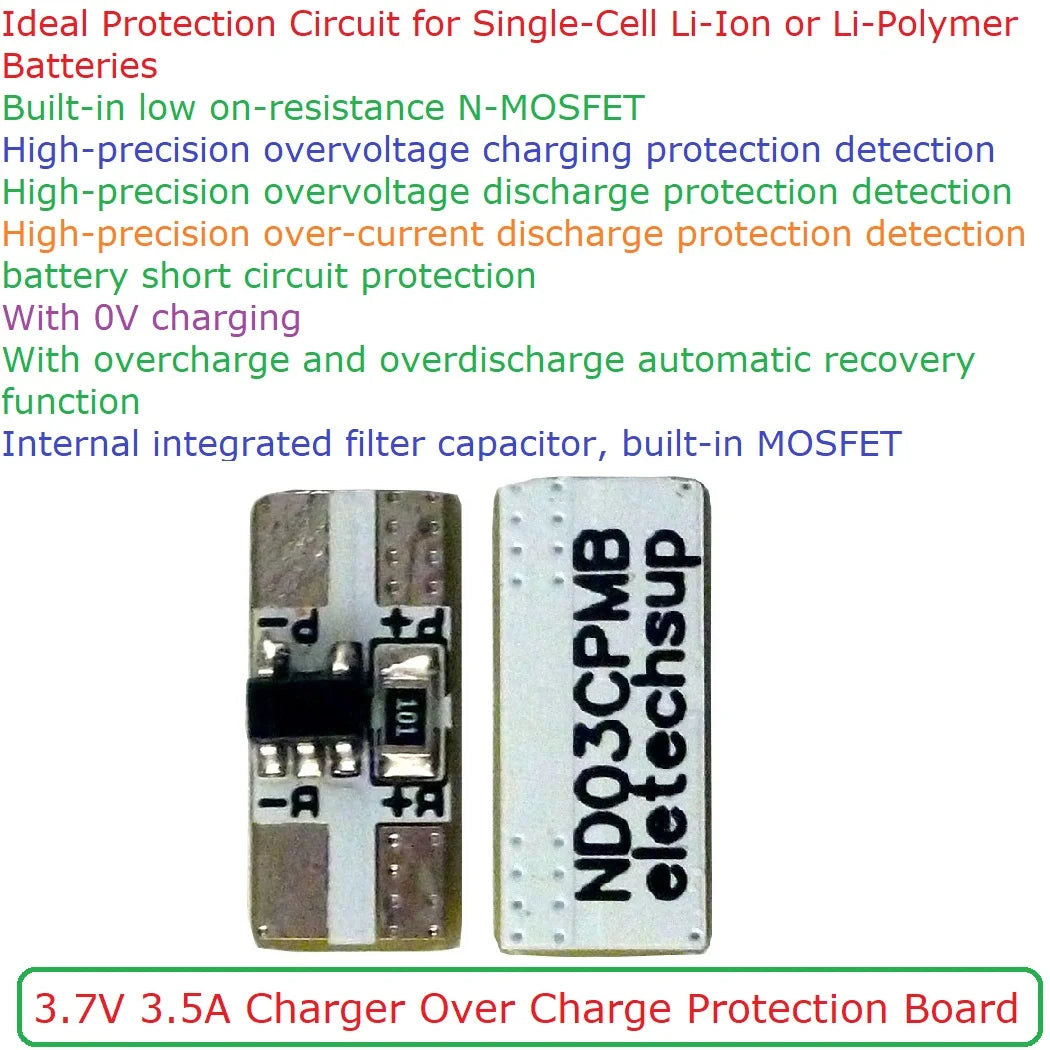

Ideal Protection Circuit for Single-Cell Li-Ion or Li-Polymer Batteries
Built-in low on-resistance N-MOSFET
High-precision overvoltage charging protection detection
High-precision overvoltage discharge protection detection
High-precision over-current discharge protection detection
battery short circuit protection
With 0V charging
With overcharge and overdischarge automatic recovery function
Internal integrated filter capacitor, built-in MOSFET

Note: Please charge the first time, activate the protection board. Otherwise there is no voltage output

Pin Description:
B- connected to battery negative
B+ connected to battery positive
P+ Connect the charger/load positive
P- Connect the charger/load negative

Applications
3.7V lithium battery 18650
TP4056 Charging module

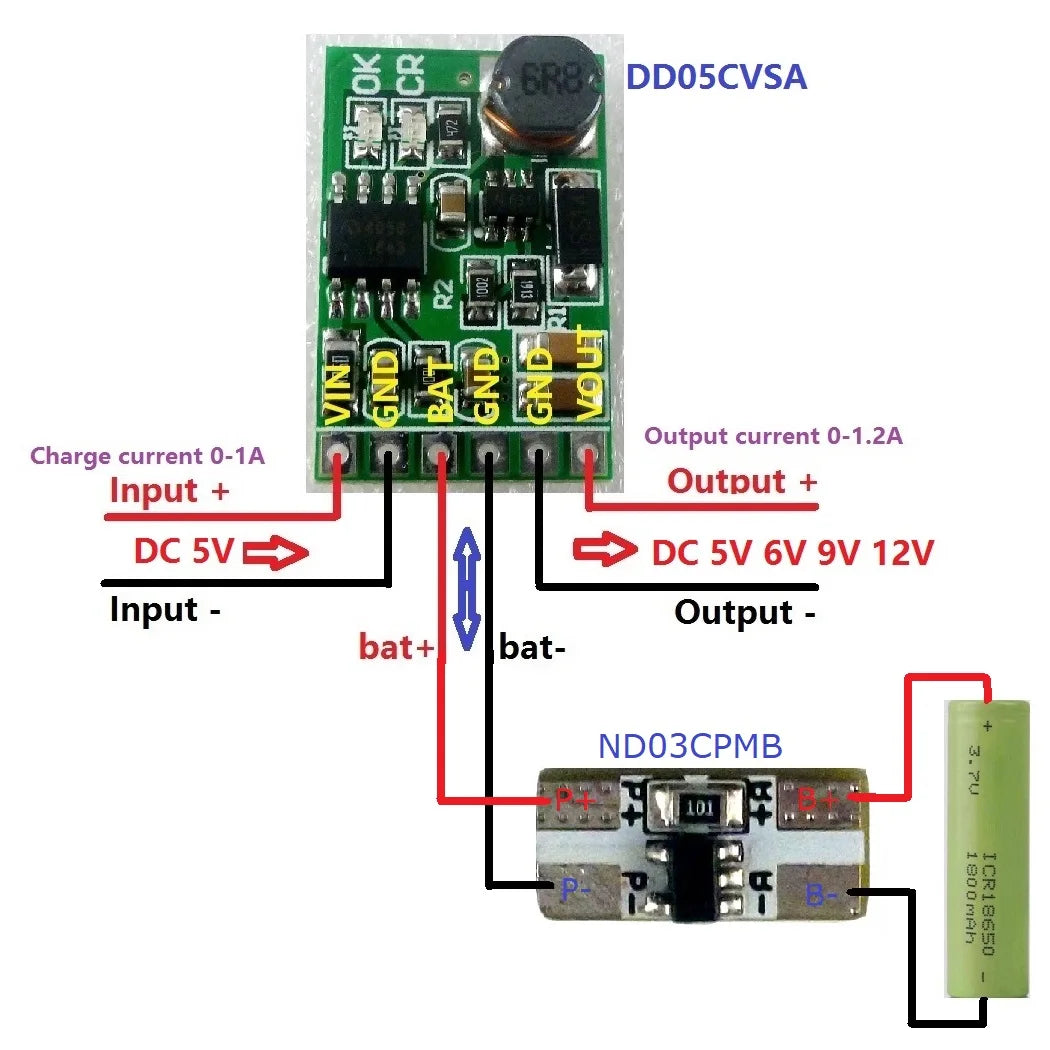

DD04CVSA DD05CVSA Module


Protects single 3.7V lithium battery:

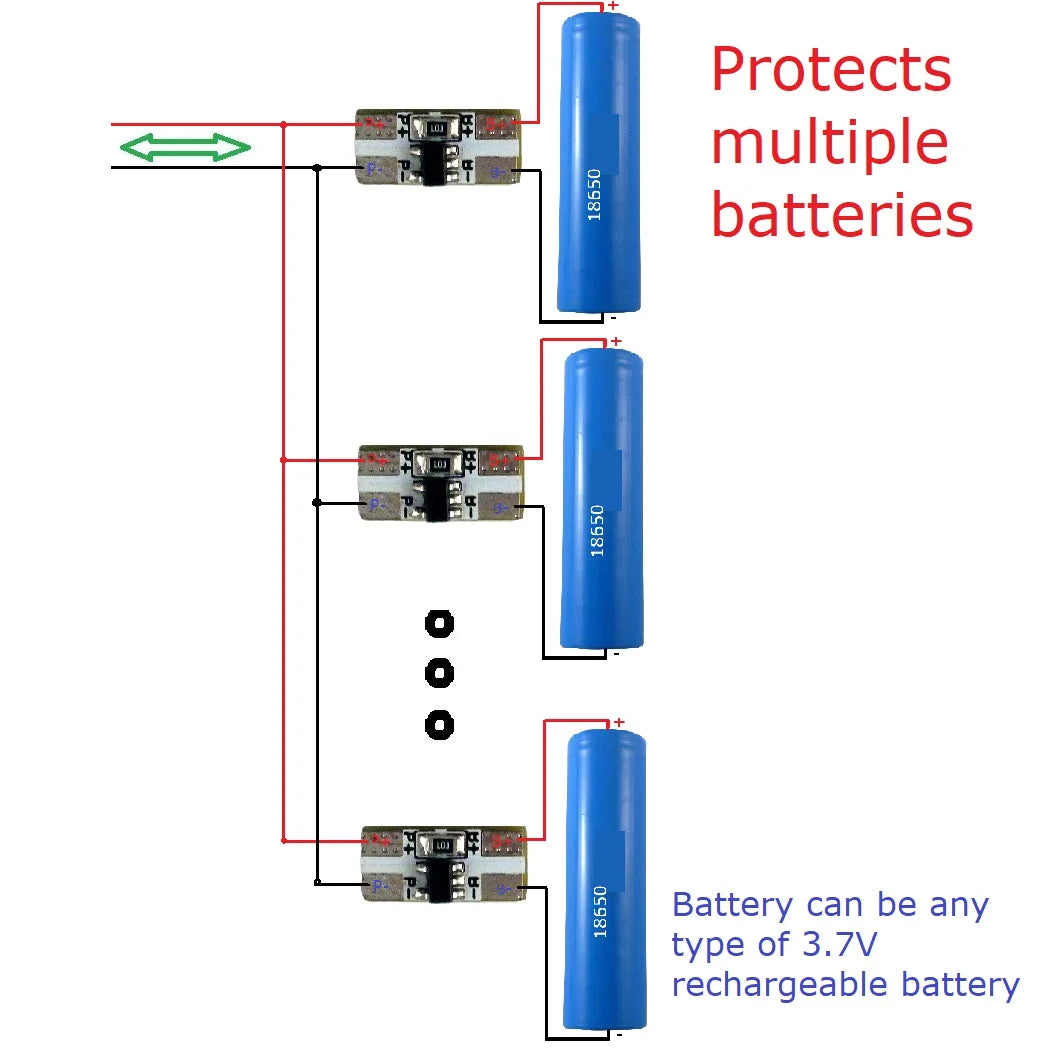

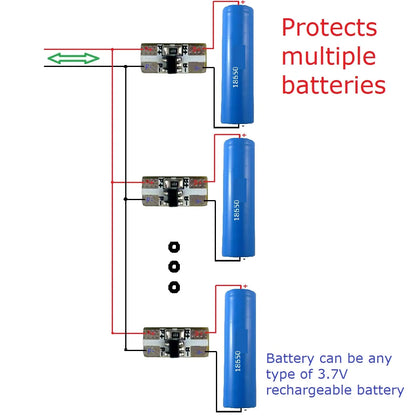

Protect multiple 3.7V lithium batteries (no more than 10pcs recommended):

DIY mobile power:
