Product Name : Mini Dc-Dc 1.2A 3V 3.3V 3.7V 4.5V To 5V 9V 12V Step-Up Current Mode Pwm Converter Dc Voltage Inverter
Packing list:
1 PCS 5W 3V-4.5V TO 5V 9V 12V Boost Step-UP Voltage Regulator Module
Description:

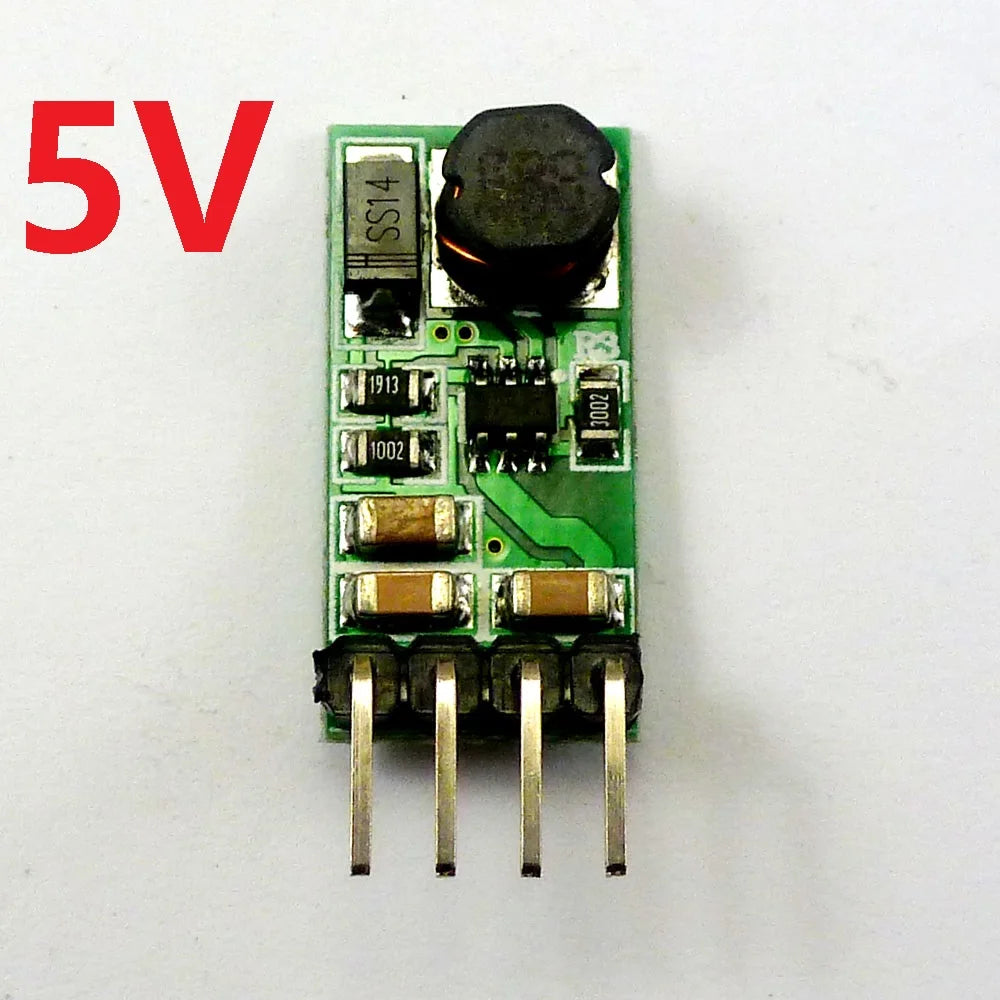

5V:
5V:
Input voltage 2.6~6V, output 5V (deviation +-6%)

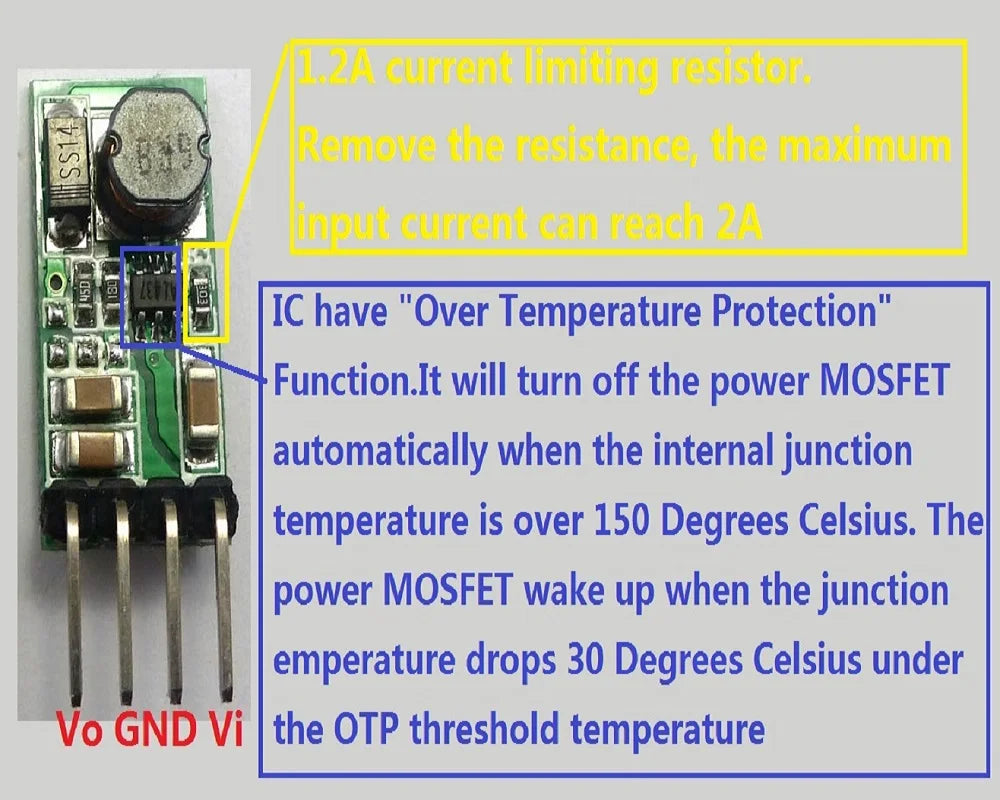

Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 79-91%
Start Voltage 2.6V, Output Current 50MA
INPUT 2.8V 1A; OUTPUT 5V 290MA
INPUT 3V 1A; OUTPUT 5V 480MA
INPUT 3.3V 1A; OUTPUT 5V 590MA
INPUT 3.7V 1A; OUTPUT 5V 650MA
INPUT 4.5V 1A; OUTPUT 5V 790MA
9V:
INPUT 3.7V 1A; OUTPUT 9V 360MA
INPUT 4.5V 1A; OUTPUT 9V 440MA
INPUT 5V 1A; OUTPUT 9V 490MA
INPUT 6V 1A; OUTPUT 9V 590MA
12V:

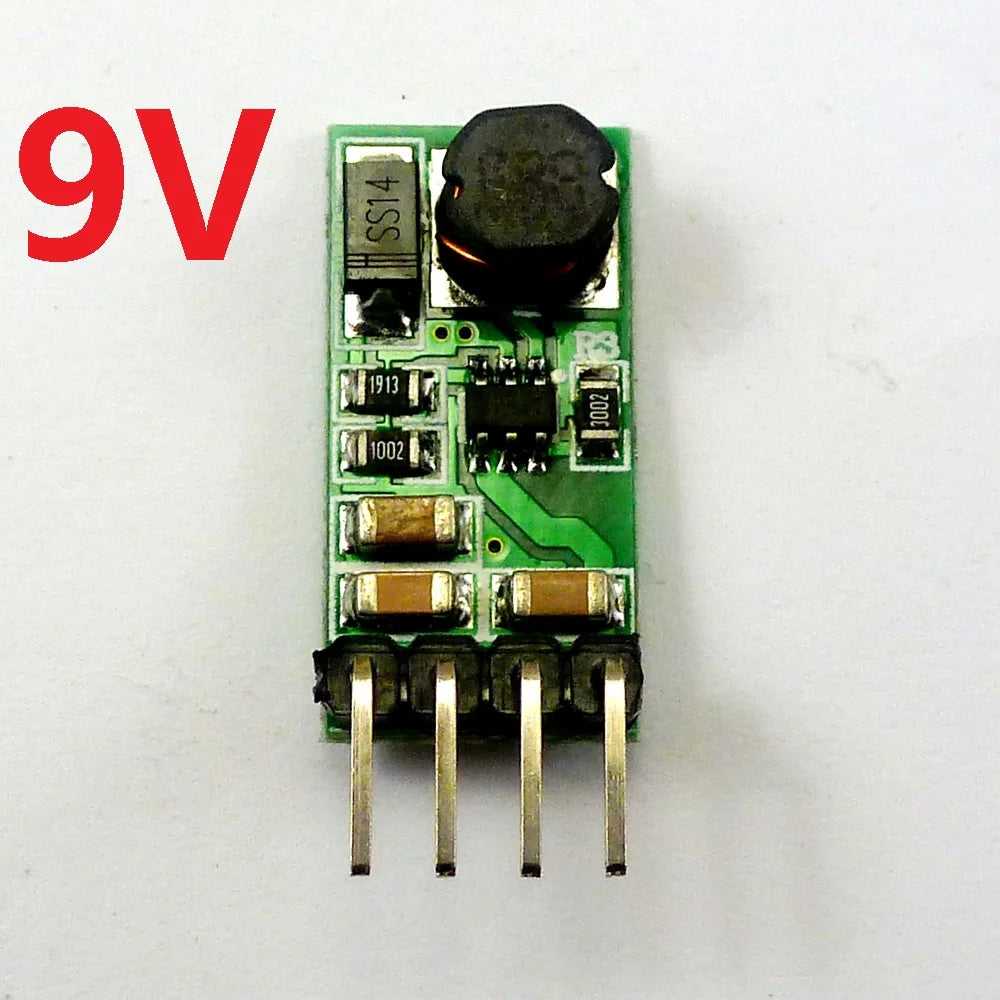

9V:
Input voltage 2.8~6V, output 9V (deviation +-5%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 81-91%
Start Voltage 2.8V, Output Current 60MA
INPUT 3V 1A; OUTPUT 9V 290MA
INPUT 3.3V 1A; OUTPUT 9V 330MAINPUT 3.7V 1A; OUTPUT 9V 360MA
INPUT 4.5V 1A; OUTPUT 9V 440MA
INPUT 5V 1A; OUTPUT 9V 490MA
INPUT 6V 1A; OUTPUT 9V 590MA

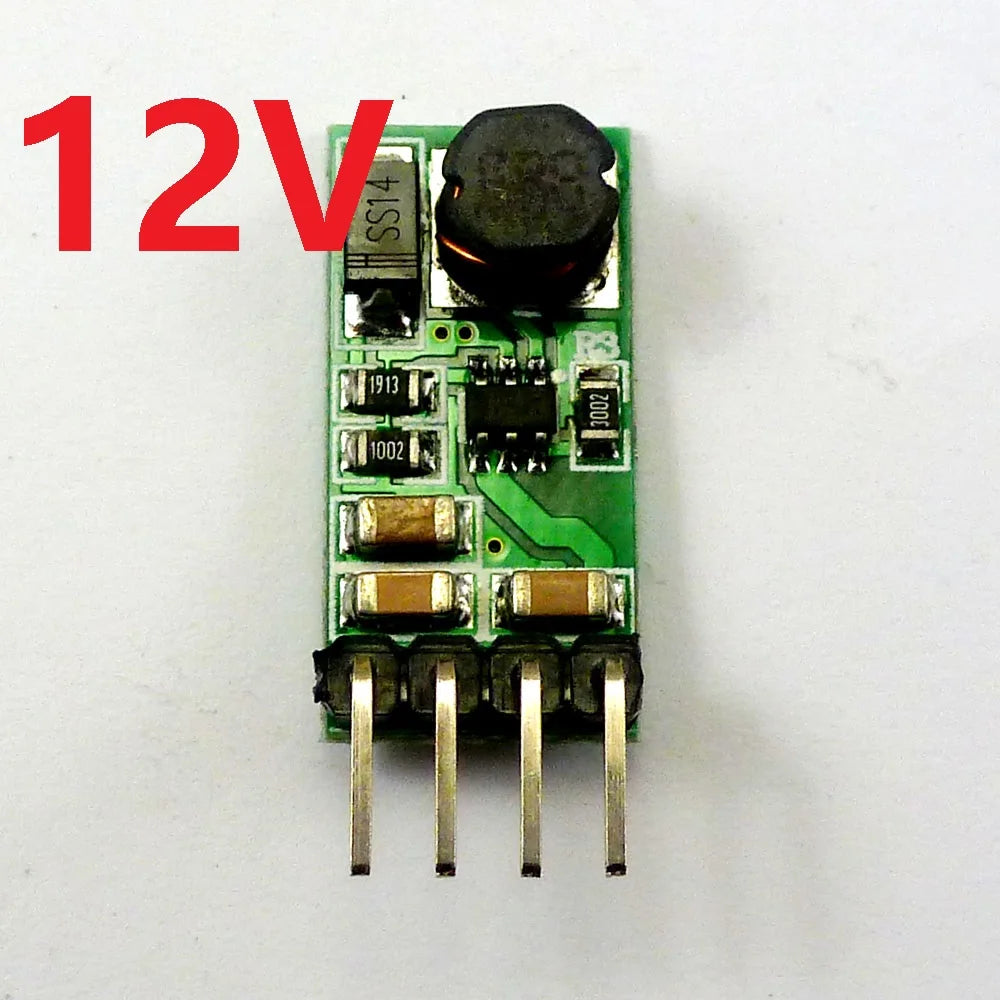

12V:

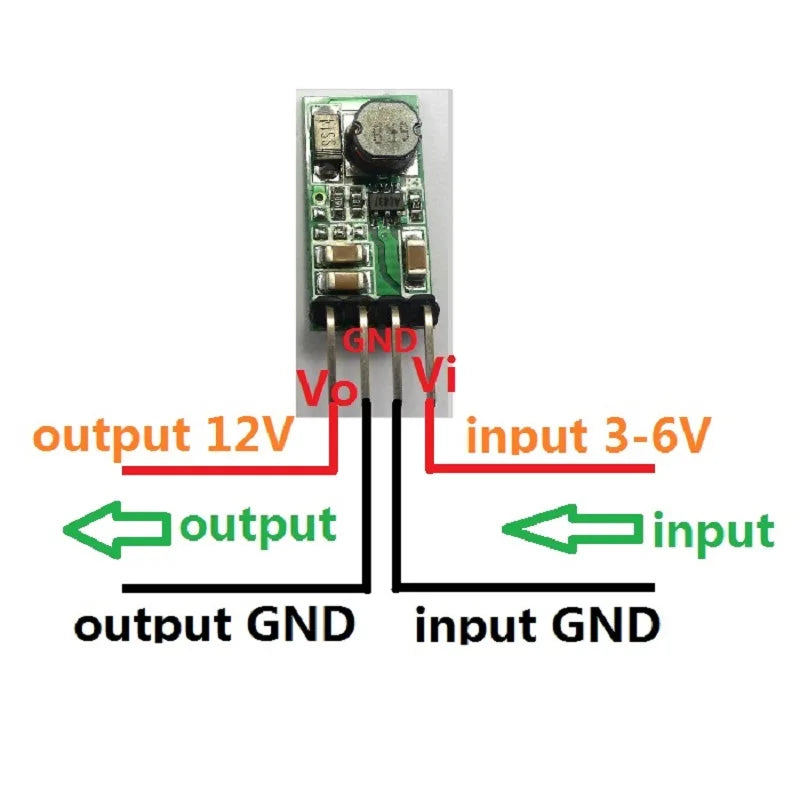

Input voltage 2.8~6V, output 12V (deviation +-5%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A; OUTPUT 12V 220MA
INPUT 3.3V 1A; OUTPUT 12V 250MA
INPUT 3.7V 1A; OUTPUT 12V 280MA
INPUT 4.5V 1A; OUTPUT 12V 340MA
INPUT 5V 1A; OUTPUT 12V 370MA
INPUT 6V 1A; OUTPUT 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.
Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.4g(Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR
C8051 etc
PLC Modbus RS485
VCR
PDA
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
