CE029B Momentary Latch Toggle Independent Setting DC5V ASK RF Wireless Delay Relay

CE029B Momentary Latch Toggle Independent Setting DC5V ASK RF Wireless Delay Relay

CE029B*1+CJ002*4

Low stock: 10 left

$50.98
$50.98 $50.98
Sale Sold out

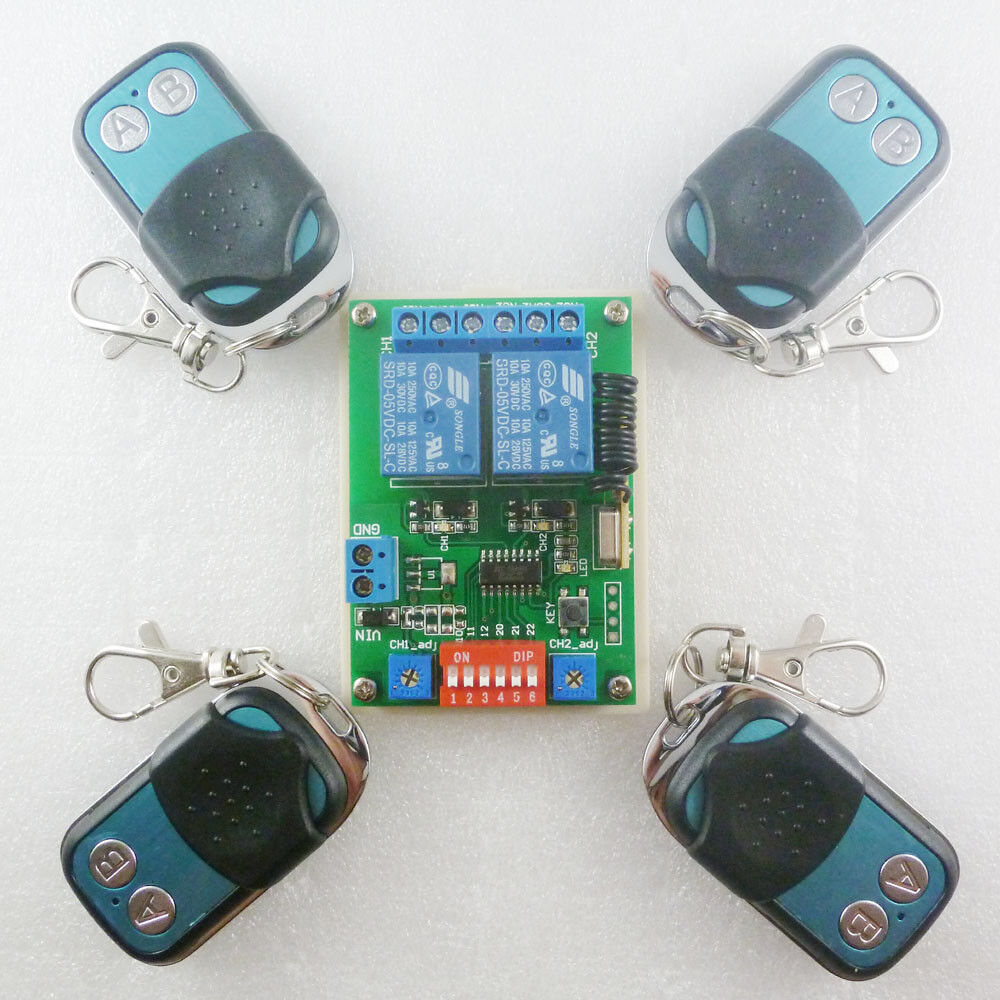

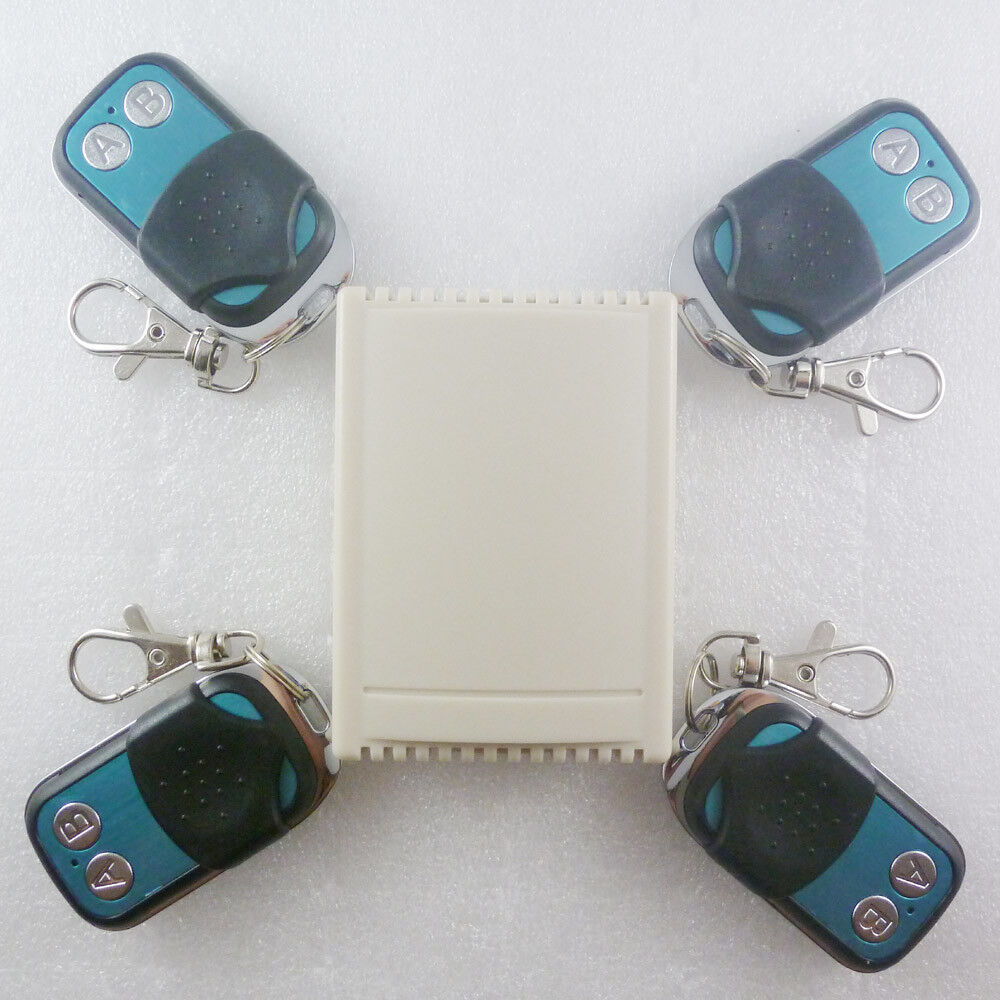

Packing list :

4 pcs 2 button transmitter remote ;
1 pcs 2 channel DC5V Receiver relay board ;
(all user guide was provided in this item description , there is no extra manual )




Typical applications:
DC 5V Home lighting system
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5V DC Motor,RS360




Typical applications:
DC 5V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360


Wiring Diagram 1:

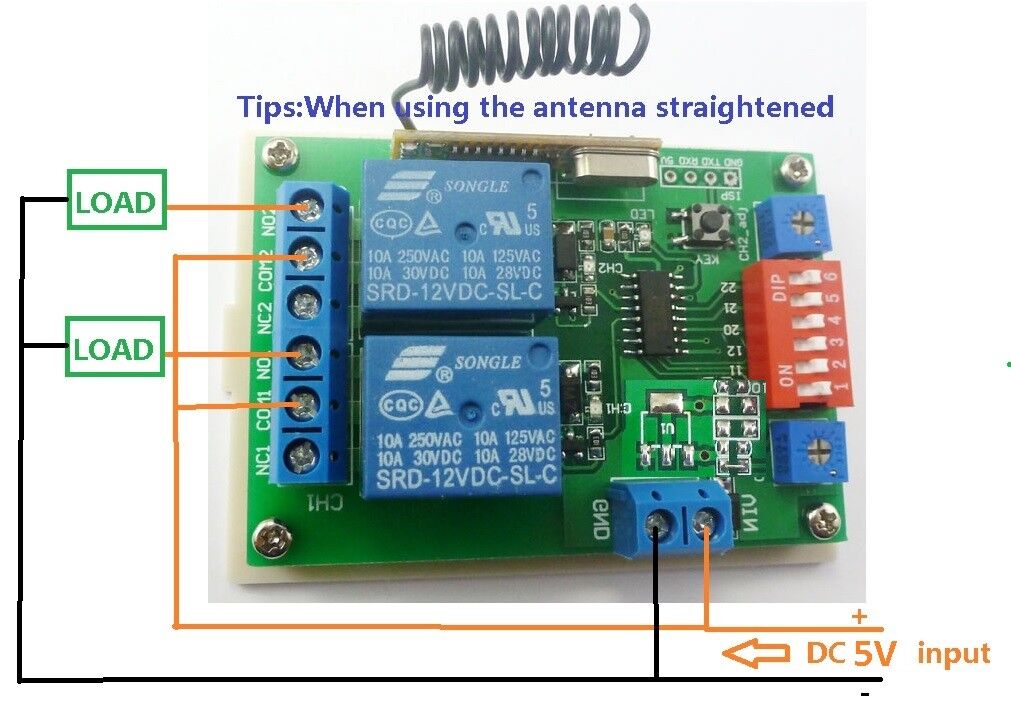

DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 5V





Wiring Diagram 2:

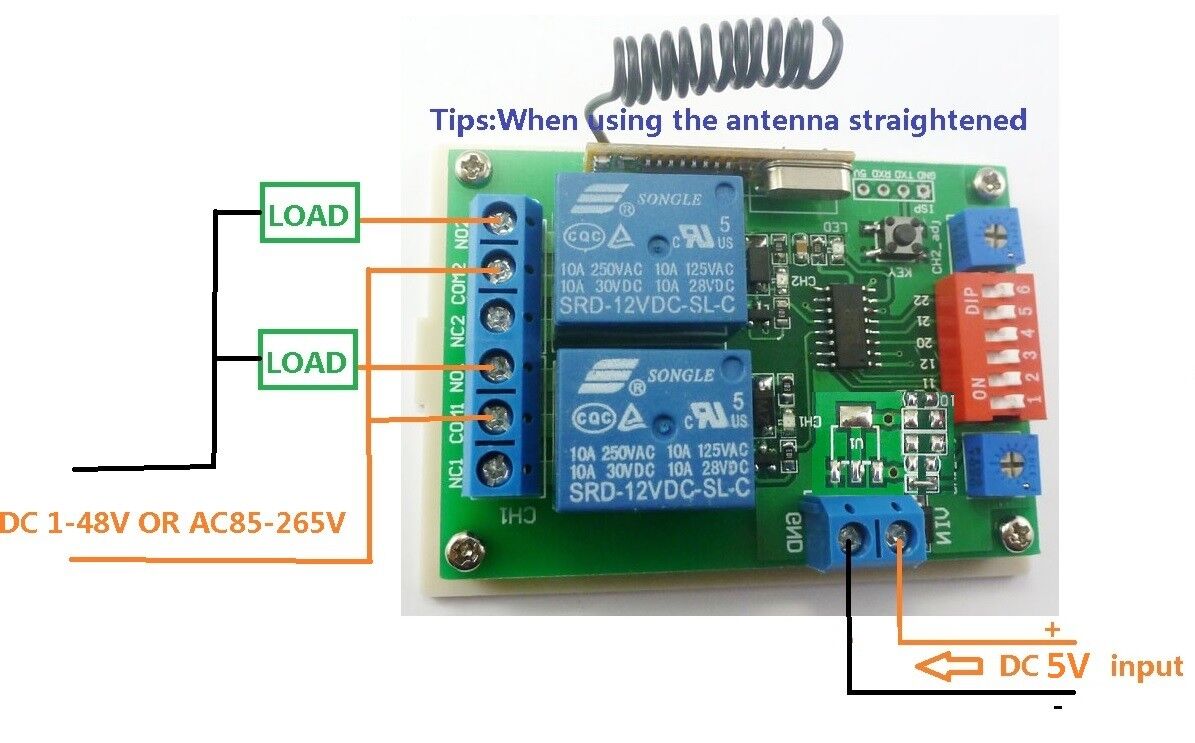

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

Product Name : DC 5V 433mHz 2 Channel Wireless Delay Relay Remote Controller

Packing list:

1 PCS 433M DC 5V 2 Channel Multifunction Wireless Controller









Technical indicators:

Operating voltage : DC 5V

Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay open,about 157MA

Operating frequency : 433.92M;

Receiver sensitivity : -108dB;

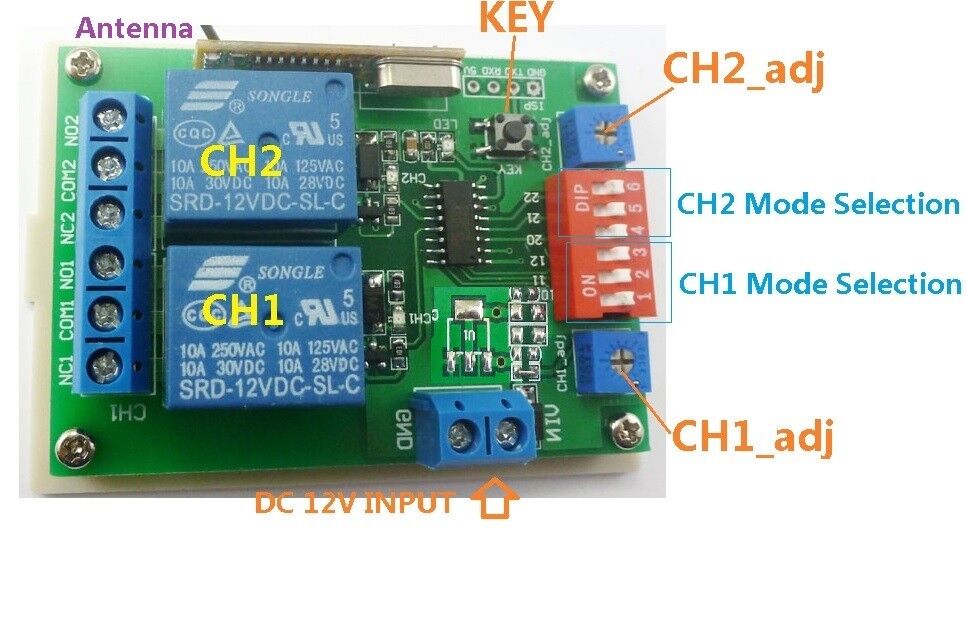

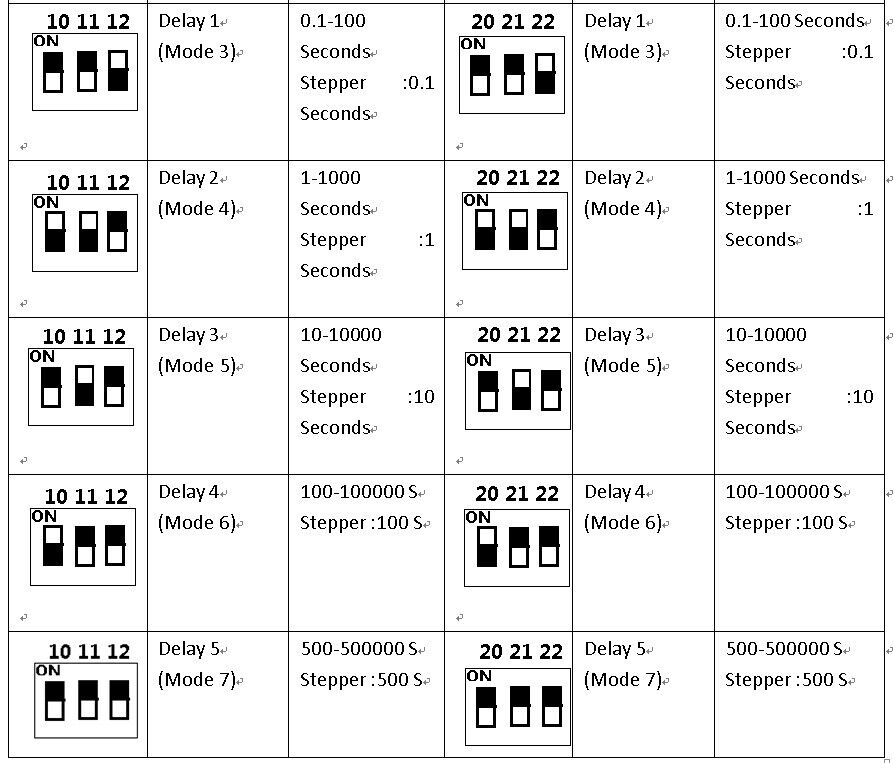

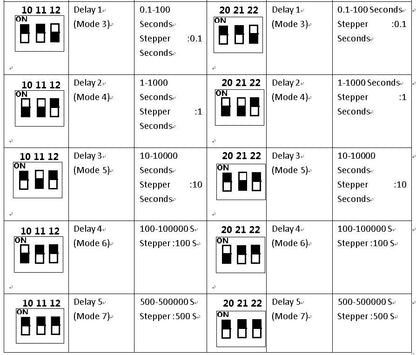

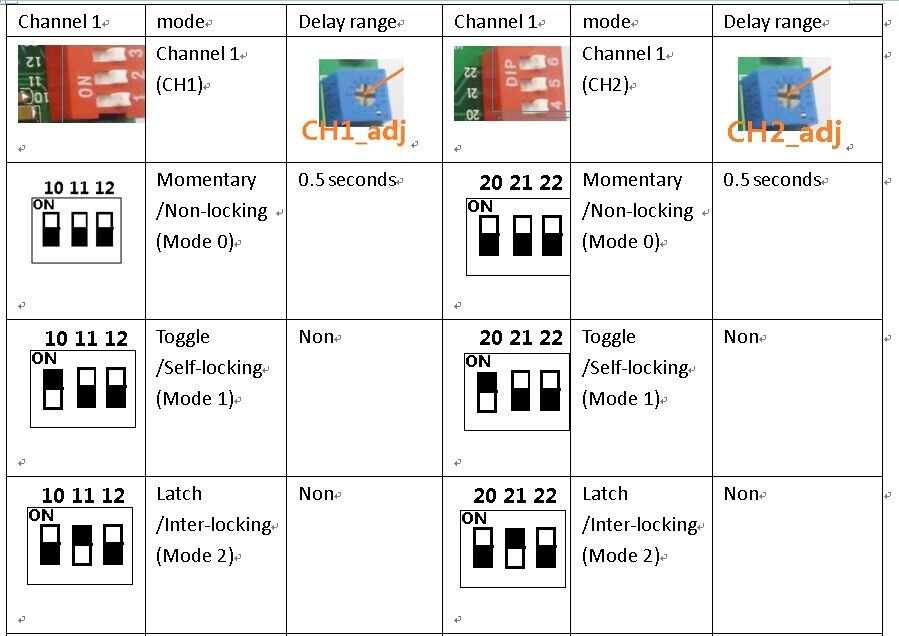

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay

Size(Including housing) : 75*54*28mm

Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );

Max load : 500W;





Work mode



NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Open : NO connection COM, NC disconnect COM
Close : NO disconnect COM, NC connection COM

Non Lock:
Relay: press one button is ON, loosen your finger on the same button is OFF.

Self-locking:
Relay: press one button for one time is ON, press the same button again is OFF.

Interlock:
Relay: press one button is ON, press another button is OFF.

Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes



Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values

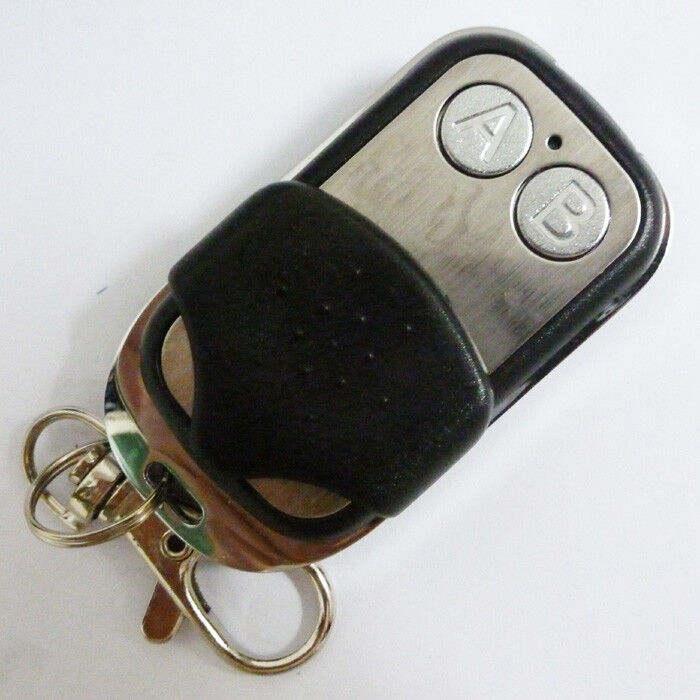

Transmitter :

Technical Data :
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Modulation mode:ASK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;


View full details
