N428E02 mini DC 12V 2ch RS485 Relay Board Modbus RTU Switch Module for PLC Digital Output Expansion for Motor LED PTZ

N428E02 mini DC 12V 2ch RS485 Relay Board Modbus RTU Switch Module for PLC Digital Output Expansion for Motor LED PTZ

N428E02

100 in stock

$4.81
$4.81 $4.81
Sale Sold out
Product Name: mini DC 12V 2ch RS485 Relay Board Modbus RTU Switch Module for PLC Digital Output Expansion for Motor LED PTZ

Package inlcuded:

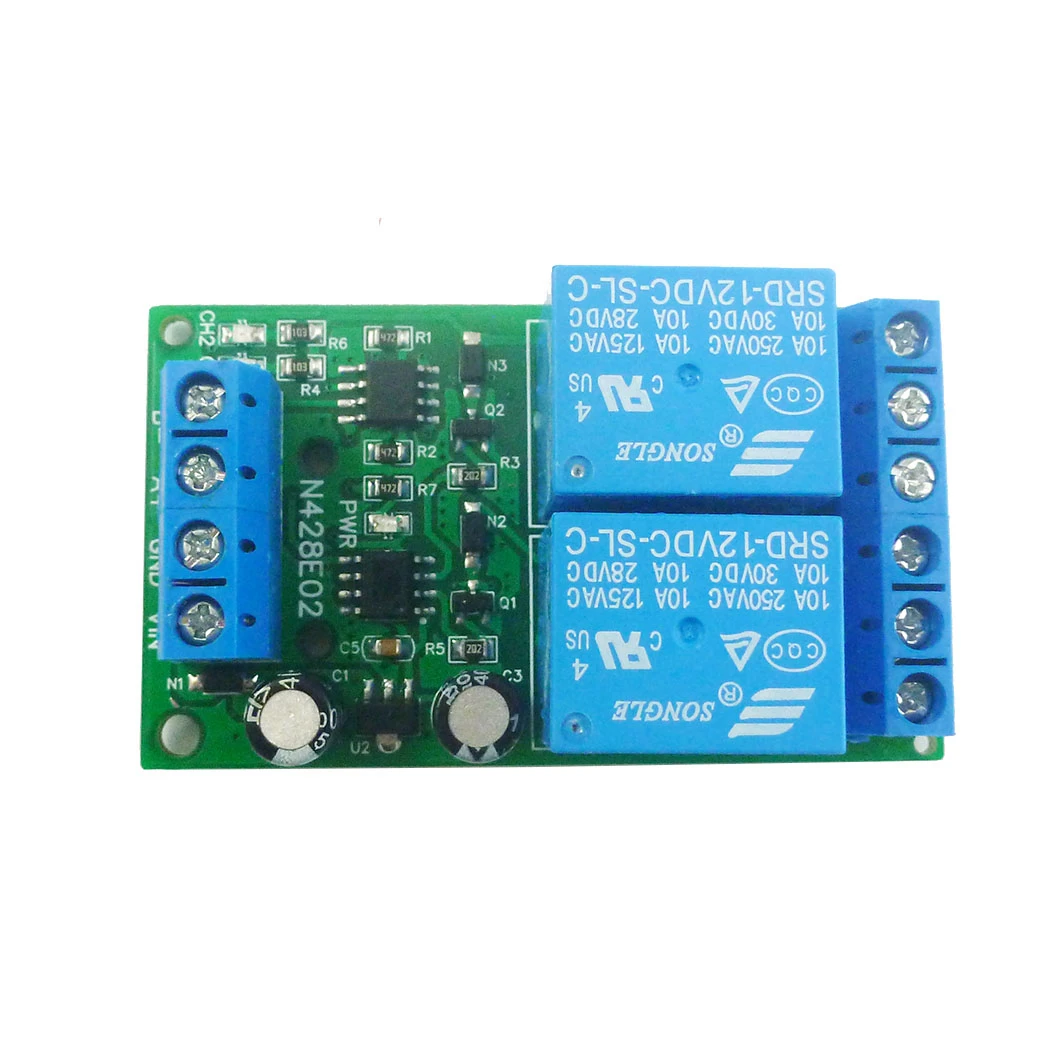

1 PCS DC 12V 2-Channels RS485 Modbus Rtu Relay Switch Module


Description:

1: Working voltage : DC 12V;

2: Standby current (all relays closed) 10MA, 1 relay open 38MA, 2 relays open 67MA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: MODBUS RTU command, Support 03 06 16 function code

5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

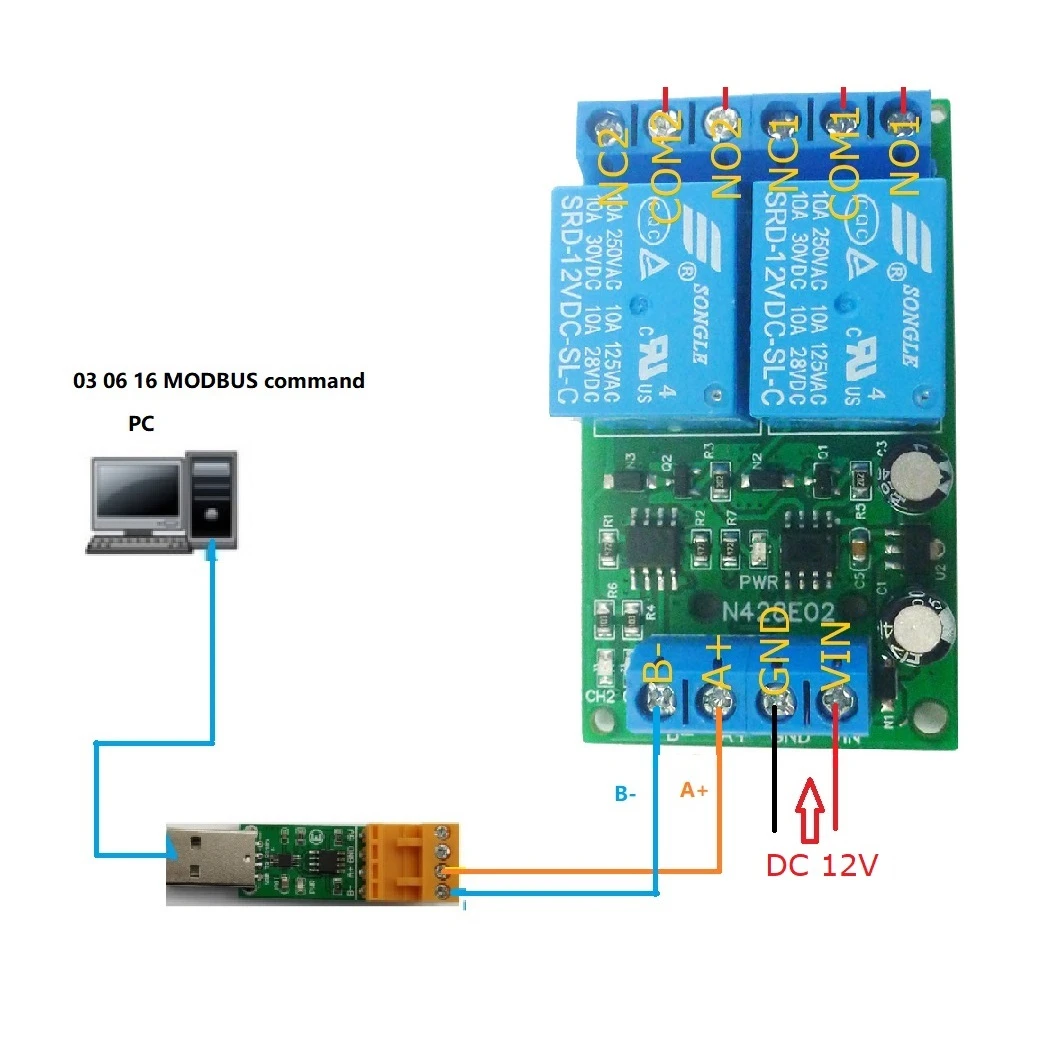

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

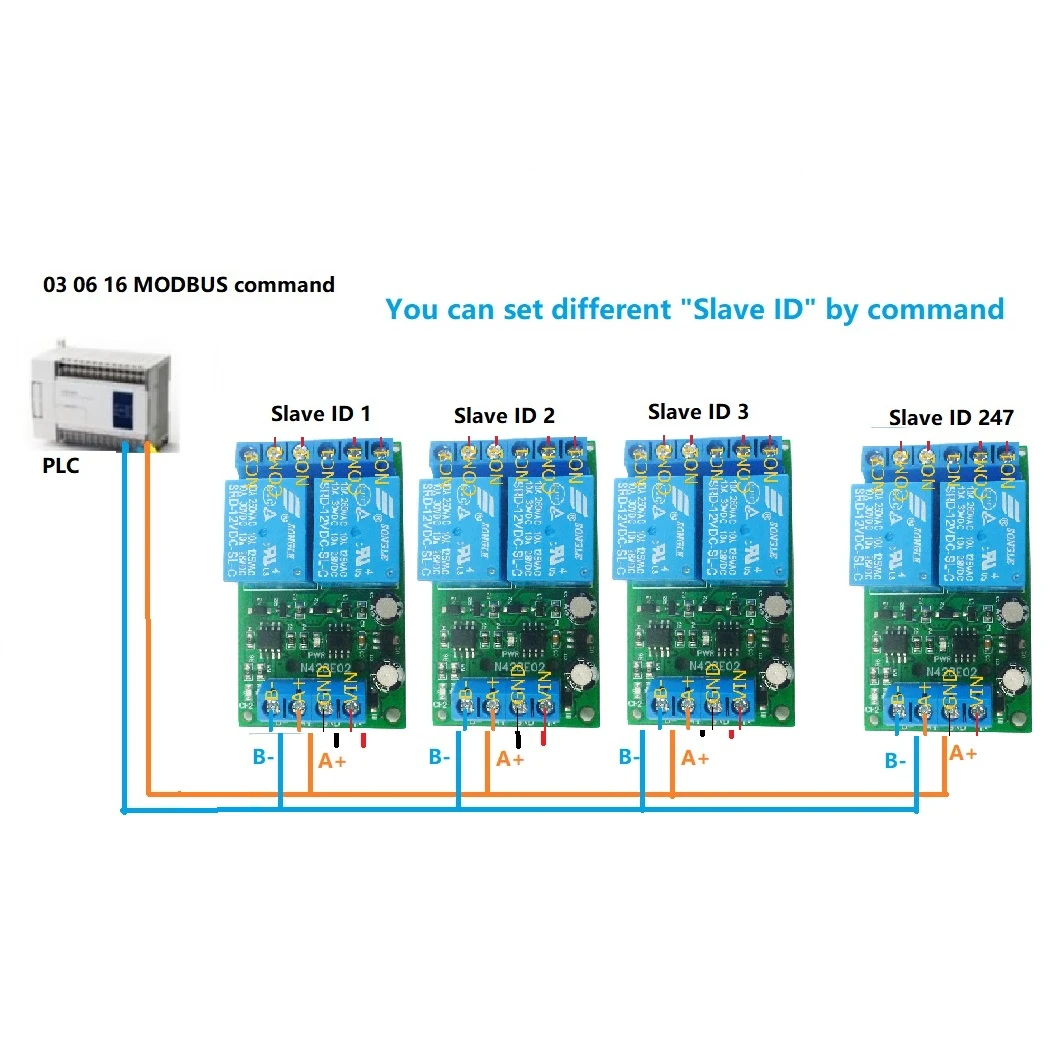

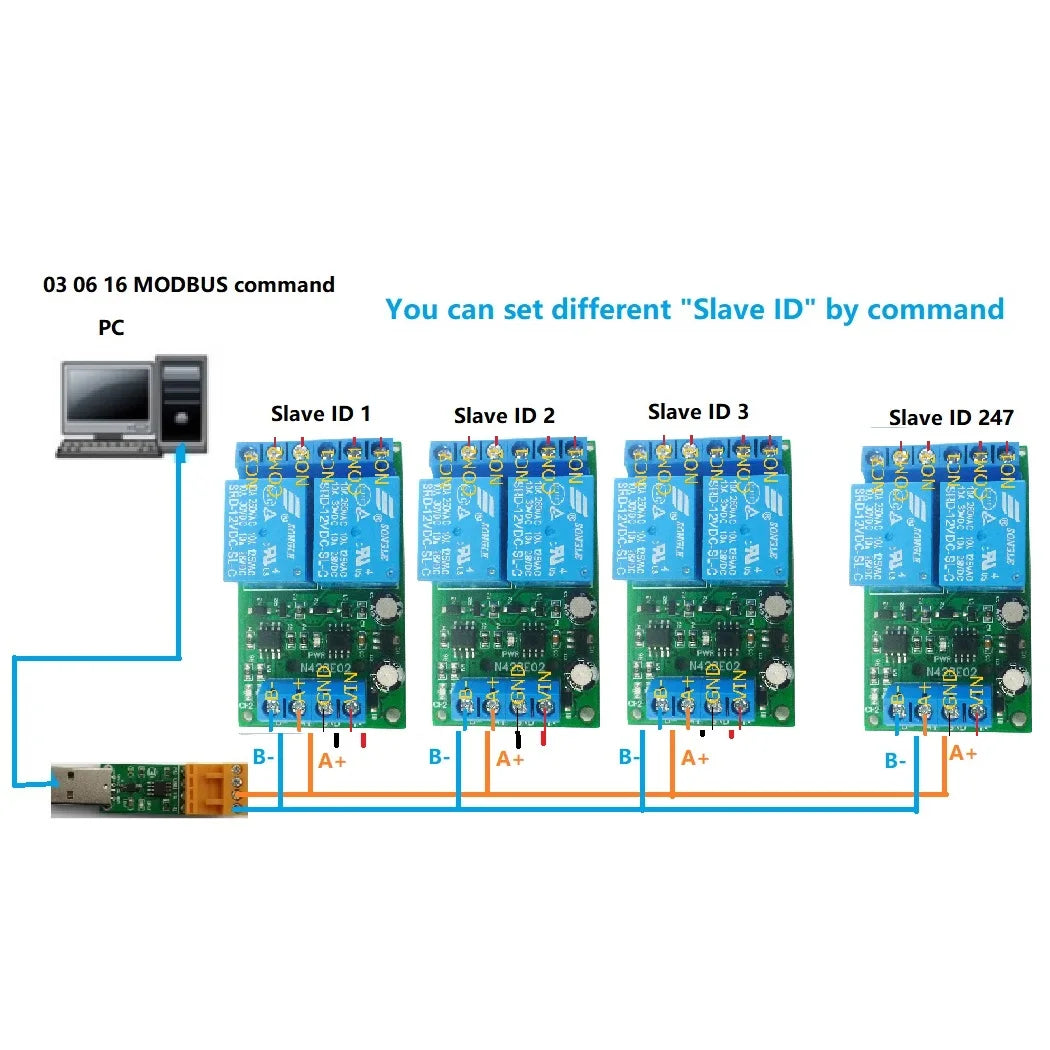

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

9 The parity can be none parity, even parity and odd parity

10 Size: 60*35*19mm

11 Weight: 32g

12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC


For more information, please contact me
Application

PLC Digital Output Expansion Board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;

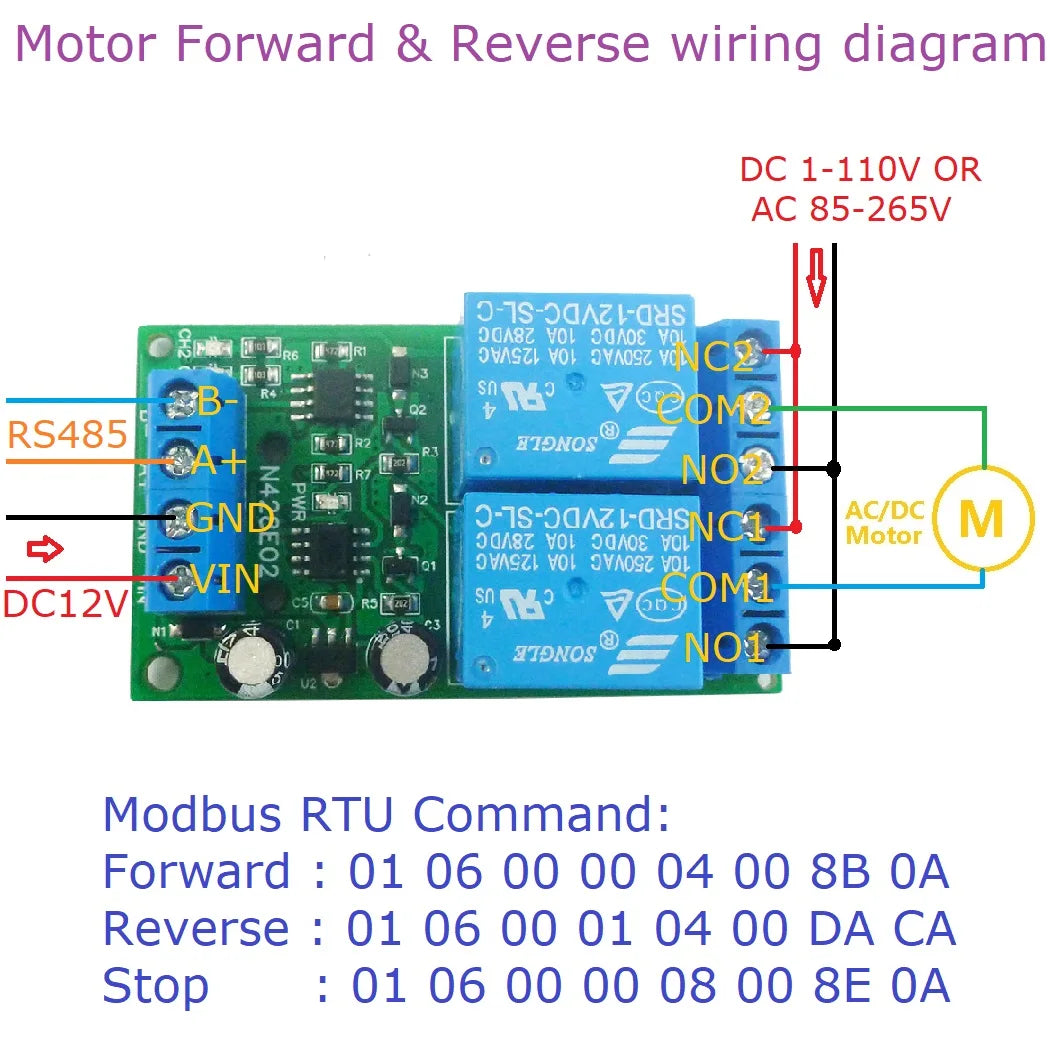

Motor FW & BW
Automatic curtain control

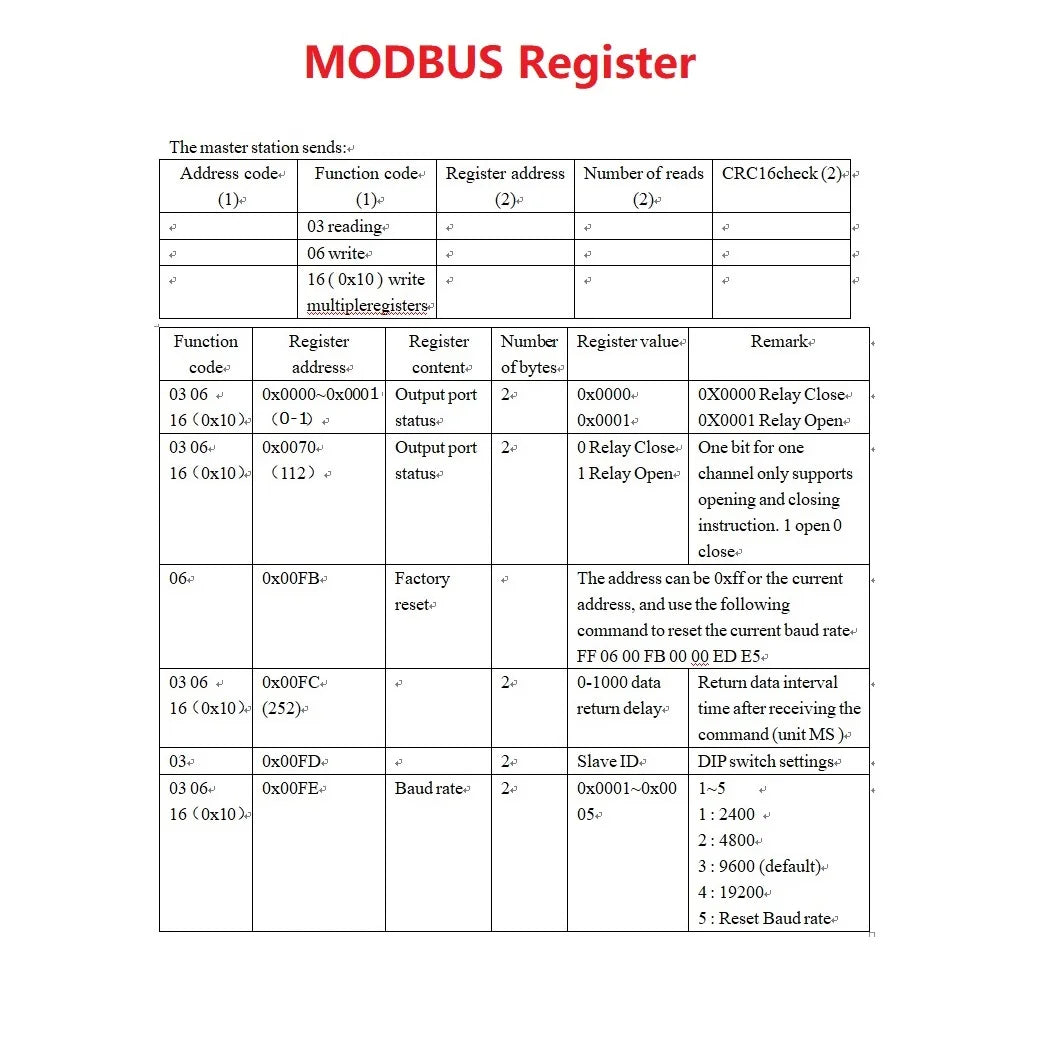

Modbus Rtu Register:
