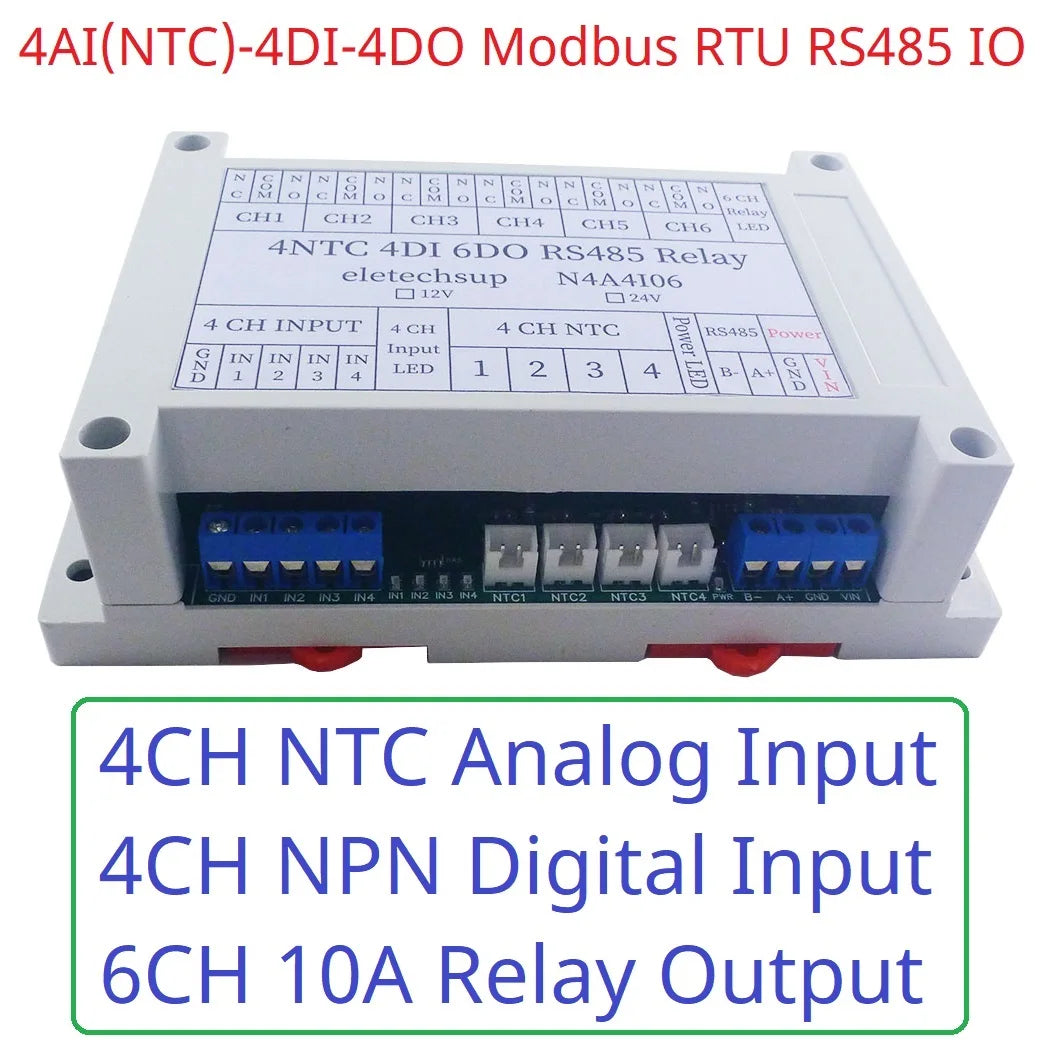

N4A4I06 14CH Multifunction RS485 Network Bus NTC Temperature Collector 4AI-4DI-6DO Modbus RTU PLC Remote IO Analog Digital Expander
N4A4I06 14CH Multifunction RS485 Network Bus NTC Temperature Collector 4AI-4DI-6DO Modbus RTU PLC Remote IO Analog Digital Expander
SKU:TB438_10K*8
997 in stock
Regular price
$9.99
Regular price
$11.27
Sale price
$9.99
Unit price
per
Couldn't load pickup availability
Package inlcuded:
1PCS DC 12V/24V 14Ch 4NTC-4DI-6DO Multi-function Temperature collector PLC IO expansion board
1PCS DC 12V/24V 14Ch 4NTC-4DI-6DO Multi-function Temperature collector PLC IO expansion board
Features:

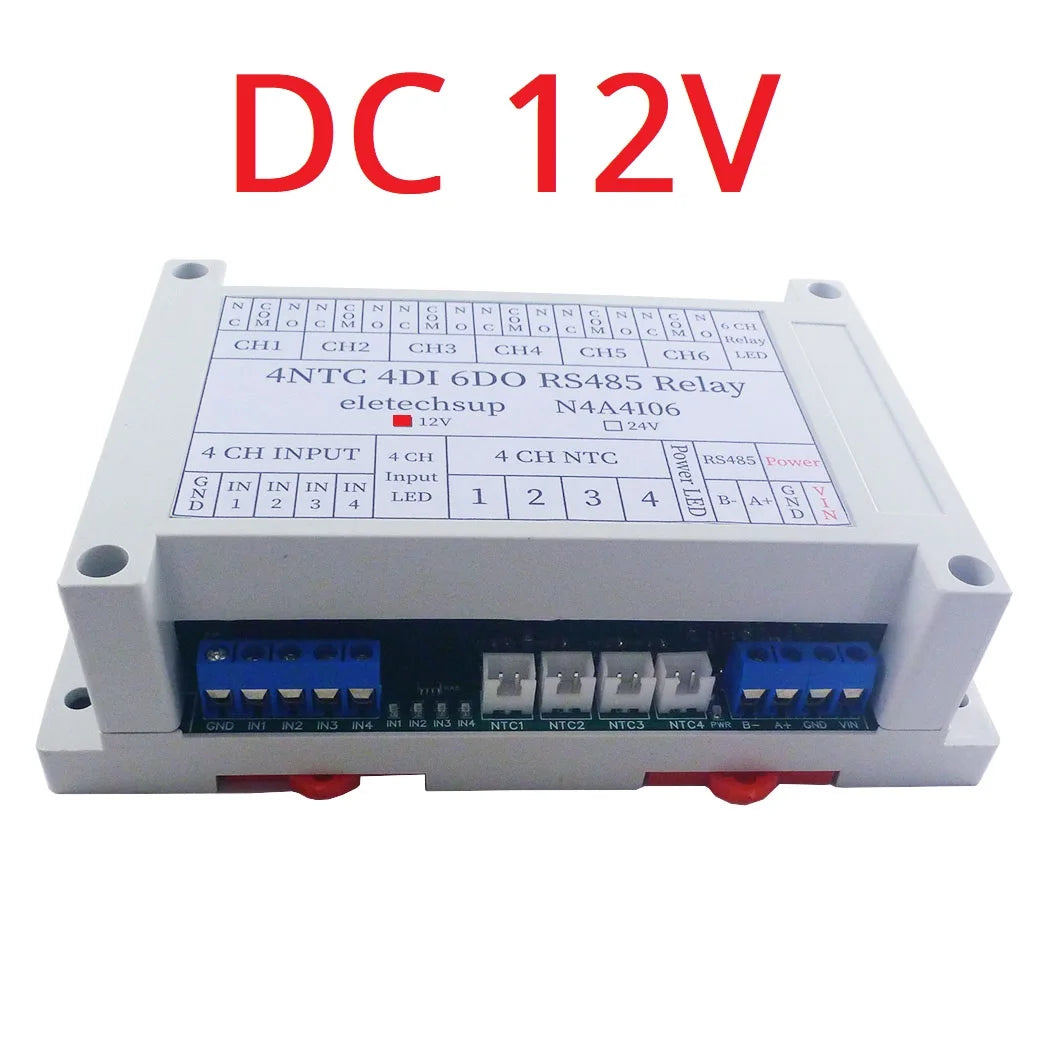

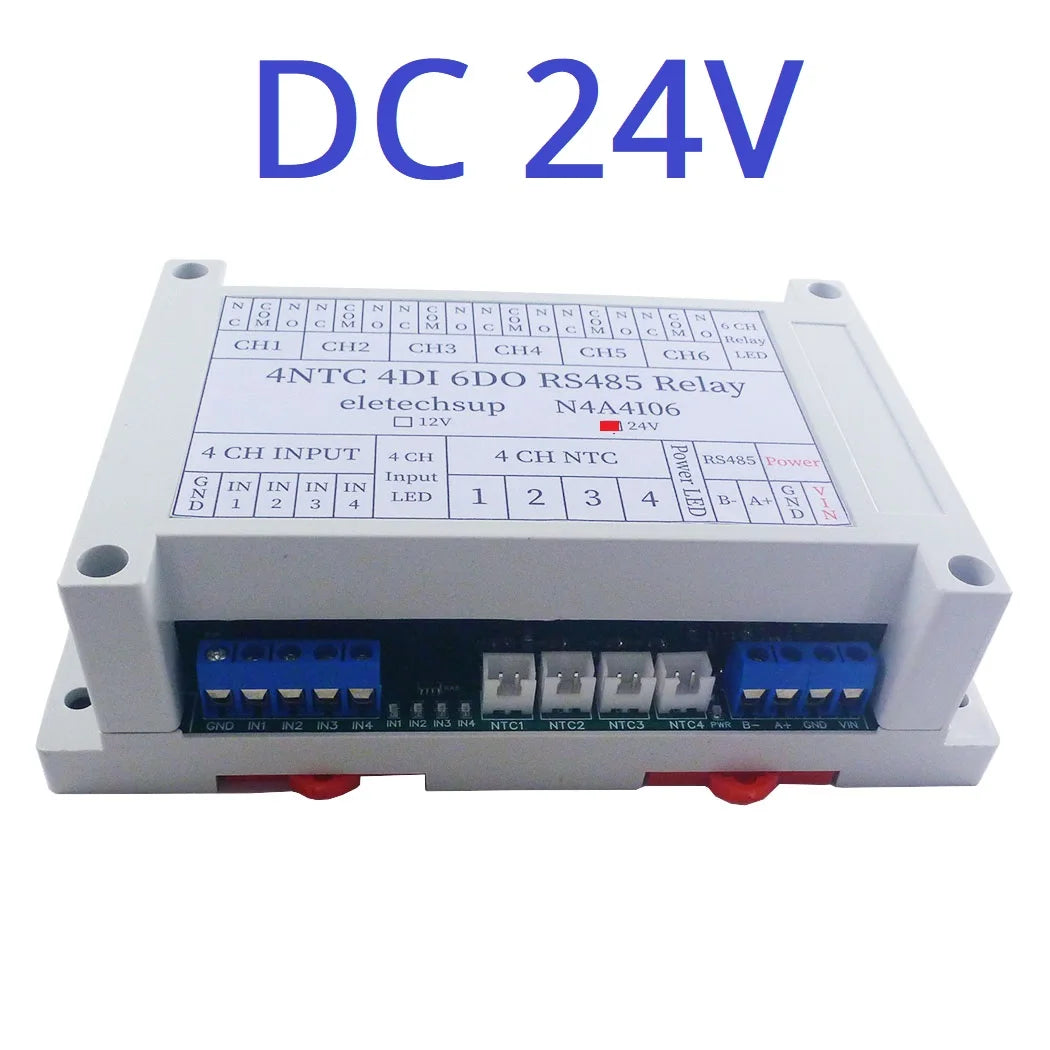

1. Working voltage: DC 12V/24V
2. Working current: 10-14MA,
3 .4-channel NTC (10K B value 3950) temperature input, 4-channel photoelectric isolation switch input (NPN), 6-channel 10A relay output
4. Supports standard Modbus RTU instructions, function code: write 05/06/15/16 read 01/02/03/04
5. With hardware restore to factory settings function, with TVS anti-surge protection

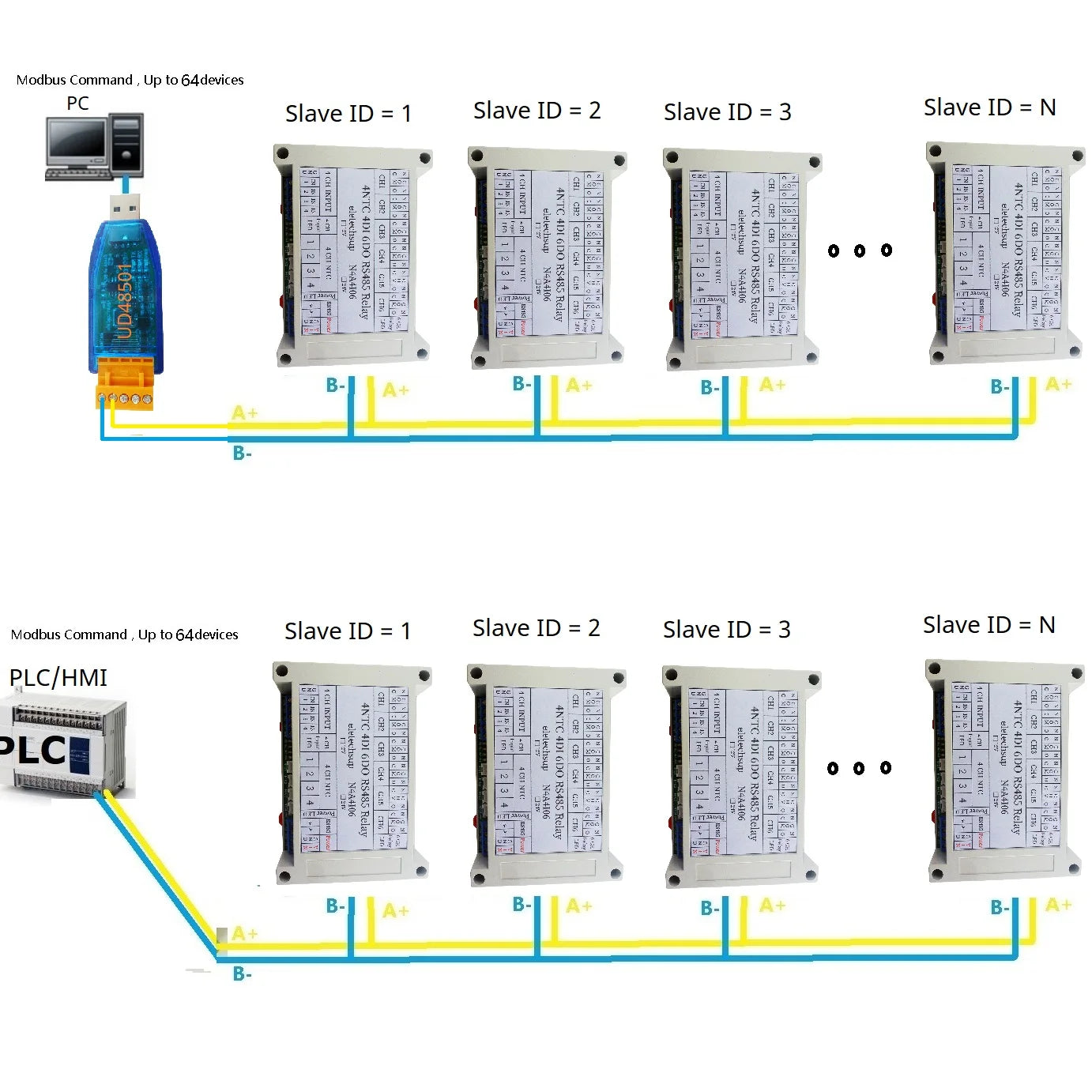

6. In MODBUS command mode, up to 64 devices can be supported in parallel.
7. The default baud rate is 9600BPS. You can select the baud rate 2400 4800 19200 38400 57600 115200BPS through instructions.
8. You can choose the check mode as no check, even check and odd check.
9 .You can set the data sending return time, the maximum can be set to 1000ms

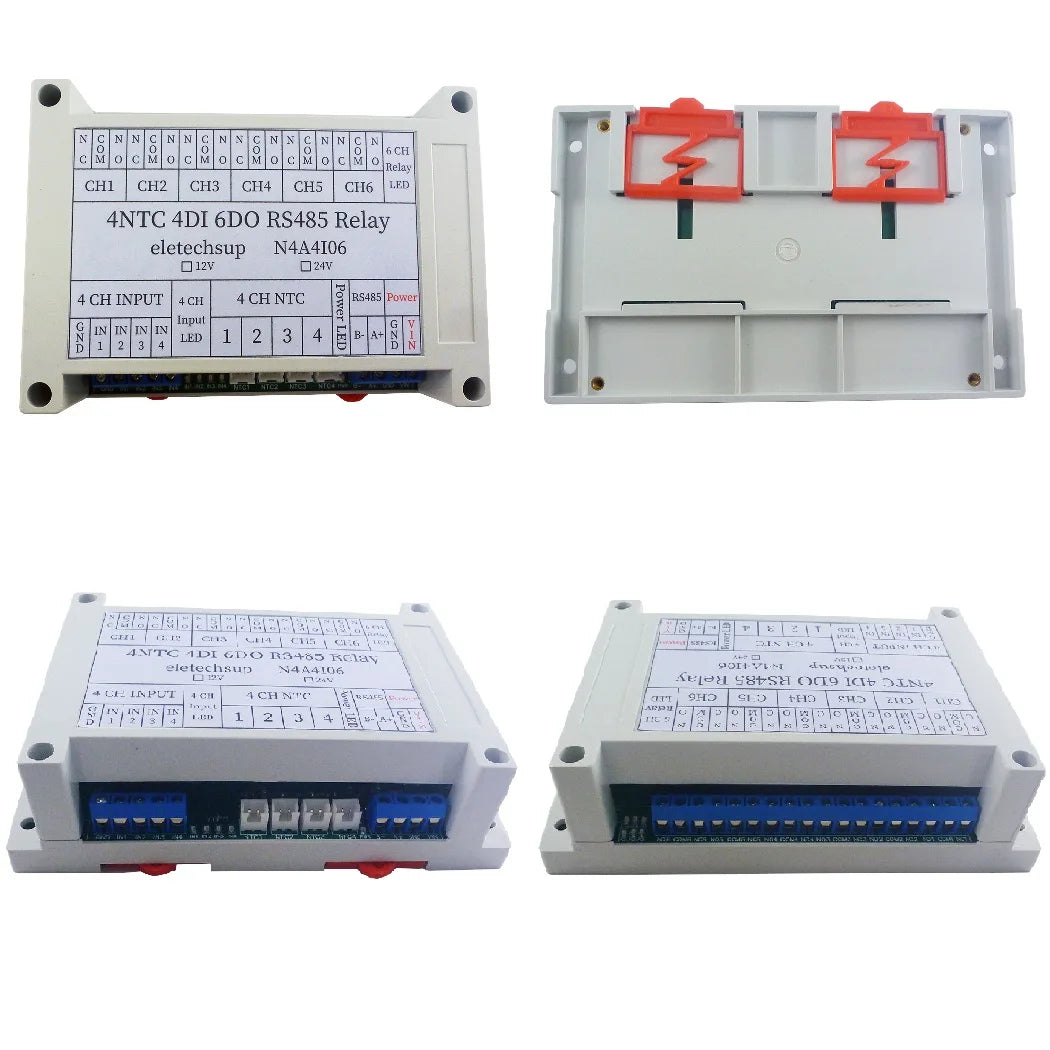

10. Housing with DIN rail
11. size size 145*90*40mm
12. Weight: 198 grams
13. Maximum load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC
For more information, please contact me

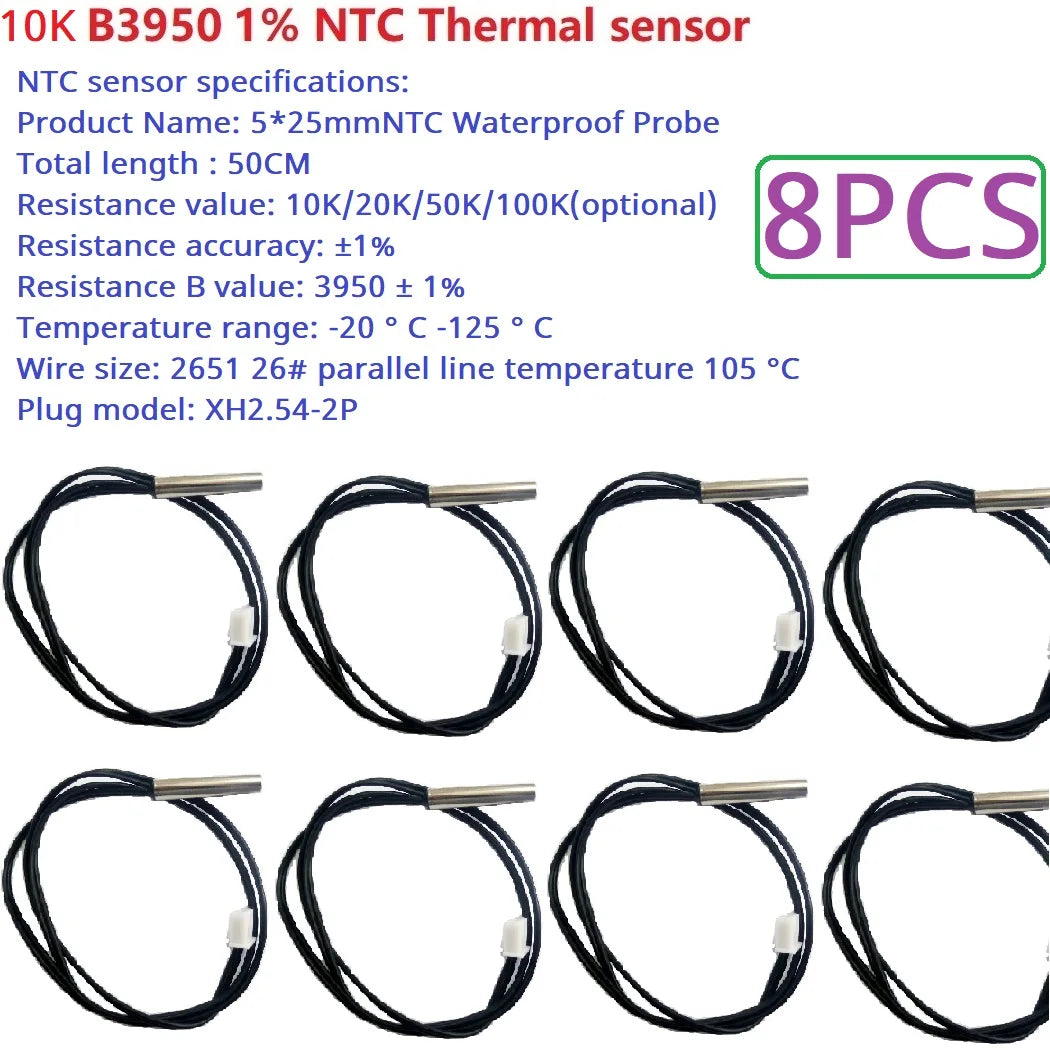

NTC sensor specifications:
Product Name: 5*25mmNTC Waterproof Probe
Total length : 50CM
Resistance value: 10K
Resistance accuracy: ±1%
Resistance B value: 3950 ± 1%
Temperature range: -20 ° C -125 ° C
Wire size: 2651 26# parallel line temperature 105 °C
Plug model: XH2.54-2P

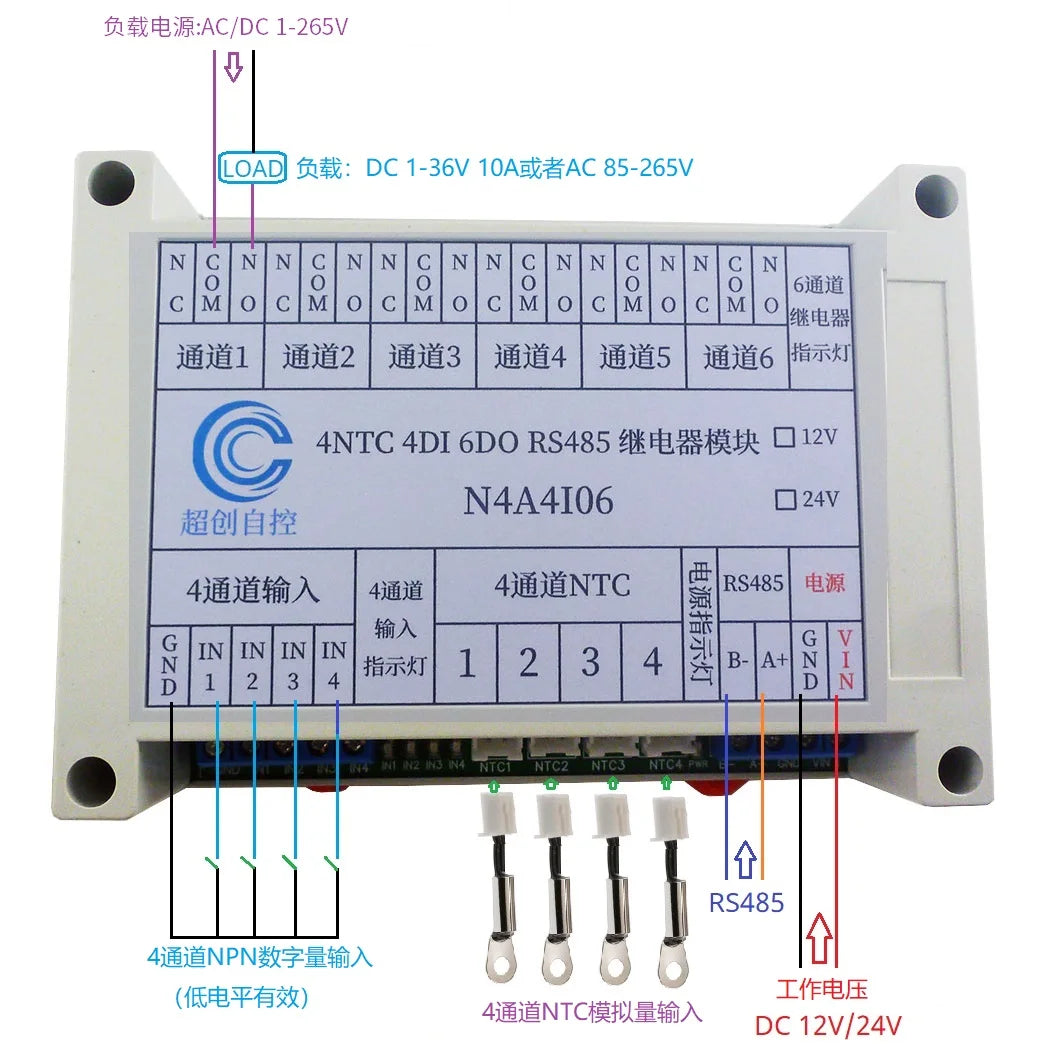

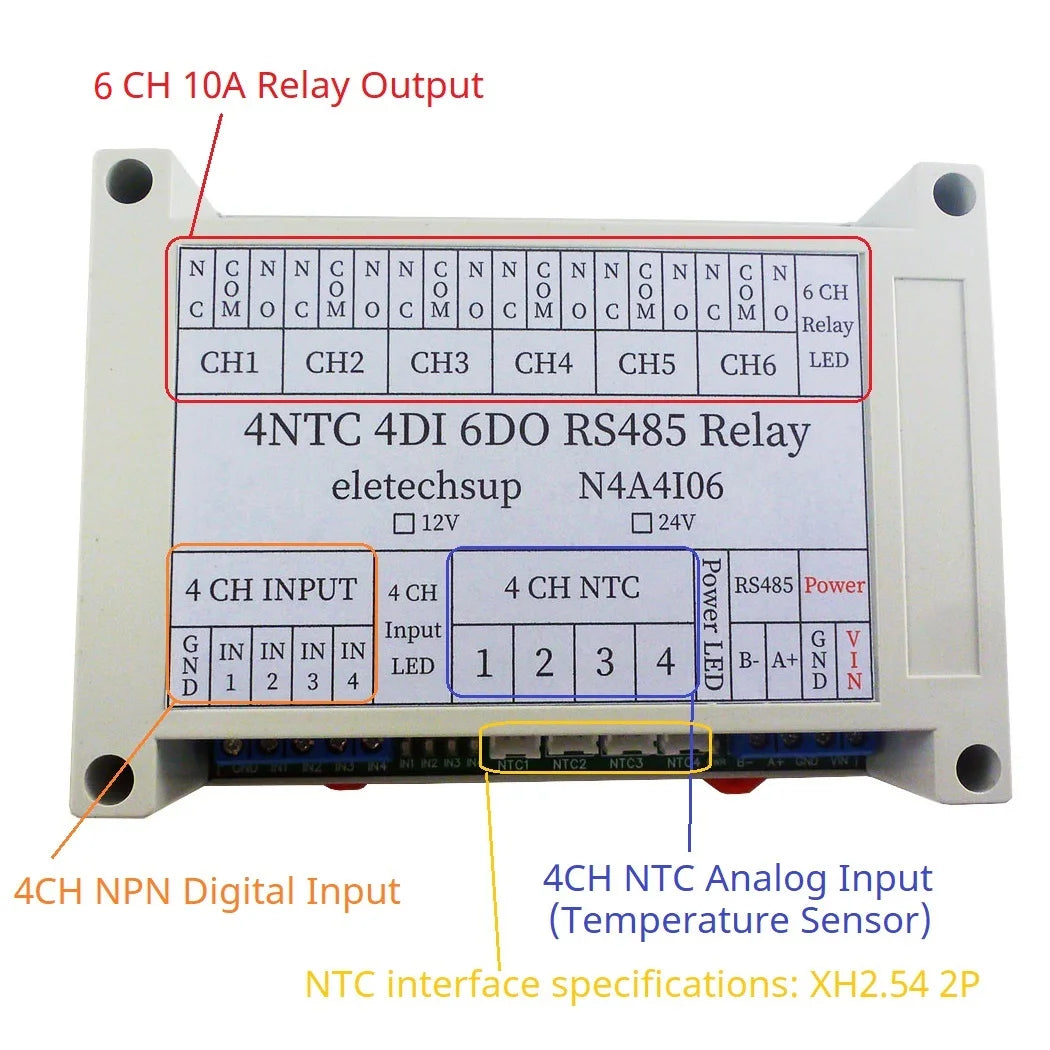

Wiring Diagram:
6CH 10A Relay Output
4CH NPN Digital Input
4CH NTC Analog Input(Temperature Sensor)
