N4D8B08 DC 12V 24V 8I8O Multifunction Modbus RTU Relay Module Support 03 06 16 Function
N4D8B08 DC 12V 24V 8I8O Multifunction Modbus RTU Relay Module Support 03 06 16 Function
SKU:N4D8B08_R_12V
1000 in stock
Regular price
$21.99
Regular price
$41.98
Sale price
$21.99
Unit price
per
Couldn't load pickup availability
Product Name: DC 12V 24V 8I8O Multifunction Modbus RTU Relay Module Support 03 06 16 Function Code RS485 Switch Control Board DIN35 Rail Box
Package inlcuded:
1PCS DC 12V/24V 8I8O Input & 8 Output DIN35 C45 Rail Box RS485 Relay Module
Description:
1: DC 12V (12V Version), DC 24V (24V Version)
2: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 123MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA
3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5: MODBUS RTU command, Support 03 06 16 function code
6: Under the ''Delay'' command ,the maximum delay is 255 seconds;
7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
8 Under the MODBUS command mode, it can support up to 64 devices in parallel
9 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

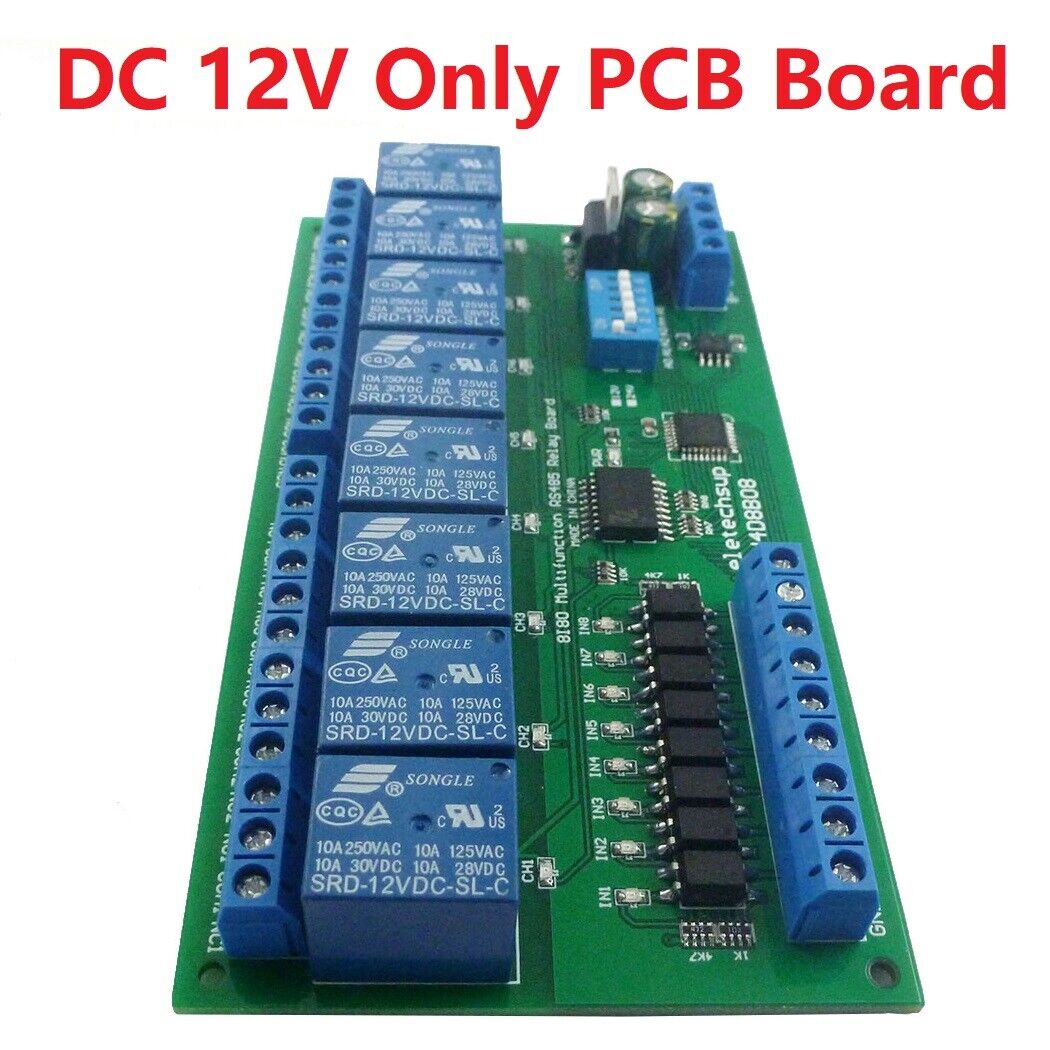

10 Size: 136 * 72 * 20mm(Only PCB Board);140 * 88* 42mm(with Din Rail Box)
11 Weight: 134g(Only PCB Board);223g(with Din Rail Box)
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me

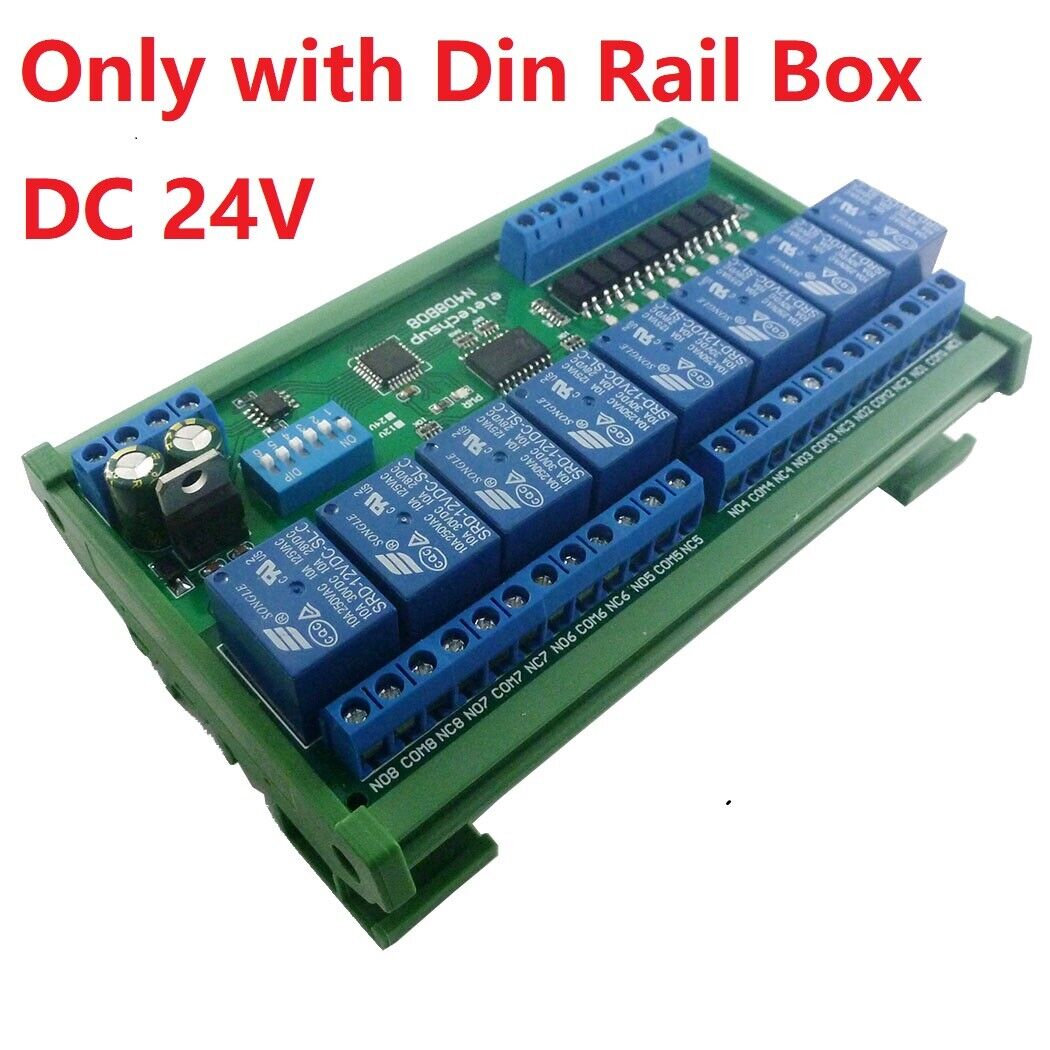

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail
2: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 123MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA
3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5: MODBUS RTU command, Support 03 06 16 function code
6: Under the ''Delay'' command ,the maximum delay is 255 seconds;
7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
8 Under the MODBUS command mode, it can support up to 64 devices in parallel
9 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
10 Size: 136 * 72 * 20mm(Only PCB Board);140 * 88* 42mm(with Din Rail Box)
11 Weight: 134g(Only PCB Board);223g(with Din Rail Box)
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me
DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail
Application
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
Automatic curtain control
Typical applications:
1 The dial switch (slave address) is invalid and can only control one module at a time.
1 The dial switch (slave address) is invalid and can only control one module at a time.

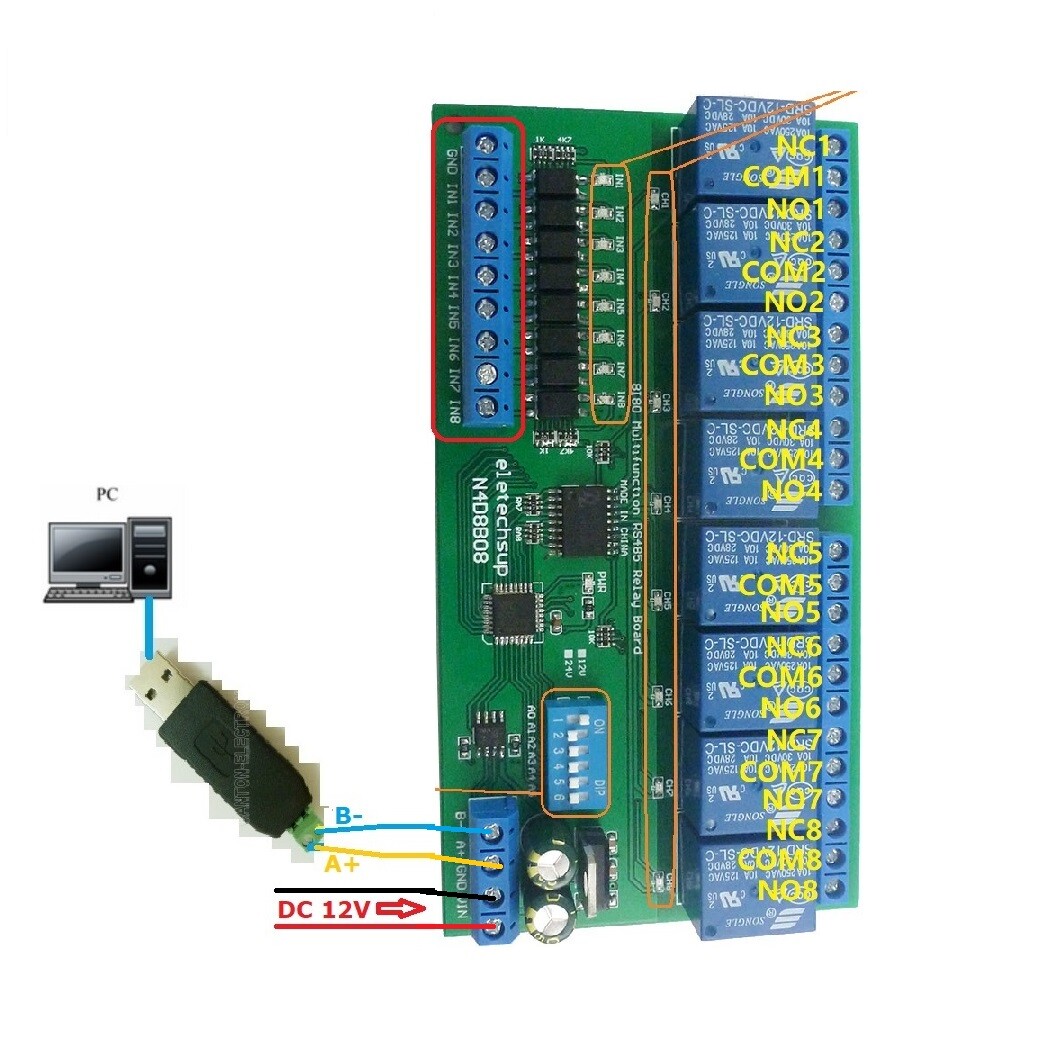

MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
Wiring Diagram:

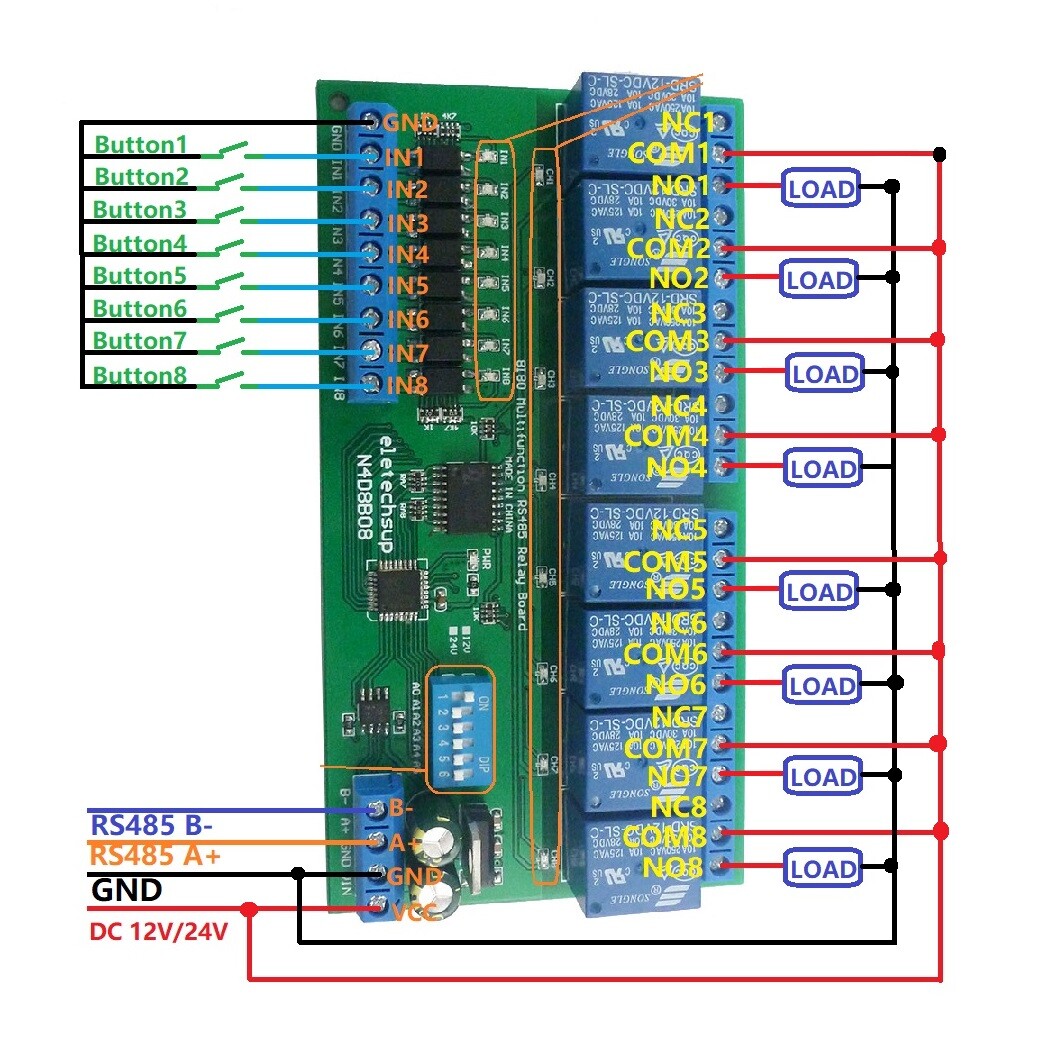

1 DC 12V/24 control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V/24V equipment
2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V/24V load, need another DC 12V/24V power supply). ''LOAD'' may be LED lights, fans, motors Lights,
