N4DBA06 8CH 0-5V 0-10V 4-20MA Voltage Current Signal Generator Detector RS485 Modbus RTU
N4DBA06 8CH 0-5V 0-10V 4-20MA Voltage Current Signal Generator Detector RS485 Modbus RTU
SKU:N4DBA06_R
1000 in stock
Regular price
$18.99
Regular price
$34.48
Sale price
$18.99
Unit price
per
Couldn't load pickup availability
Product Name: 8CH 0-5V 0-10V 4-20MA Voltage Current Signal Generator Detector RS485 Modbus RTU
Note:

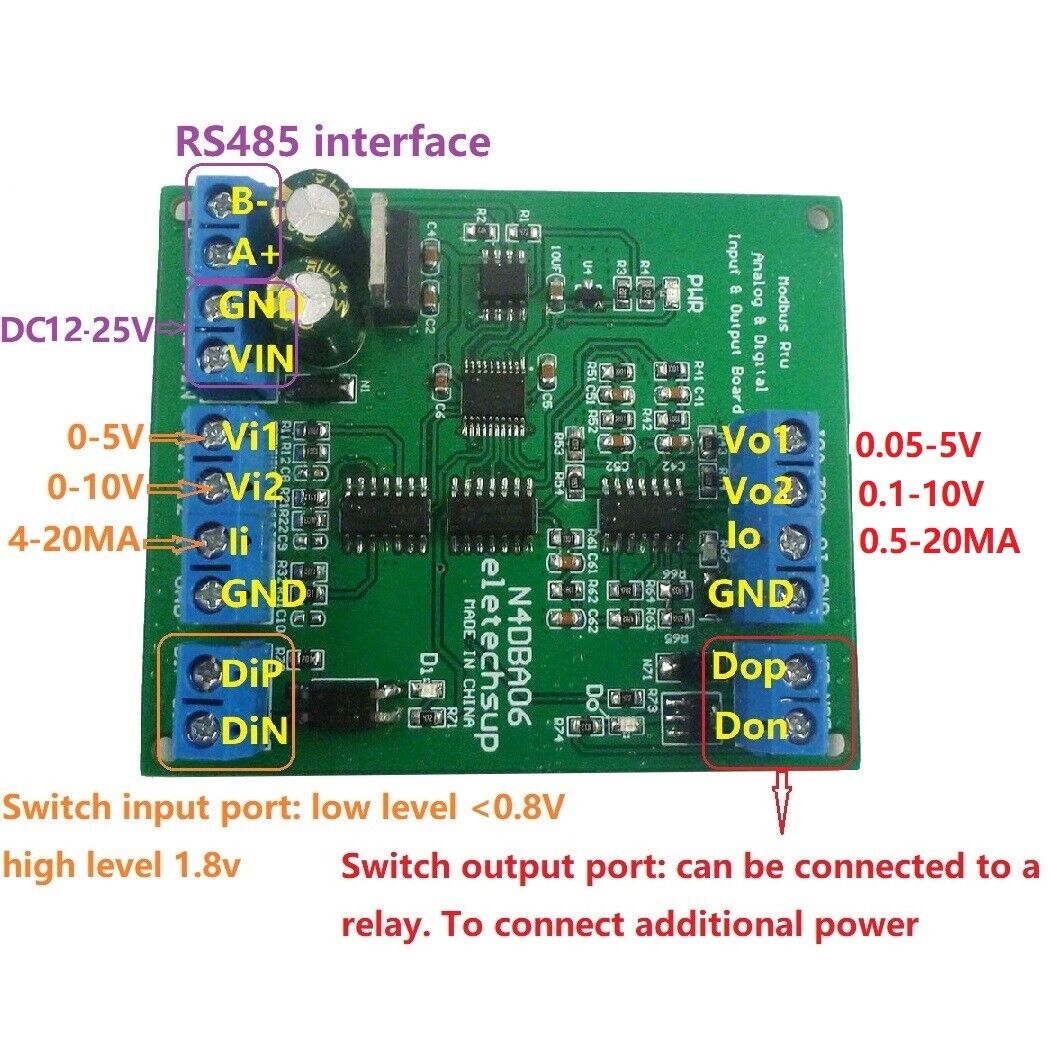

1 Channel 1 (Vo1) output voltage range is 0.05V-5V, channel 2 (Vo2) output voltage range is 0.1V-10V, channel 3 (Io) output current range is 0.5-20MA
2 At the moment of power-on, the current and voltage output ports have 10-20MS high pulses

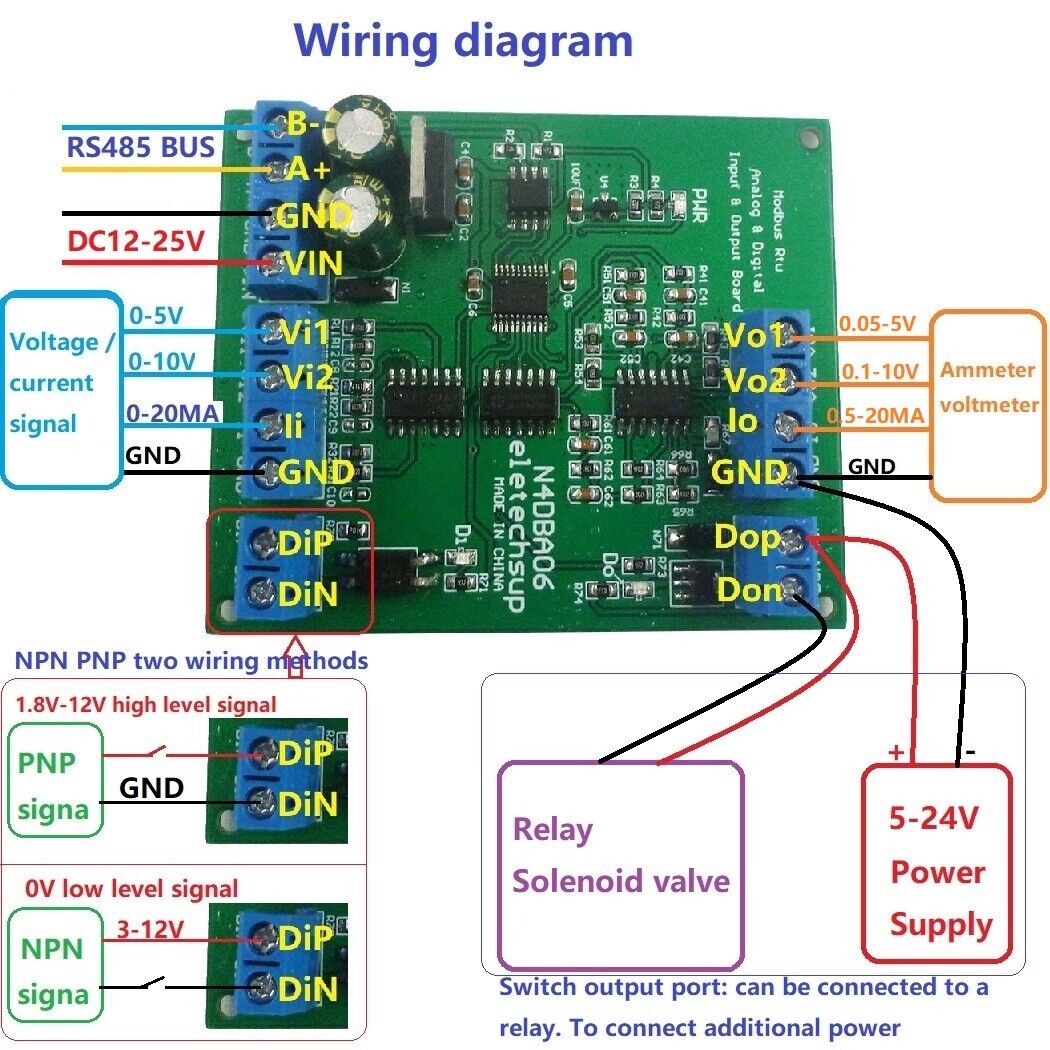

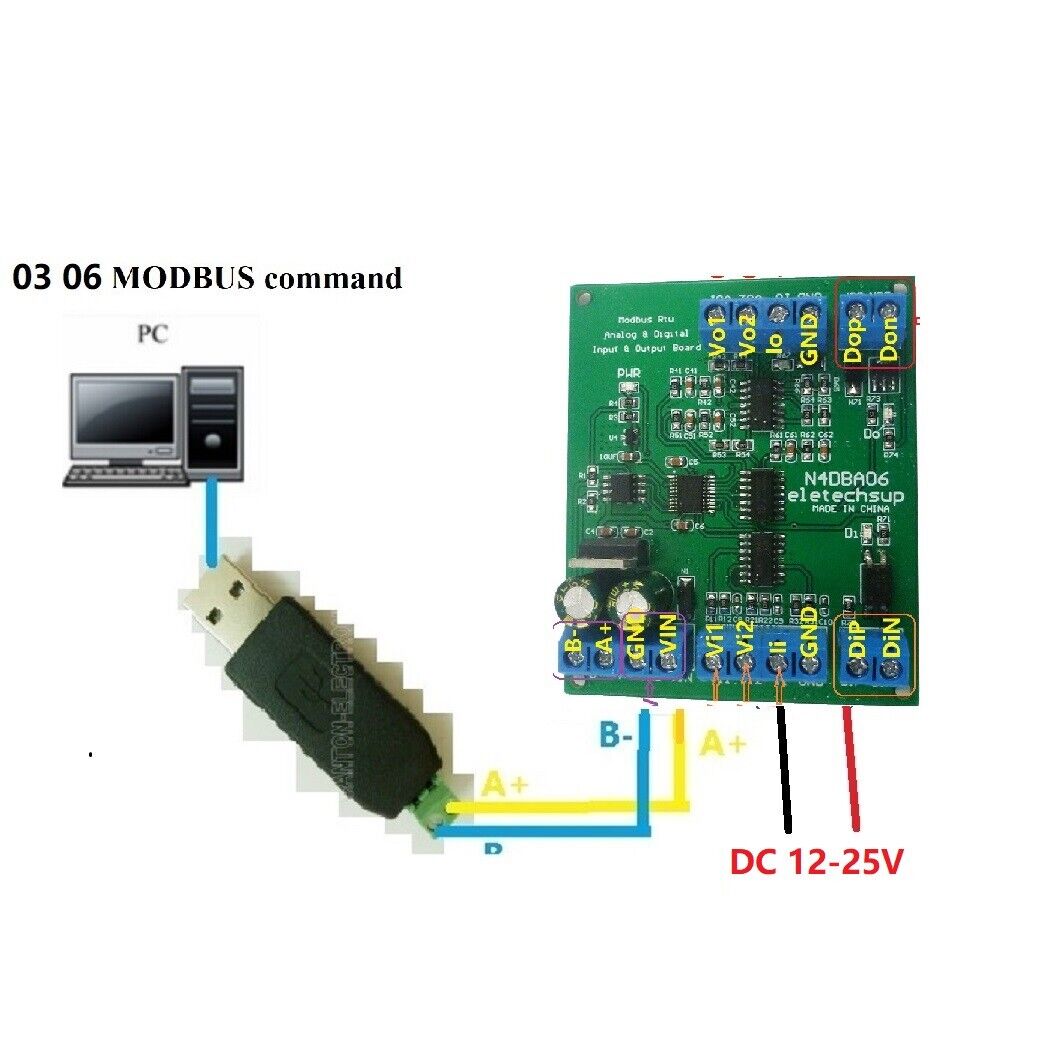

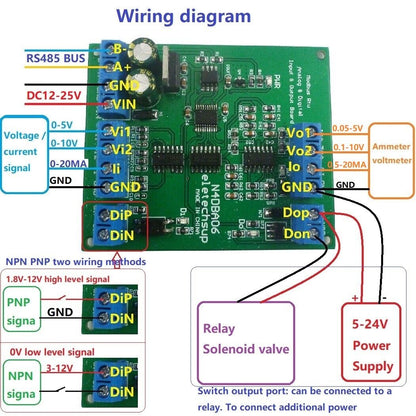

3 DiP DiN is a passive switch input port (see the figure below for wiring)
4 DoP DoN is a passive switch output port (see the figure below for wiring)
1 Channel 1 (Vo1) output voltage range is 0.05V-5V, channel 2 (Vo2) output voltage range is 0.1V-10V, channel 3 (Io) output current range is 0.5-20MA
2 At the moment of power-on, the current and voltage output ports have 10-20MS high pulses
3 DiP DiN is a passive switch input port (see the figure below for wiring)
4 DoP DoN is a passive switch output port (see the figure below for wiring)
0-5V/0-10V Input and output devices
Current and voltage signal transmission measuring
Automated industry PLC
Smart Home,Home Automation ;
Identification system;

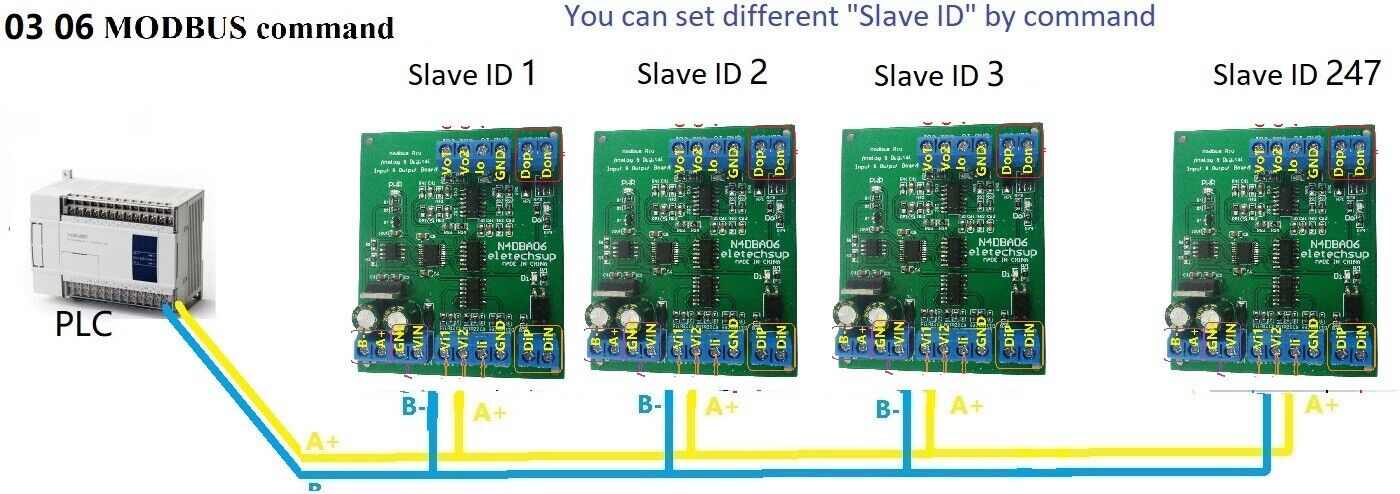

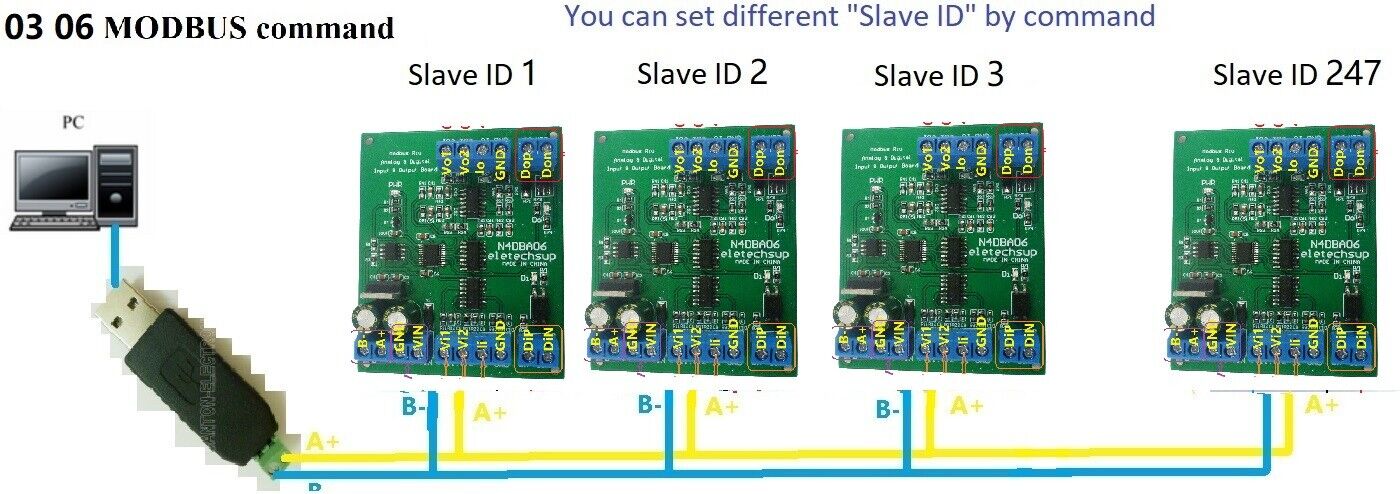

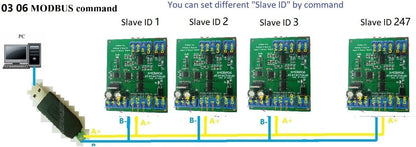

RS485 Remote monitoring;
Multimeter voltmeter
Current and voltage signal transmission measuring
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
